OEM Connector End Views
>>
Connector Views
Connector Views

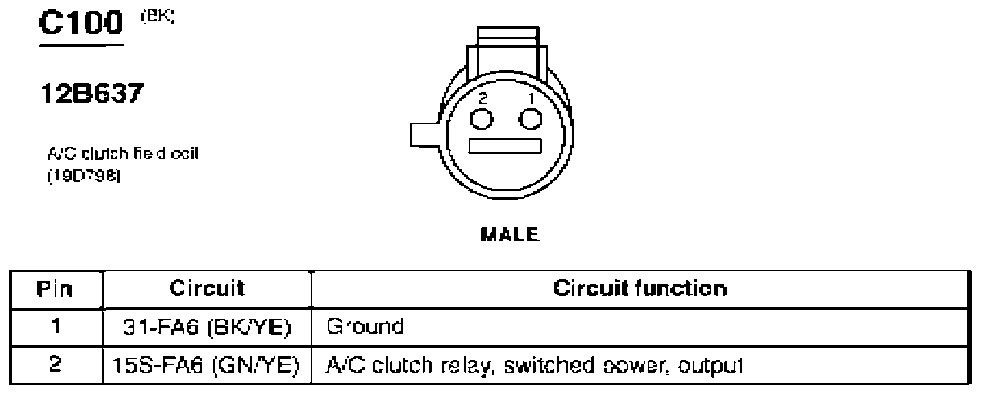

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

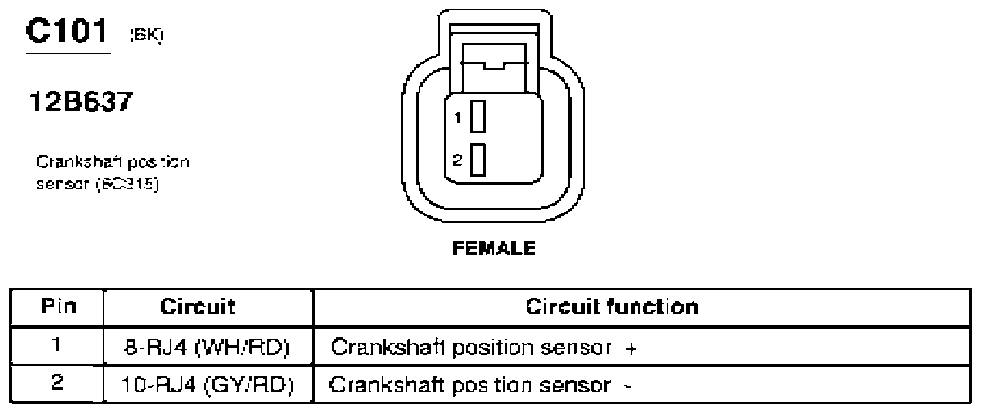

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

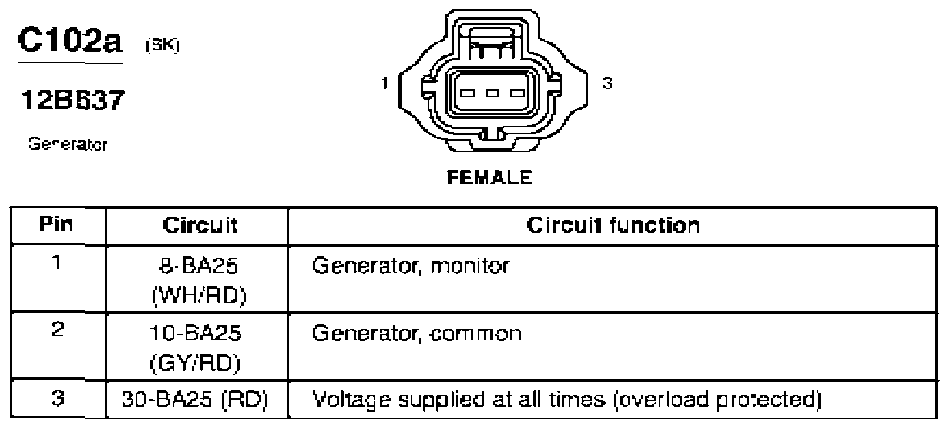

Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.

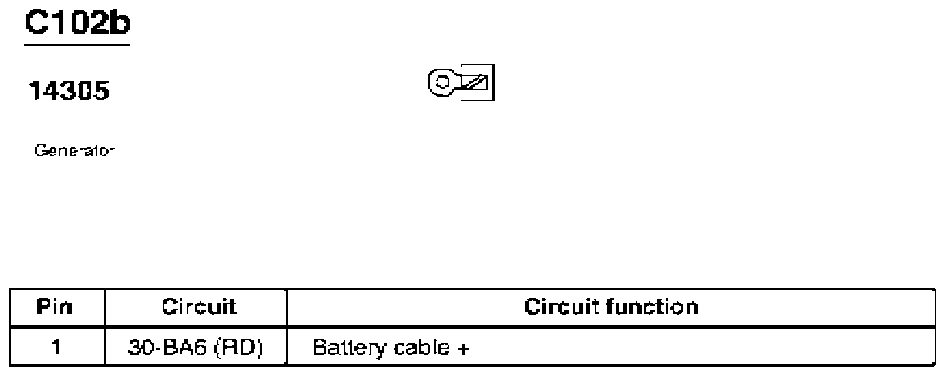

Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.

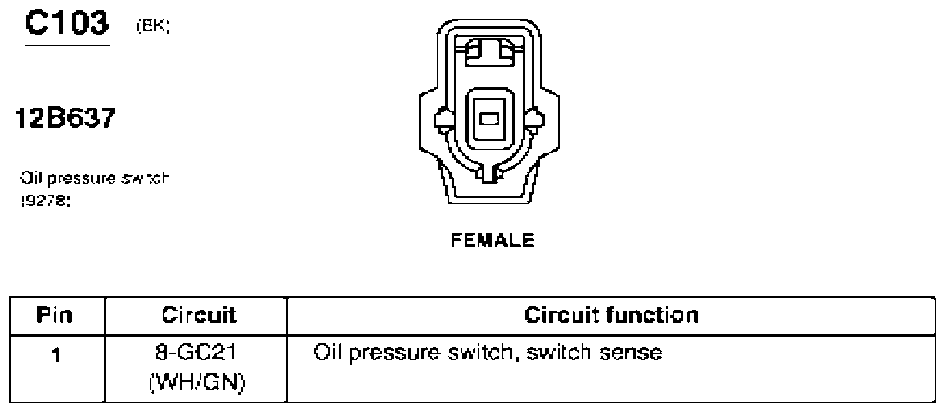

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

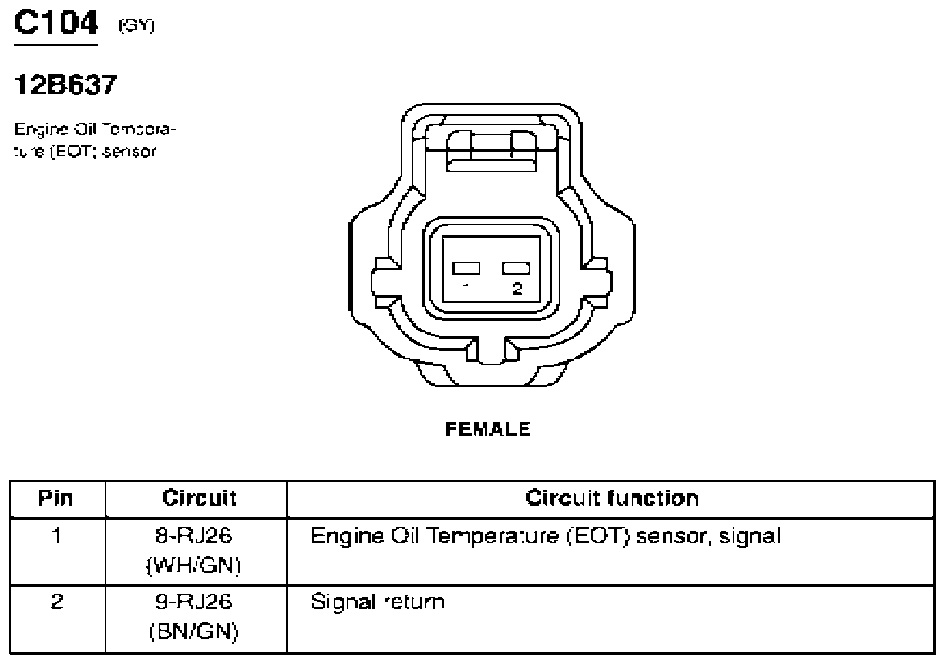

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)
Courtesy of FORD MOTOR CO.

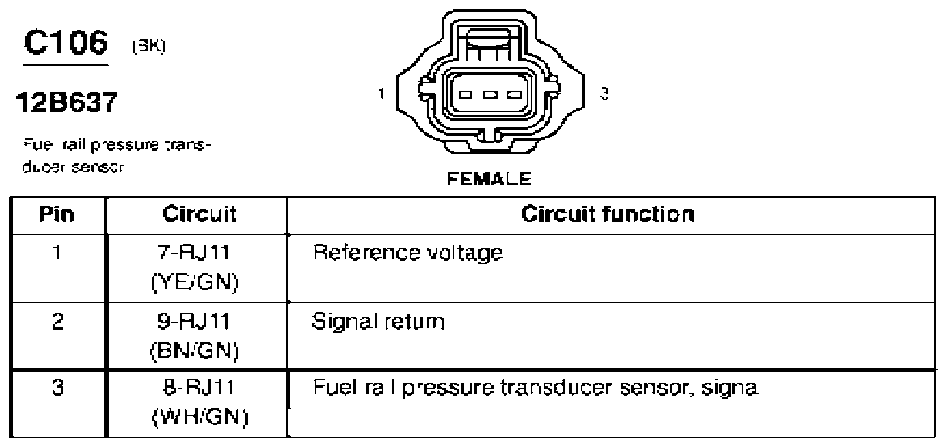

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
Courtesy of FORD MOTOR CO.

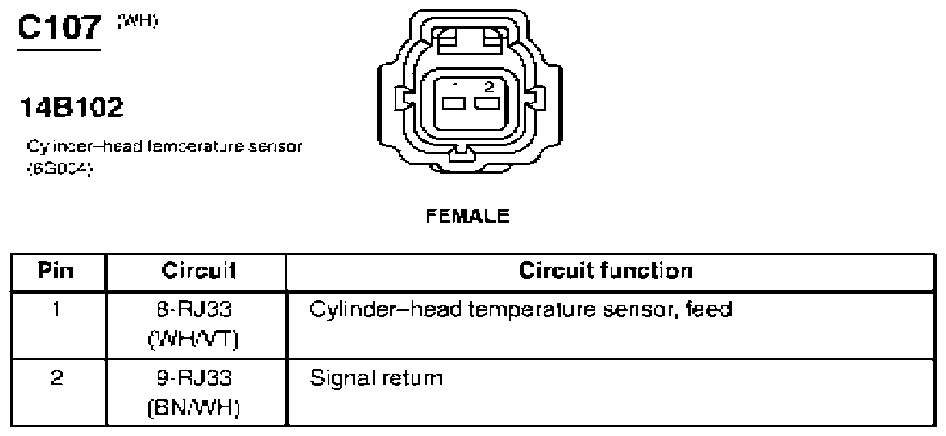

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

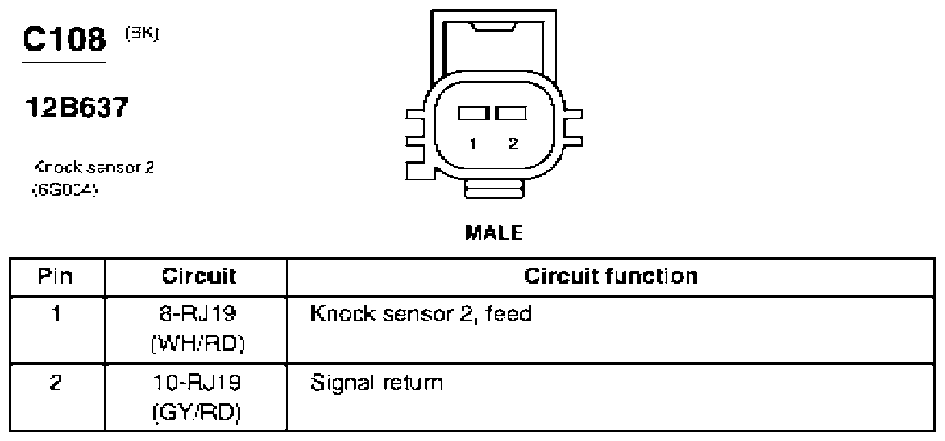

Fig 9: Knock Sensor 2 Connector End View (C108)
Courtesy of FORD MOTOR CO.

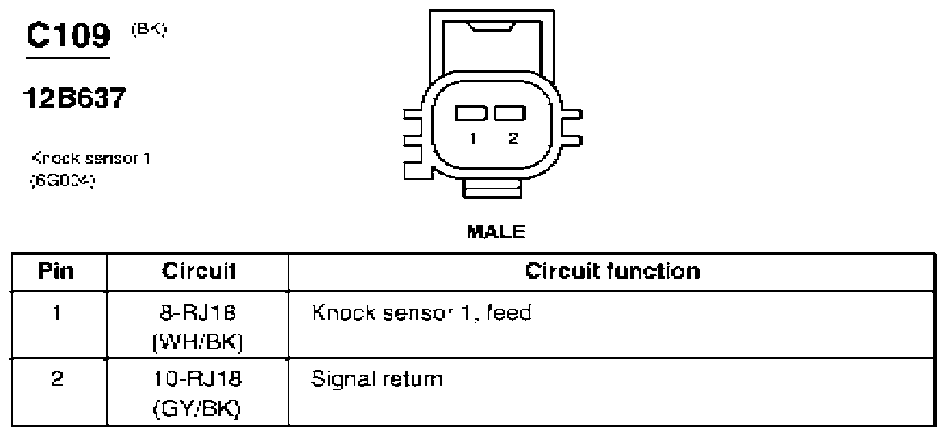

Fig 10: Knock Sensor 1 Connector End View (C109)
Courtesy of FORD MOTOR CO.

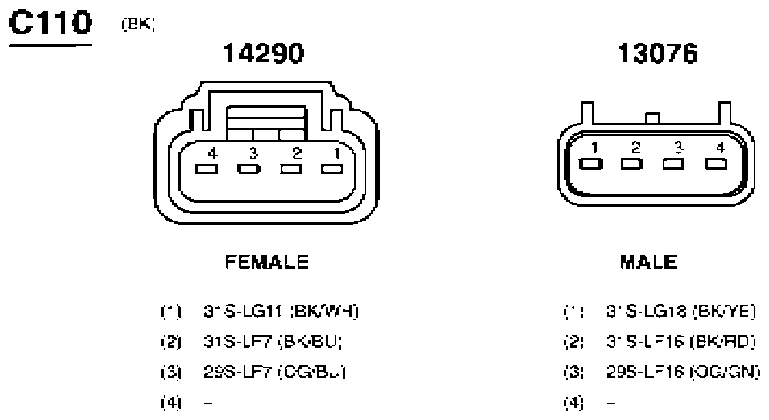

Fig 11: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

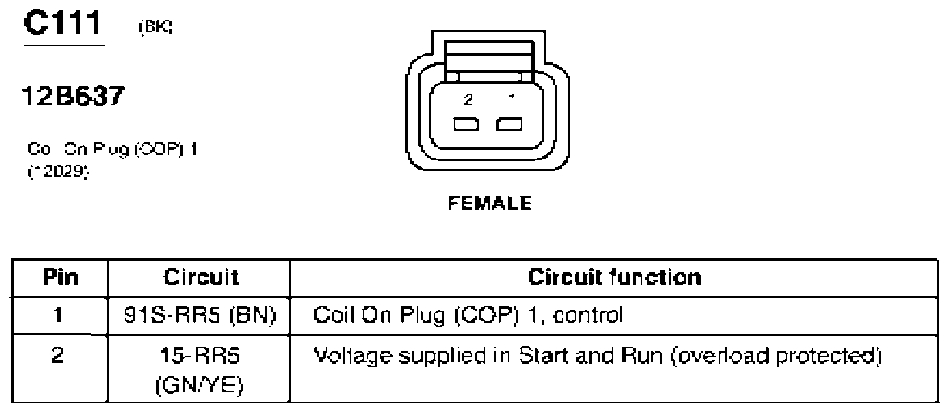

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.

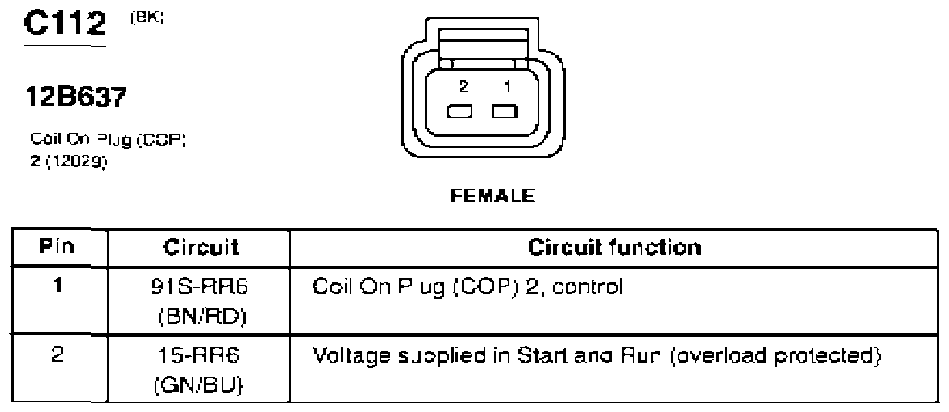

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.

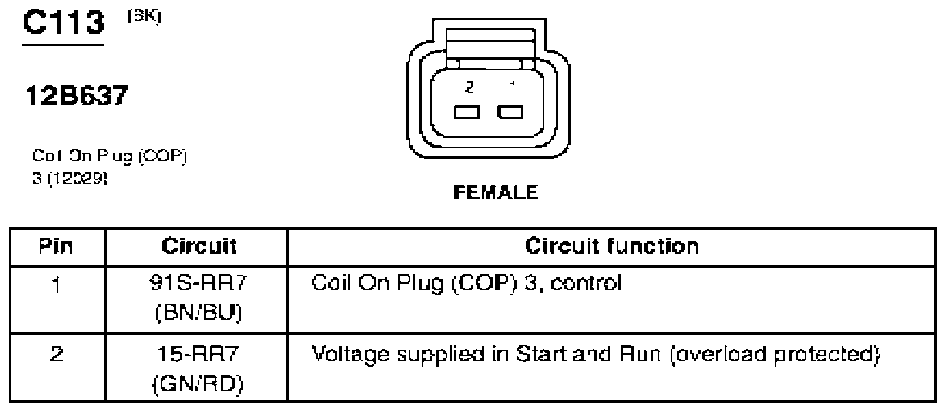

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.

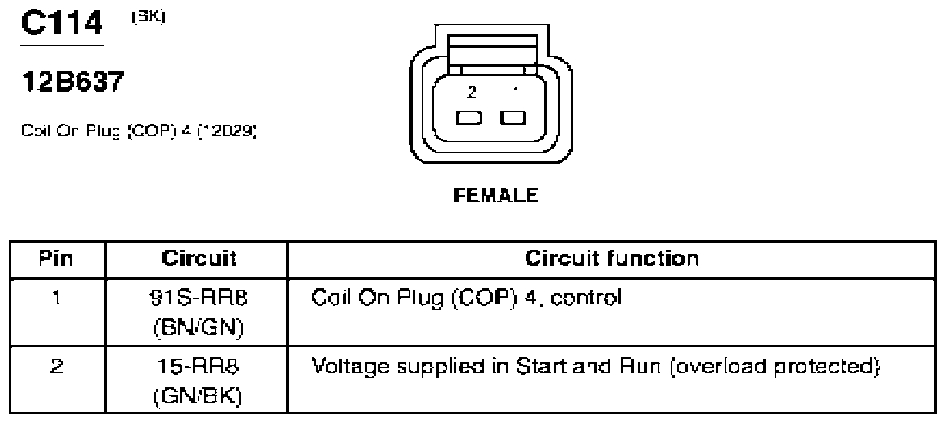

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

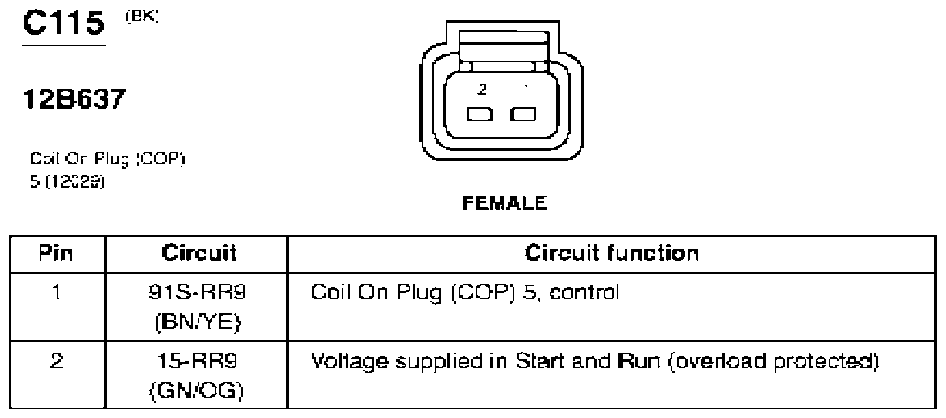

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.

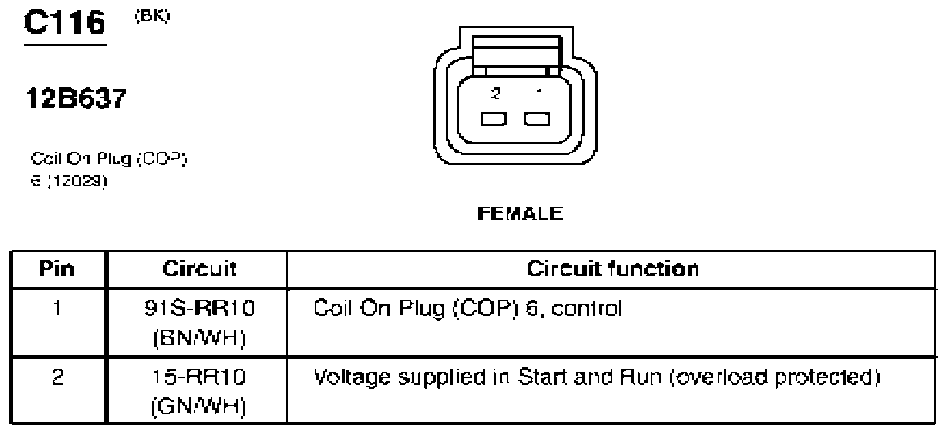

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

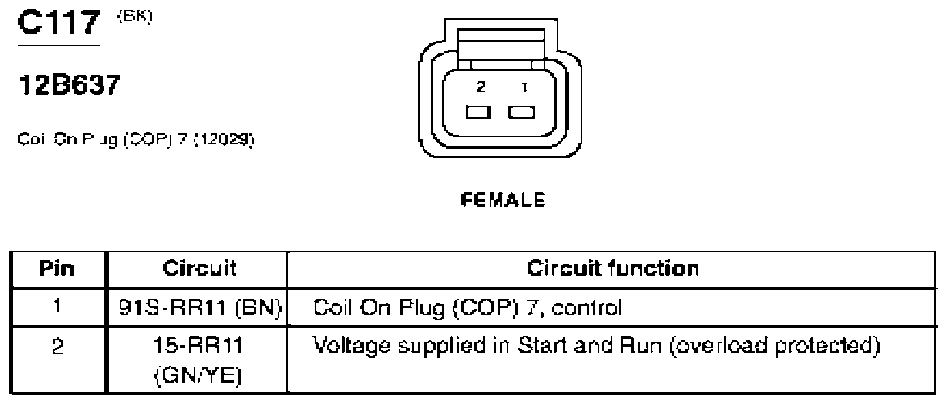

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.

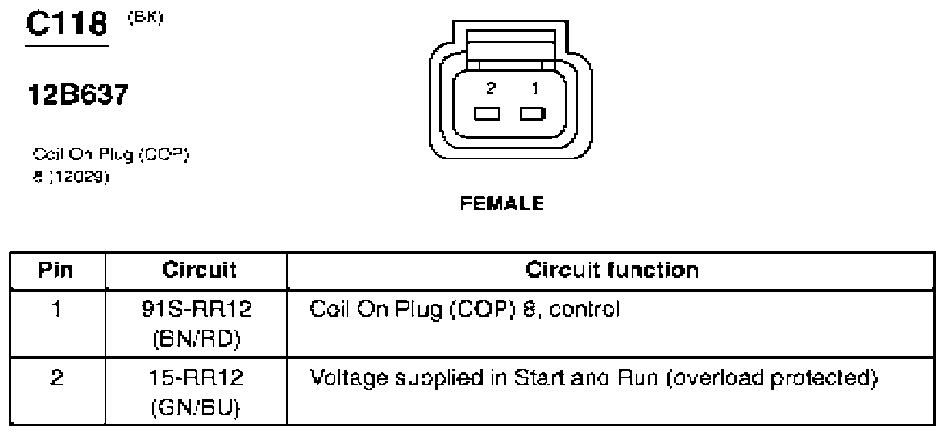

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

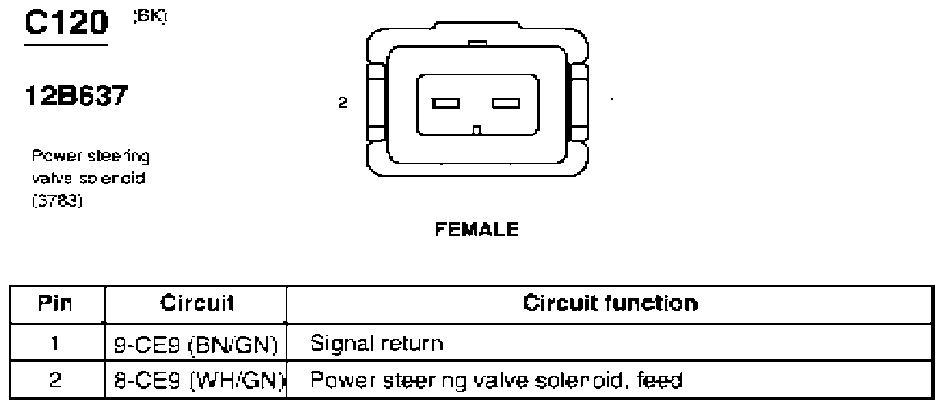

Fig 20: Power Steering Valve Solenoid Connector End View (C120)
Courtesy of FORD MOTOR CO.

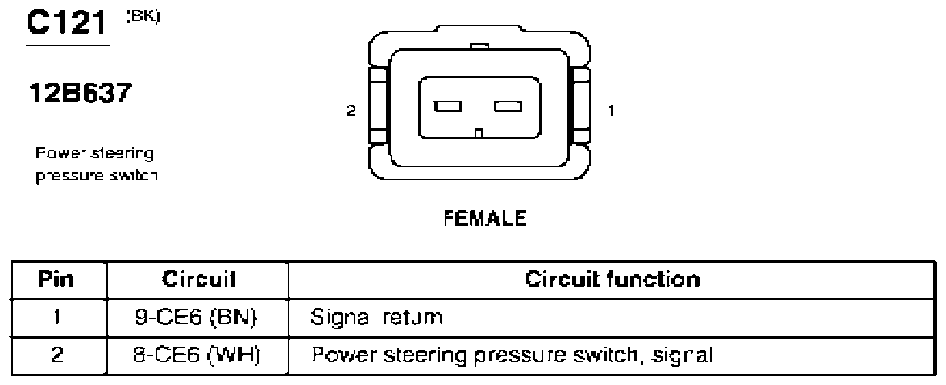

Fig 21: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

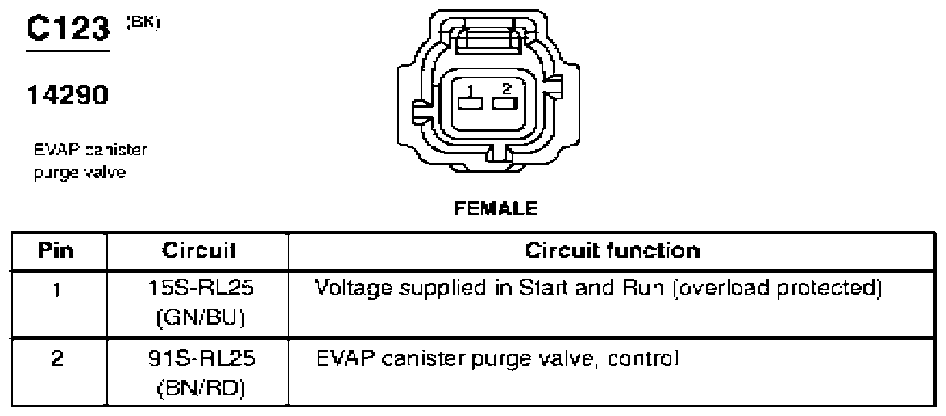

Fig 22: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

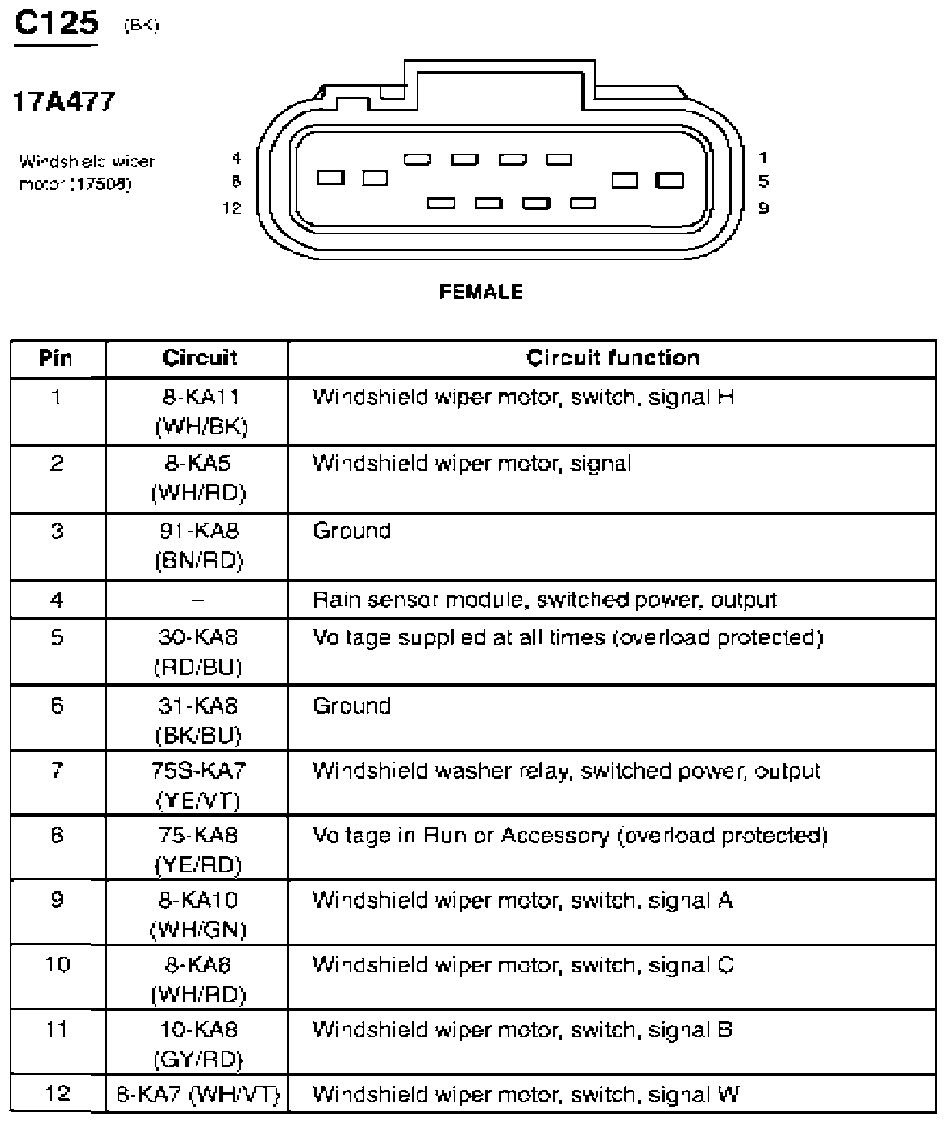

Fig 23: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

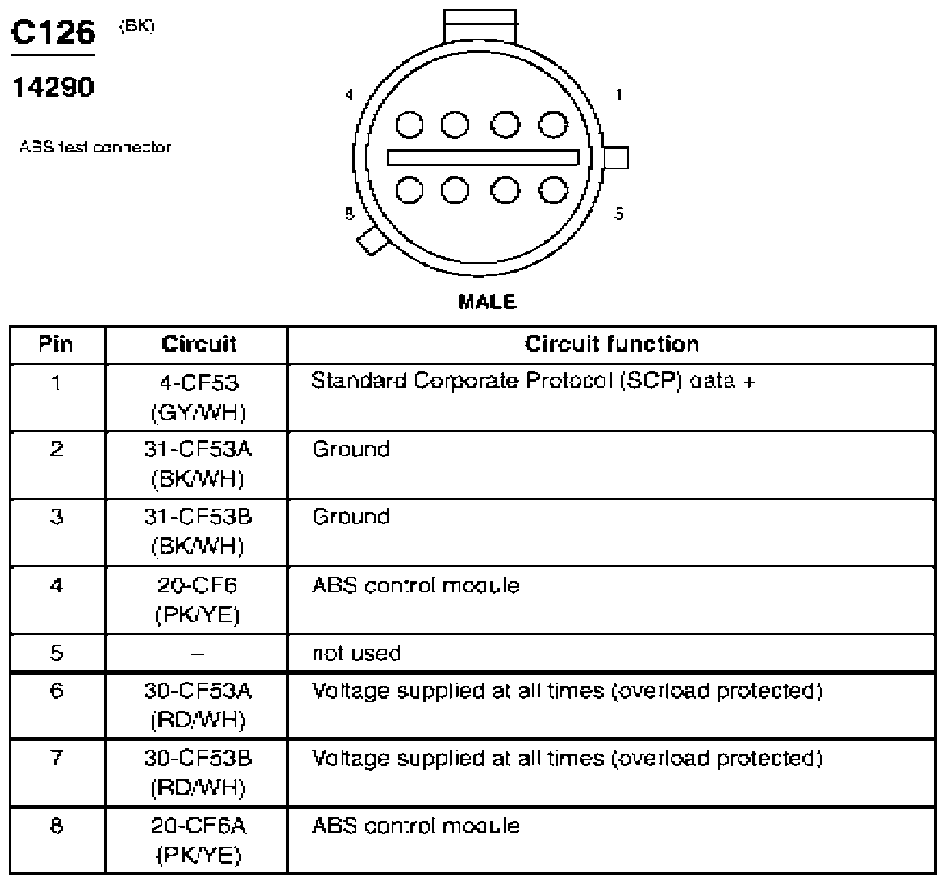

Fig 24: ABS Test Connector End View (C126)
Courtesy of FORD MOTOR CO.

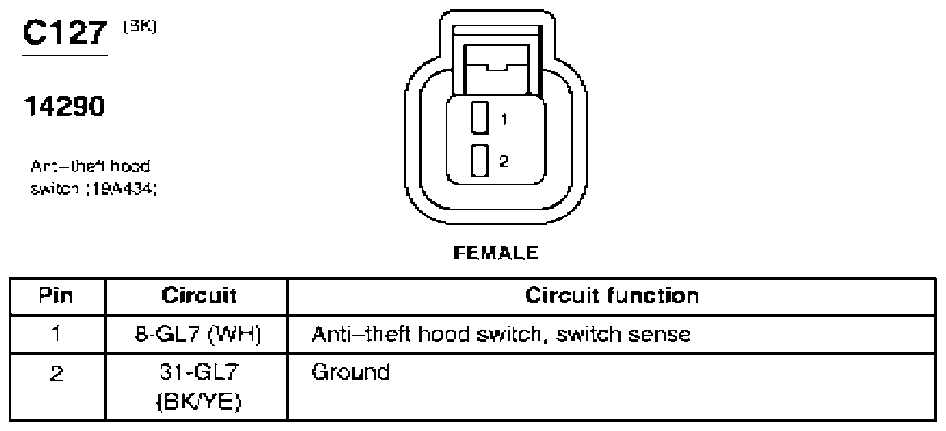

Fig 25: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

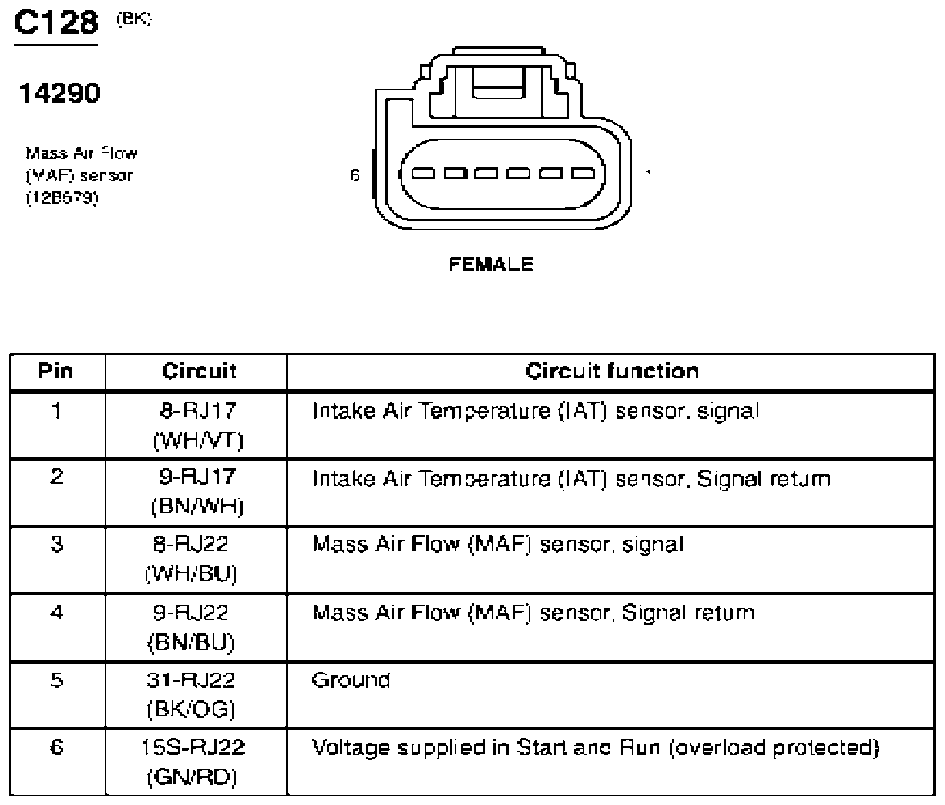

Fig 26: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

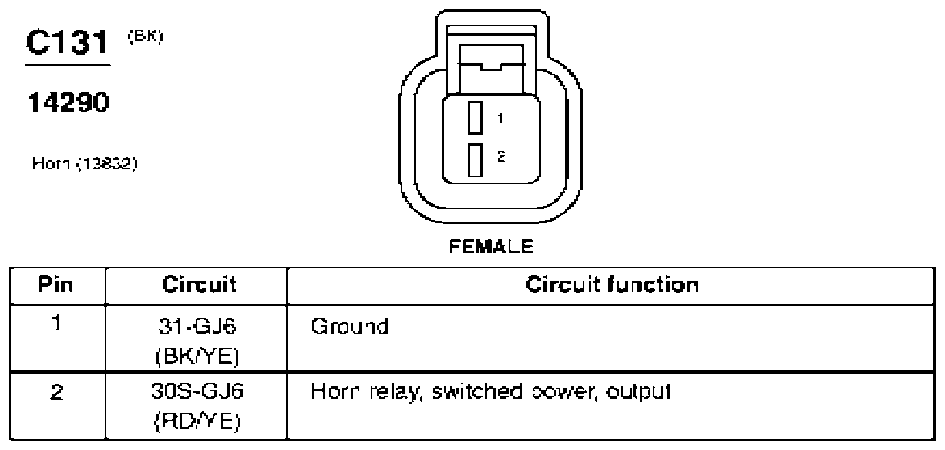

Fig 27: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

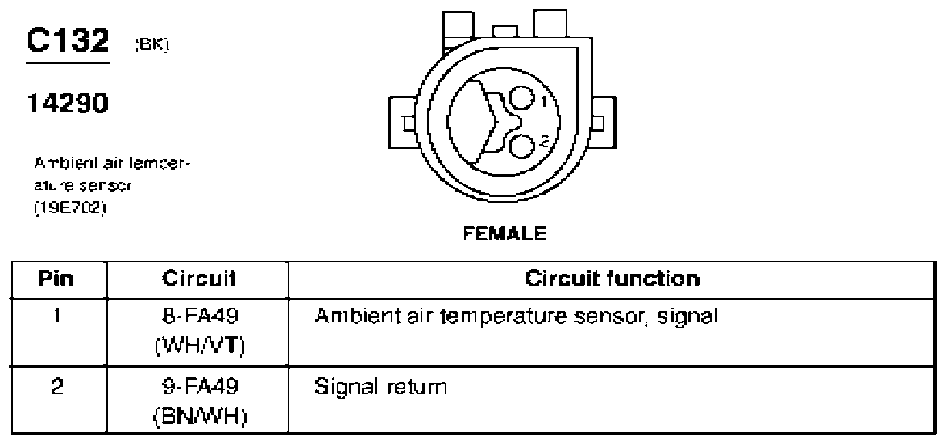

Fig 28: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

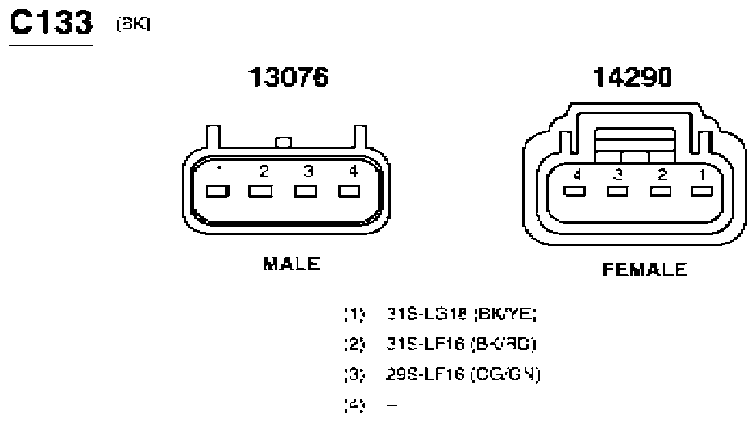

Fig 29: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

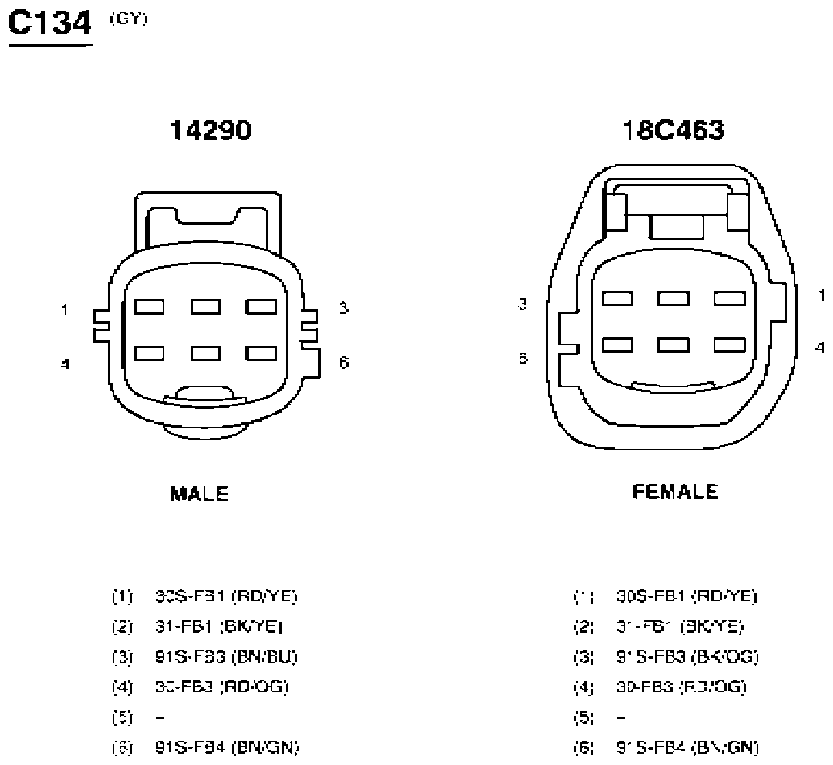

Fig 30: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

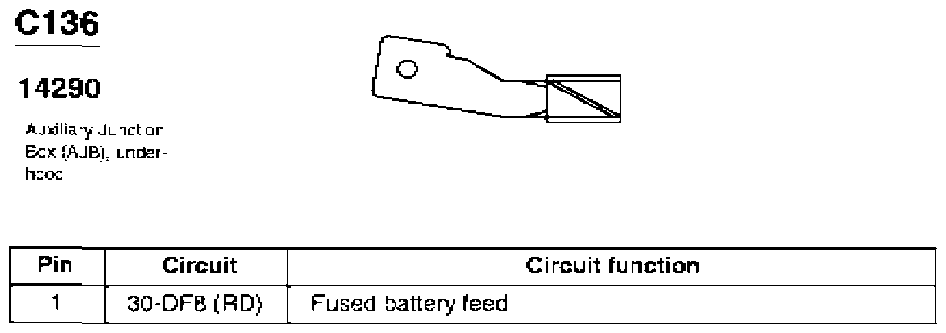

Fig 31: Auxiliary Junction Box (AJB), Under Connector End View (C136)
Courtesy of FORD MOTOR CO.

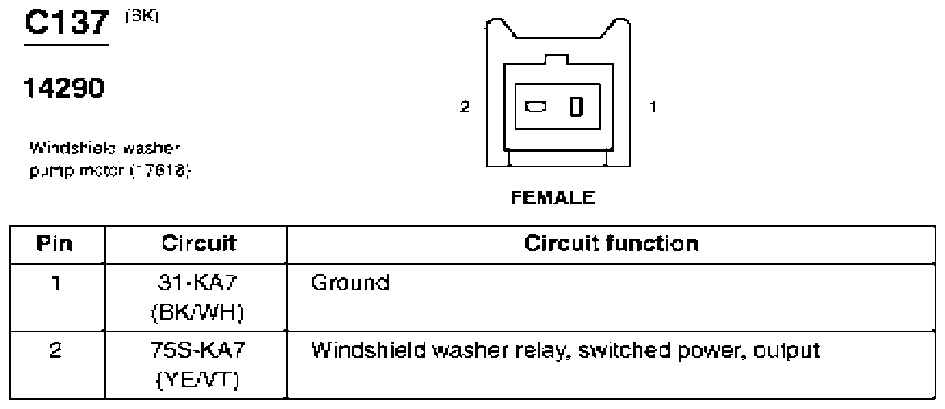

Fig 32: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

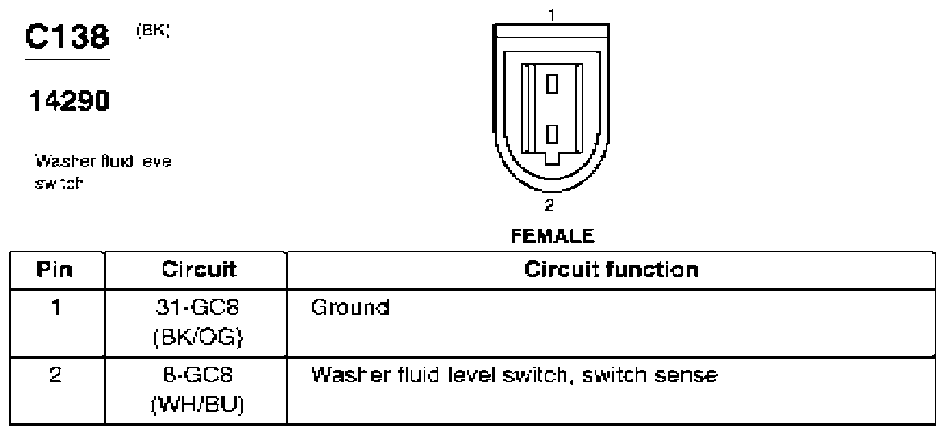

Fig 33: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

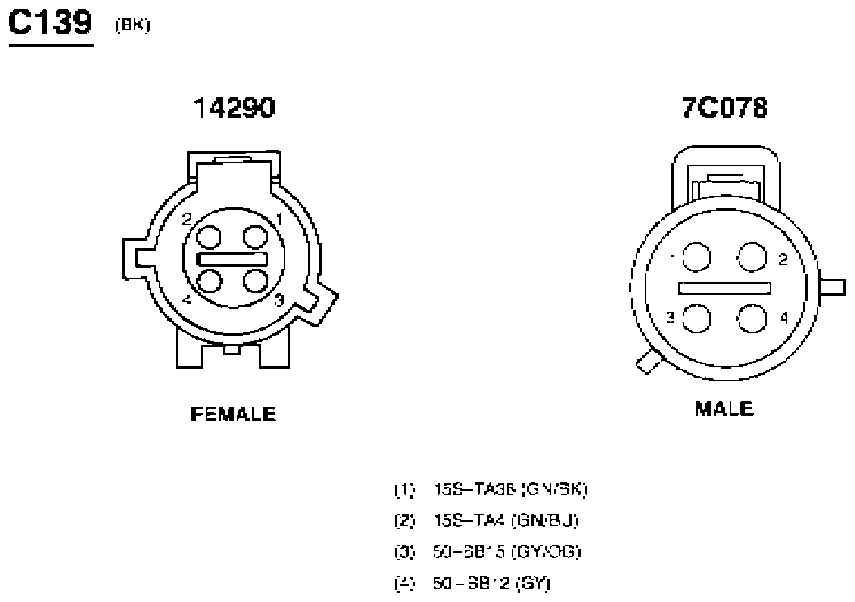

Fig 34: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

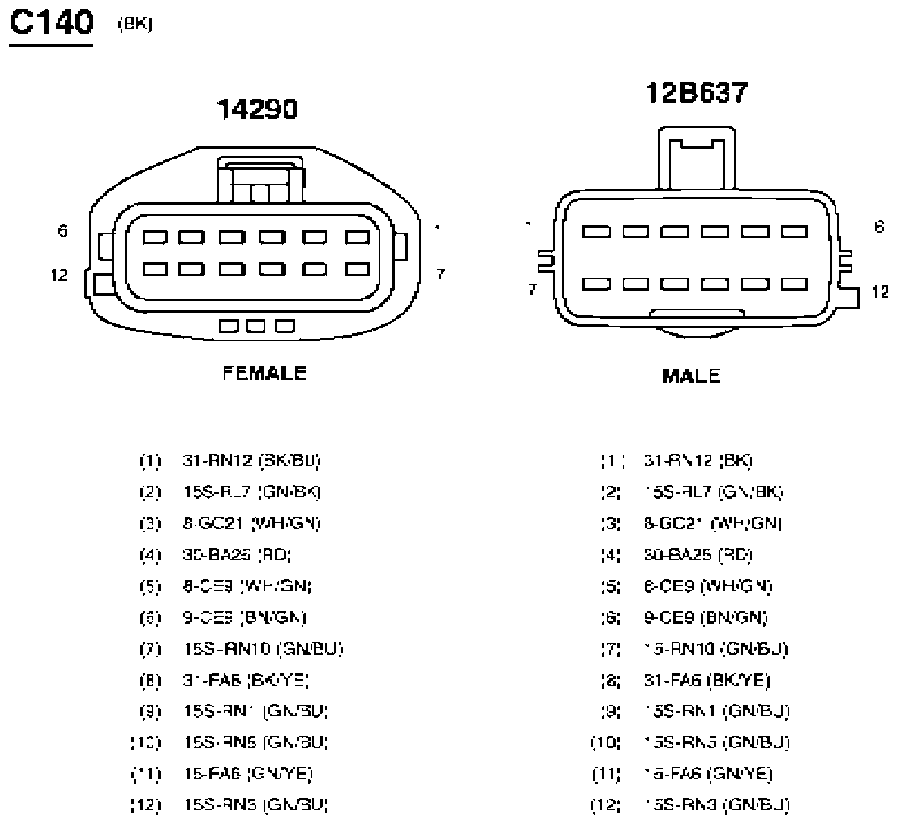

Fig 35: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.

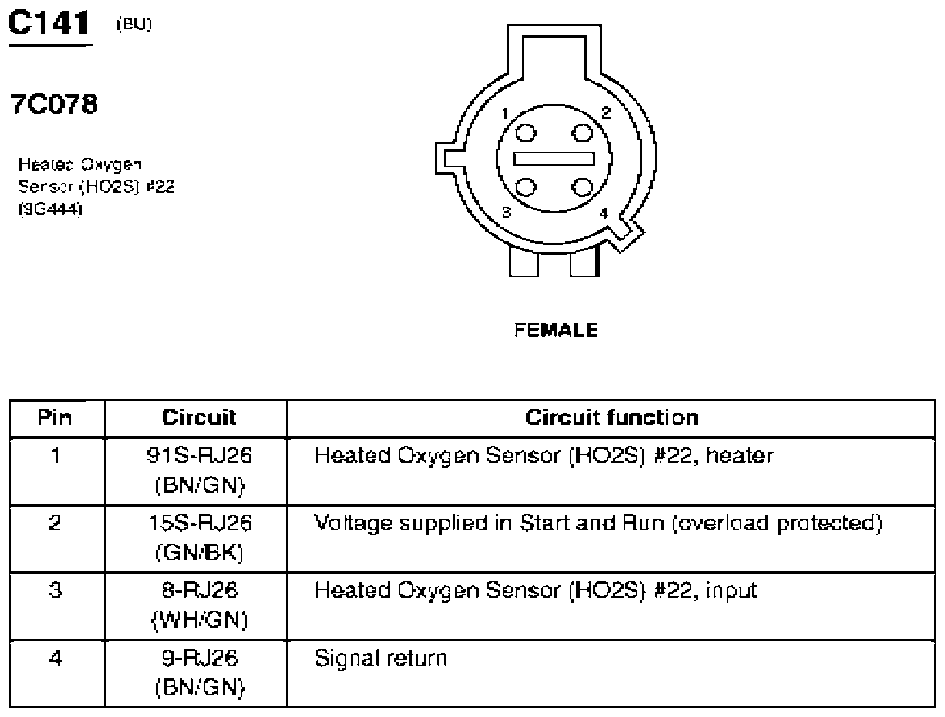

Fig 36: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

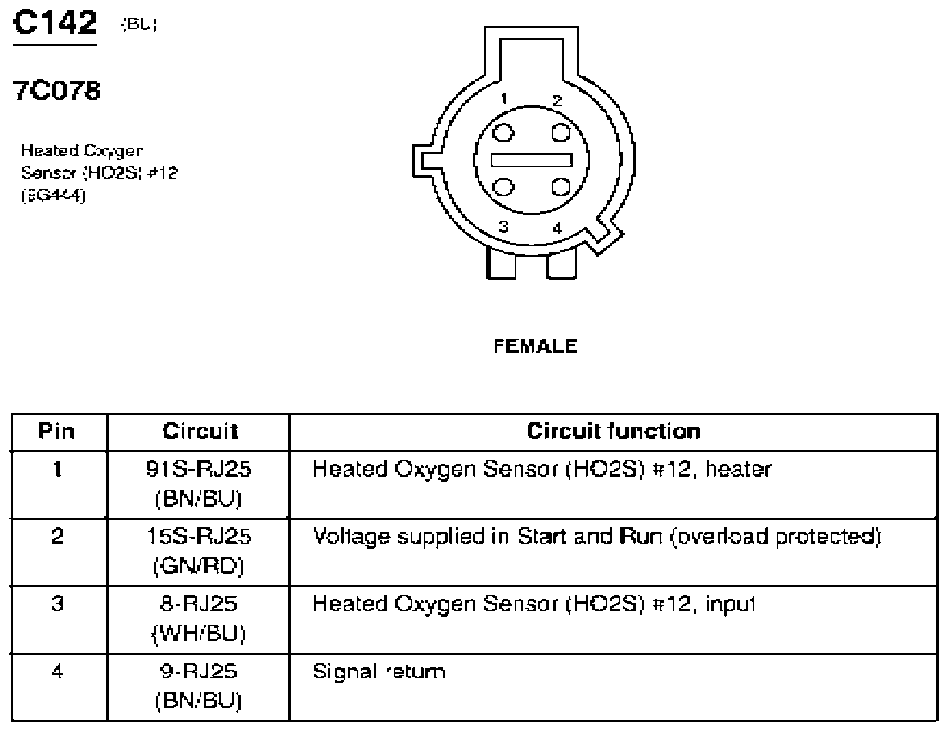

Fig 37: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

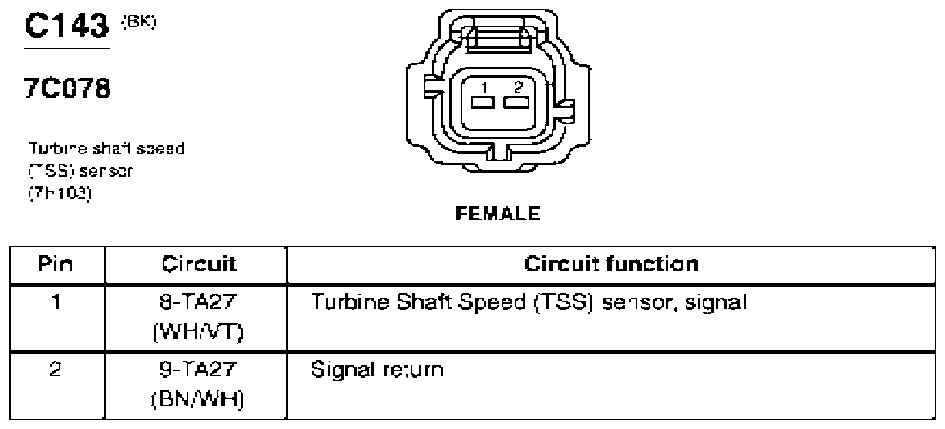

Fig 38: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

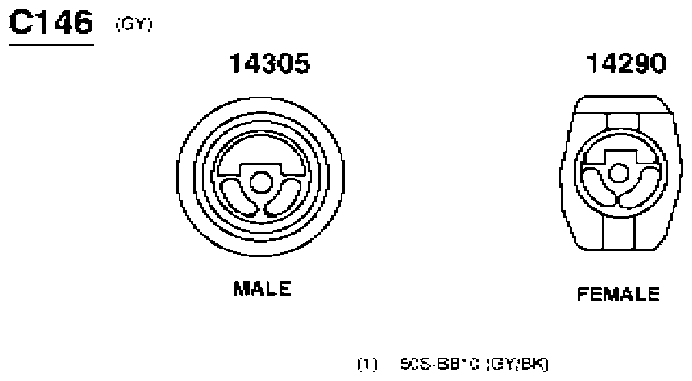

Fig 39: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

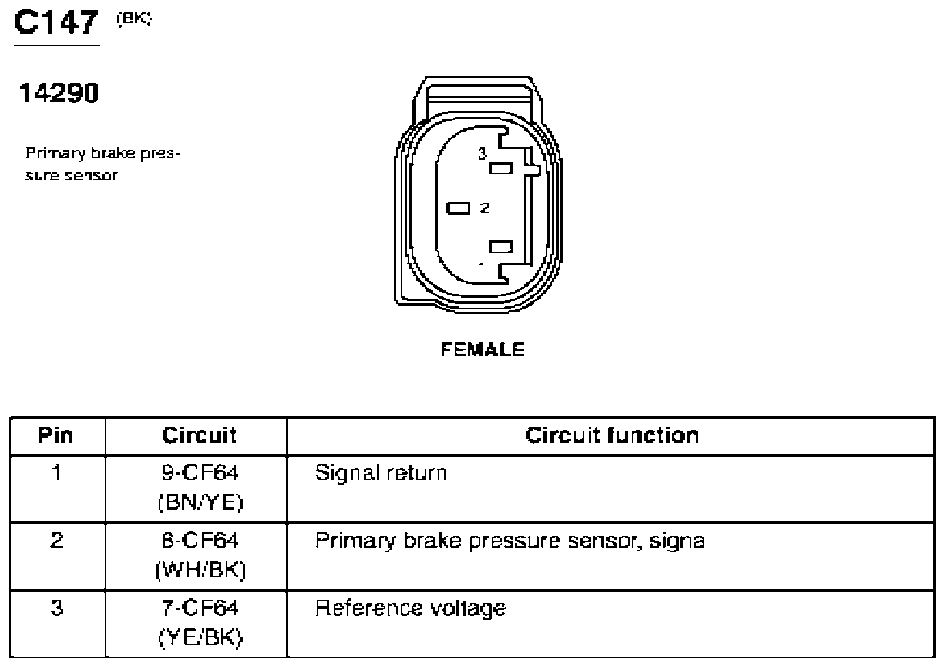

Fig 40: Primary Brake Pressure Sensor Connector End View (C147)
Courtesy of FORD MOTOR CO.

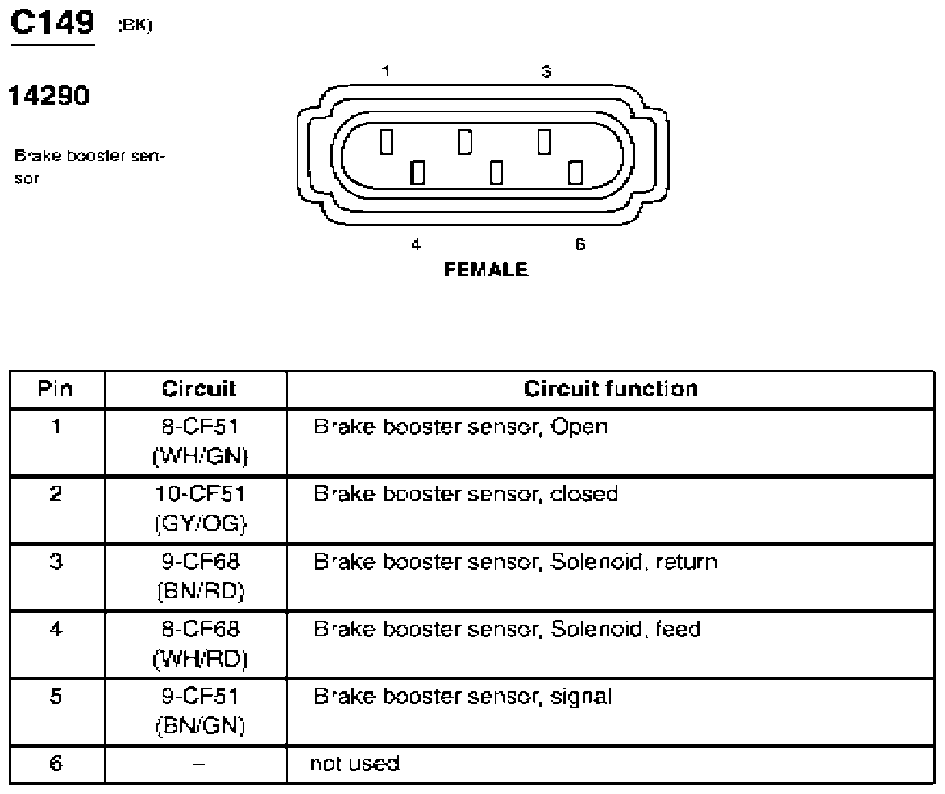

Fig 41: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

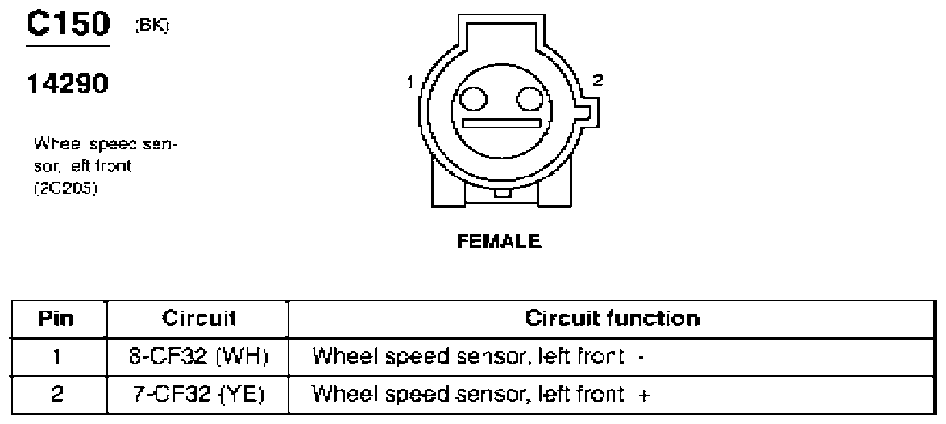

Fig 42: Wheel Speed Sensor Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

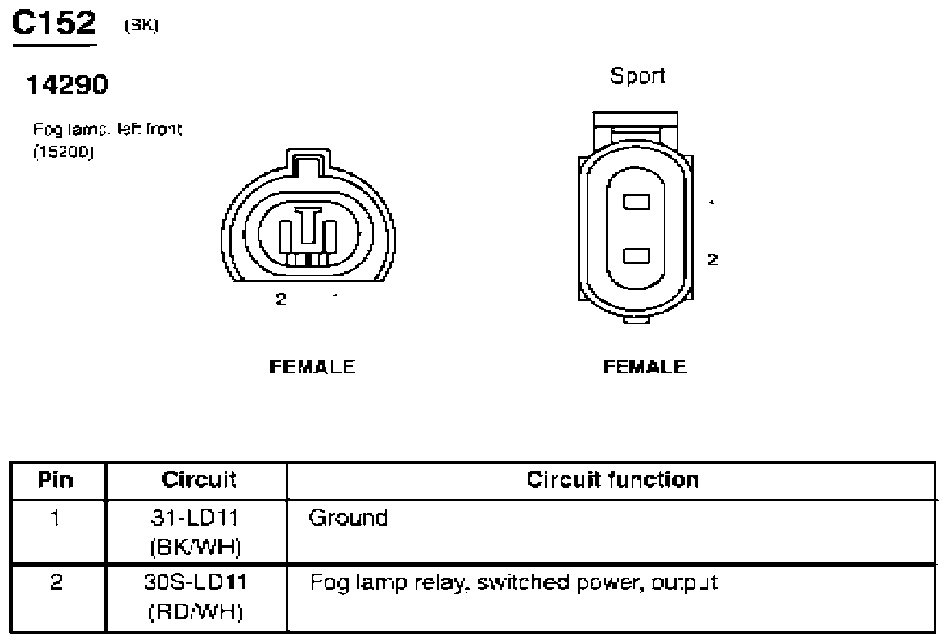

Fig 43: Fog Lamp Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

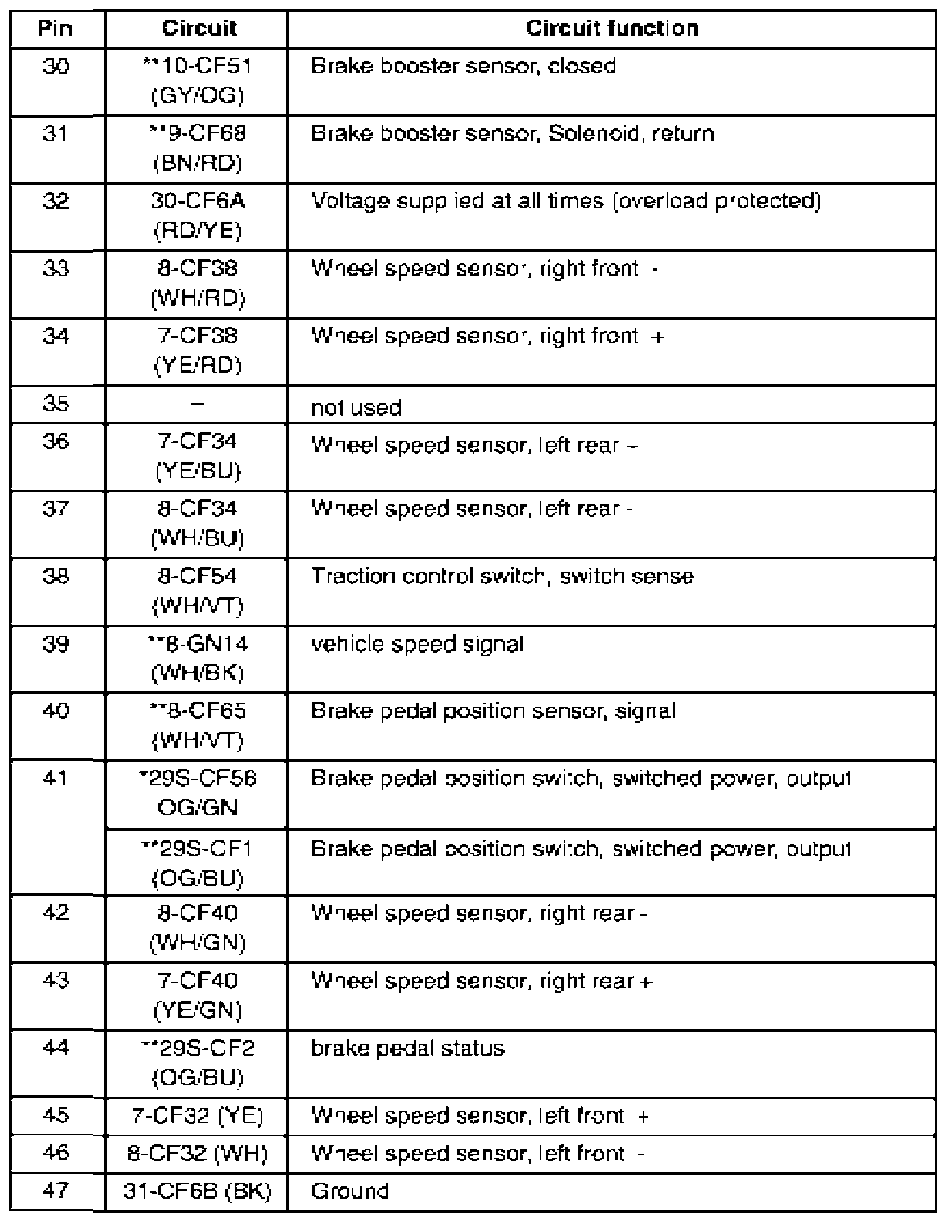

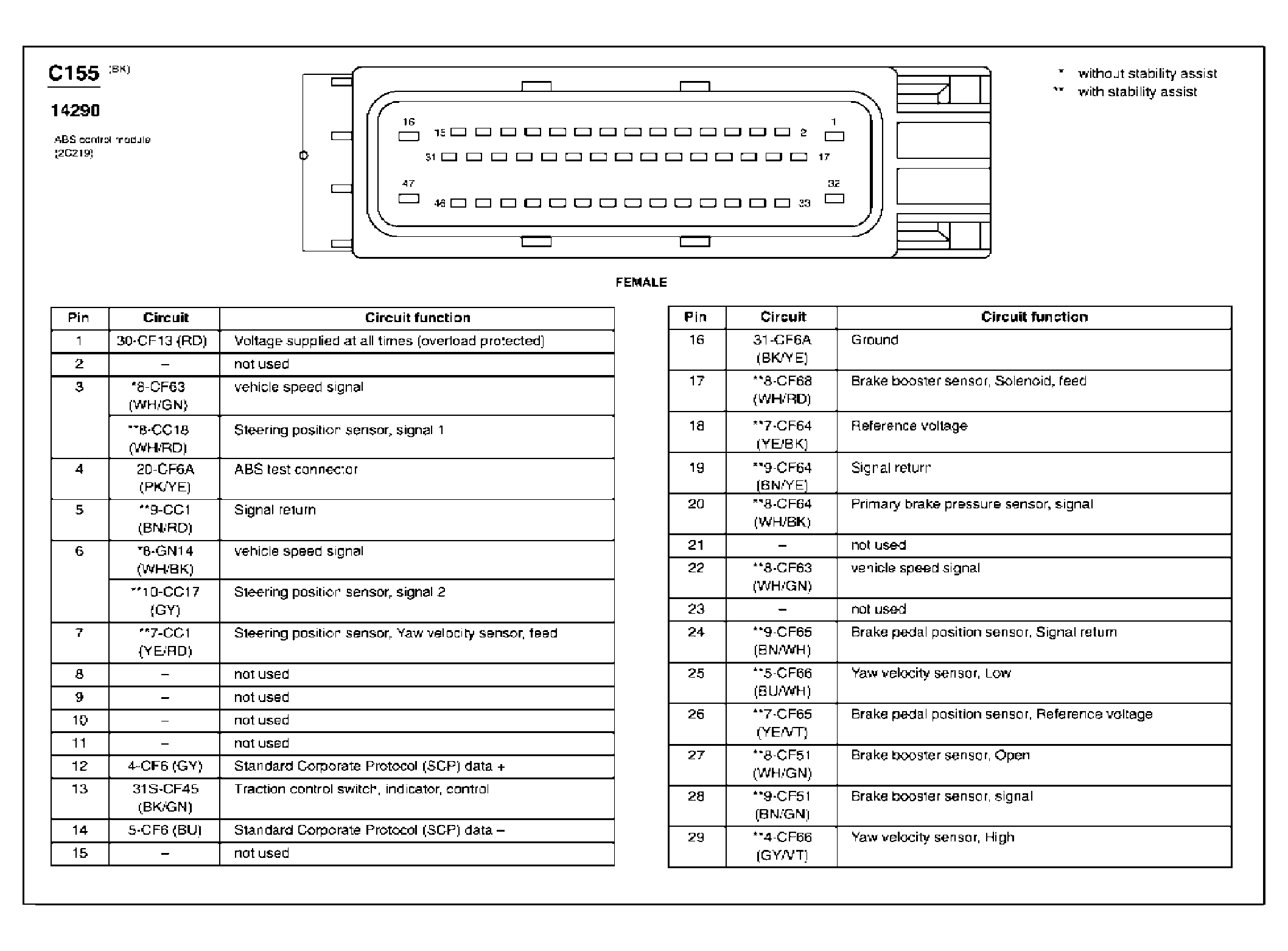

Fig 44: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 45: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.

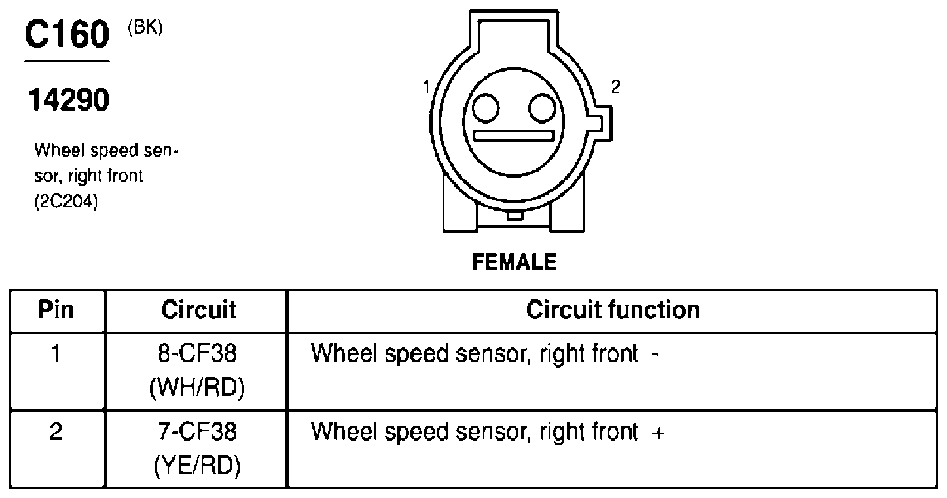

Fig 46: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

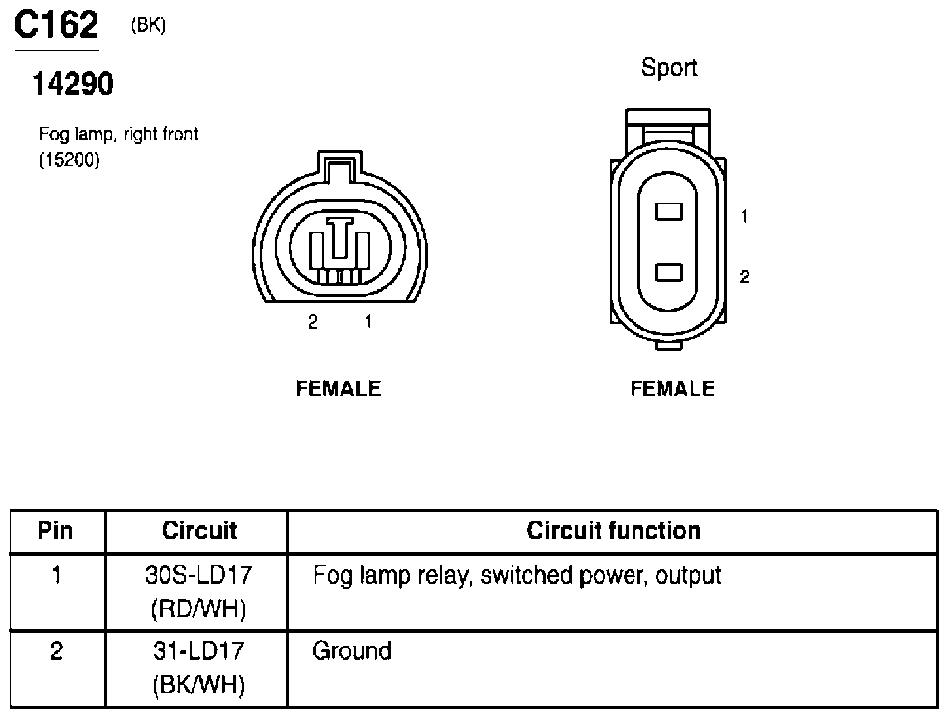

Fig 47: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

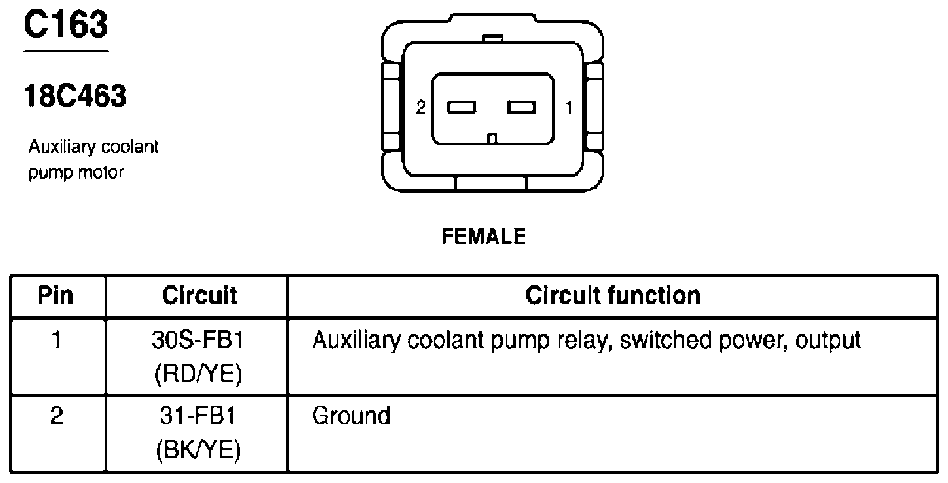

Fig 48: Auxiliary Coolant Pump Motor Connector End View (C163)
Courtesy of FORD MOTOR CO.

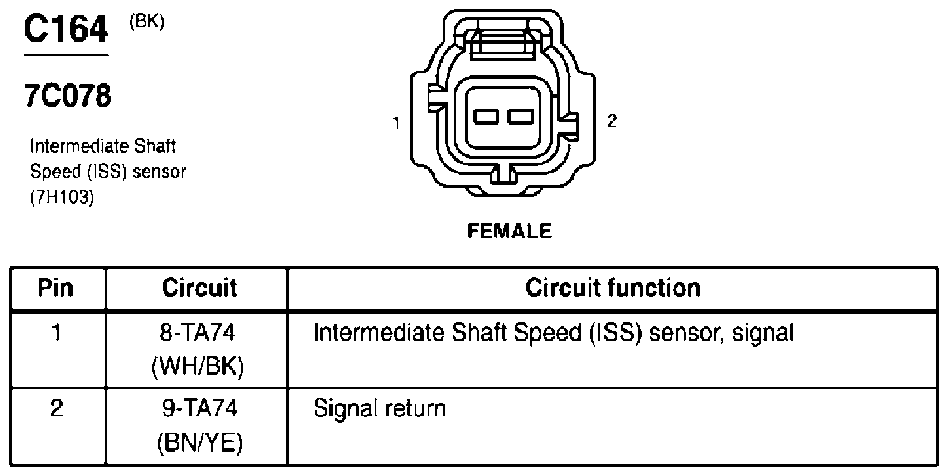

Fig 49: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)
Courtesy of FORD MOTOR CO.
Fig 50: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

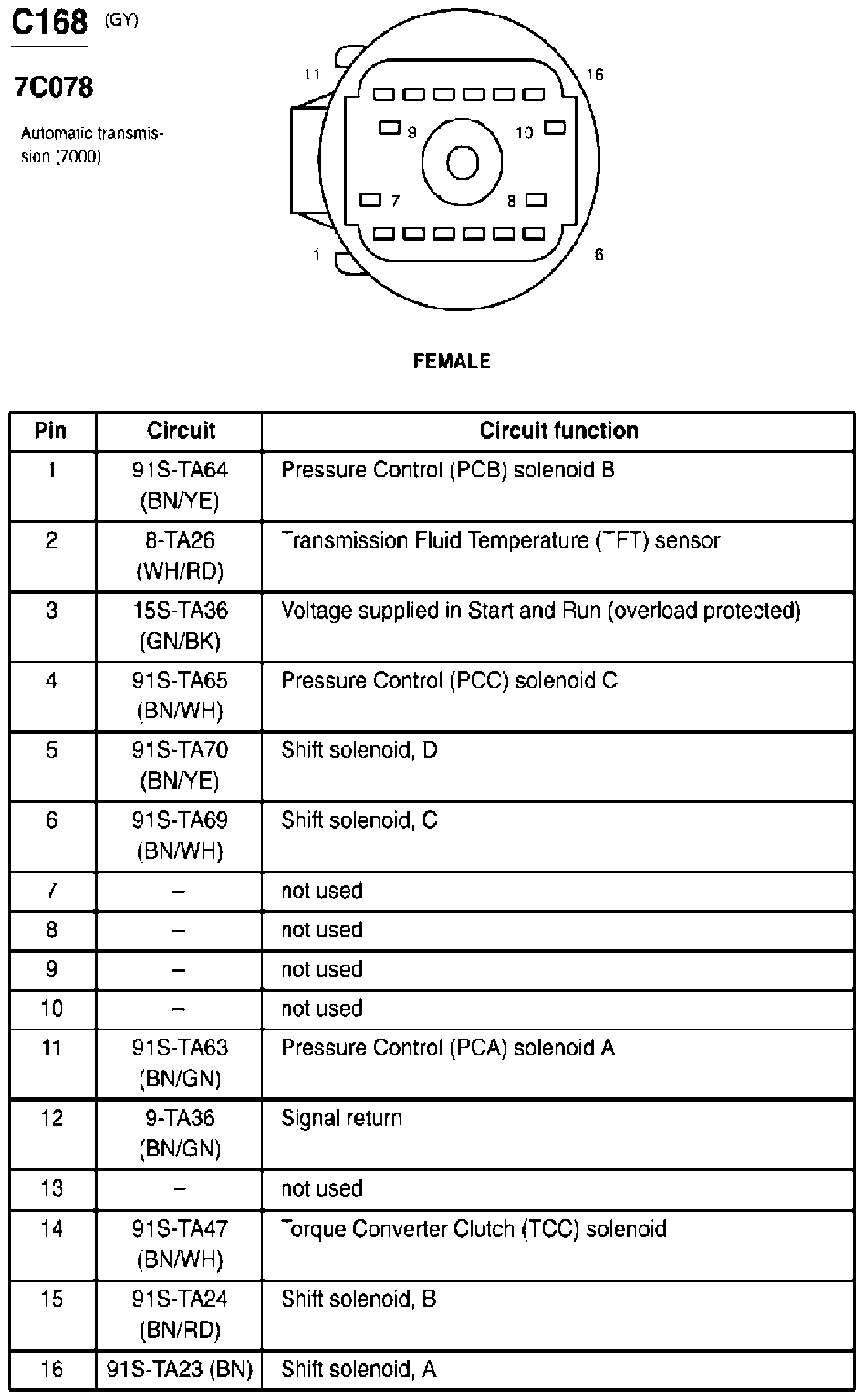

Fig 51: Automatic Transmission Connector End View (C168)
Courtesy of FORD MOTOR CO.

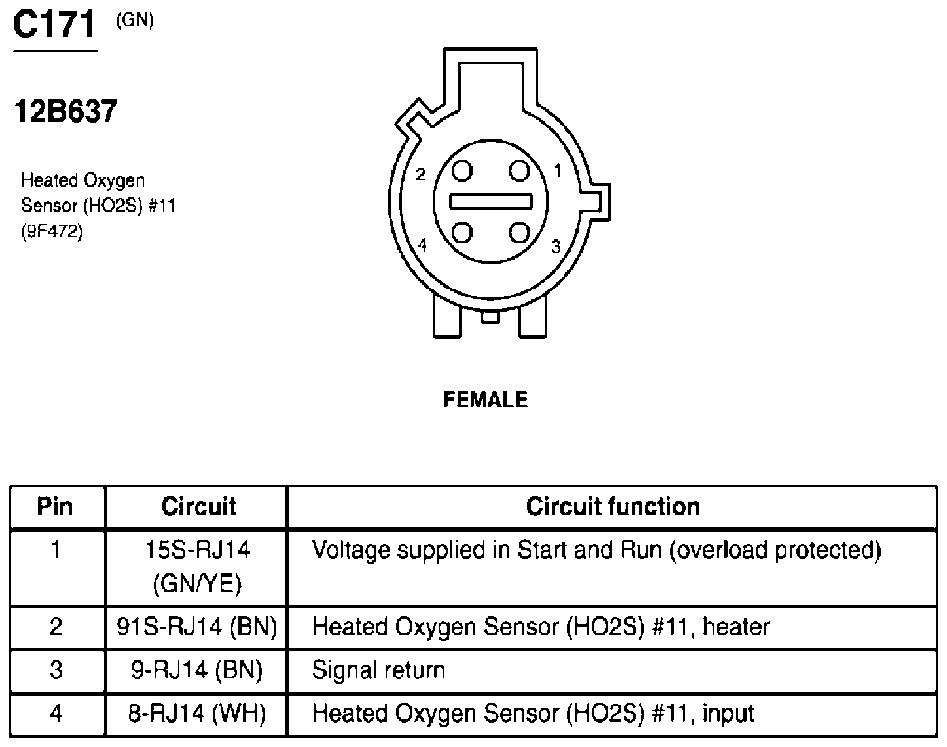

Fig 52: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

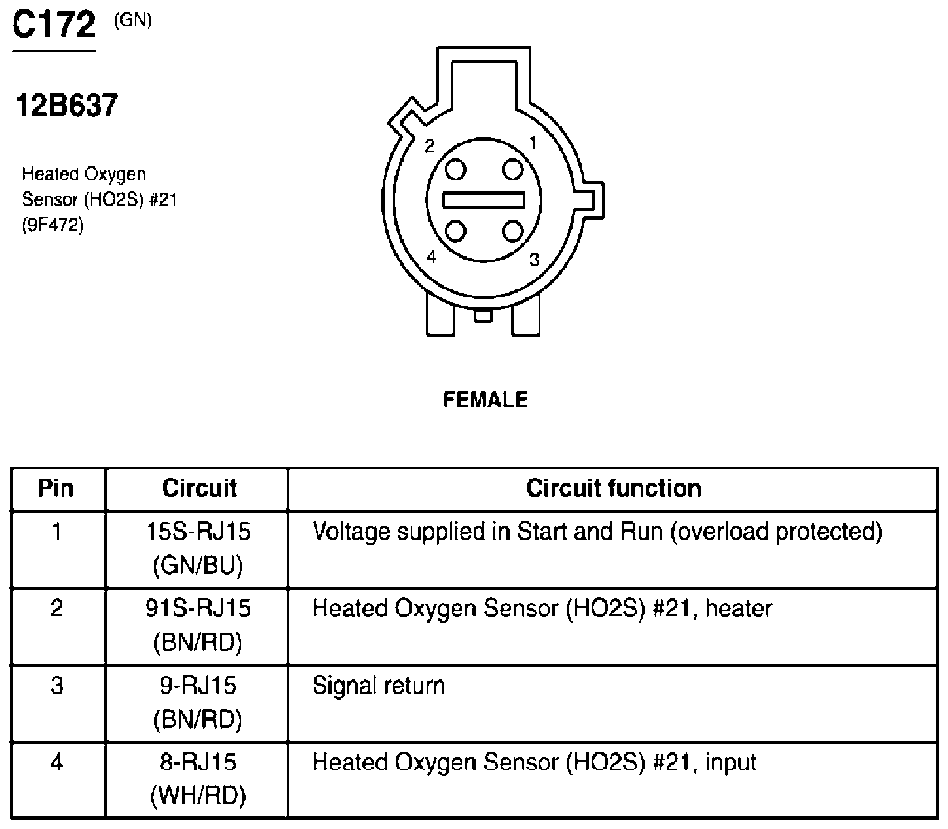

Fig 53: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

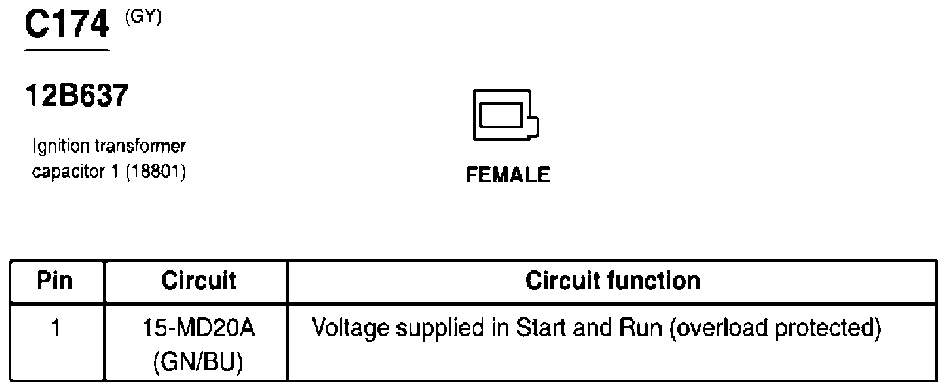

Fig 54: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

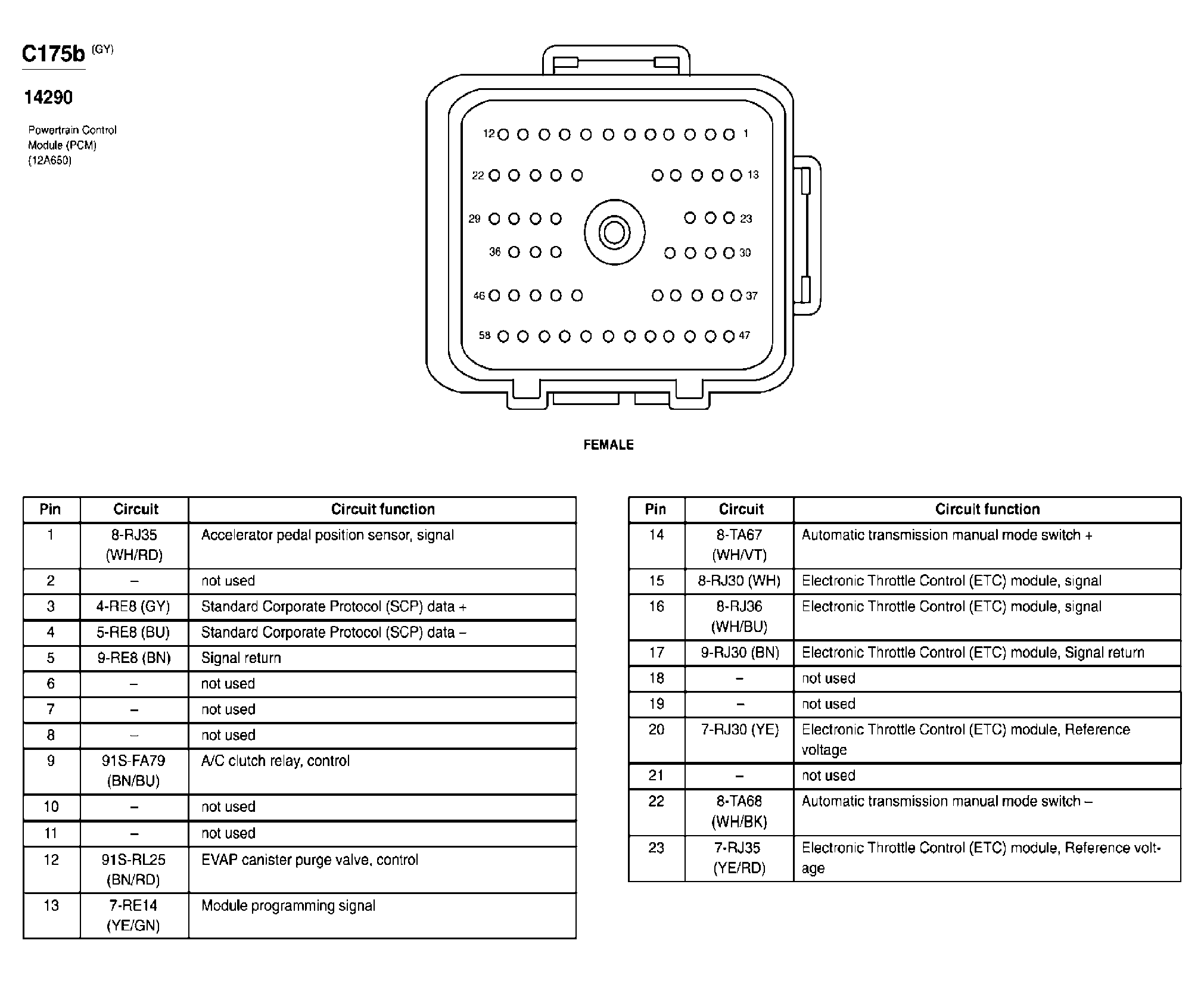

Fig 55: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
Courtesy of FORD MOTOR CO.

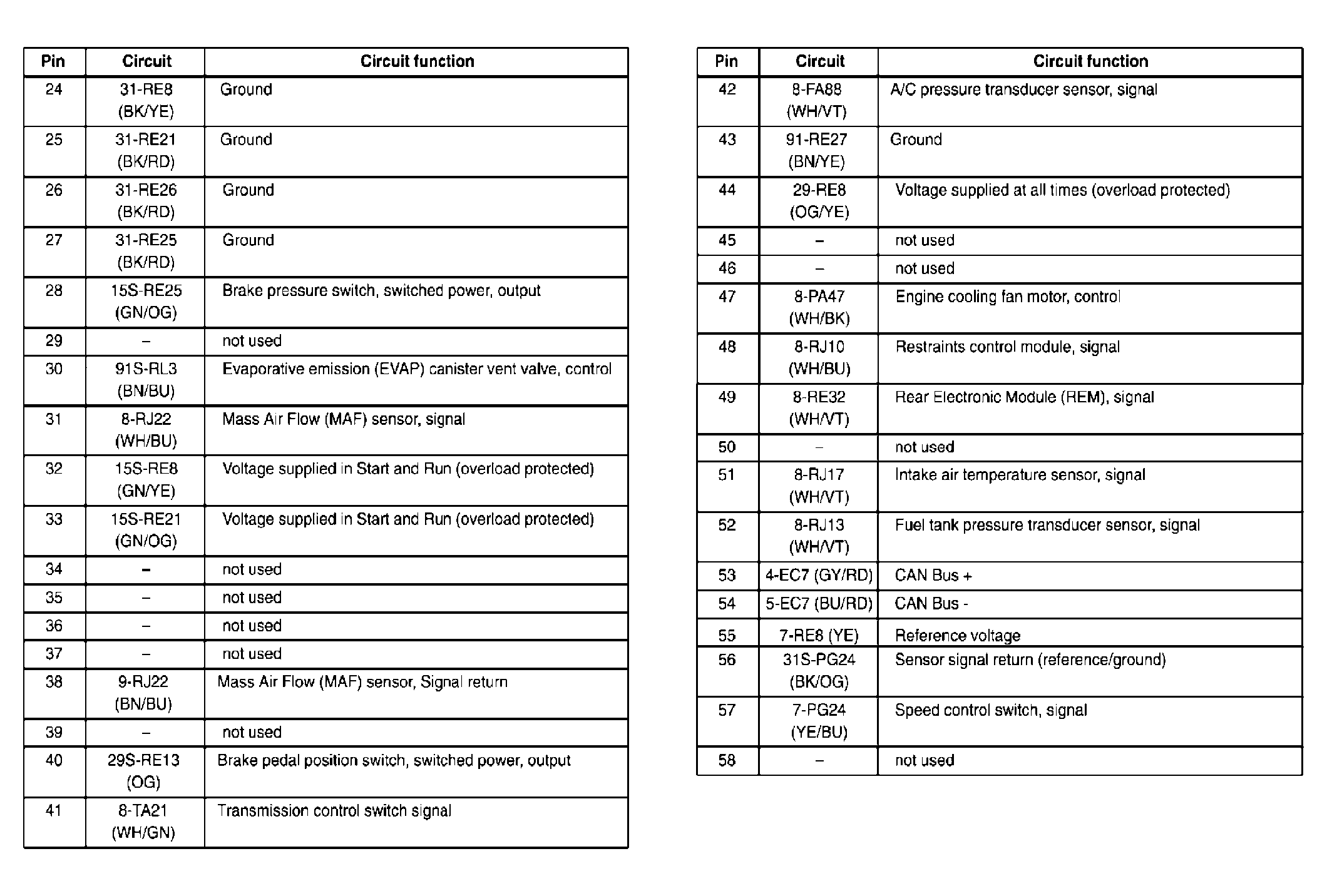

Fig 56: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
Courtesy of FORD MOTOR CO.

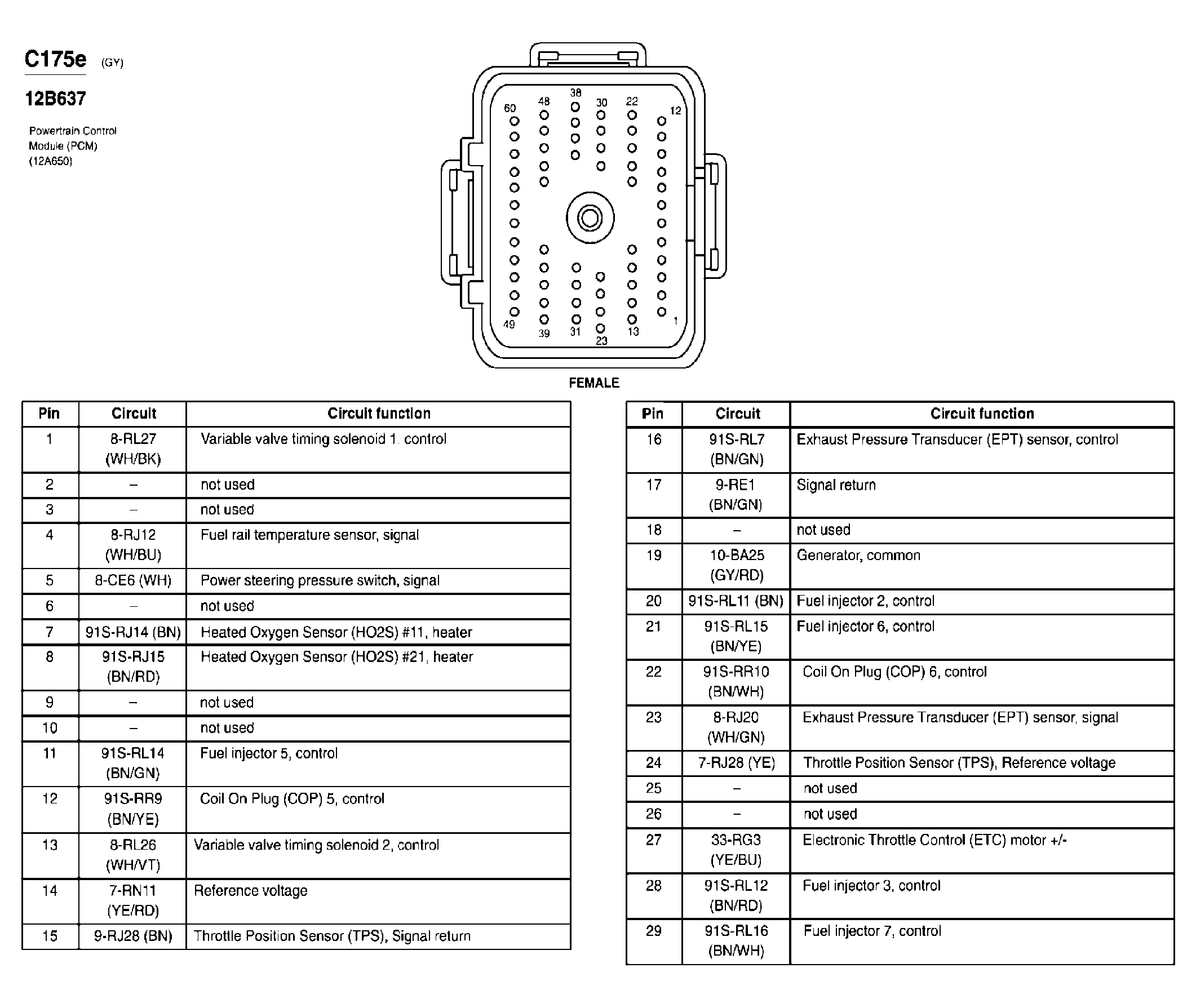

Fig 57: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
Courtesy of FORD MOTOR CO.

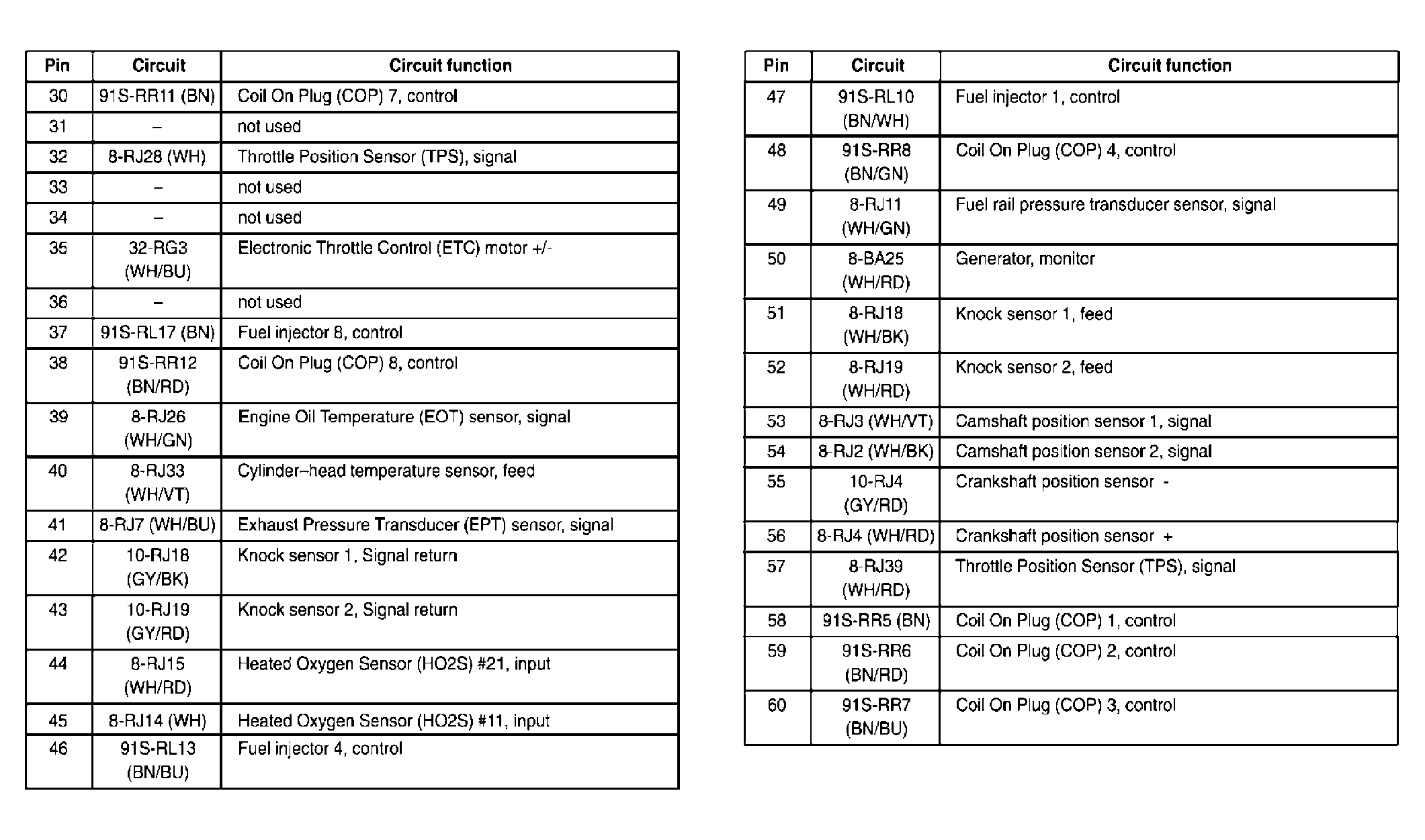

Fig 58: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
Courtesy of FORD MOTOR CO.

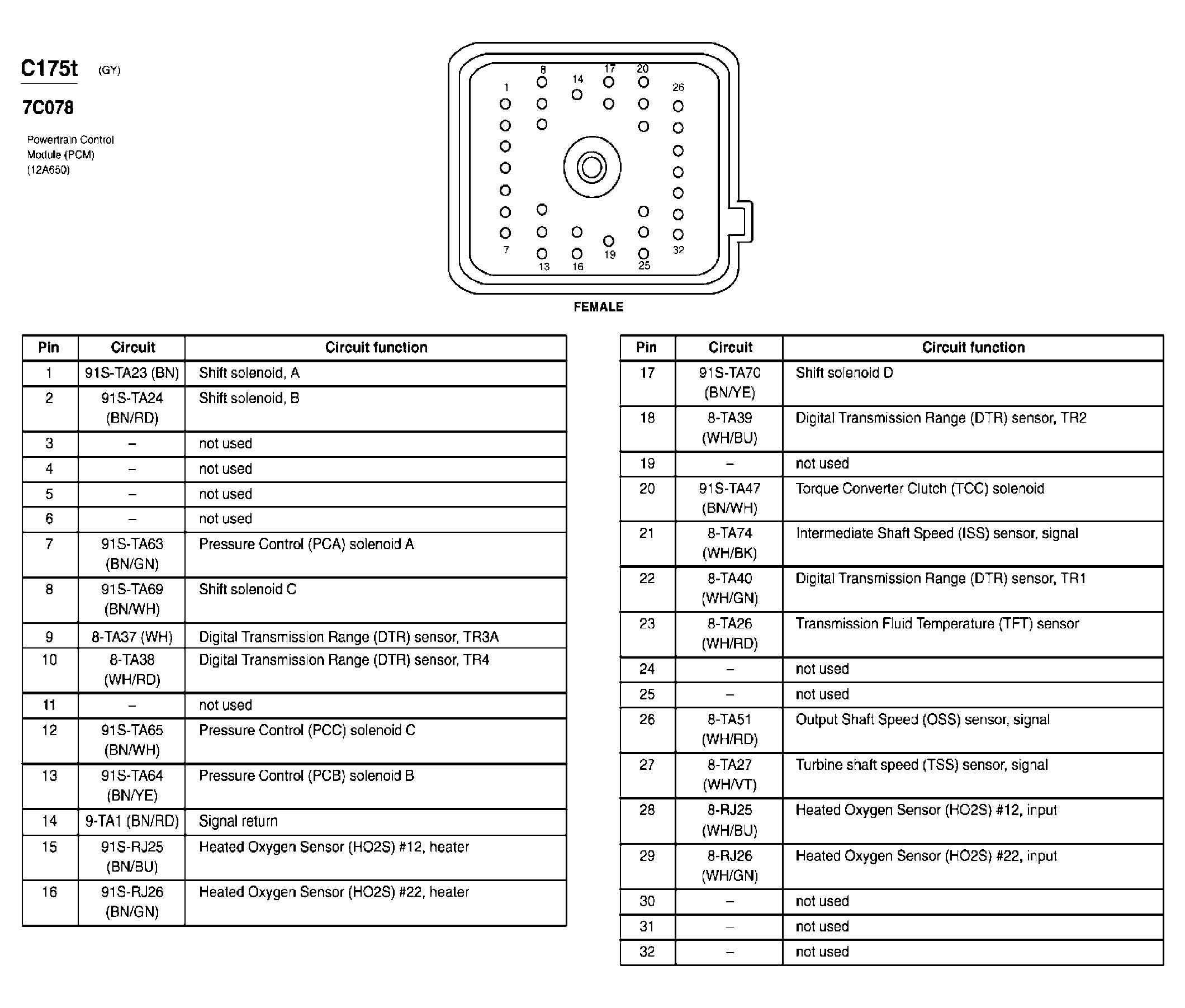

Fig 59: Powertrain Control Module (PCM) Connector End View (C175t)
Courtesy of FORD MOTOR CO.

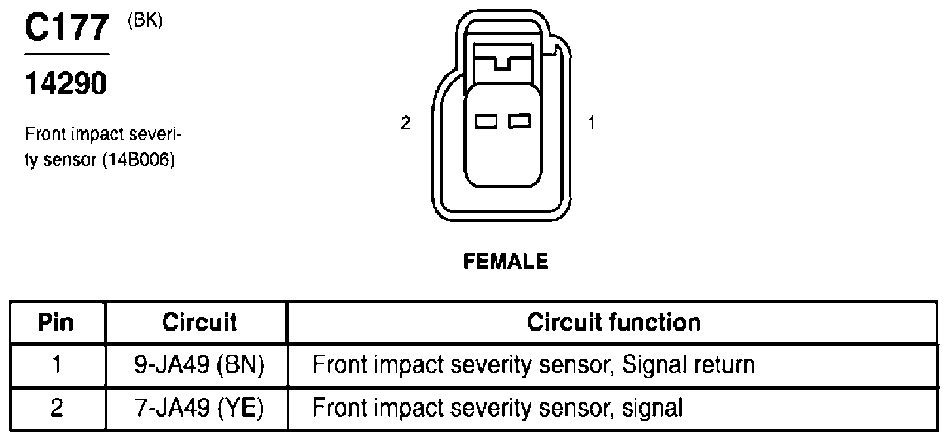

Fig 60: Front Impact Severity Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

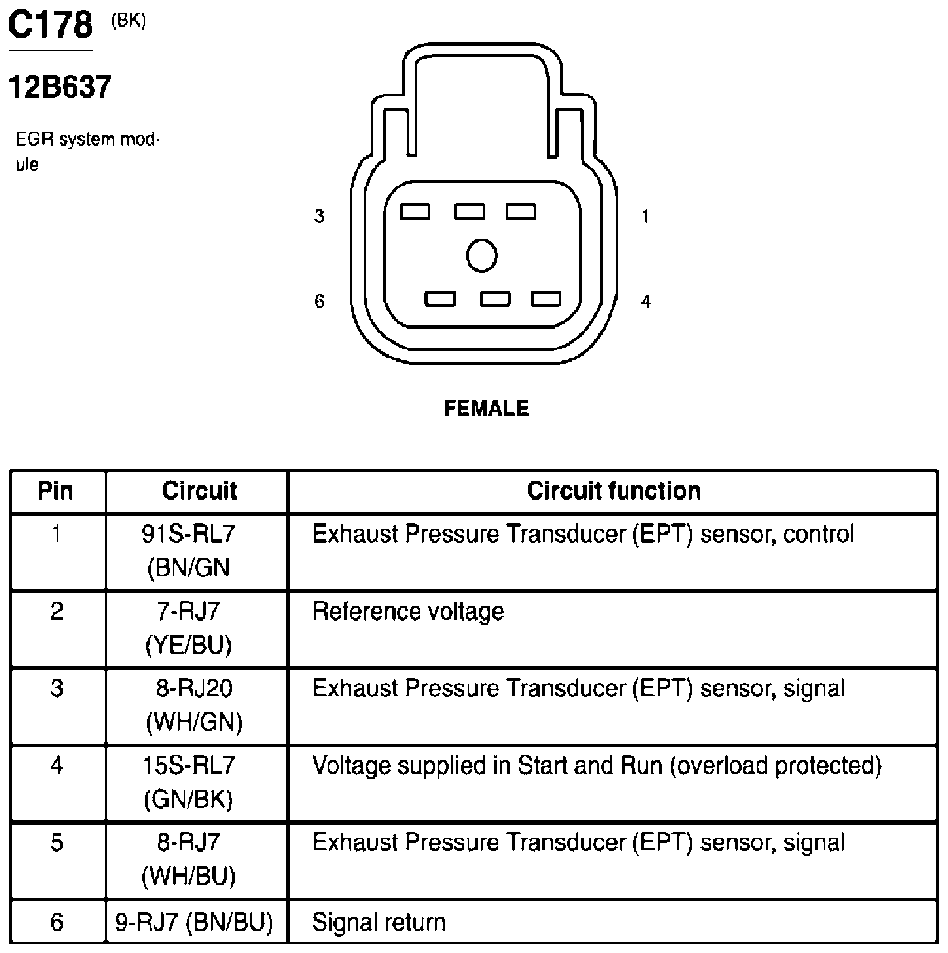

Fig 61: EGR System Module Connector End View (C178)
Courtesy of FORD MOTOR CO.

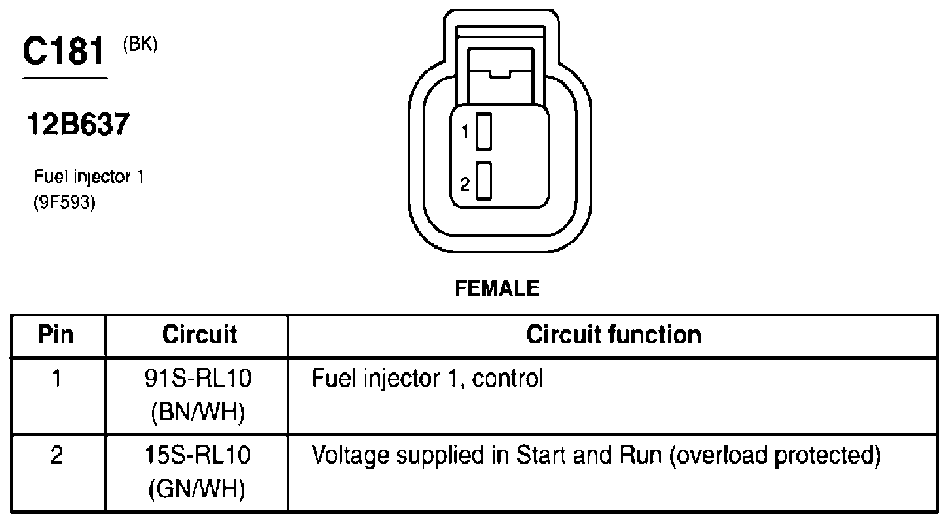

Fig 62: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.

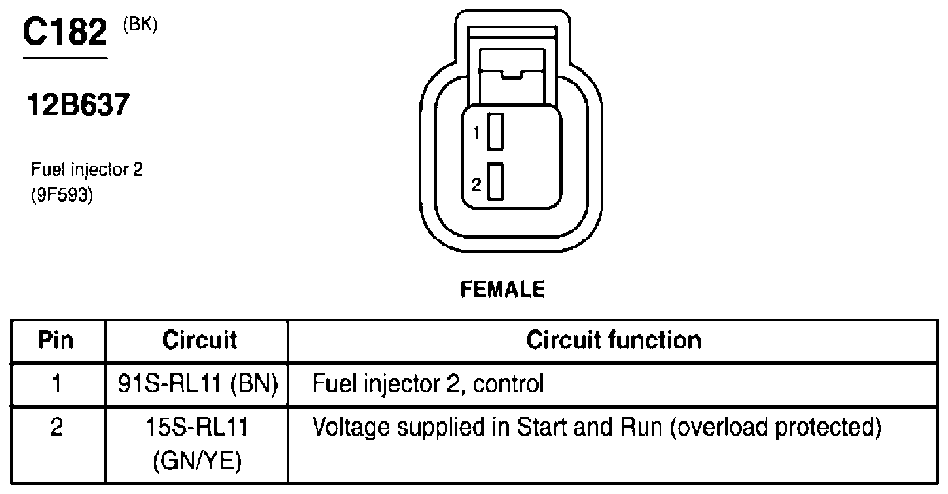

Fig 63: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.

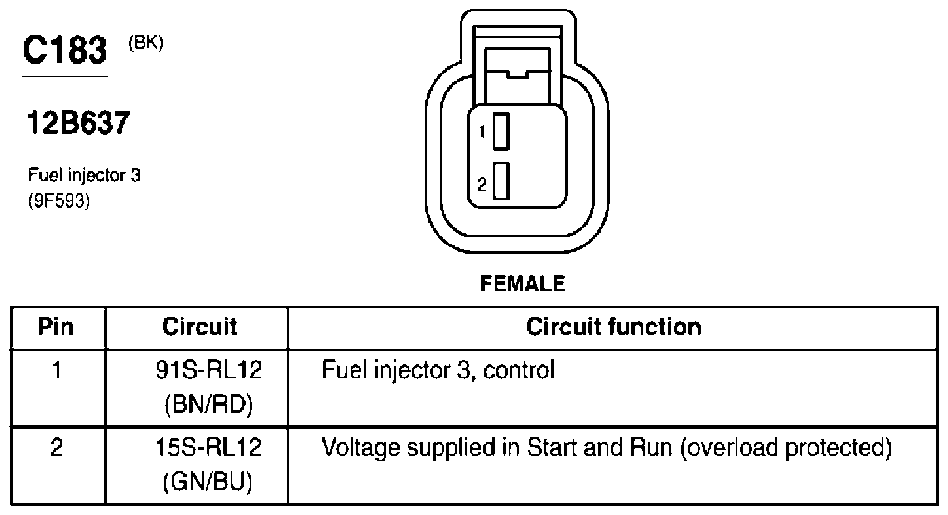

Fig 64: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

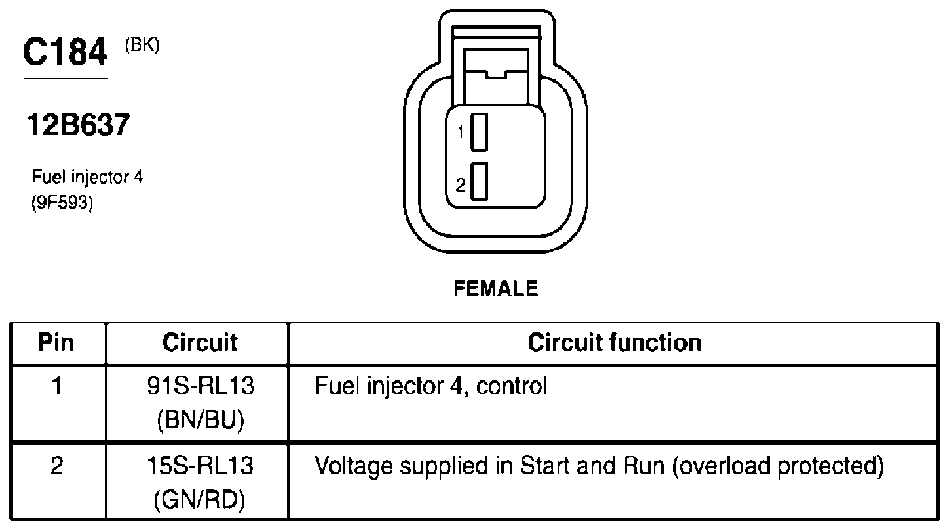

Fig 65: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 66: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

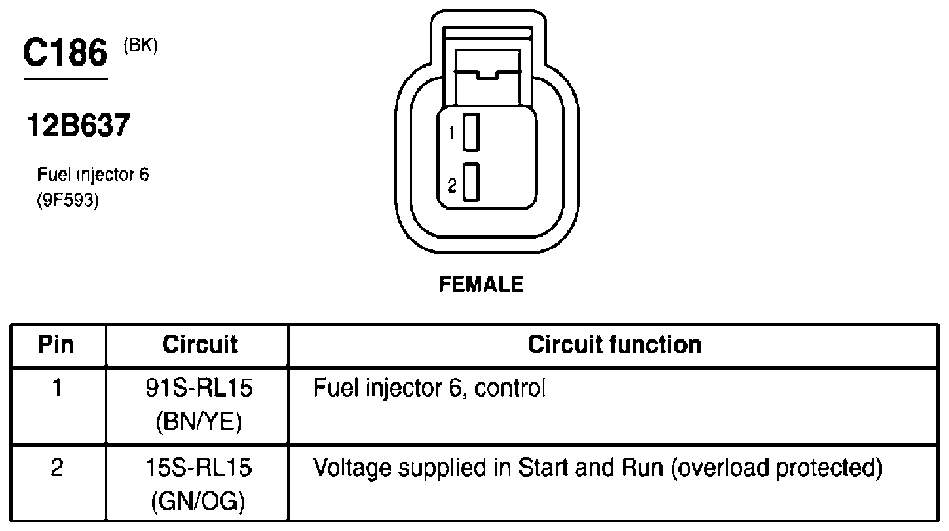

Fig 67: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

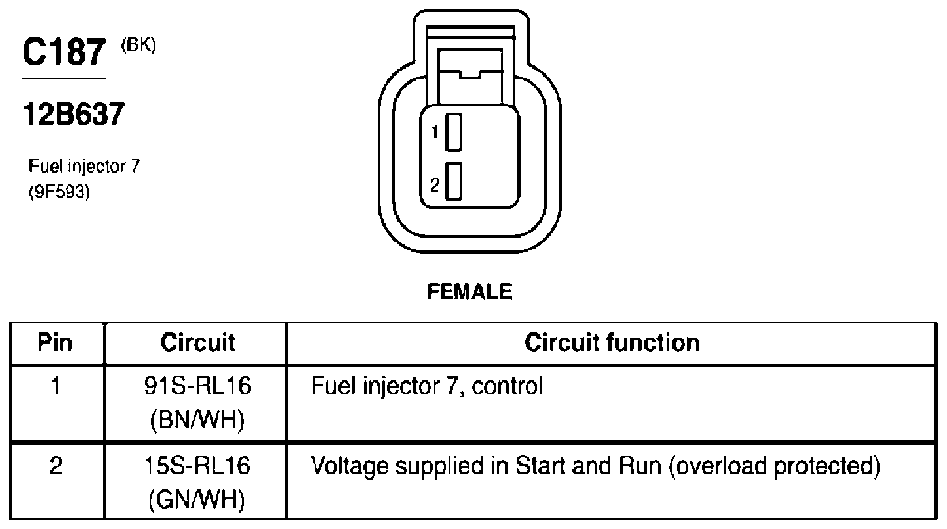

Fig 68: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.

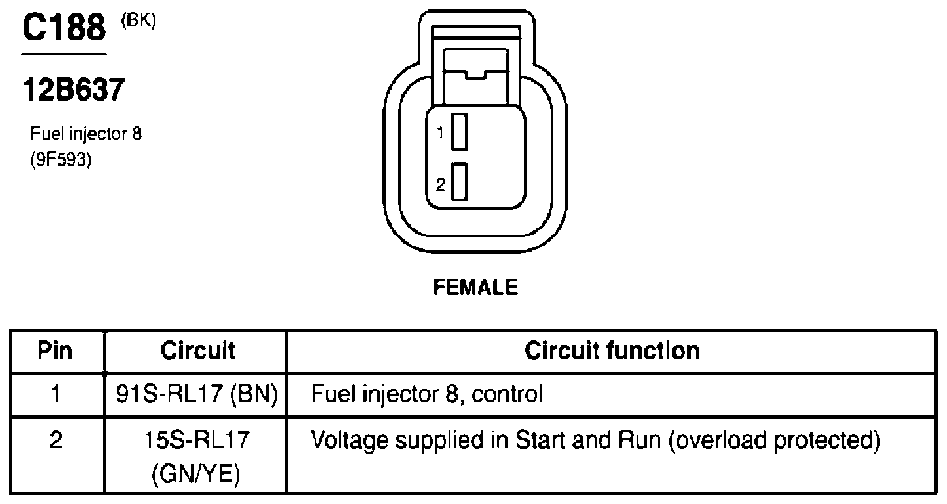

Fig 69: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.
Fig 70: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

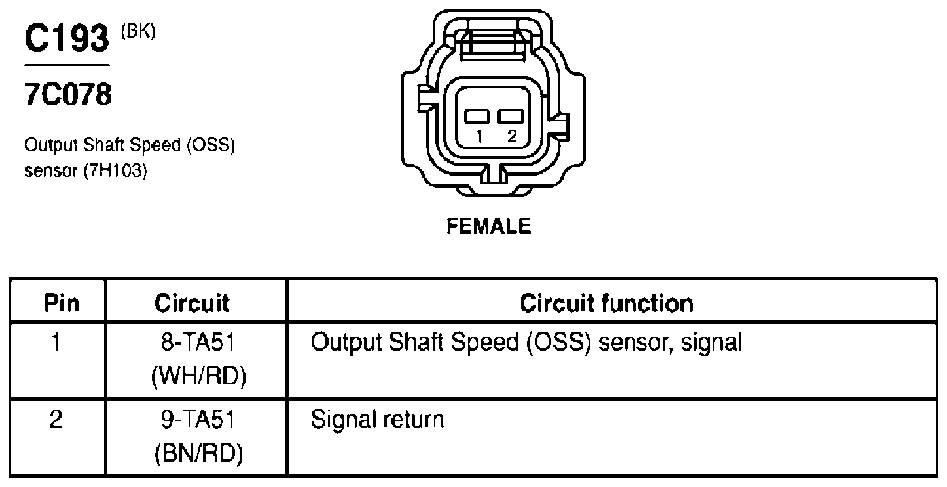

Fig 71: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

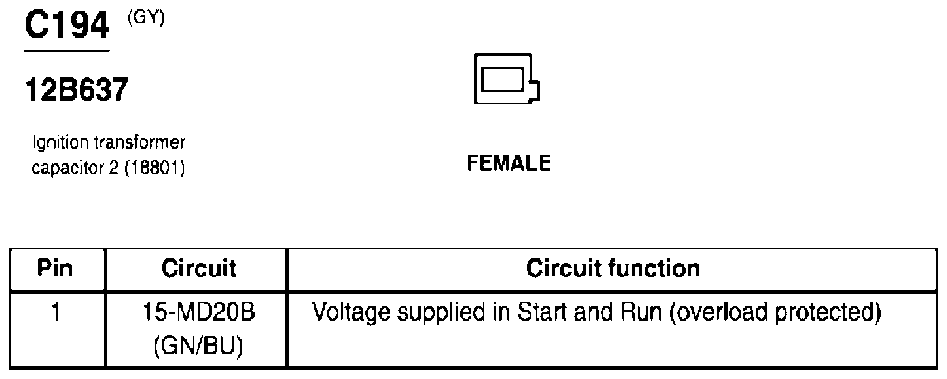

Fig 72: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.

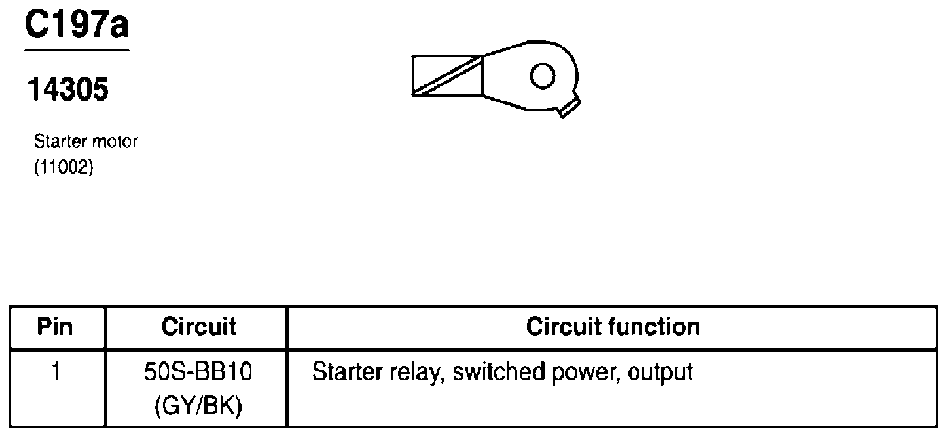

Fig 73: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.

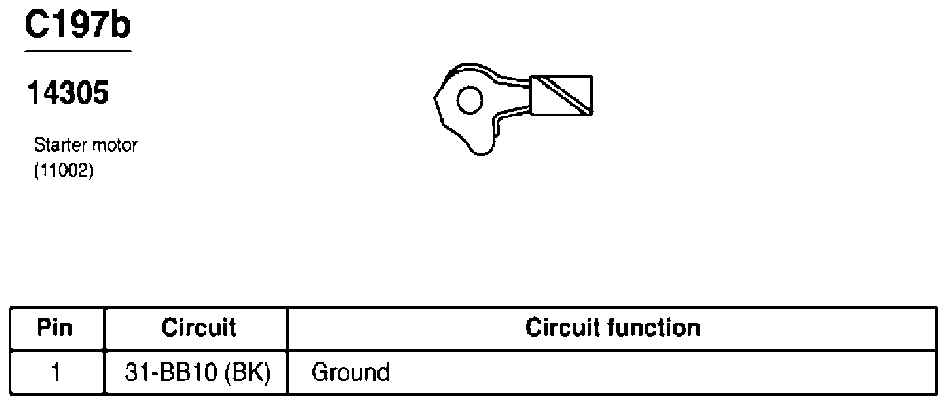

Fig 74: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.

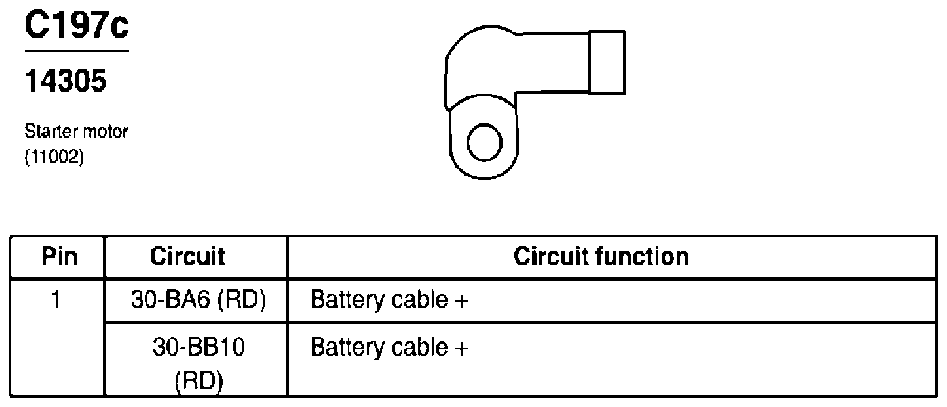

Fig 75: Starter Motor Connector End View (C197c)
Courtesy of FORD MOTOR CO.

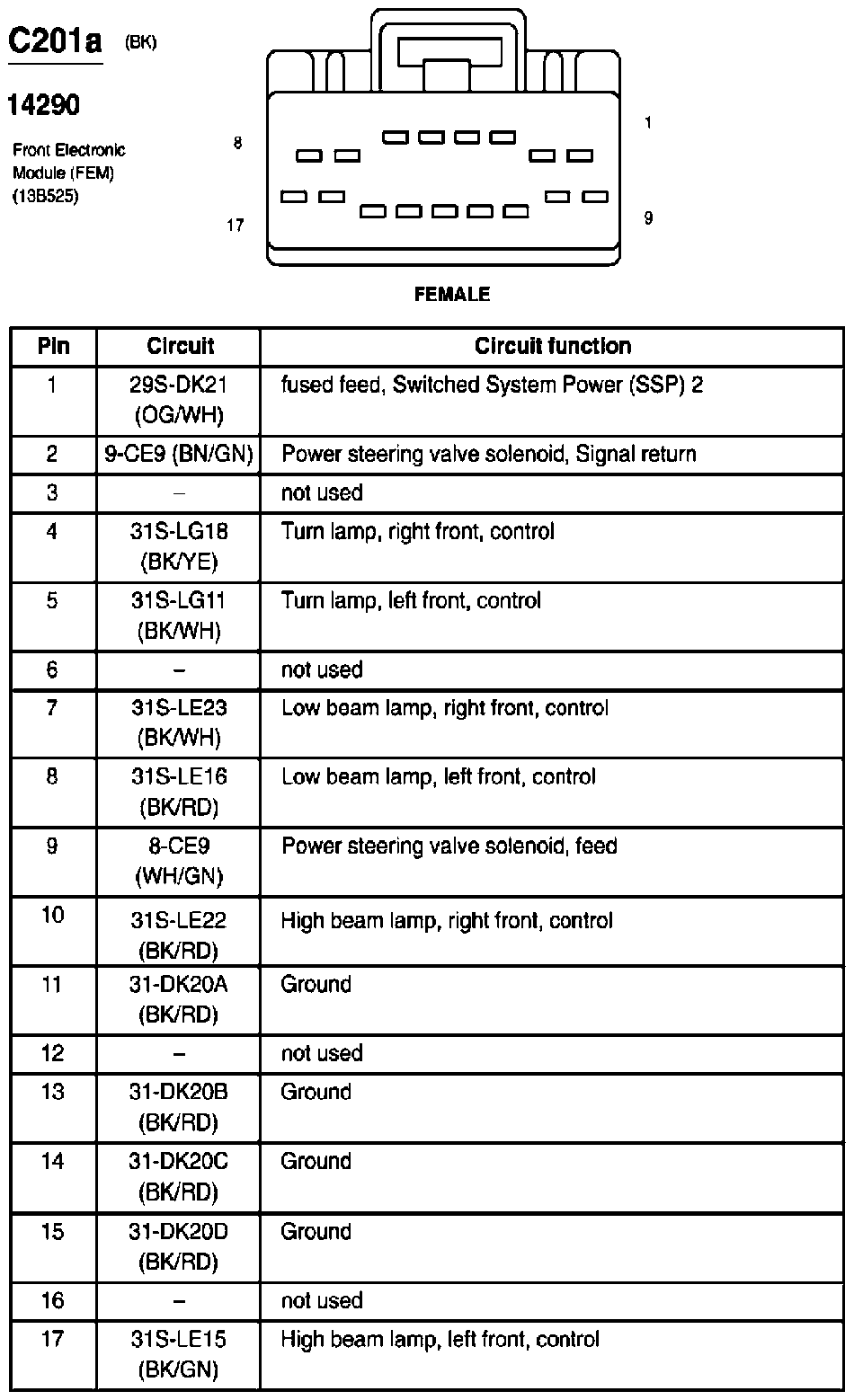

Fig 76: Front Electronic Module (FEM) Connector End View (C201a)
Courtesy of FORD MOTOR CO.

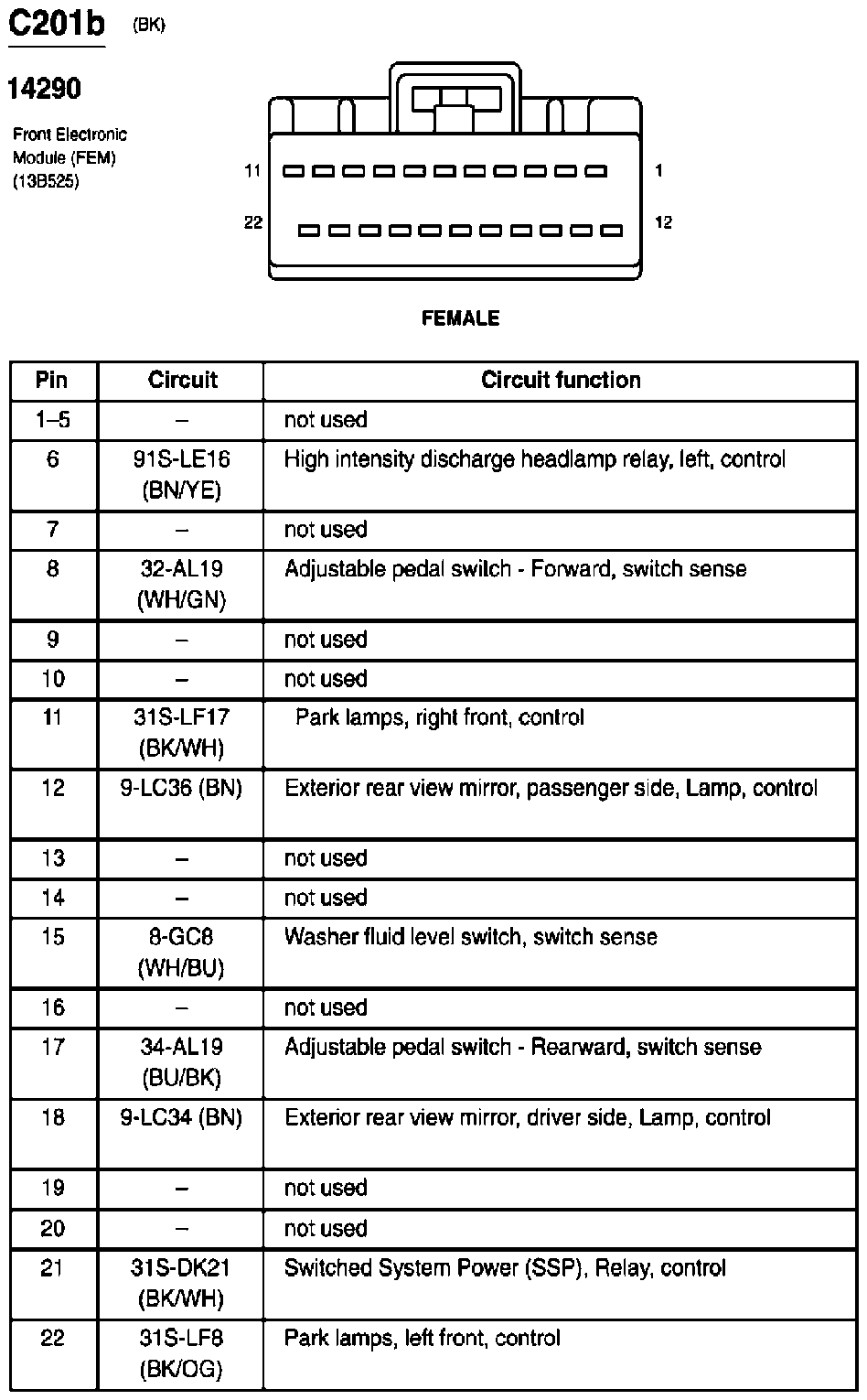

Fig 77: Front Electronic Module (FEM) Connector End View (C201b)
Courtesy of FORD MOTOR CO.

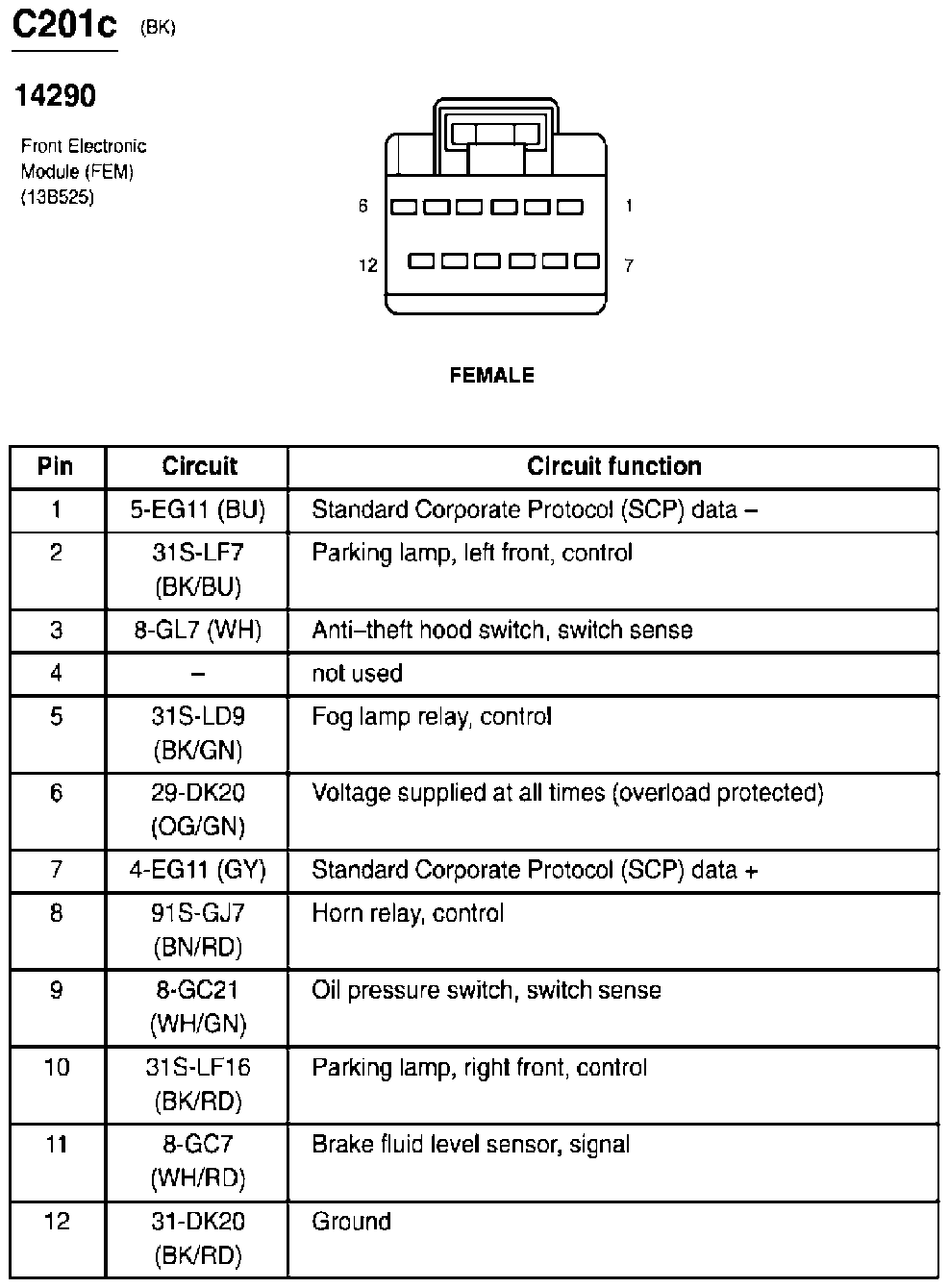

Fig 78: Front Electronic Module (FEM) Connector End View (C201c)
Courtesy of FORD MOTOR CO.

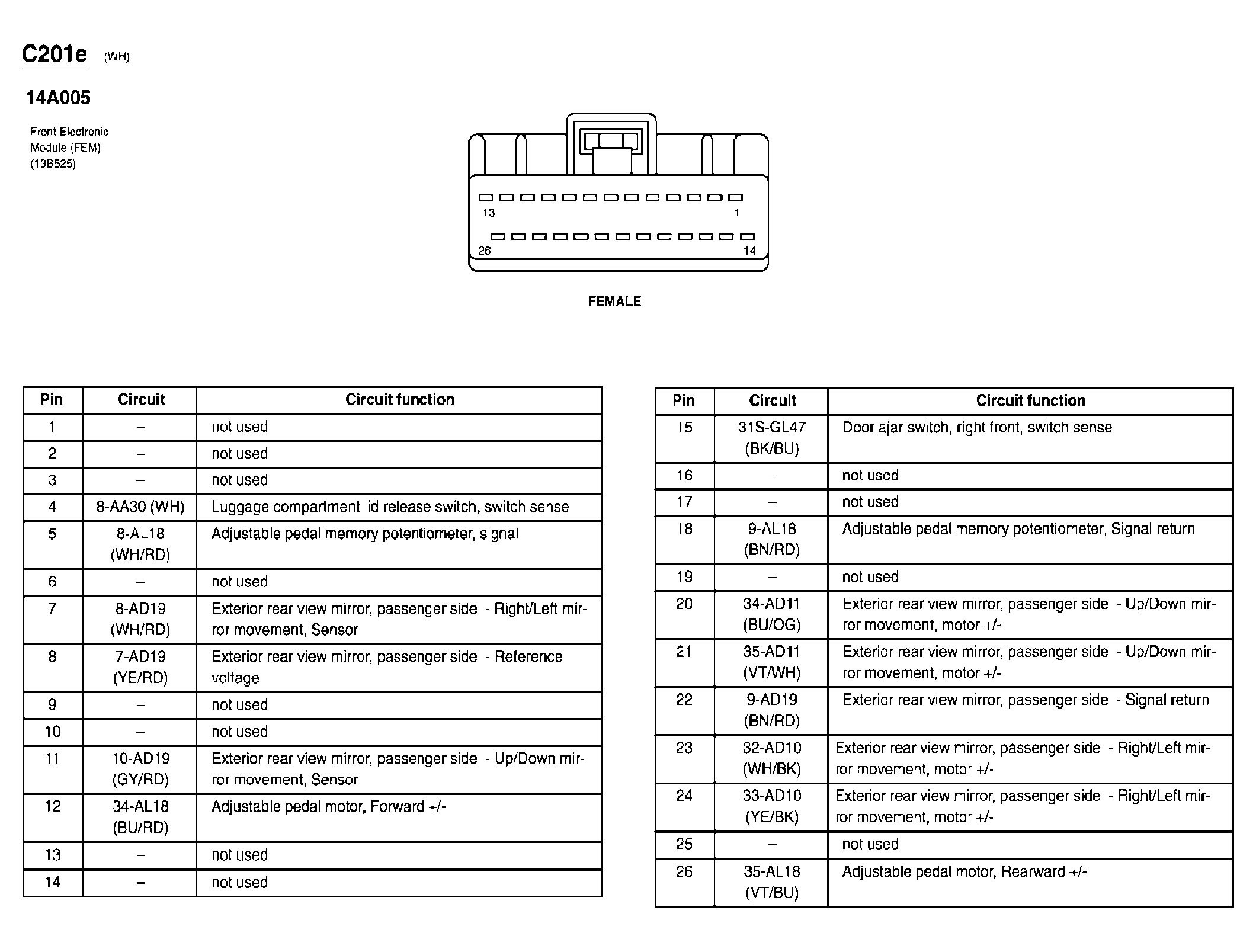

Fig 79: Front Electronic Module (FEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.

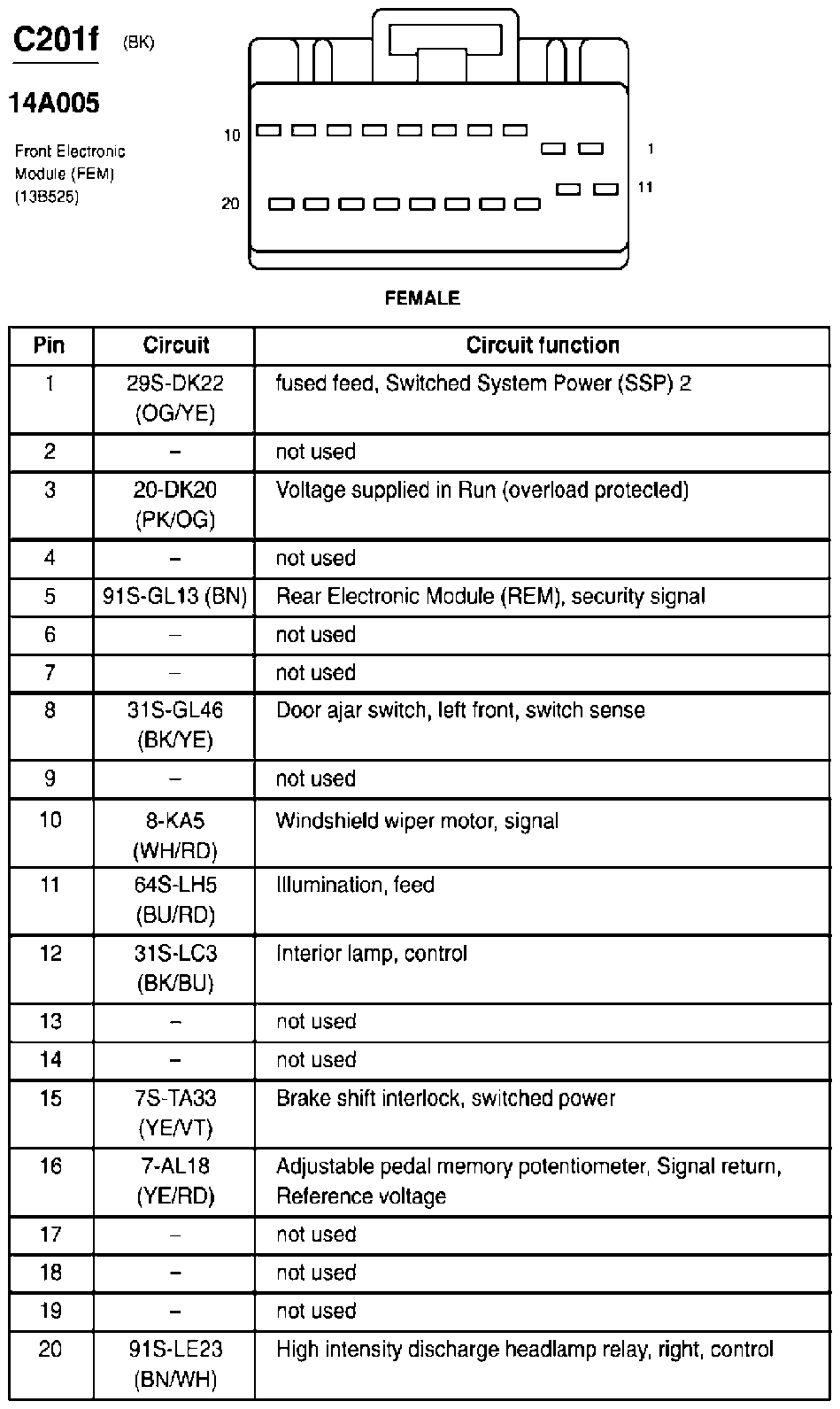

Fig 80: Front Electronic Module (FEM) Connector End View (C201f)
Courtesy of FORD MOTOR CO.

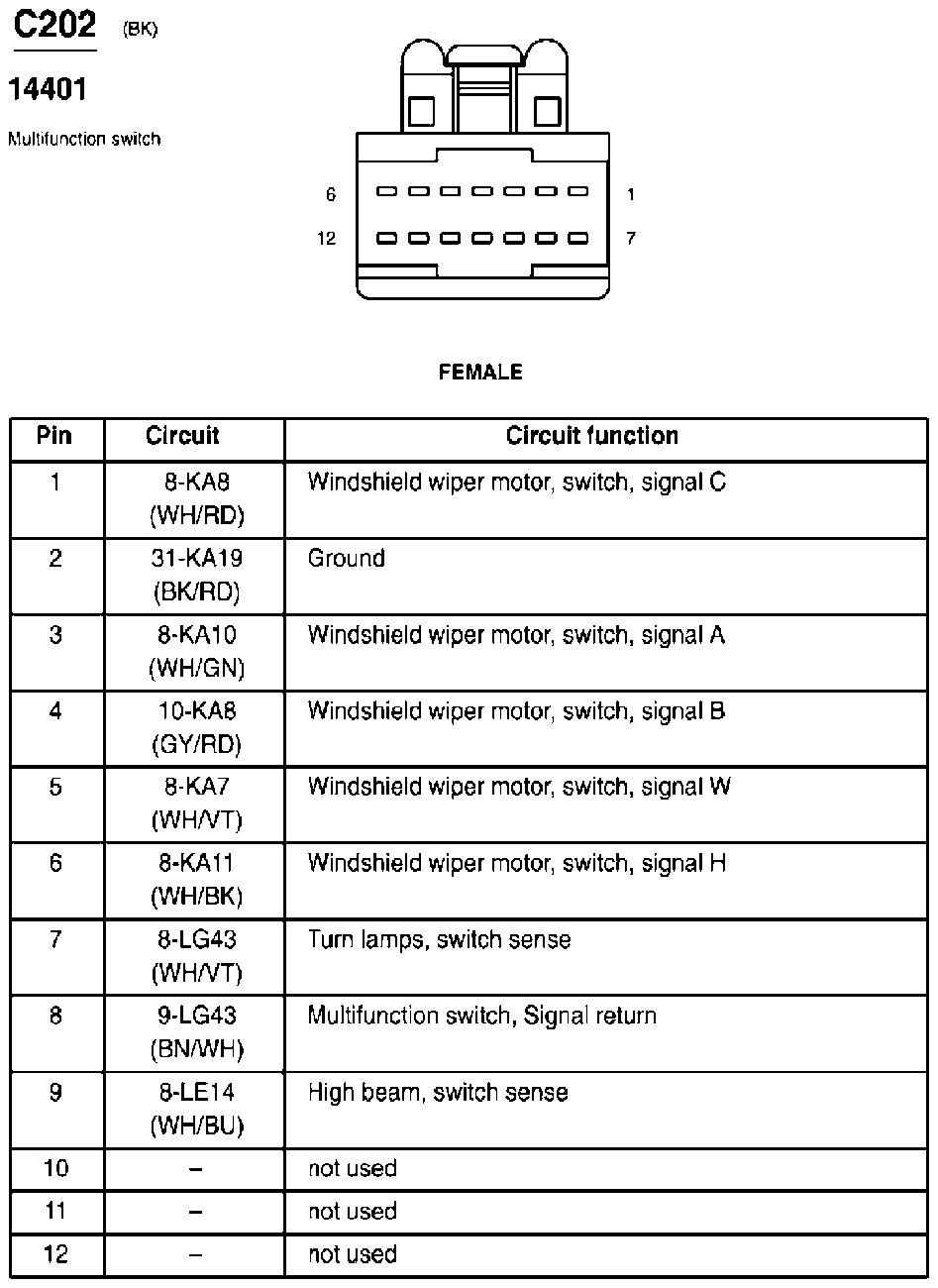

Fig 81: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.

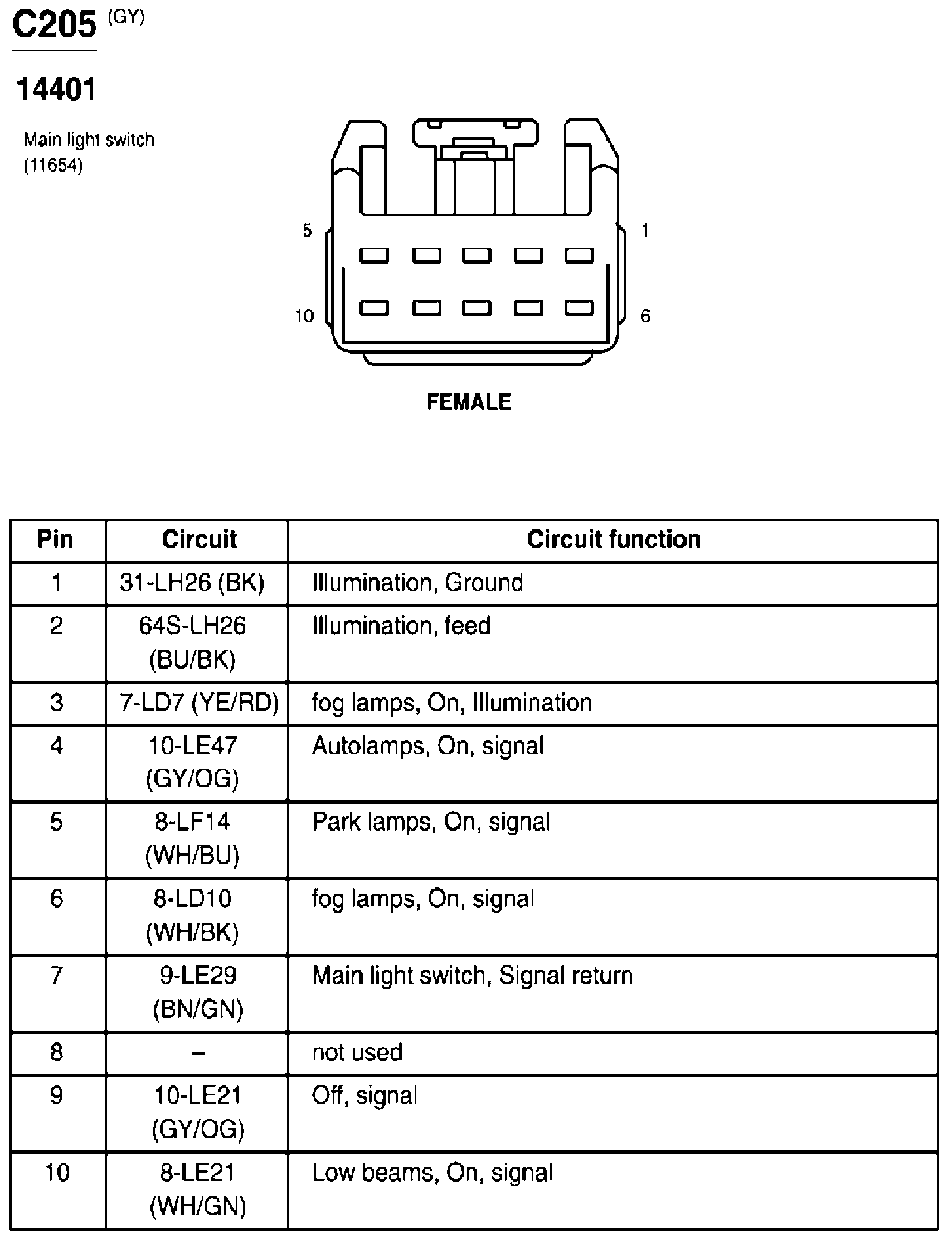

Fig 82: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

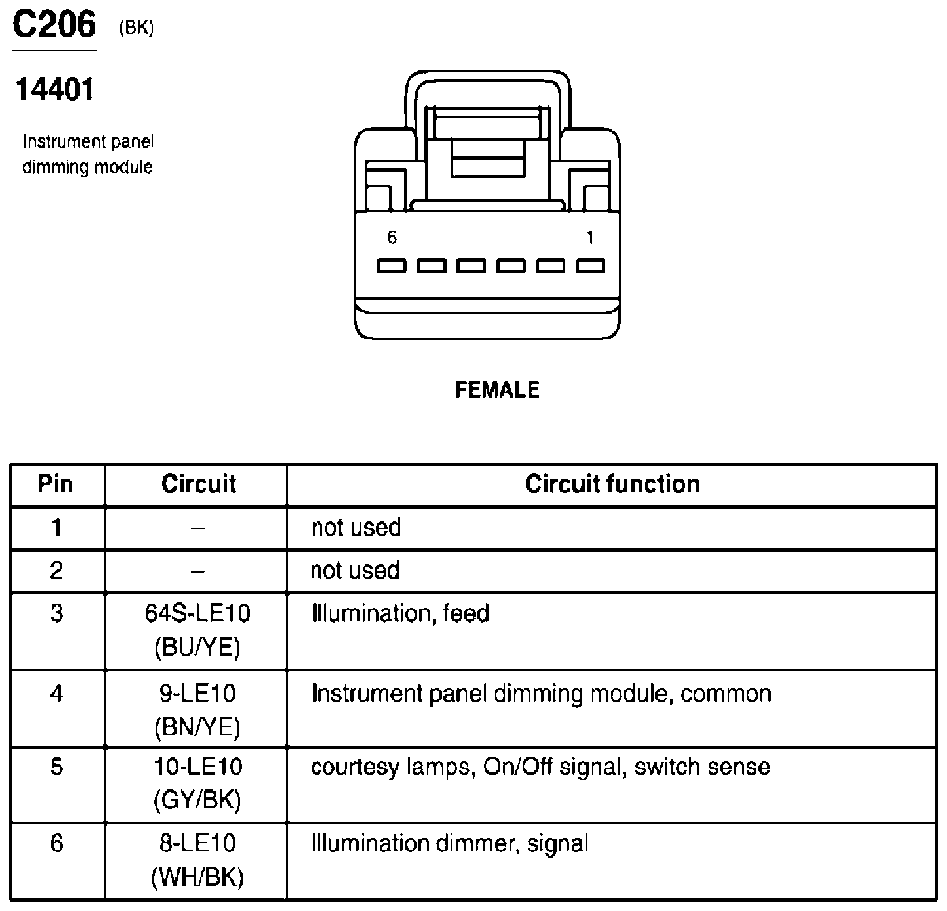

Fig 83: Instrument Panel Dimming Module Connector End View (C206)
Courtesy of FORD MOTOR CO.

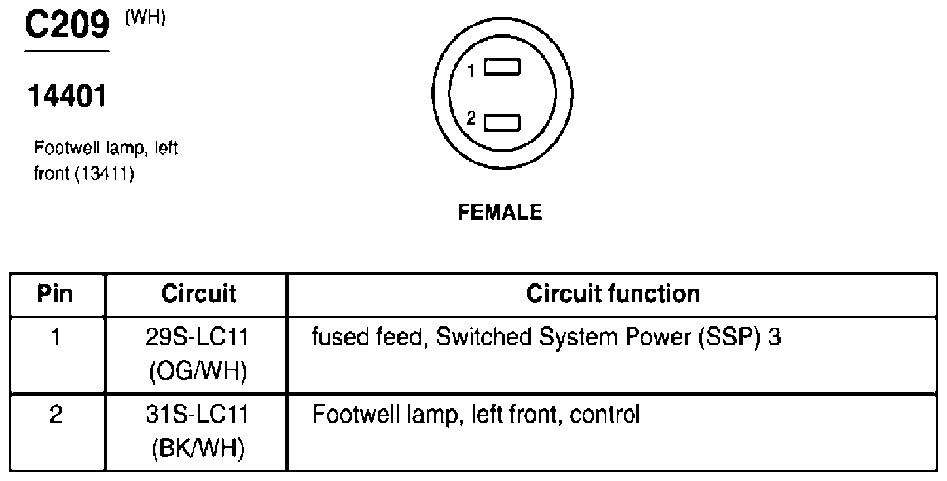

Fig 84: Footwell Lamp, Left Front Connector End View (C209)
Courtesy of FORD MOTOR CO.

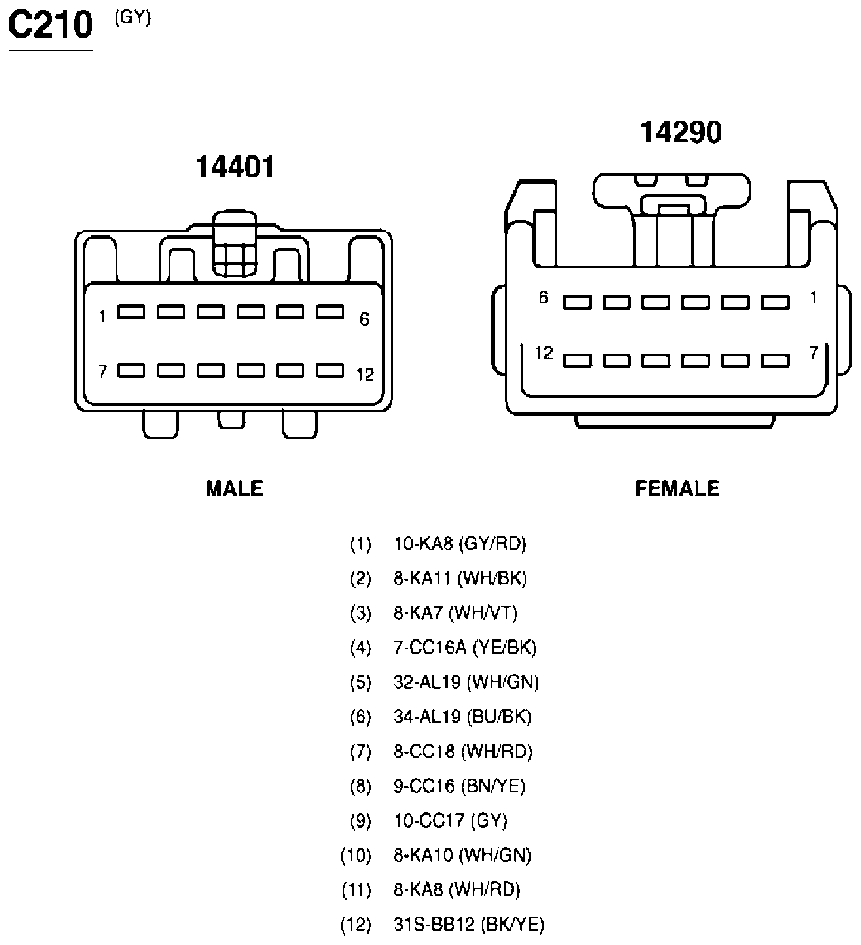

Fig 85: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

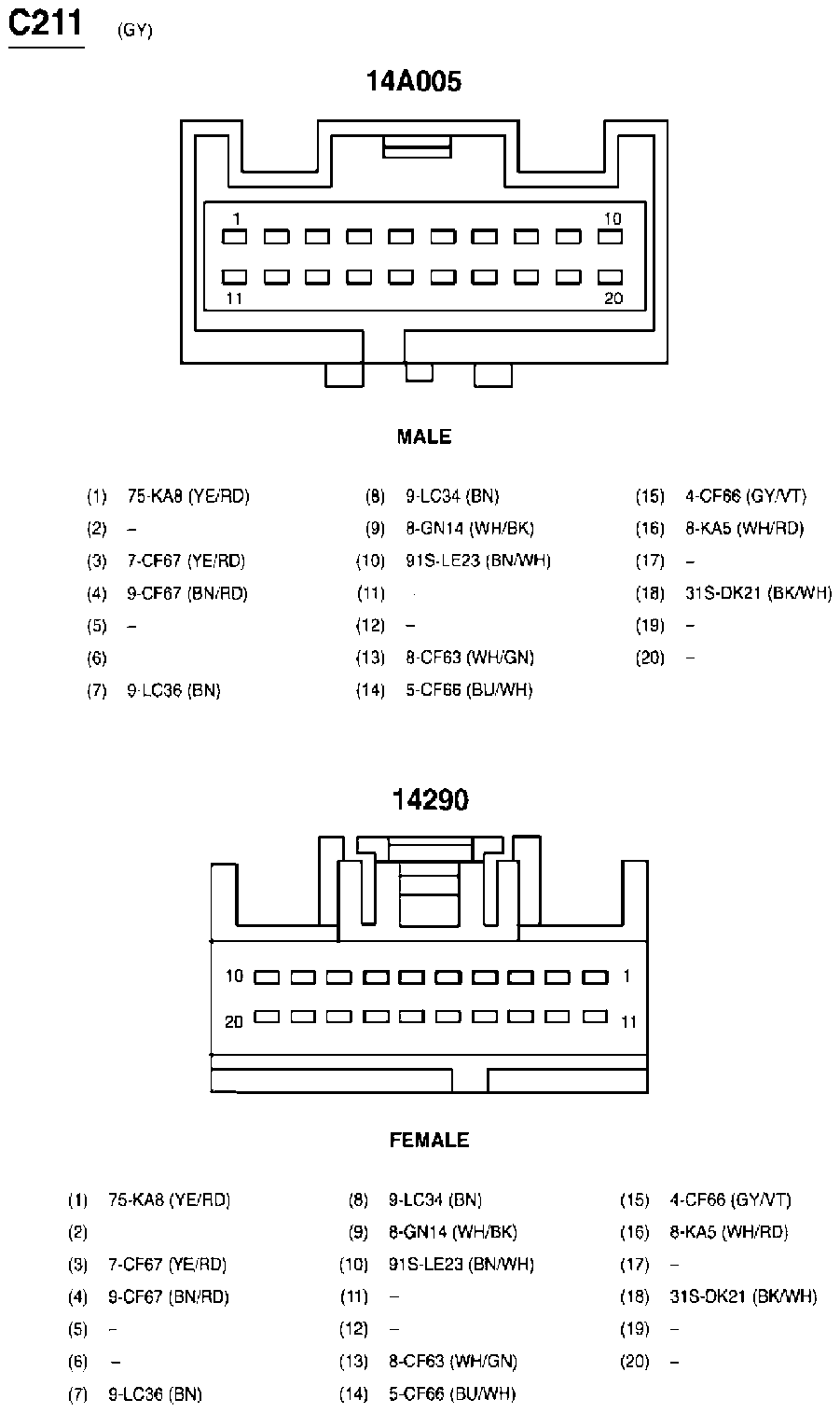

Fig 86: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

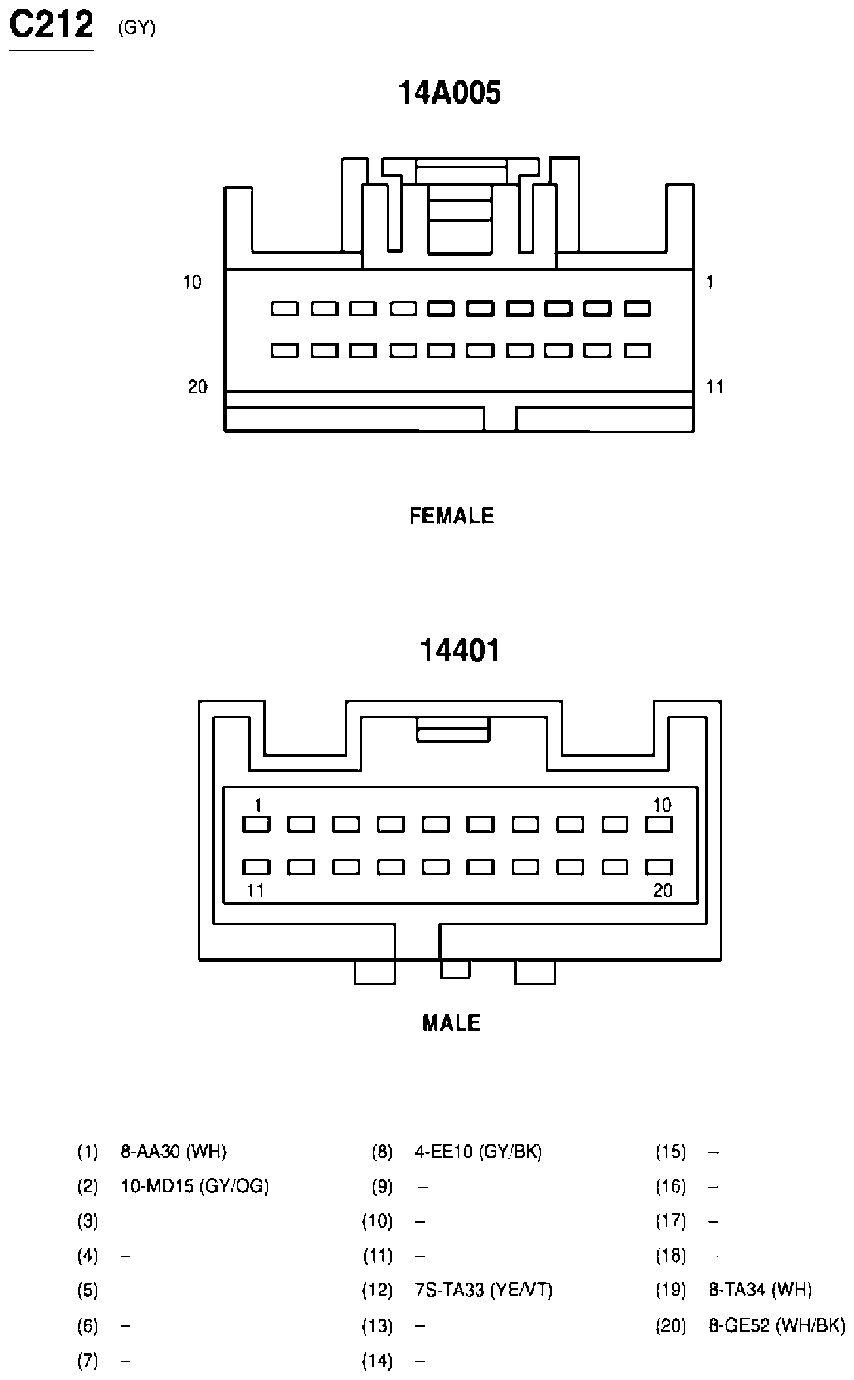

Fig 87: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

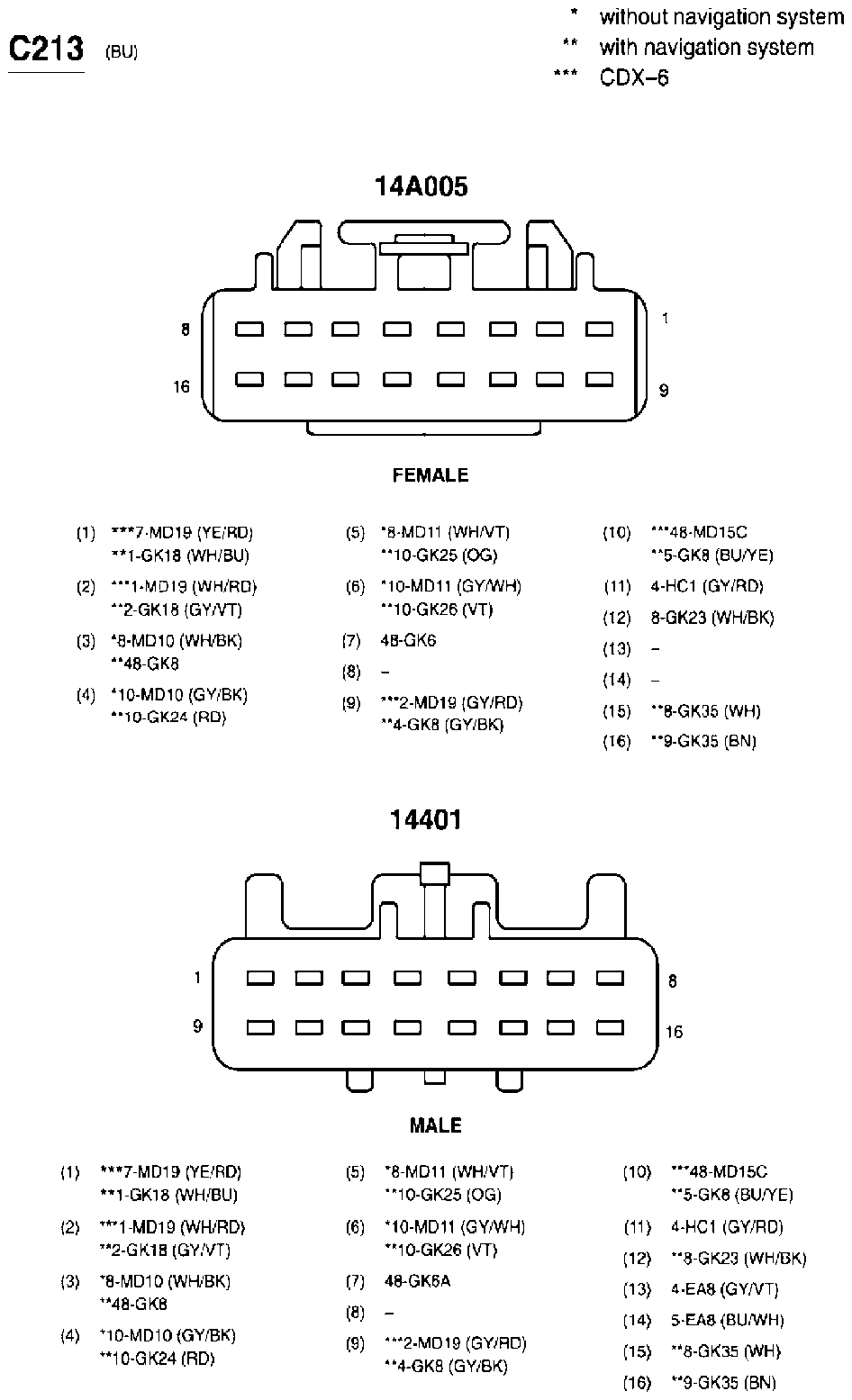

Fig 88: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

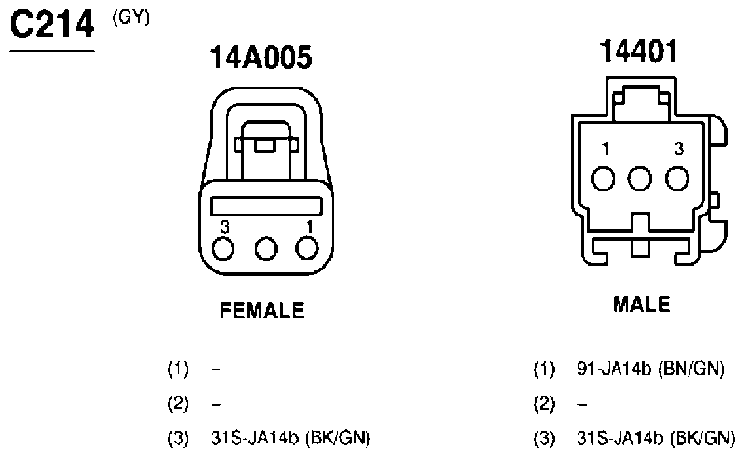

Fig 89: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

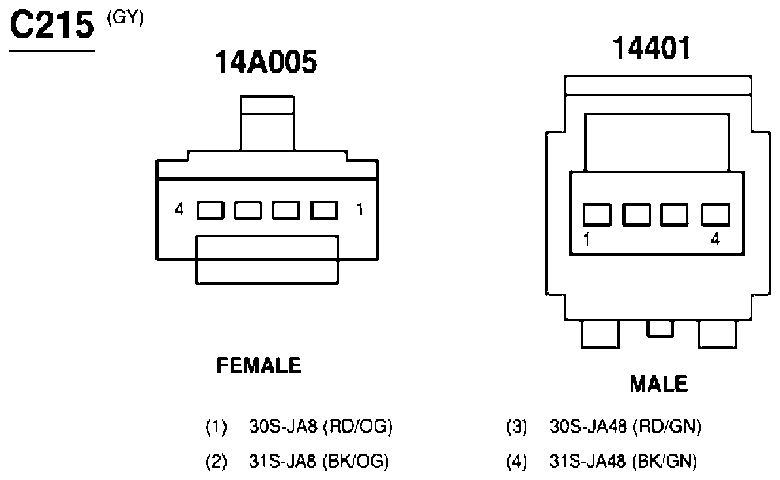

Fig 90: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

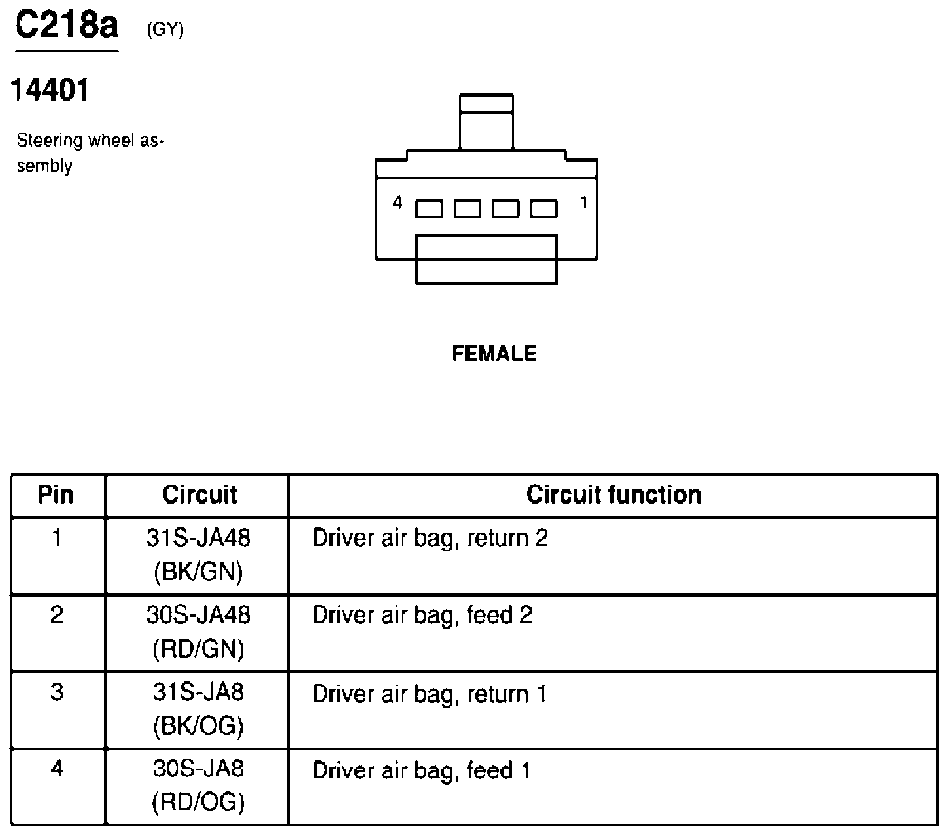

Fig 91: Steering Wheel Assembly Connector End View (C218a)
Courtesy of FORD MOTOR CO.

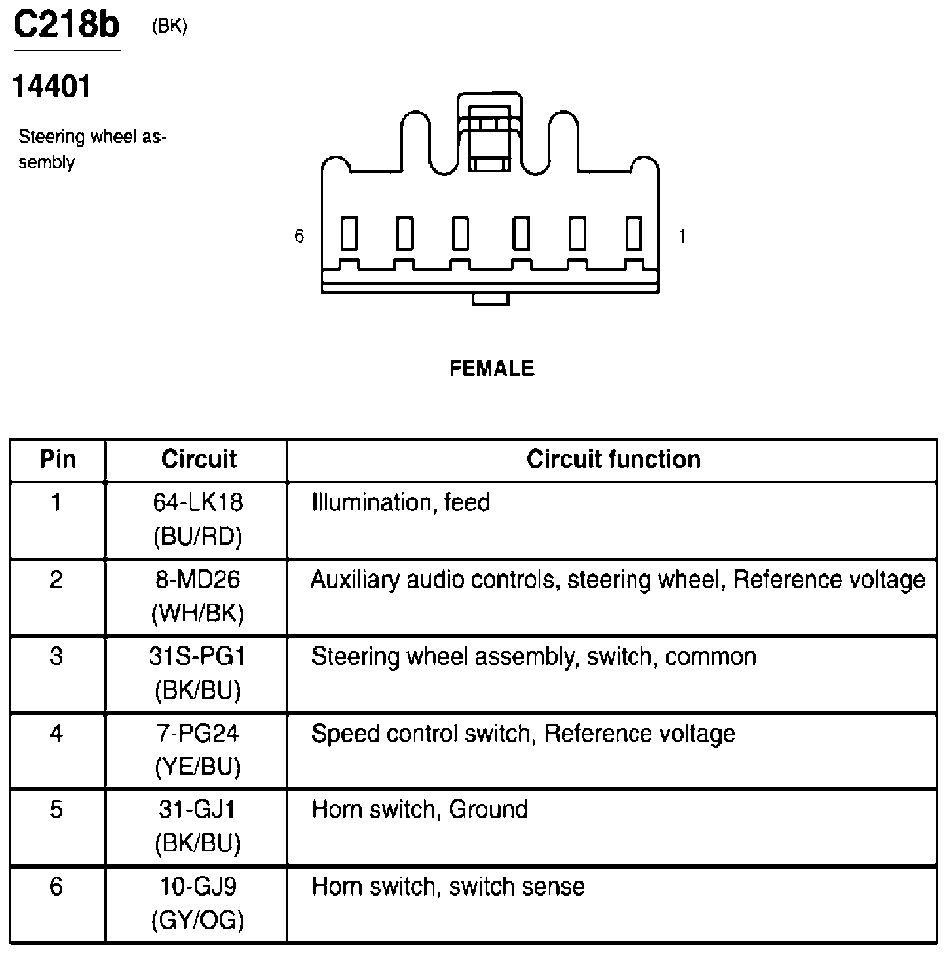

Fig 92: Steering Wheel Assembly Connector End View (C218b)
Courtesy of FORD MOTOR CO.

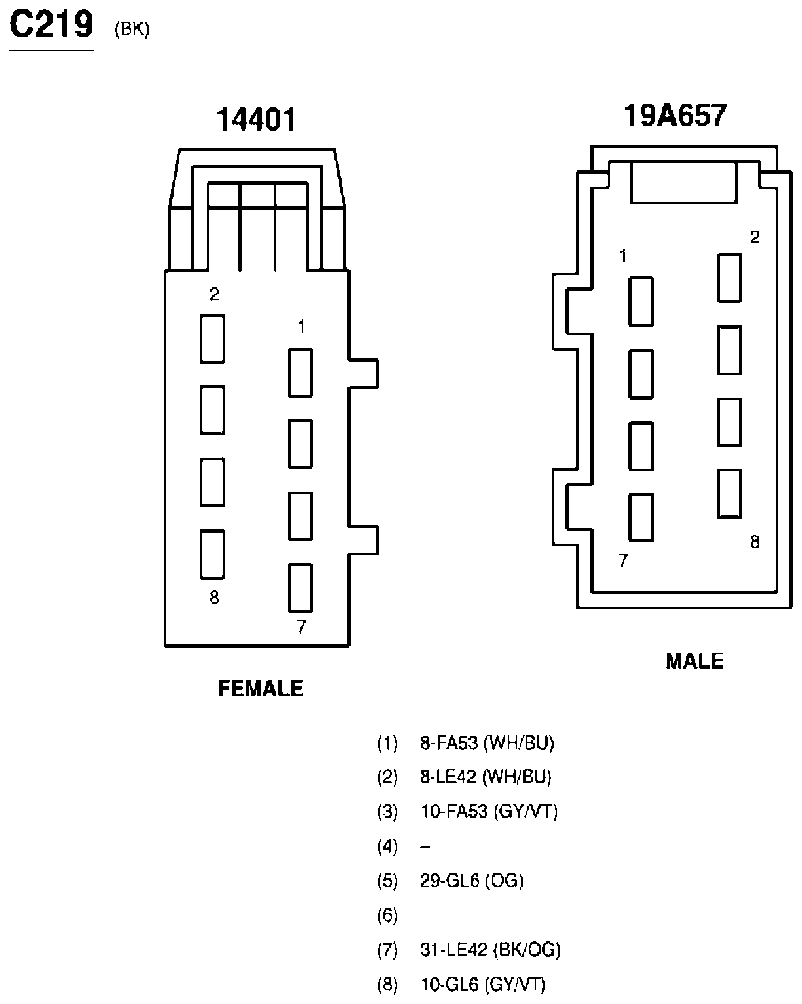

Fig 93: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

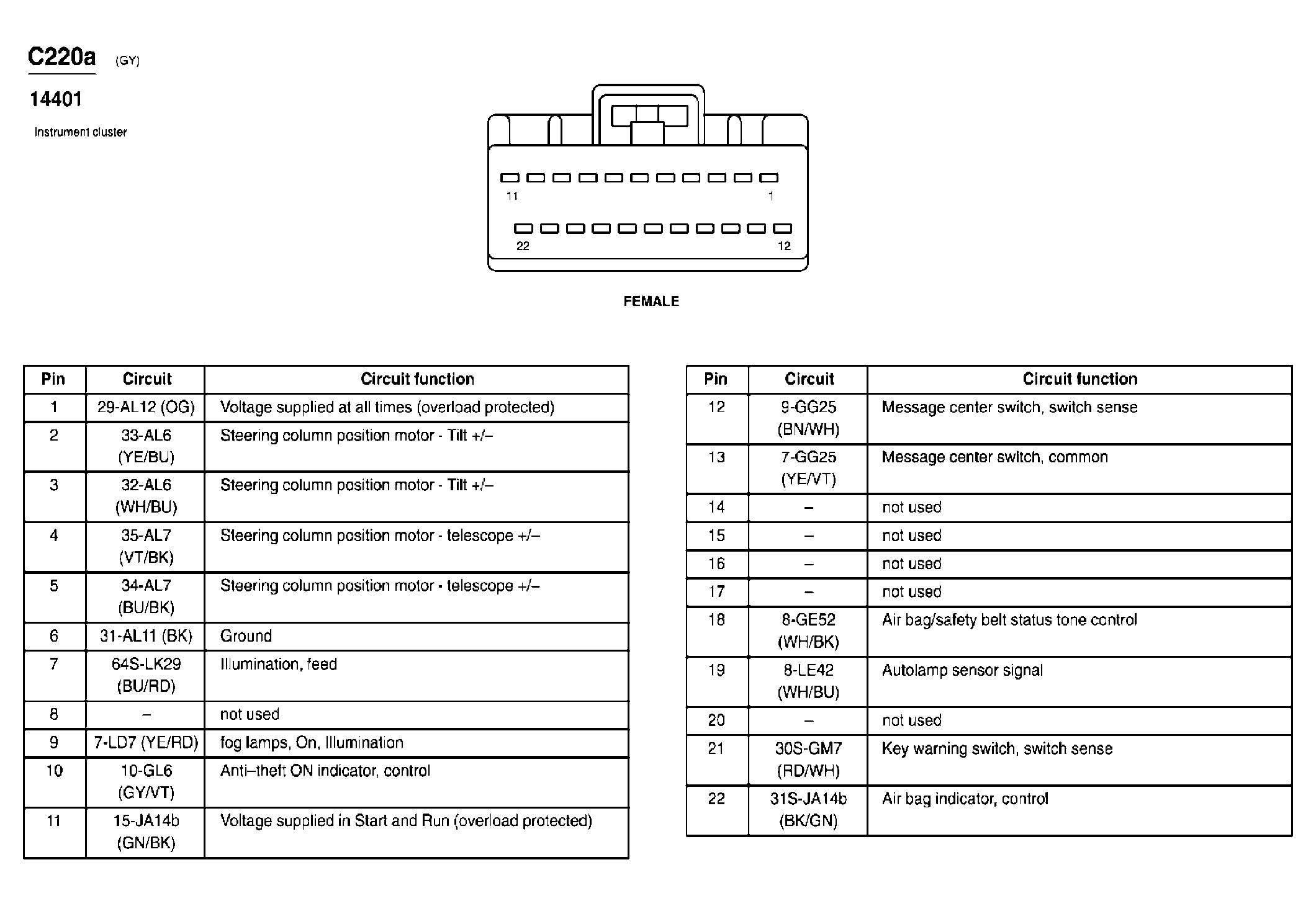

Fig 94: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

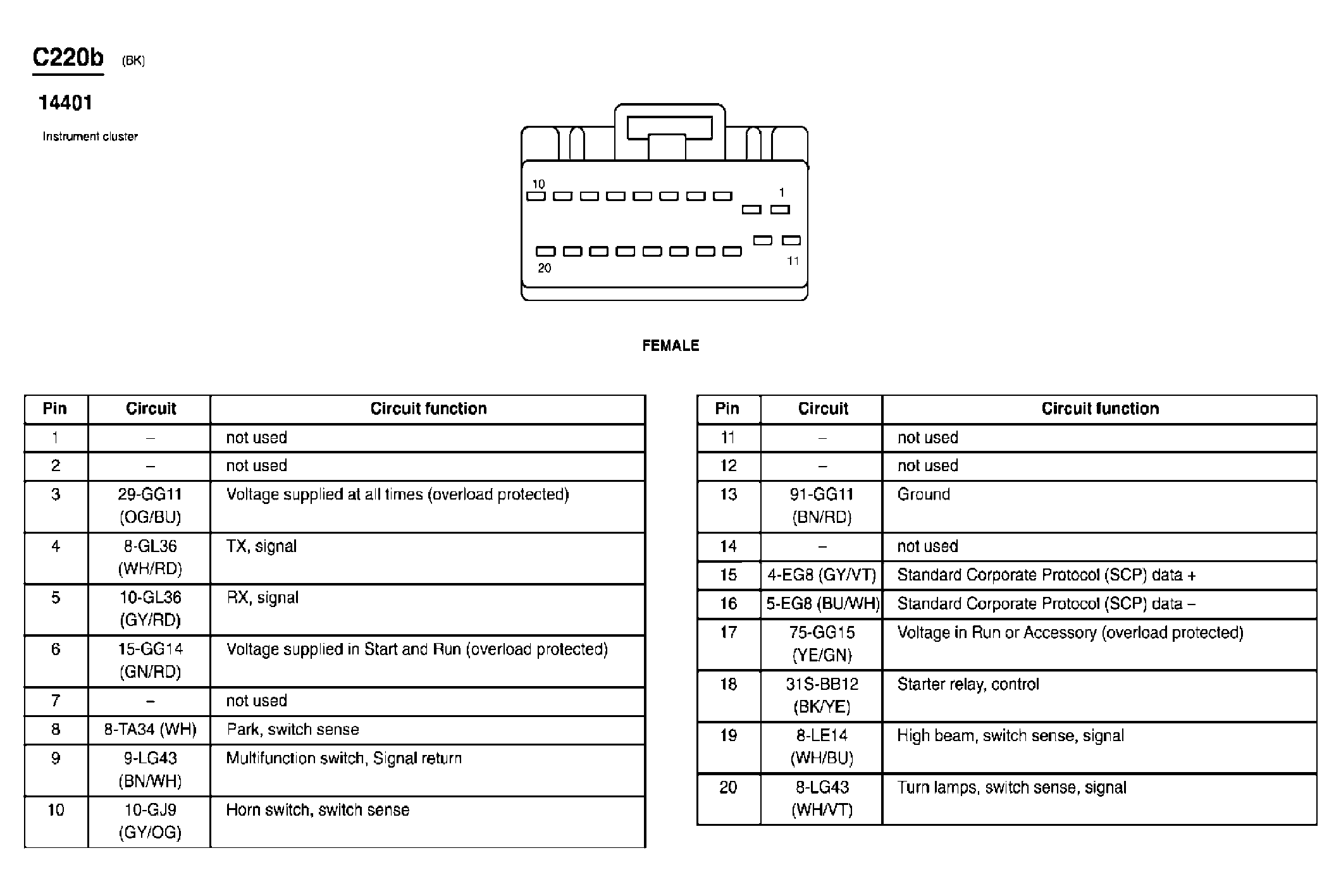

Fig 95: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

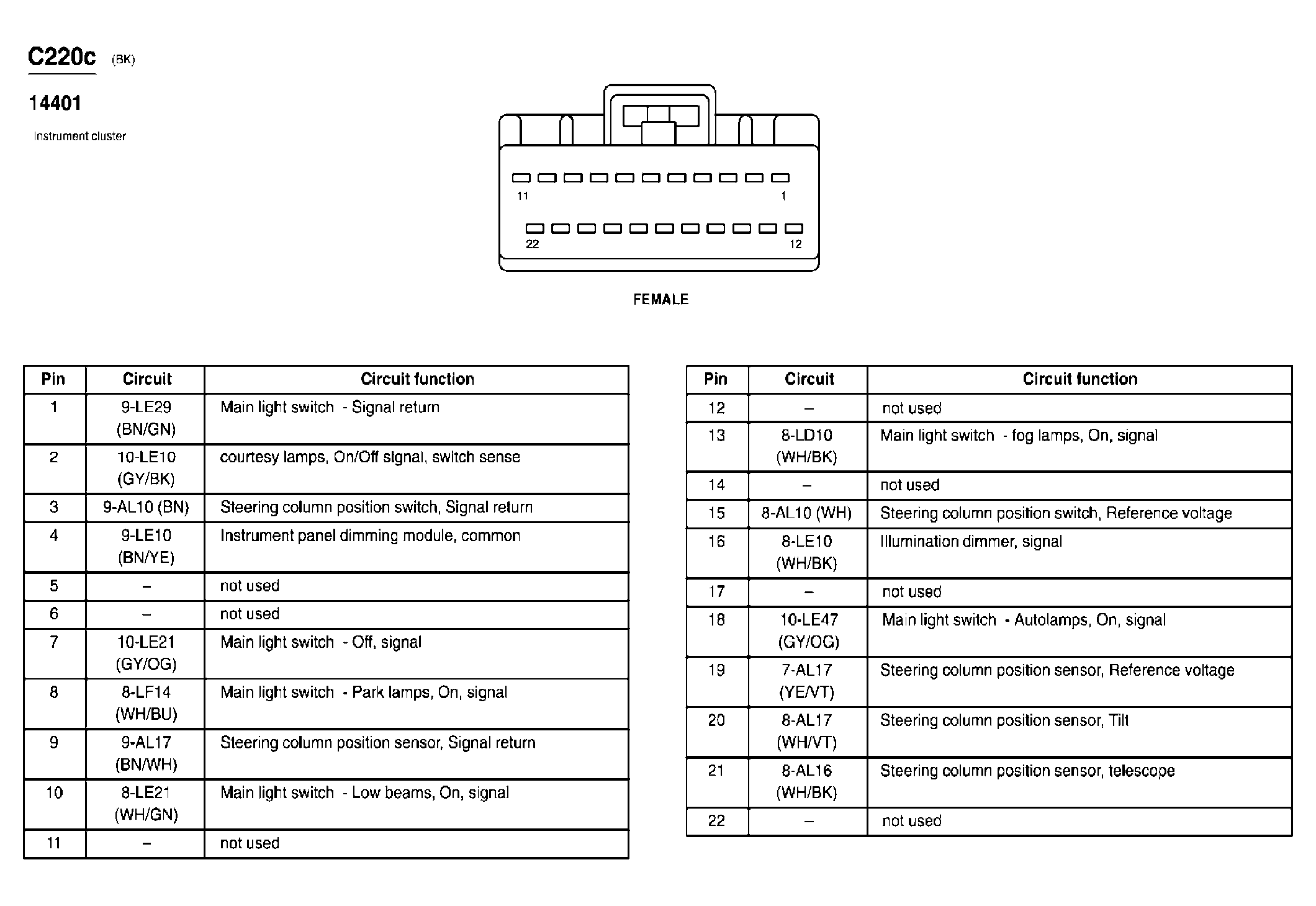

Fig 96: Instrument Cluster Connector End View (C220c)
Courtesy of FORD MOTOR CO.

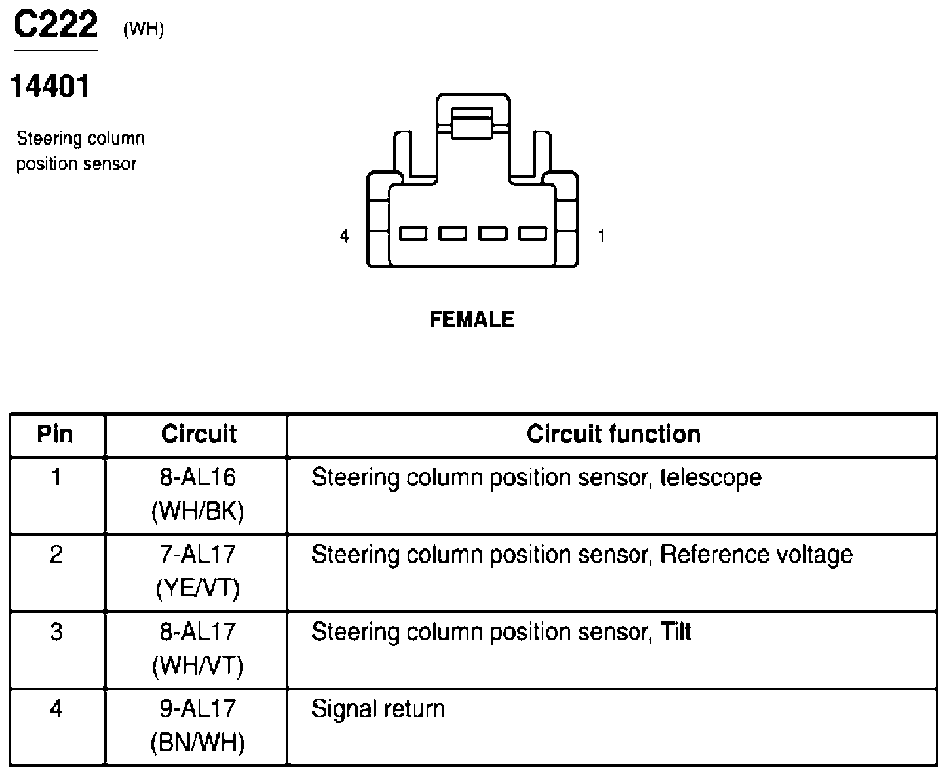

Fig 97: Steering Column Position Sensor Connector End View (C222)
Courtesy of FORD MOTOR CO.

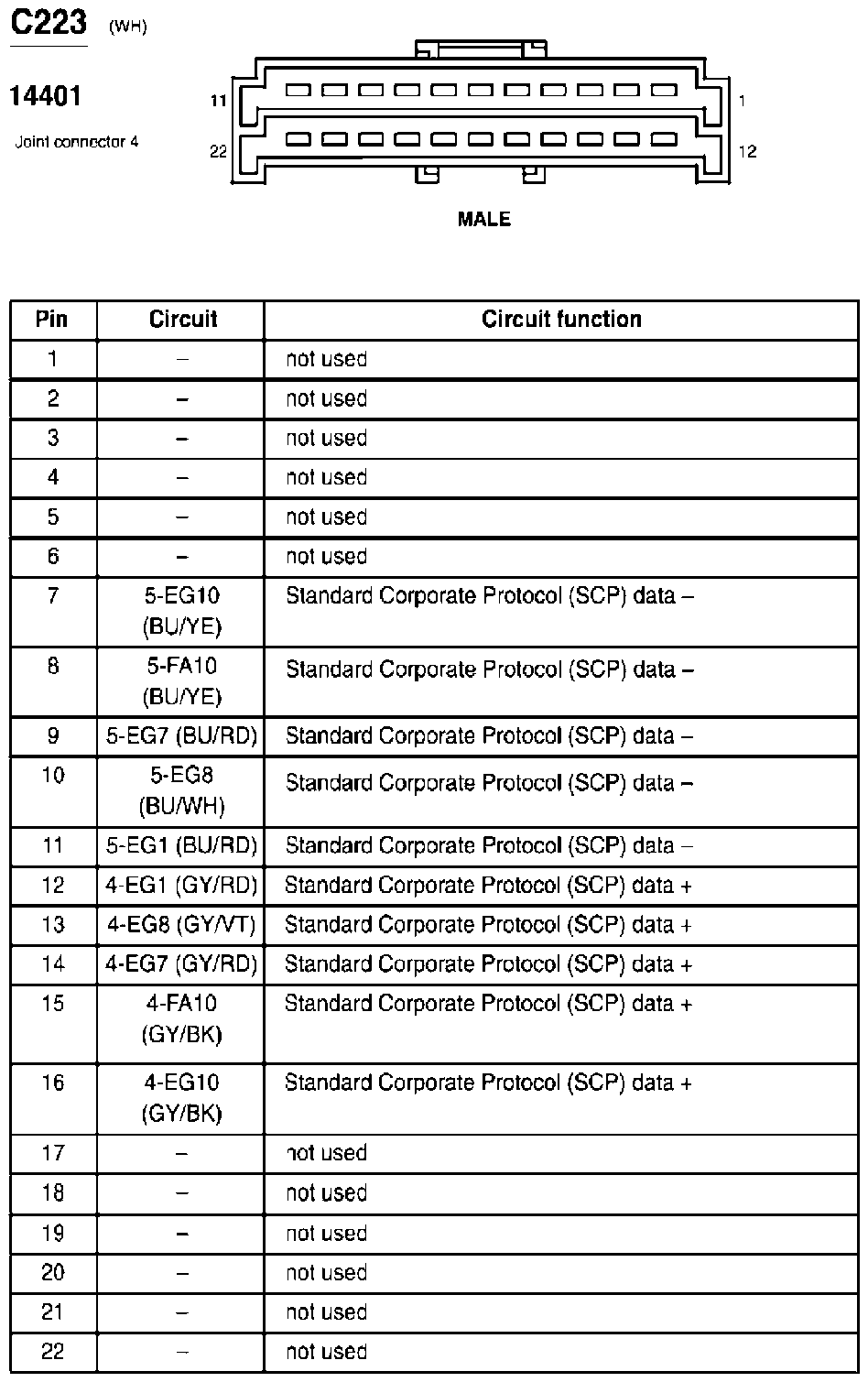

Fig 98: Joint Connector 4 Connector End View (C223)
Courtesy of FORD MOTOR CO.

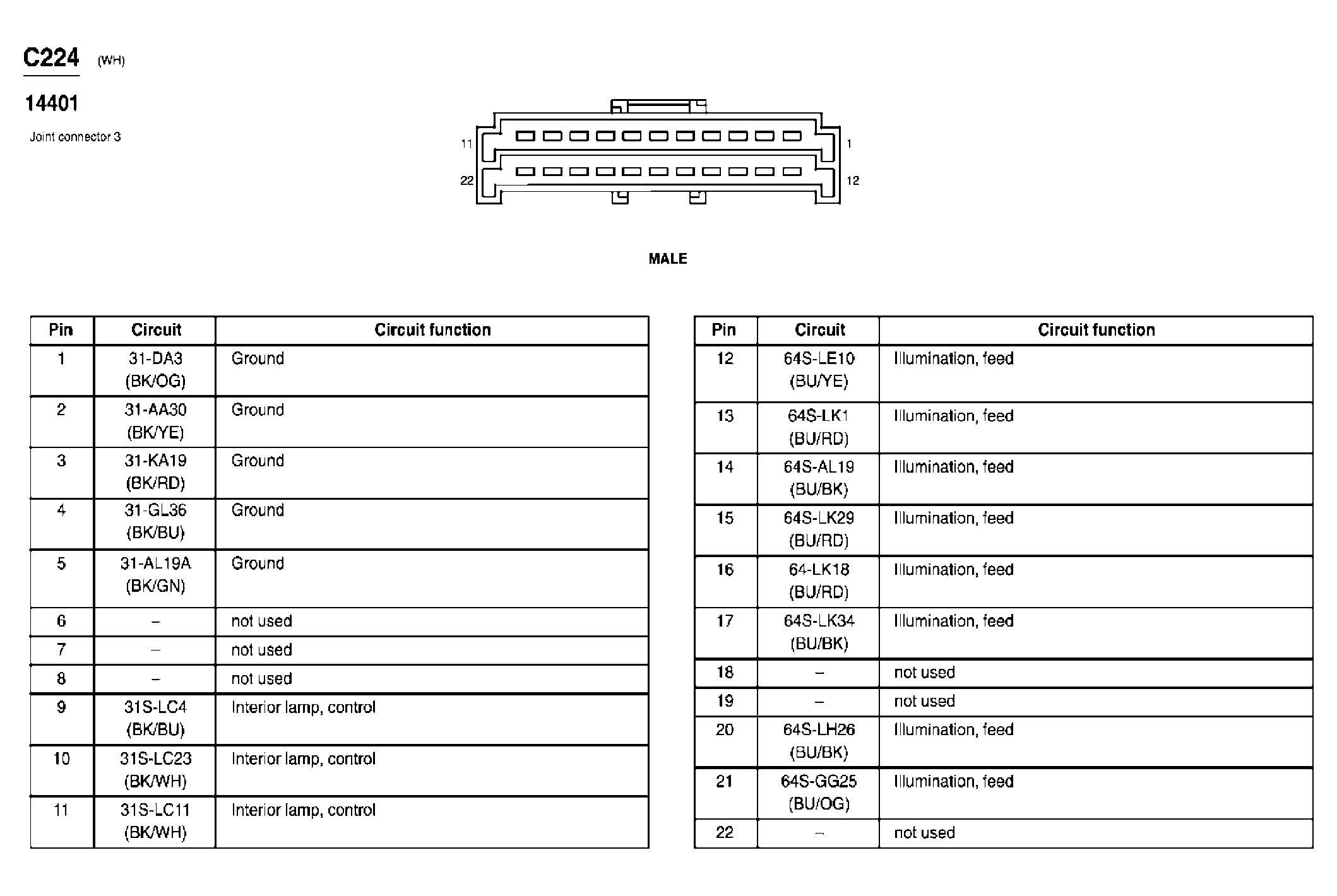

Fig 99: Joint Connector 3 Connector End View (C224)
Courtesy of FORD MOTOR CO.

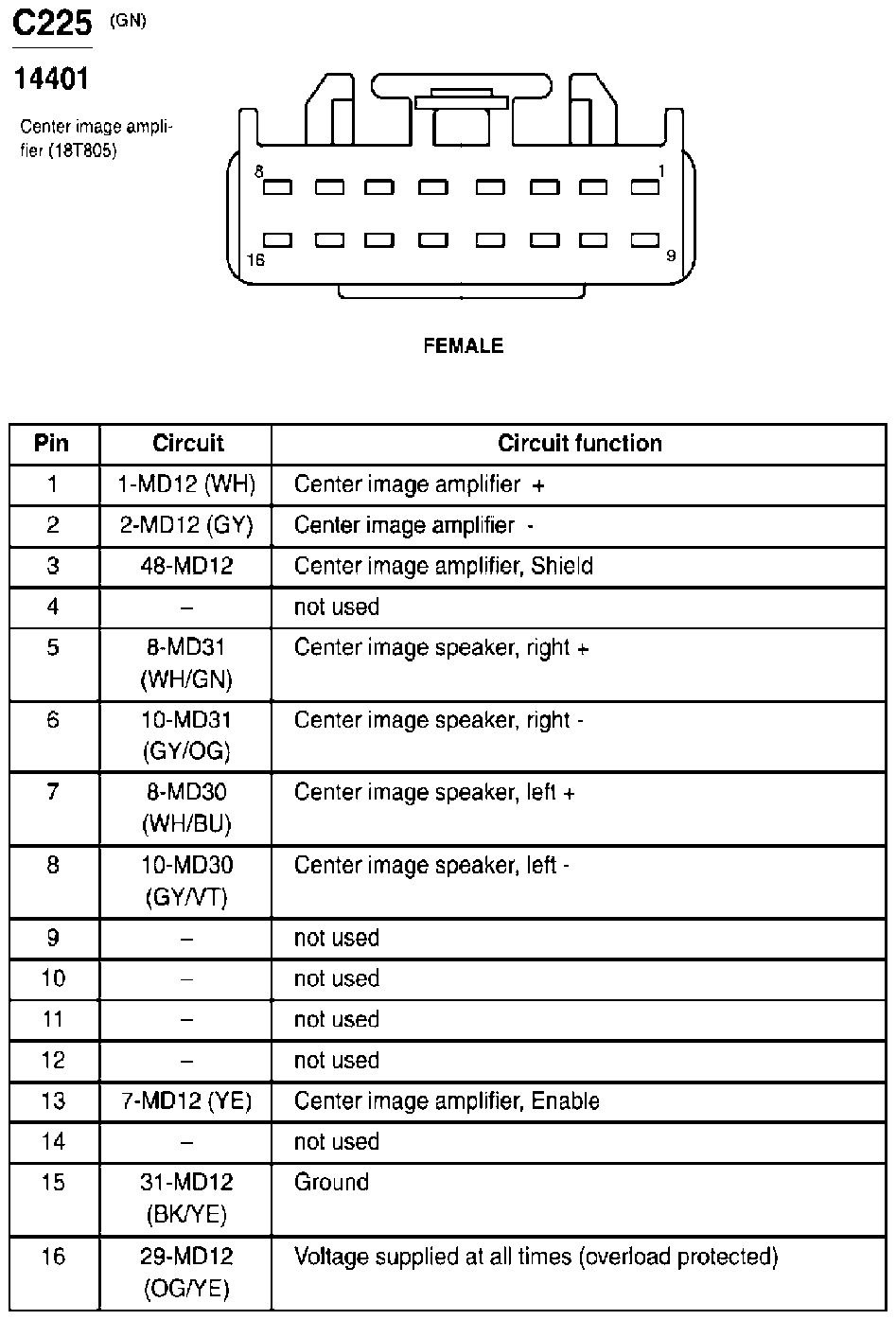

Fig 100: Center Image Amplifier Connector End View (C225)
Courtesy of FORD MOTOR CO.

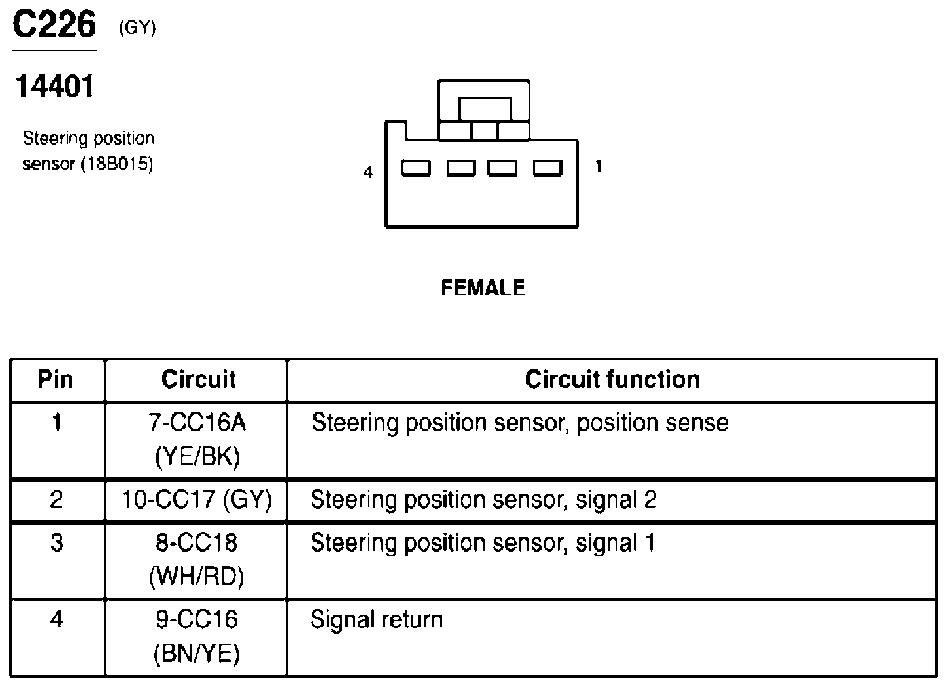

Fig 101: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.

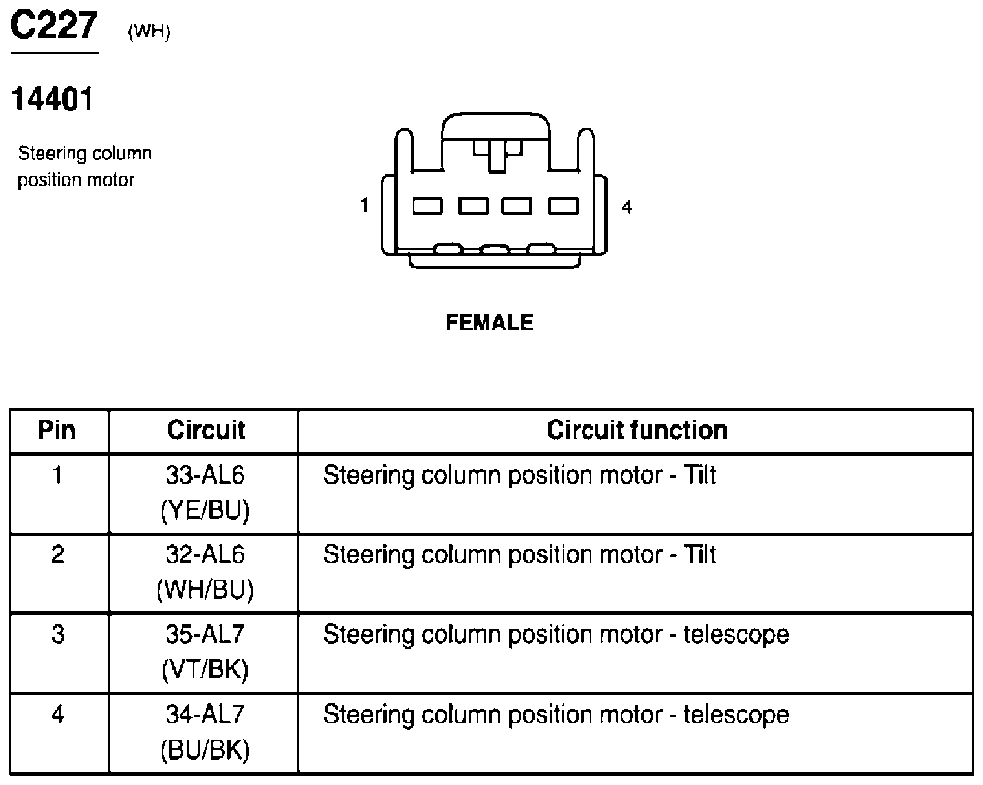

Fig 102: Steering Column Position Motor Connector End View (C227)
Courtesy of FORD MOTOR CO.

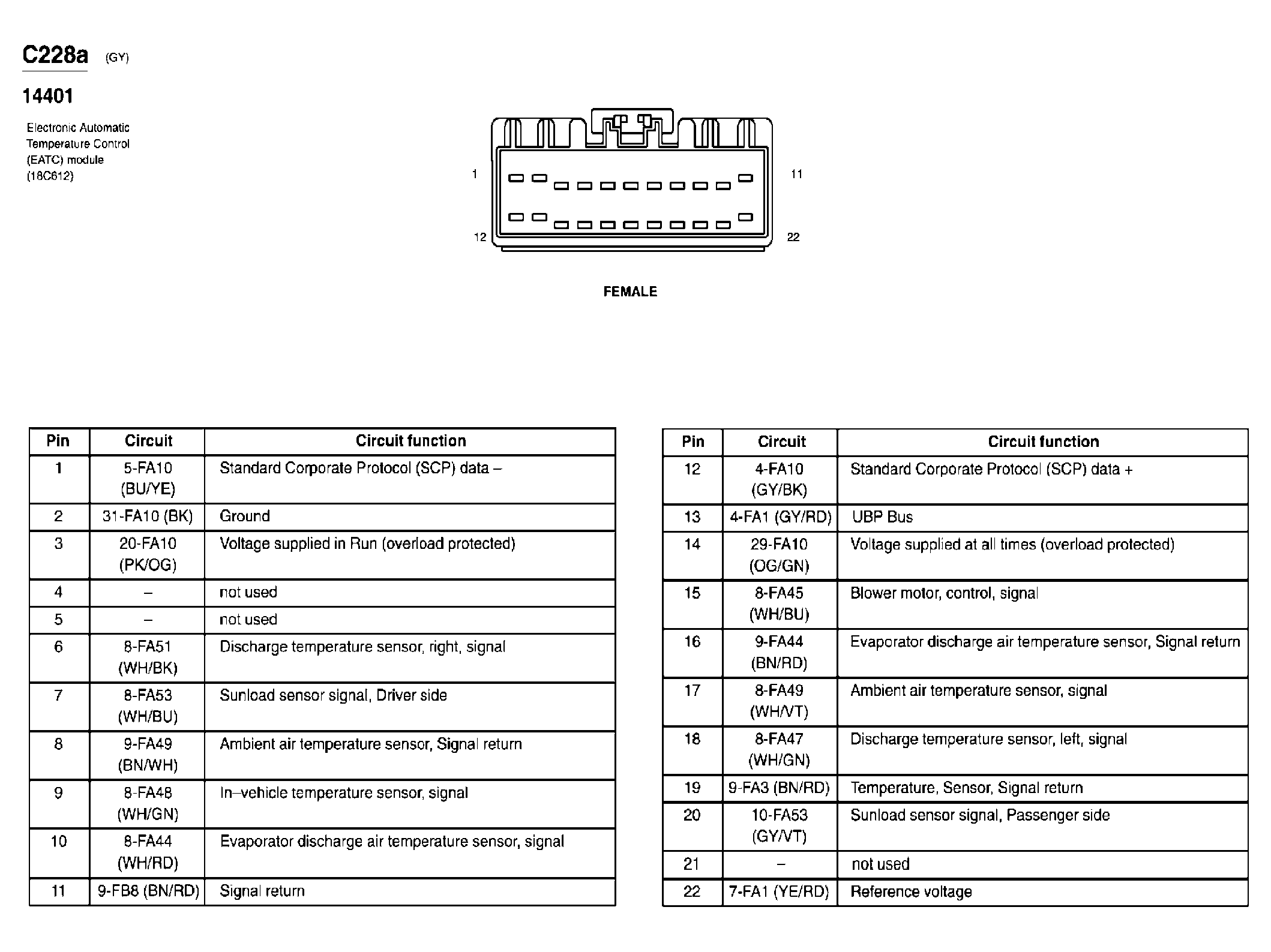

Fig 103: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.

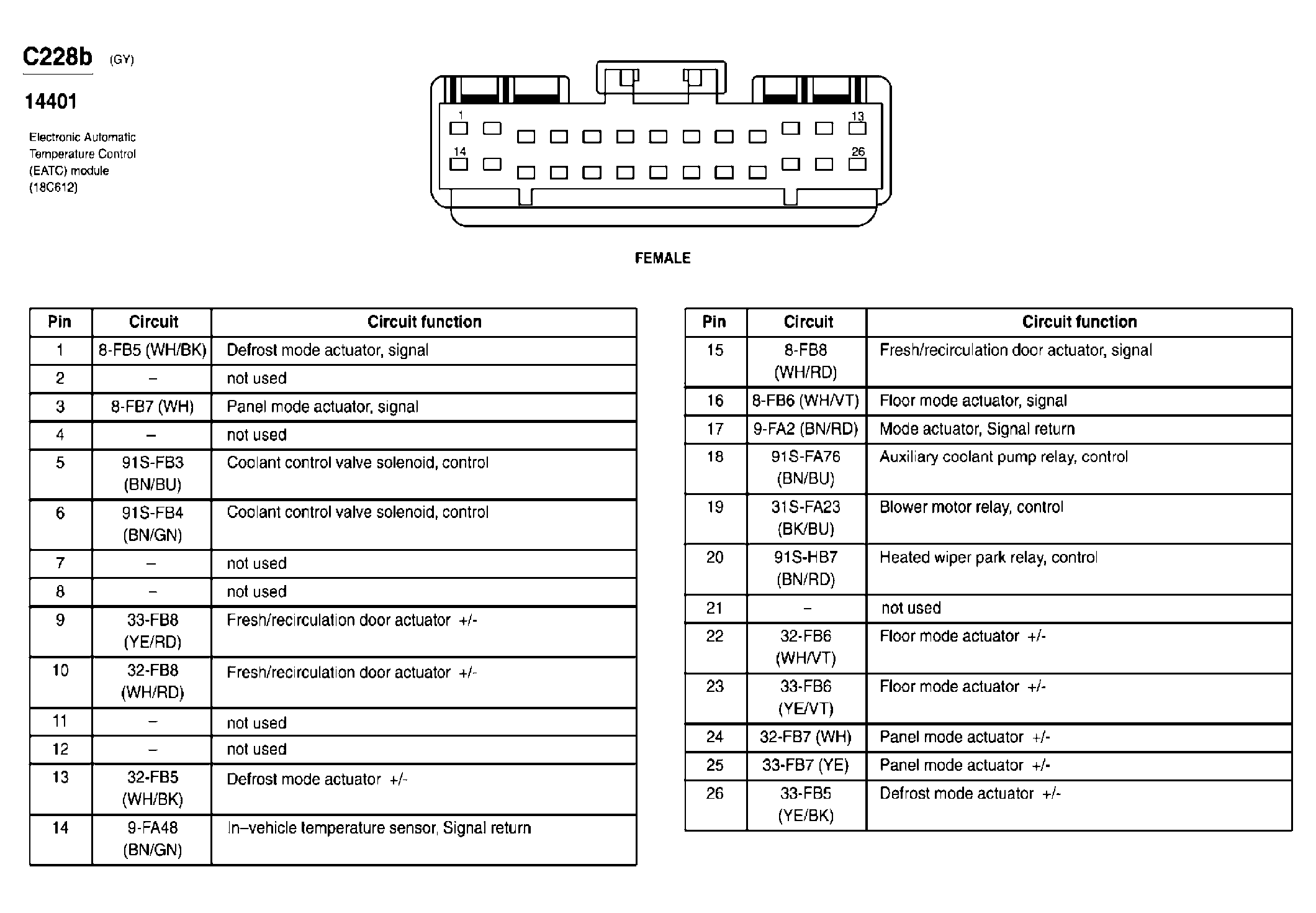

Fig 104: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.

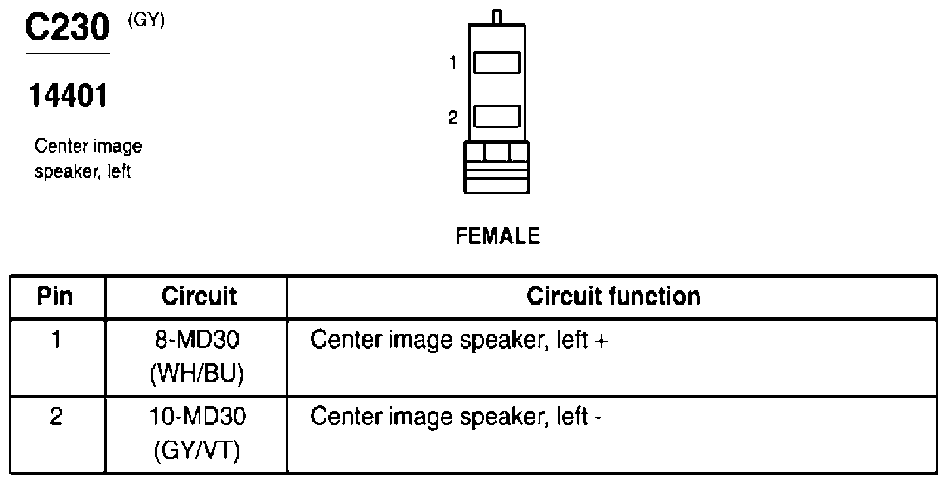

Fig 105: Center Image Speaker, Left Connector End View (C230)
Courtesy of FORD MOTOR CO.

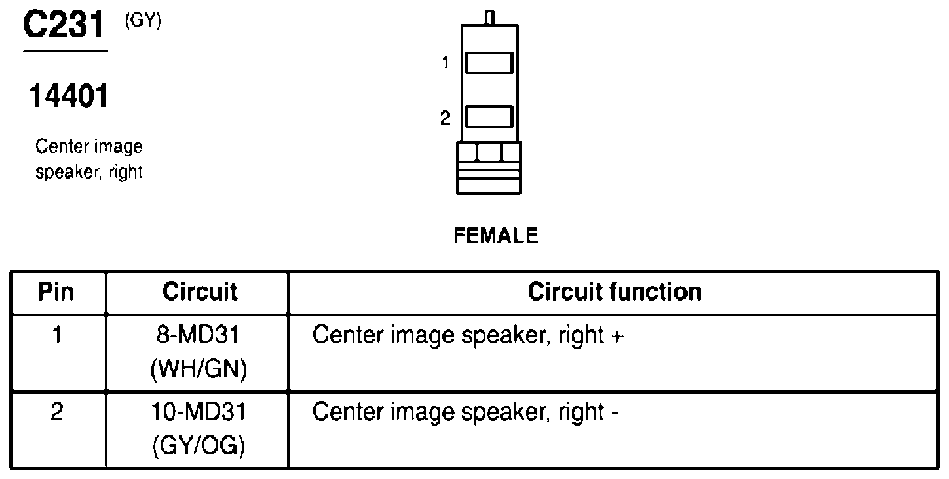

Fig 106: Center Image Speaker, Right Connector End View (C231)
Courtesy of FORD MOTOR CO.

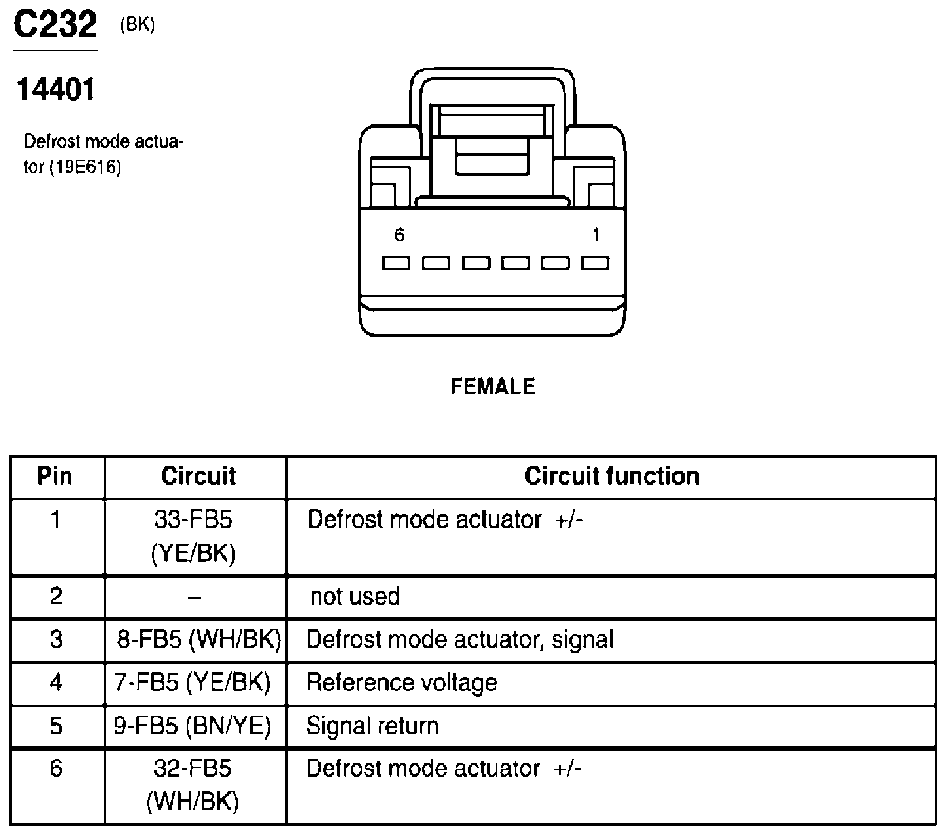

Fig 107: Defrost Mode Actuator Connector End View (C232)
Courtesy of FORD MOTOR CO.

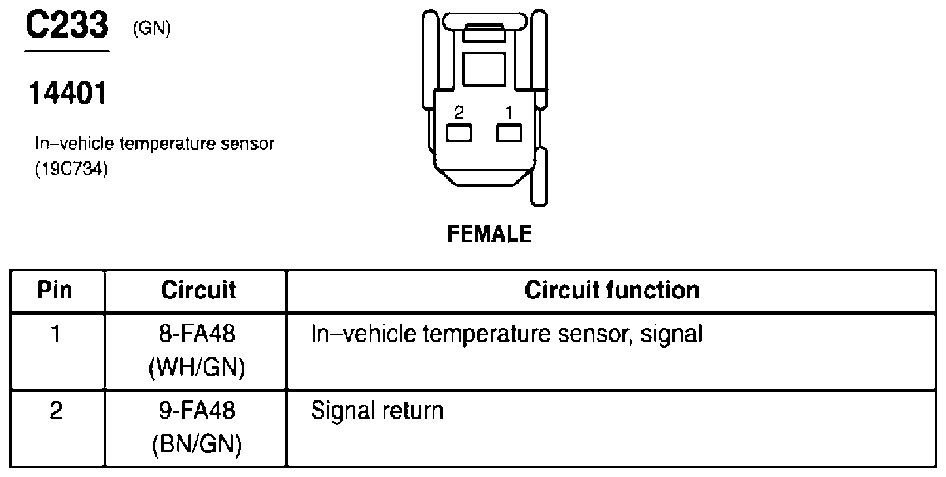

Fig 108: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

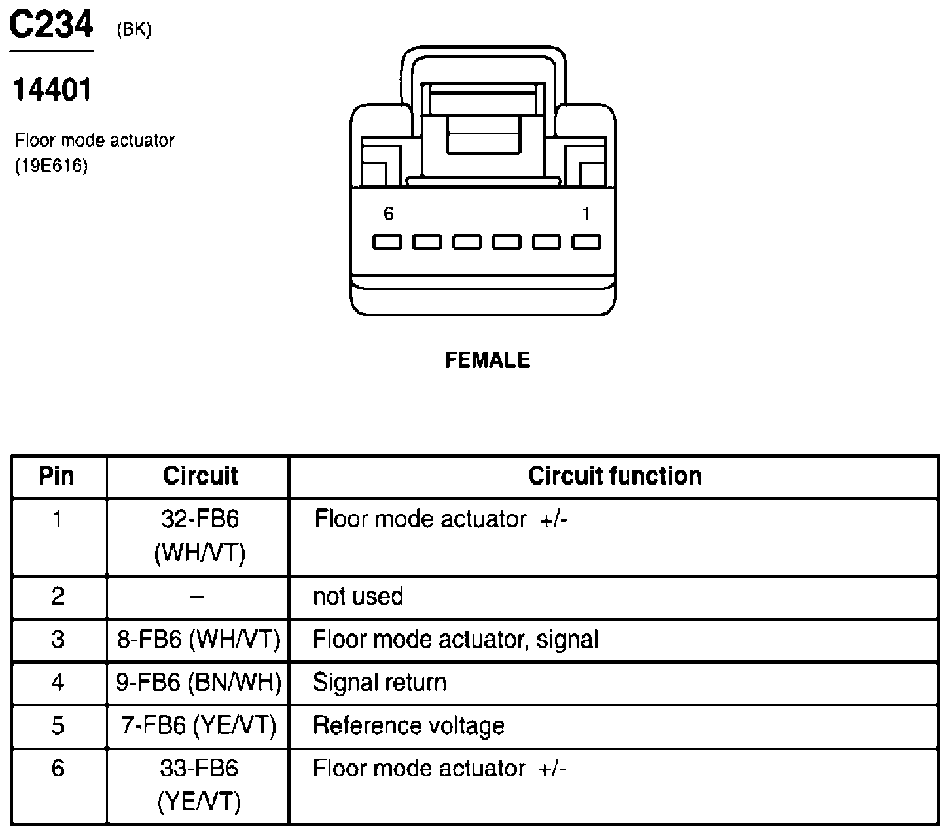

Fig 109: Floor Mode Actuator Connector End View (C234)
Courtesy of FORD MOTOR CO.

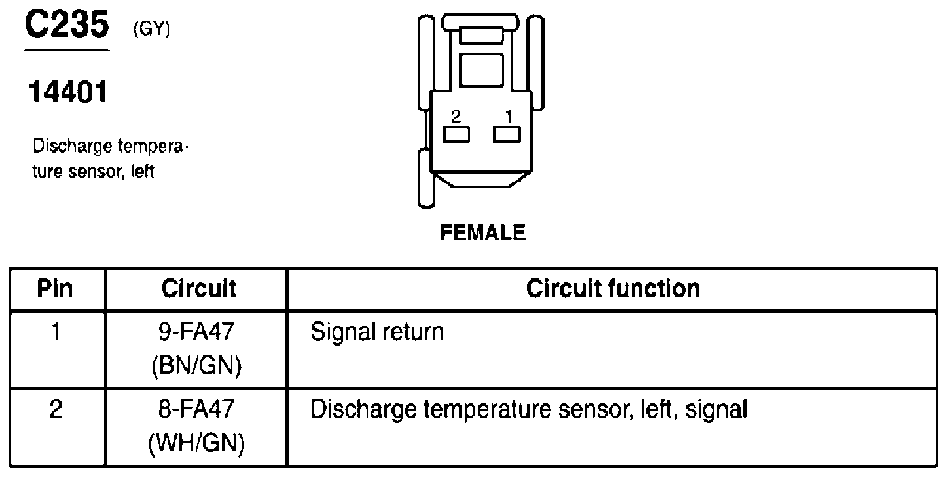

Fig 110: Discharge Temperature Sensor, Left Connector End View (C235)
Courtesy of FORD MOTOR CO.

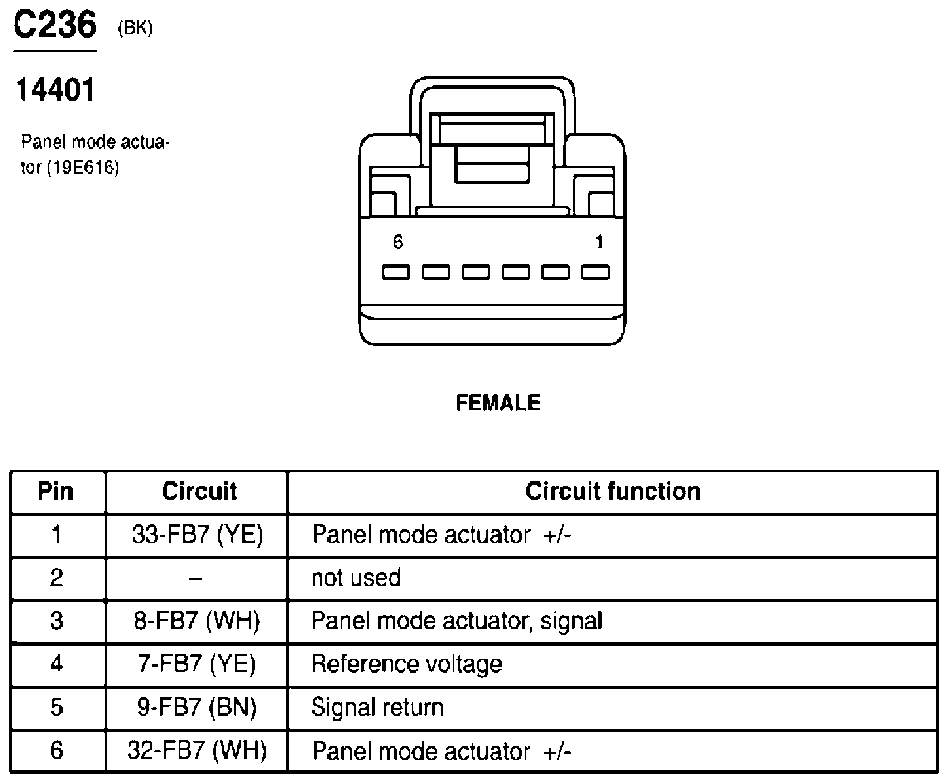

Fig 111: Panel Mode Actuator Connector End View (C236)
Courtesy of FORD MOTOR CO.
Fig 112: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

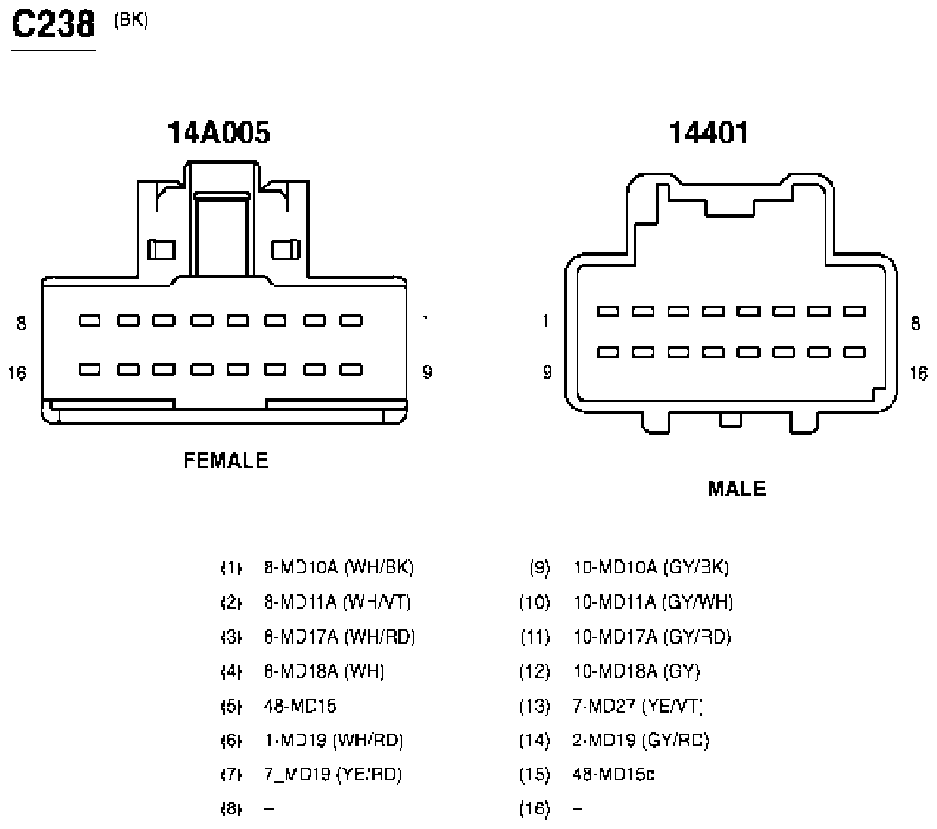

Fig 113: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

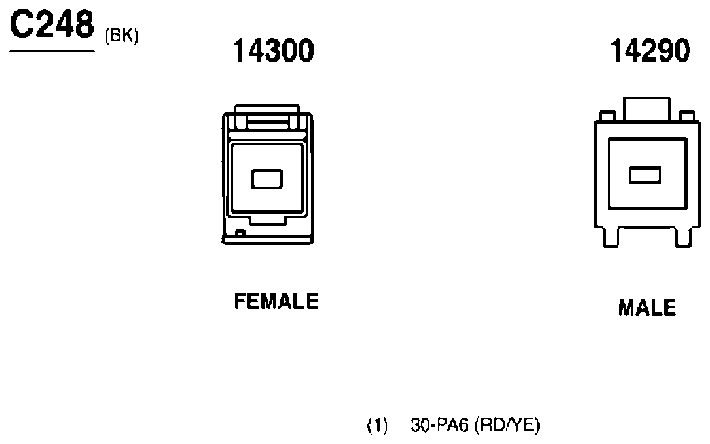

Fig 114: Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.

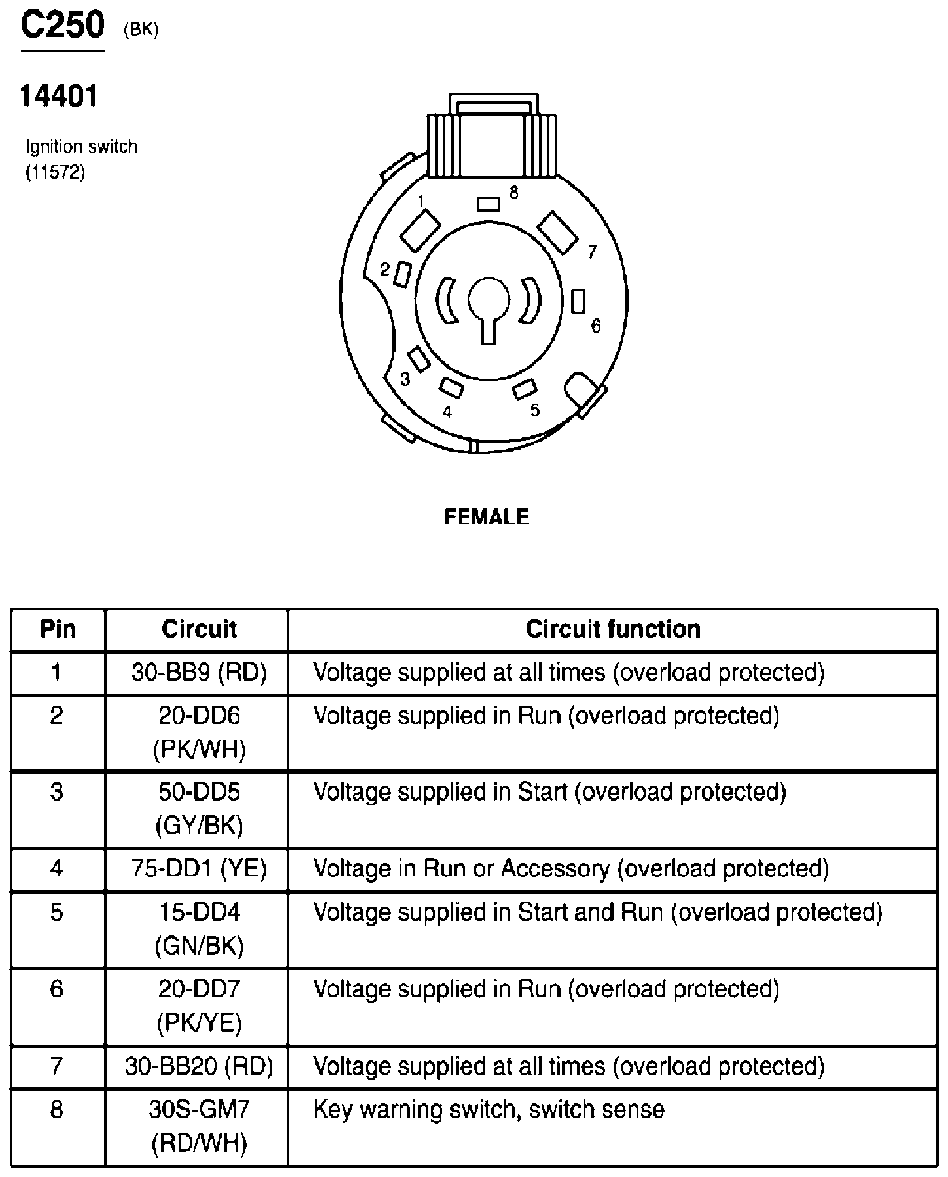

Fig 115: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

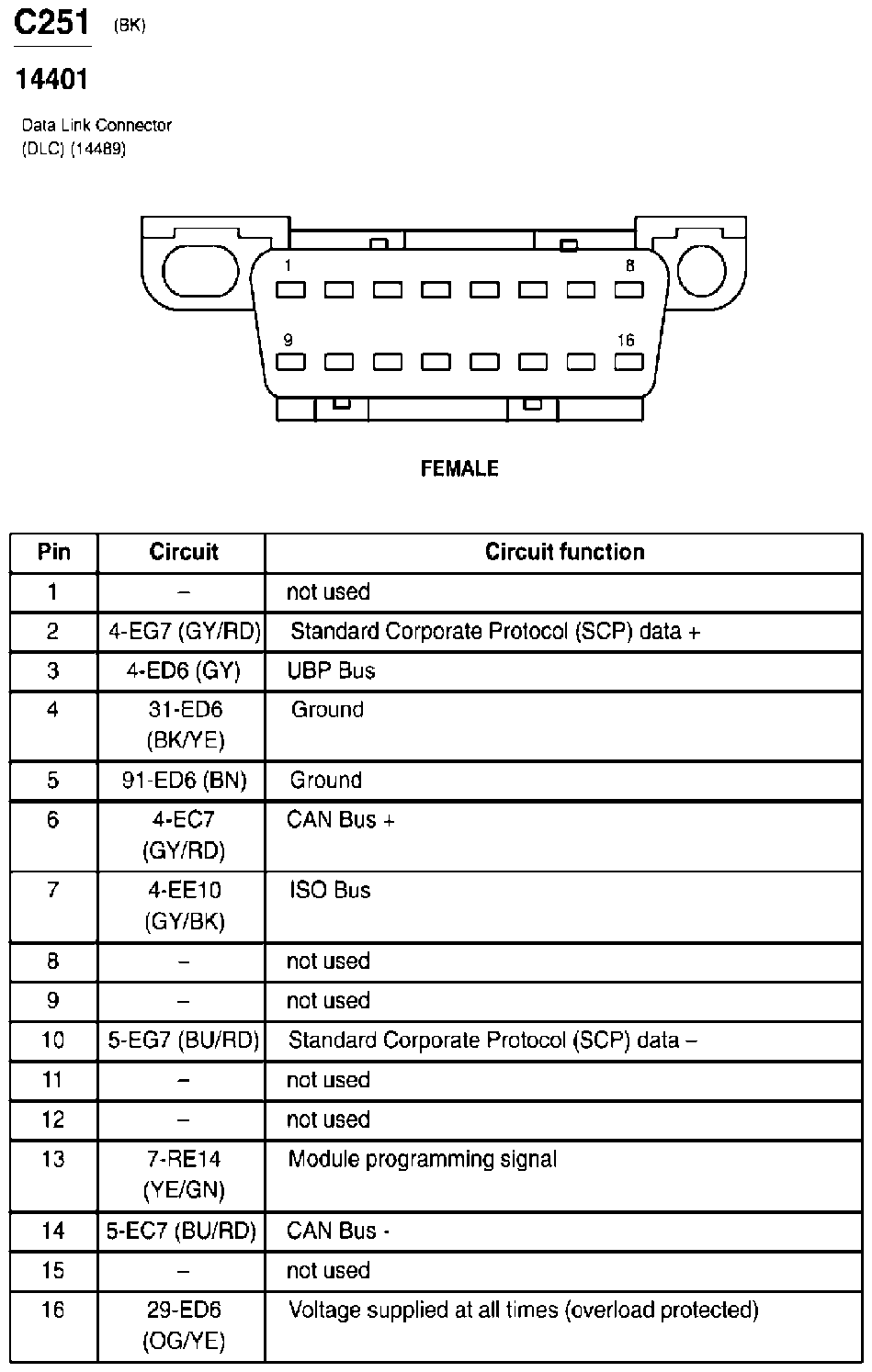

Fig 116: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

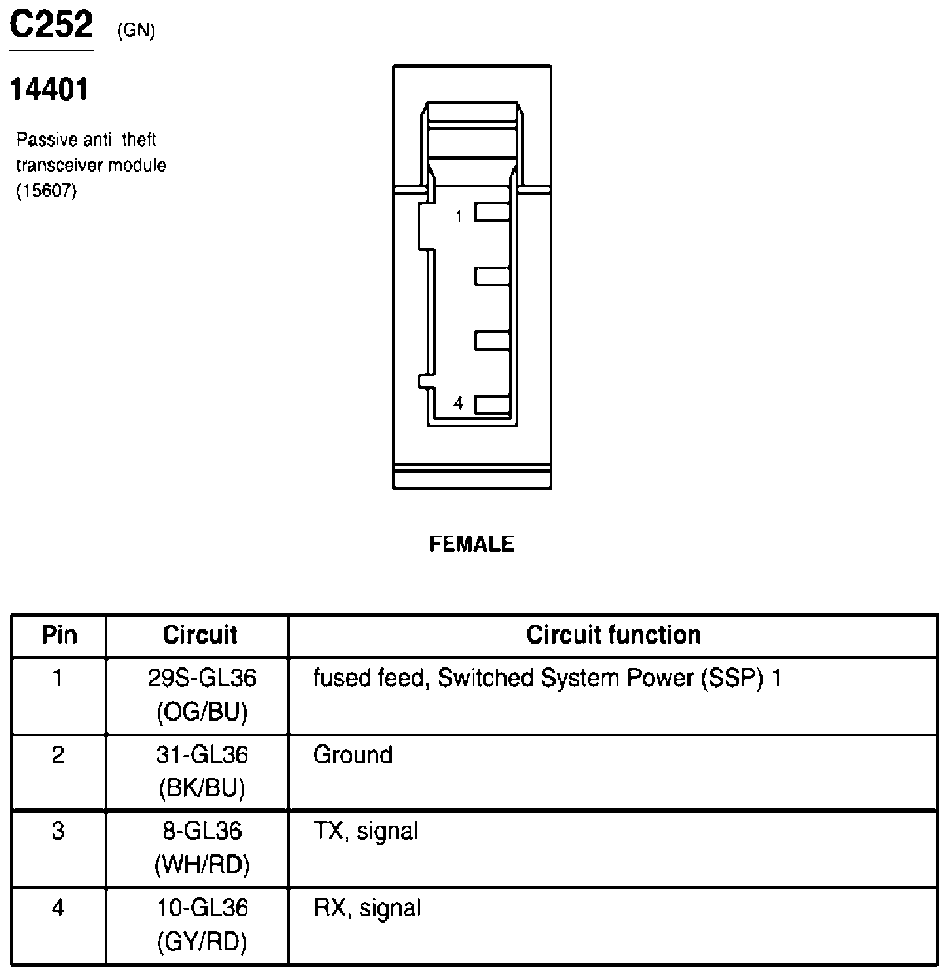

Fig 117: Passive Anti Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

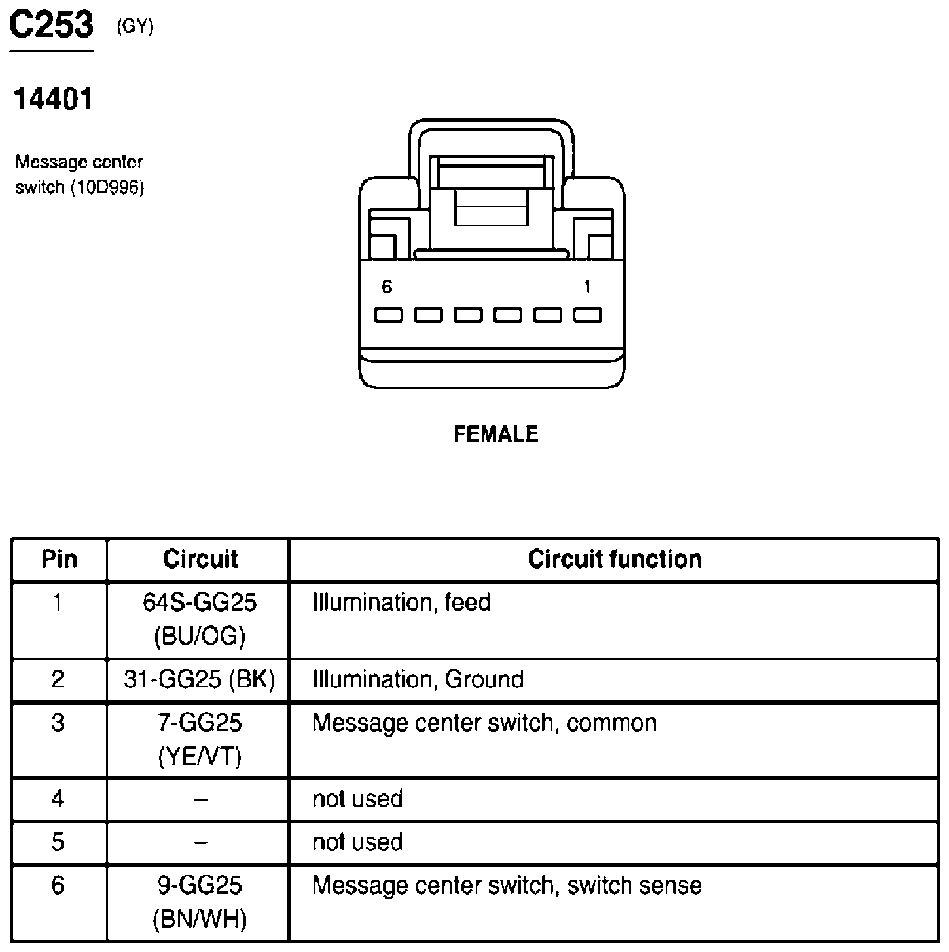

Fig 118: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

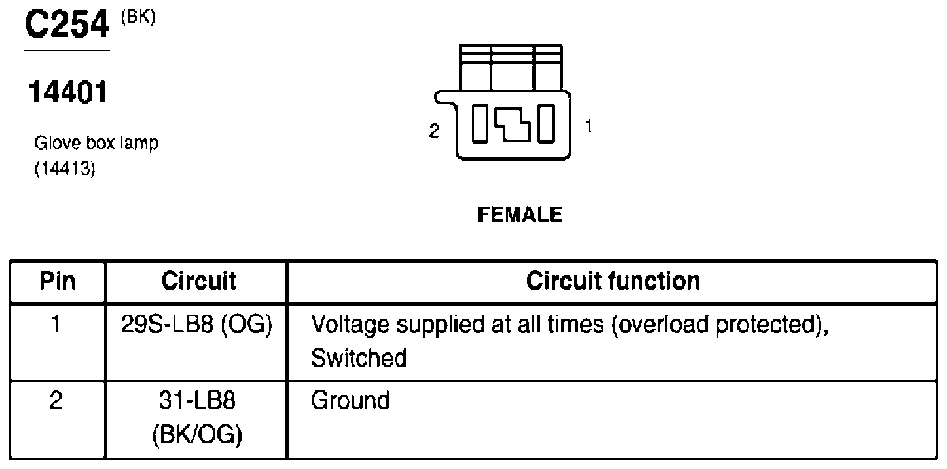

Fig 119: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

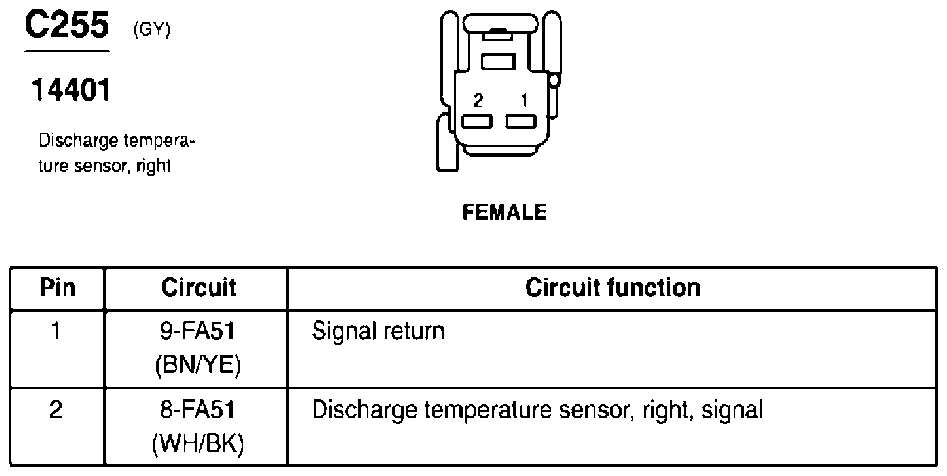

Fig 120: Discharge Temperature Sensor, Right Connector End View (C255)
Courtesy of FORD MOTOR CO.

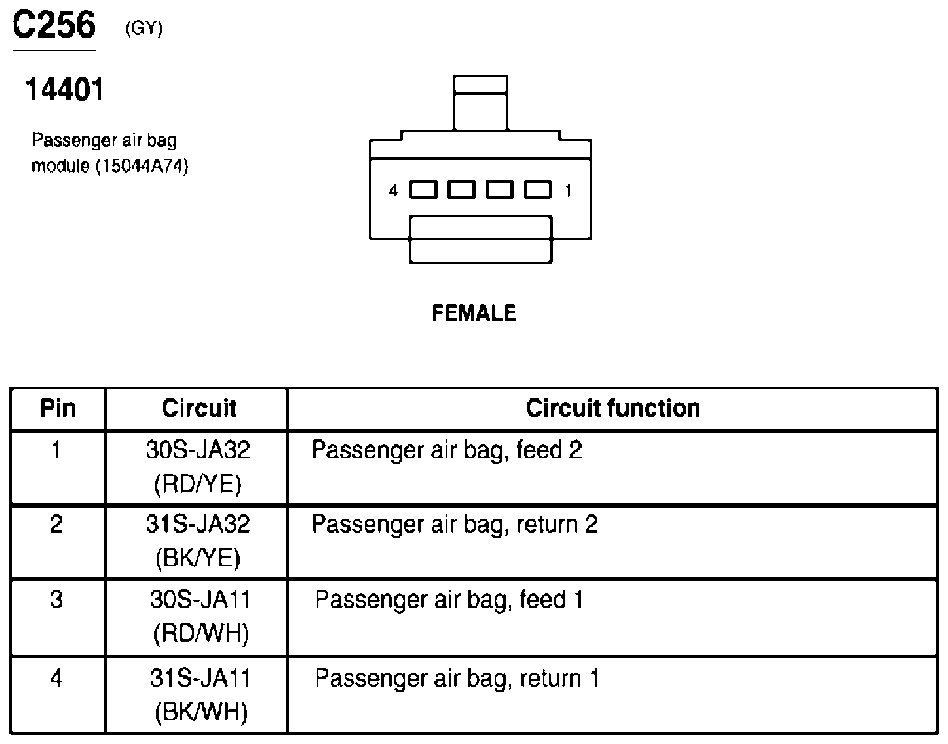

Fig 121: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

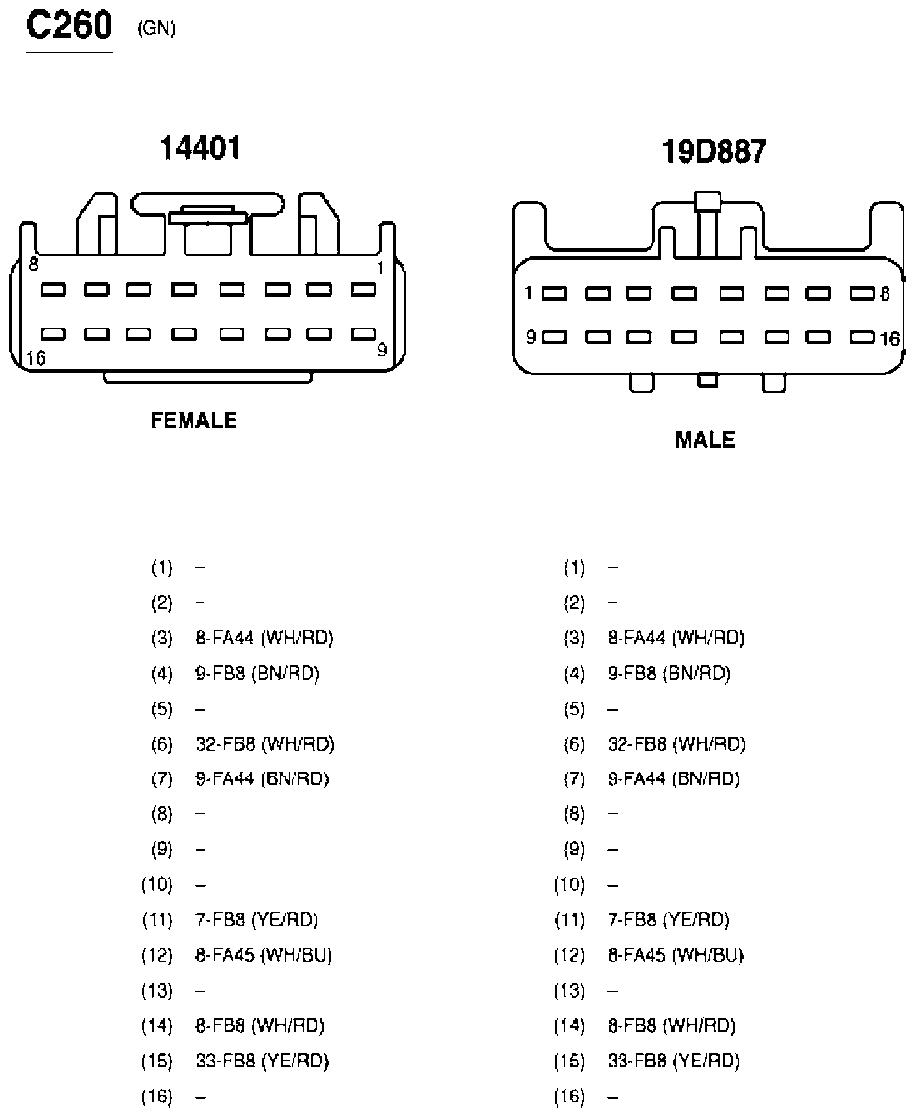

Fig 122: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

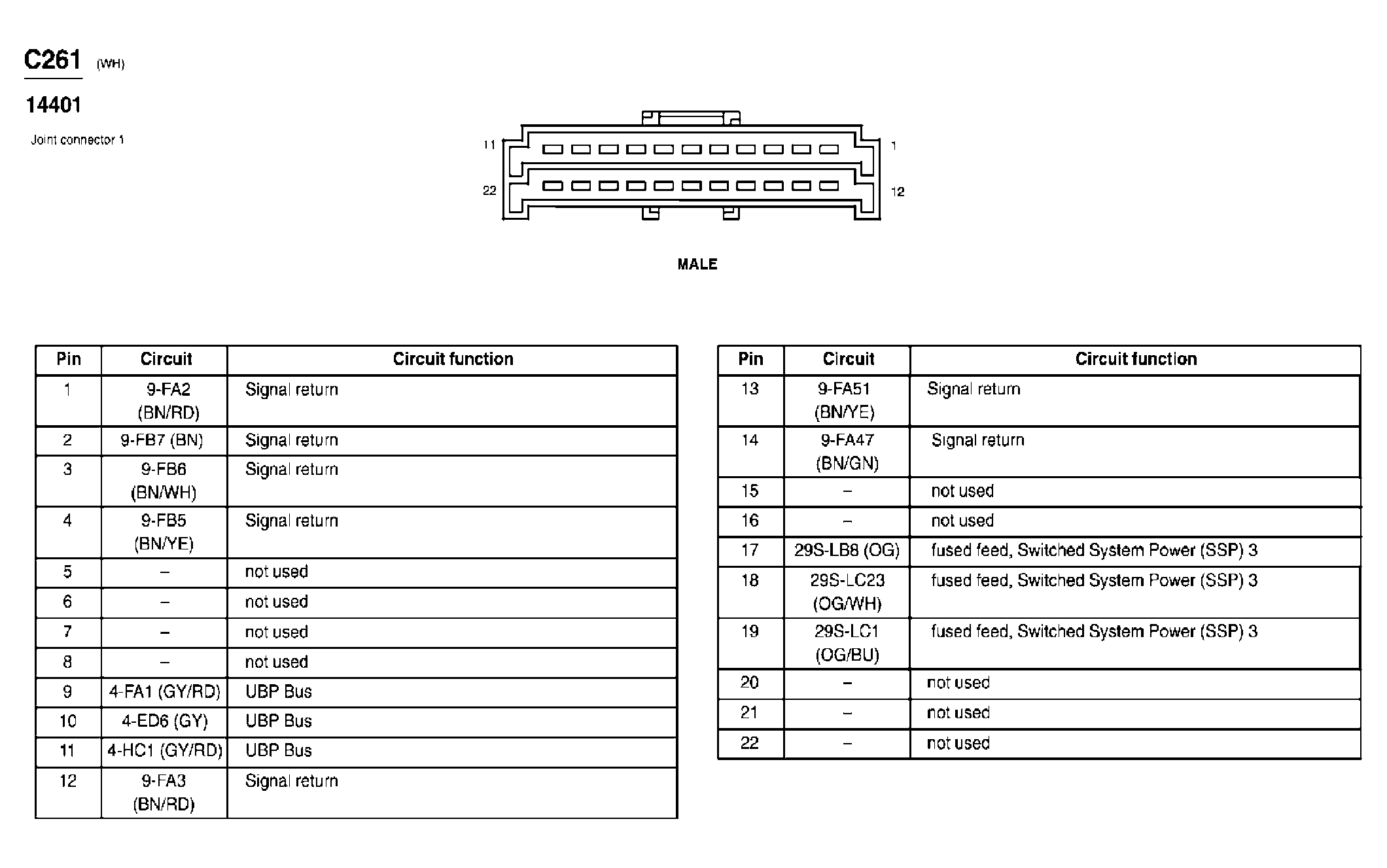

Fig 123: Joint Connector 1 Connector End View (C261)
Courtesy of FORD MOTOR CO.

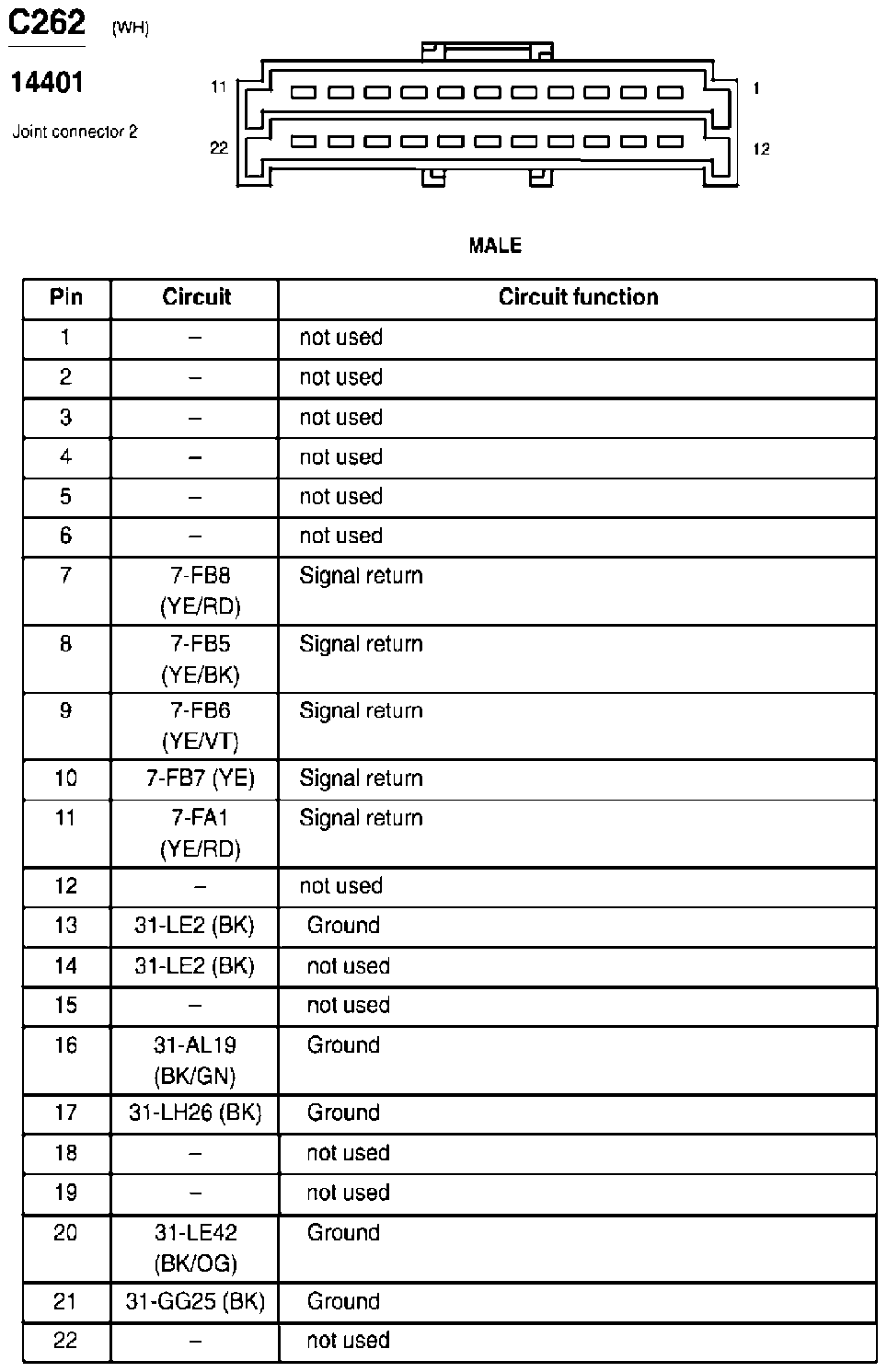

Fig 124: Joint Connector 2 Connector End View (C262)
Courtesy of FORD MOTOR CO.

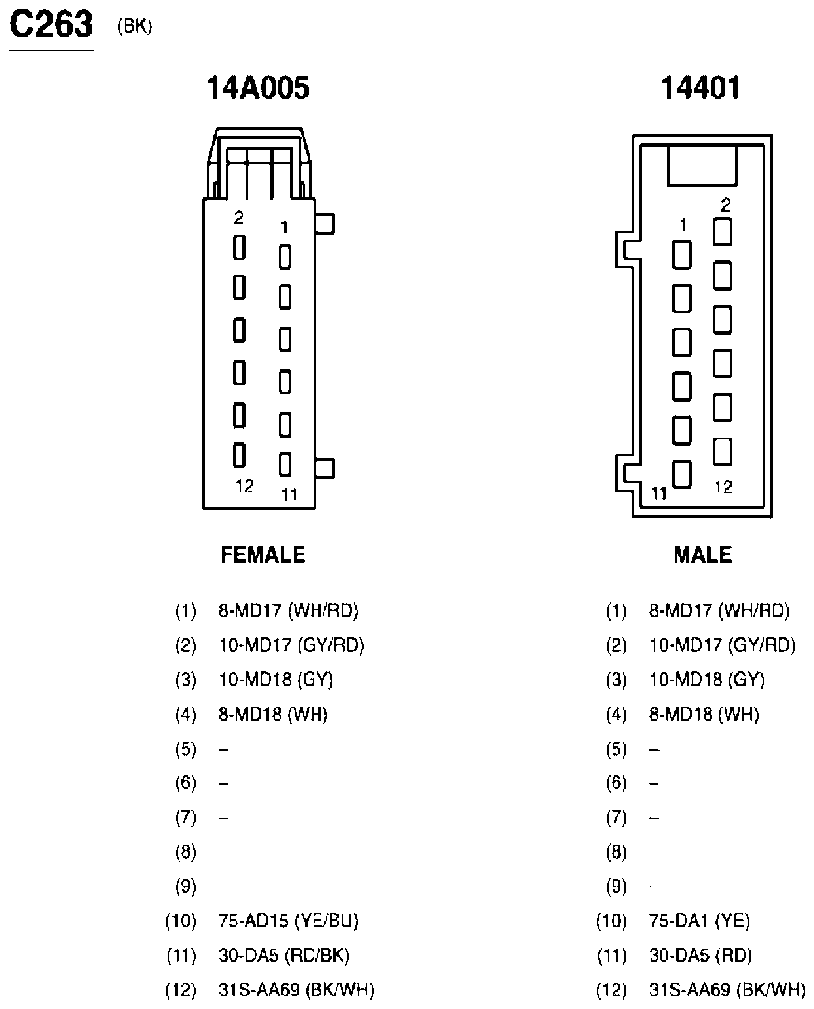

Fig 125: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

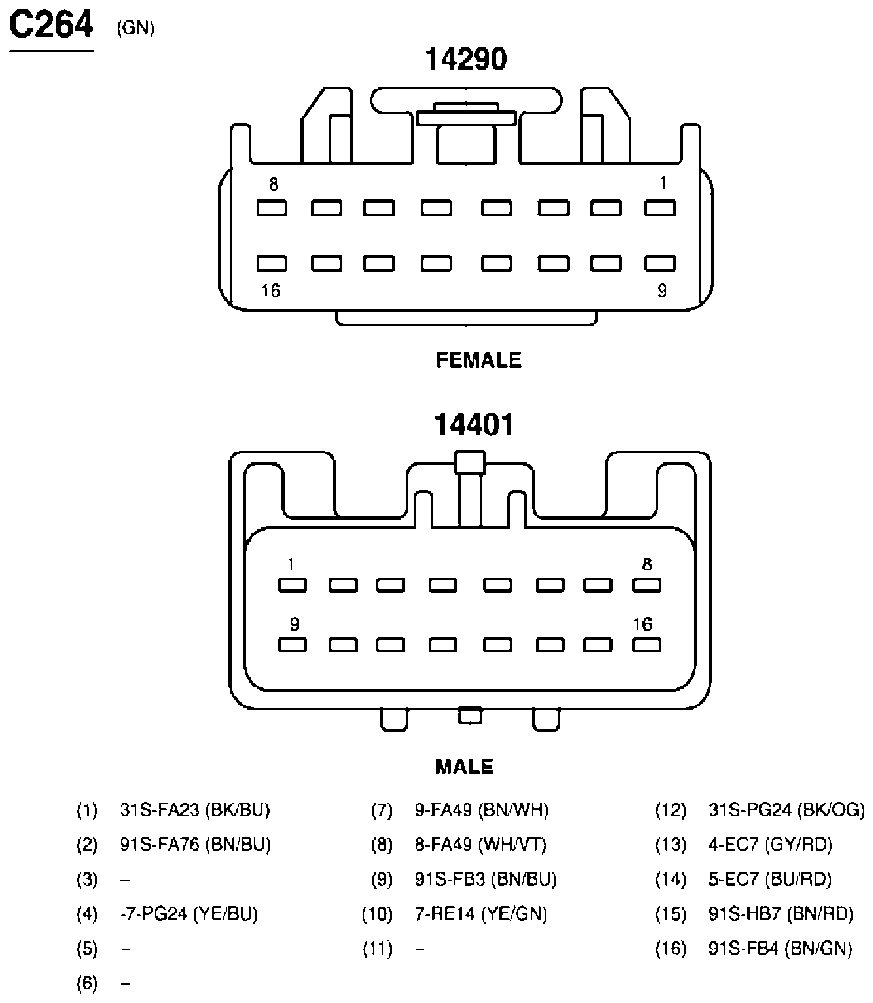

Fig 126: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

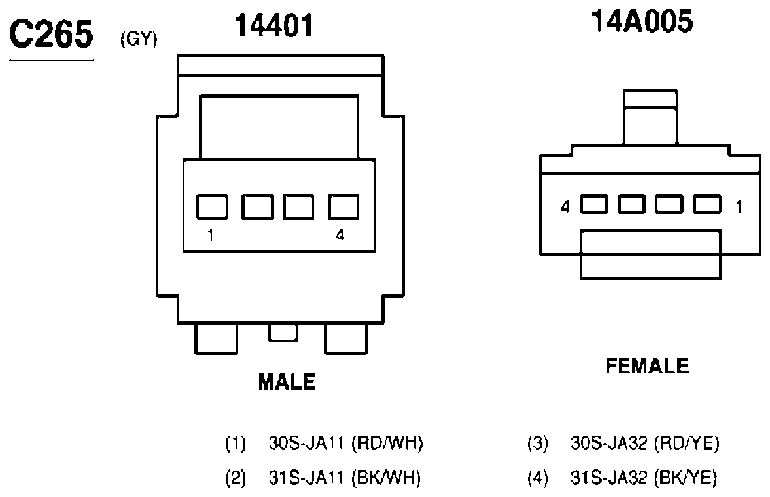

Fig 127: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.

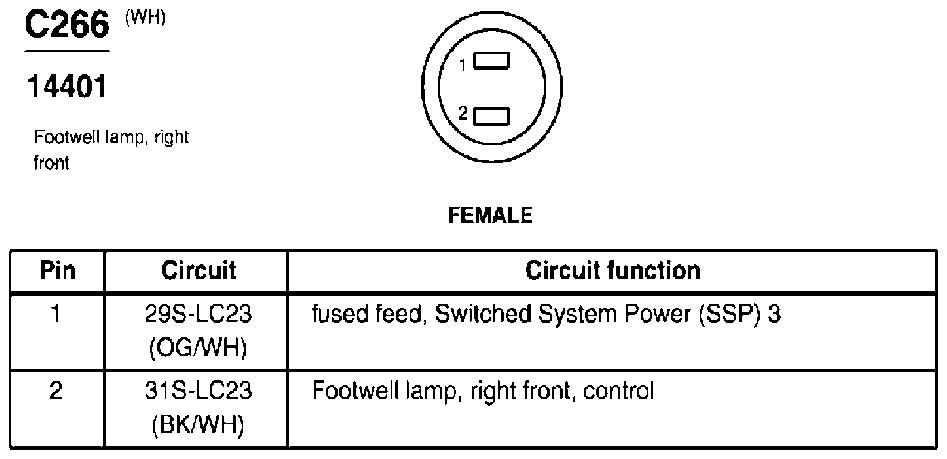

Fig 128: Footwell Lamp, Right Front Connector End View (C266)
Courtesy of FORD MOTOR CO.

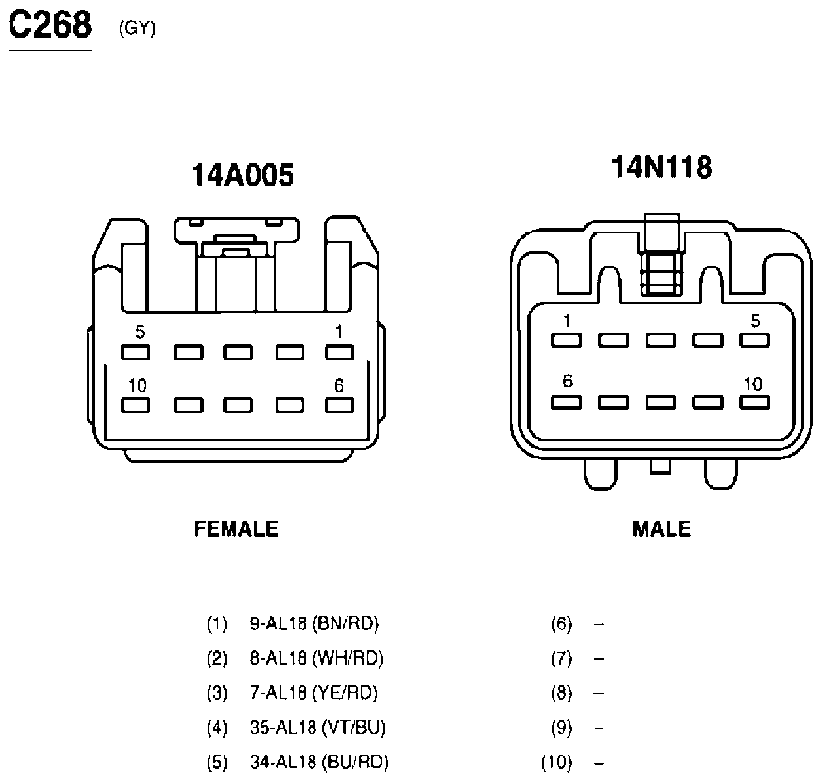

Fig 129: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.

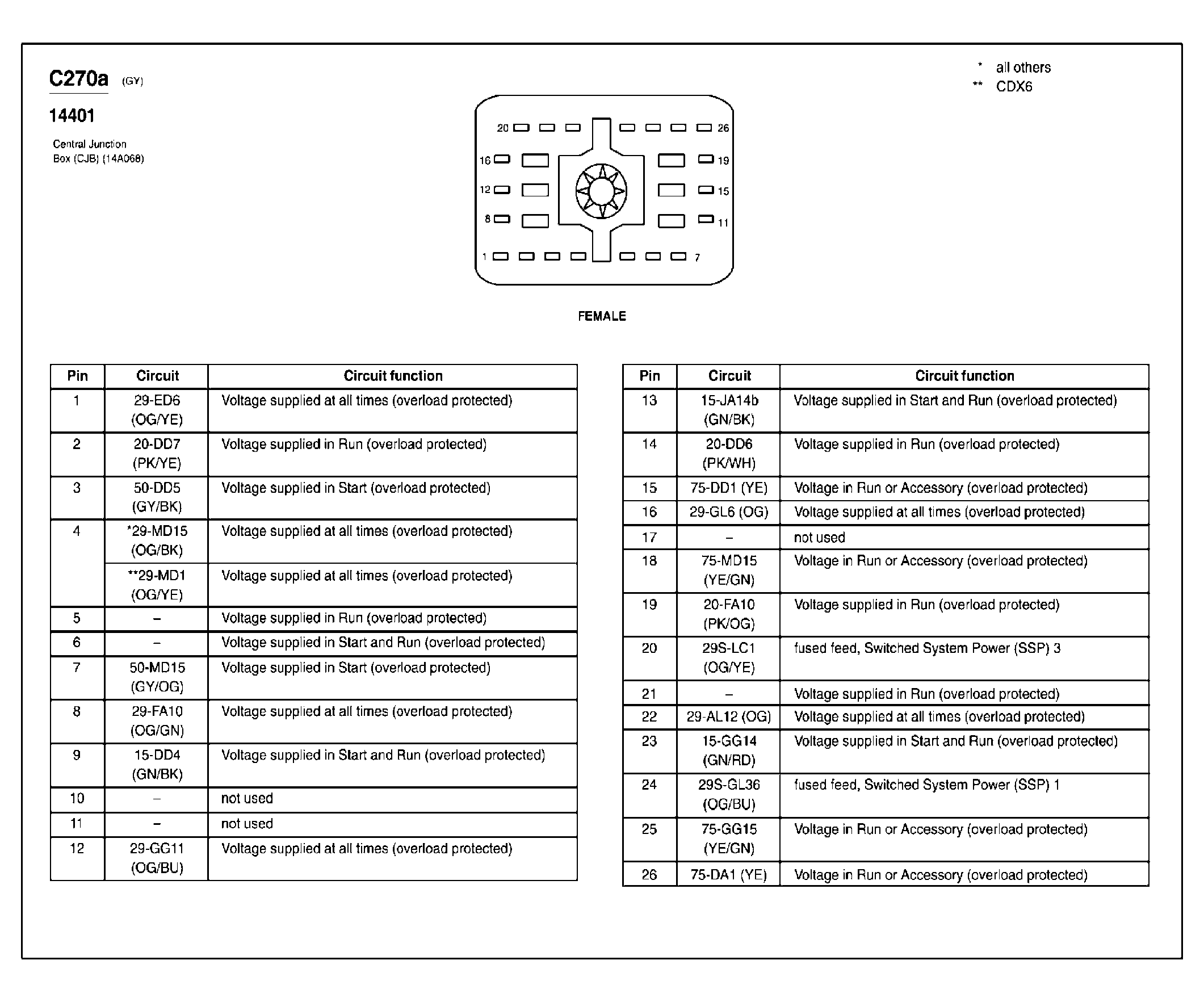

Fig 130: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.

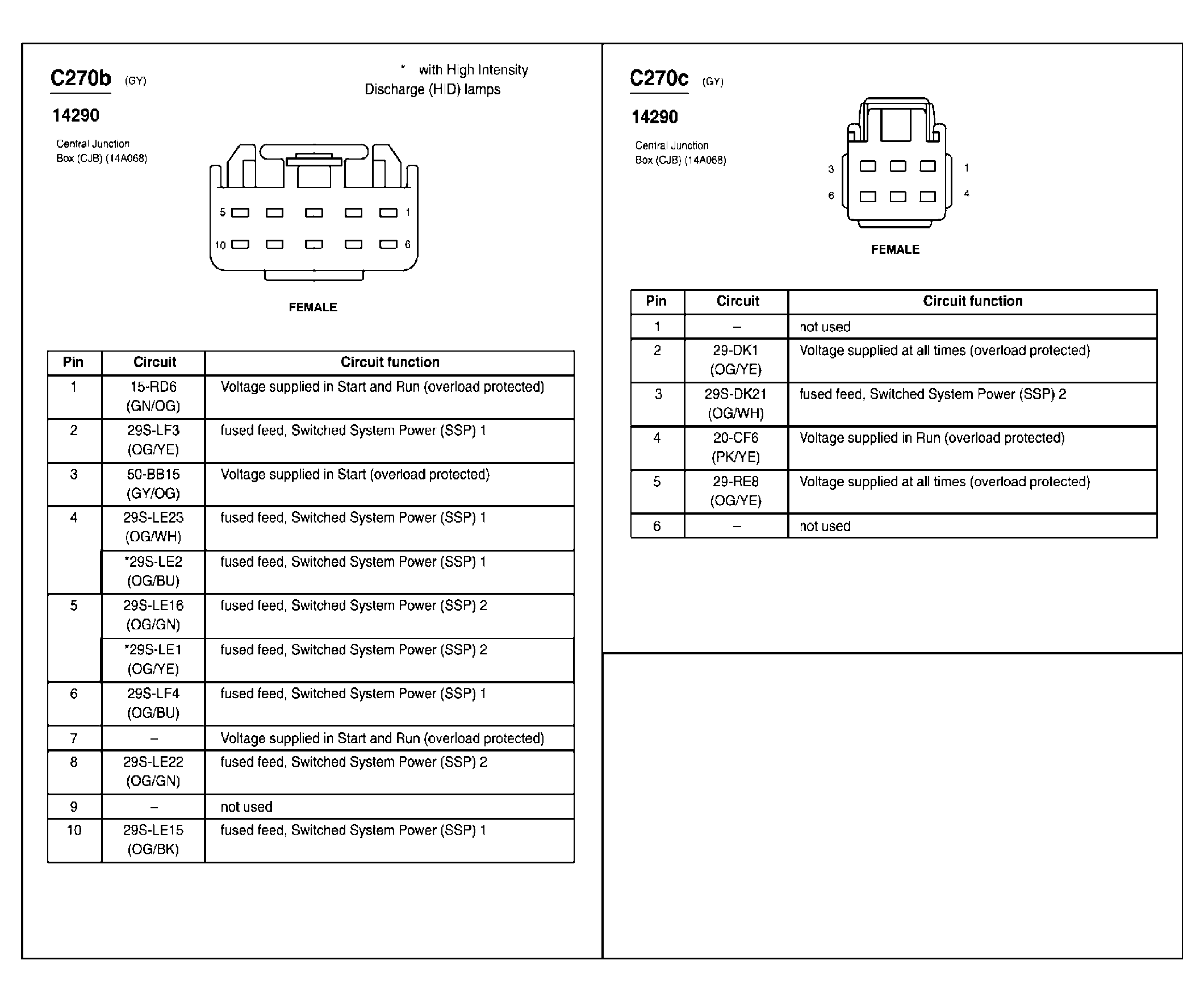

Fig 131: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.

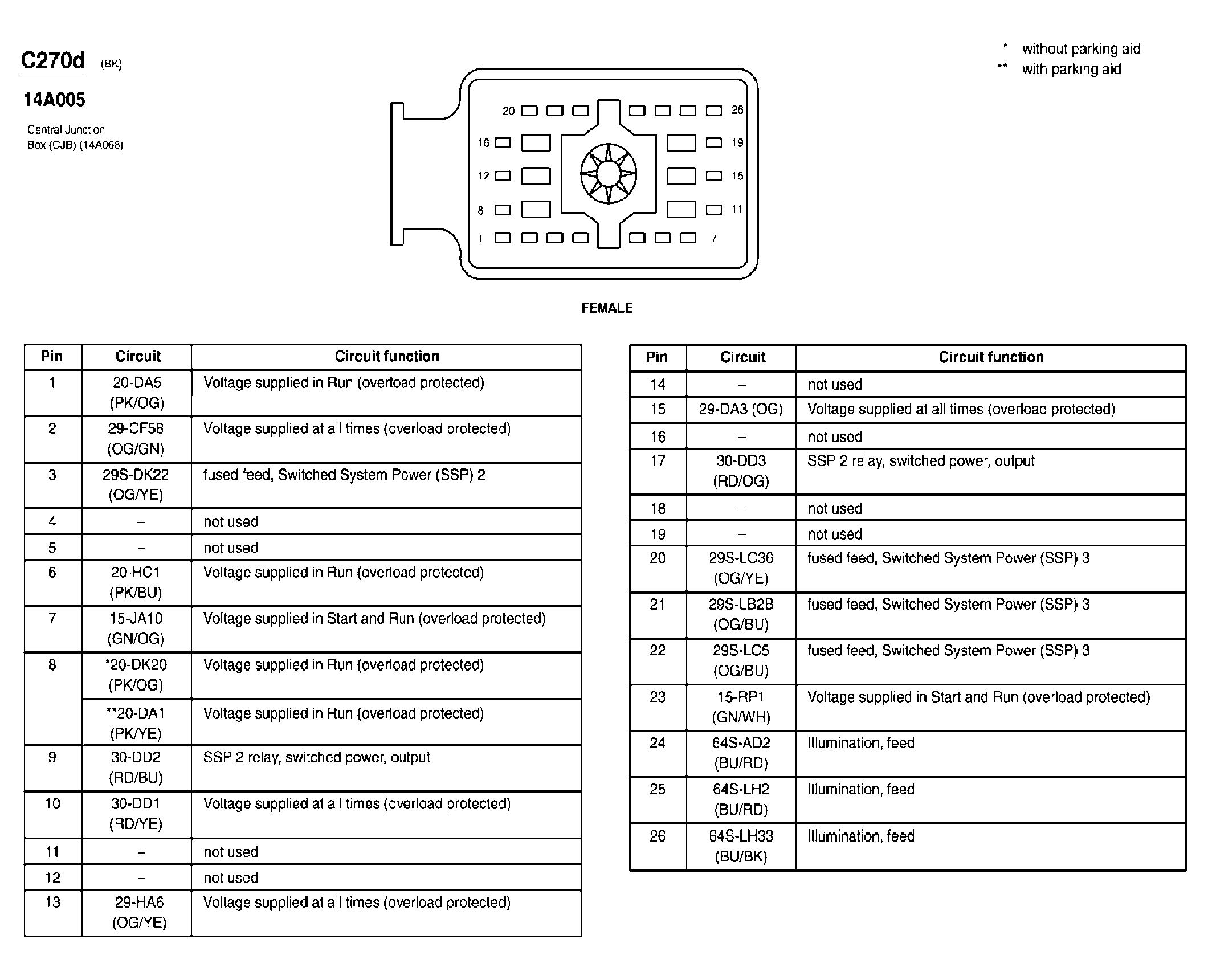

Fig 132: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.

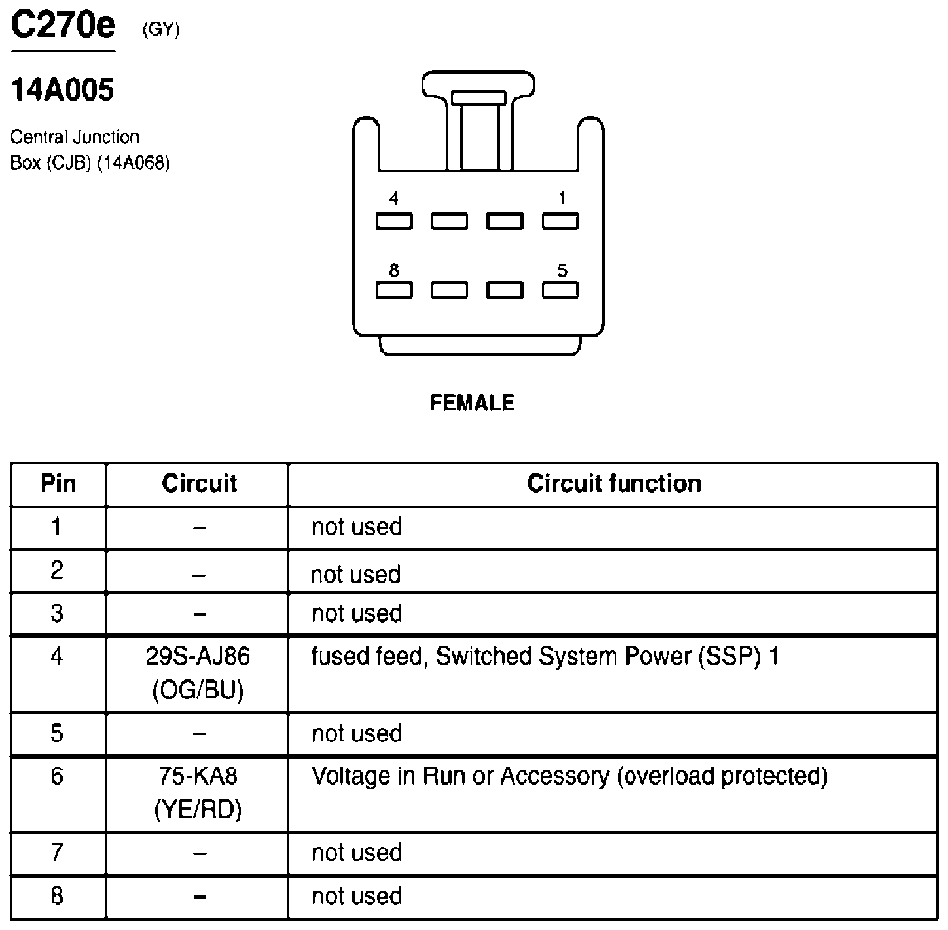

Fig 133: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.

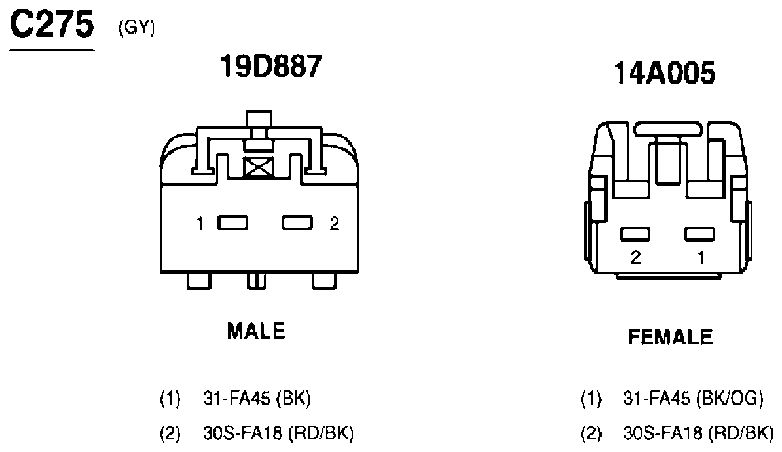

Fig 134: Inline Connector End View (C275)
Courtesy of FORD MOTOR CO.

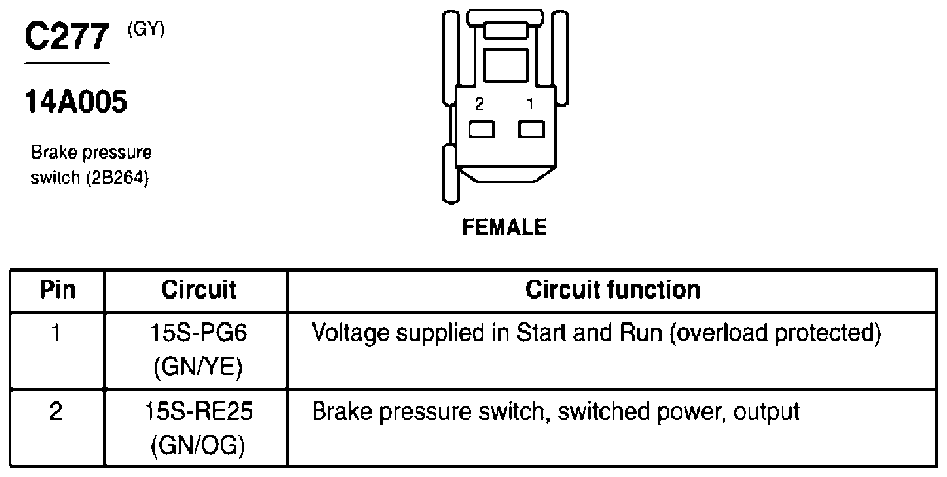

Fig 135: Brake Pressure Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.

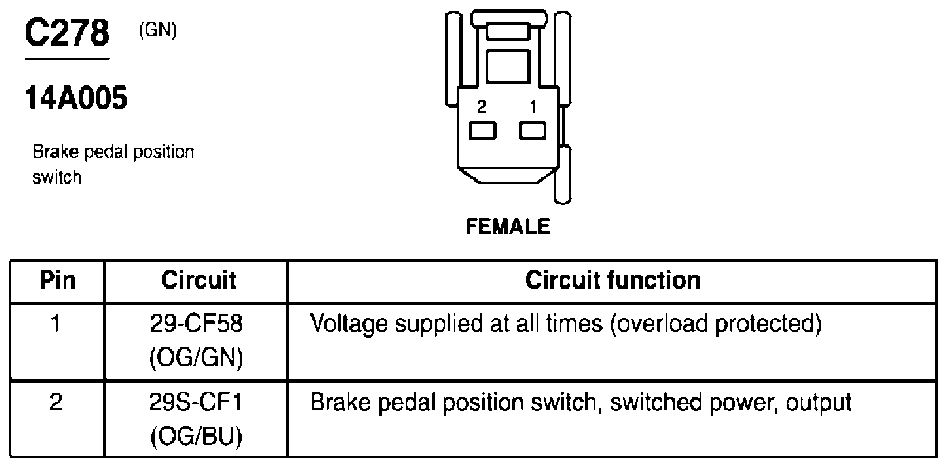

Fig 136: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

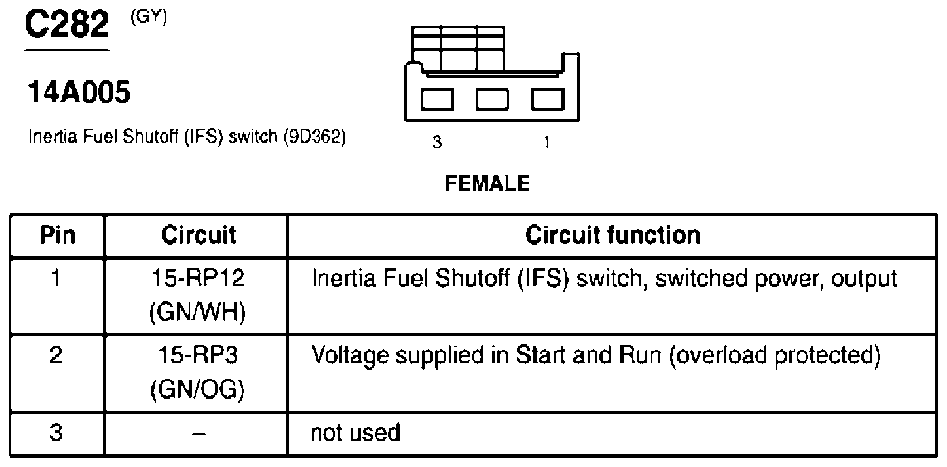

Fig 137: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.

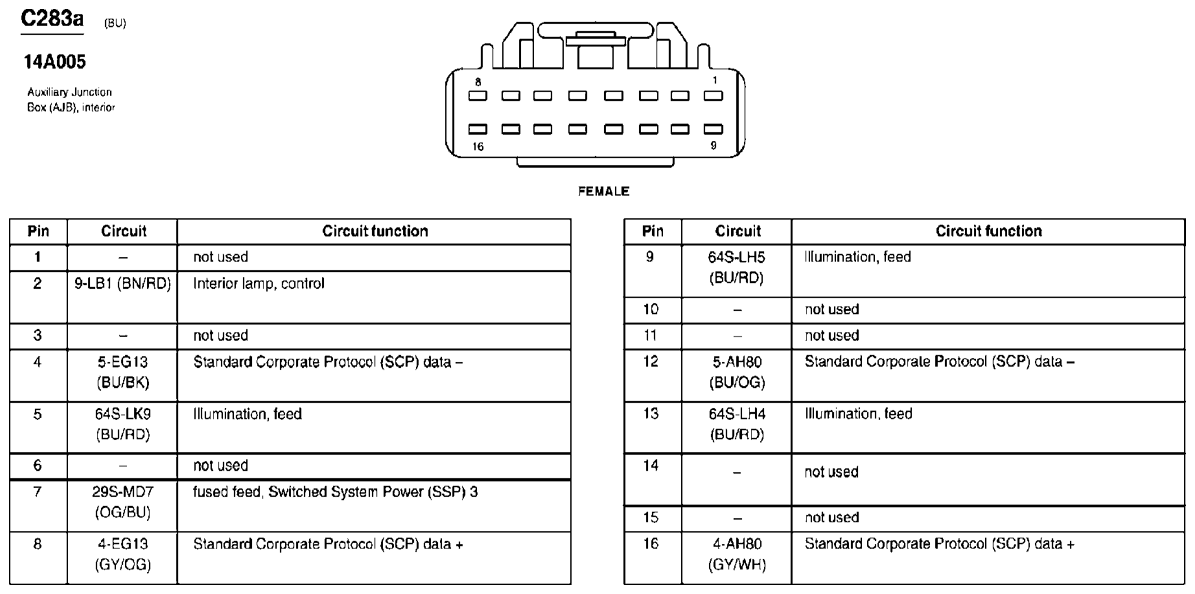

Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
Courtesy of FORD MOTOR CO.

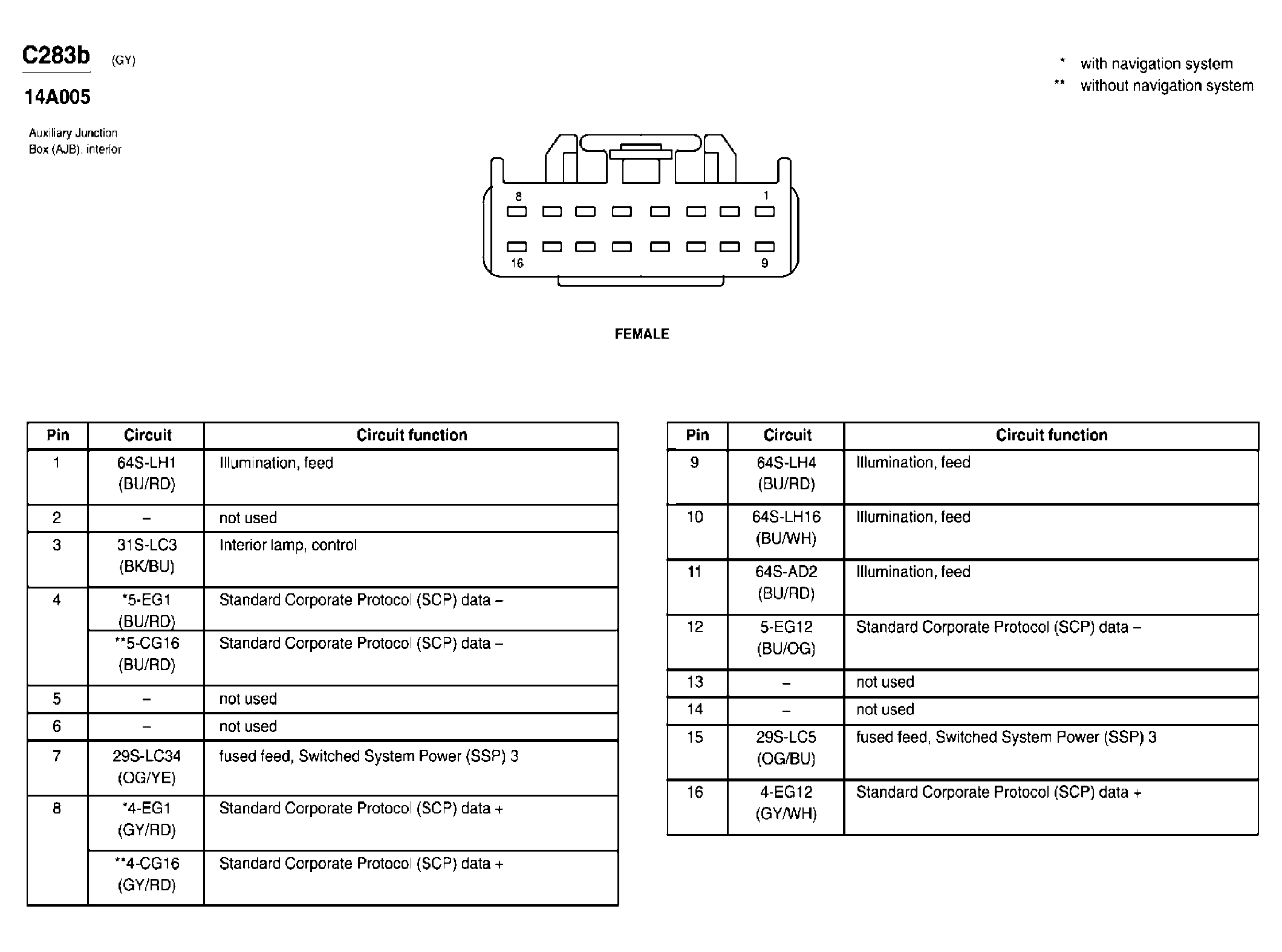

Fig 139: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
Courtesy of FORD MOTOR CO.

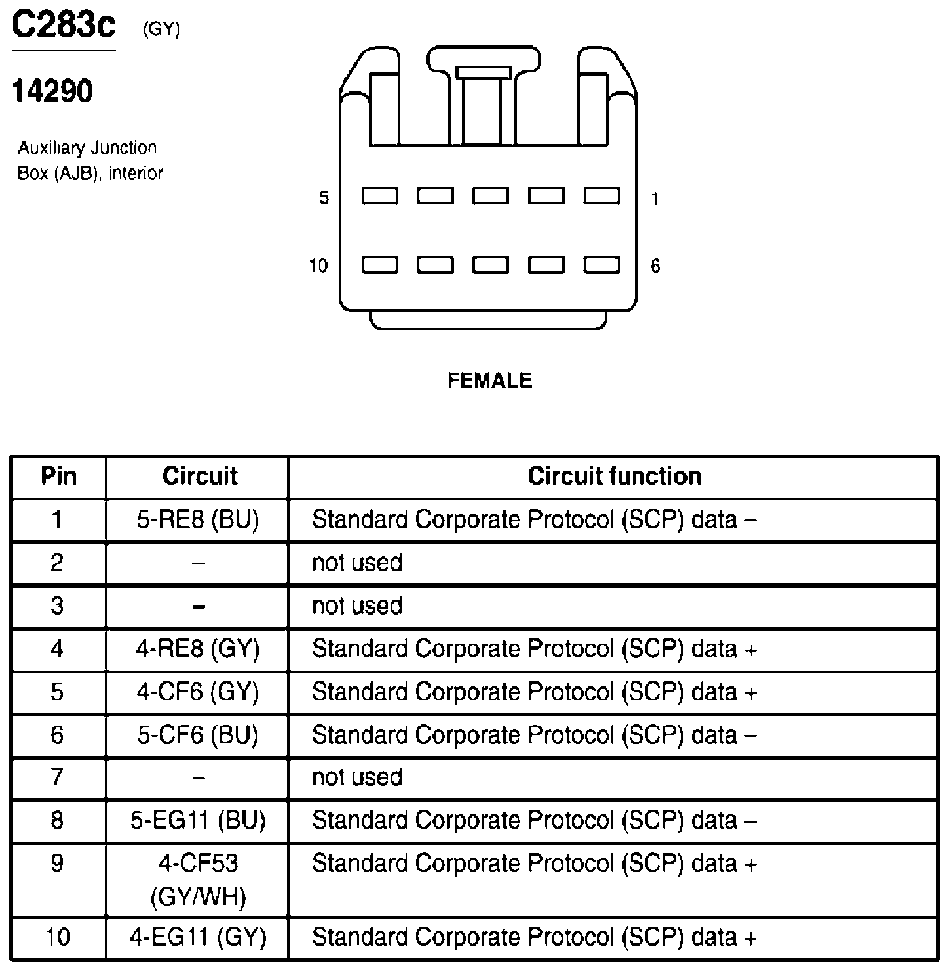

Fig 140: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)
Courtesy of FORD MOTOR CO.

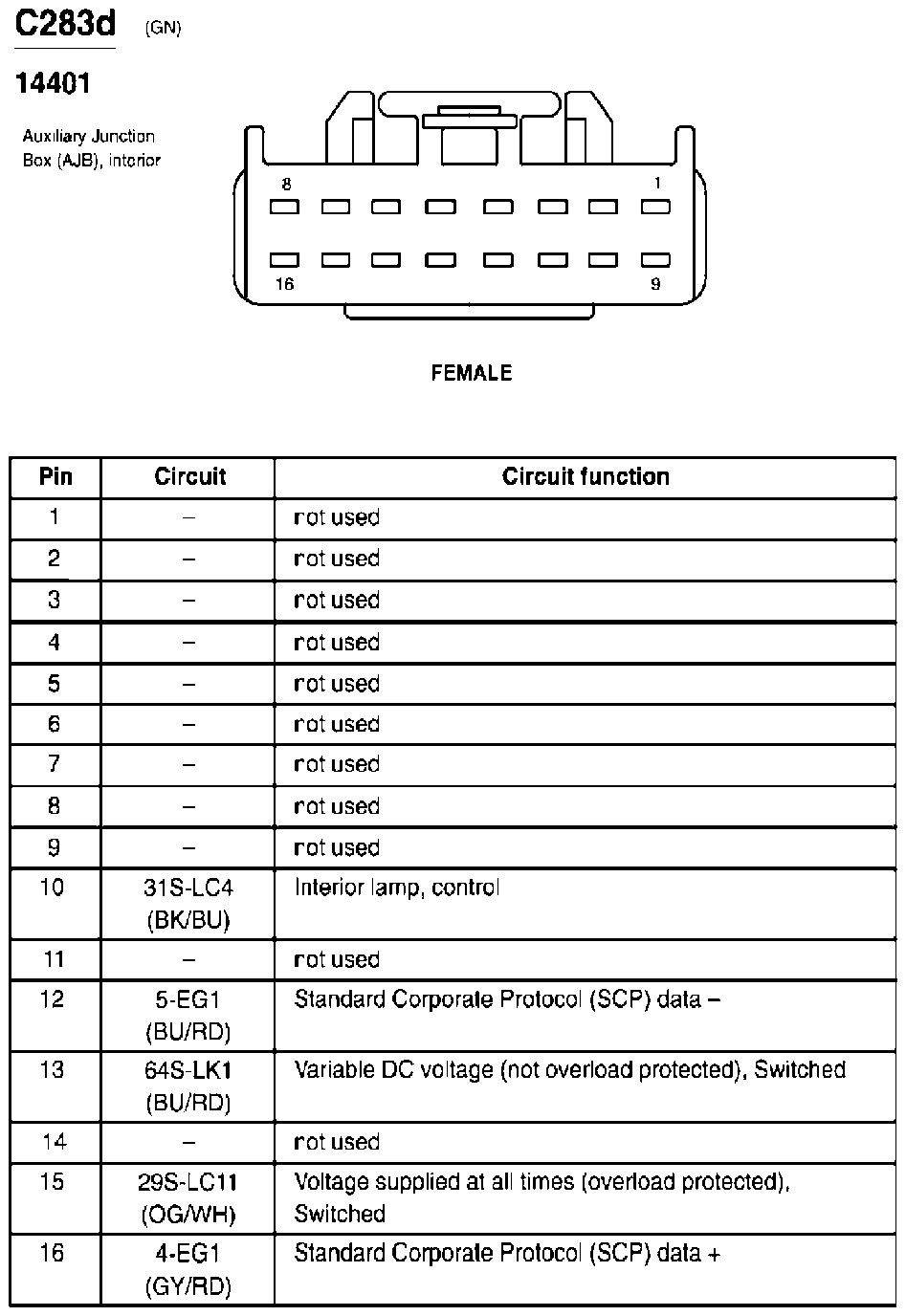

Fig 141: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)
Courtesy of FORD MOTOR CO.

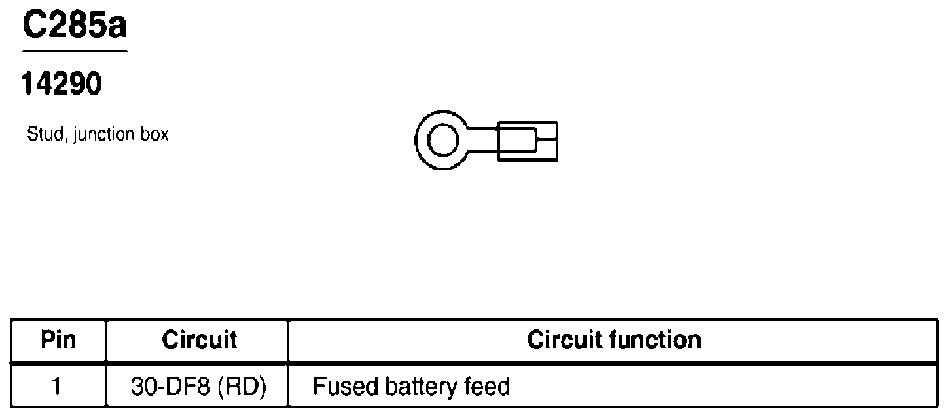

Fig 142: Stud, Junction Box Connector End View (C285a)
Courtesy of FORD MOTOR CO.

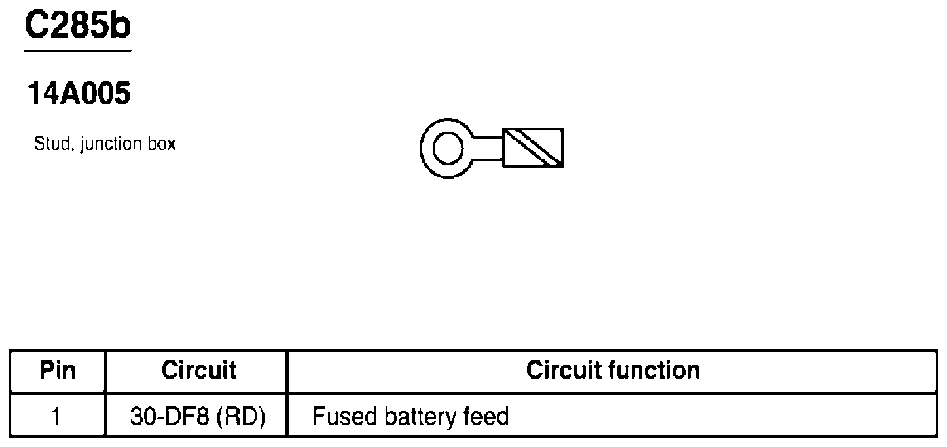

Fig 143: Stud, Junction Box Connector End View (C285b)
Courtesy of FORD MOTOR CO.

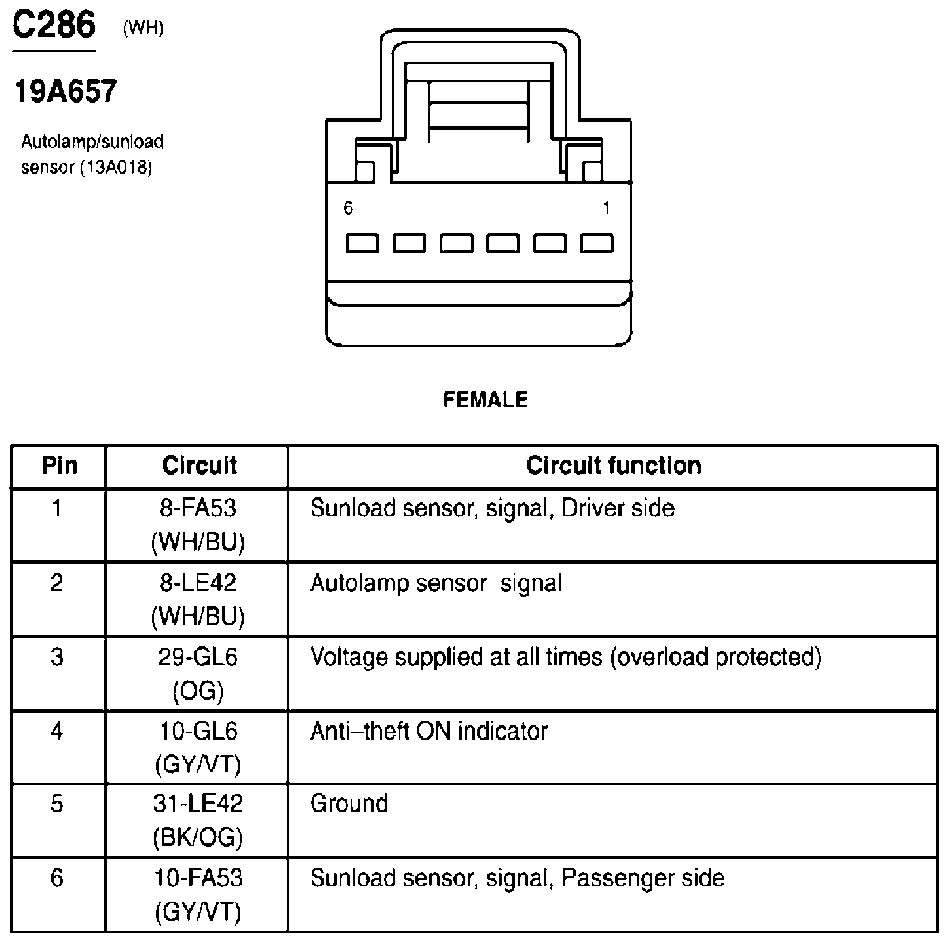

Fig 144: Autolamp/Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

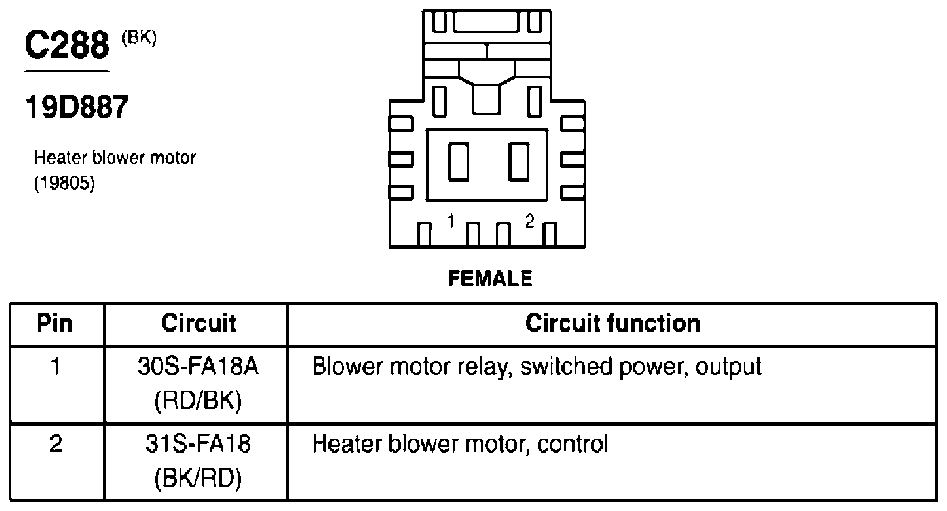

Fig 145: Heater Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.

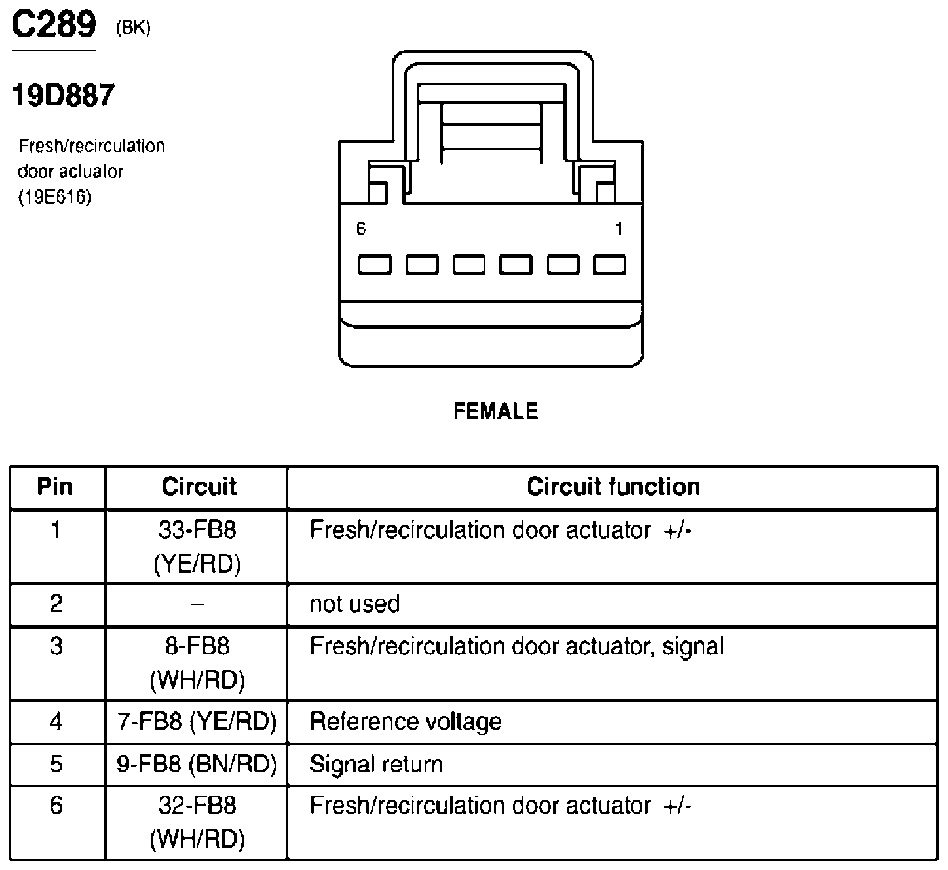

Fig 146: Fresh/Recirculation Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

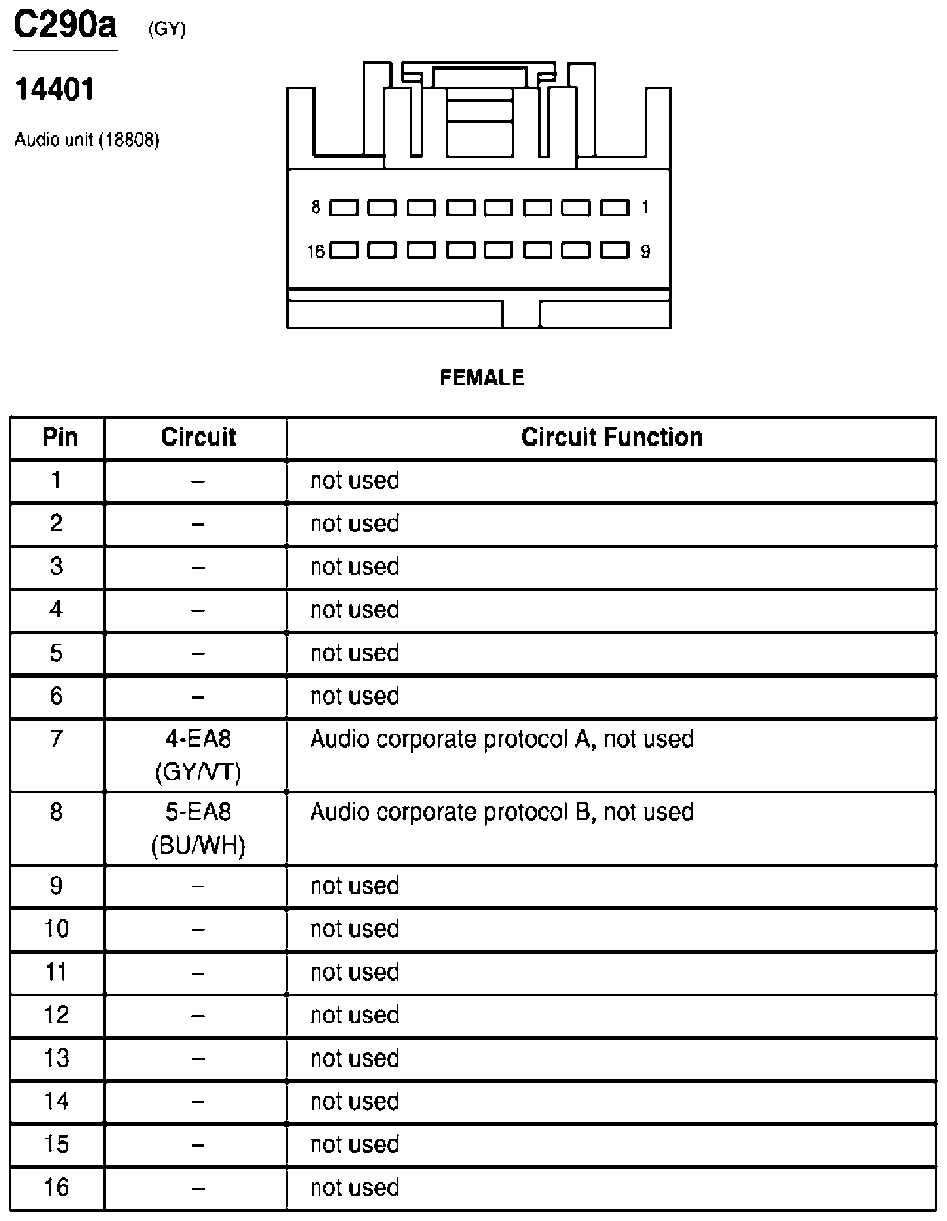

Fig 147: Audio Unit Connector End View (C290a)
Courtesy of FORD MOTOR CO.

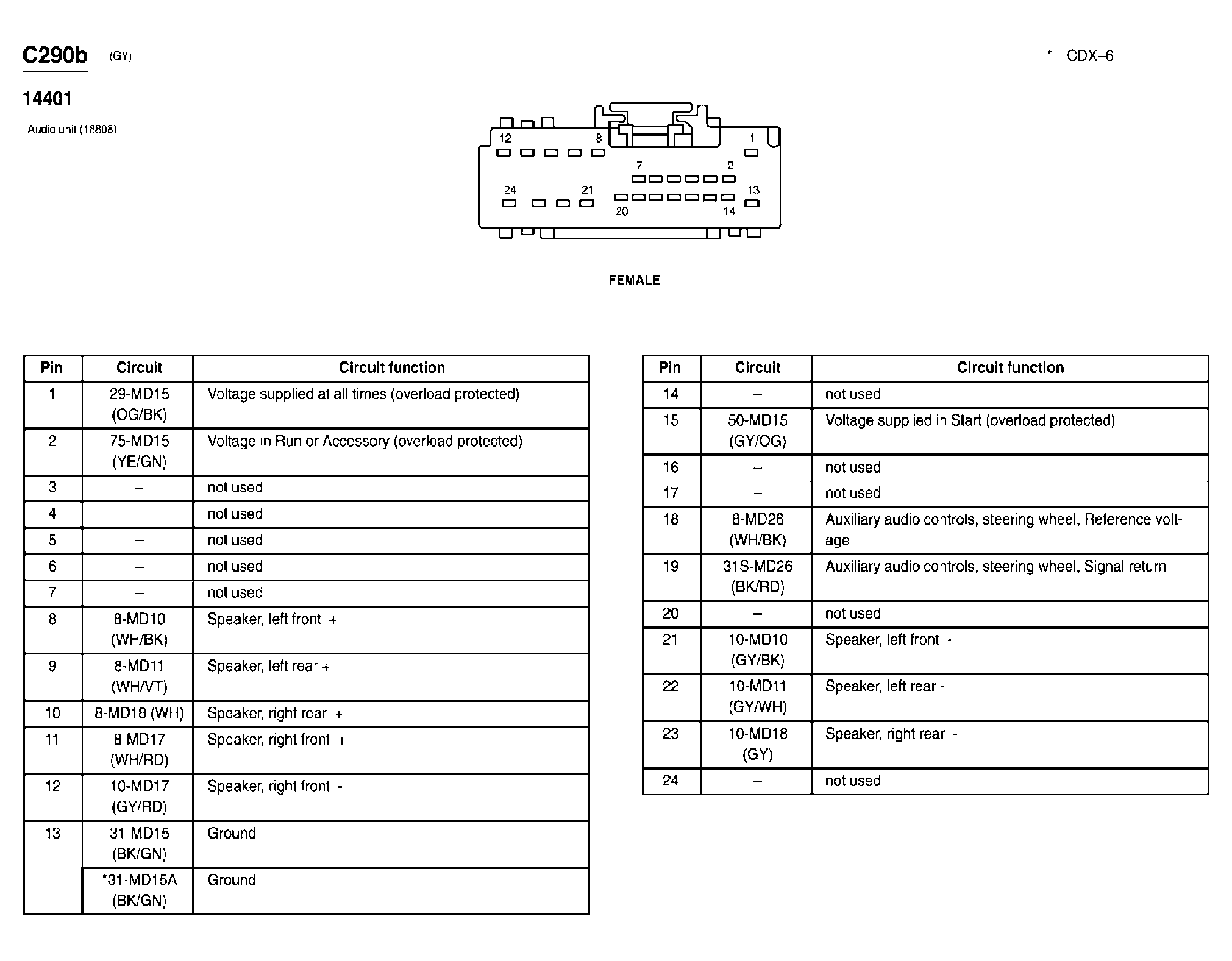

Fig 148: Audio Unit Connector End View (C290b)
Courtesy of FORD MOTOR CO.

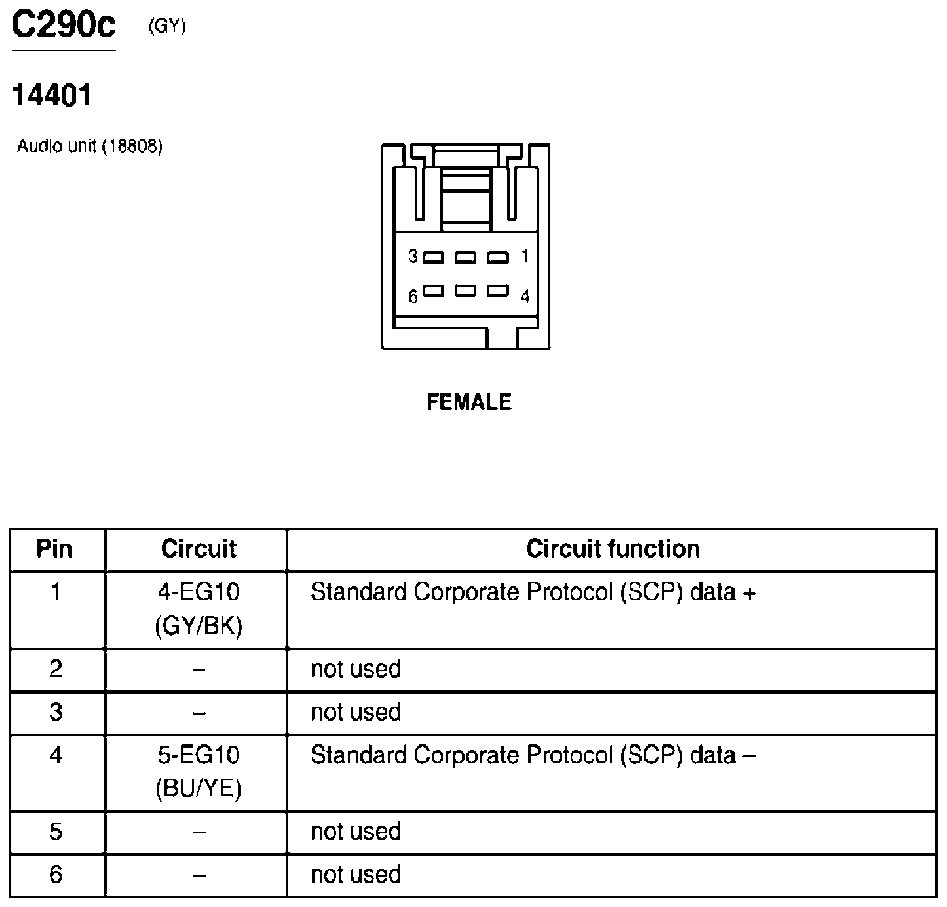

Fig 149: Audio Unit Connector End View (C290c)
Courtesy of FORD MOTOR CO.

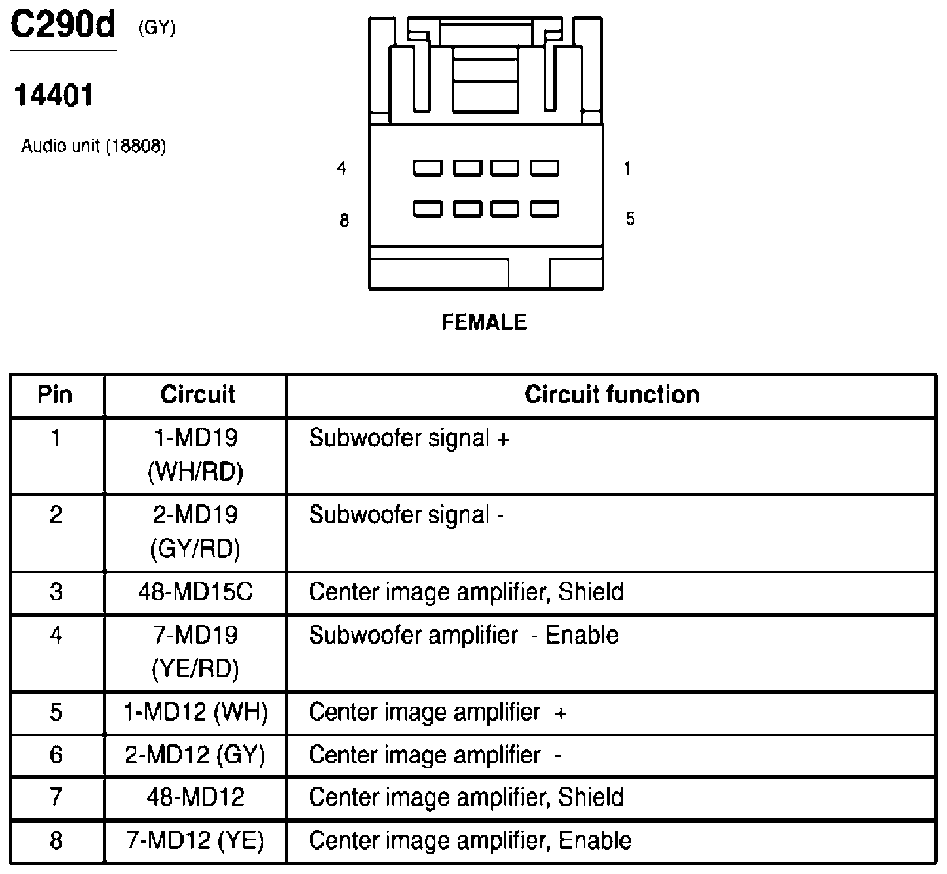

Fig 150: Audio Unit Connector End View (C290d)
Courtesy of FORD MOTOR CO.

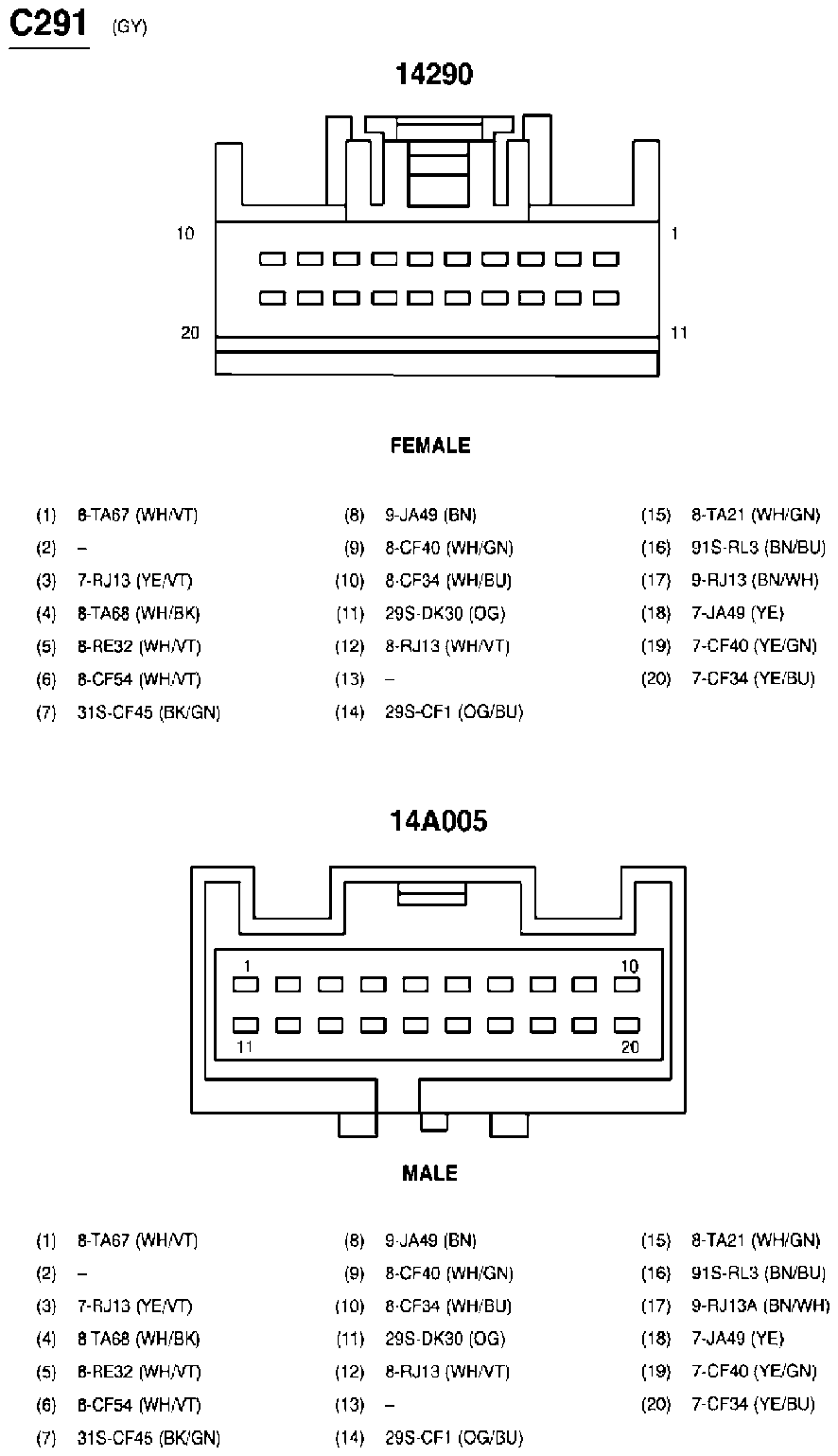

Fig 151: Inline Connector End View (C291)
Courtesy of FORD MOTOR CO.

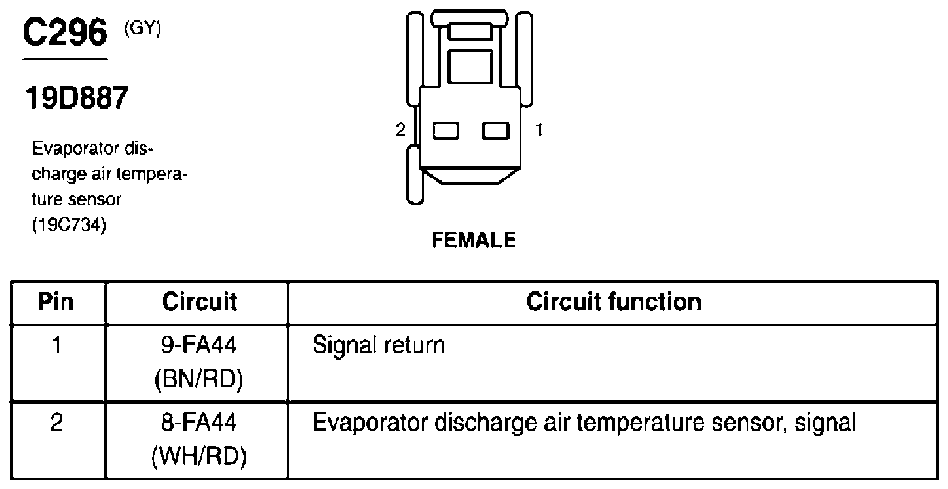

Fig 152: Evaporator Discharge Air Temperature Sensor Connector End View (C296)
Courtesy of FORD MOTOR CO.

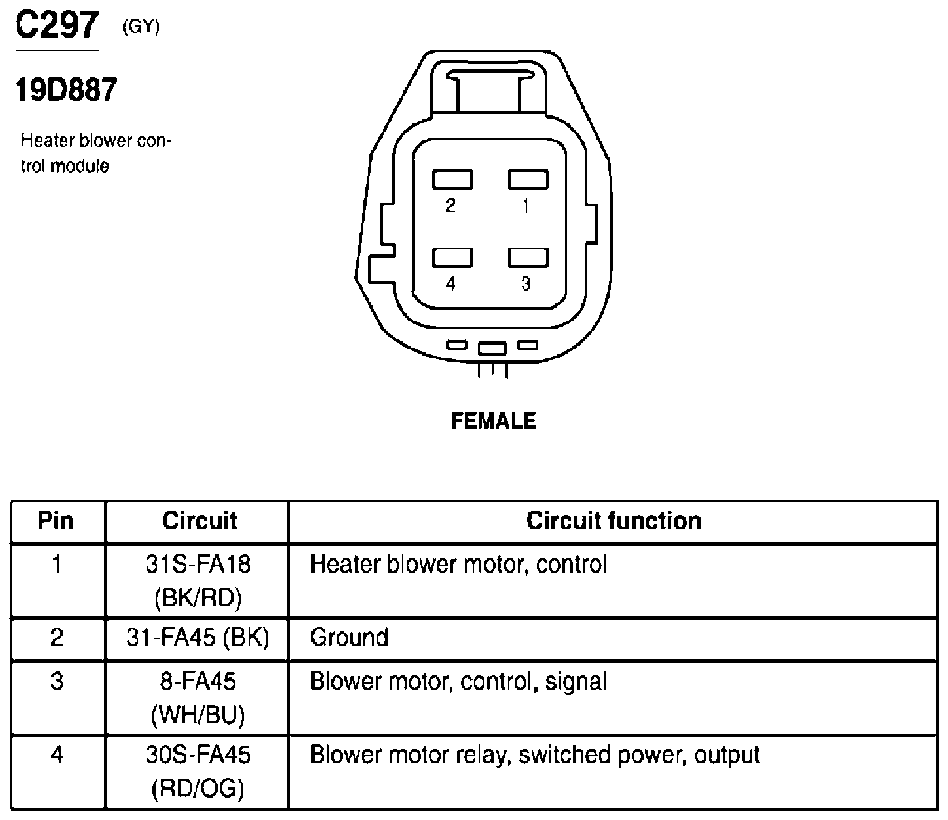

Fig 153: Heater Blower Control Module Connector End View (C297)
Courtesy of FORD MOTOR CO.

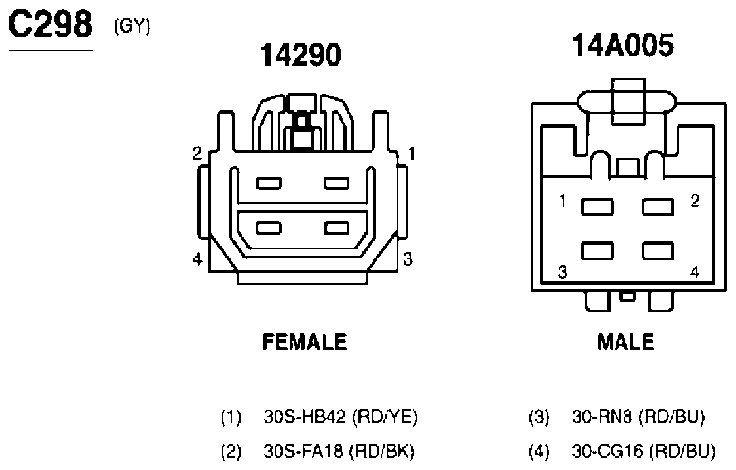

Fig 154: Inline Connector End View (C298)
Courtesy of FORD MOTOR CO.

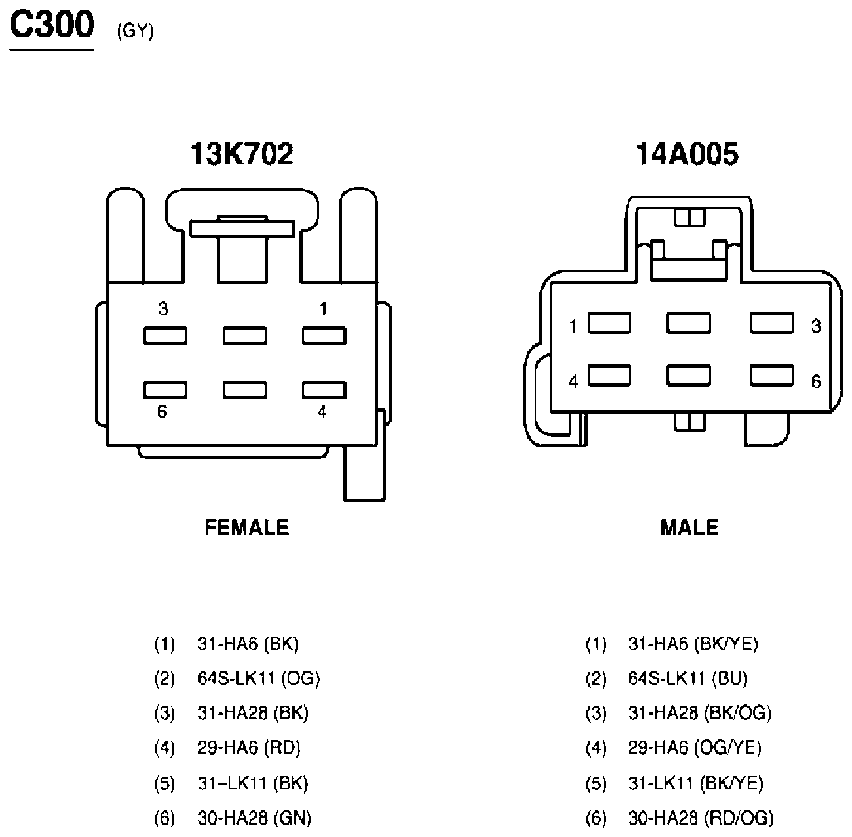

Fig 155: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

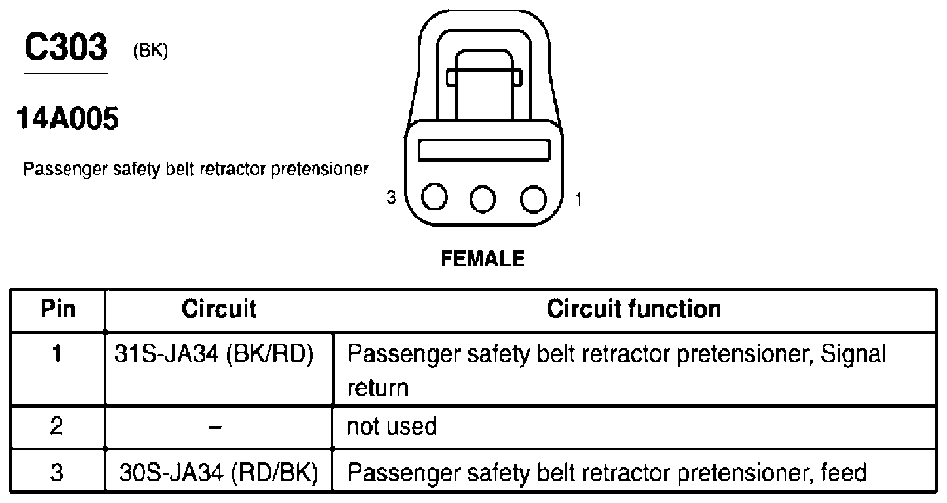

Fig 156: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

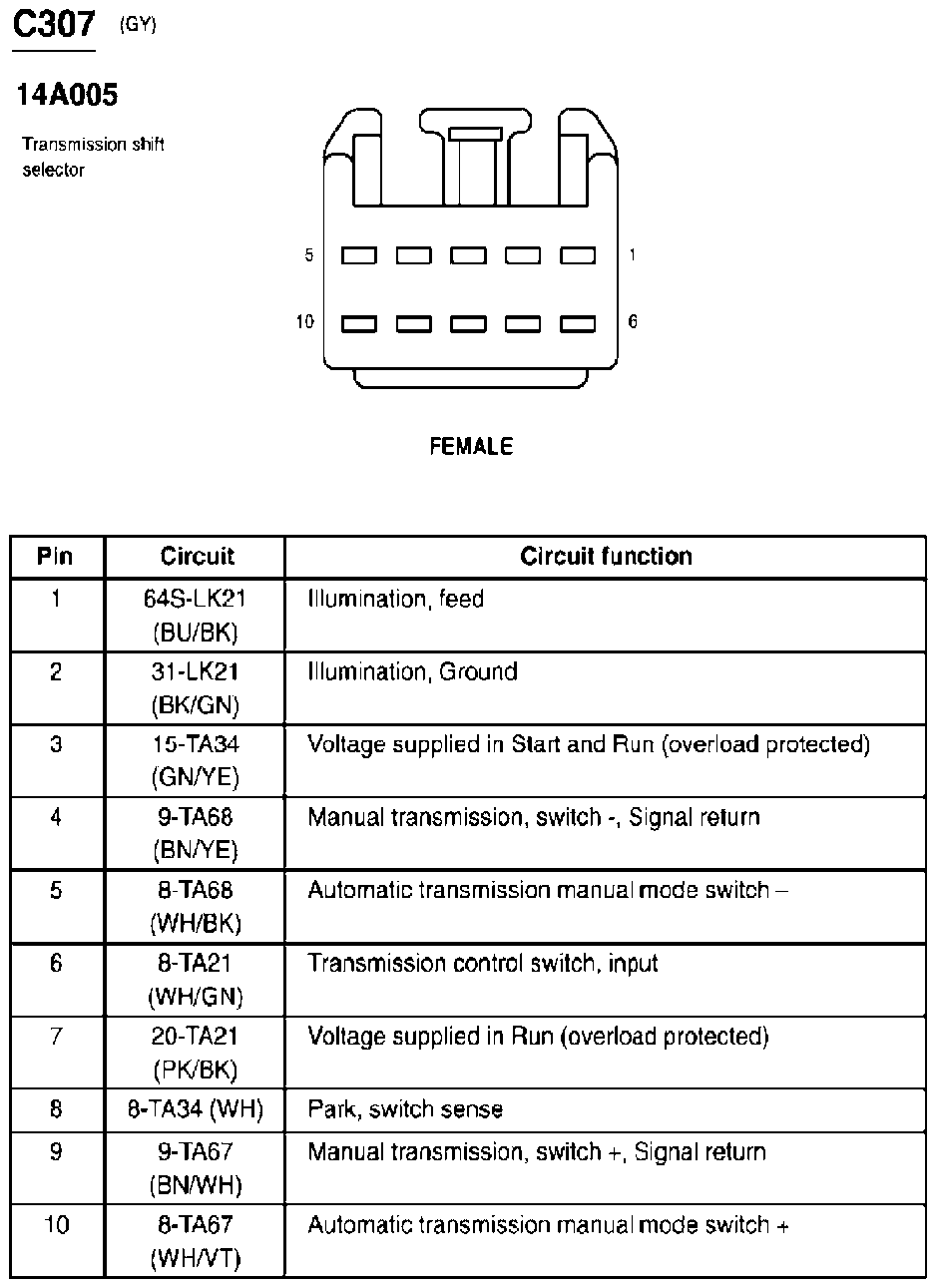

Fig 157: Transmission Shaft Selector Connector End View (C307)
Courtesy of FORD MOTOR CO.

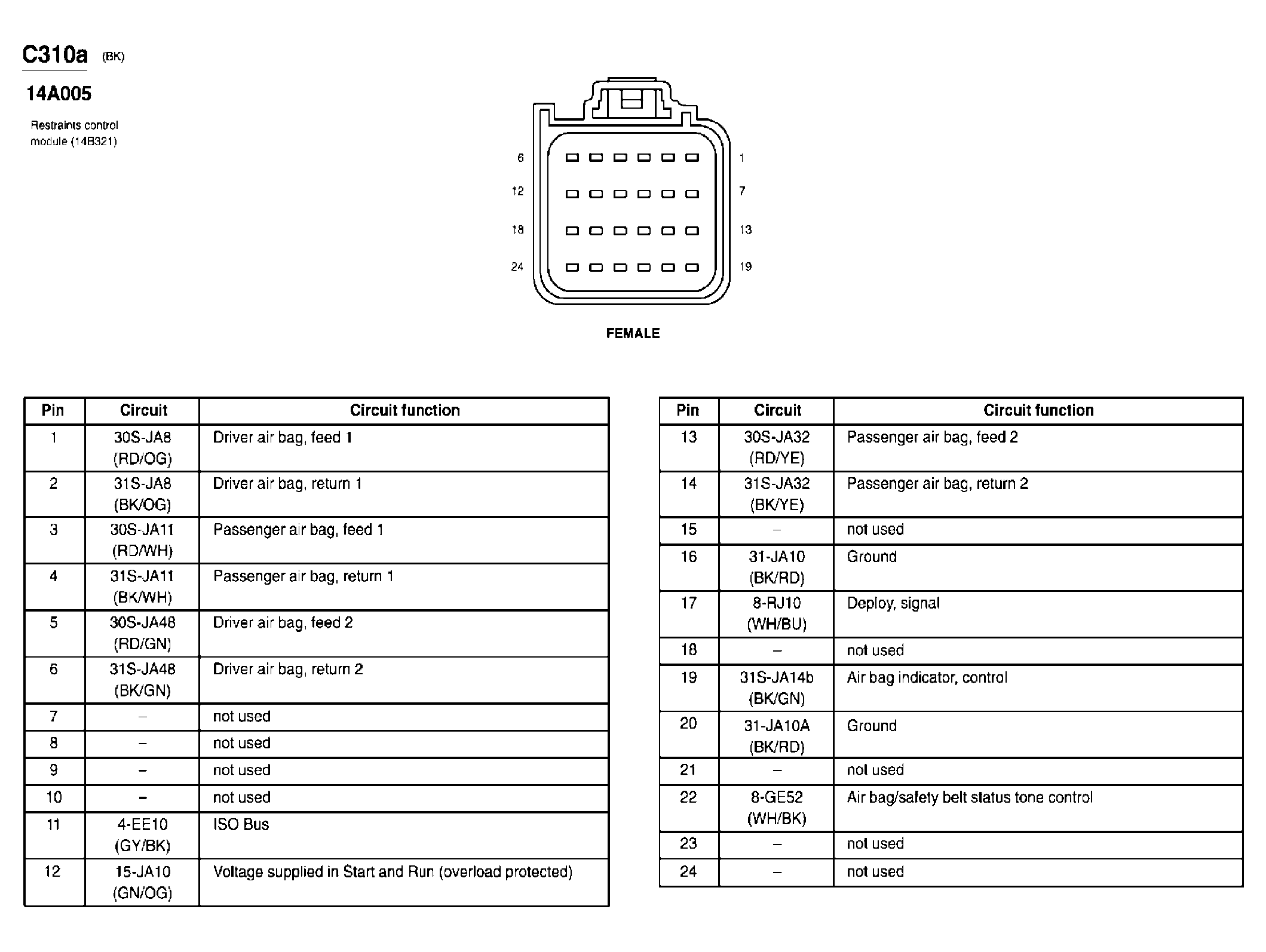

Fig 158: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

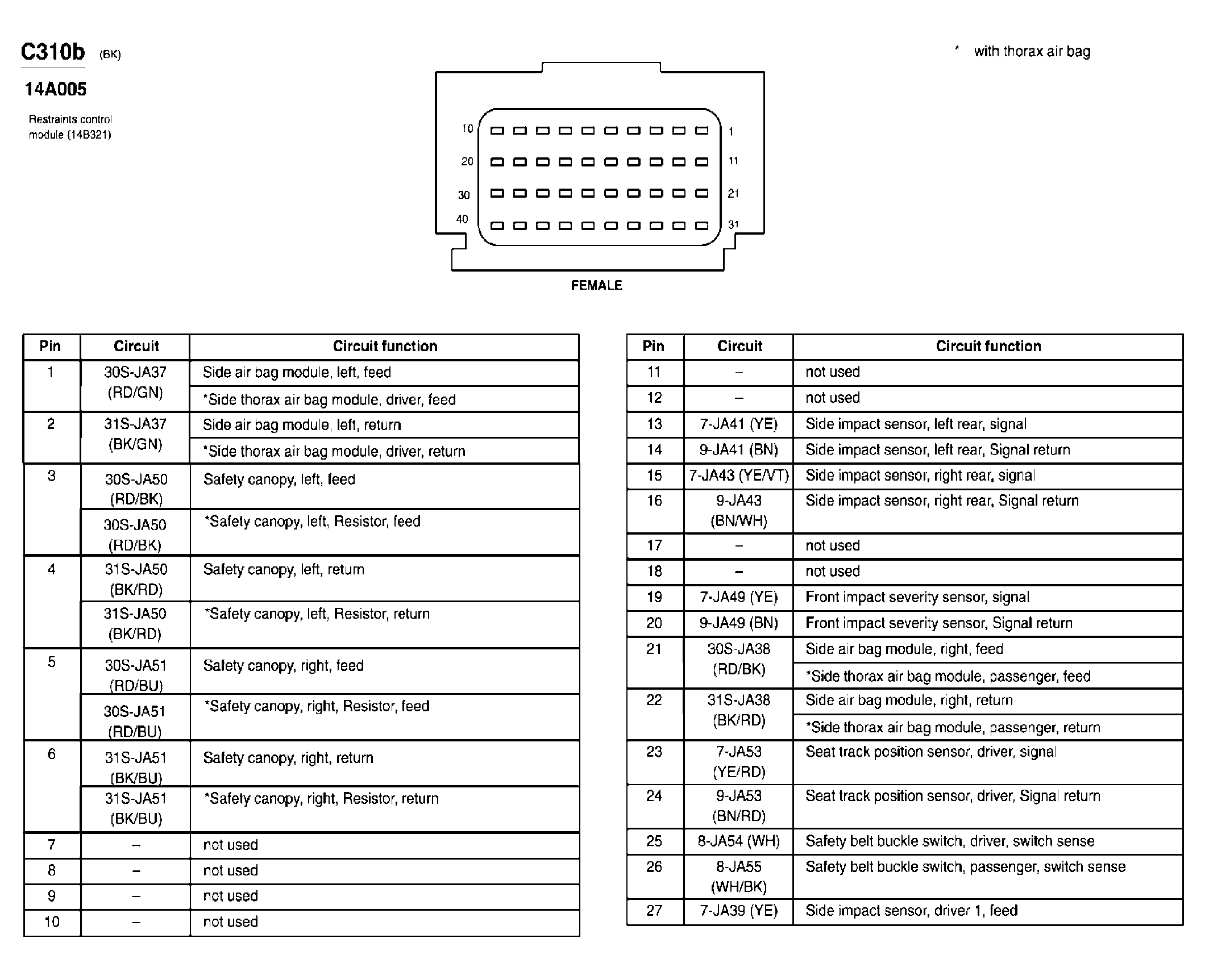

Fig 159: Restraints Control Module Connector End View (C310b) (1 Of 2)
Courtesy of FORD MOTOR CO.

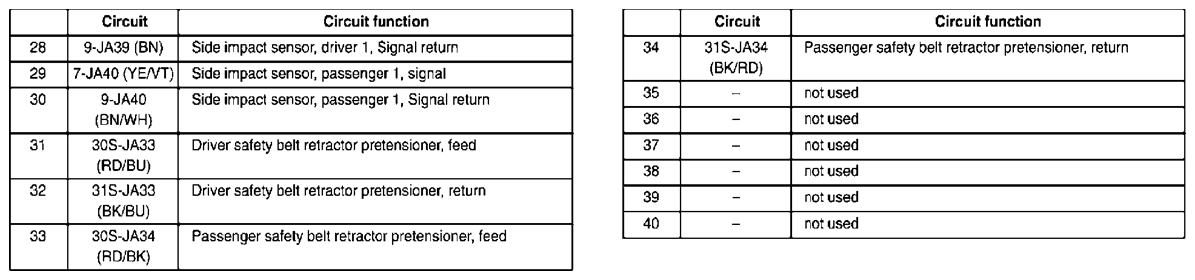

Fig 160: Restraints Control Module Connector End View (C310b) (2 Of 2)
Courtesy of FORD MOTOR CO.

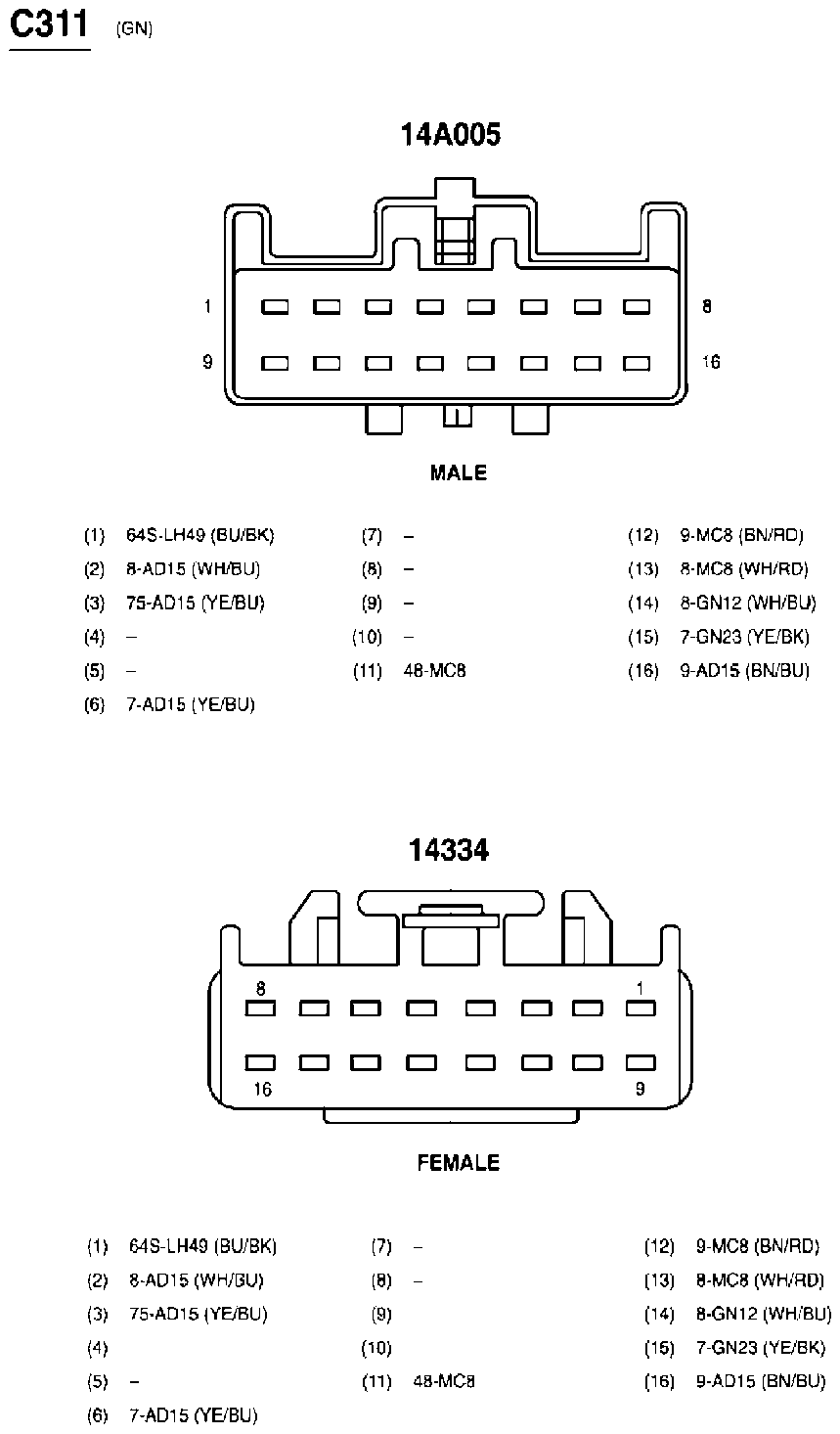

Fig 161: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

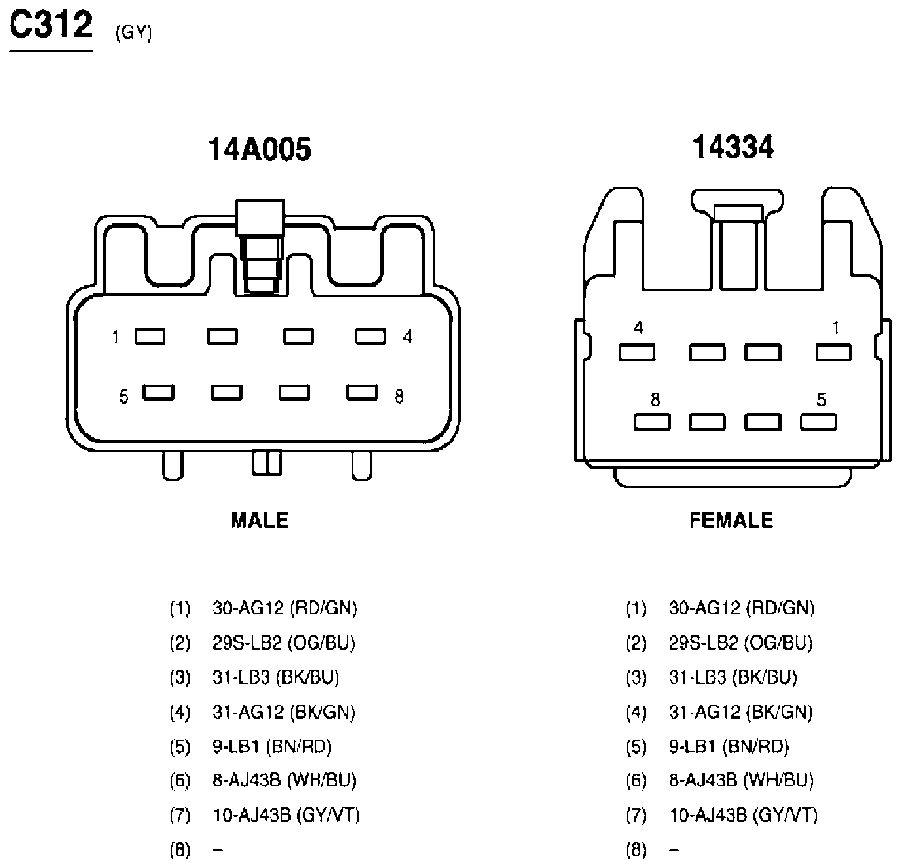

Fig 162: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

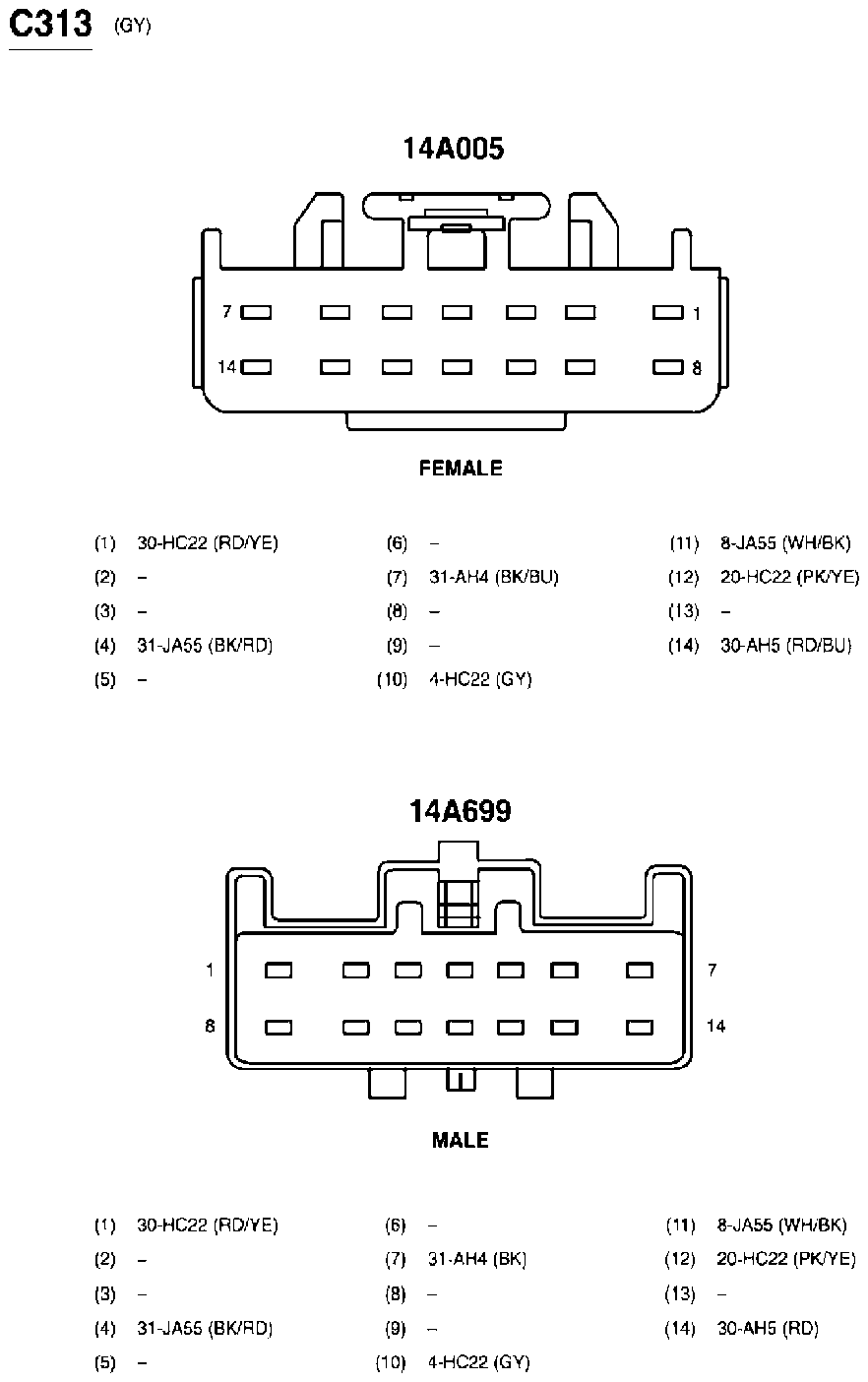

Fig 163: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

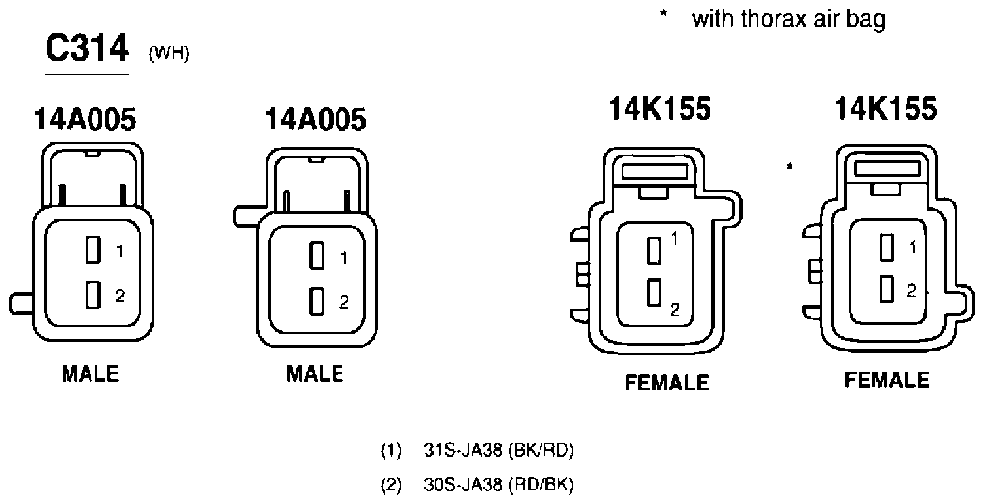

Fig 164: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

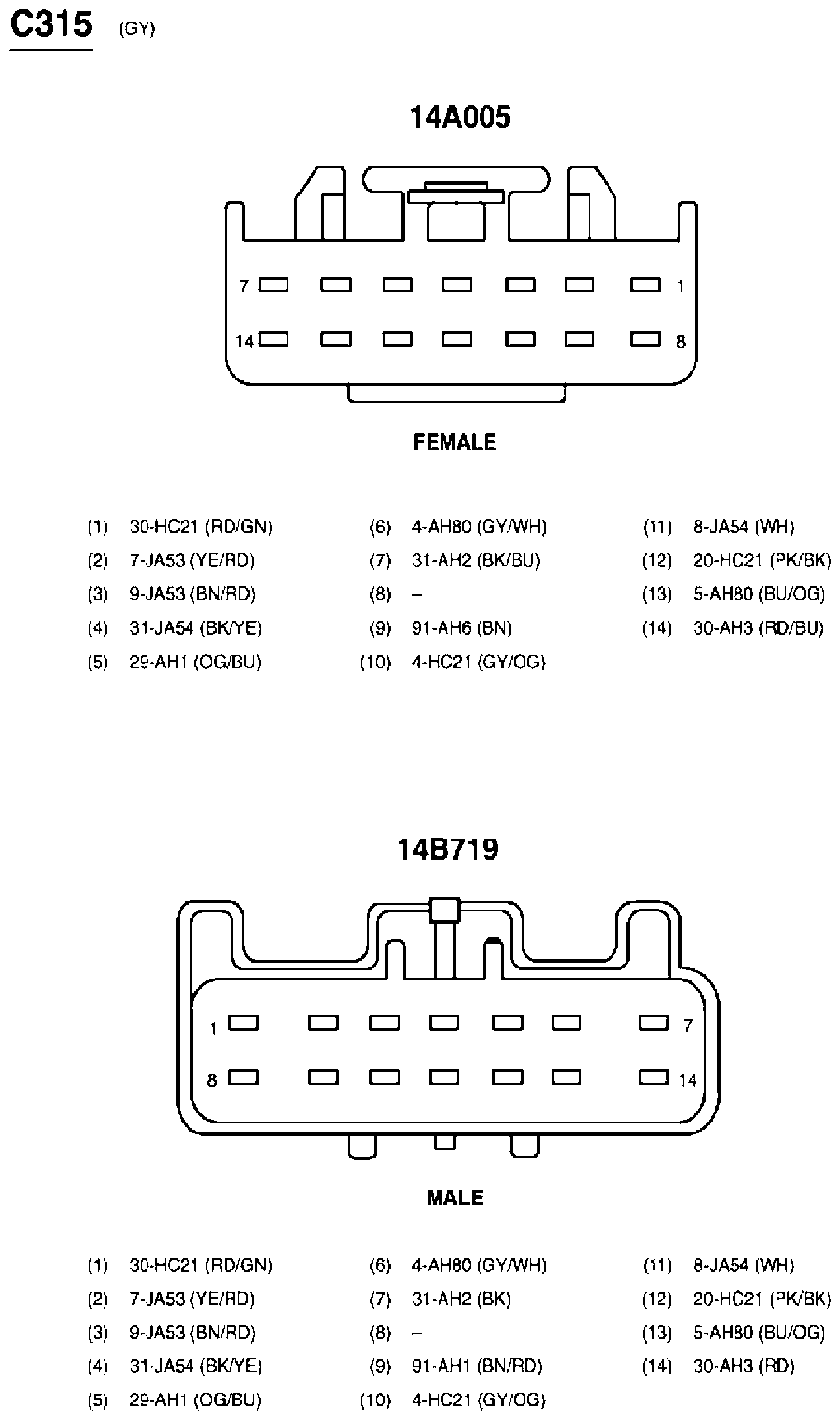

Fig 165: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

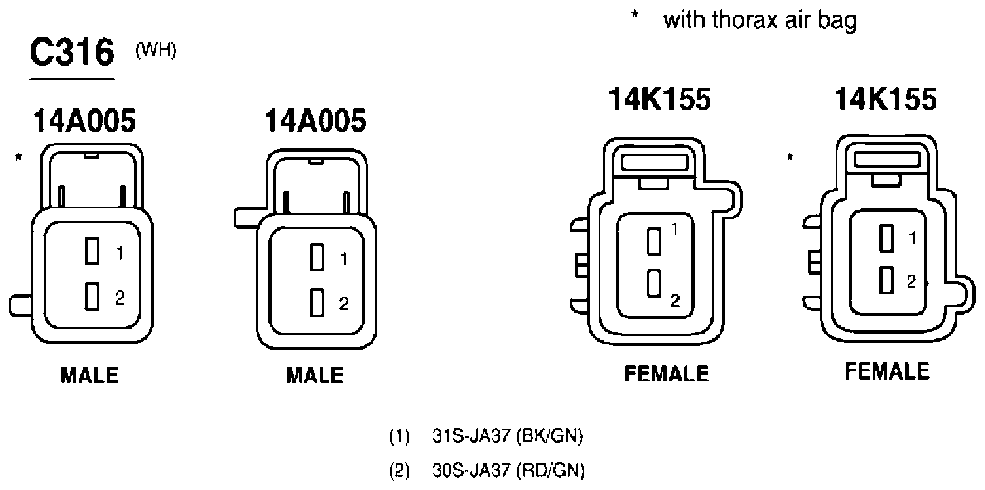

Fig 166: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

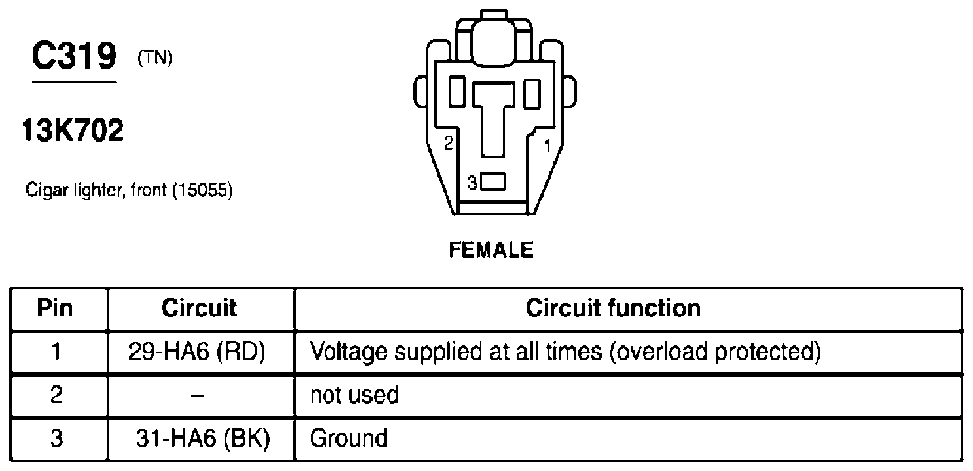

Fig 167: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.

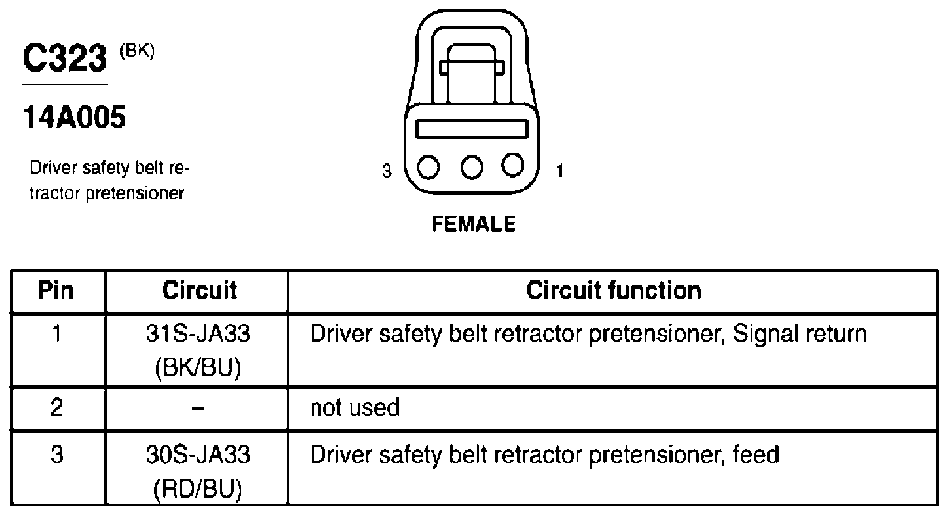

Fig 168: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.

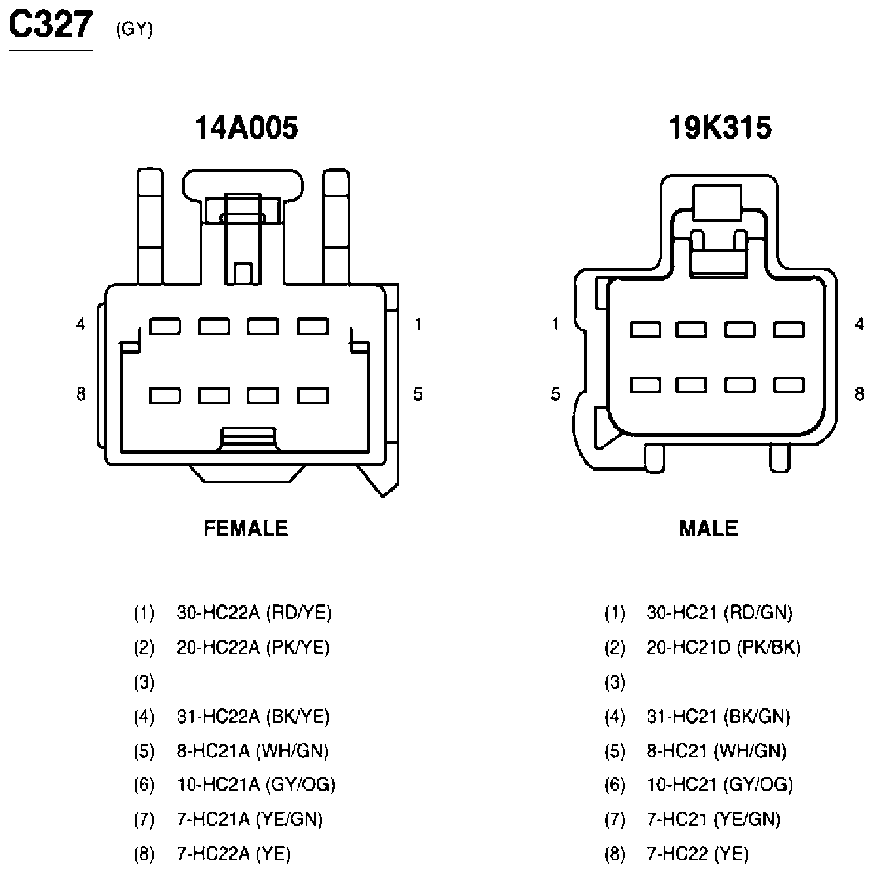

Fig 169: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

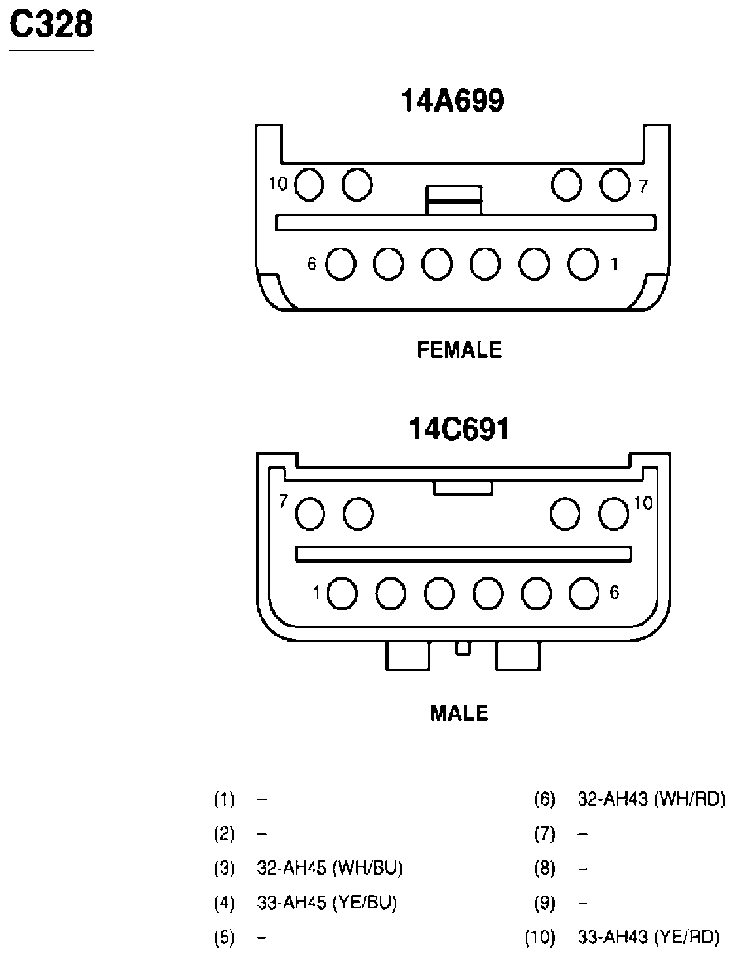

Fig 170: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.

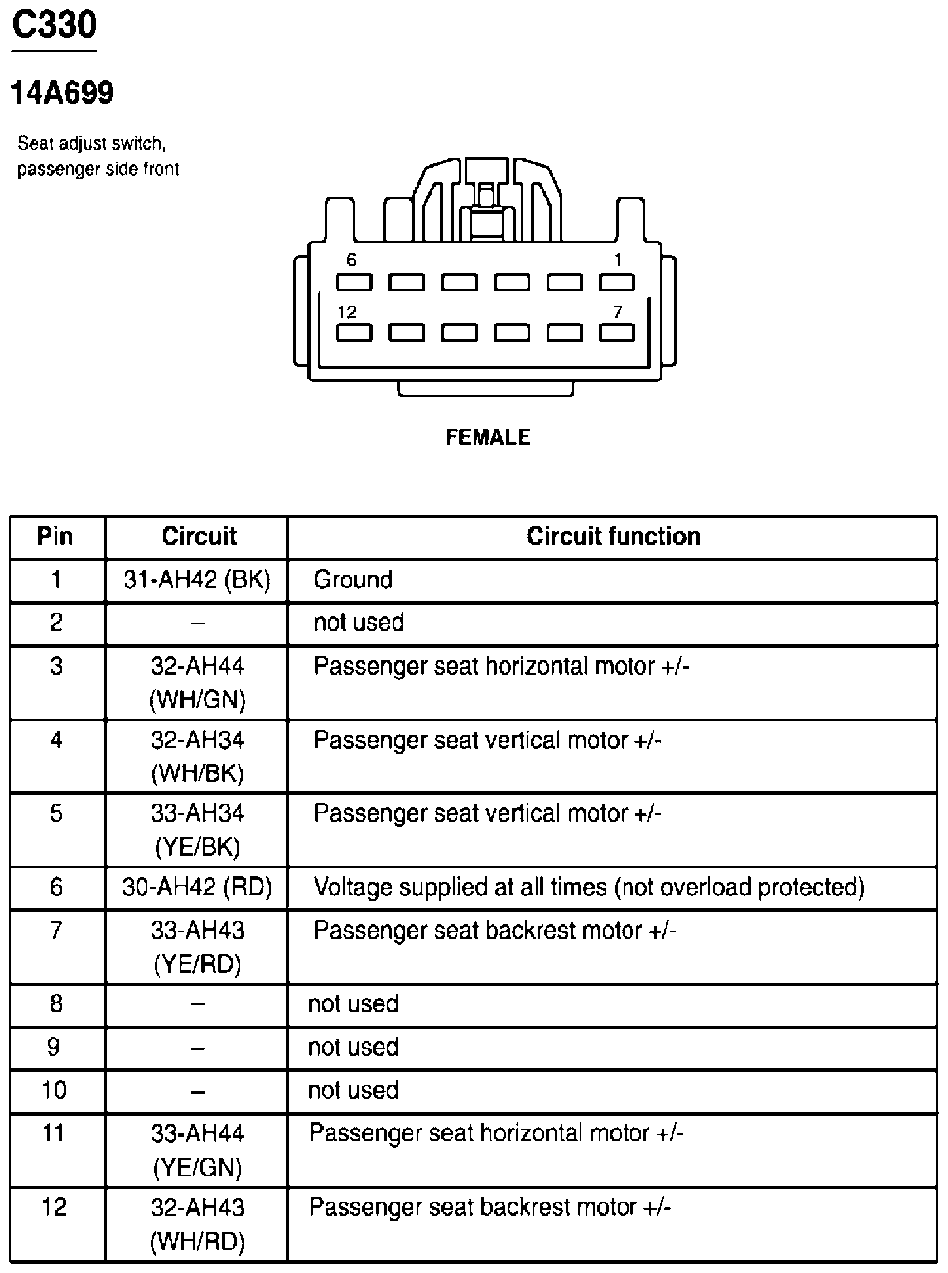

Fig 171: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.

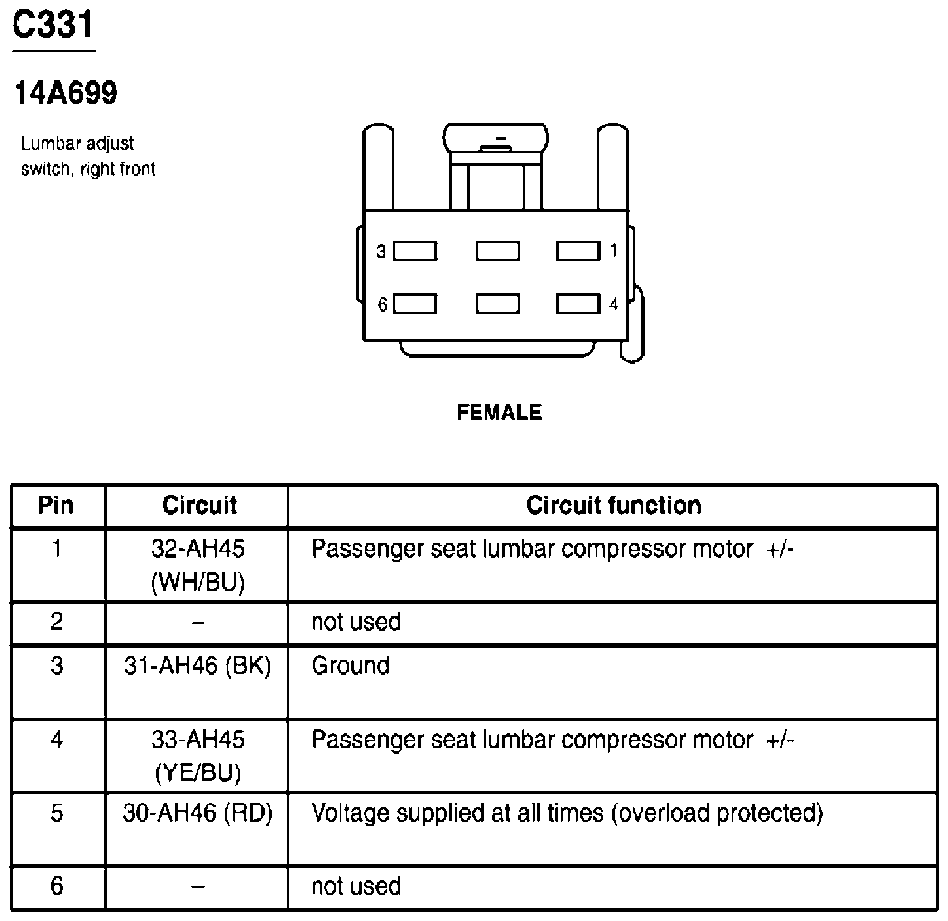

Fig 172: Lumbar Adjust Switch, Right Front Connector End View (C331)
Courtesy of FORD MOTOR CO.

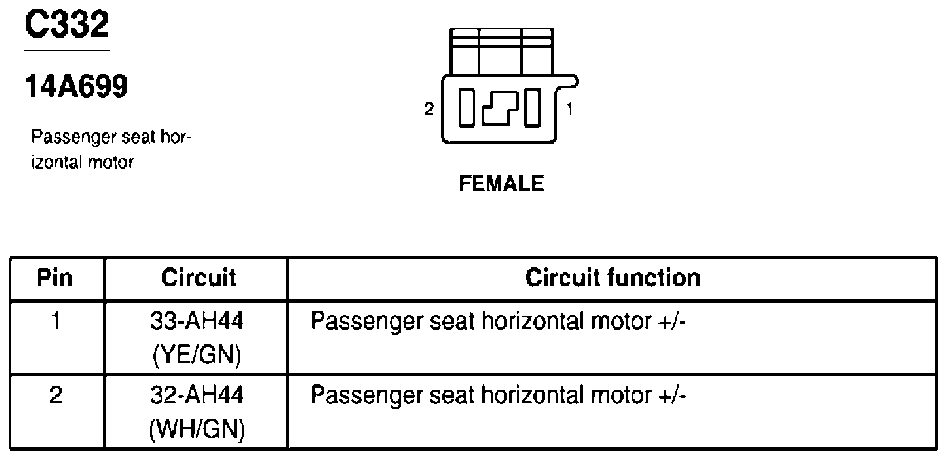

Fig 173: Passenger Seat Horizontal Motor Connector End View (C332)
Courtesy of FORD MOTOR CO.

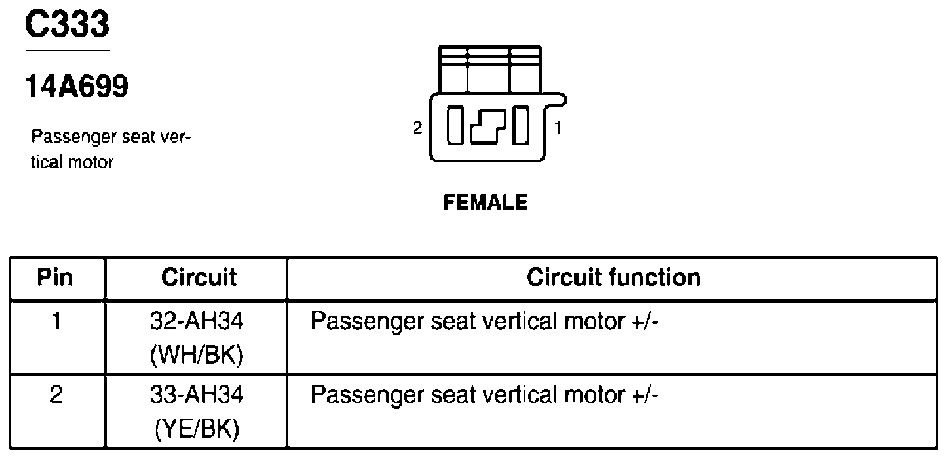

Fig 174: Passenger Seat Vertical Motor Connector End View (C333)
Courtesy of FORD MOTOR CO.

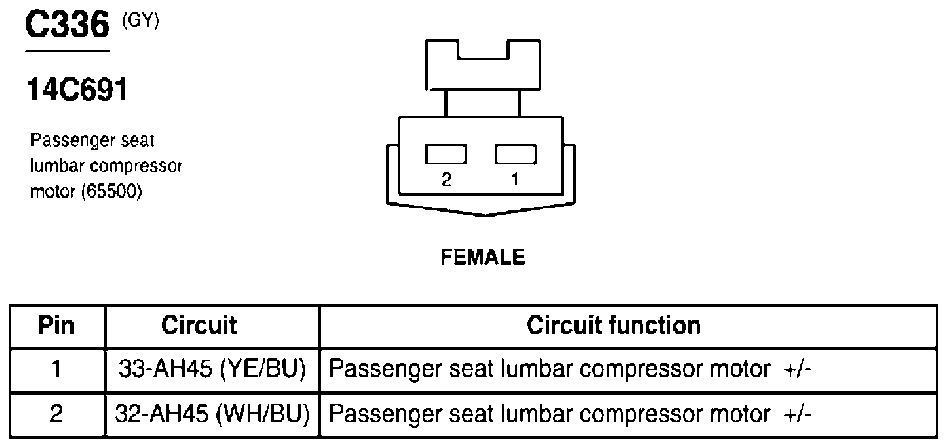

Fig 175: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.

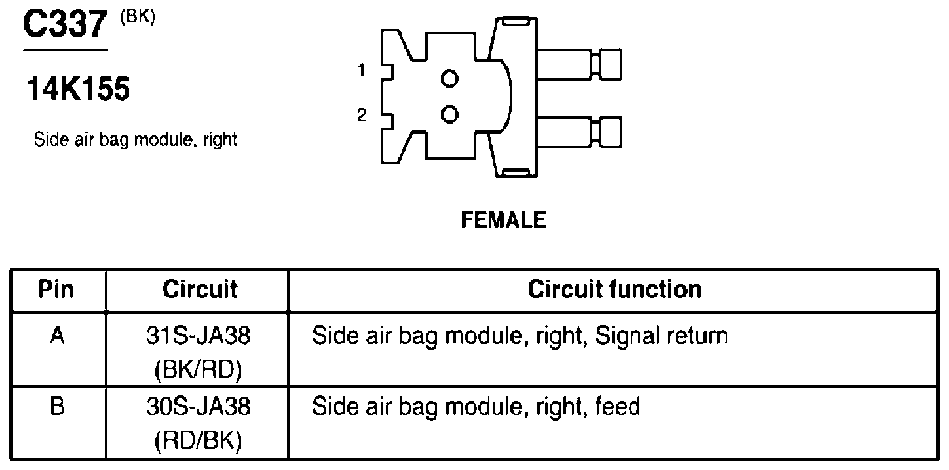

Fig 176: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

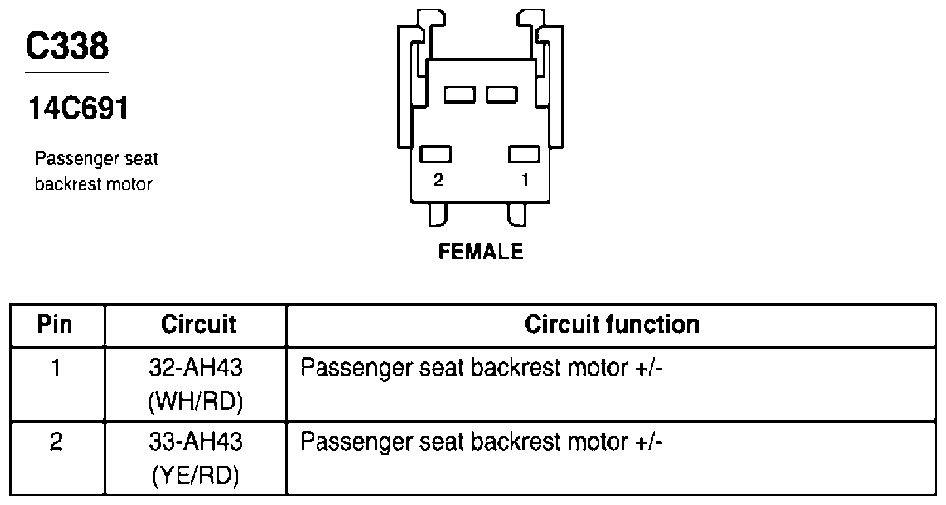

Fig 177: Passenger Seat Backrest Motor Connector End View (C338)
Courtesy of FORD MOTOR CO.

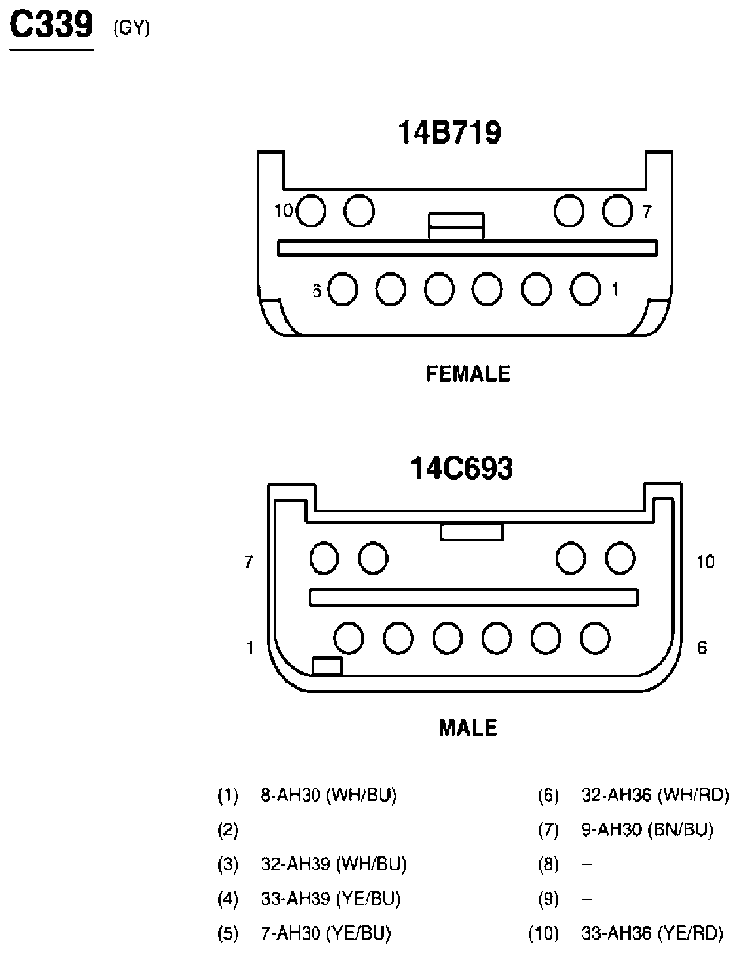

Fig 178: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

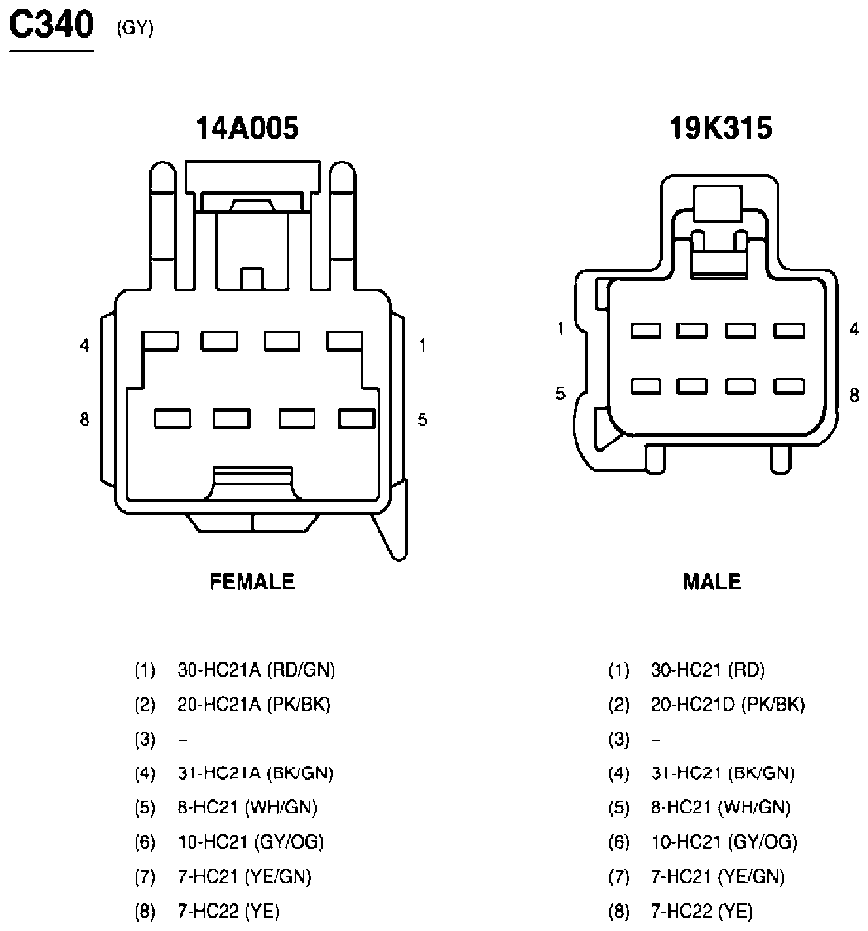

Fig 179: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

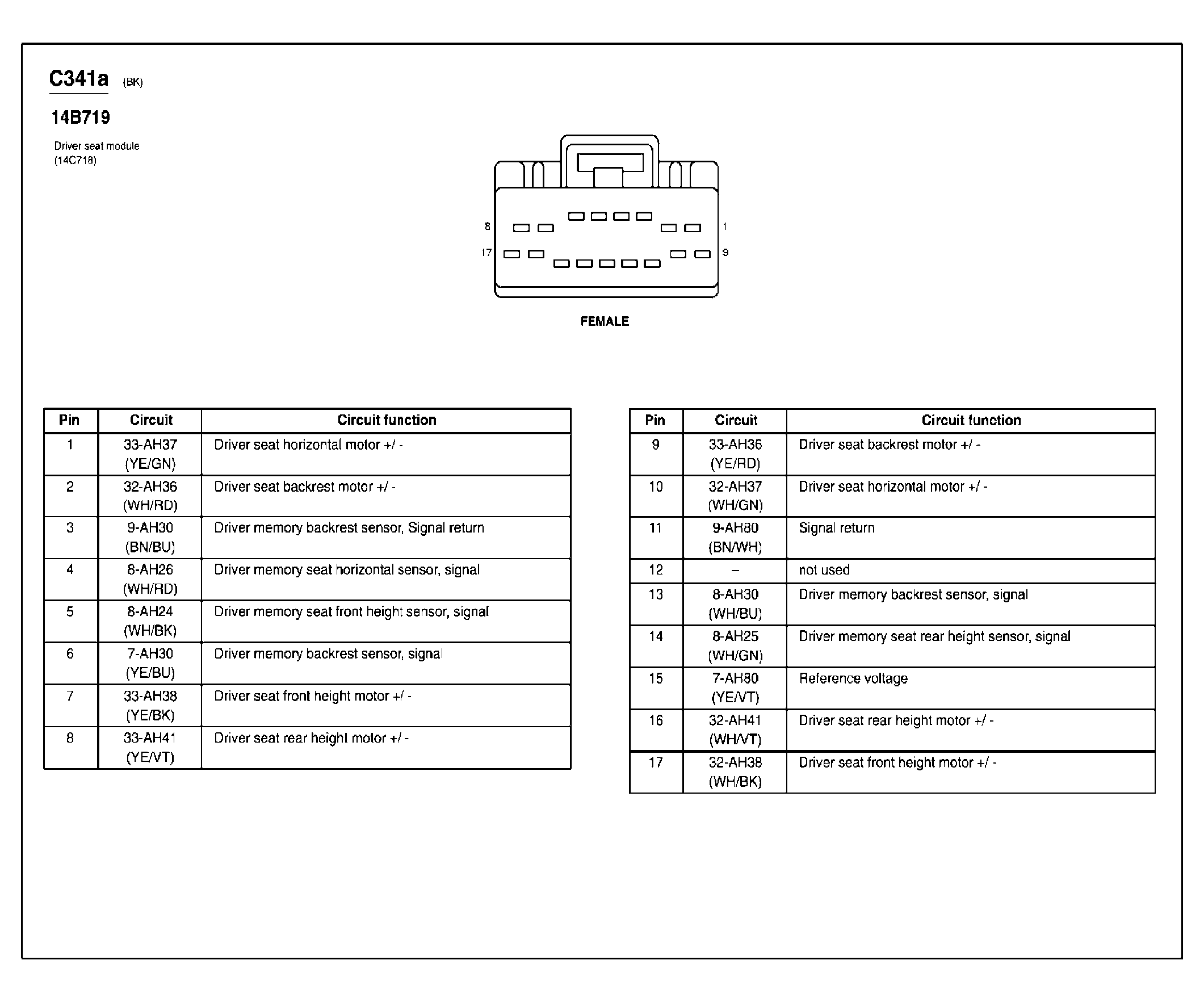

Fig 180: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.

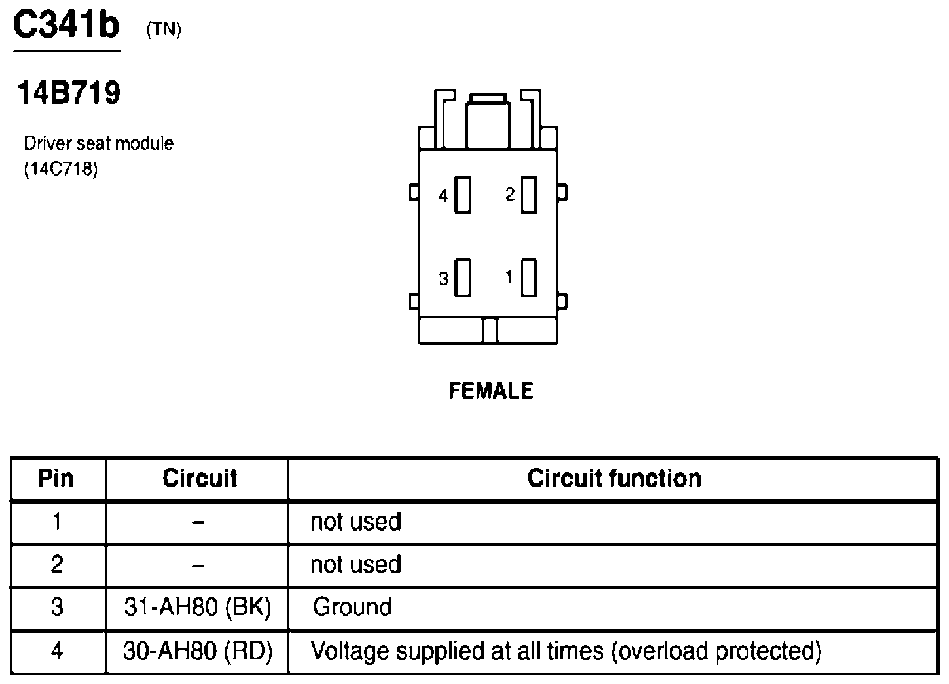

Fig 181: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.

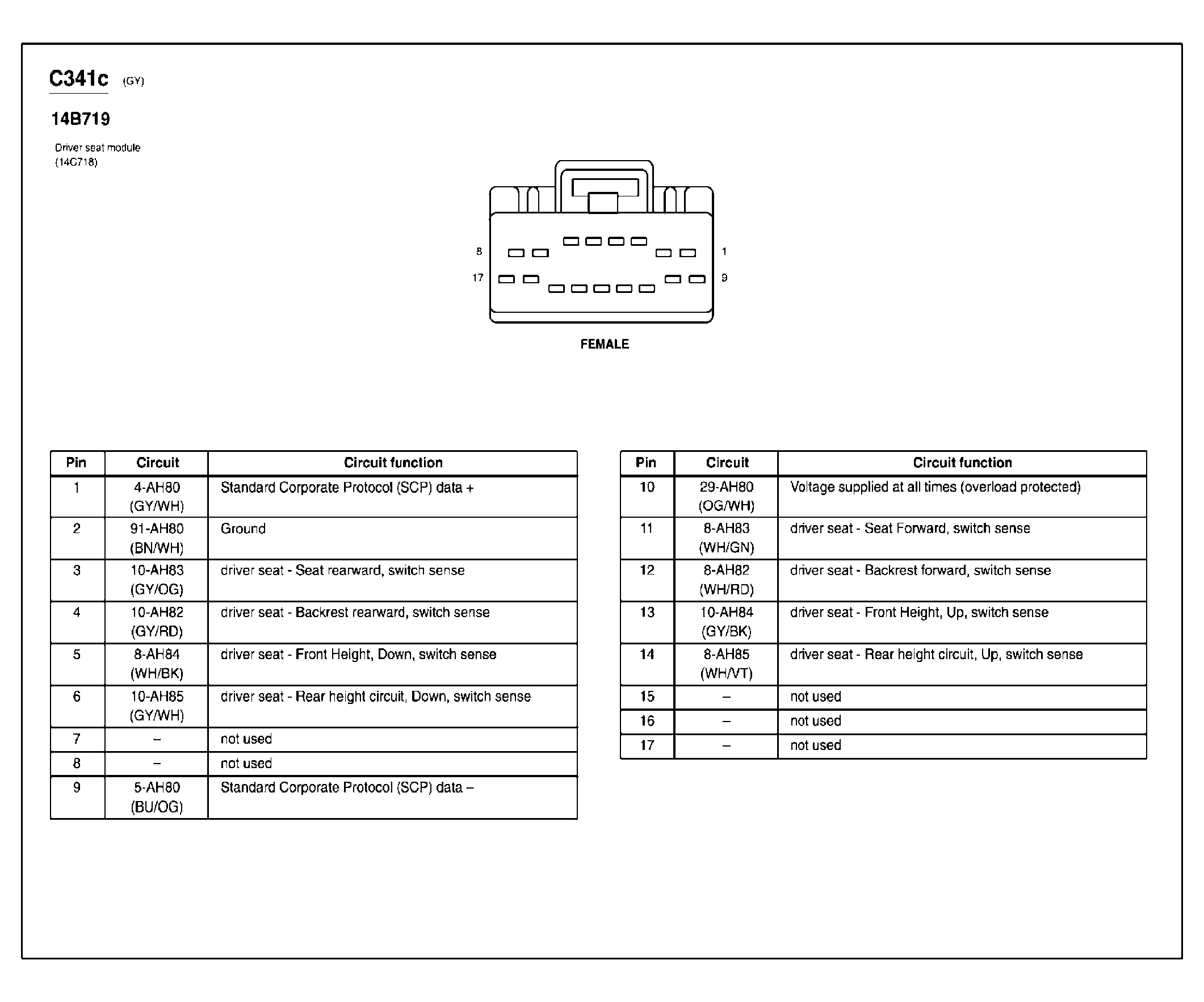

Fig 182: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.

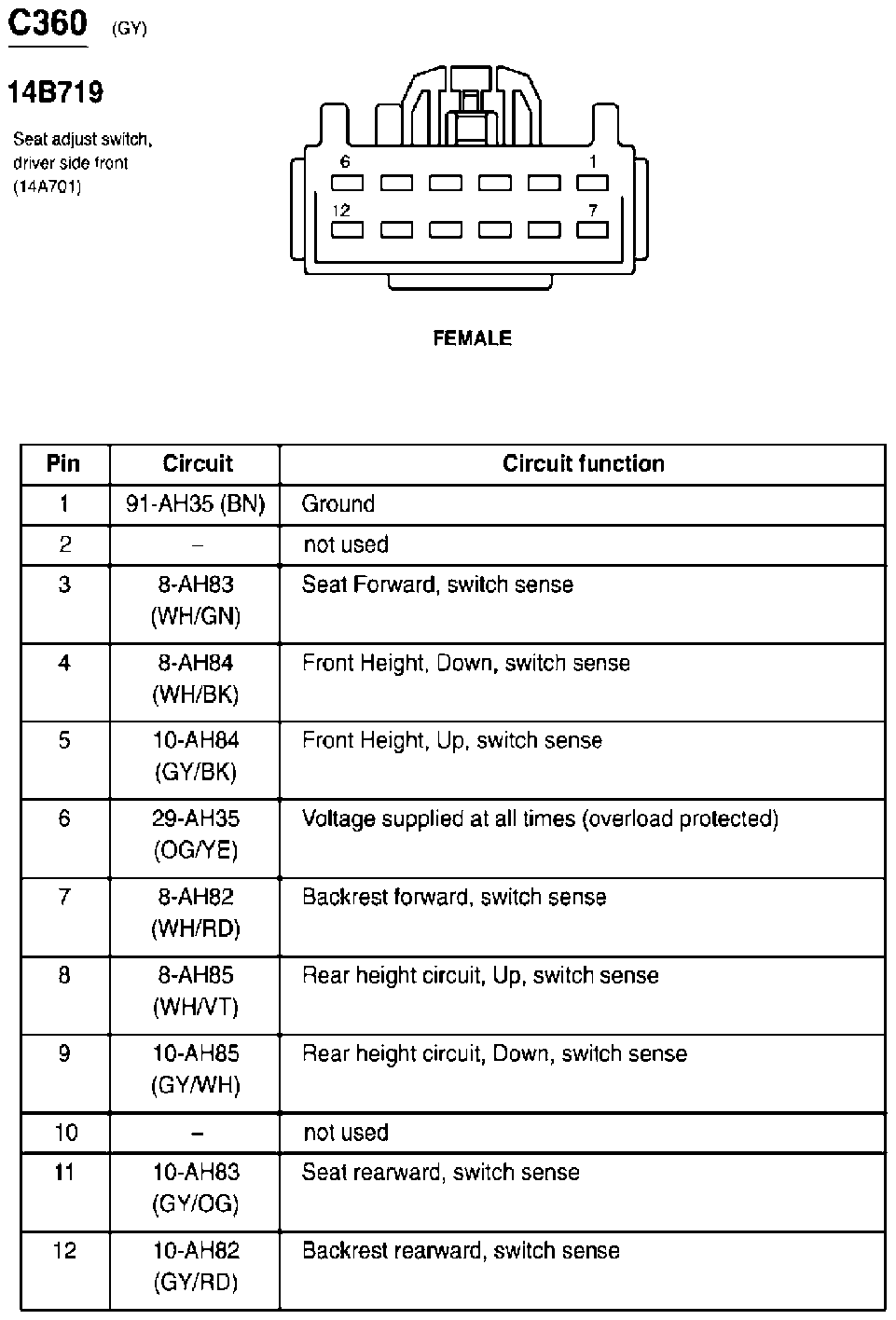

Fig 183: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

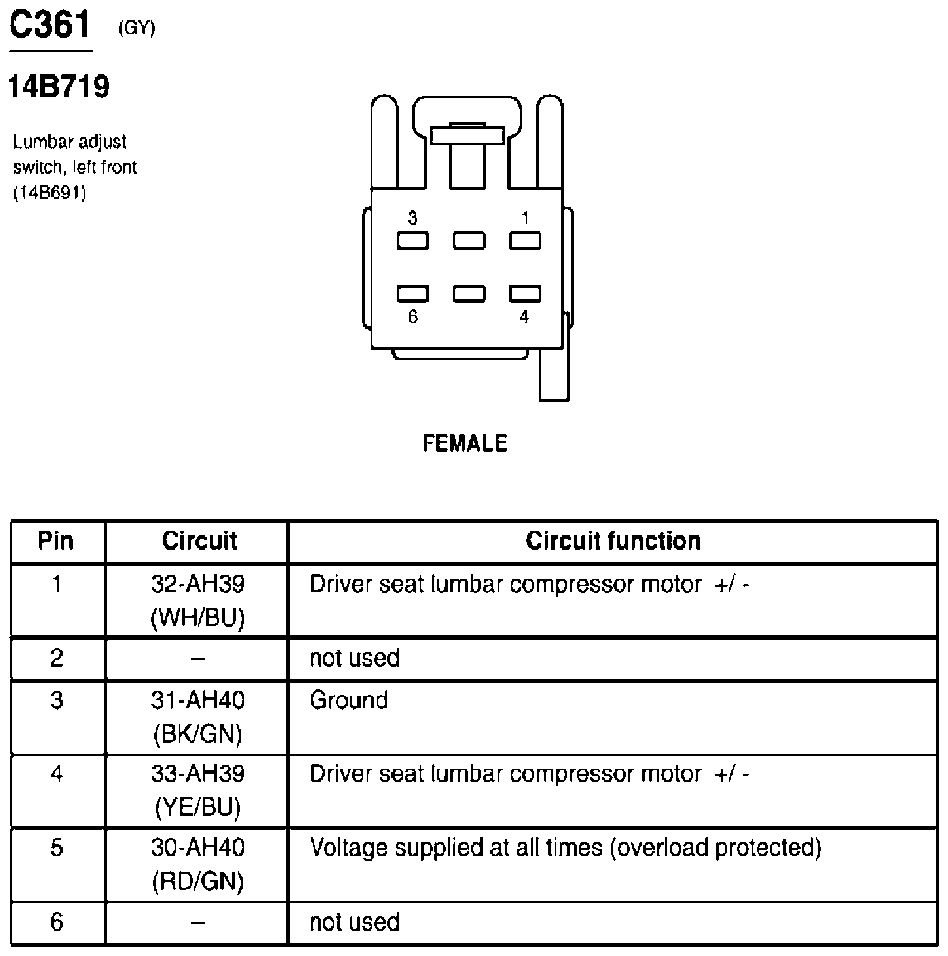

Fig 184: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

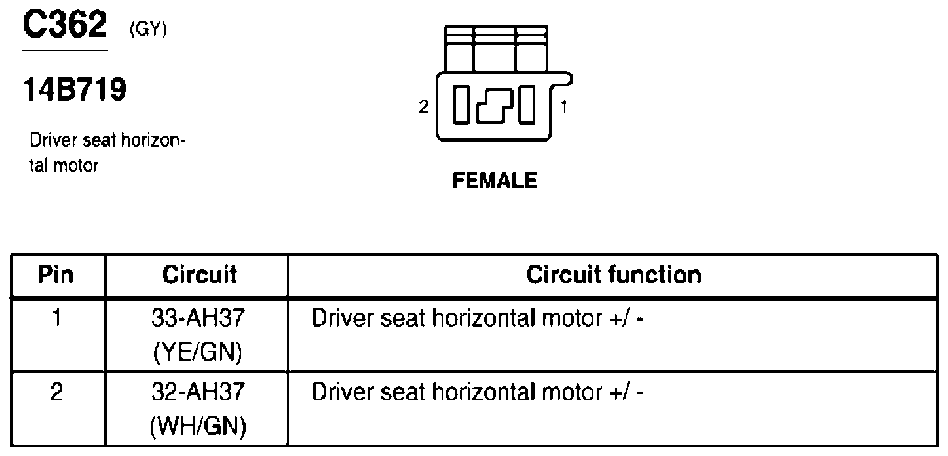

Fig 185: Driver Seat Horizontal Motor Connector End View (C362)
Courtesy of FORD MOTOR CO.

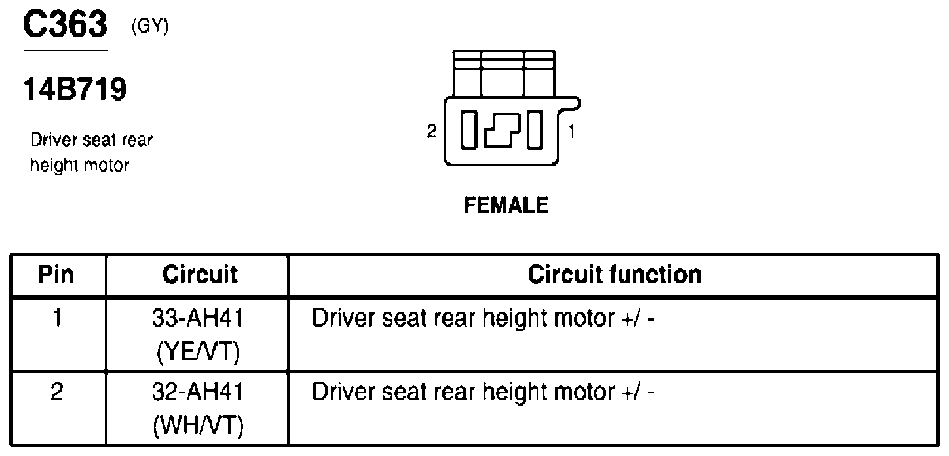

Fig 186: Driver Side Rear Height Motor Connector End View (C363)
Courtesy of FORD MOTOR CO.

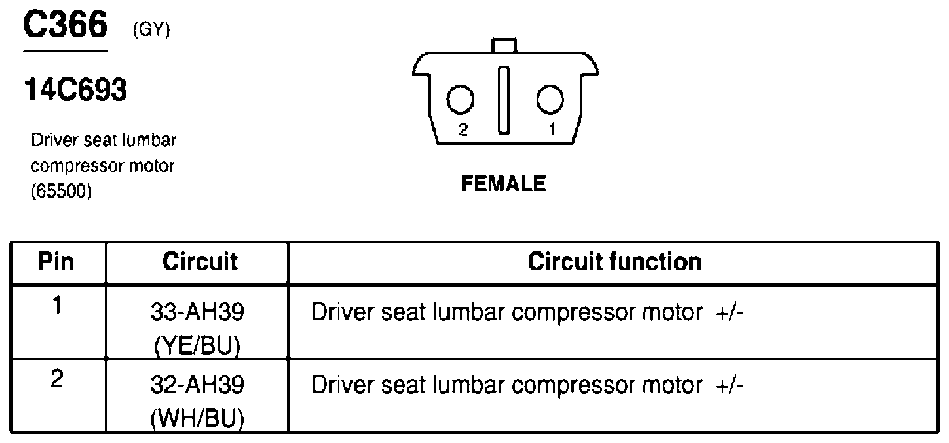

Fig 187: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

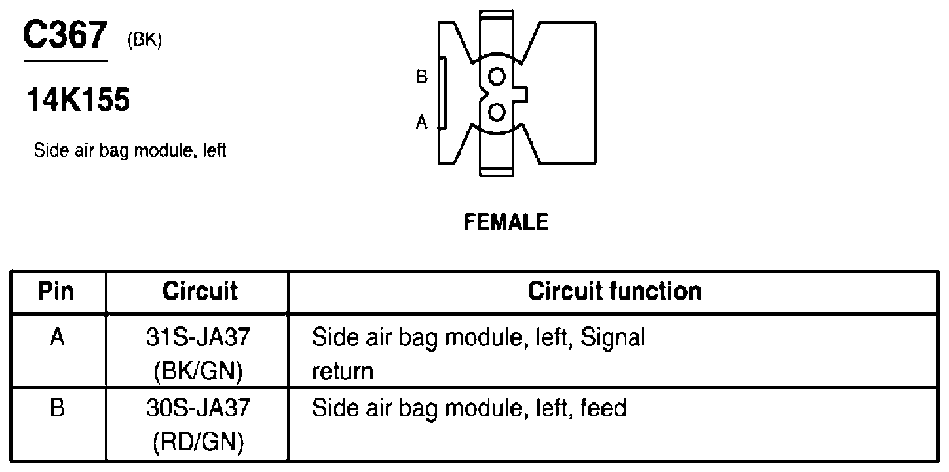

Fig 188: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

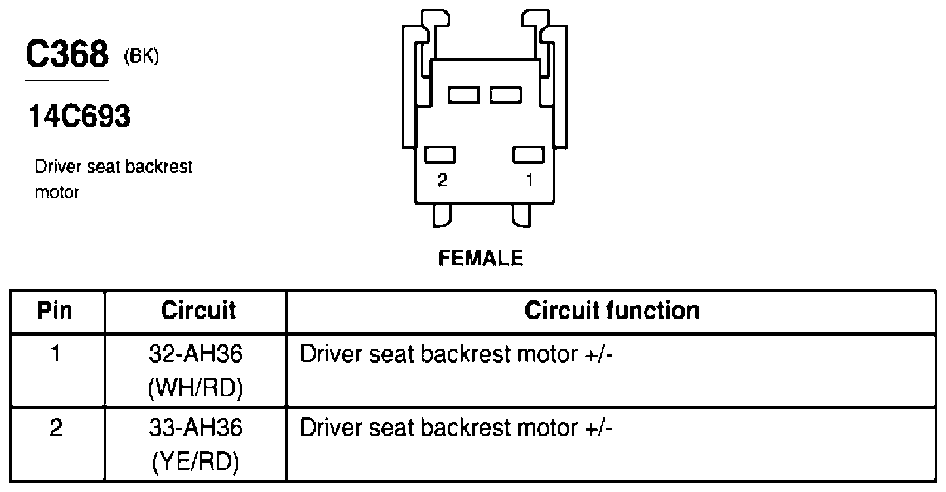

Fig 189: Driver Seat Backrest Motor Connector End View (C368)
Courtesy of FORD MOTOR CO.

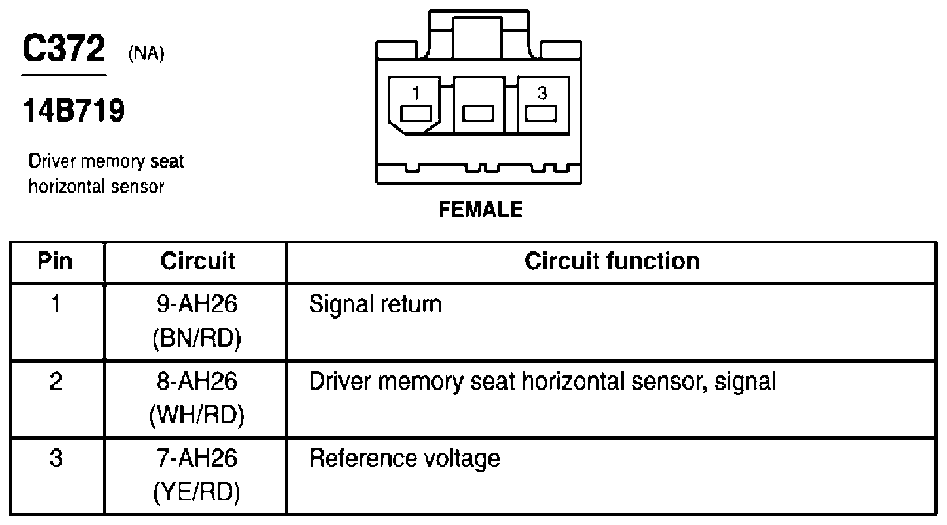

Fig 190: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.

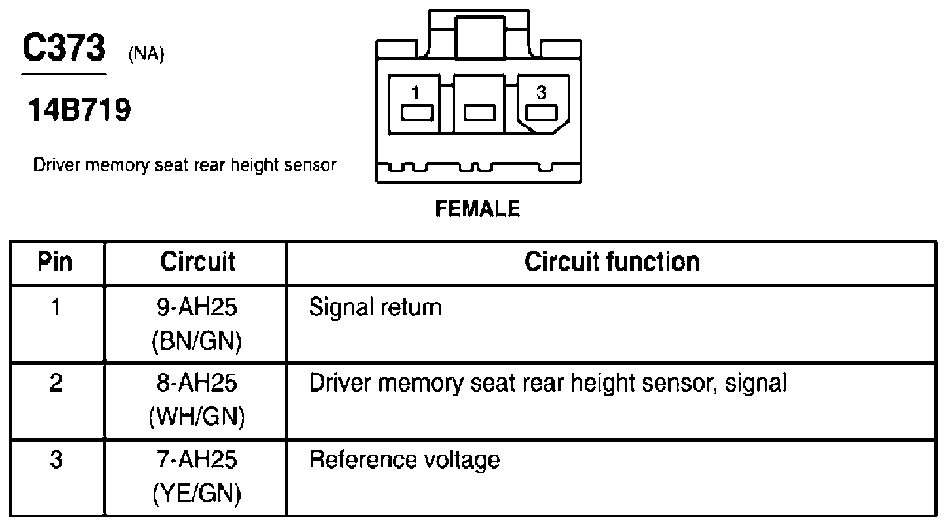

Fig 191: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.

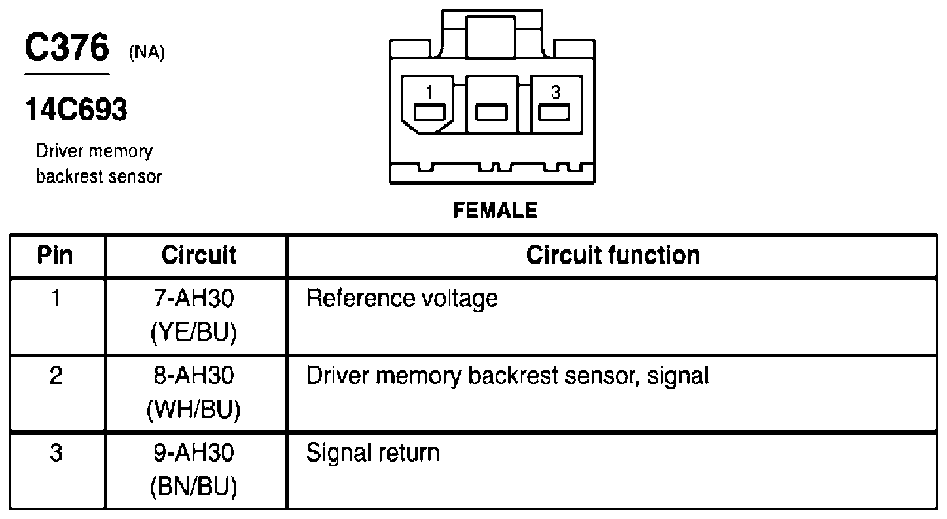

Fig 192: Driver Memory Backrest Sensor Connector End View (C376)
Courtesy of FORD MOTOR CO.

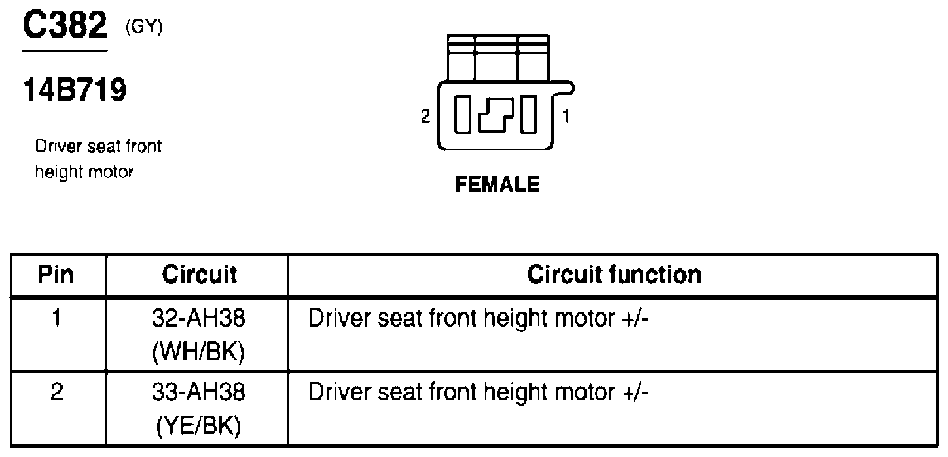

Fig 193: Driver Seat Front Height Motor Connector End View (C382)
Courtesy of FORD MOTOR CO.

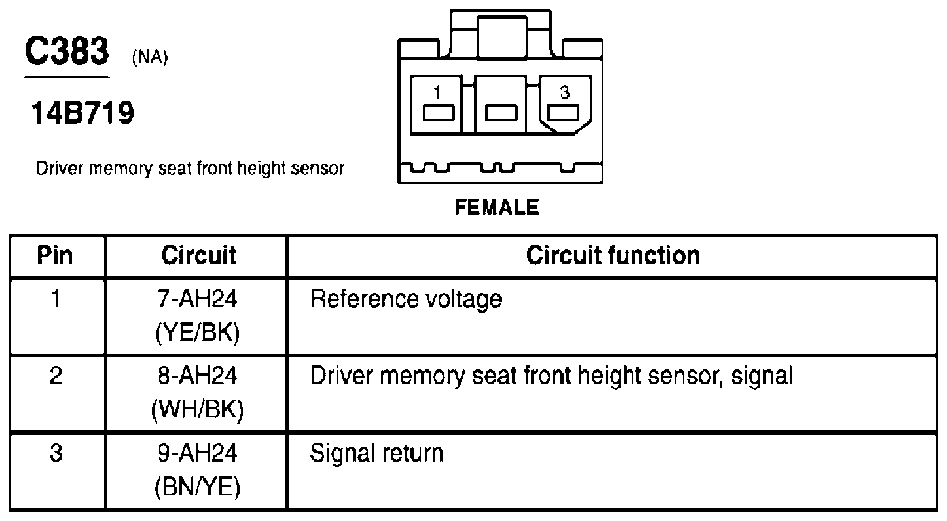

Fig 194: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.

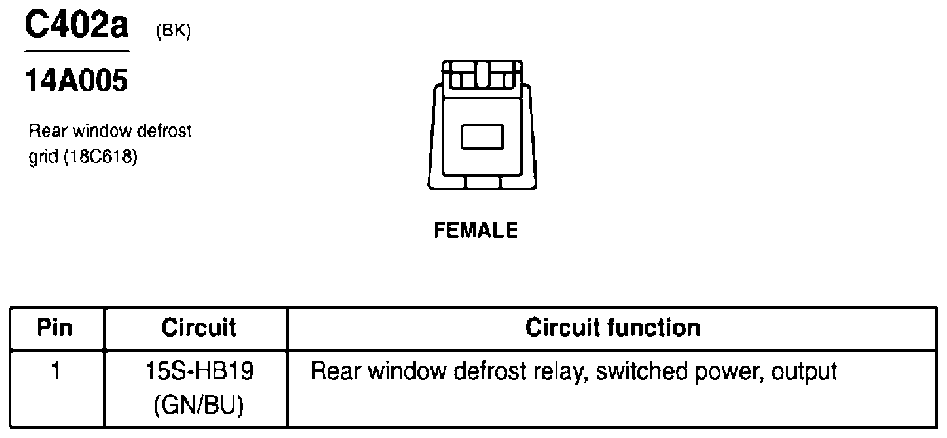

Fig 195: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.

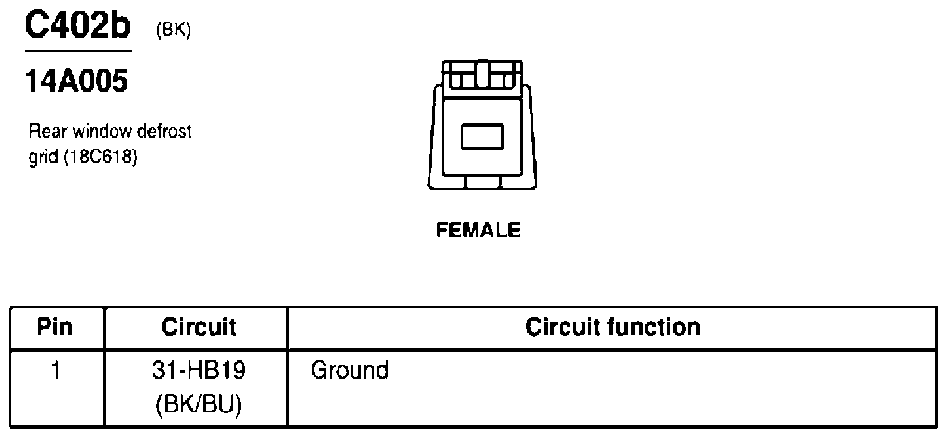

Fig 196: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.

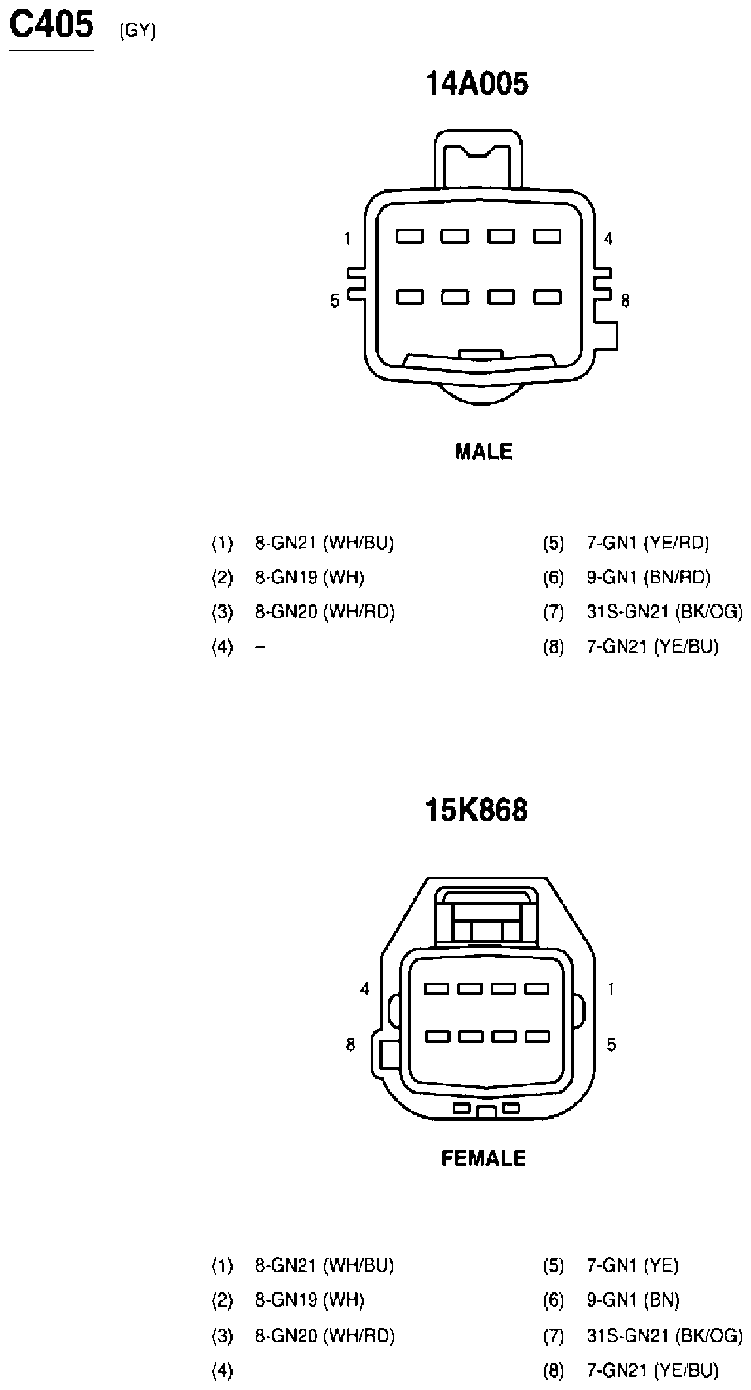

Fig 197: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

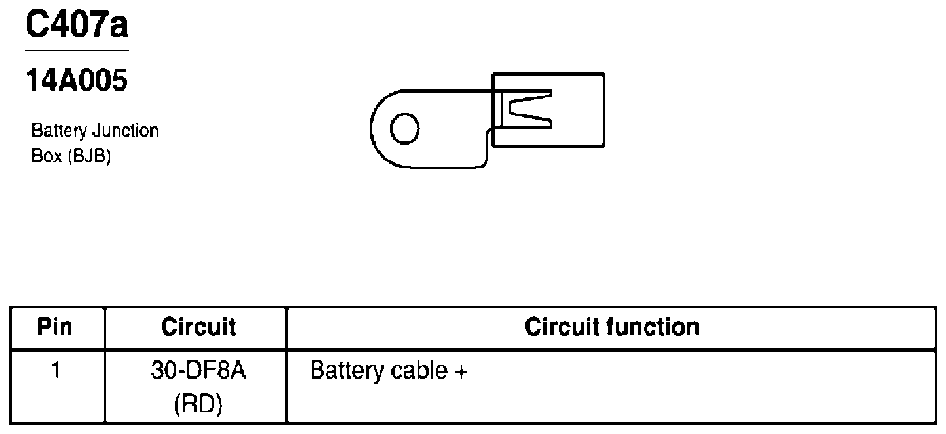

Fig 198: Battery Junction Box (BJB) Connector End View (C407a)
Courtesy of FORD MOTOR CO.

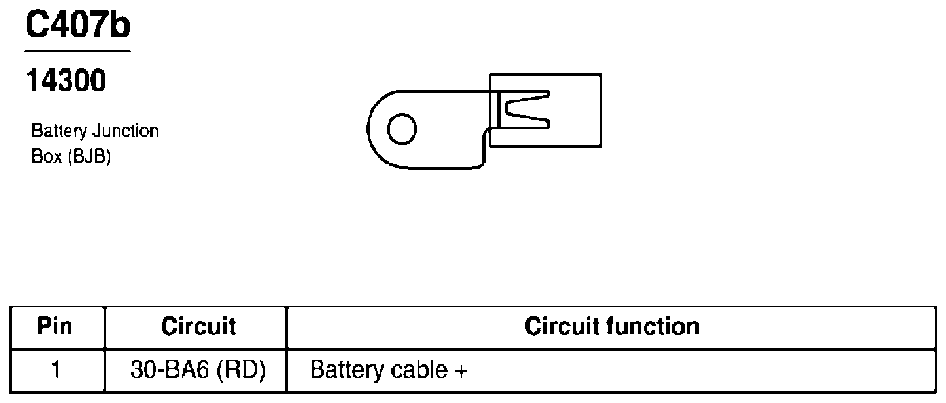

Fig 199: Battery Junction Box (BJB) Connector End View (C407b)
Courtesy of FORD MOTOR CO.

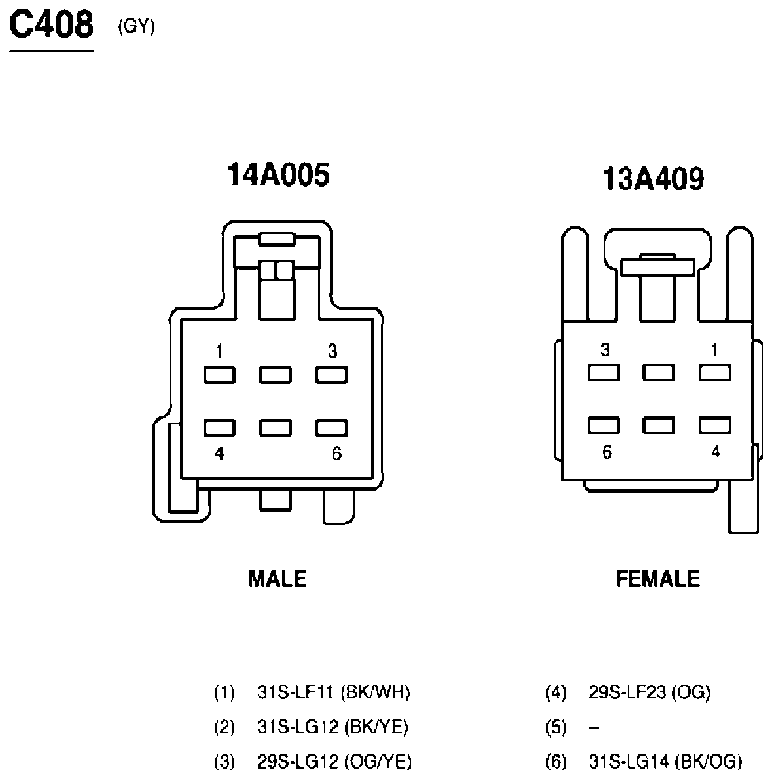

Fig 200: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

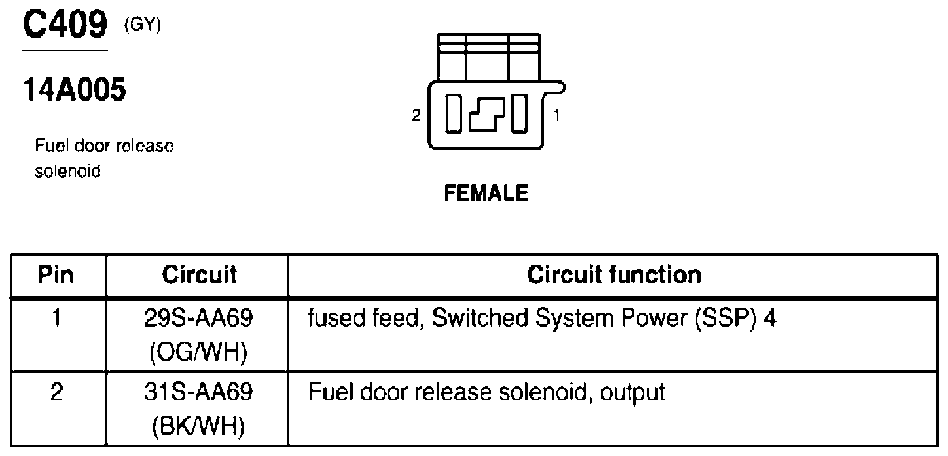

Fig 201: Fuel Door Release Solenoid Connector End View (C409)
Courtesy of FORD MOTOR CO.

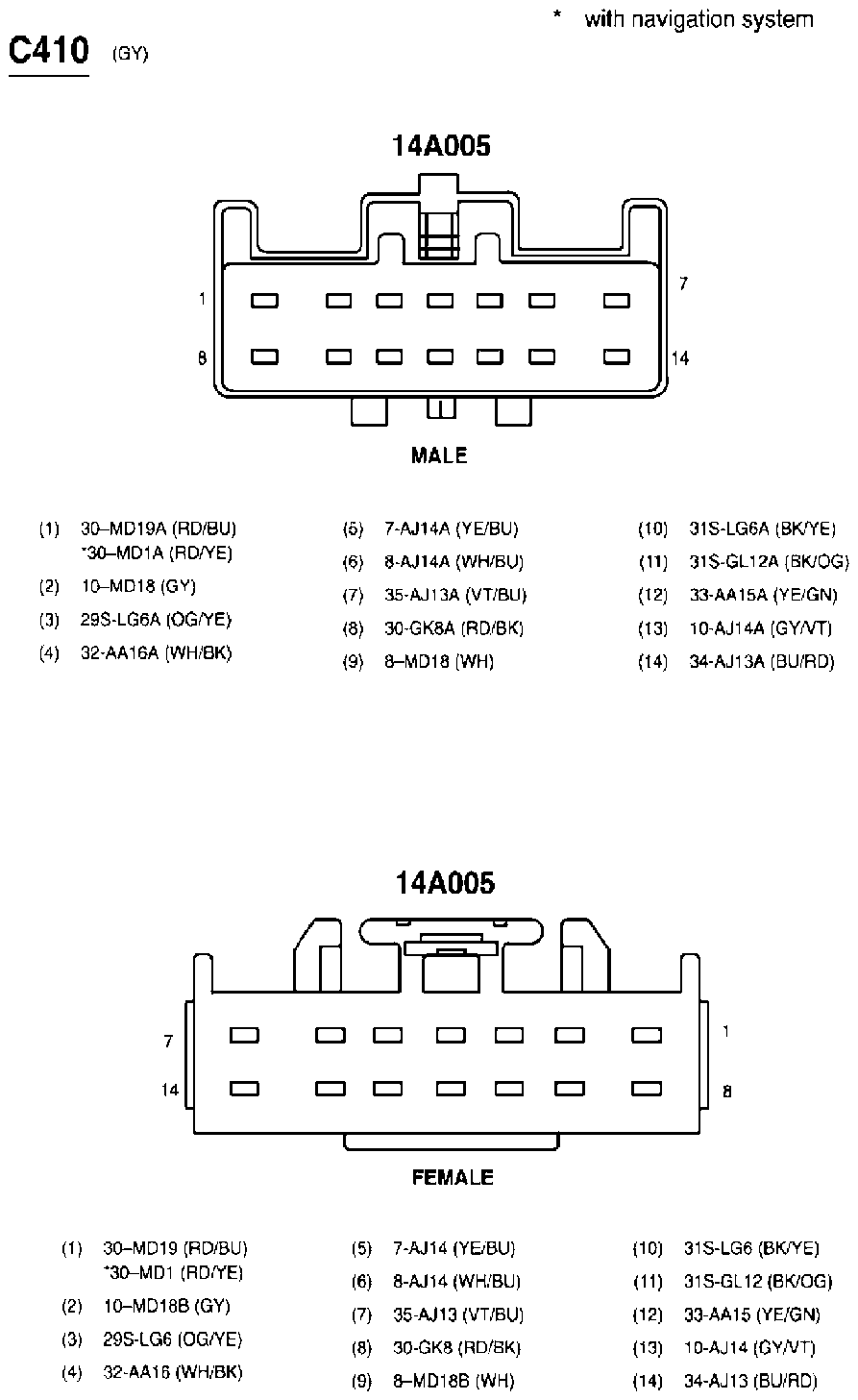

Fig 202: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

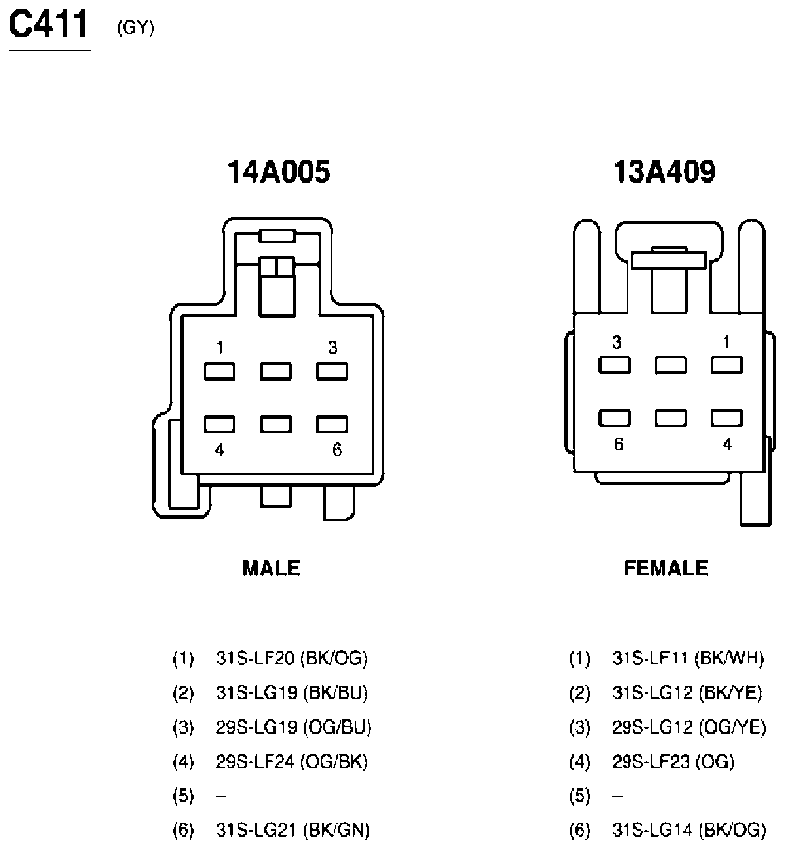

Fig 203: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

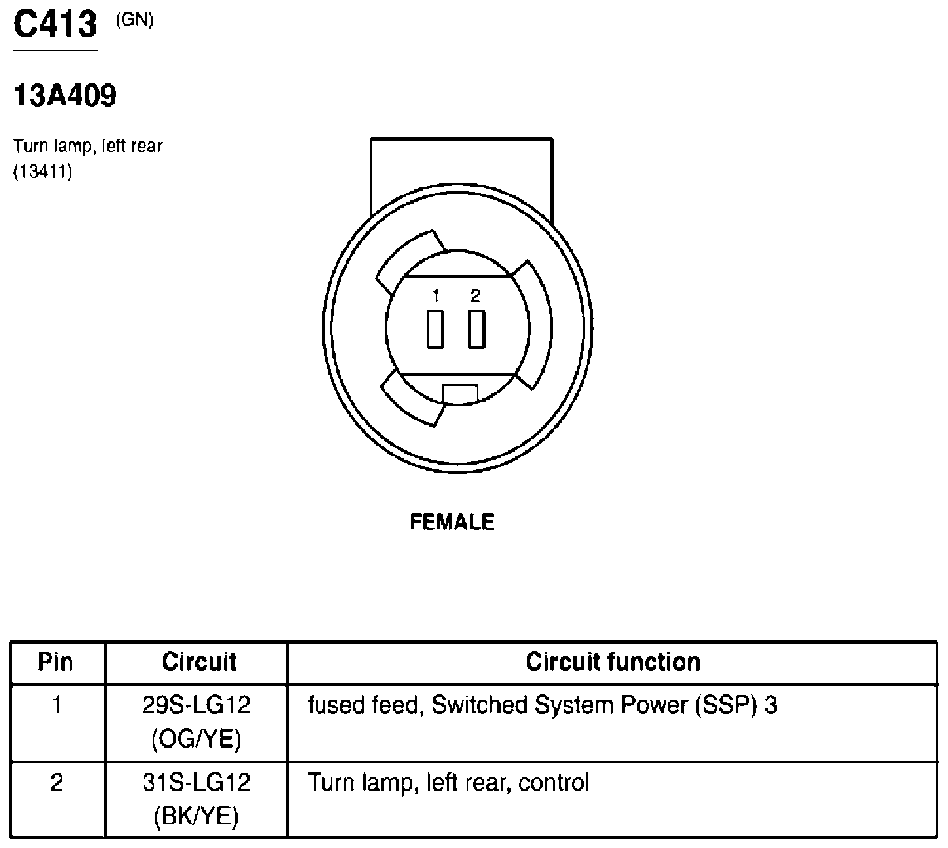

Fig 204: Turn Lamp, Left Rear Connector End View (C413)
Courtesy of FORD MOTOR CO.

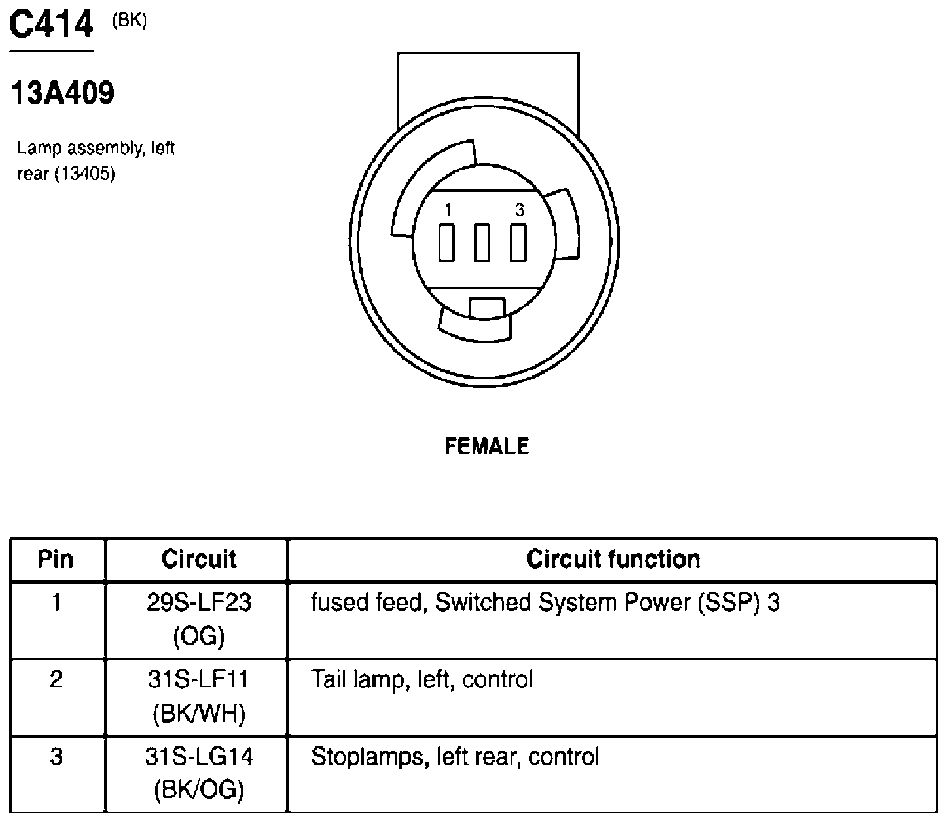

Fig 205: Lamp Assembly, Left Rear Connector End View (C414)
Courtesy of FORD MOTOR CO.

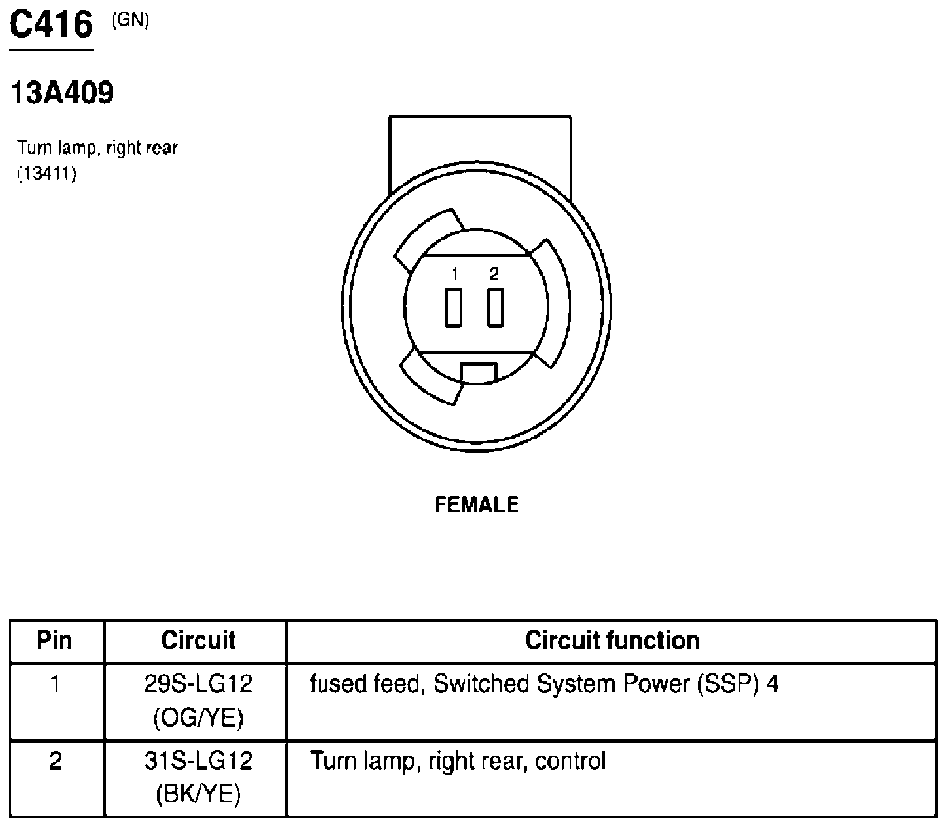

Fig 206: Turn Lamp, Right Rear Connector End View (C416)
Courtesy of FORD MOTOR CO.

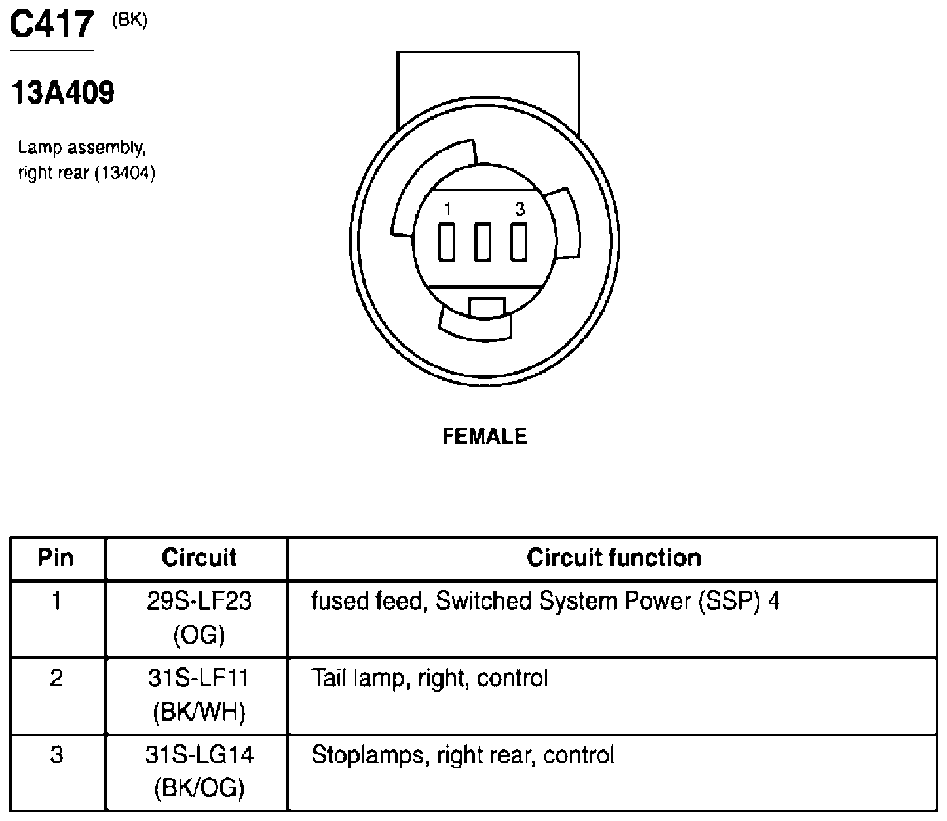

Fig 207: Lamp Assembly, Right Rear Connector End View (C417)
Courtesy of FORD MOTOR CO.

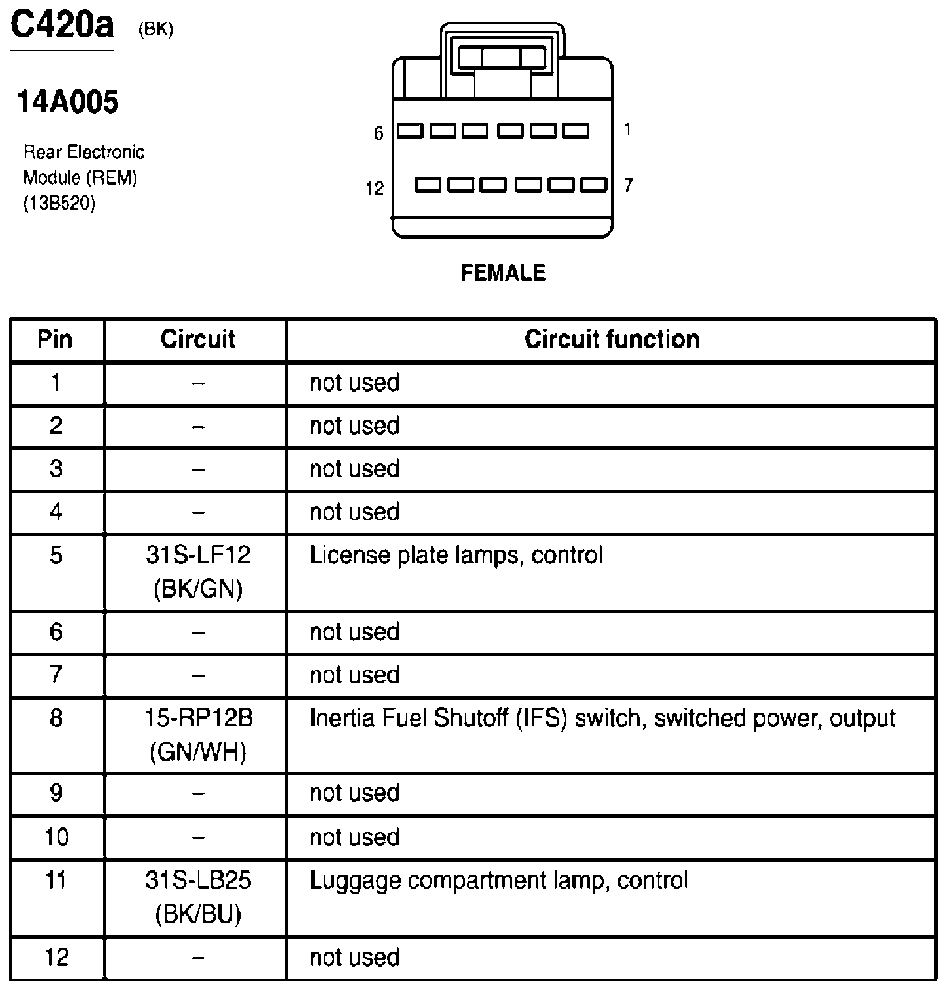

Fig 208: Rear Electronic Module (REM) Connector End View (C420a)
Courtesy of FORD MOTOR CO.

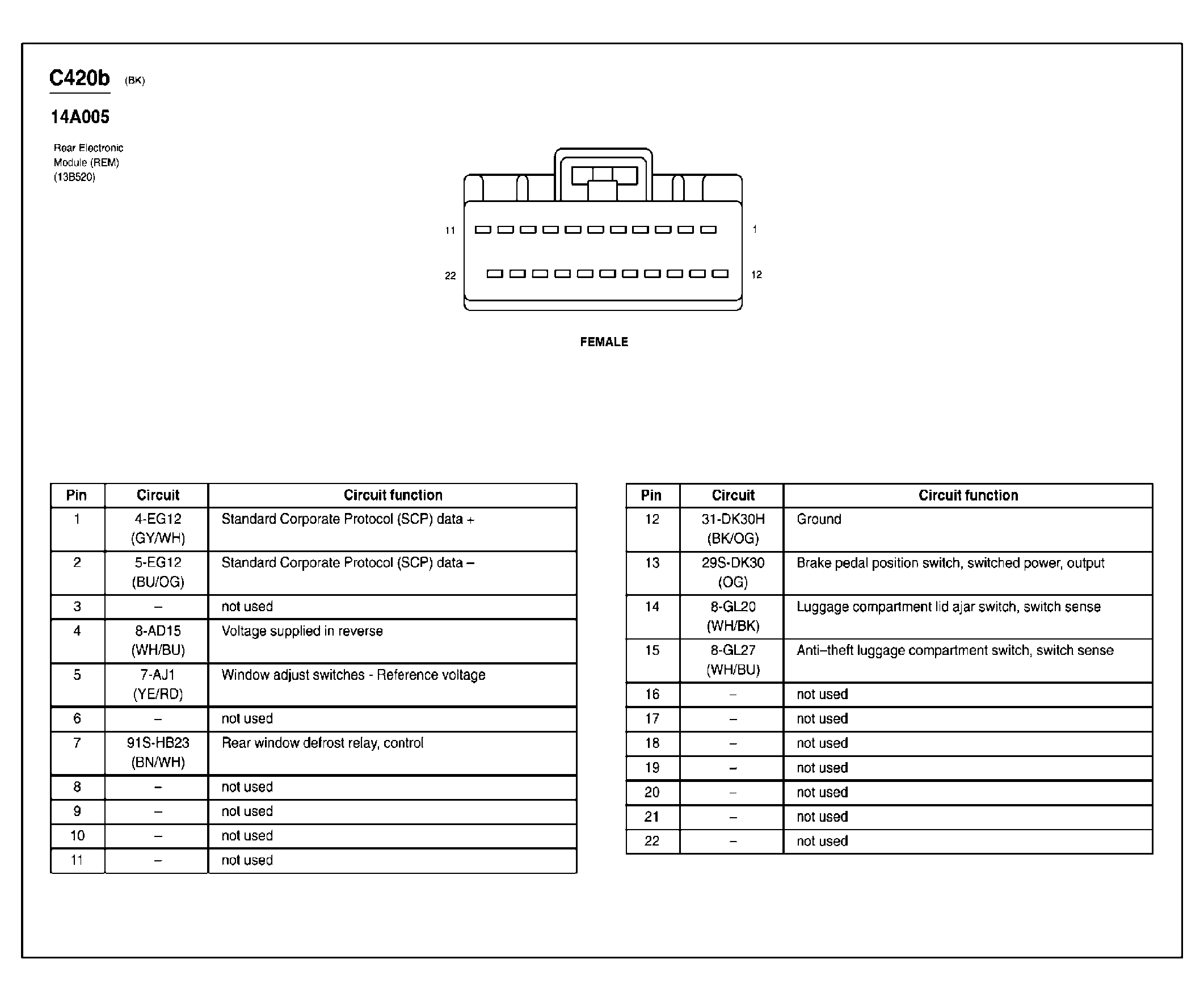

Fig 209: Rear Electronic Module (REM) Connector End View (C420b)
Courtesy of FORD MOTOR CO.

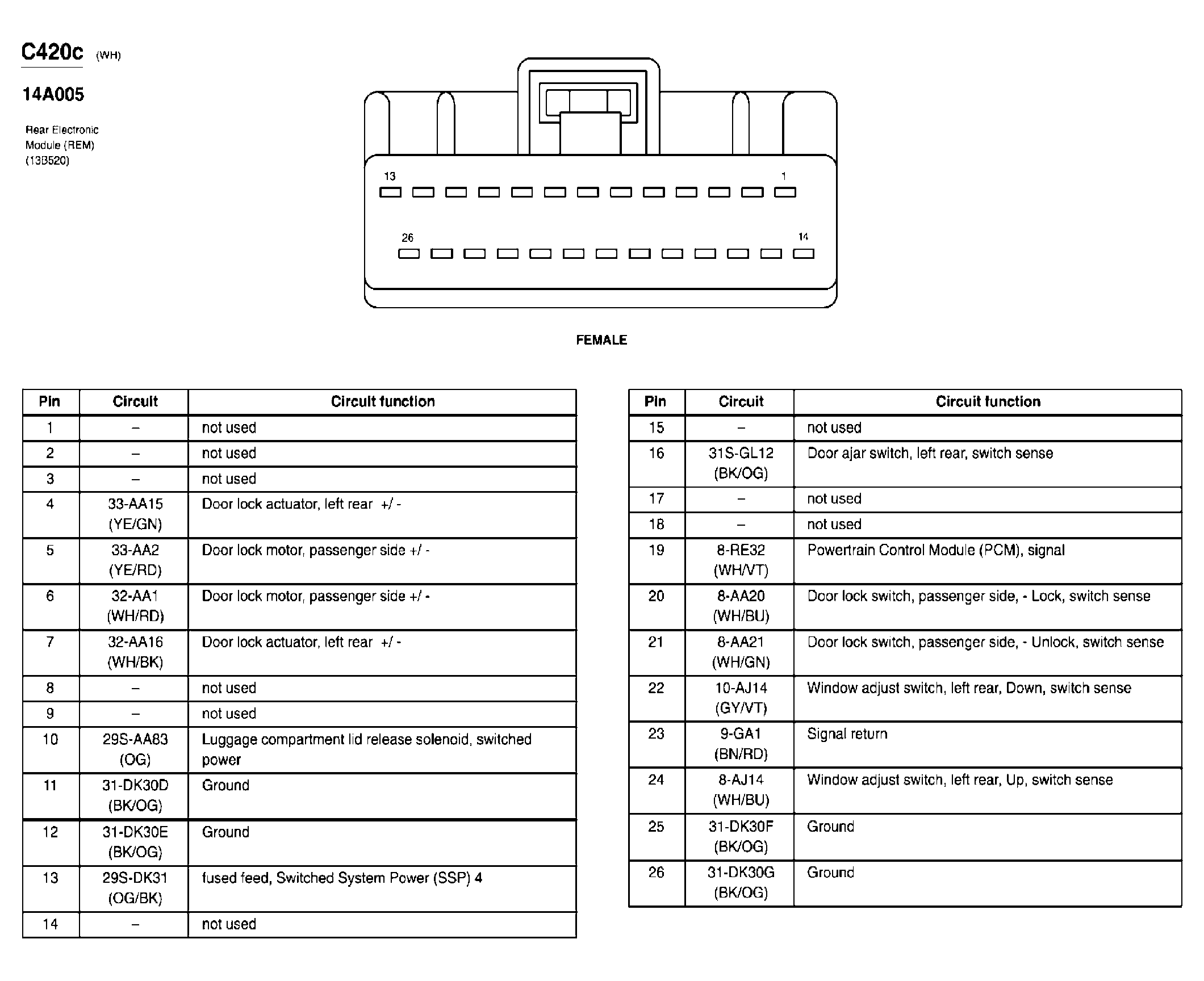

Fig 210: Rear Electronic Module (REM) Connector End View (C420c)
Courtesy of FORD MOTOR CO.

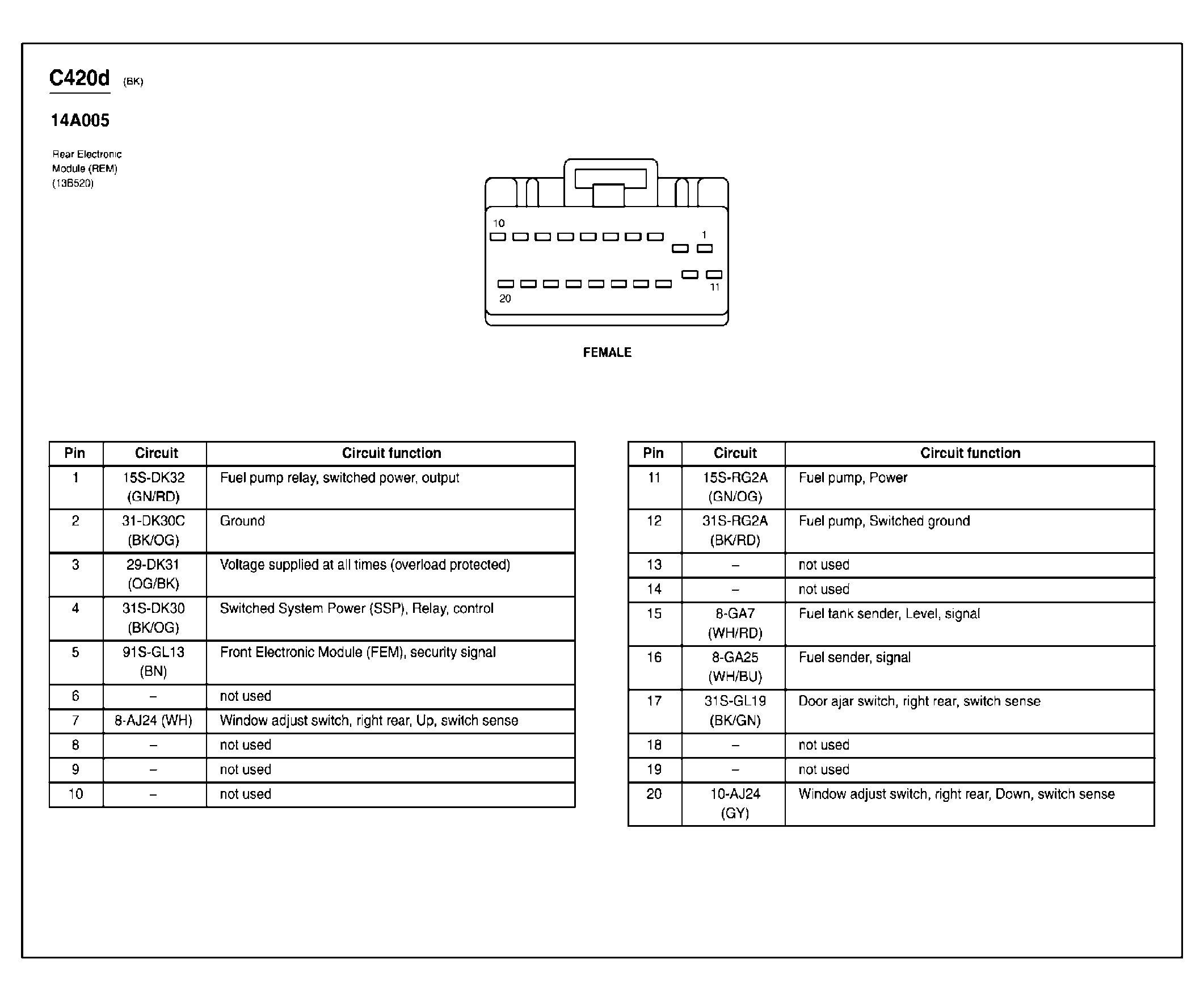

Fig 211: Rear Electronic Module (REM) Connector End View (C420d)
Courtesy of FORD MOTOR CO.

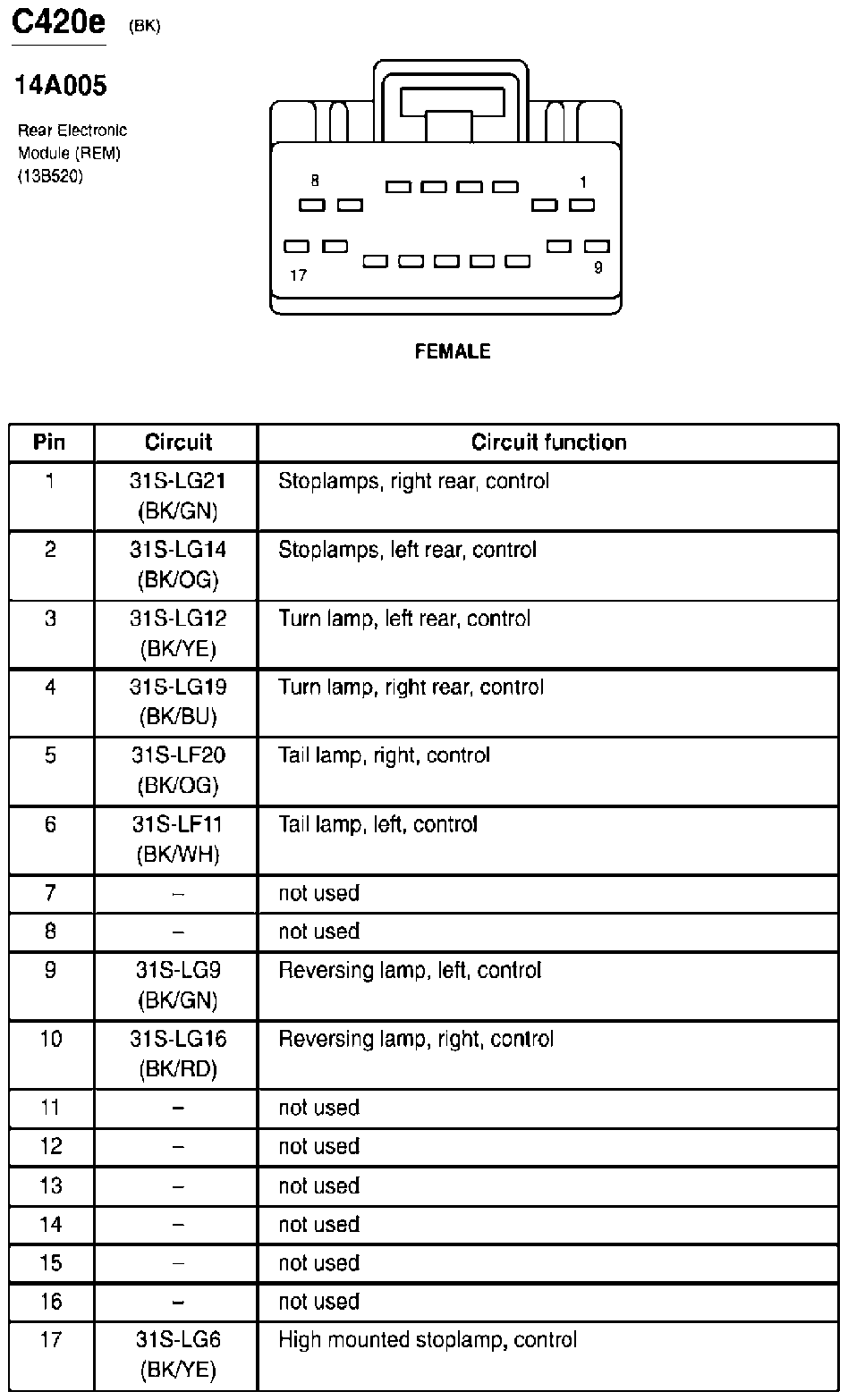

Fig 212: Rear Electronic Module (REM) Connector End View (C420e)
Courtesy of FORD MOTOR CO.

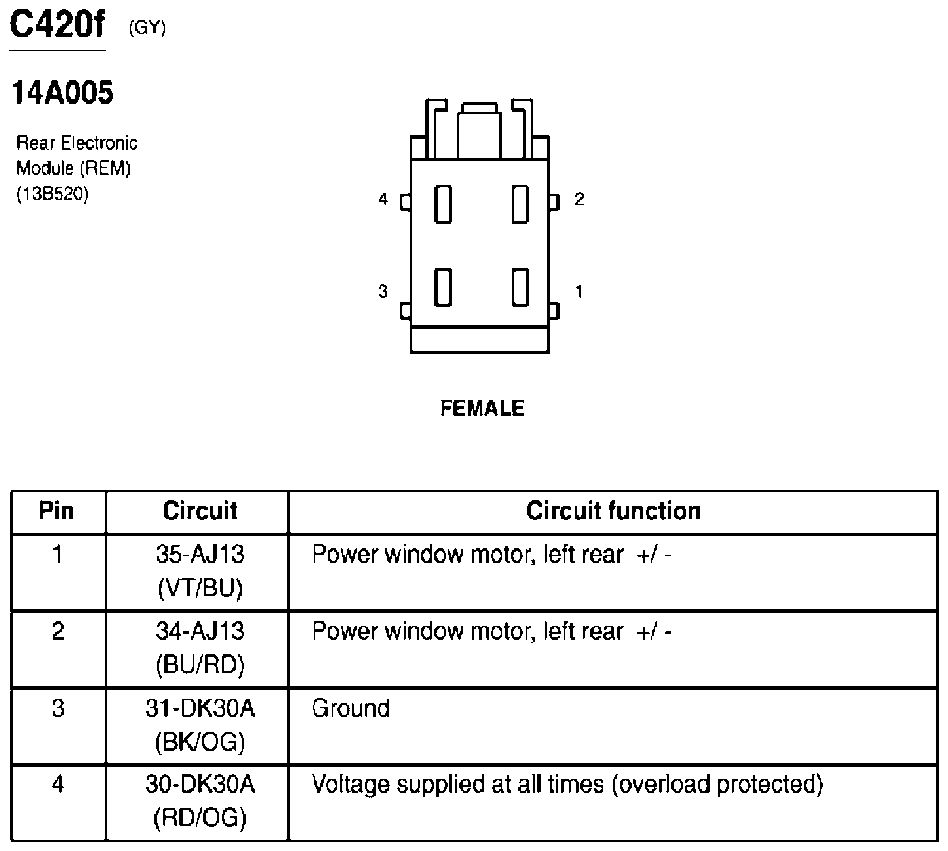

Fig 213: Rear Electronic Module (REM) Connector End View (C420f)
Courtesy of FORD MOTOR CO.

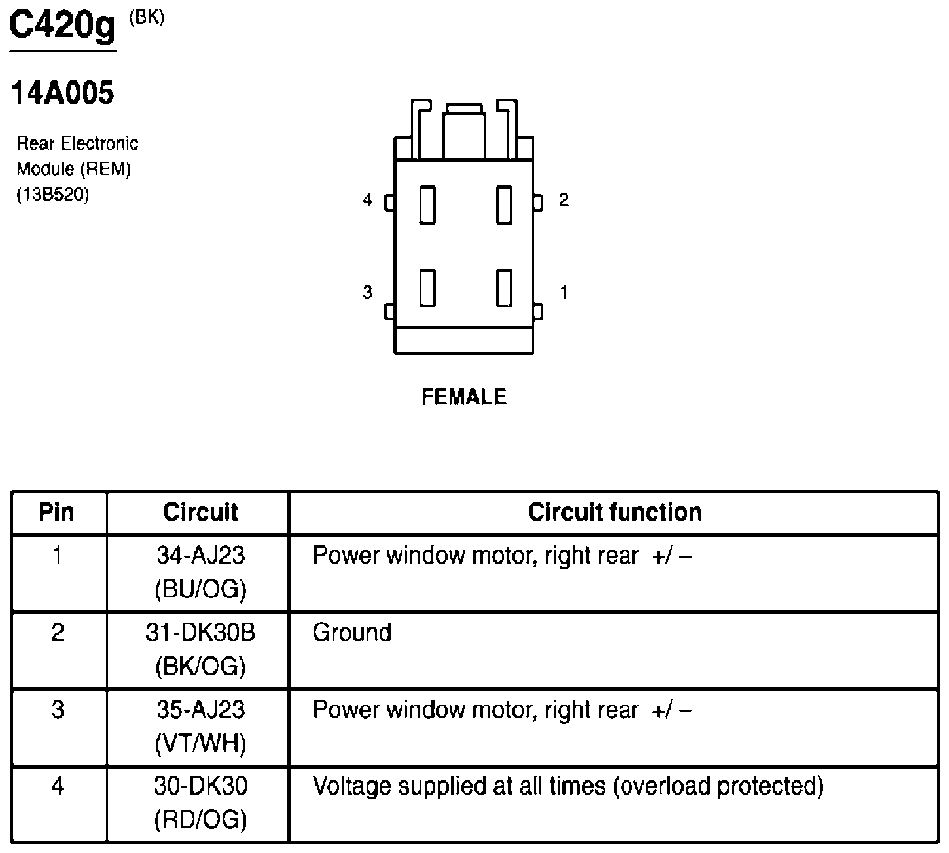

Fig 214: Rear Electronic Module (REM) Connector End View (C420g)
Courtesy of FORD MOTOR CO.

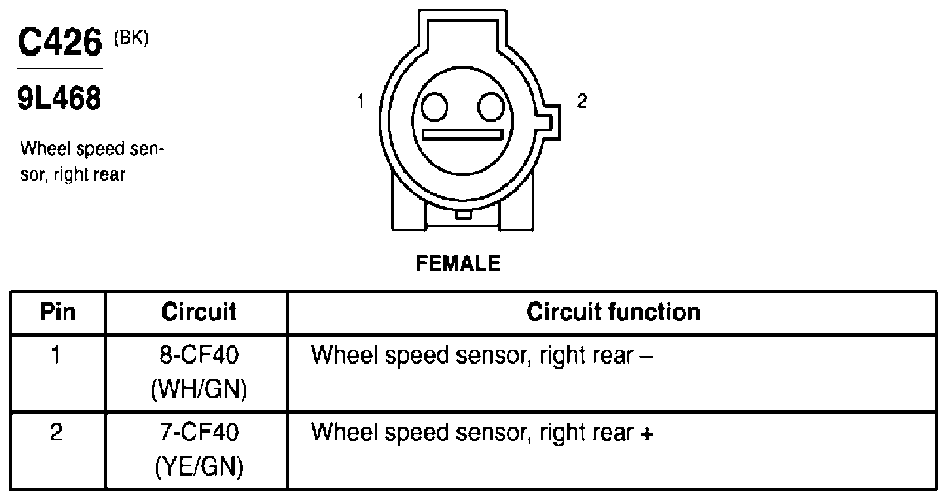

Fig 215: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

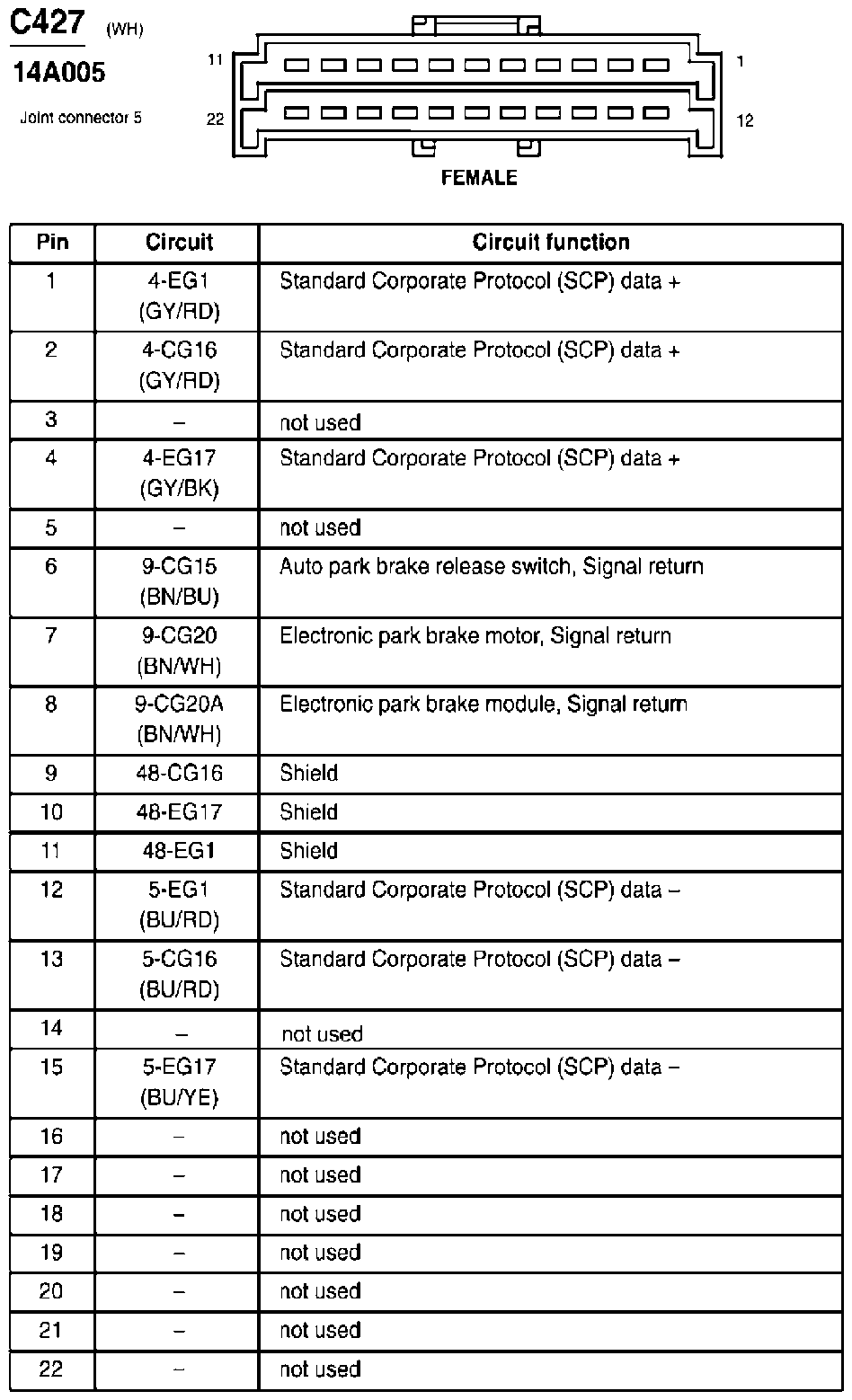

Fig 216: Joint Connector 5 Connector End View (C427)
Courtesy of FORD MOTOR CO.

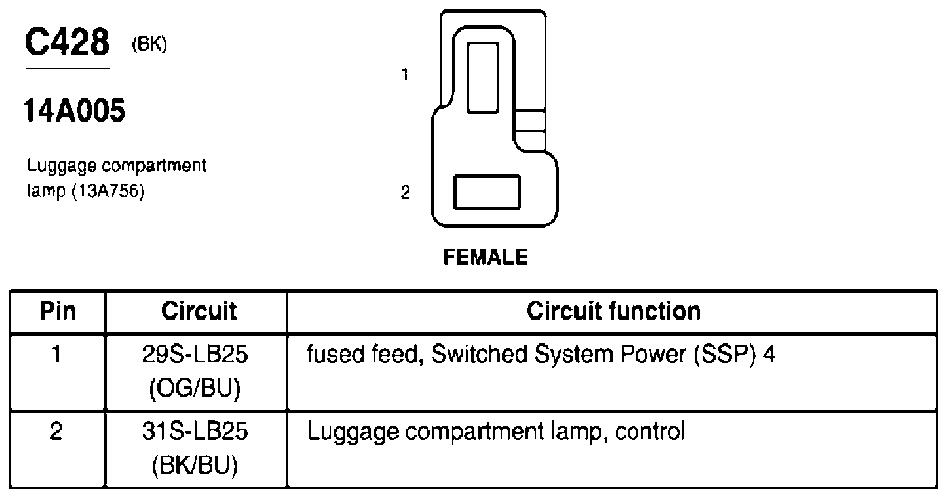

Fig 217: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.

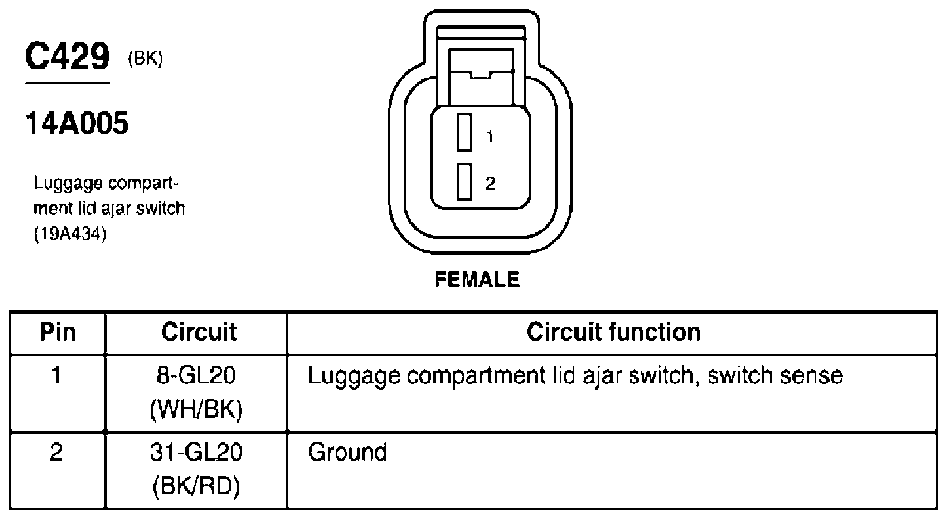

Fig 218: Luggage Compartment Lid Ajar Switch Connector End View (C429)
Courtesy of FORD MOTOR CO.

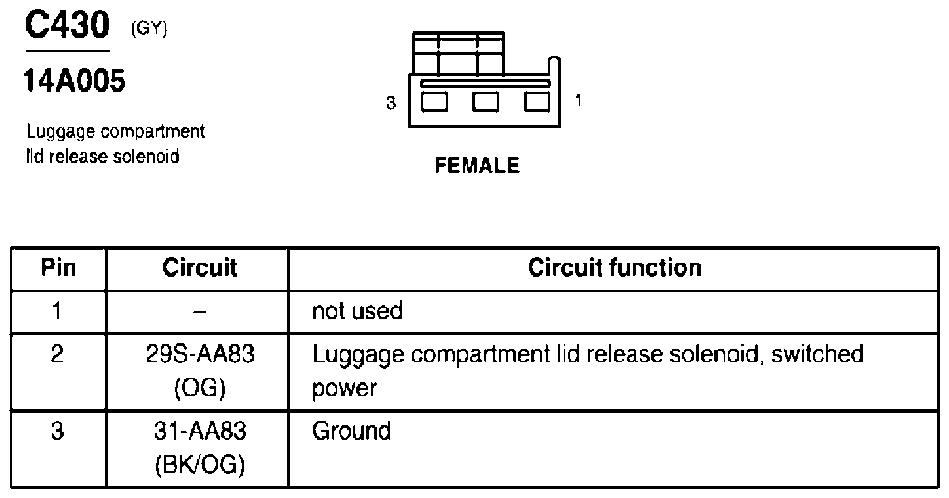

Fig 219: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.

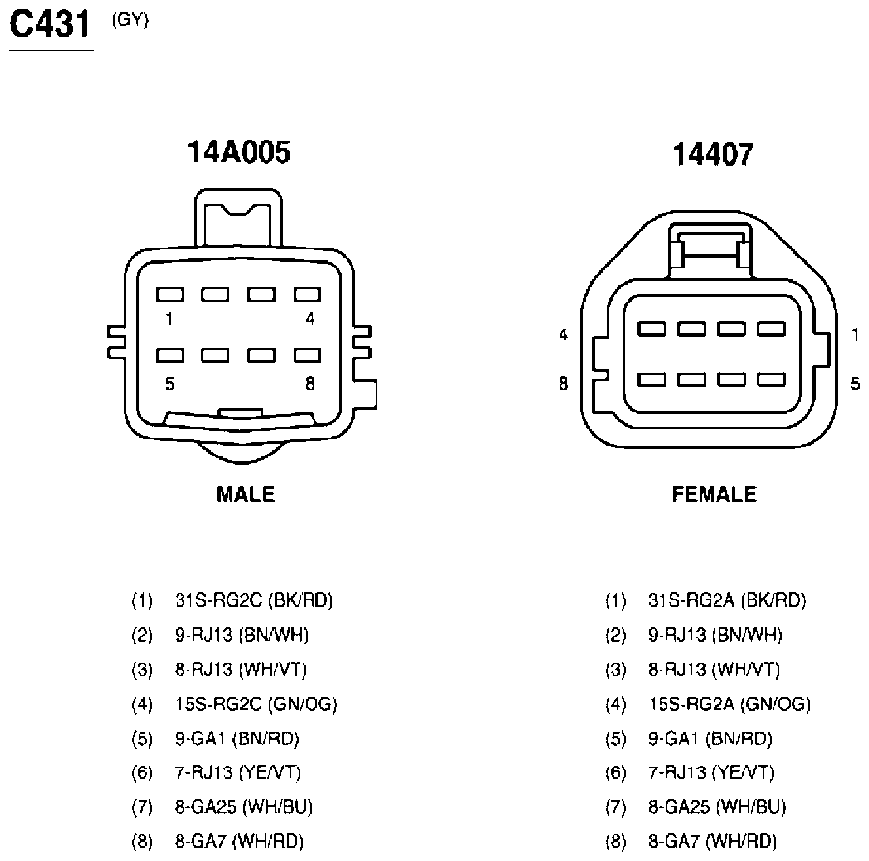

Fig 220: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.

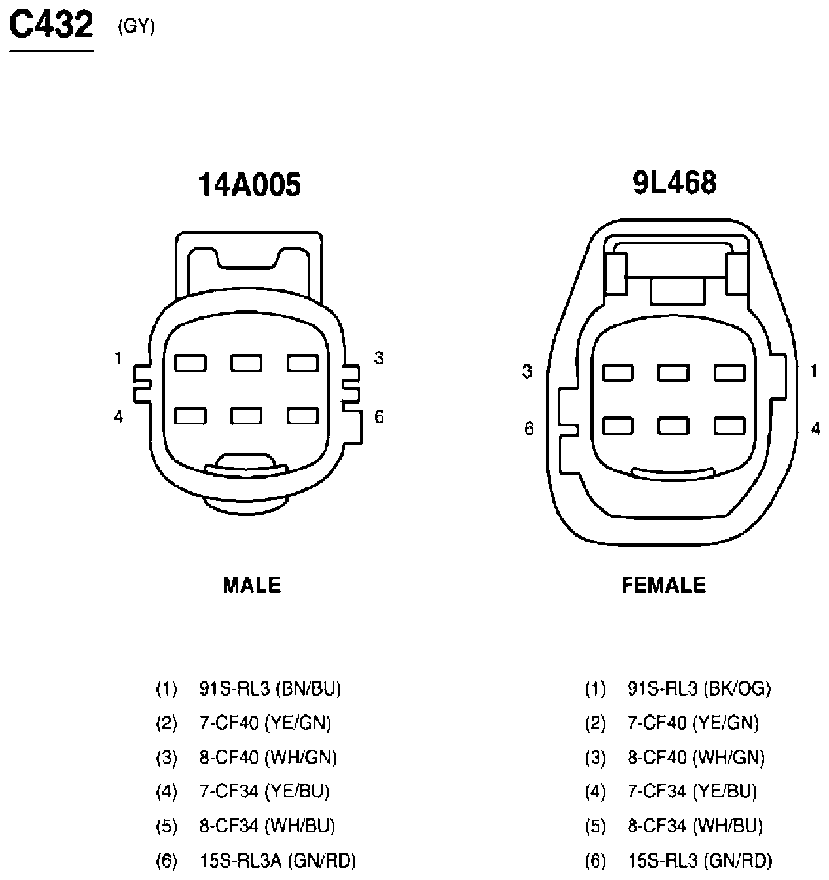

Fig 221: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.

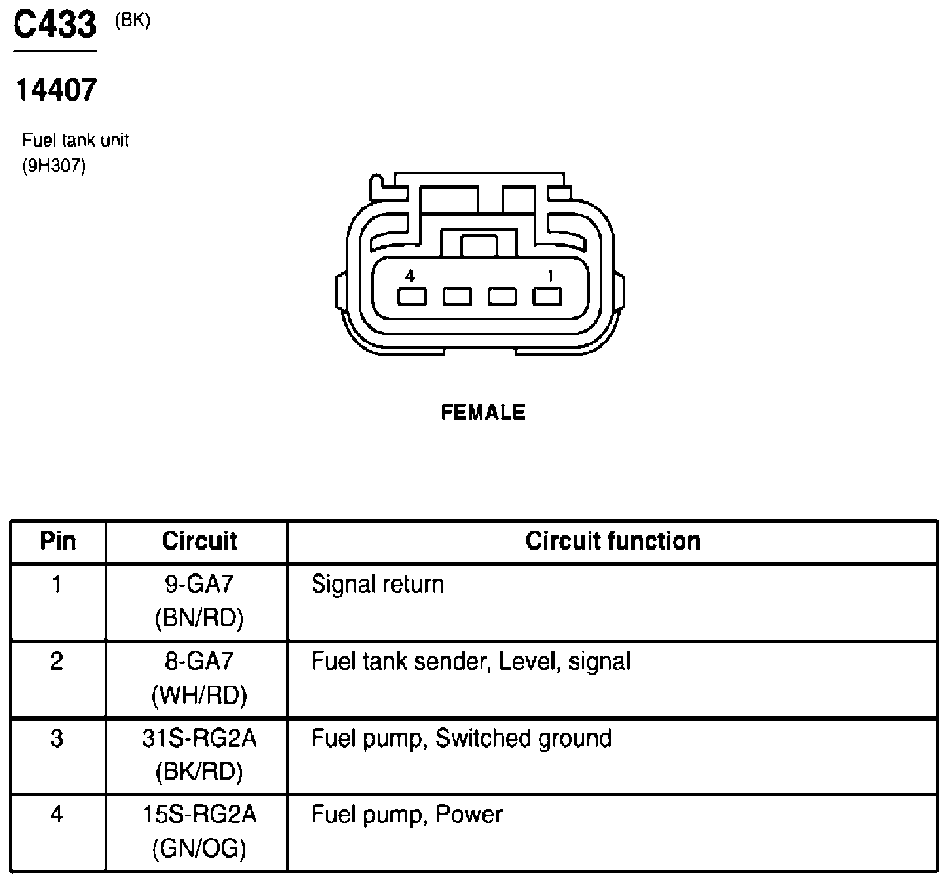

Fig 222: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

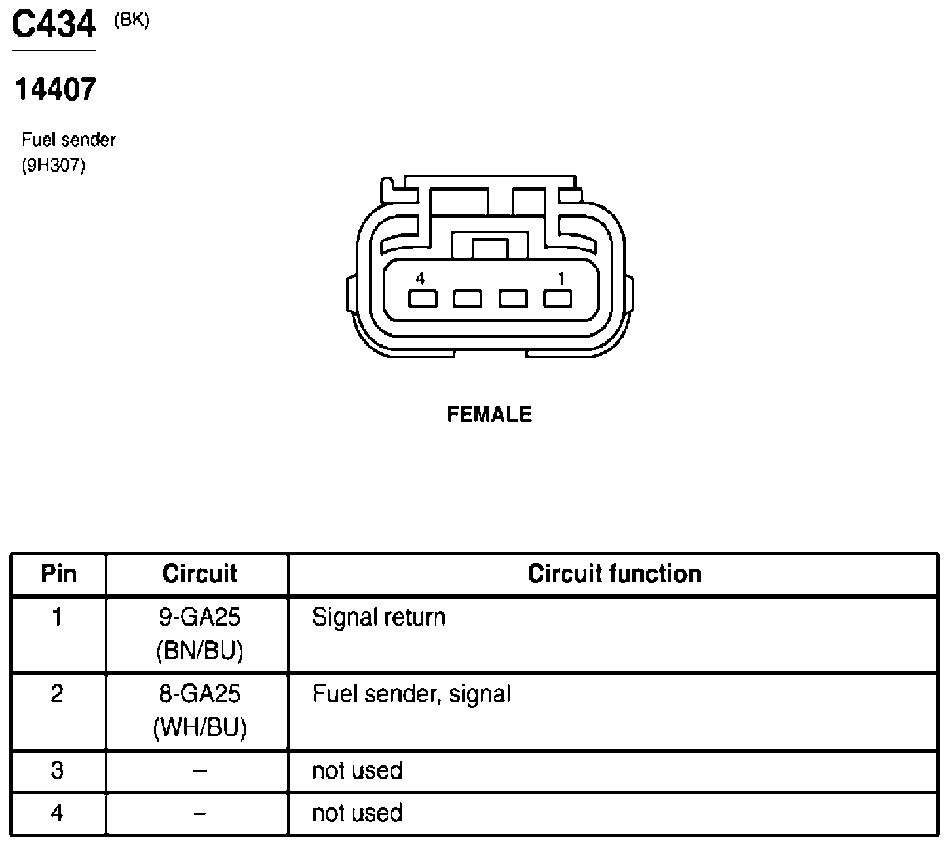

Fig 223: Fuel Sender Connector End View (C434)
Courtesy of FORD MOTOR CO.

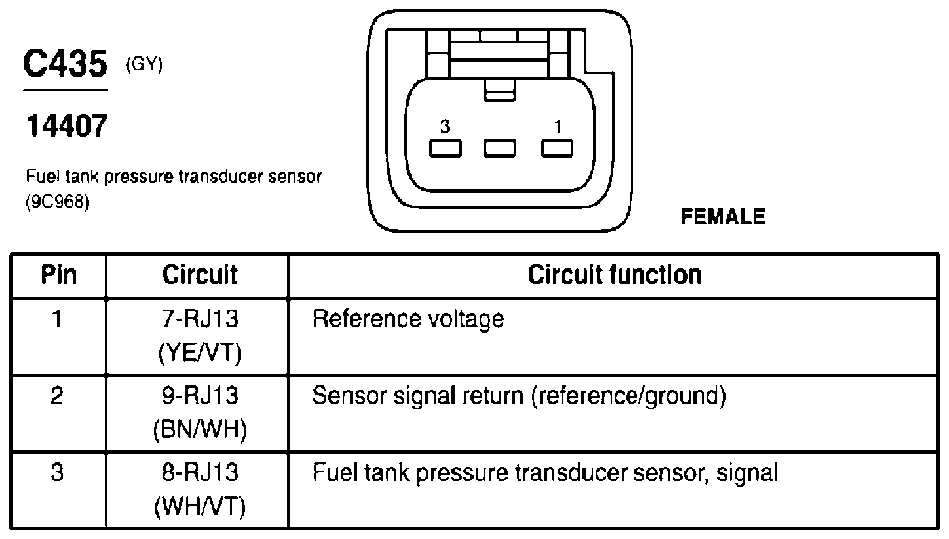

Fig 224: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.

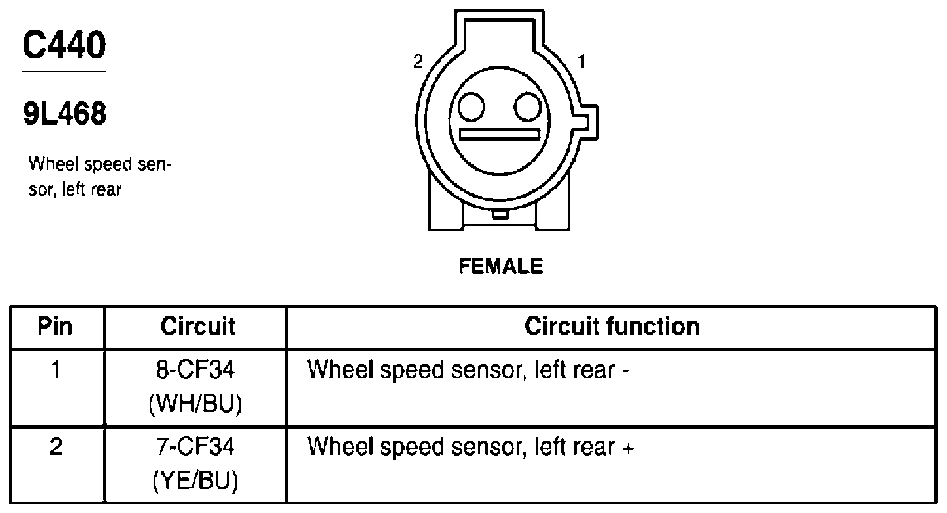

Fig 225: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

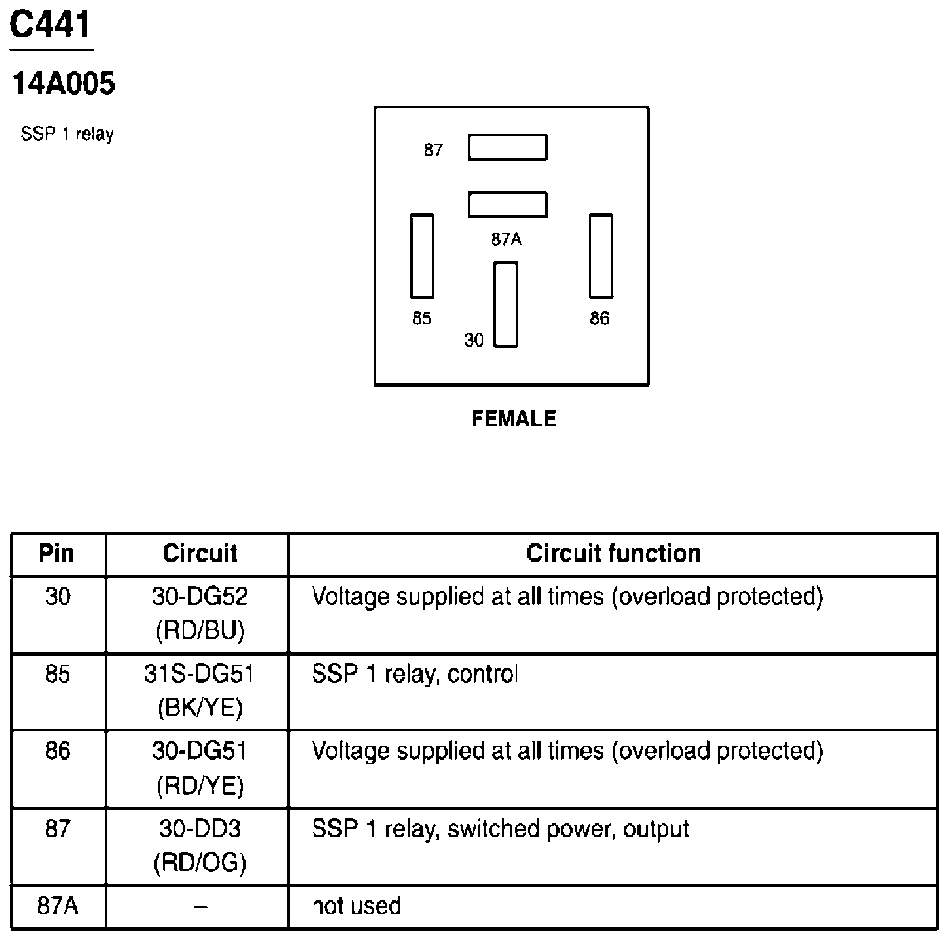

Fig 226: SSP 1 Relay Connector End View (C441)
Courtesy of FORD MOTOR CO.

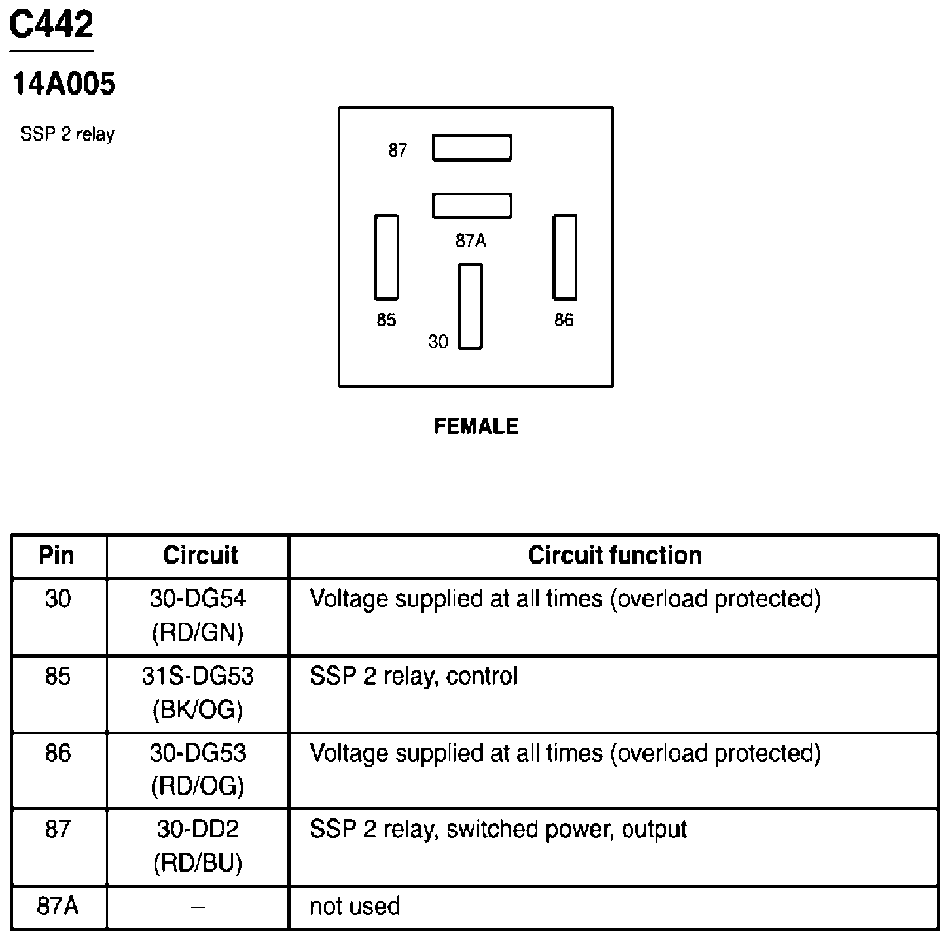

Fig 227: SSP 2 Relay Connector End View (C442)
Courtesy of FORD MOTOR CO.

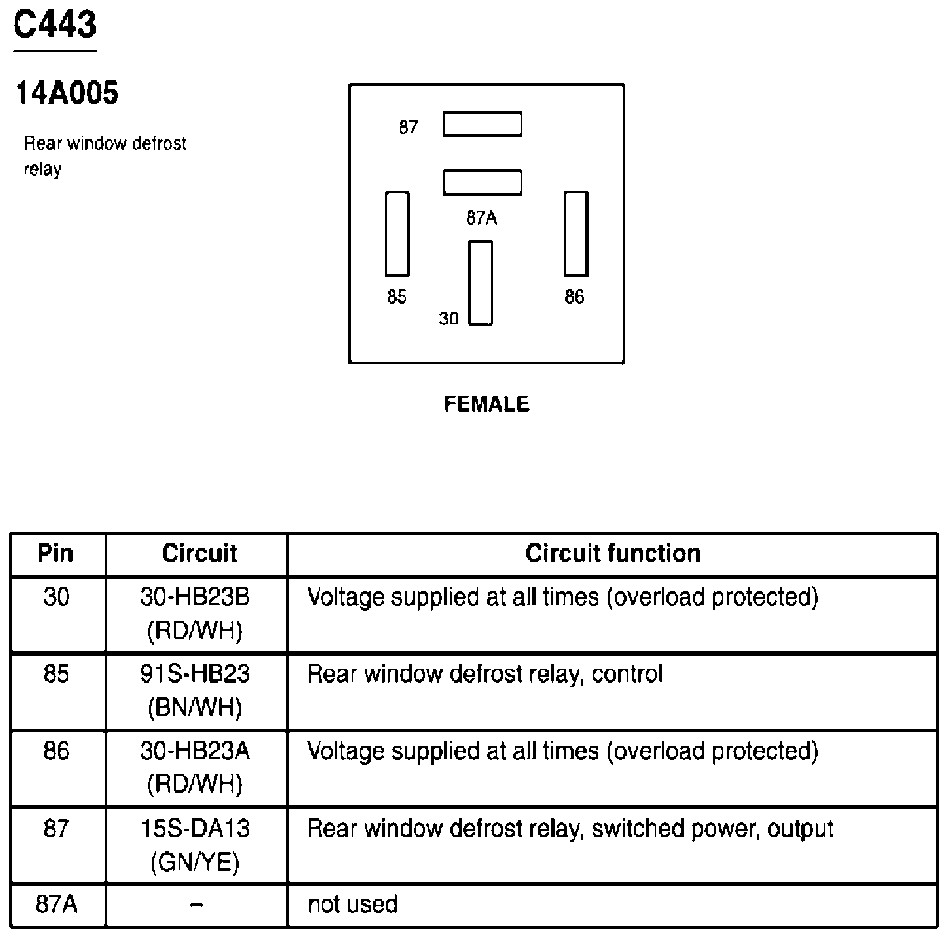

Fig 228: Rear Window Defrost Relay Connector End View (C443)
Courtesy of FORD MOTOR CO.

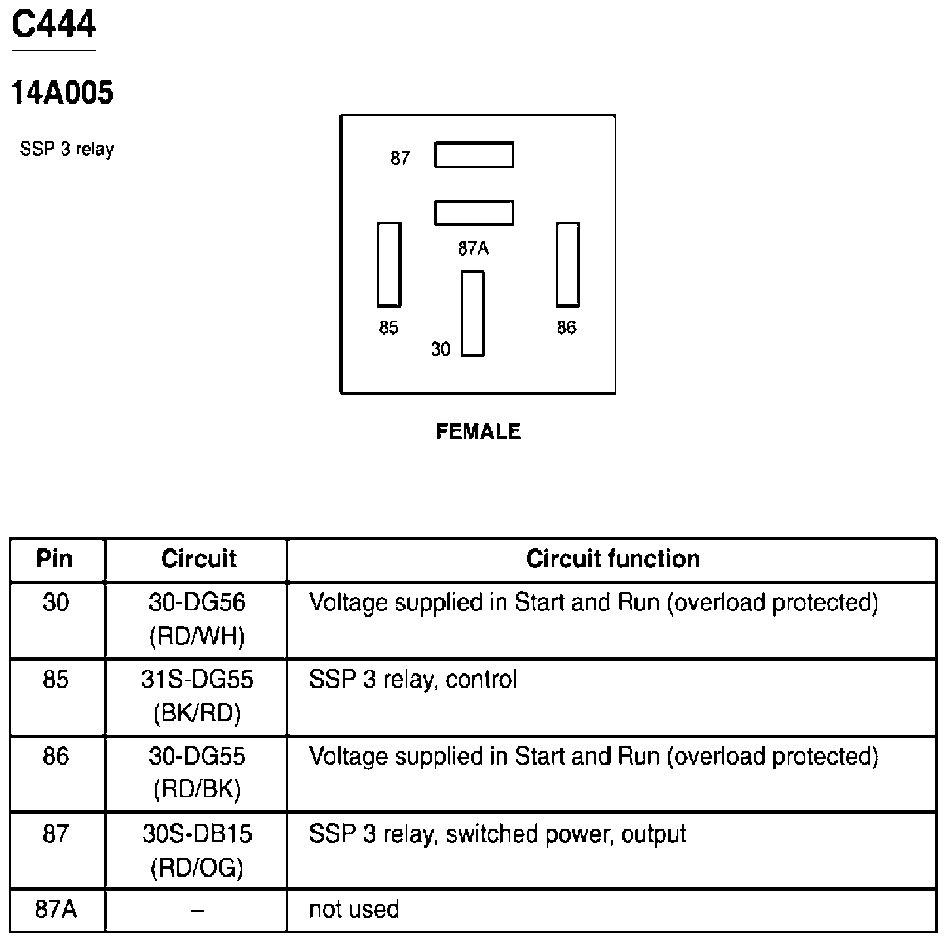

Fig 229: SSP 3 Relay Connector End View (C444)
Courtesy of FORD MOTOR CO.

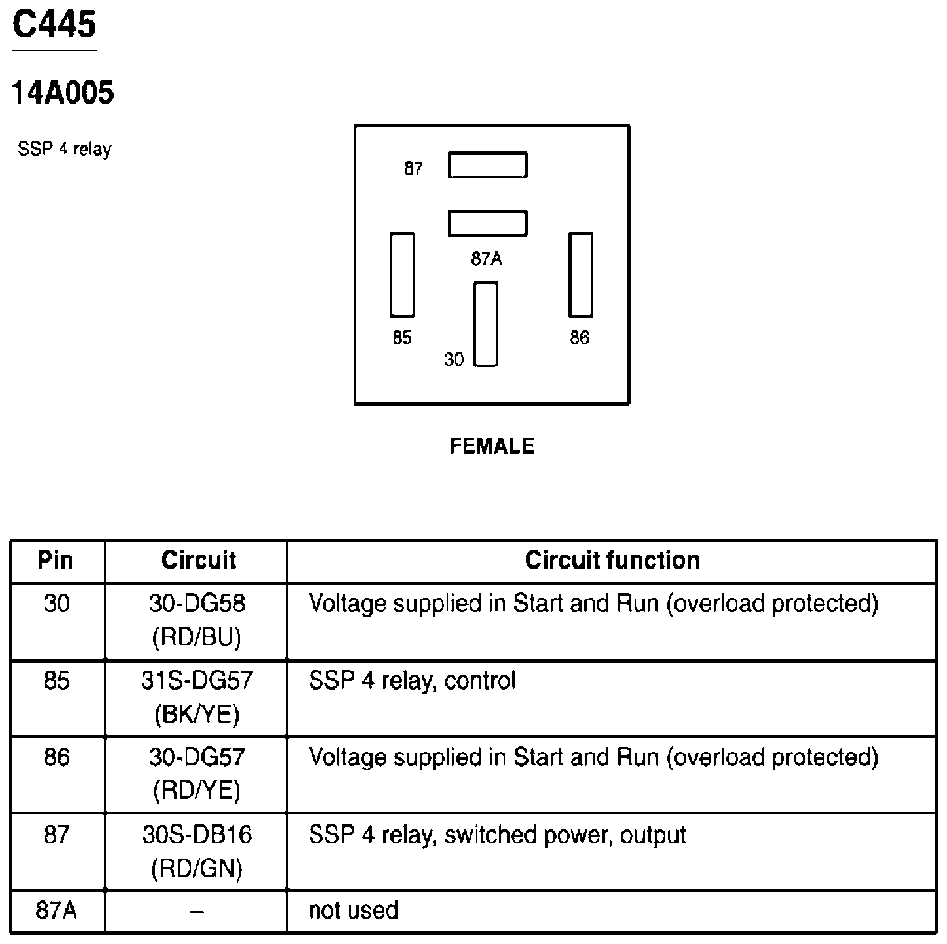

Fig 230: SSP 4 Relay Connector End View (C445)
Courtesy of FORD MOTOR CO.

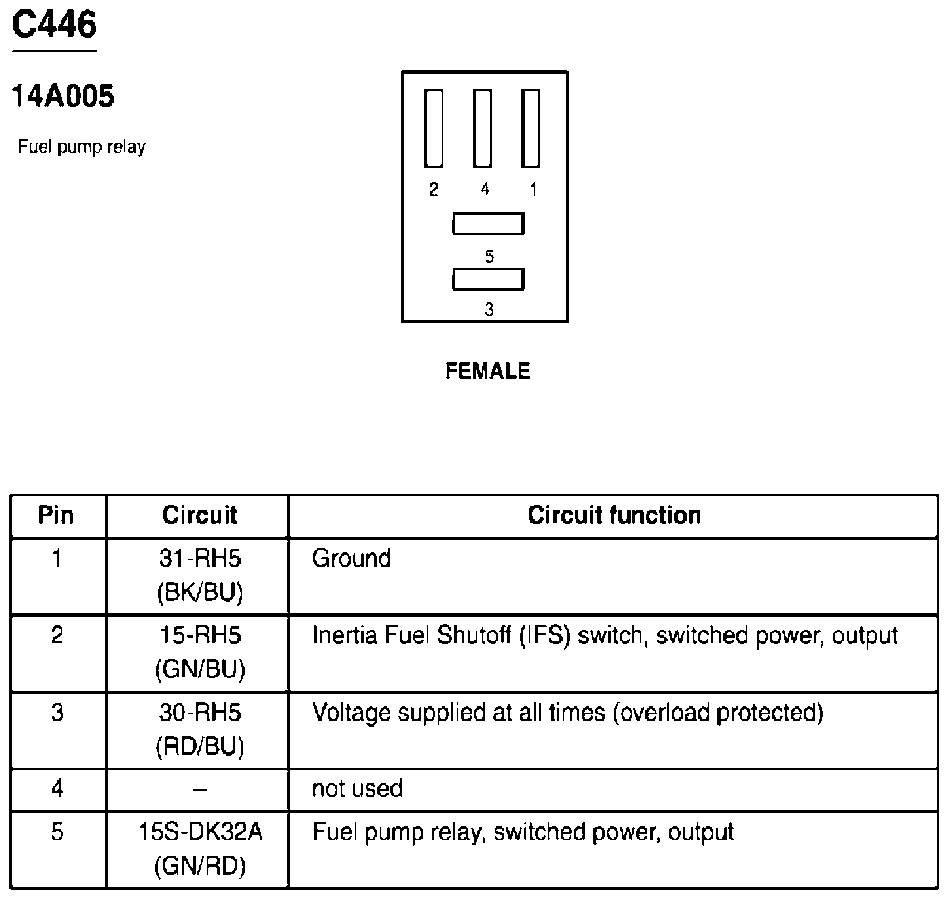

Fig 231: Fuel Pump Relay Connector End View (C446)
Courtesy of FORD MOTOR CO.

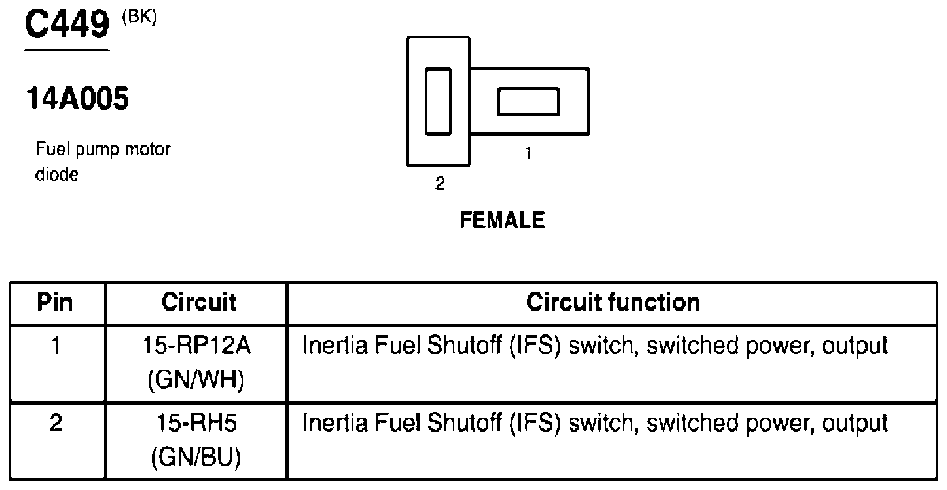

Fig 232: Fuel Pump Motor Diode Connector End View (C449)
Courtesy of FORD MOTOR CO.

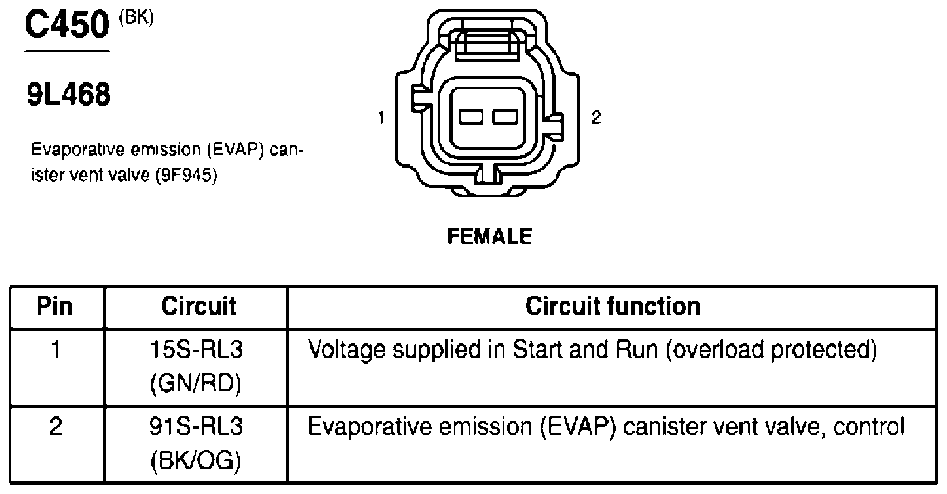

Fig 233: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.

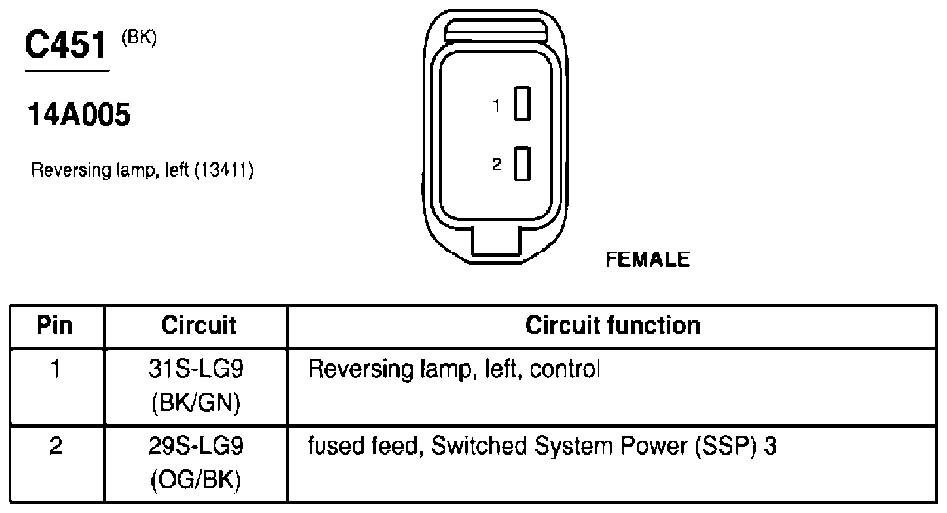

Fig 234: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

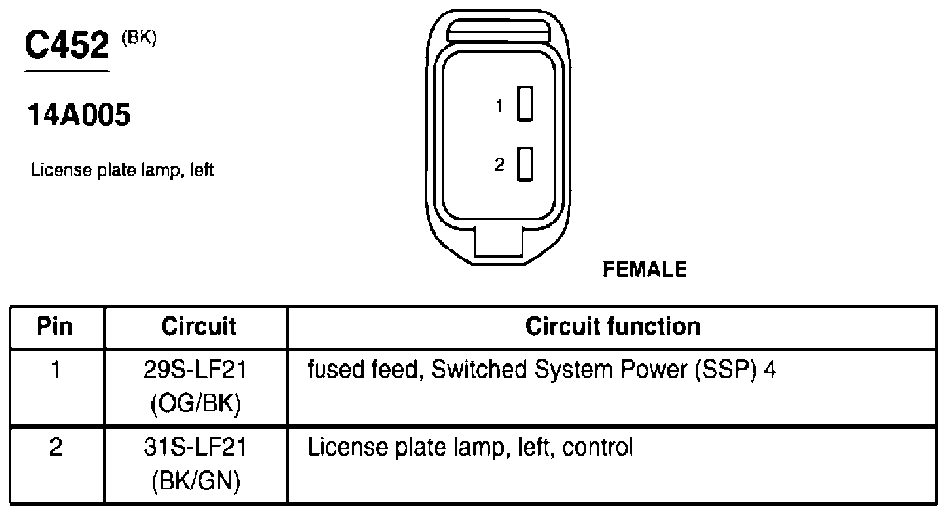

Fig 235: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.

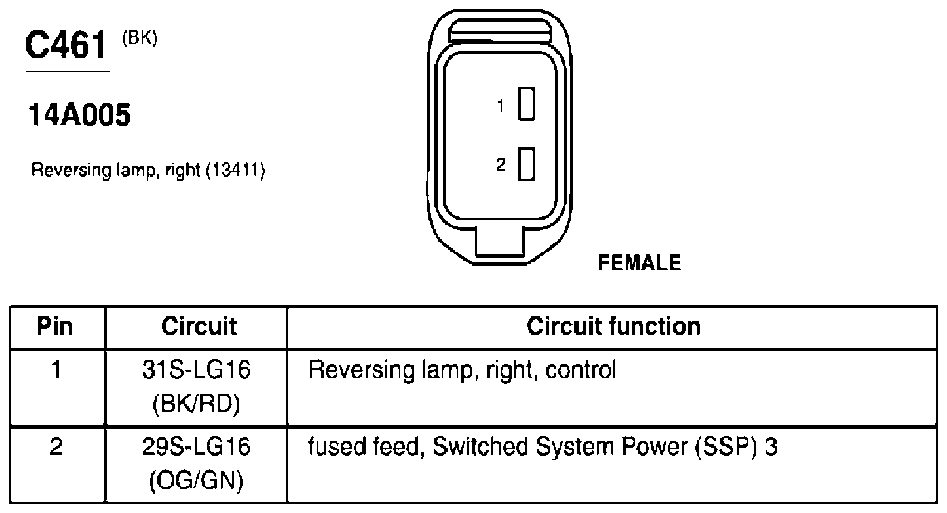

Fig 236: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

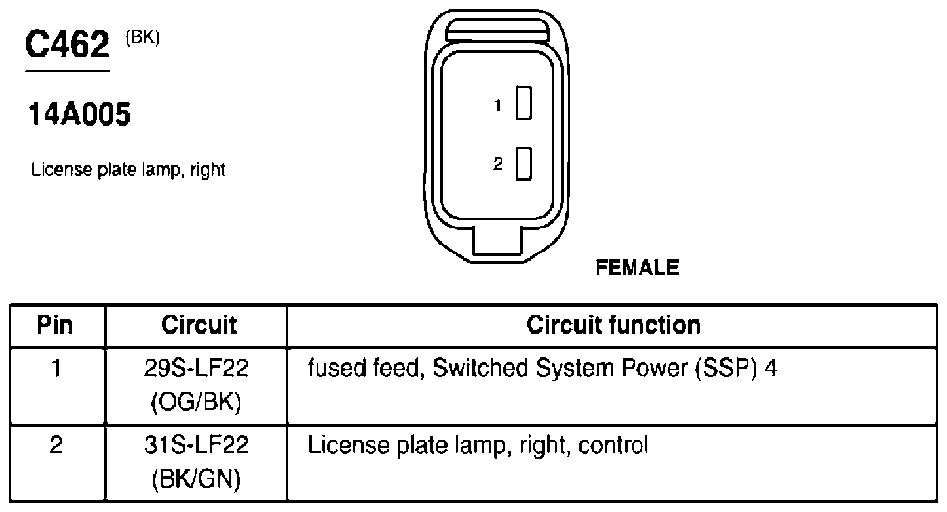

Fig 237: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.

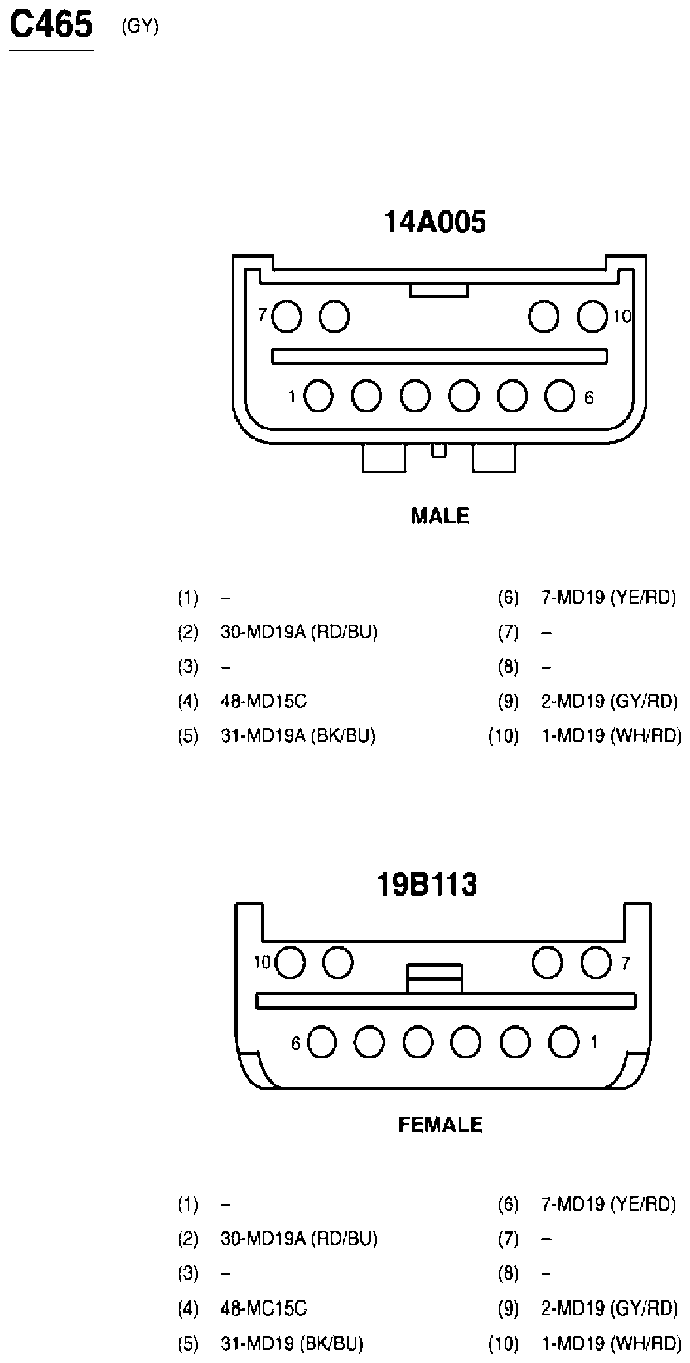

Fig 238: Inline Connector End View (C465)
Courtesy of FORD MOTOR CO.

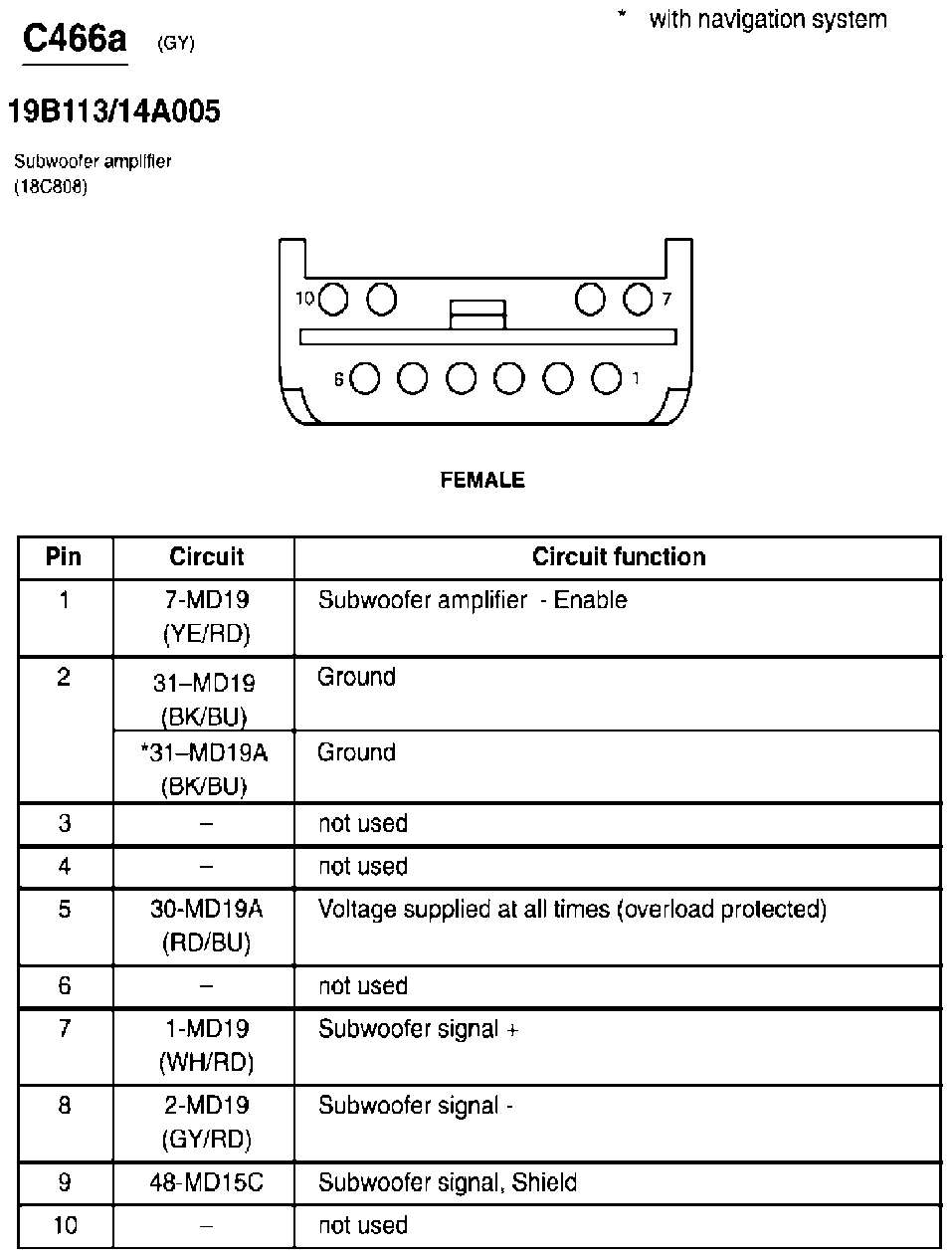

Fig 239: Subwoofer Amplifier Connector End View (C466a)
Courtesy of FORD MOTOR CO.

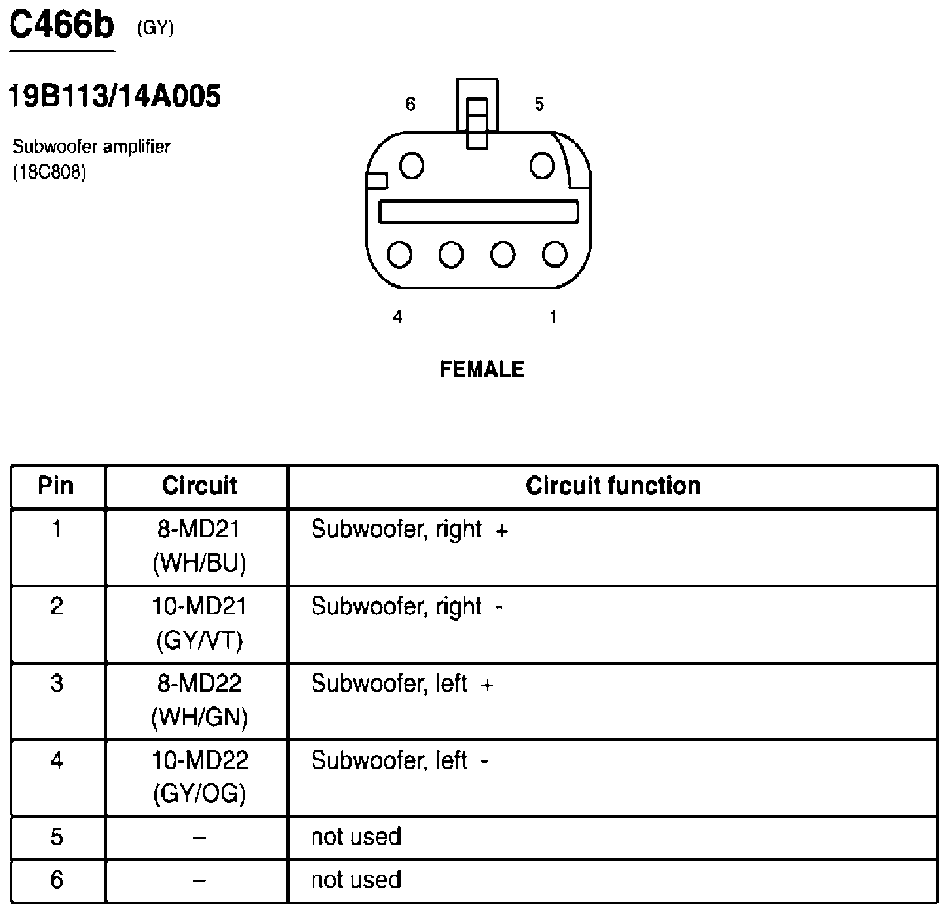

Fig 240: Subwoofer Amplifier Connector End View (C466b)
Courtesy of FORD MOTOR CO.

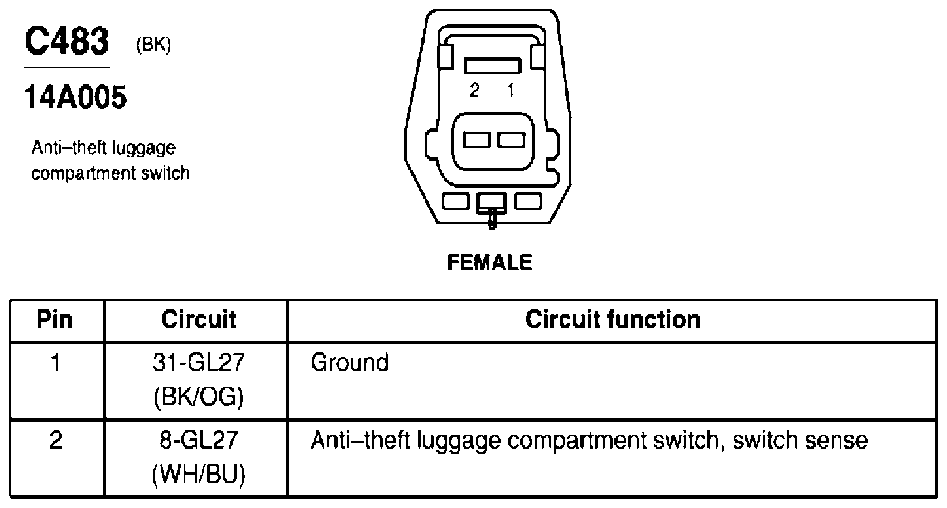

Fig 241: Anti-Theft Luggage Compartment Switch Connector End View (C483)
Courtesy of FORD MOTOR CO.

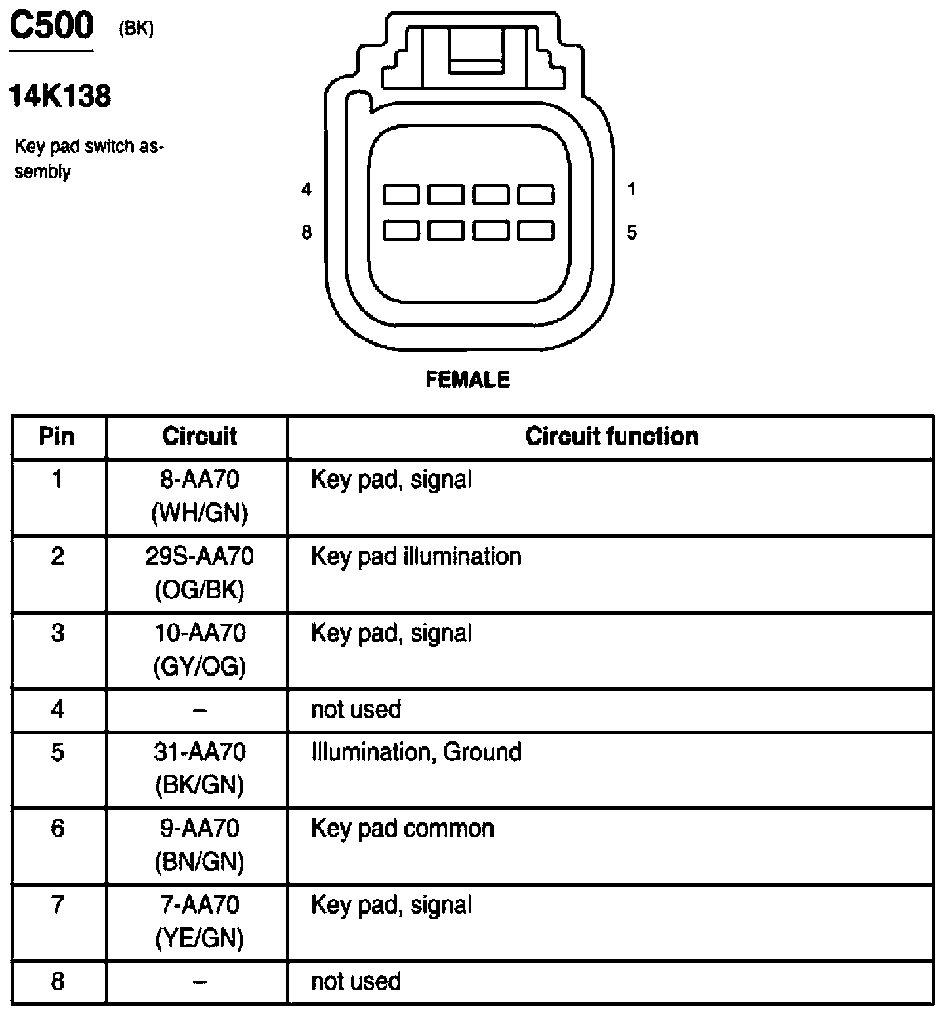

Fig 242: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

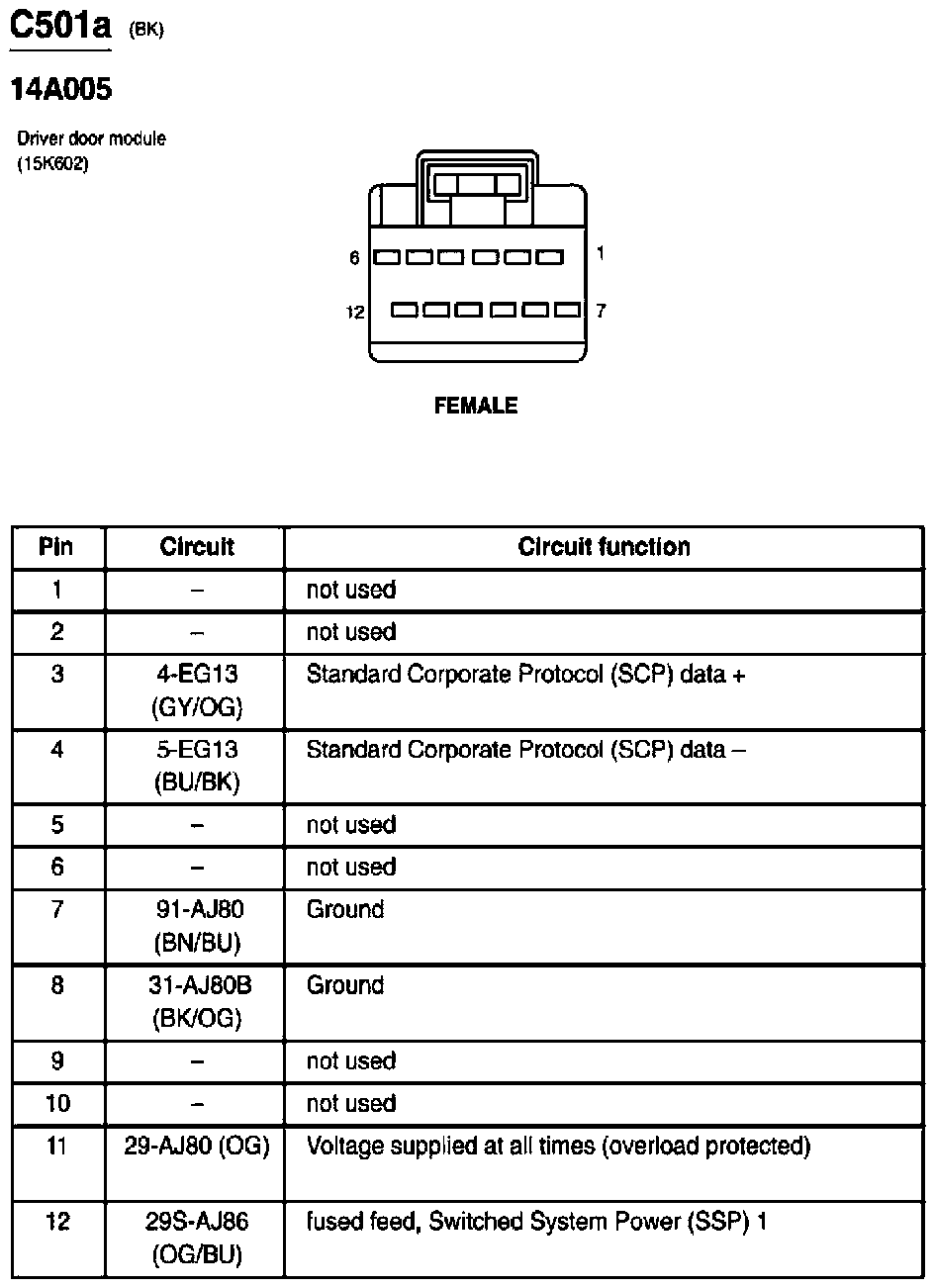

Fig 243: Driver Door Module Connector End View (C501a)
Courtesy of FORD MOTOR CO.

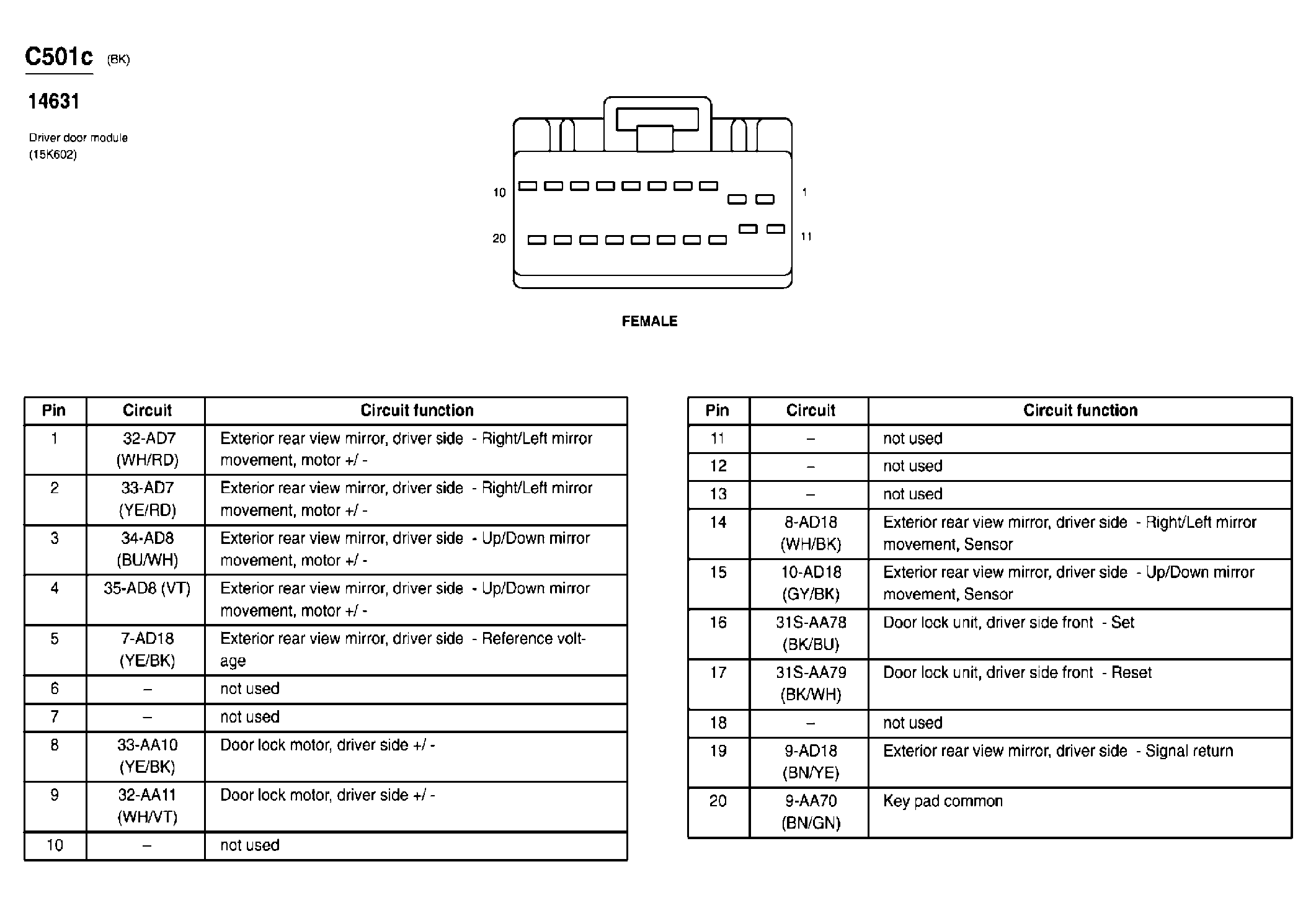

Fig 244: Driver Door Module Connector End View (C501c)
Courtesy of FORD MOTOR CO.

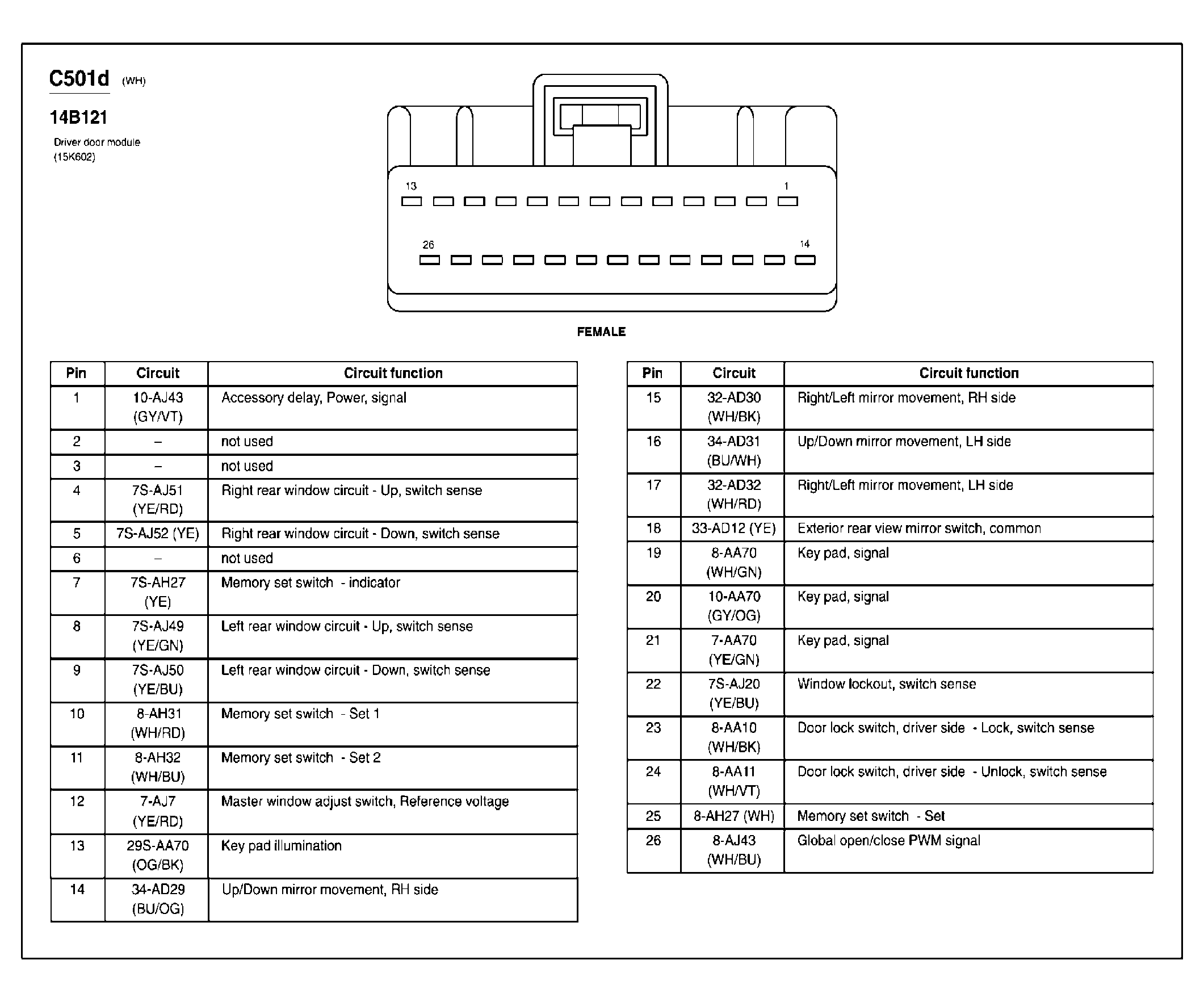

Fig 245: Driver Door Module Connector End View (C501d)
Courtesy of FORD MOTOR CO.

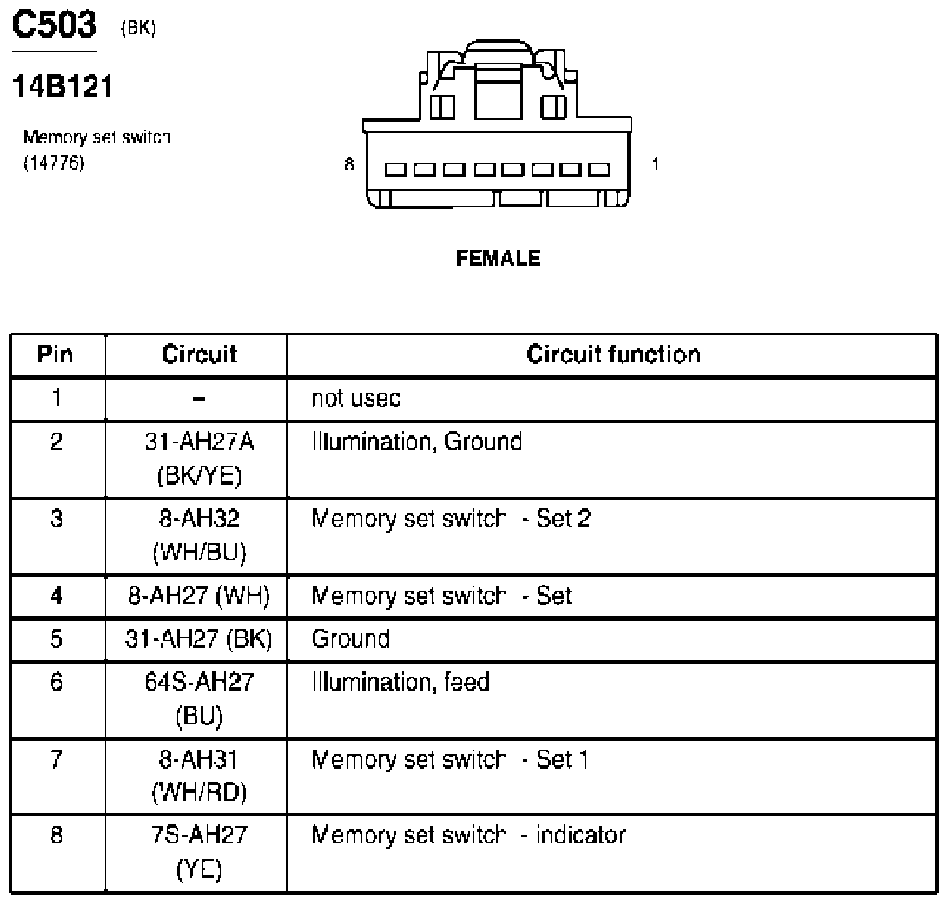

Fig 246: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.

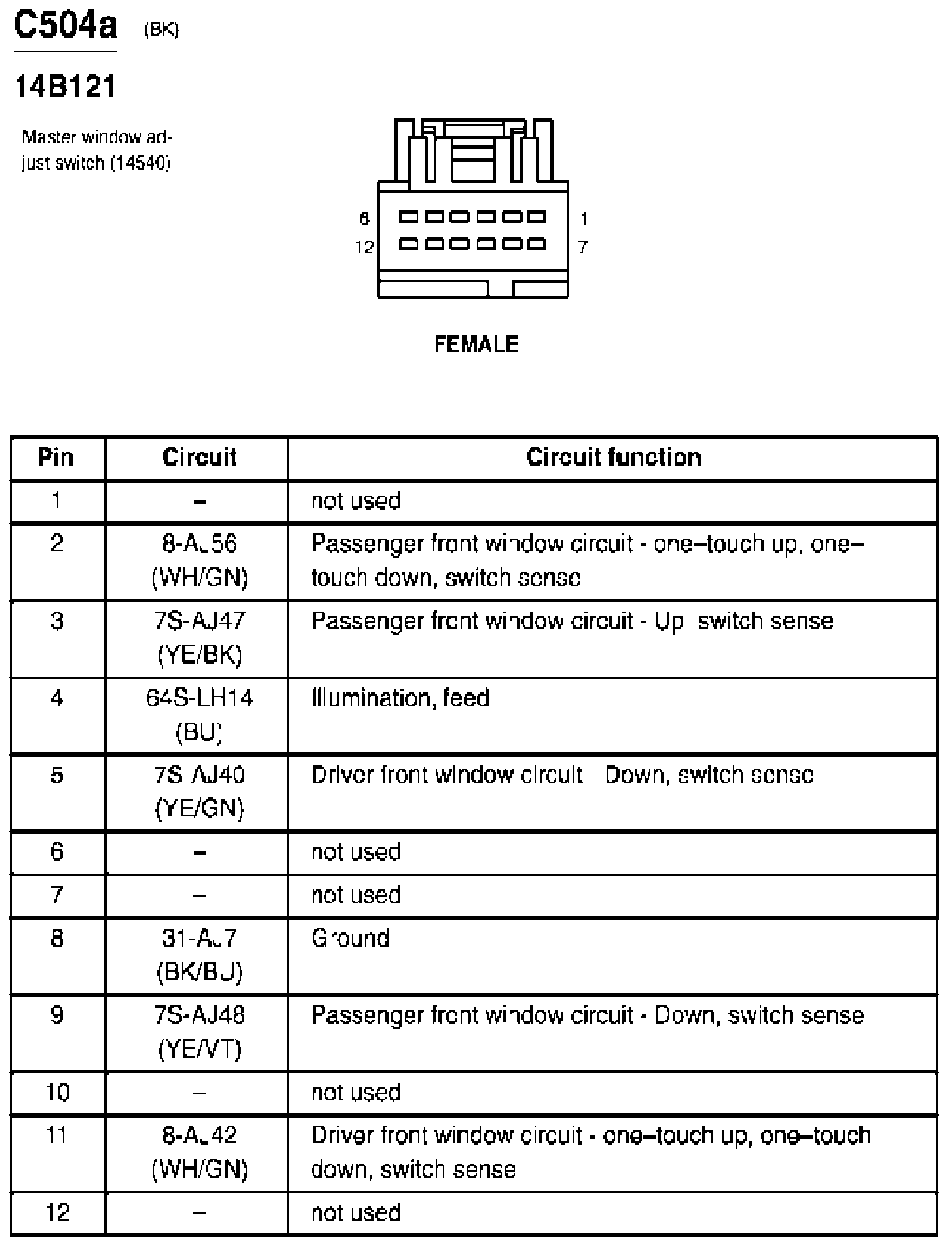

Fig 247: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.

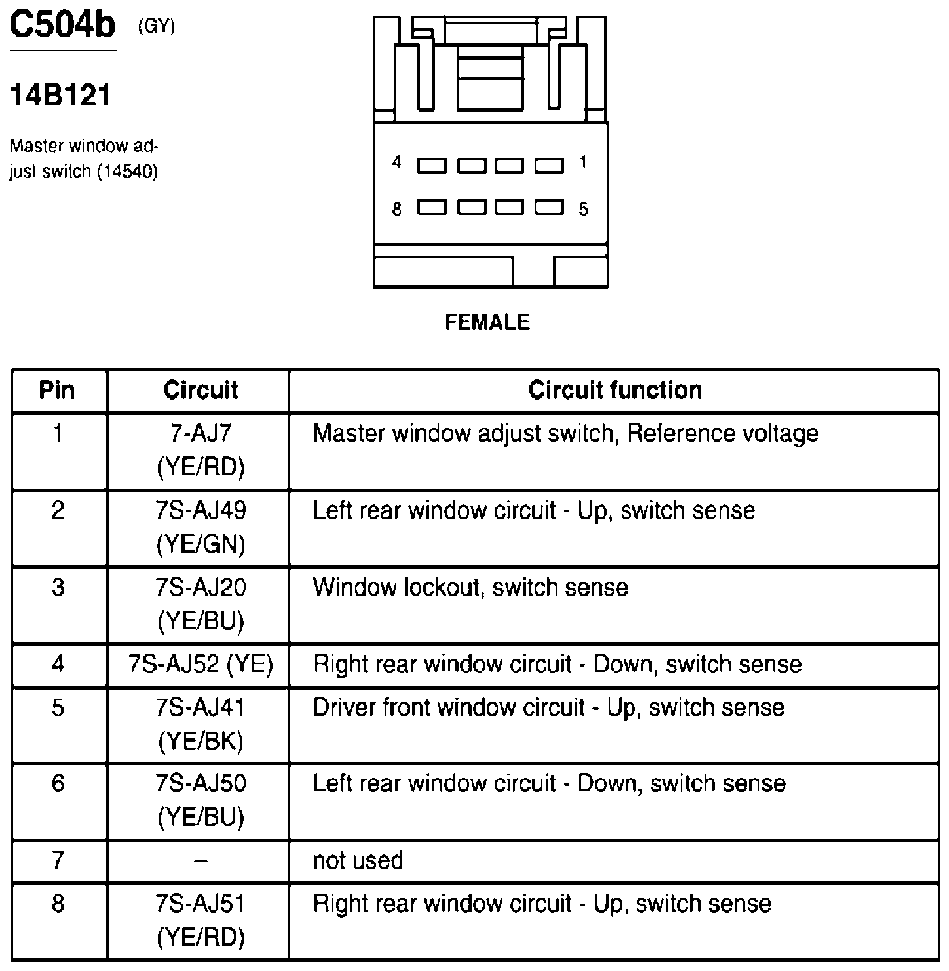

Fig 248: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.

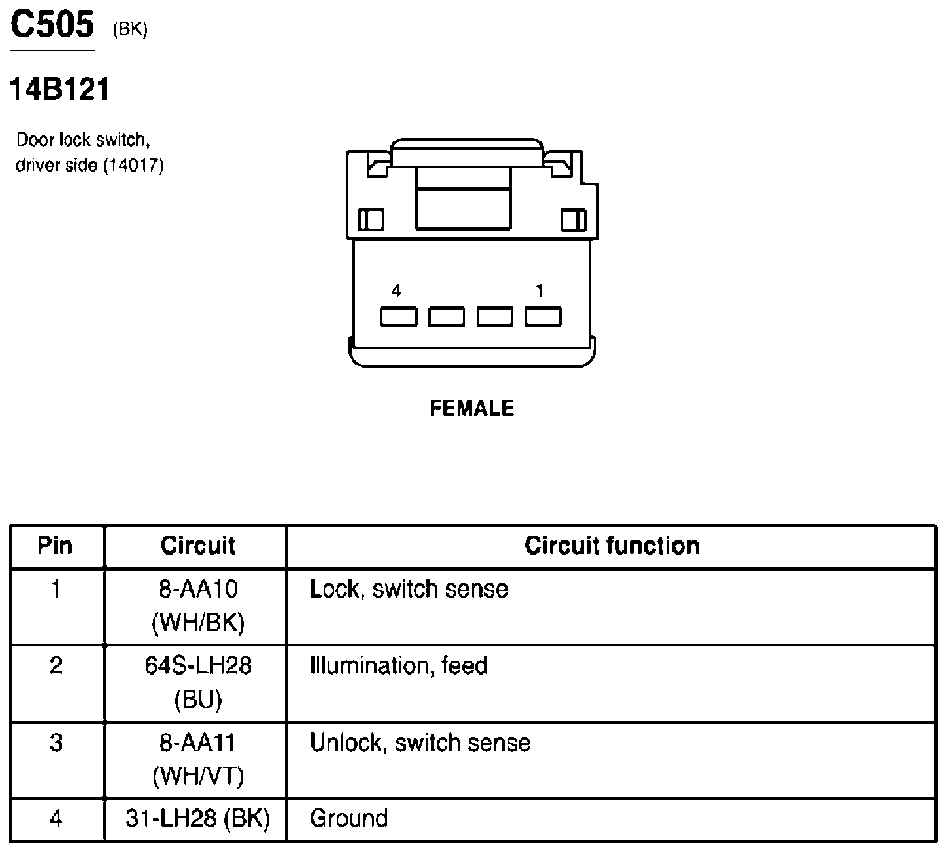

Fig 249: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

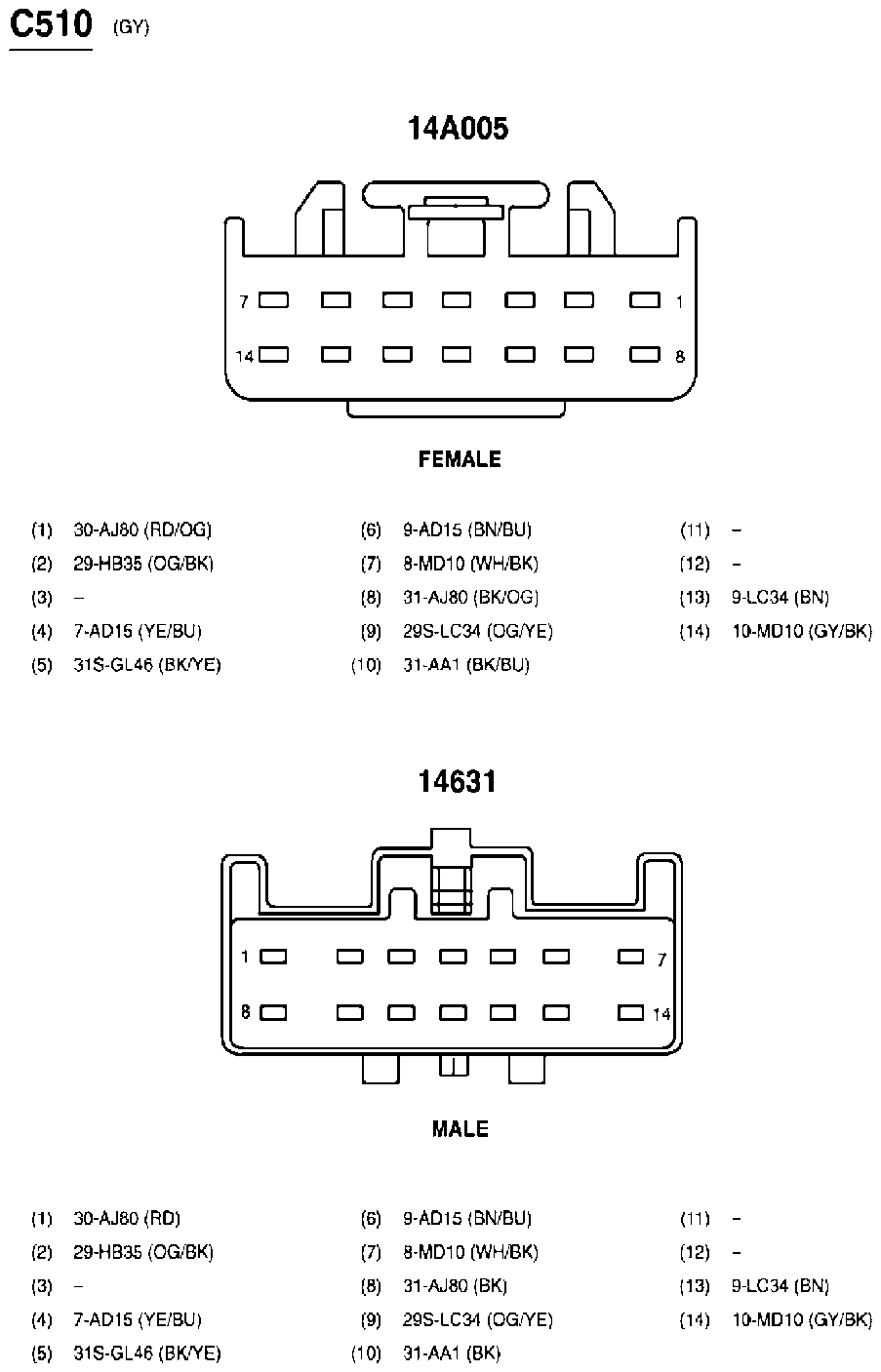

Fig 250: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

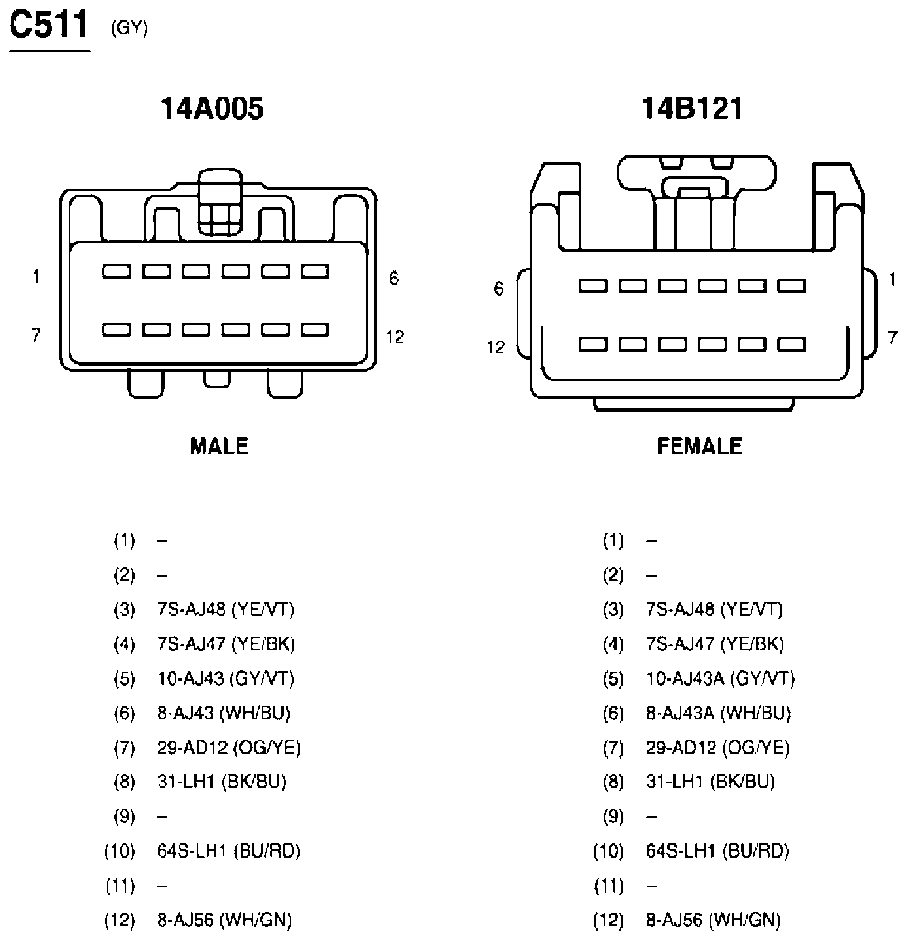

Fig 251: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.

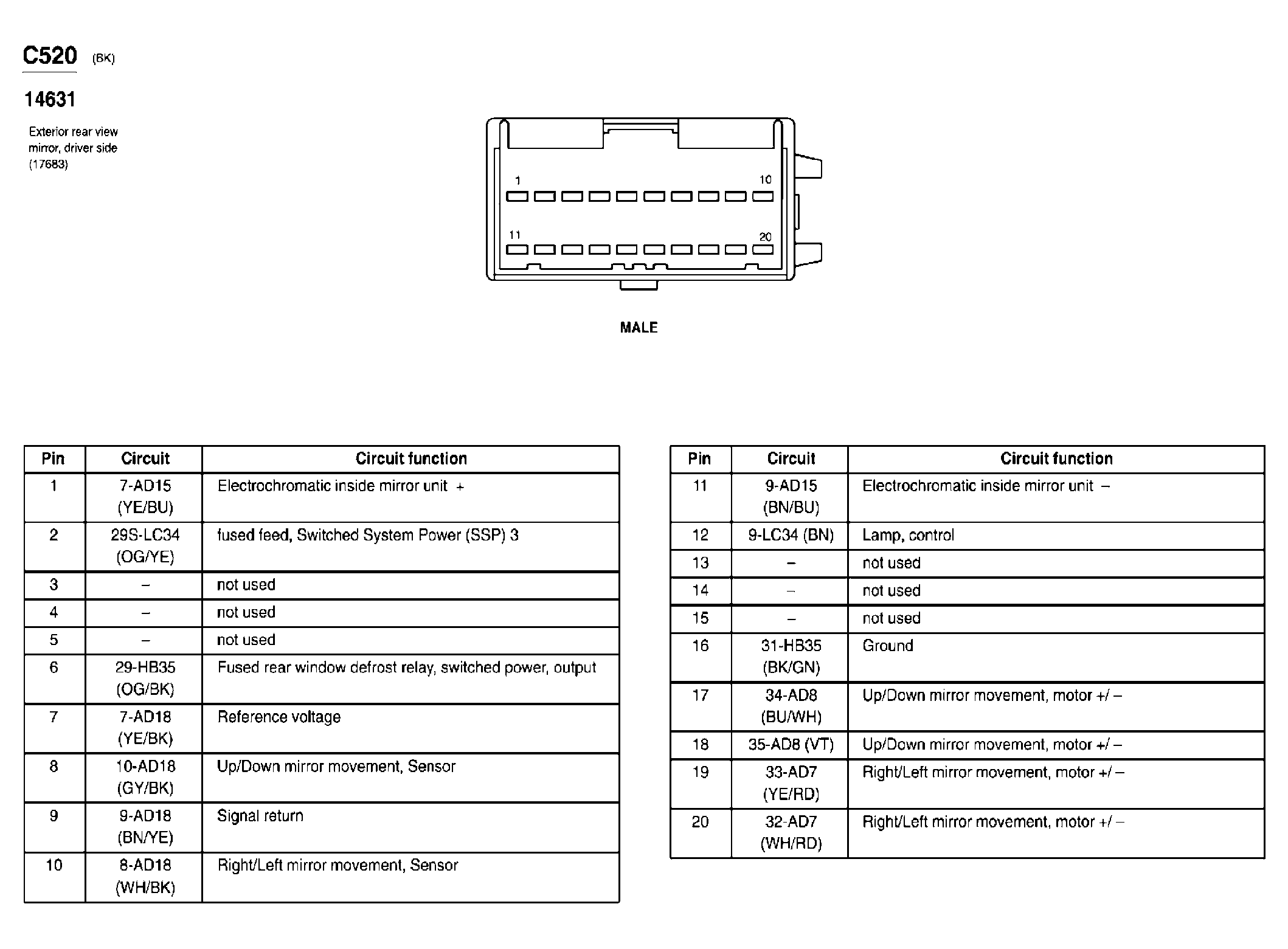

Fig 252: Exterior Rear View Mirror, Driver Side Connector End View (C520)
Courtesy of FORD MOTOR CO.

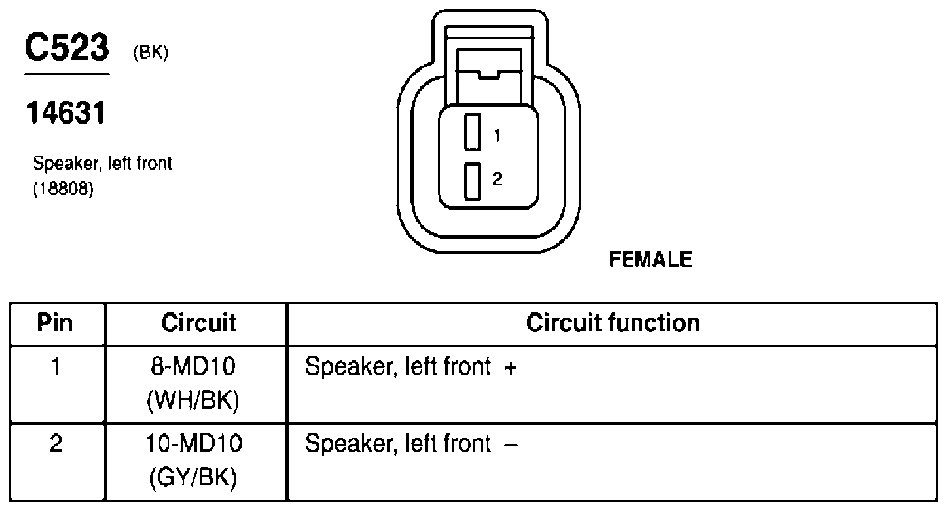

Fig 253: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

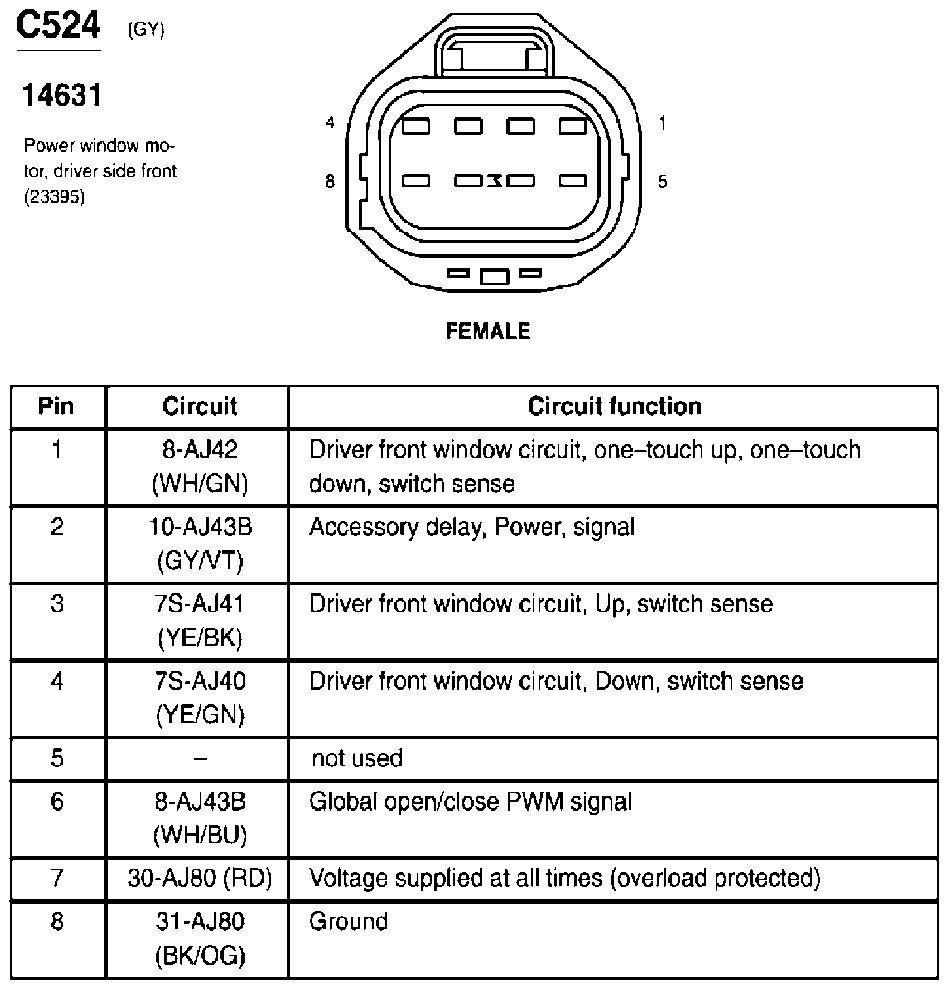

Fig 254: Power Window Motor, Driver Side Front Connector End View (C524)
Courtesy of FORD MOTOR CO.

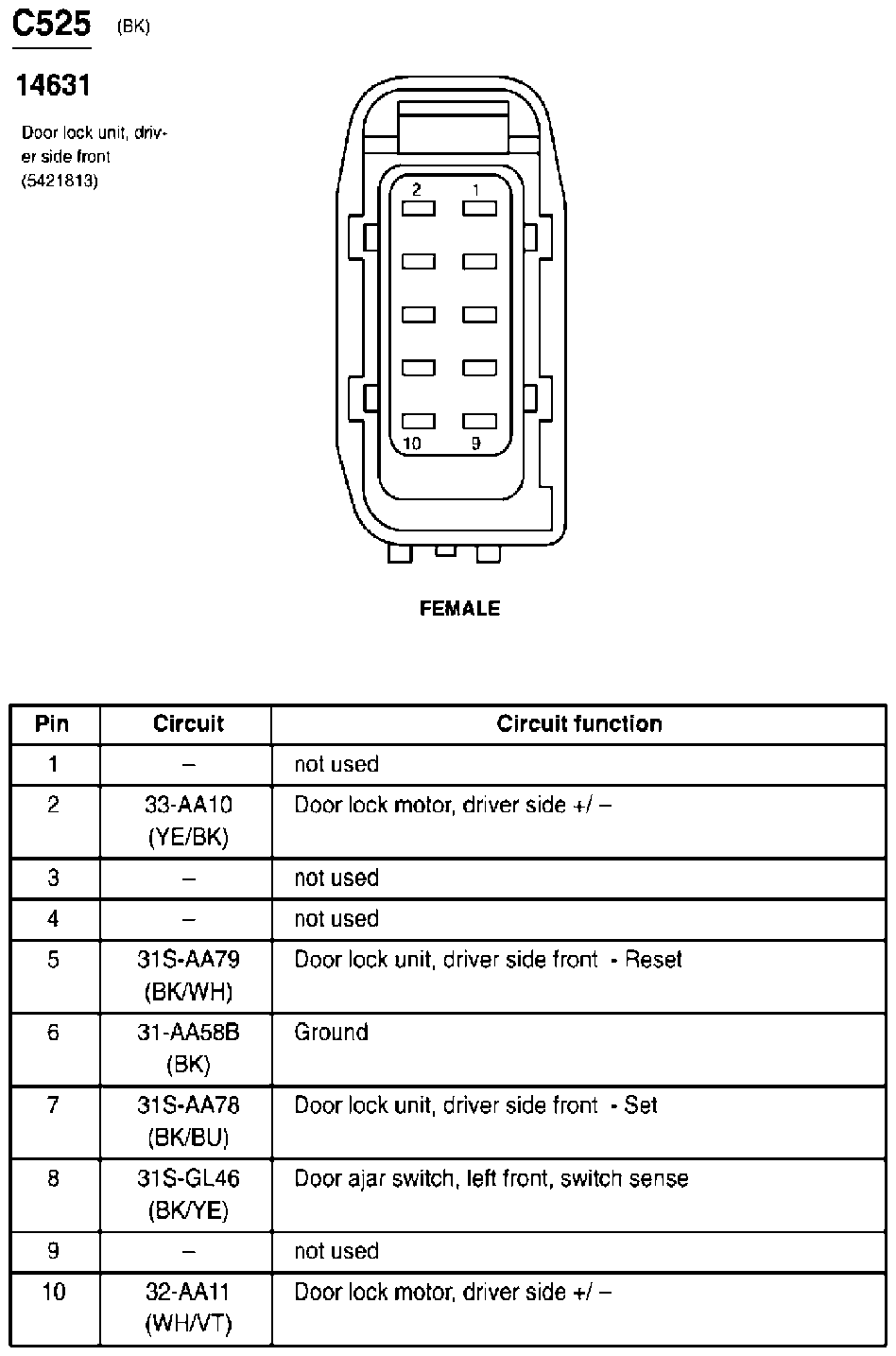

Fig 255: Door Lock Unit, Driver Side Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

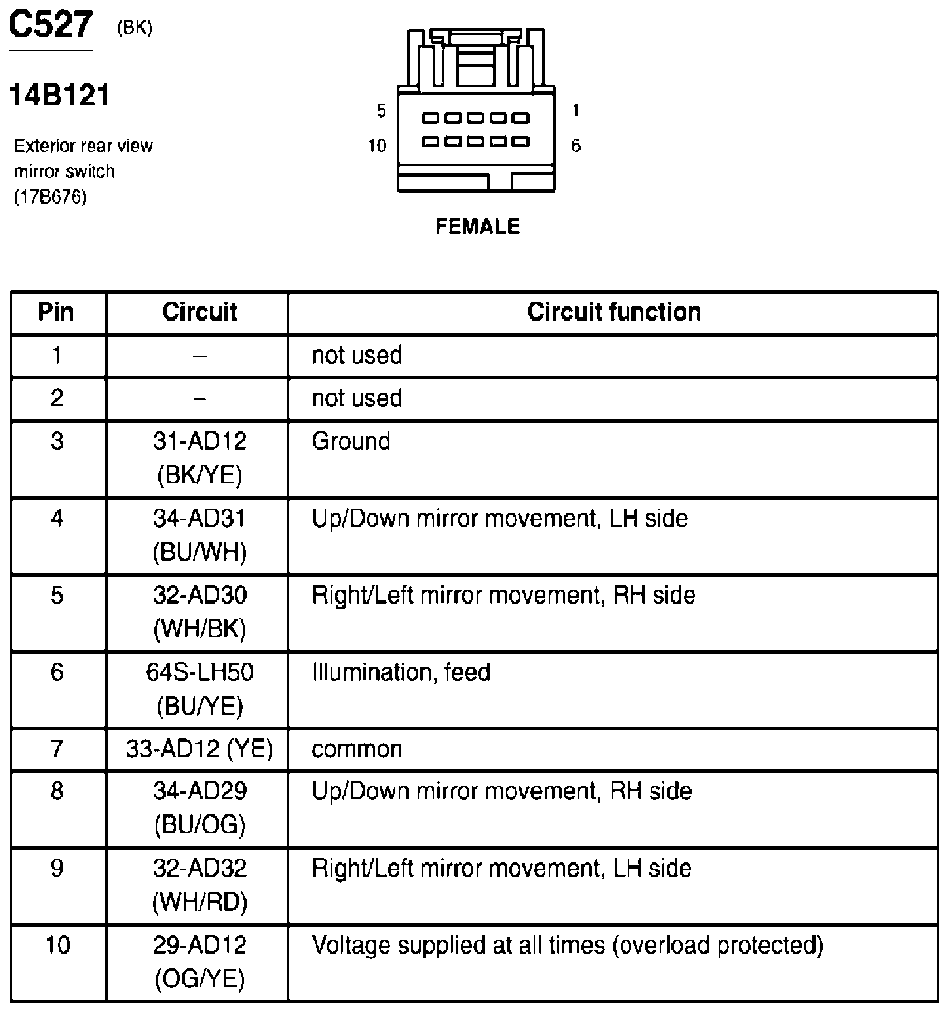

Fig 256: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

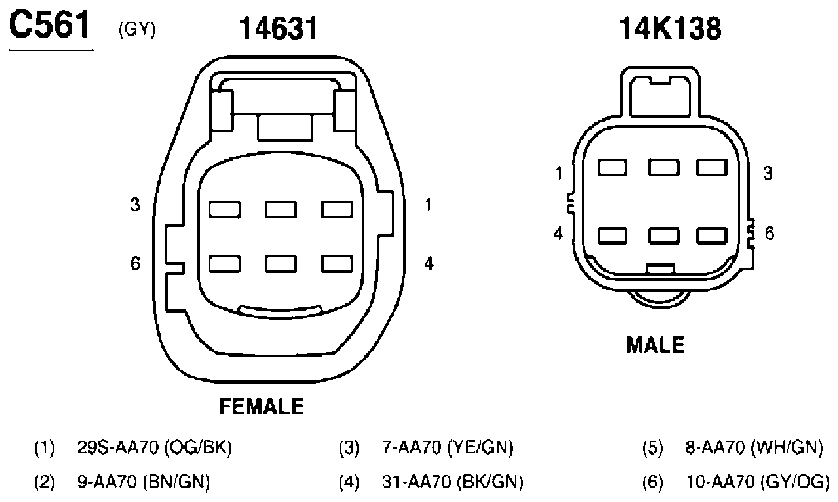

Fig 257: Inline Connector End View (C561)
Courtesy of FORD MOTOR CO.

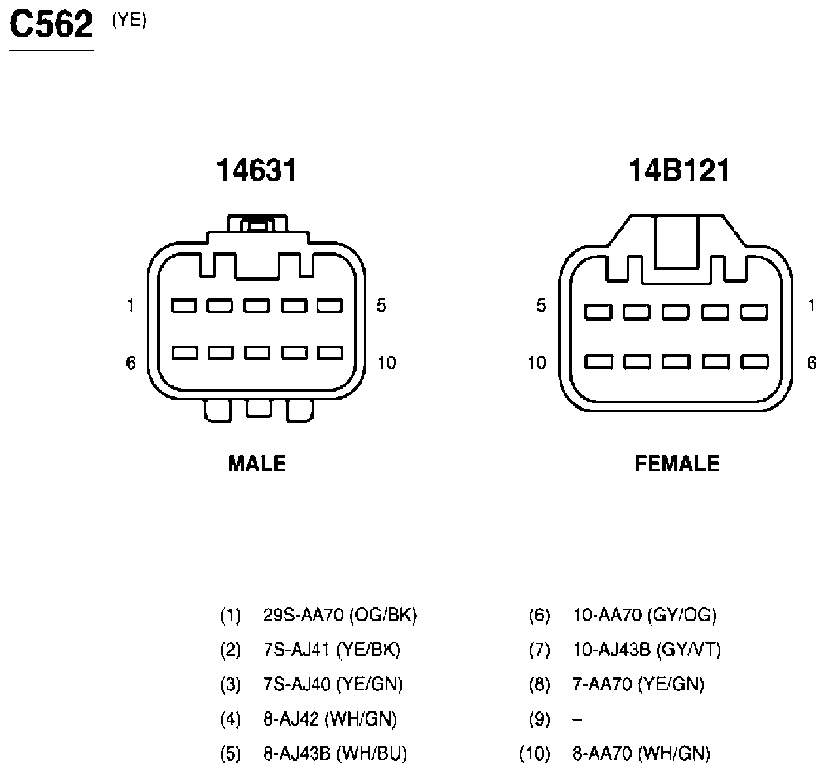

Fig 258: Inline Connector End View (C562)
Courtesy of FORD MOTOR CO.

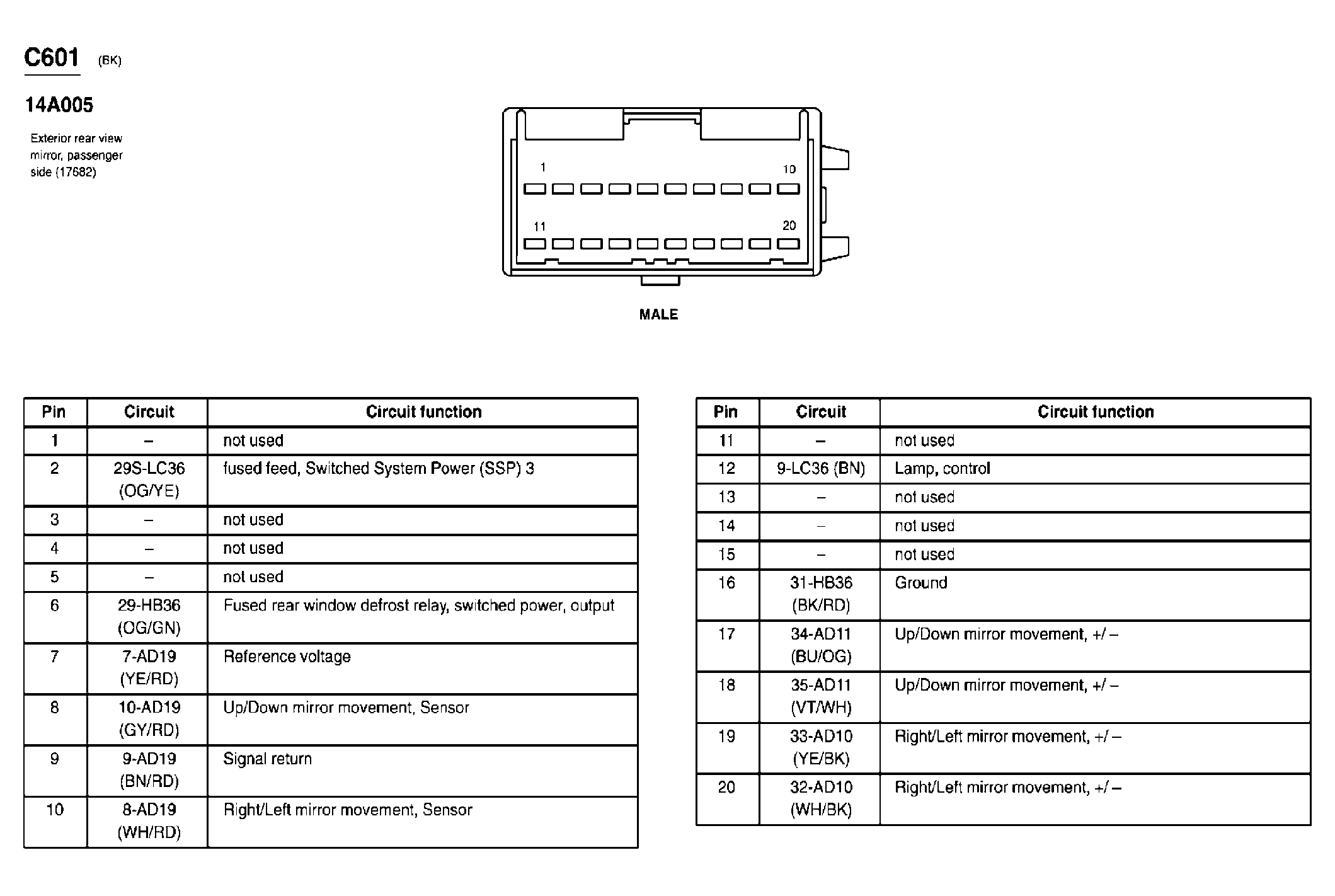

Fig 259: Exterior Rear View Mirror, Passenger Side Connector End View (C601)
Courtesy of FORD MOTOR CO.

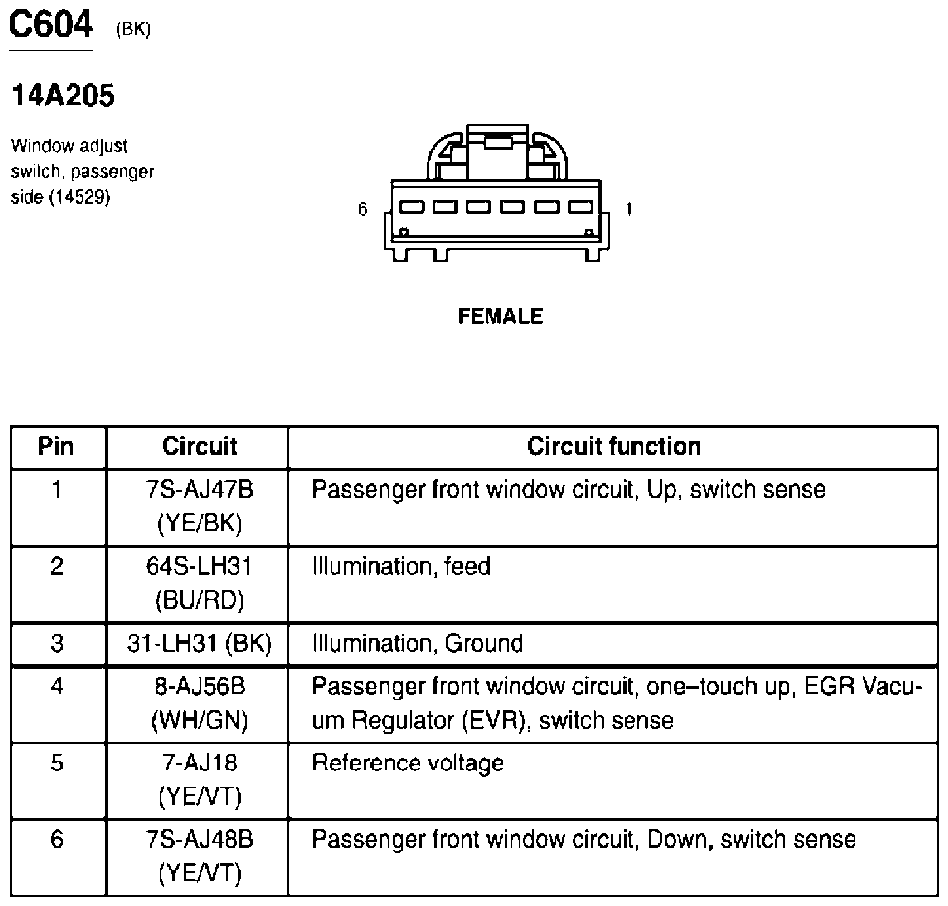

Fig 260: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.

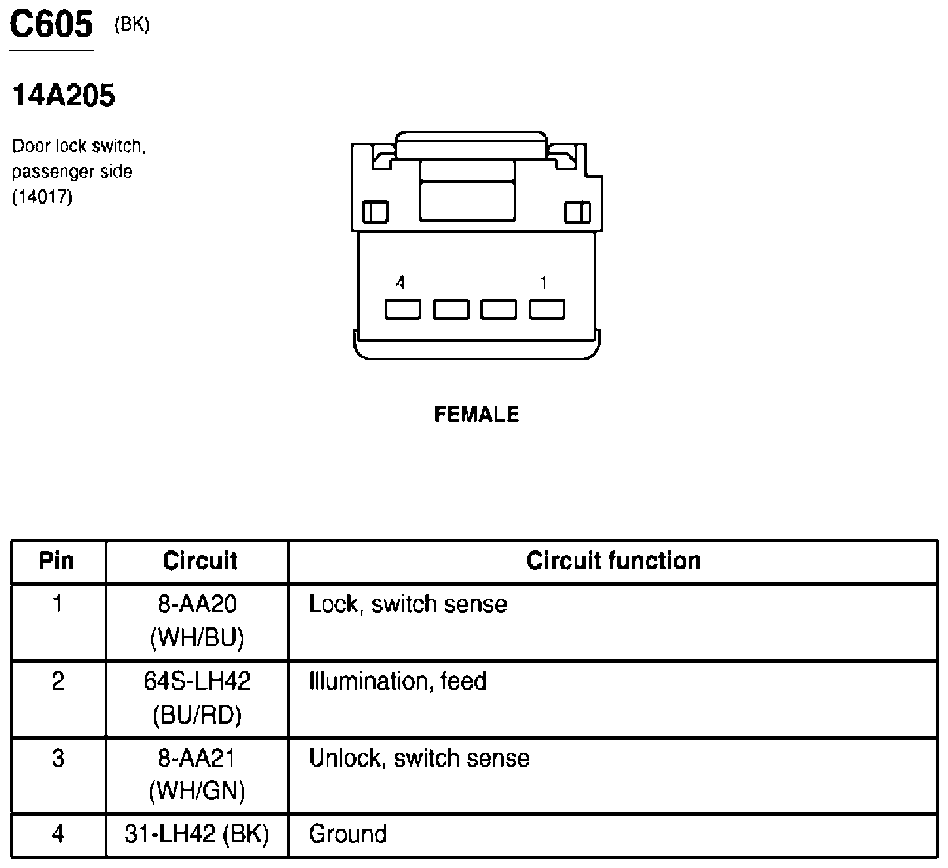

Fig 261: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

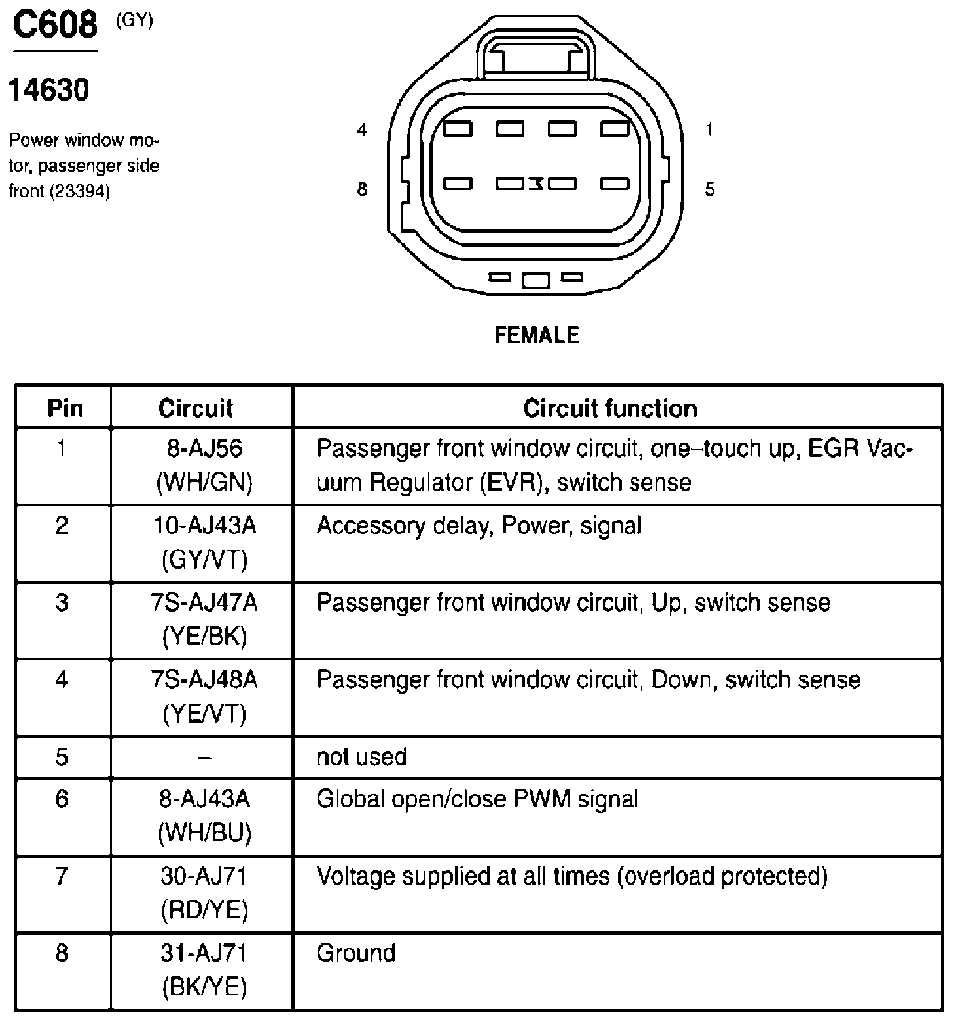

Fig 262: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

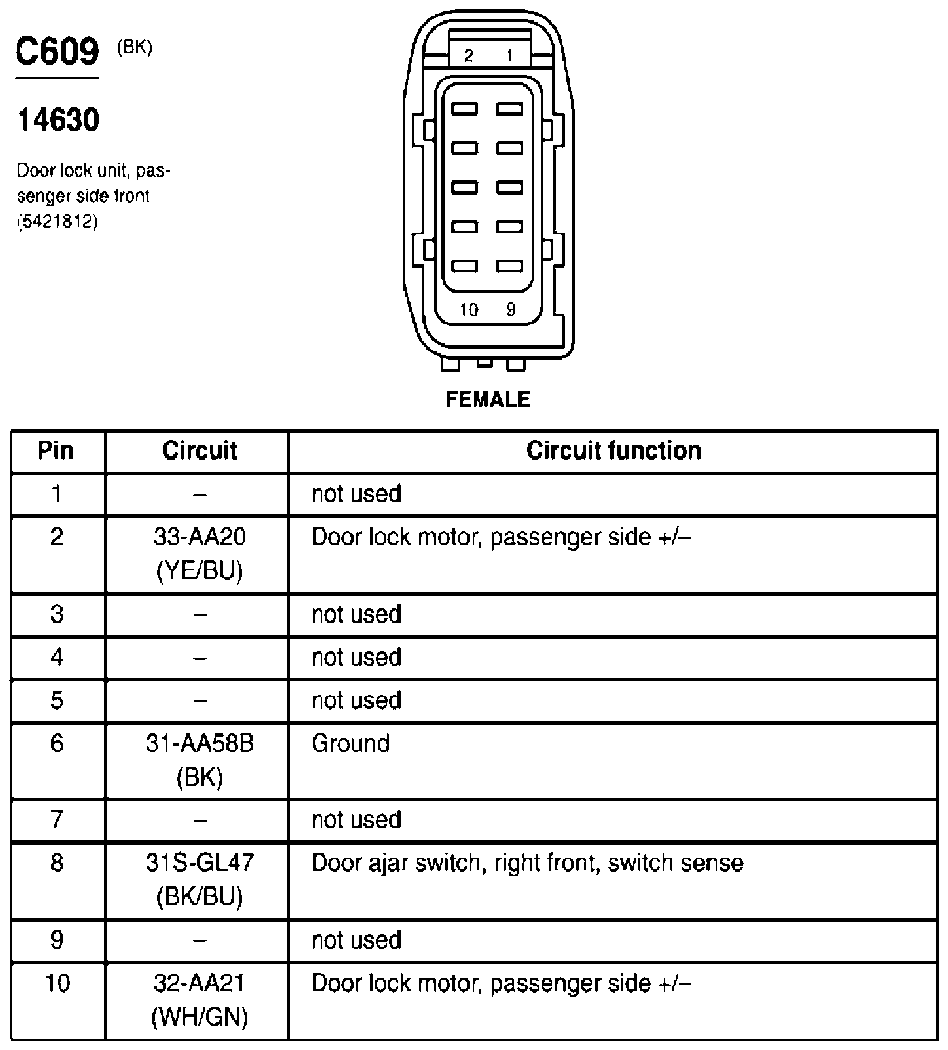

Fig 263: Door Lock Unit, Passenger Side Front Connector End View (C609)
Courtesy of FORD MOTOR CO.

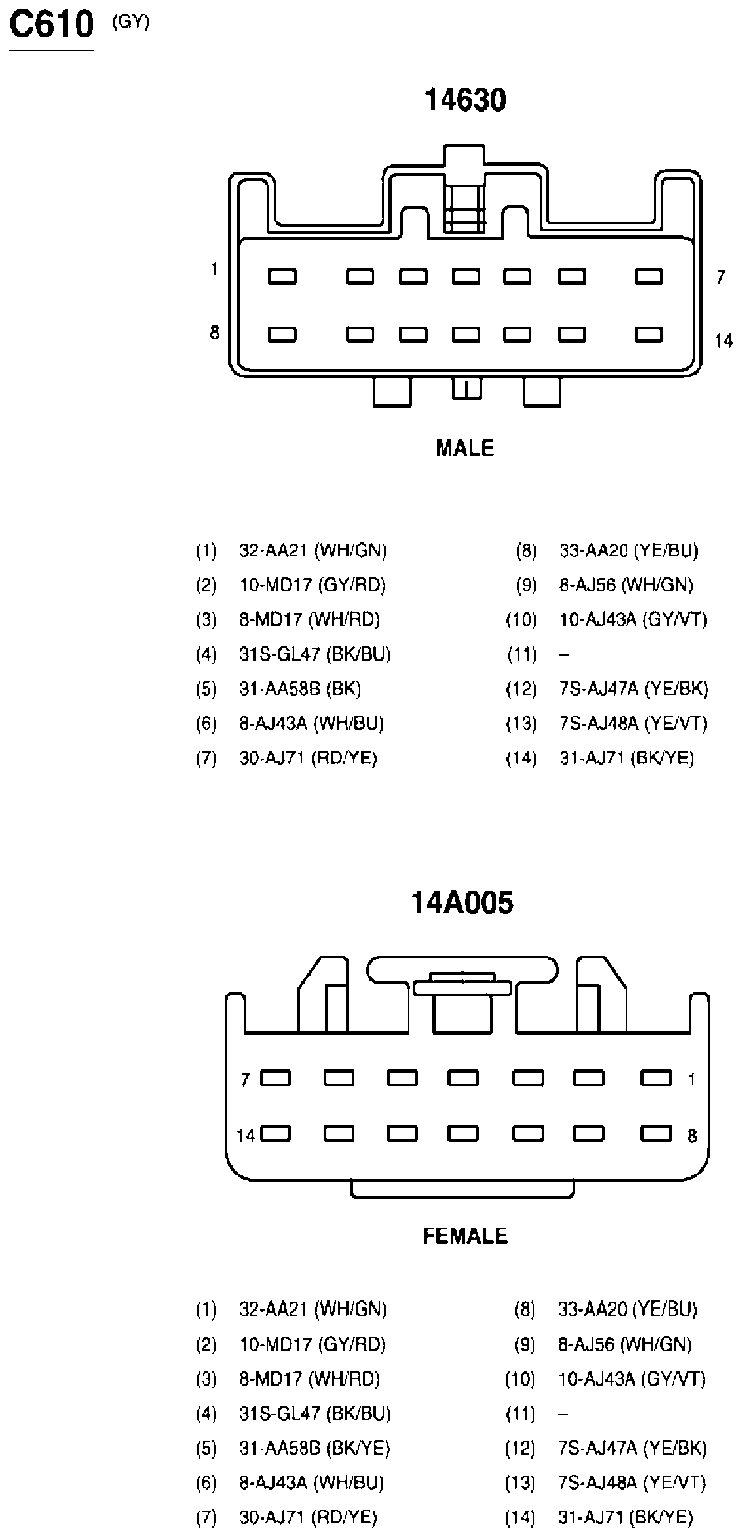

Fig 264: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

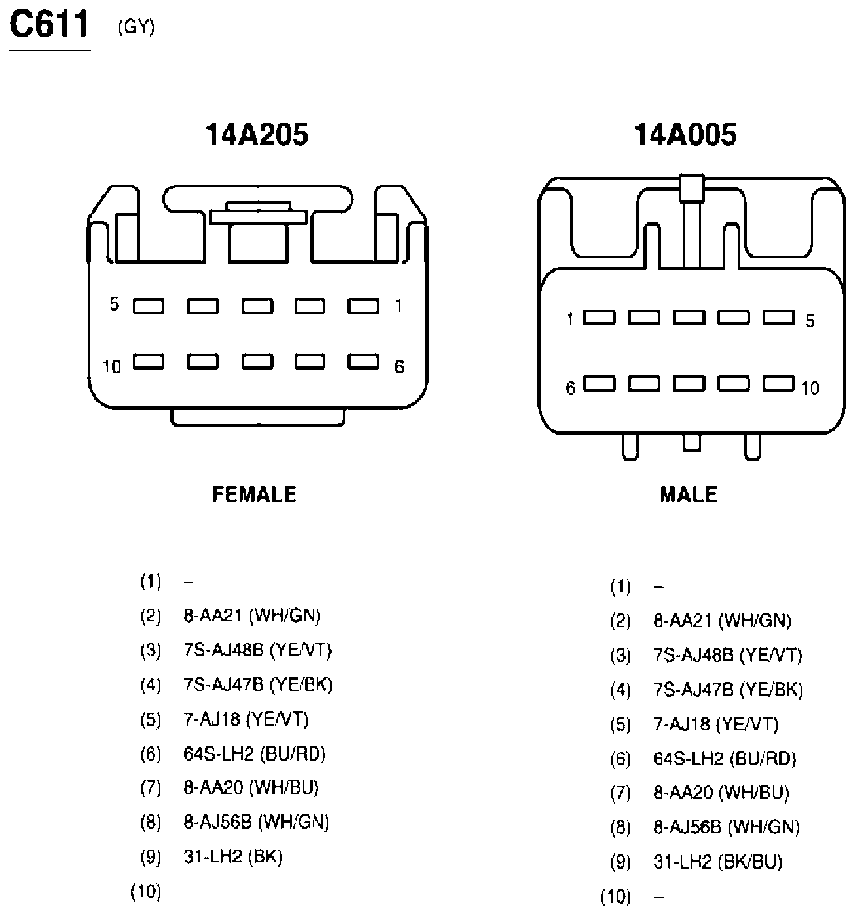

Fig 265: Inline Connector End View (C611)
Courtesy of FORD MOTOR CO.

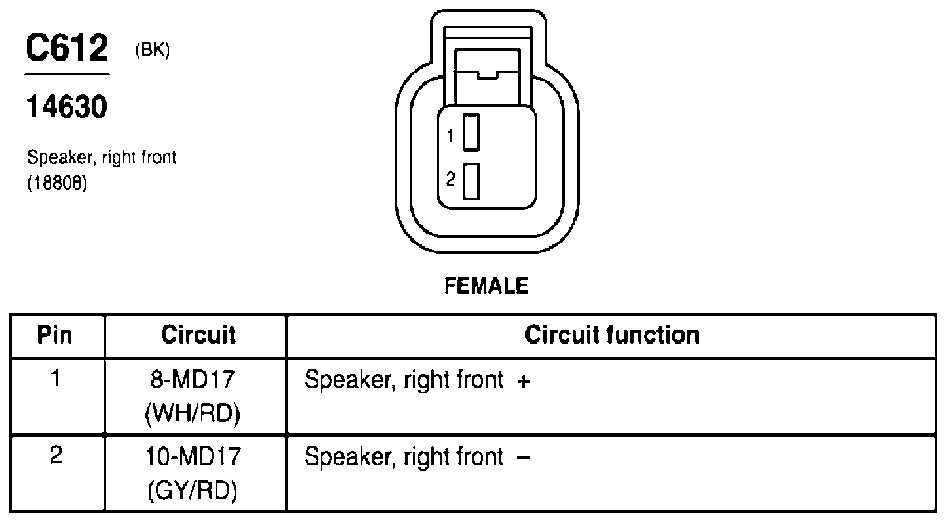

Fig 266: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

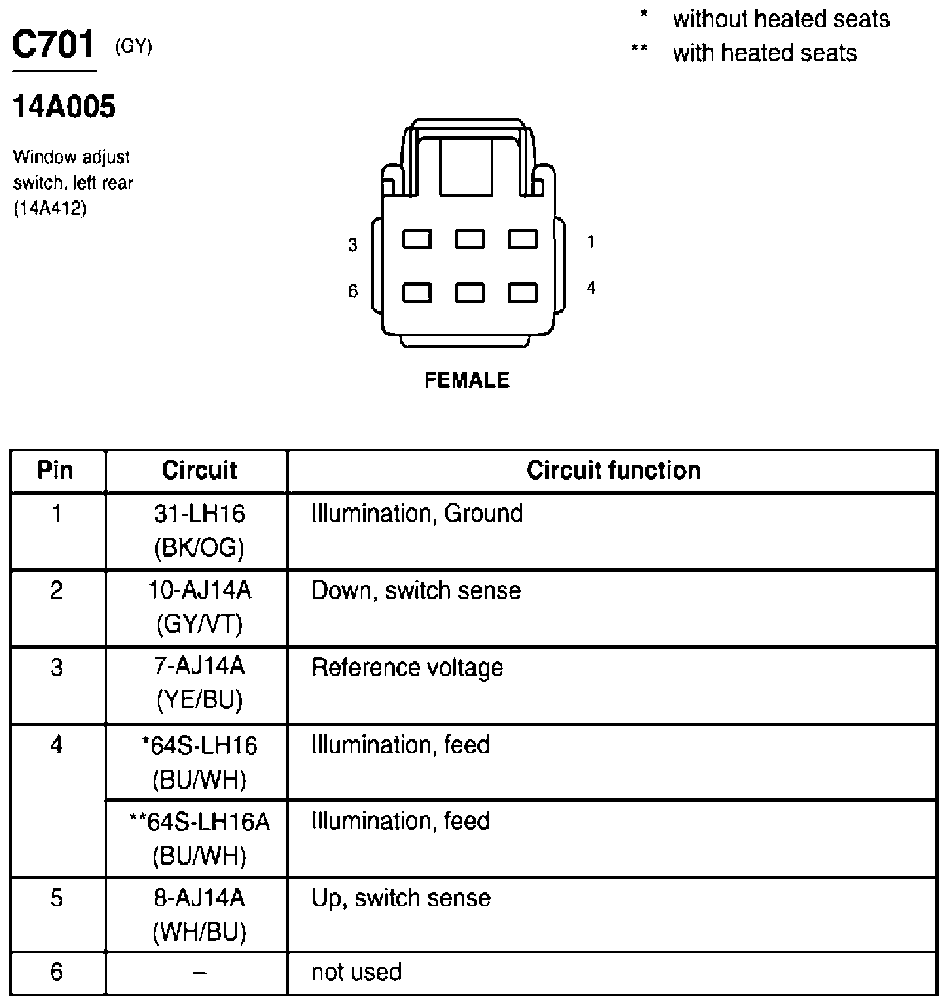

Fig 267: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.

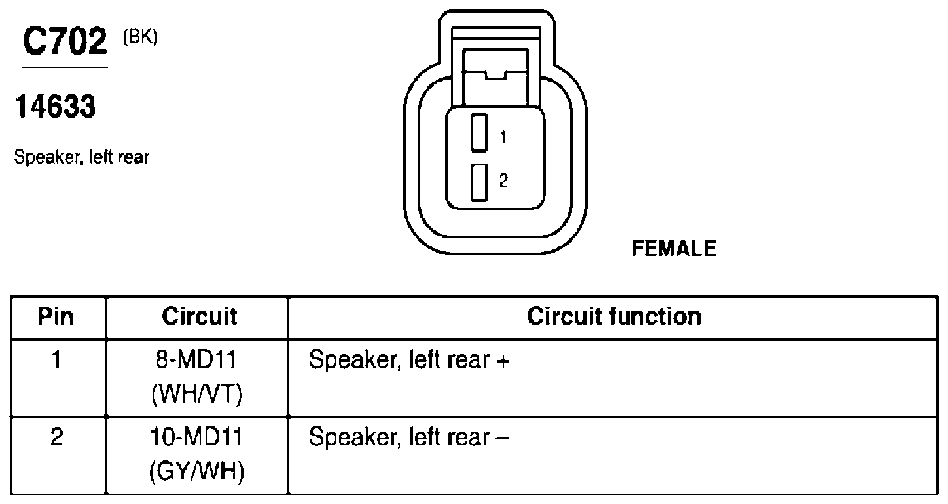

Fig 268: Speaker, Left/Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.

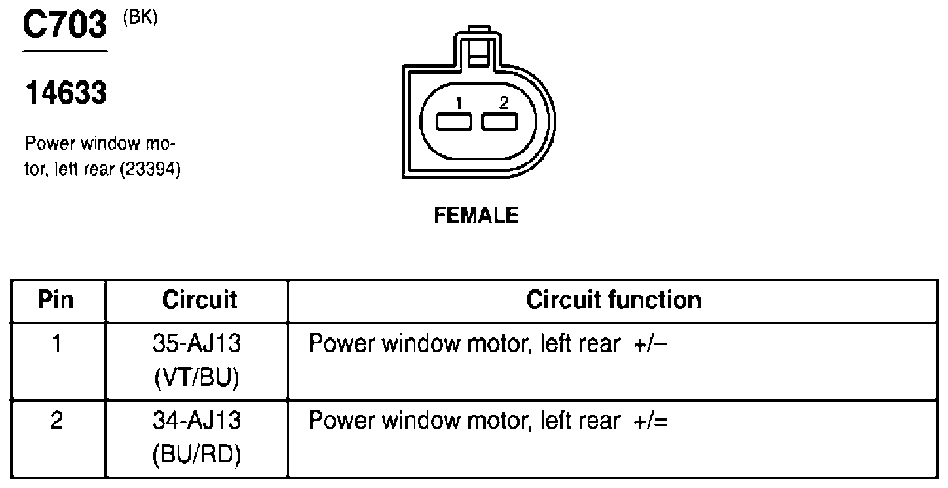

Fig 269: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.

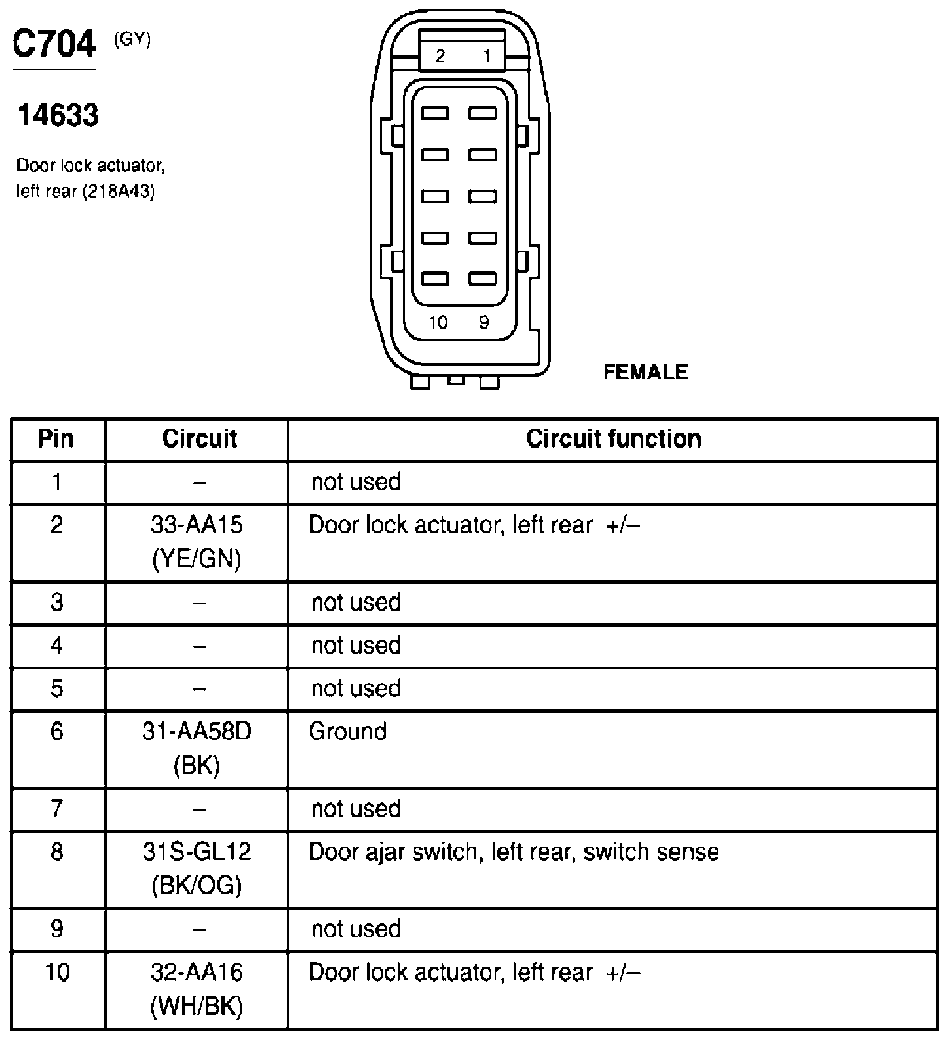

Fig 270: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

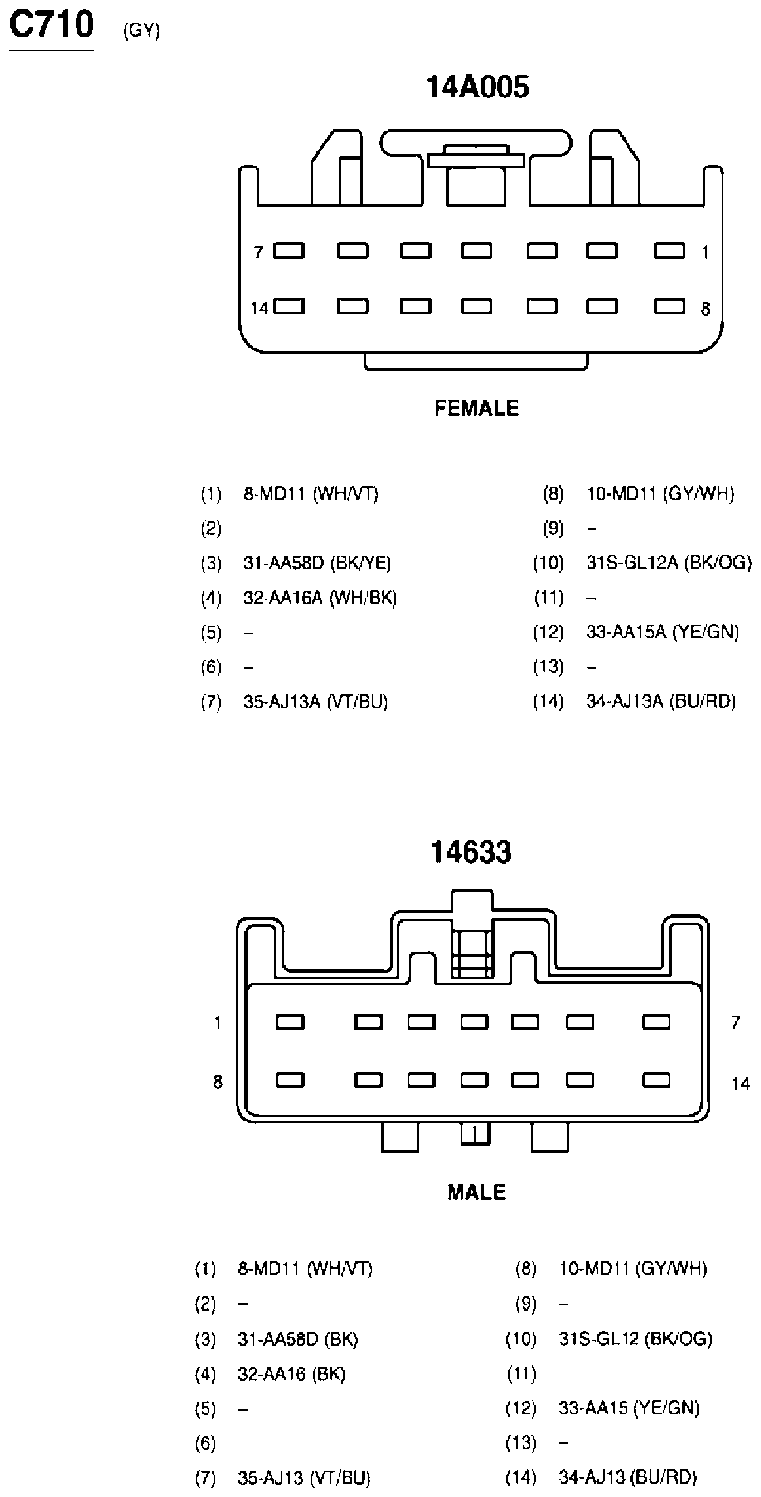

Fig 271: Inline Connector End View (C710)
Courtesy of FORD MOTOR CO.

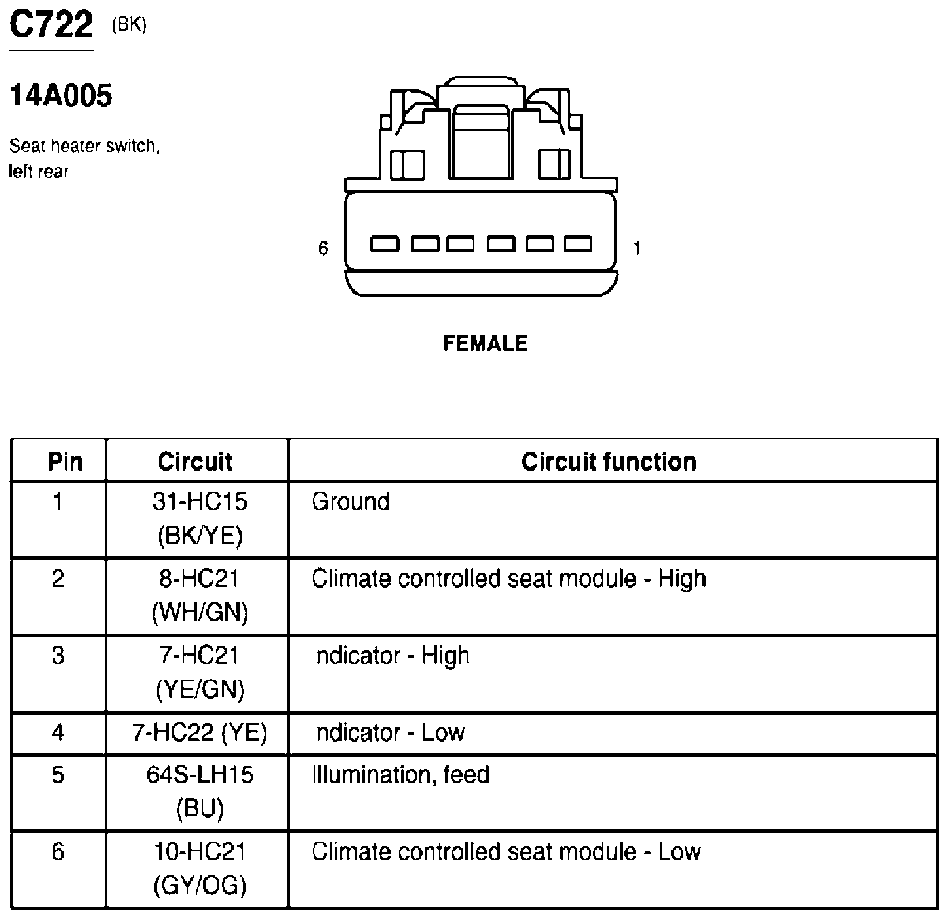

Fig 272: Sear Heater Switch, Left Rear Connector End View (C722)
Courtesy of FORD MOTOR CO.

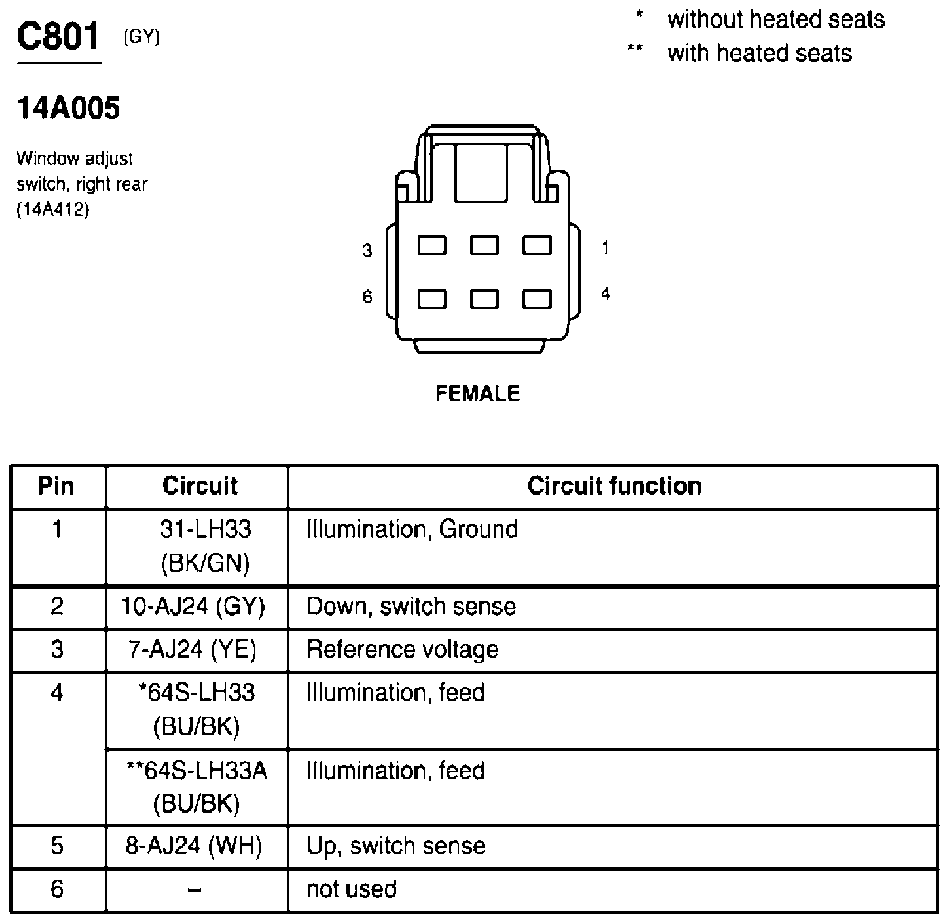

Fig 273: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.

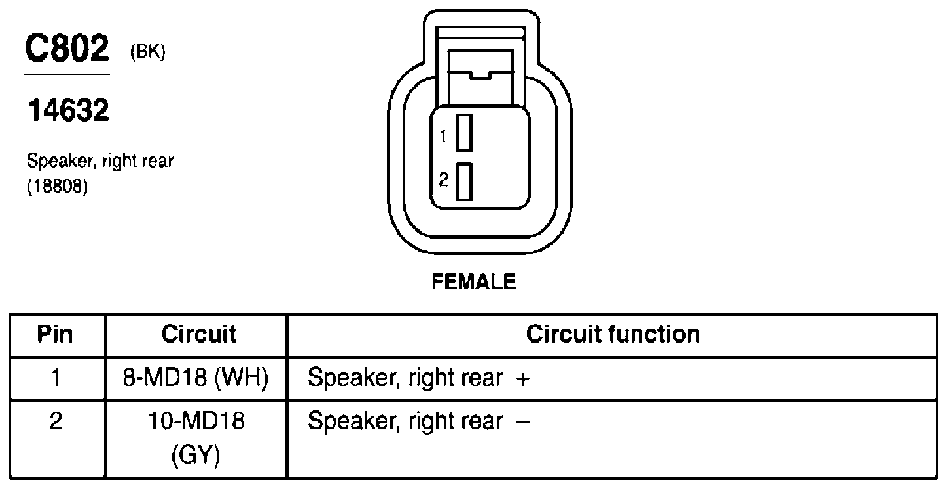

Fig 274: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.

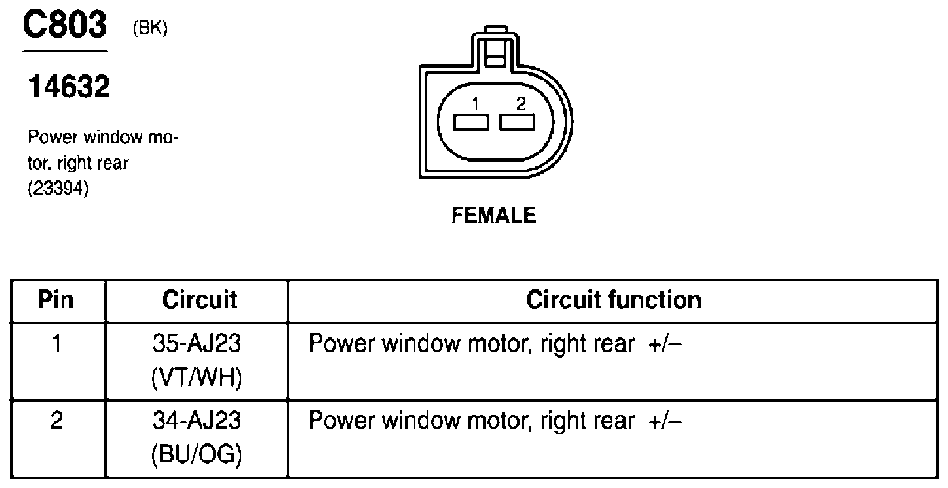

Fig 275: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.

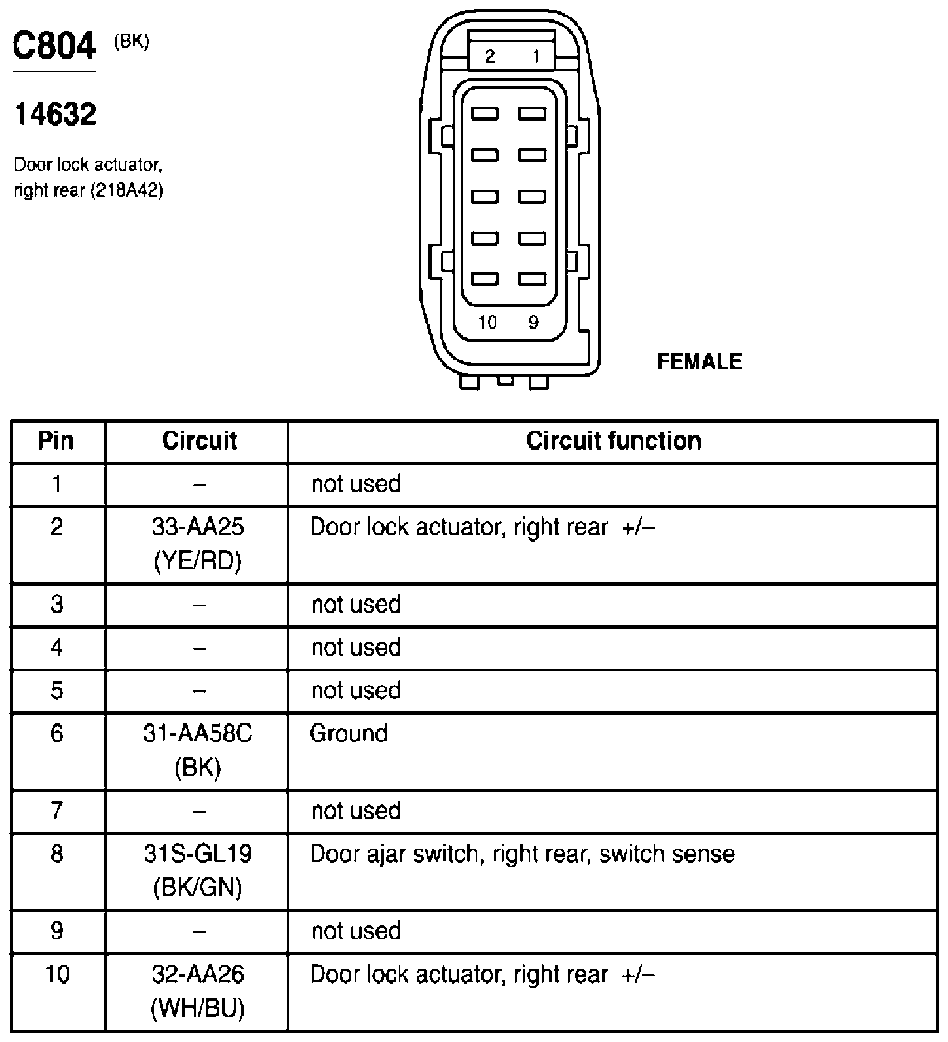

Fig 276: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

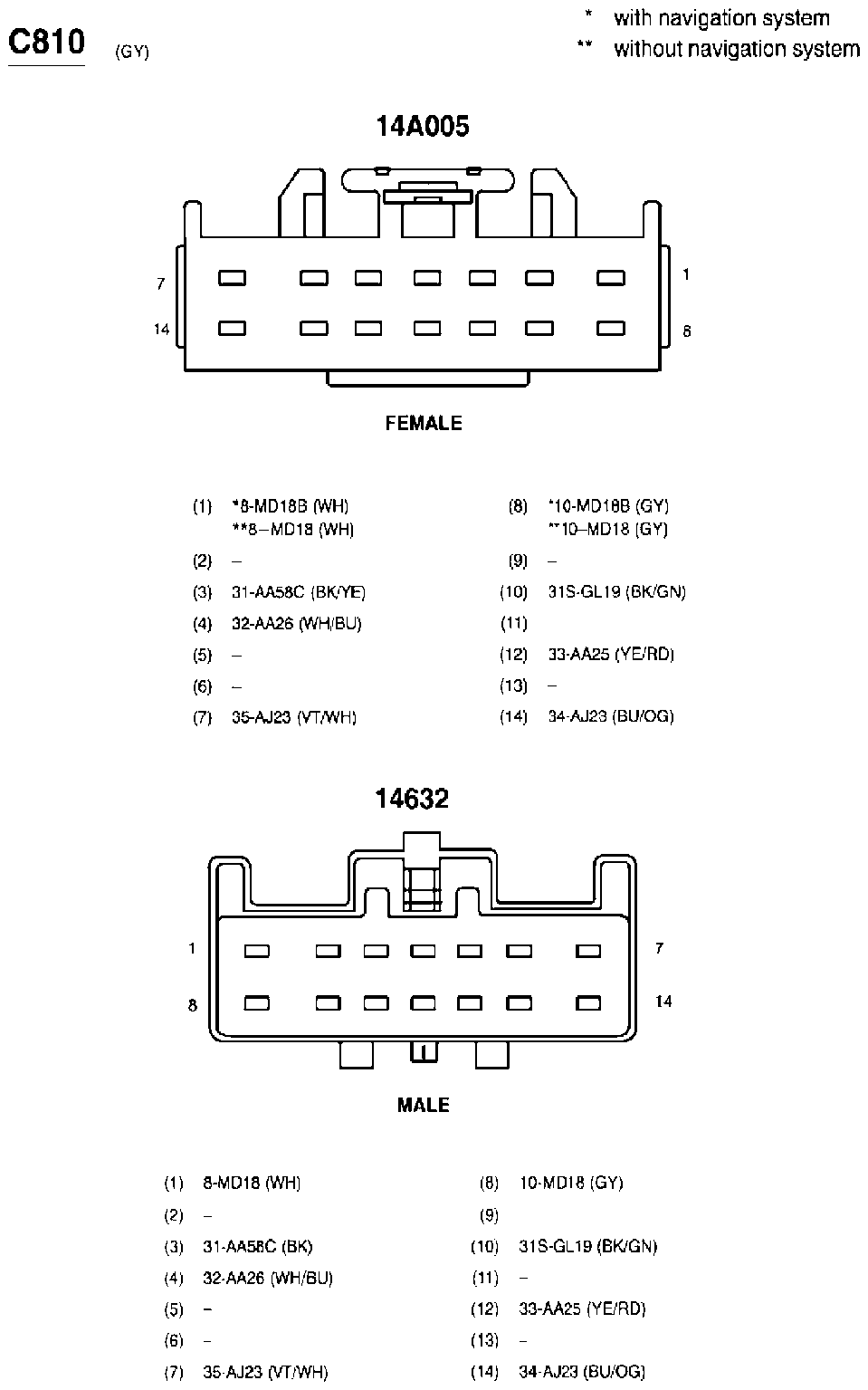

Fig 277: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.

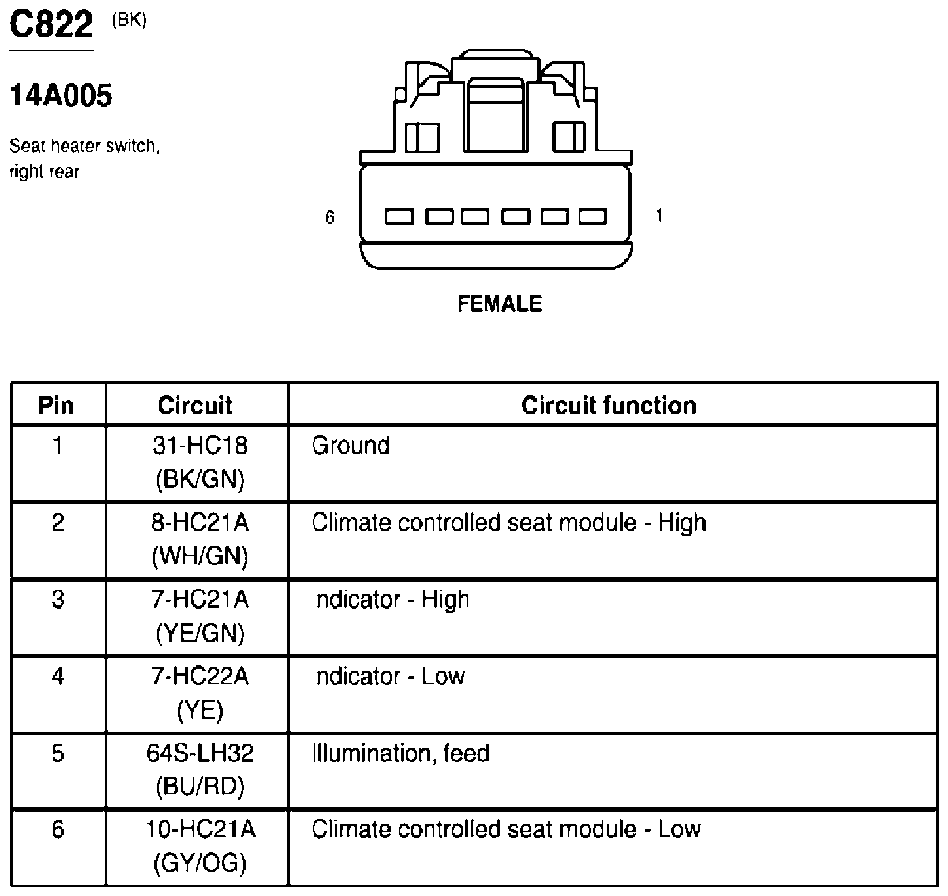

Fig 278: Seat Heater Switch, Right Rear Connector End View (C822)
Courtesy of FORD MOTOR CO.
Fig 279: Map Reading Lamp, Right Front Connector End View (C903)
Courtesy of FORD MOTOR CO.

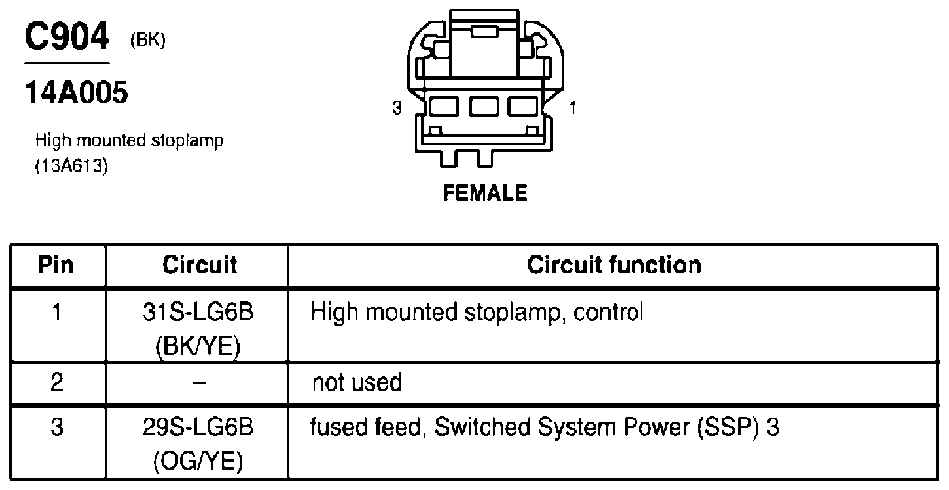

Fig 280: High Mounted Stoplamp Connector End View (C904)
Courtesy of FORD MOTOR CO.

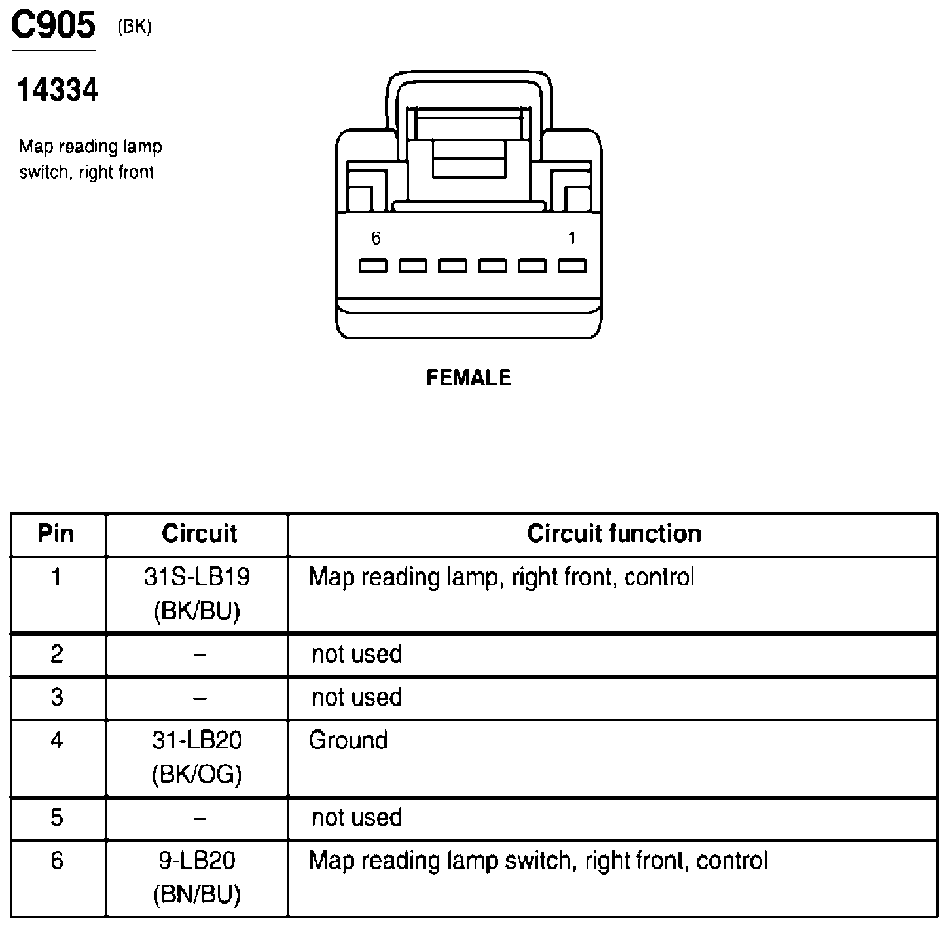

Fig 281: Map Reading Lamp Switch, Right Front Connector End View (C905)
Courtesy of FORD MOTOR CO.

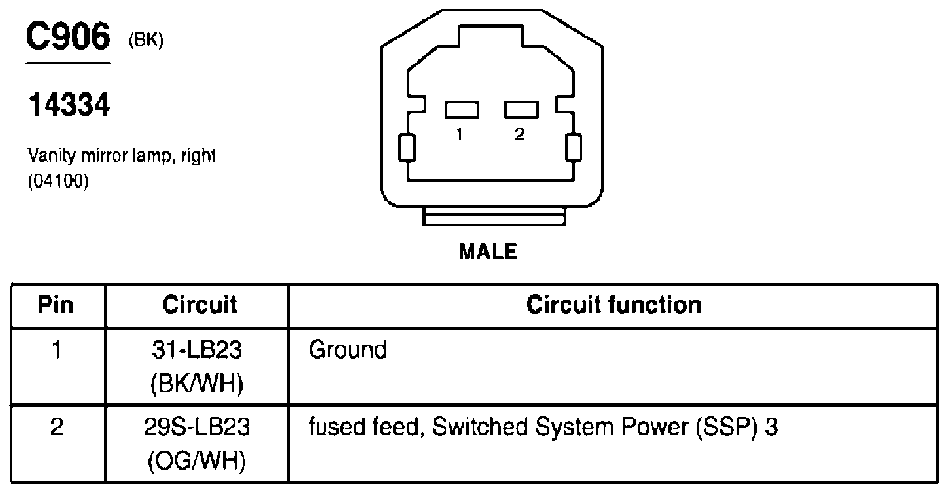

Fig 282: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.
Fig 283: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

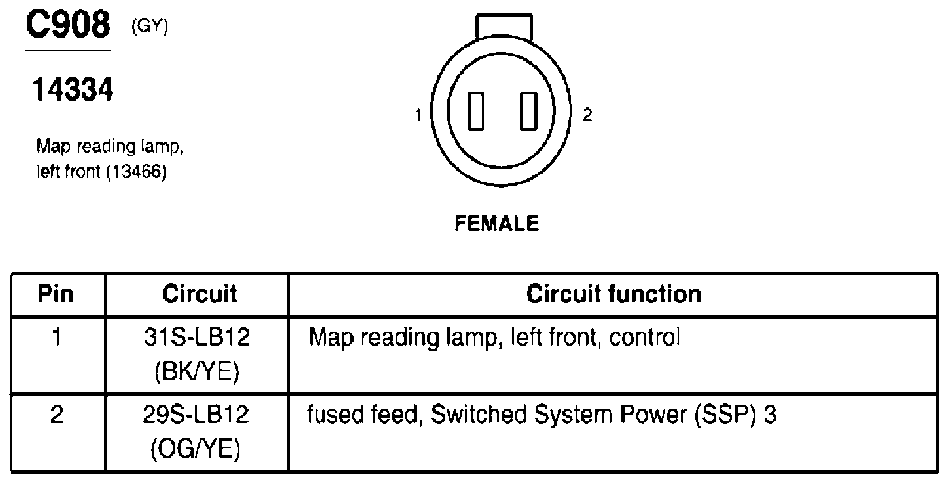

Fig 284: Map Reading Lamp, Left Front Connector End View (C908)
Courtesy of FORD MOTOR CO.

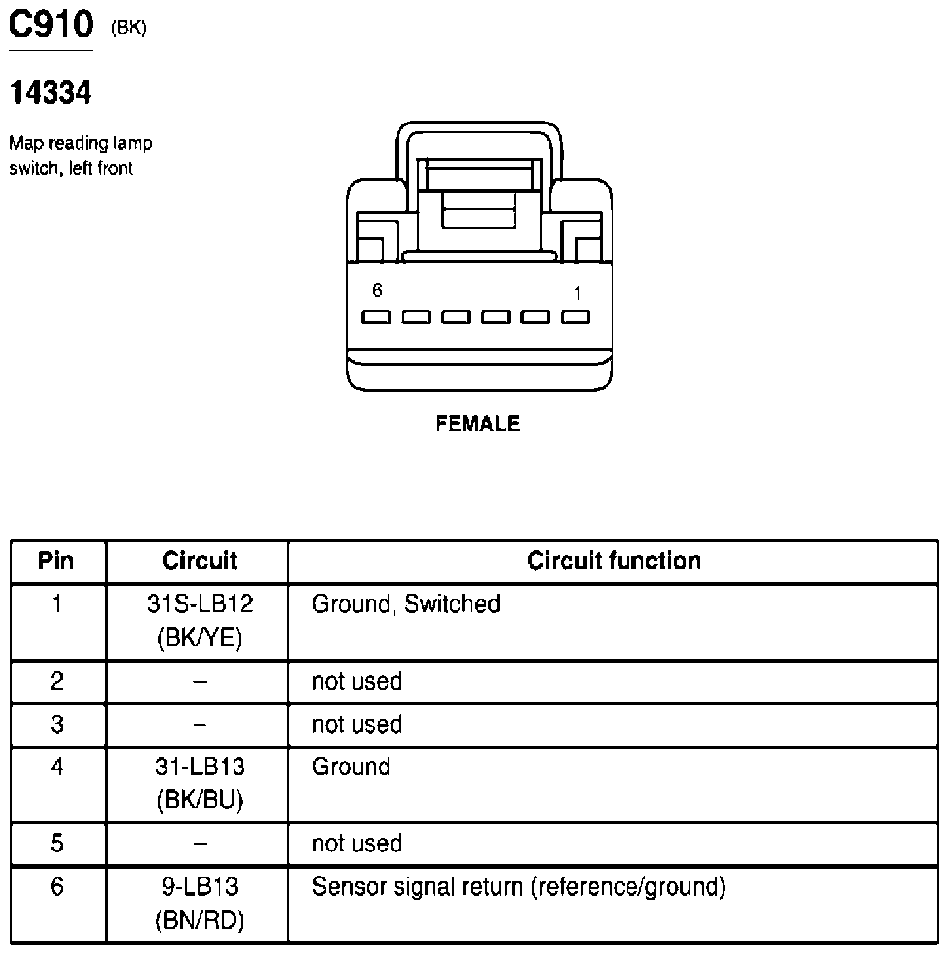

Fig 285: Map Reading Lamp Switch, Left Front Connector End View (C910)
Courtesy of FORD MOTOR CO.

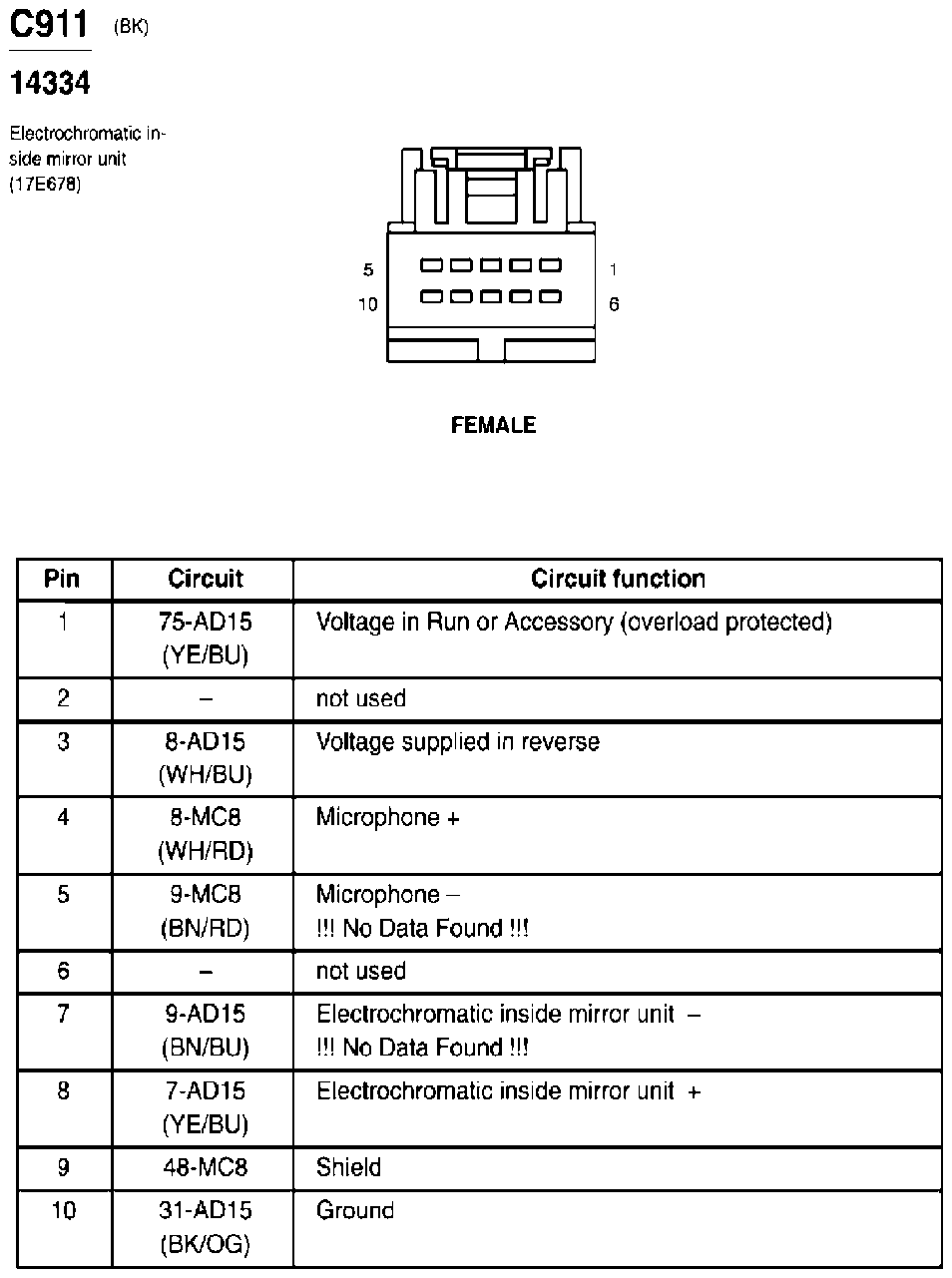

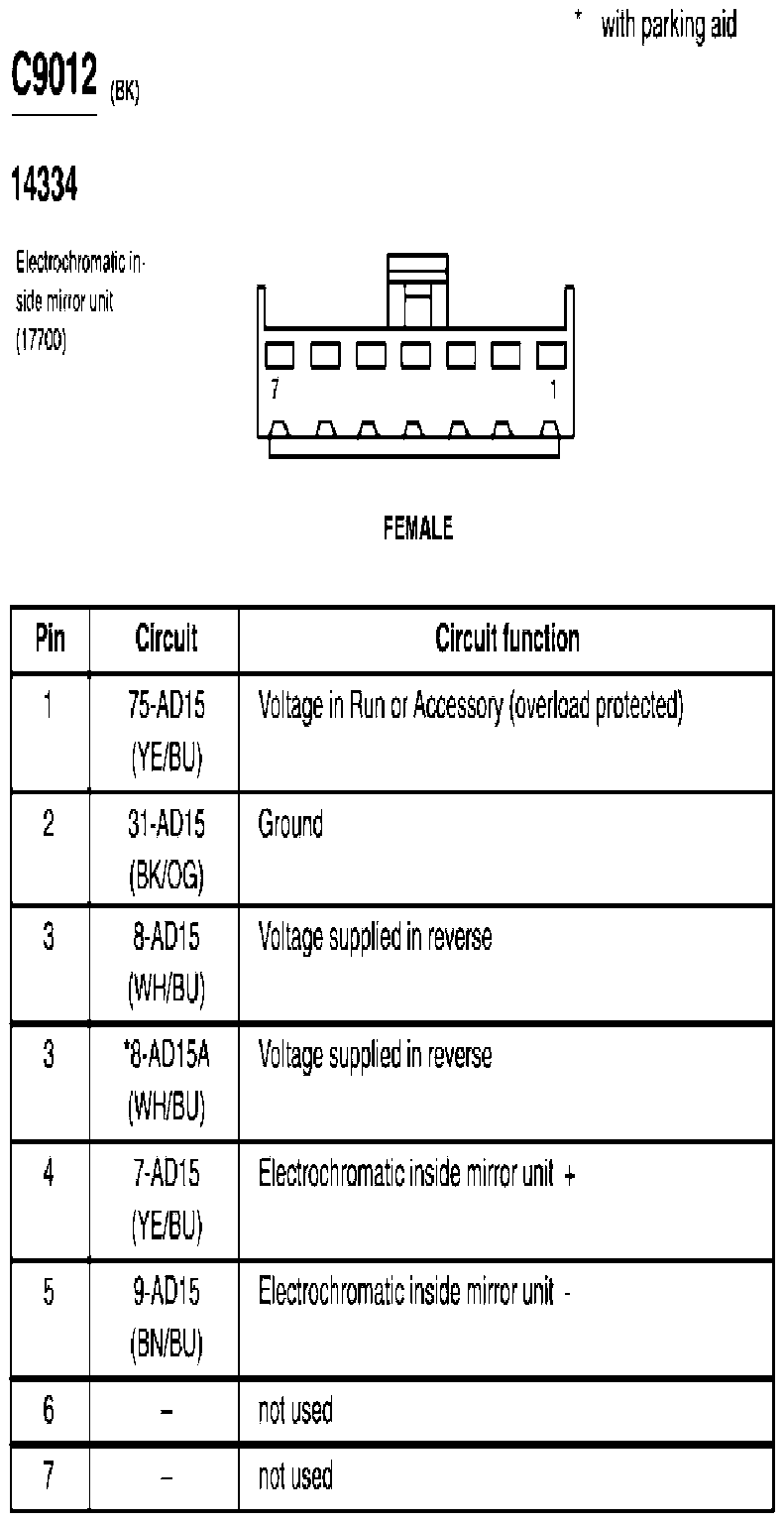

Fig 286: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

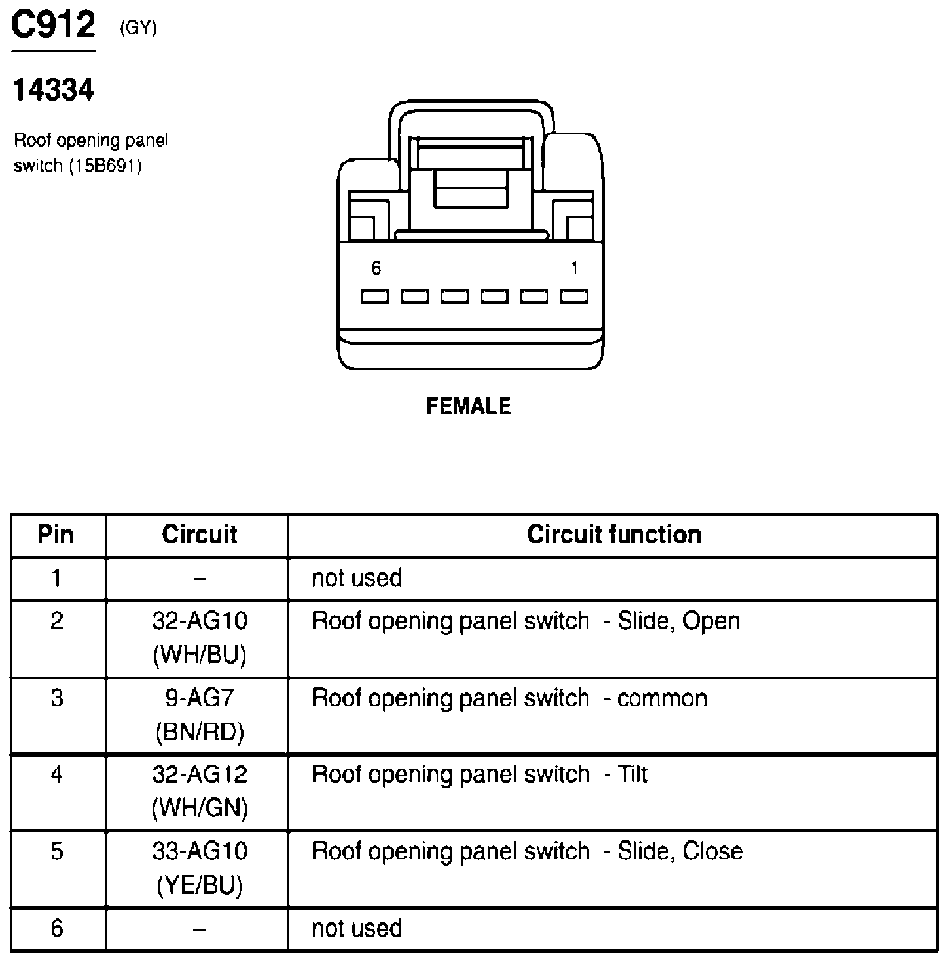

Fig 287: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.

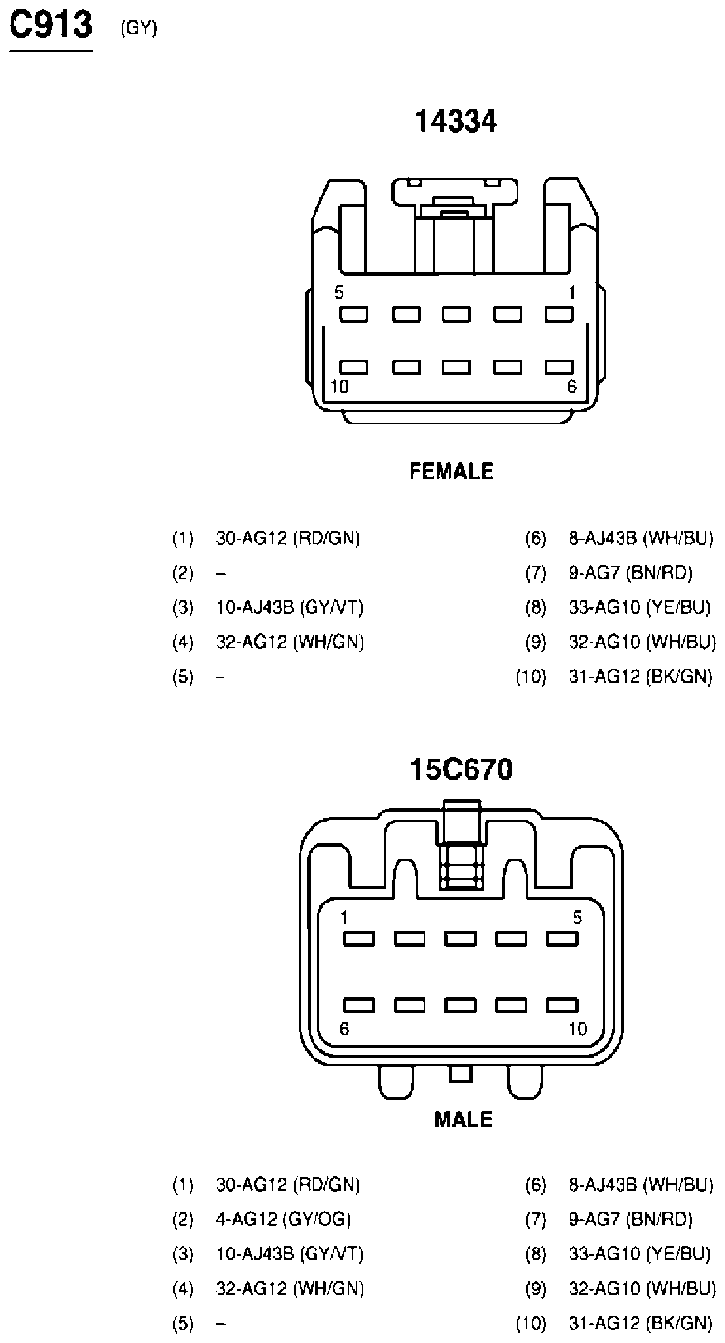

Fig 288: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

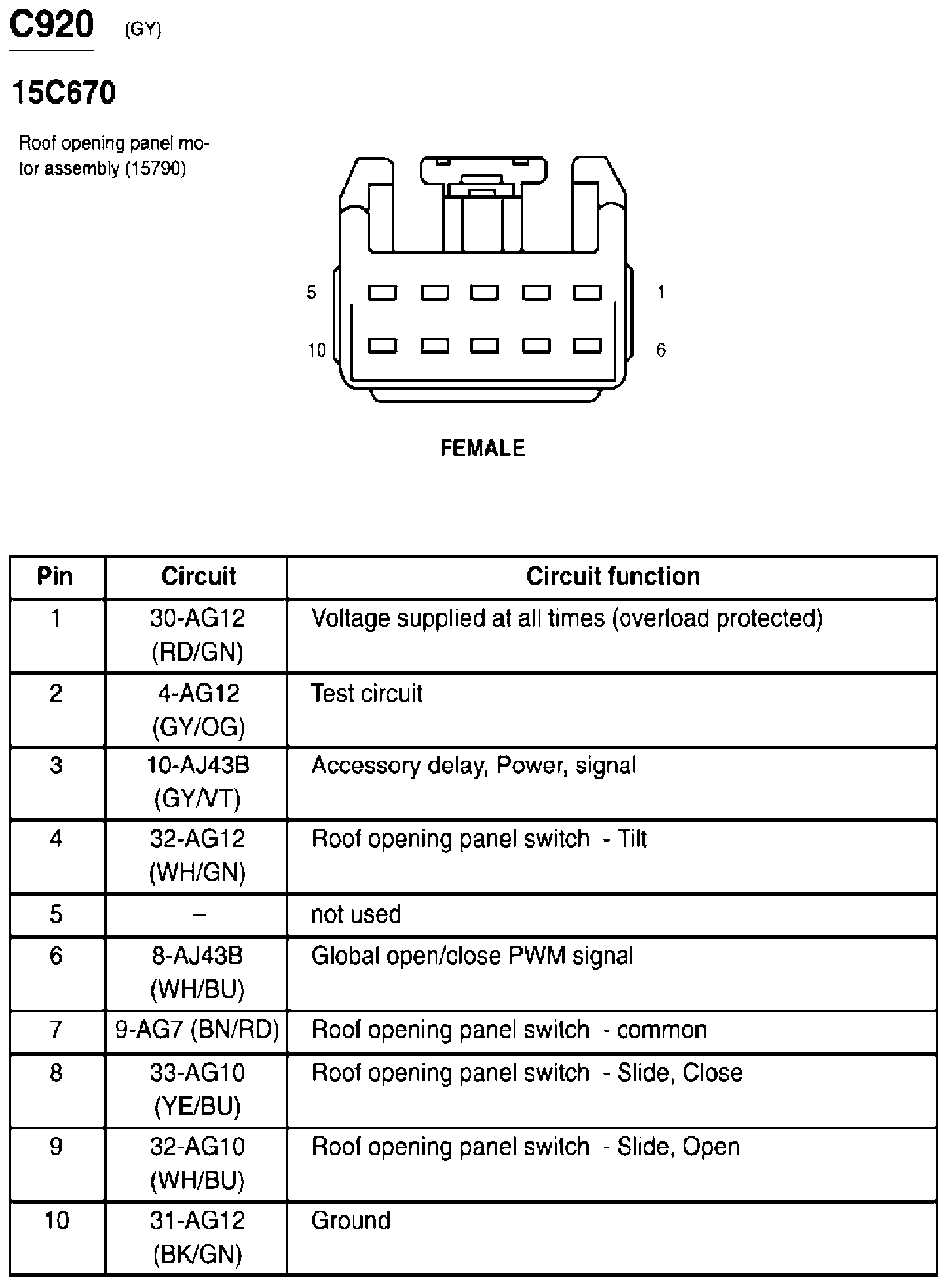

Fig 289: Roof Opening Panel Motor Assembly Connector End View (C920)
Courtesy of FORD MOTOR CO.

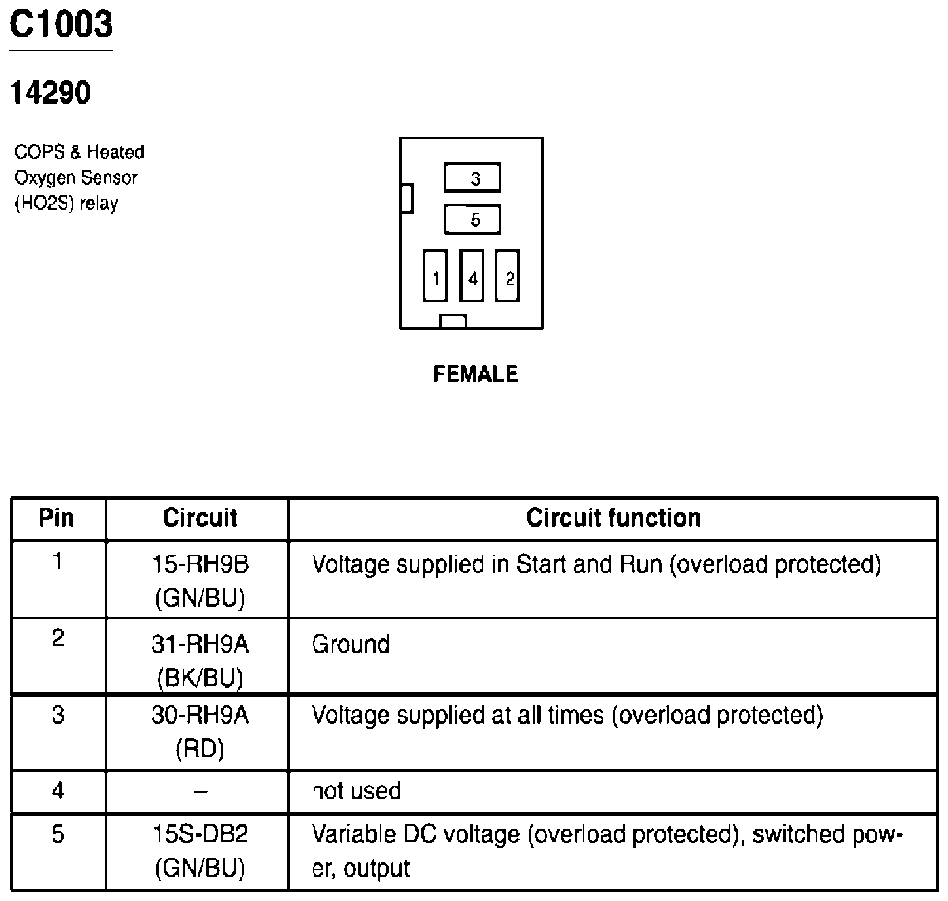

Fig 290: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)
Courtesy of FORD MOTOR CO.
Fig 291: Auxiliary Coolant Pump Relay Connector End View (C1005)
Courtesy of FORD MOTOR CO.

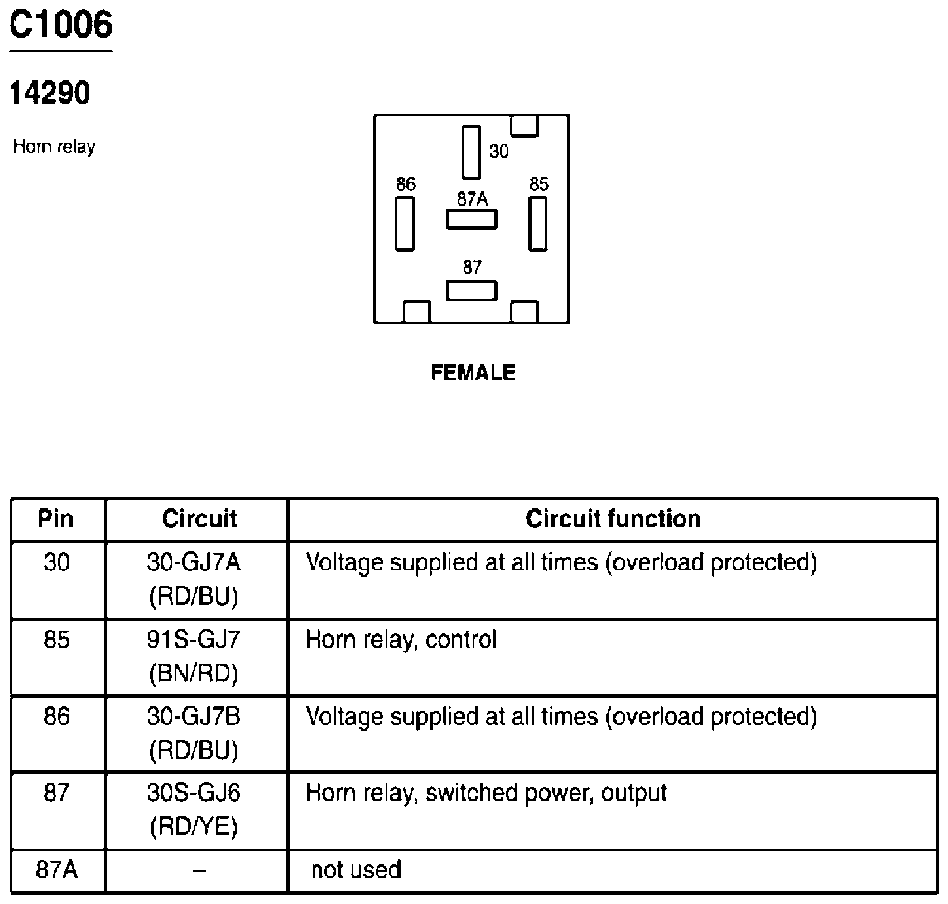

Fig 292: Horn Relay Connector End View (C1006)
Courtesy of FORD MOTOR CO.

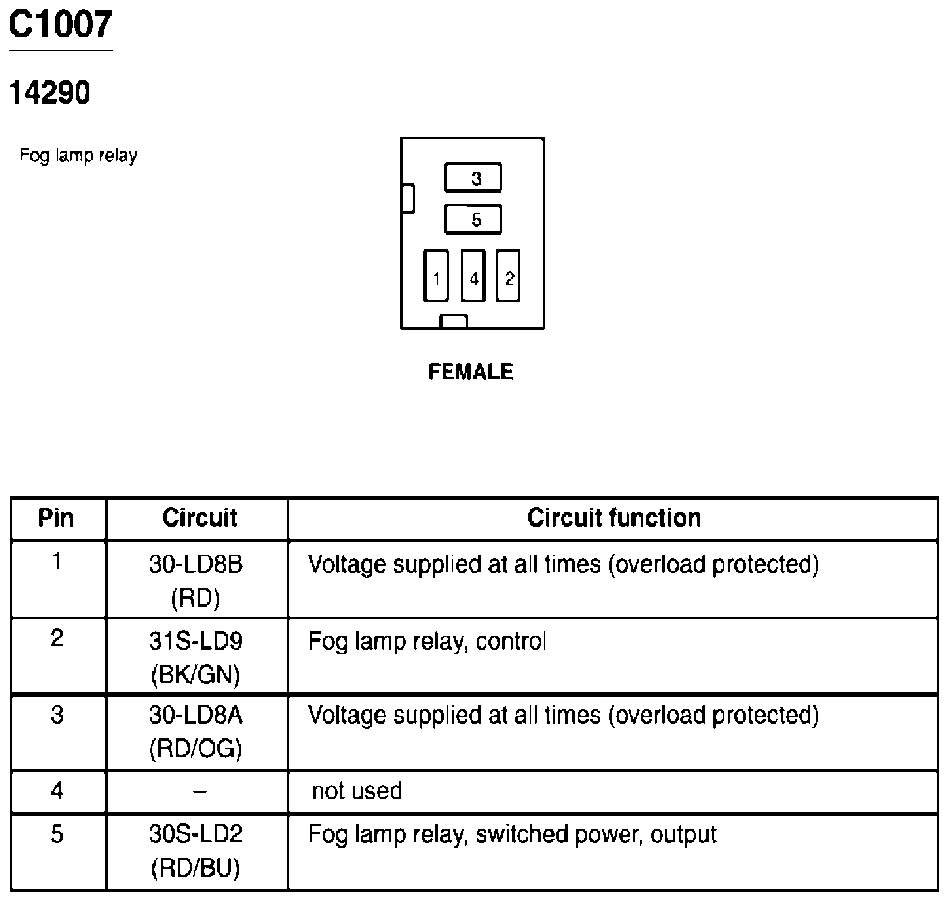

Fig 293: Fog Lamp Relay Connector End View (C1007)
Courtesy of FORD MOTOR CO.

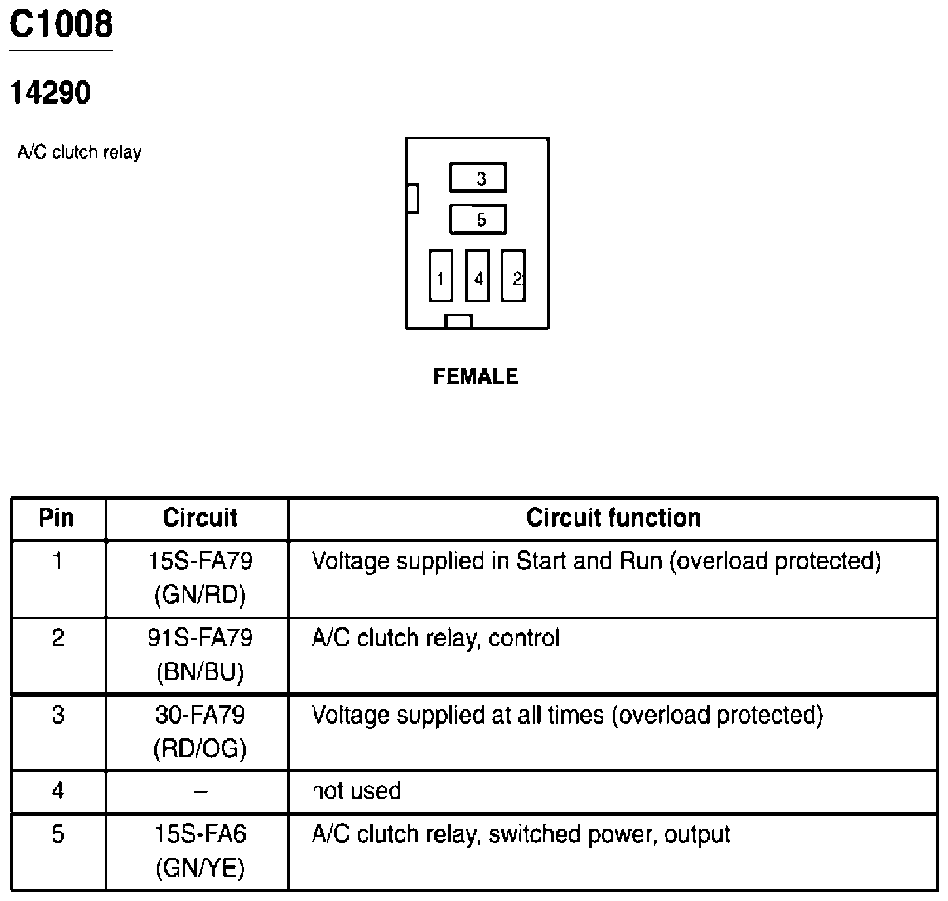

Fig 294: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.

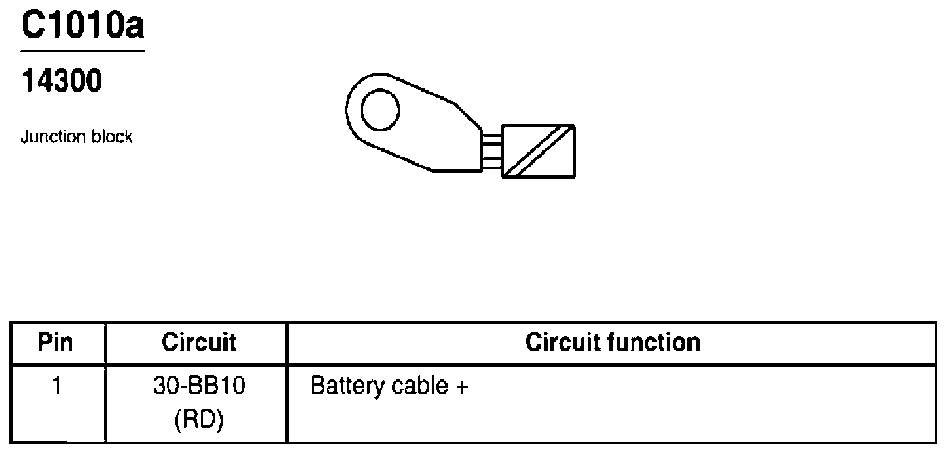

Fig 295: Junction Block Connector End View (C1010a)
Courtesy of FORD MOTOR CO.

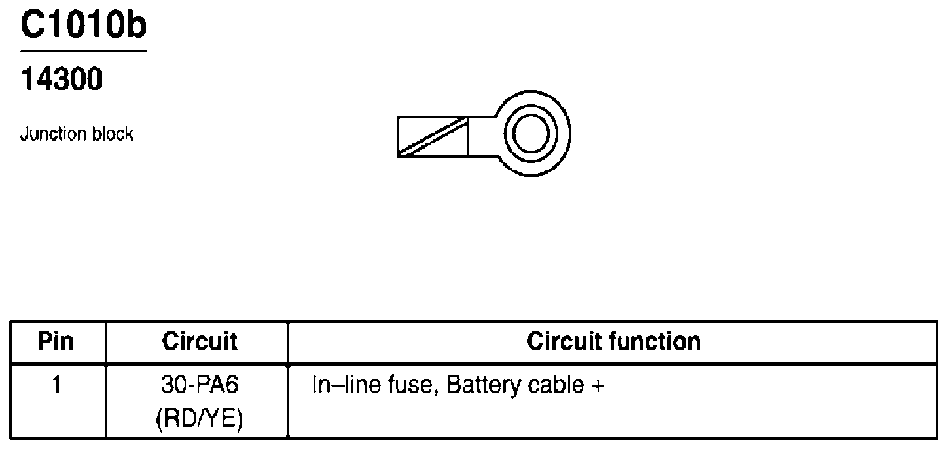

Fig 296: Junction Block Connector End View (C1010b)
Courtesy of FORD MOTOR CO.

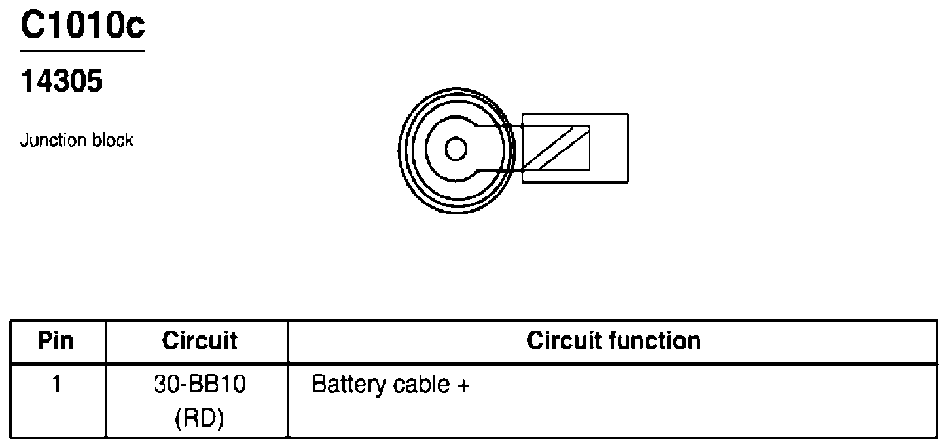

Fig 297: Junction Block Connector End View (C1010c)
Courtesy of FORD MOTOR CO.

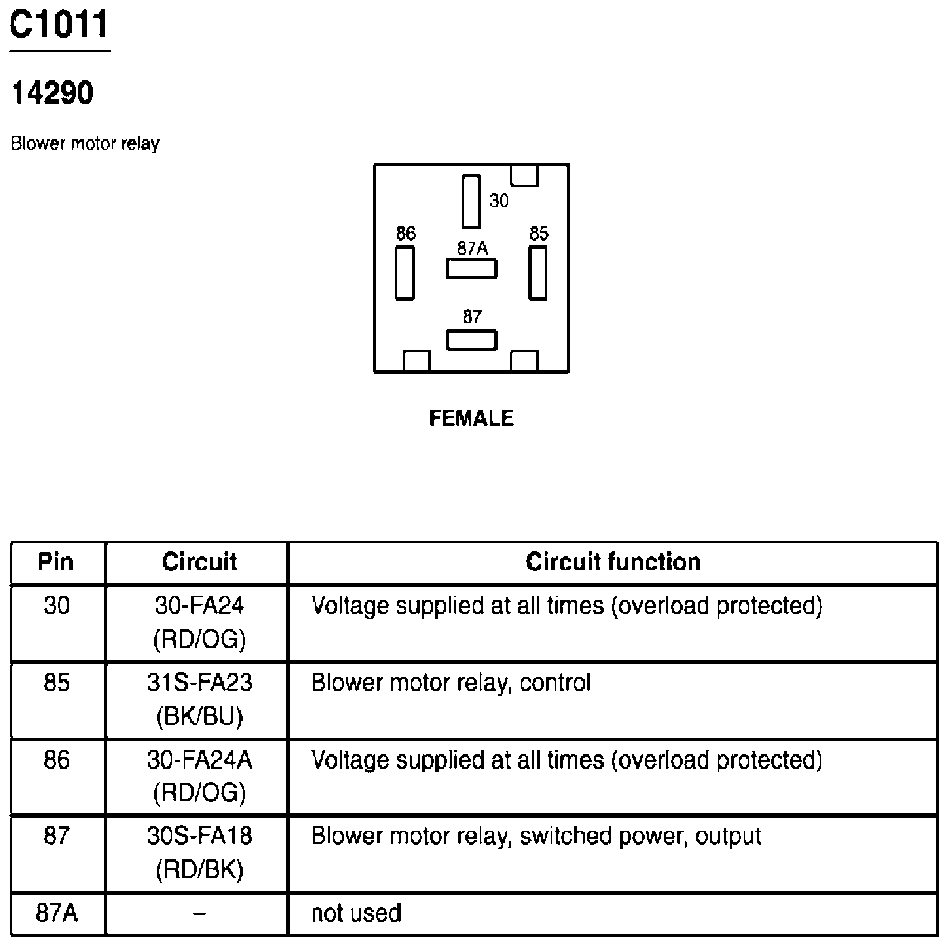

Fig 298: Blower Motor Relay Connector End View (C1011)
Courtesy of FORD MOTOR CO.

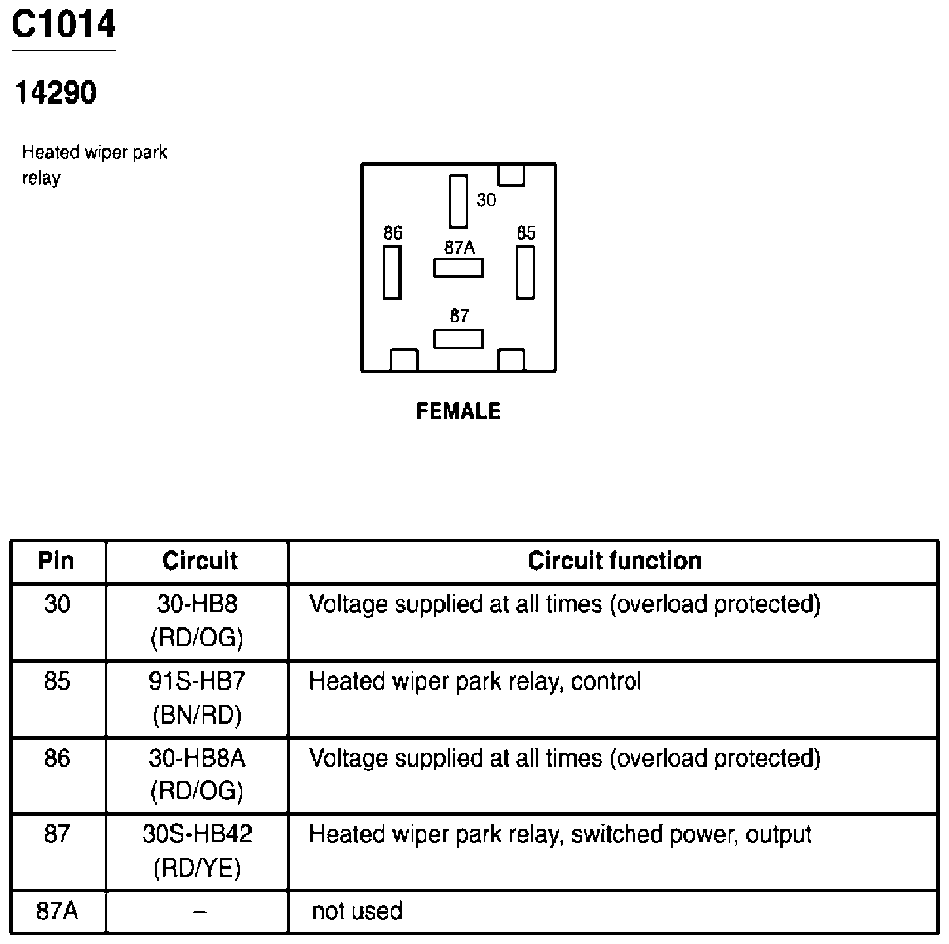

Fig 299: Heated Wiper Park Relay Connector End View (C1014)
Courtesy of FORD MOTOR CO.

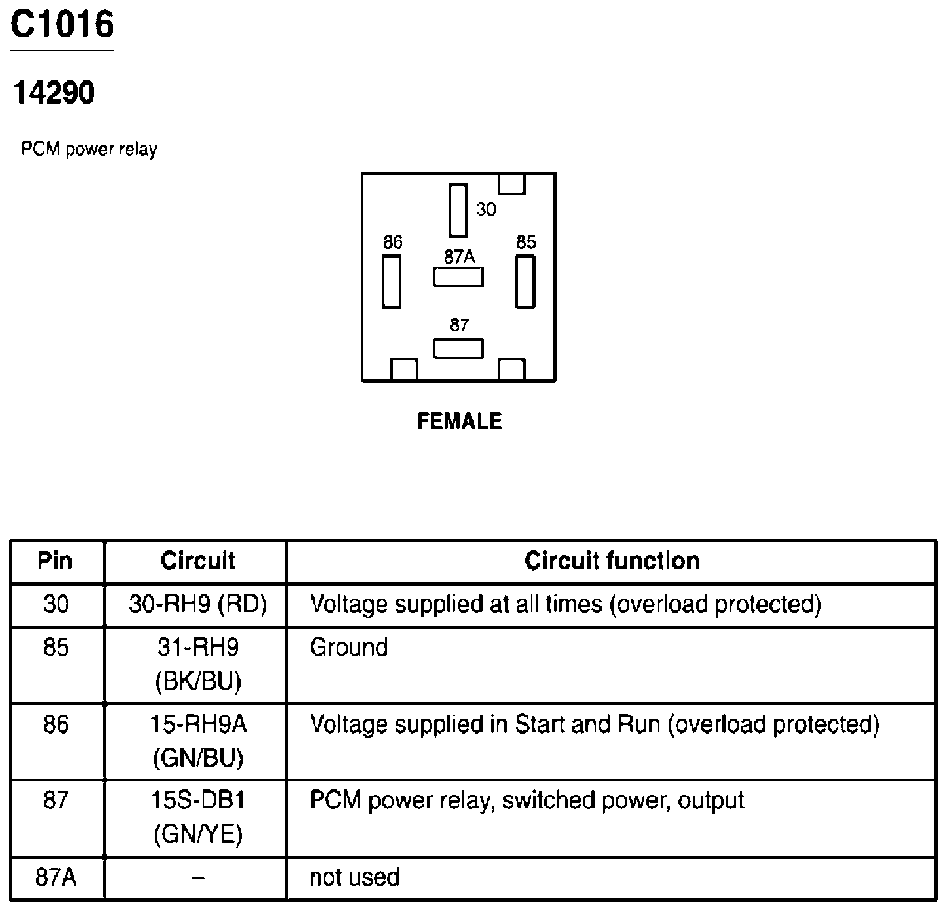

Fig 300: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.

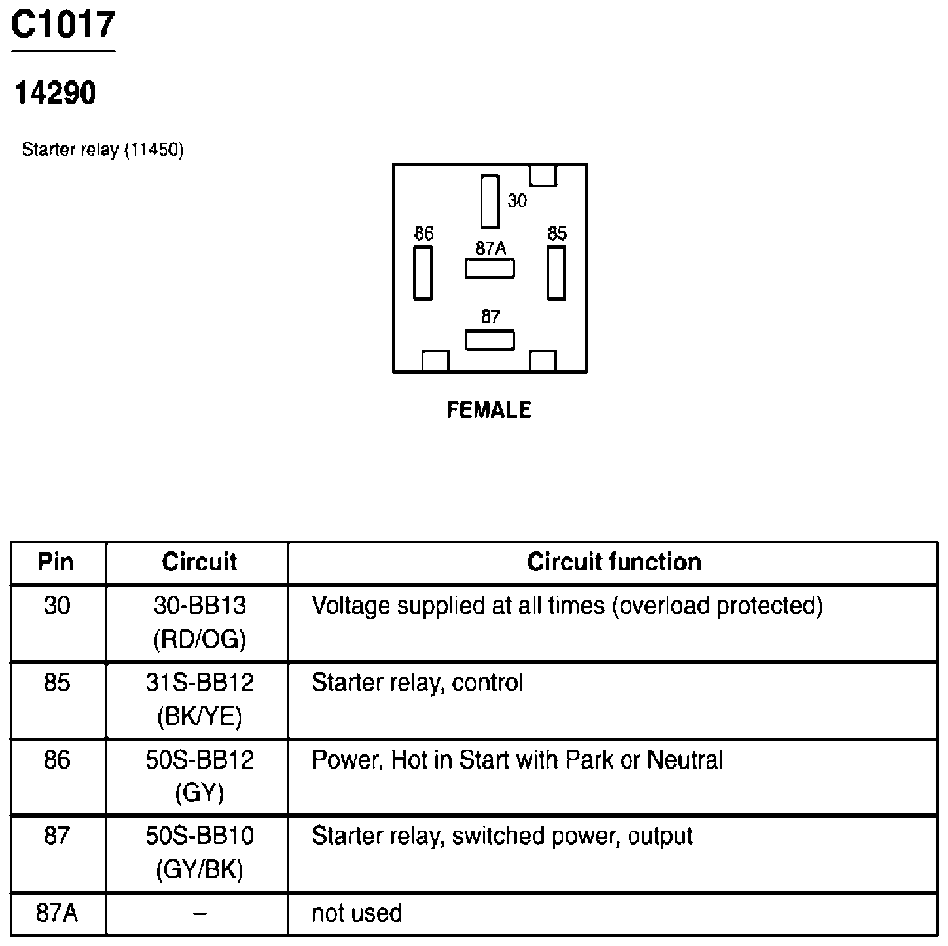

Fig 301: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.

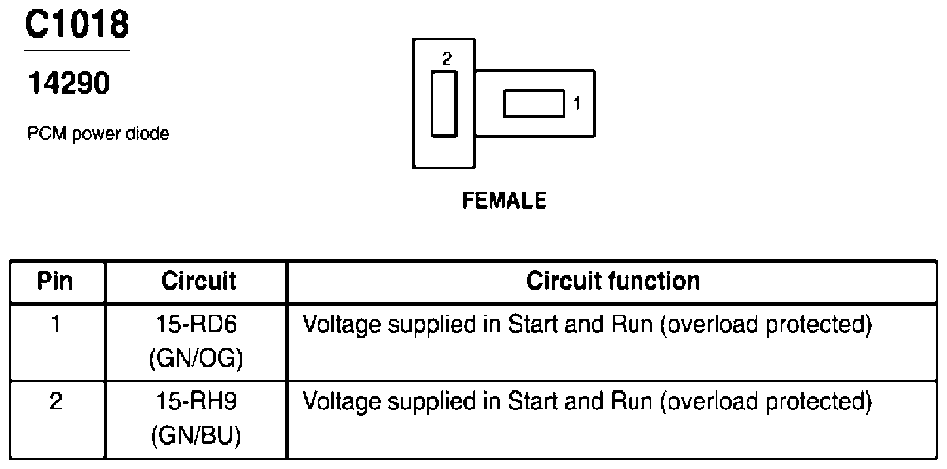

Fig 302: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.

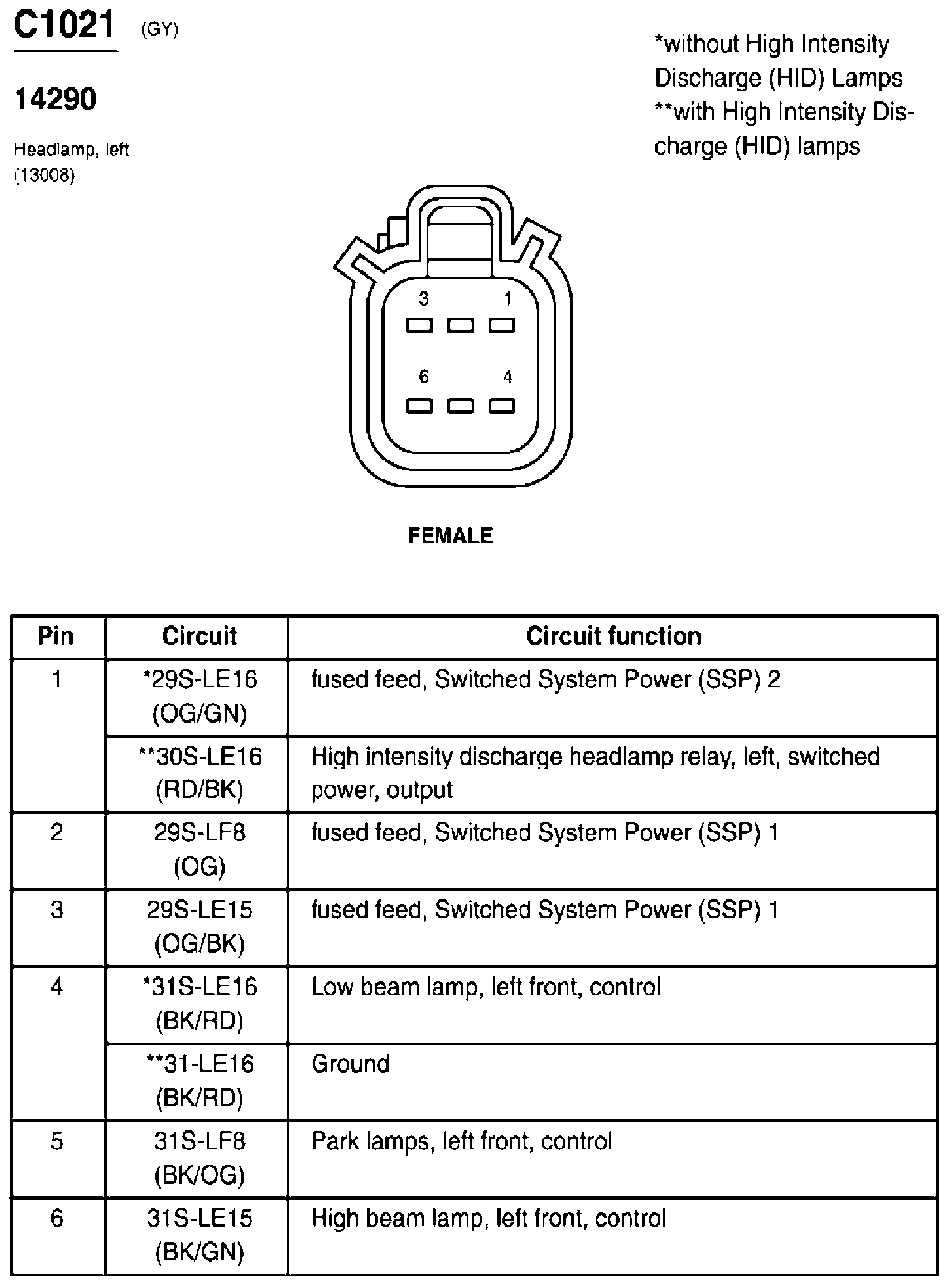

Fig 303: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

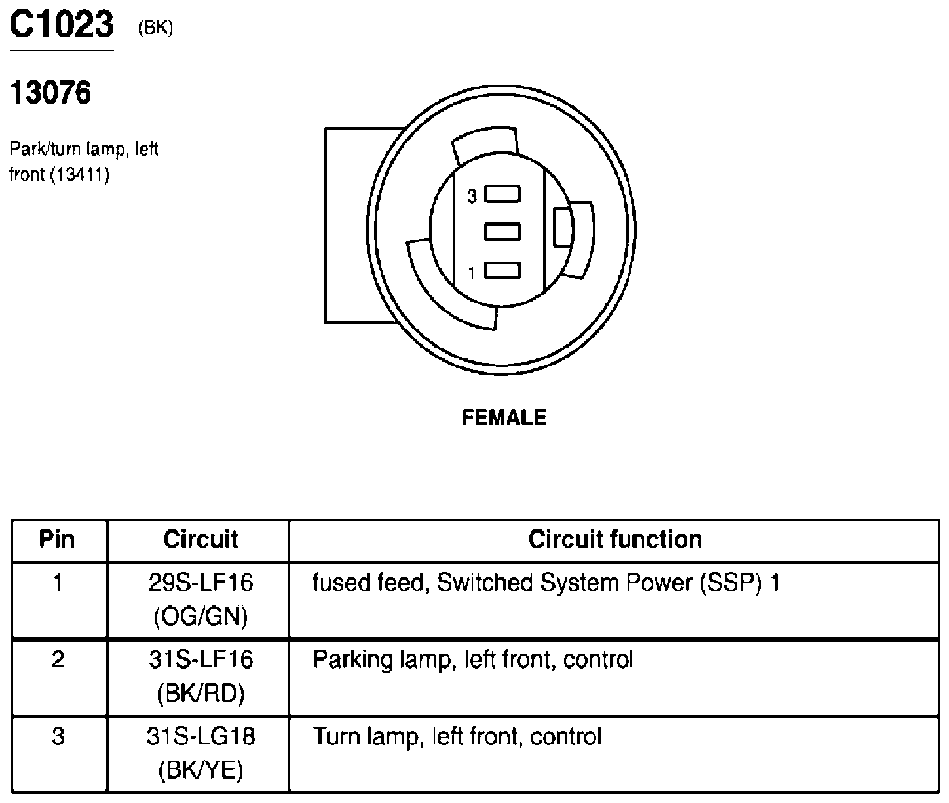

Fig 304: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

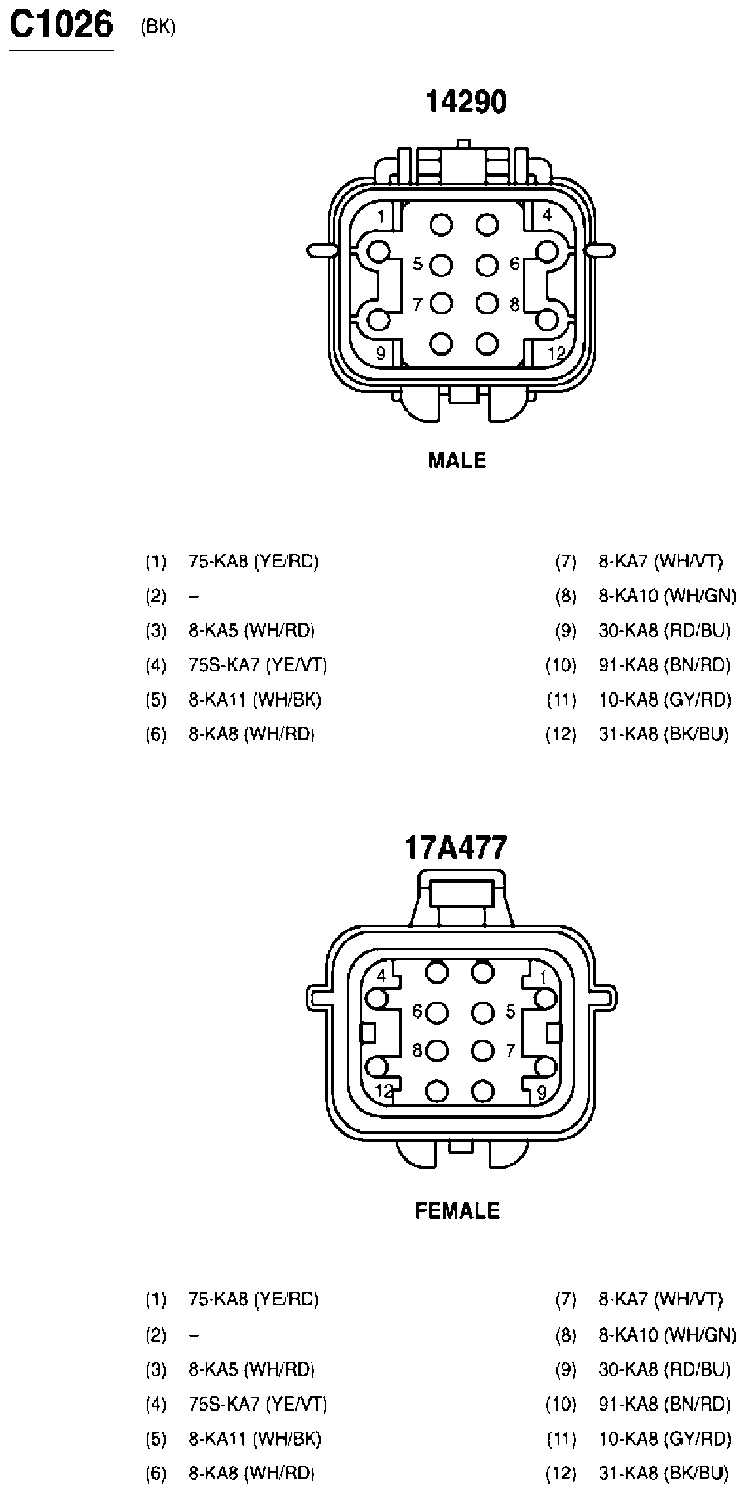

Fig 305: Inline Connector End View (C1026)
Courtesy of FORD MOTOR CO.

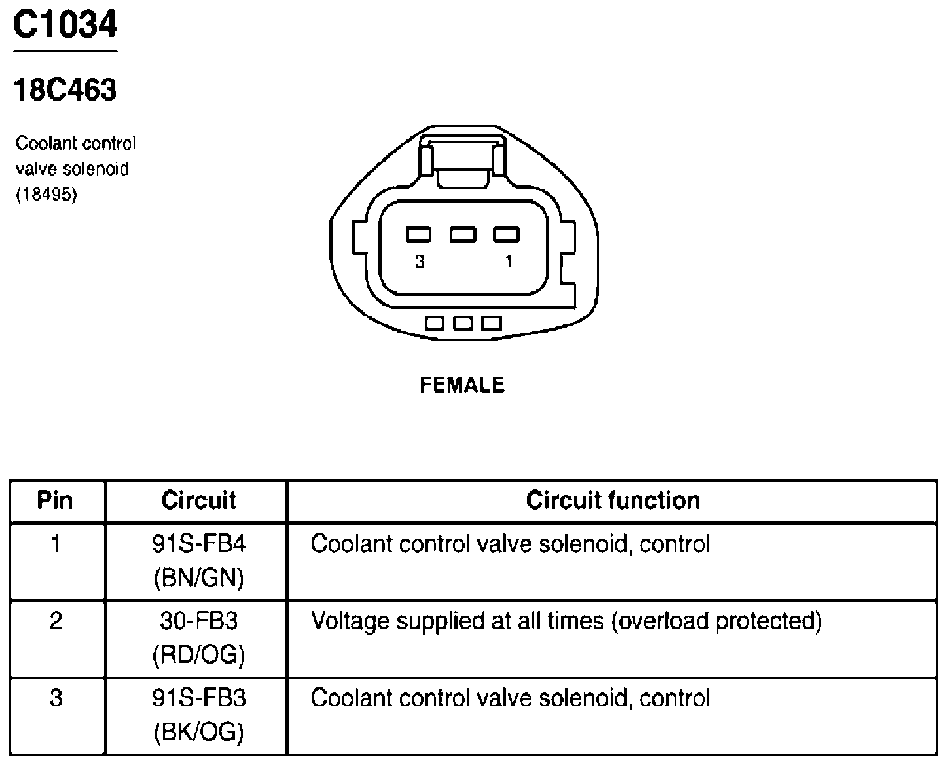

Fig 306: Coolant Control Valve Solenoid Connector End View (C1034)
Courtesy of FORD MOTOR CO.

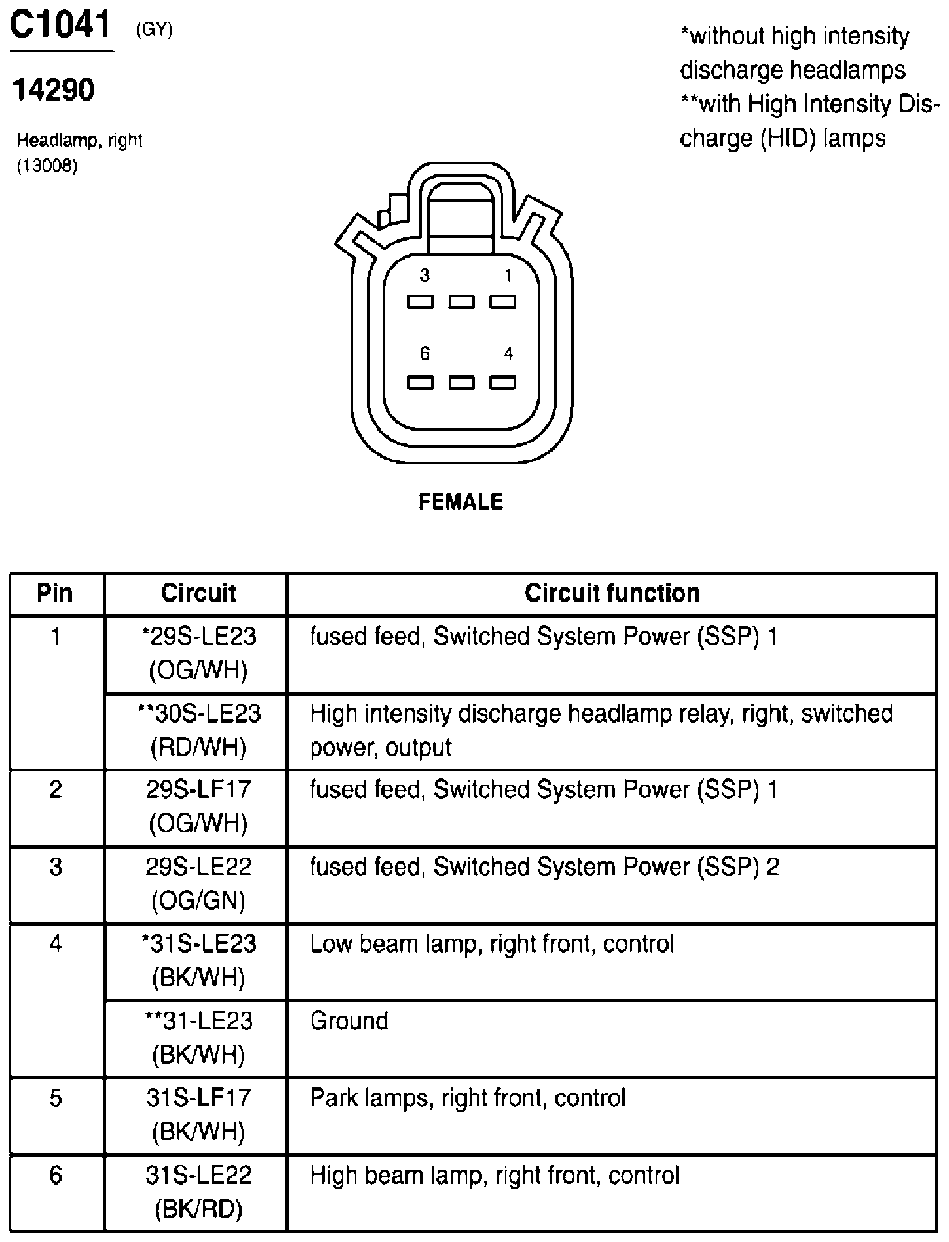

Fig 307: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

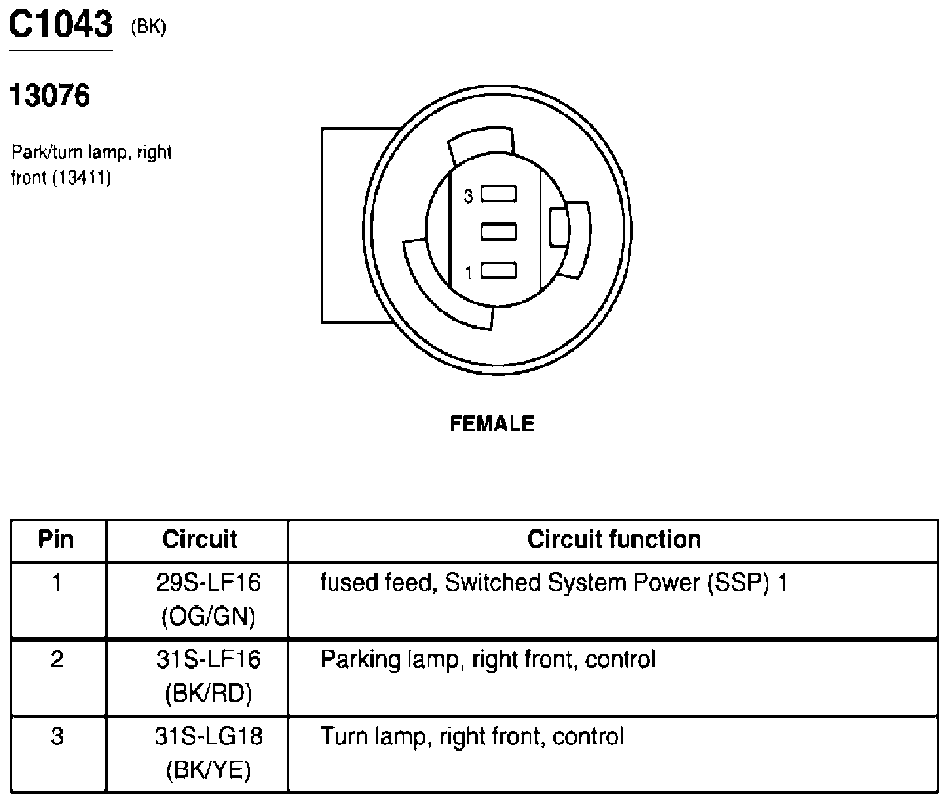

Fig 308: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

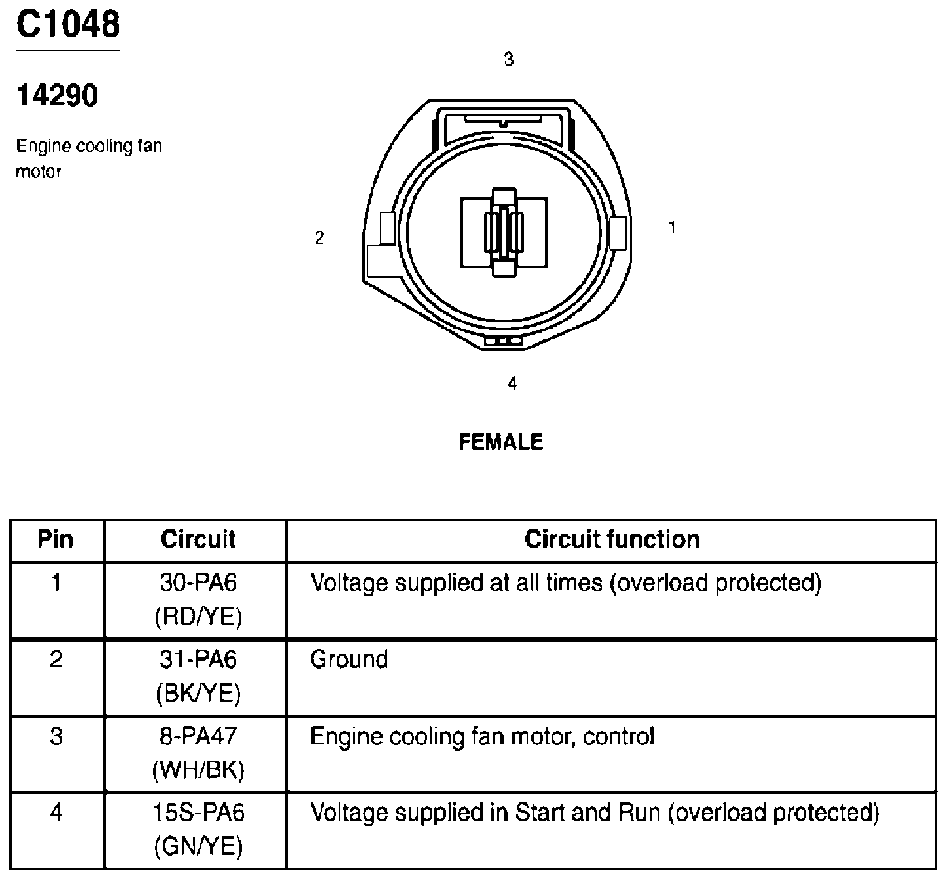

Fig 309: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.

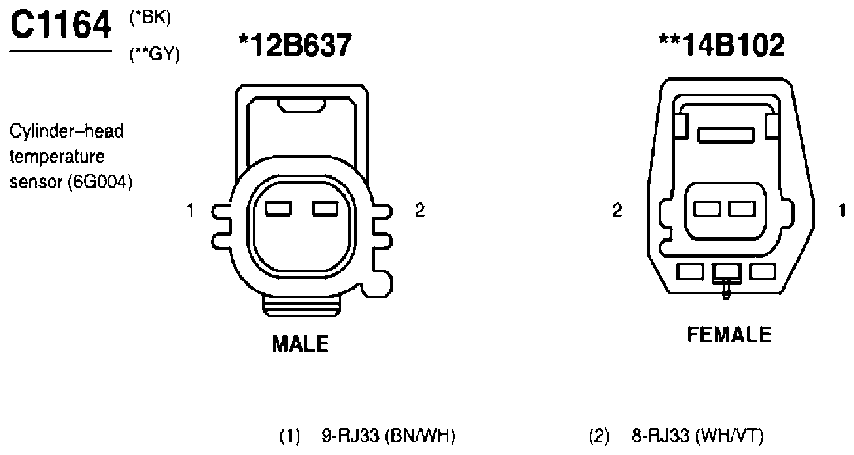

Fig 310: Cylinder-Head Temperature Sensor Connector End View (C1164)
Courtesy of FORD MOTOR CO.

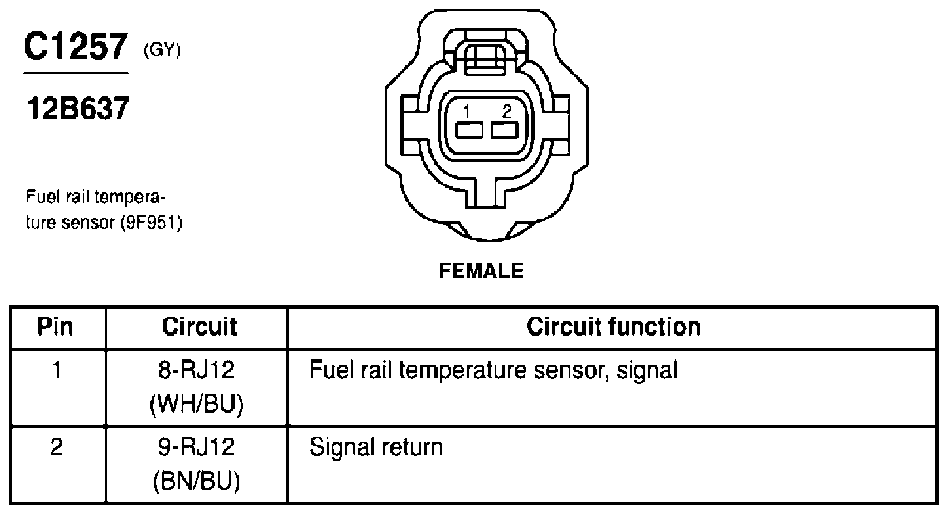

Fig 311: Fuel Rail Temperature Sensor Connector End View (C1257)
Courtesy of FORD MOTOR CO.

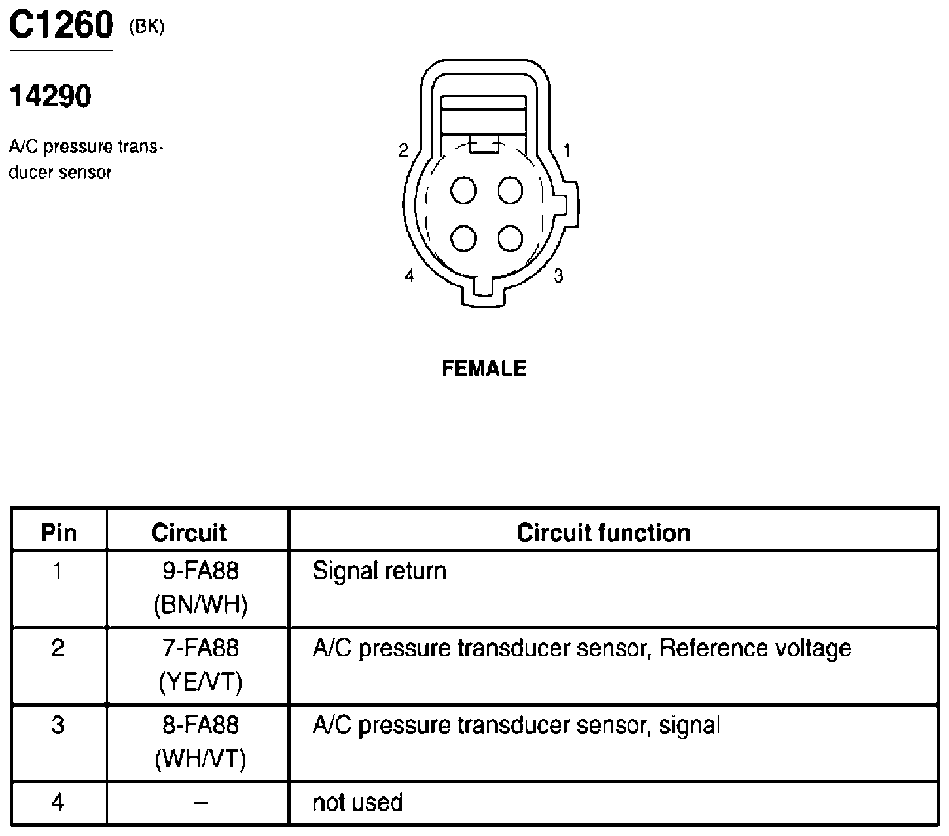

Fig 312: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.

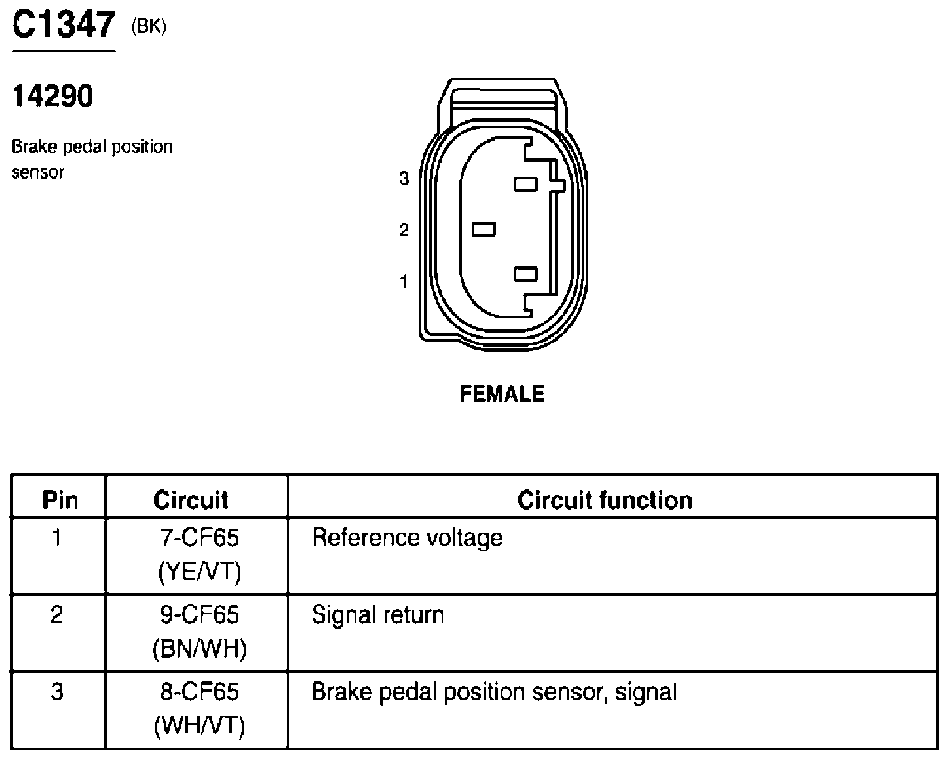

Fig 313: Brake Pedal Position Sensor Connector End View (C1347)
Courtesy of FORD MOTOR CO.

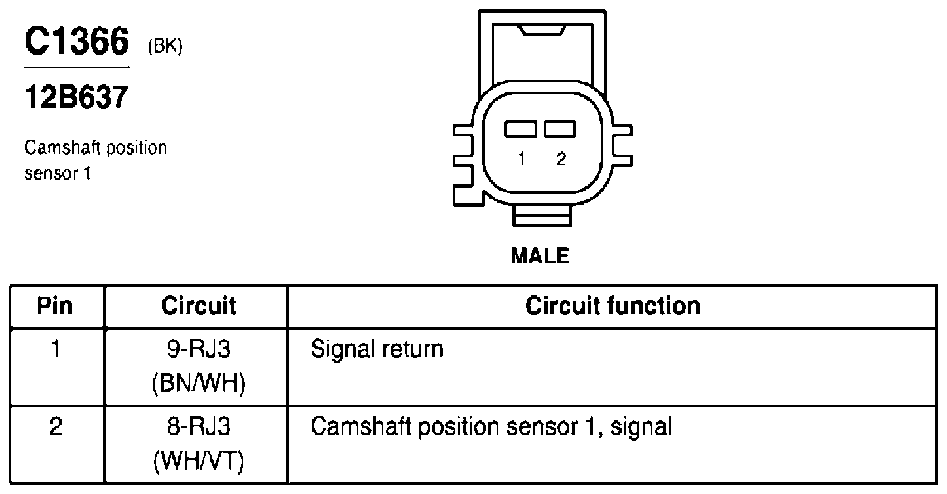

Fig 314: Camshaft Position Sensor 1 Connector End View (C1366)
Courtesy of FORD MOTOR CO.

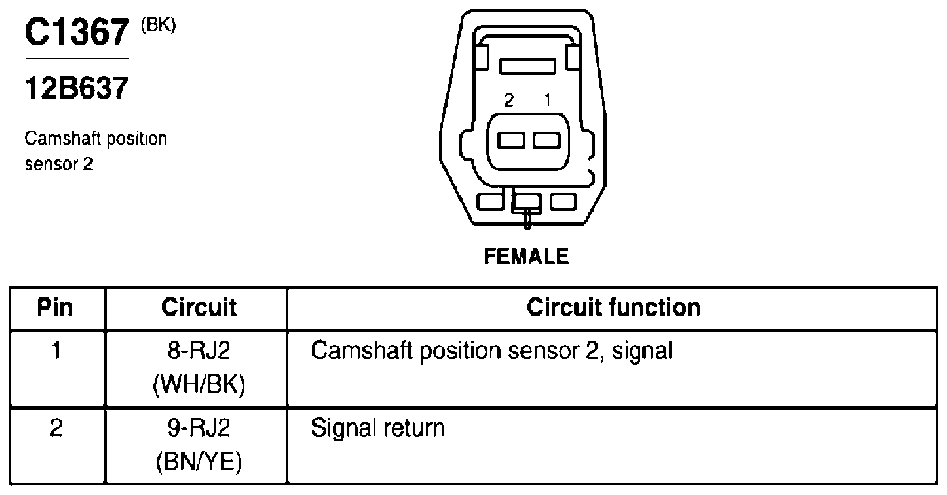

Fig 315: Camshaft Position Sensor 2 Connector End View (C1367)
Courtesy of FORD MOTOR CO.

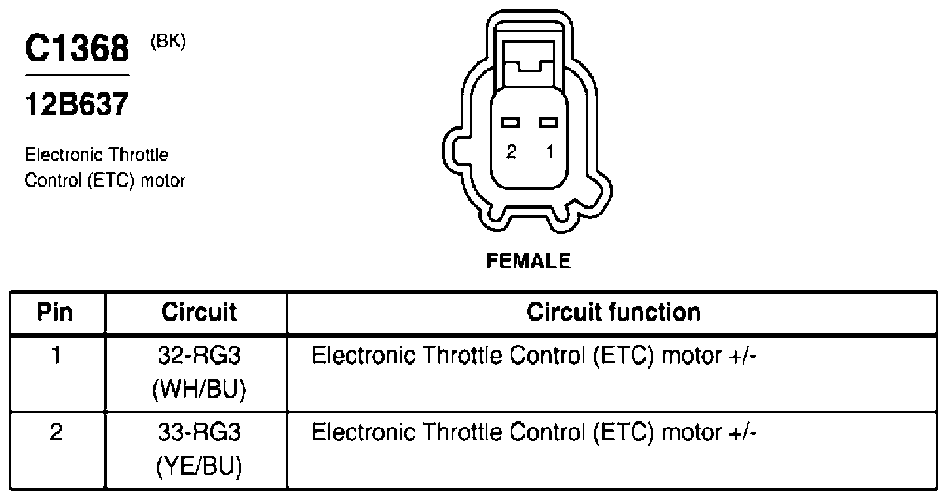

Fig 316: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
Courtesy of FORD MOTOR CO.

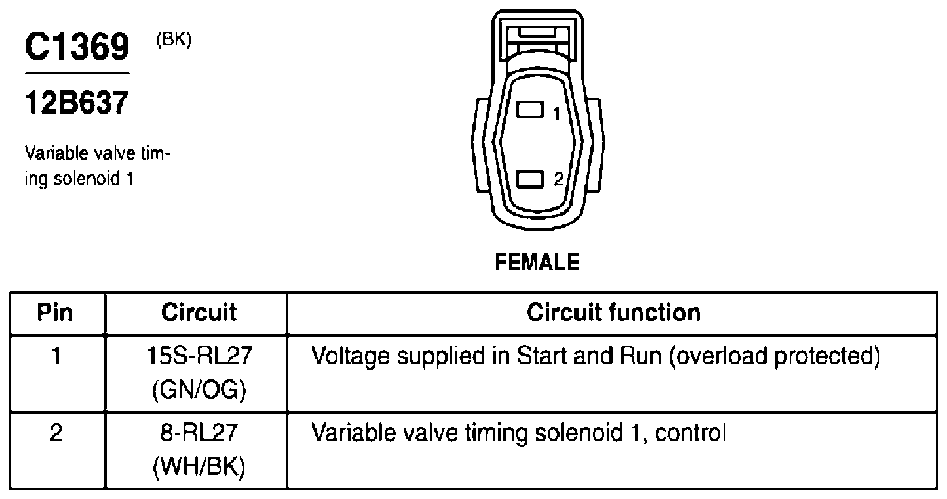

Fig 317: Variable Valve Timing Solenoid 1 Connector End View (C1369)
Courtesy of FORD MOTOR CO.

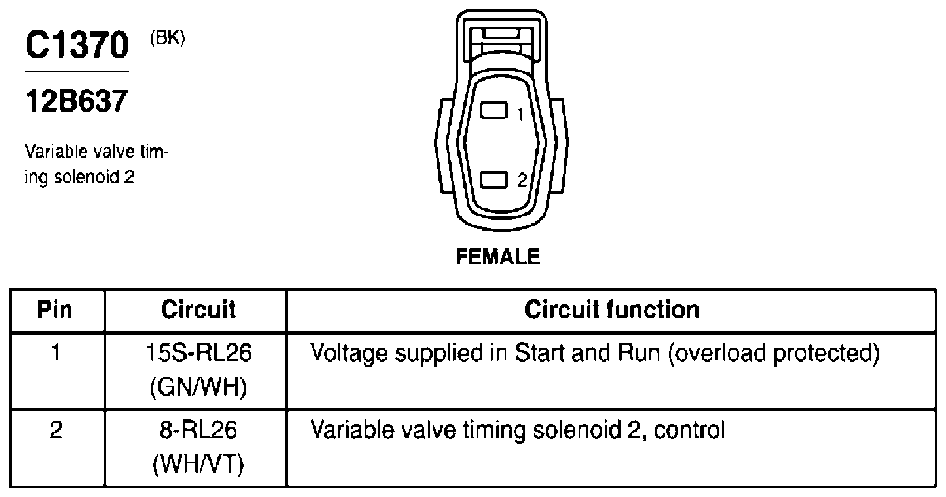

Fig 318: Variable Valve Timing Solenoid 2 Connector End View (C1370)
Courtesy of FORD MOTOR CO.

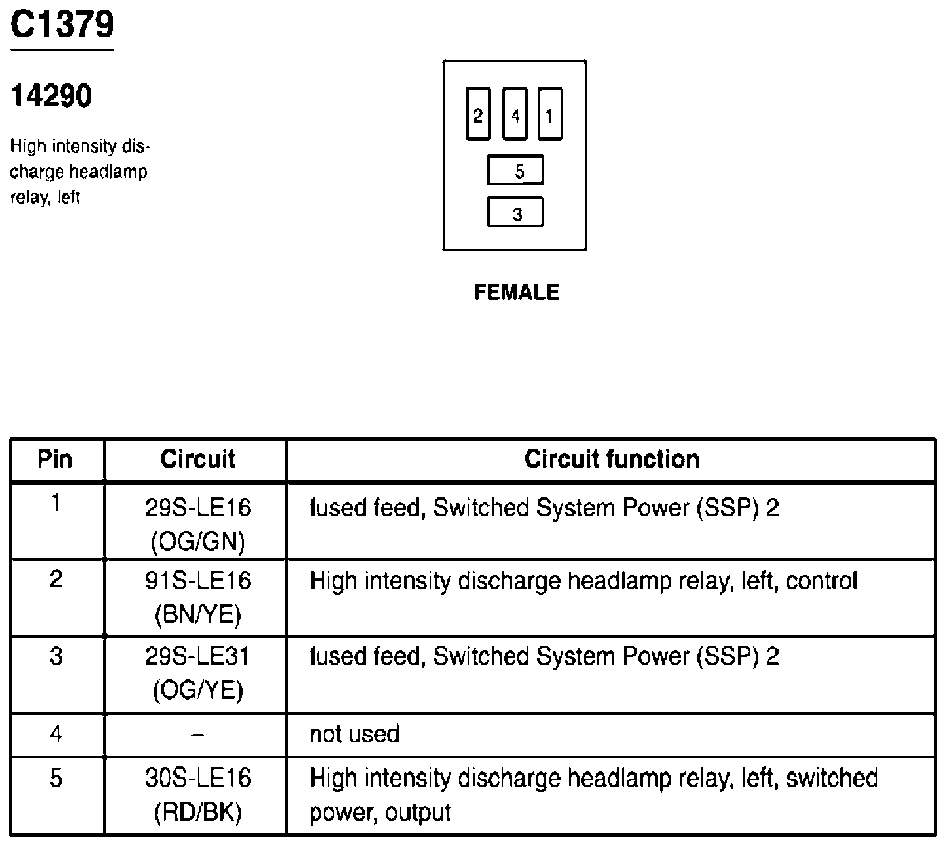

Fig 319: High Intensity Discharge Headlamp Relay, Left Connector End View (C1379)
Courtesy of FORD MOTOR CO.

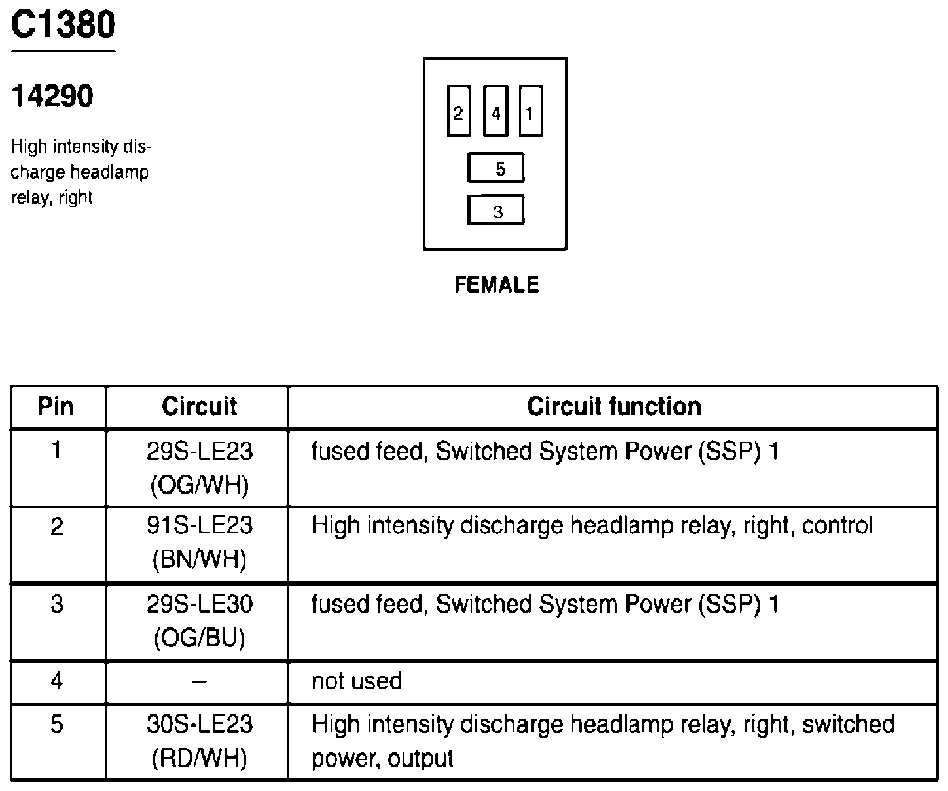

Fig 320: High Intensity Discharge Headlamp Relay, Right Connector End View (C1380)
Courtesy of FORD MOTOR CO.

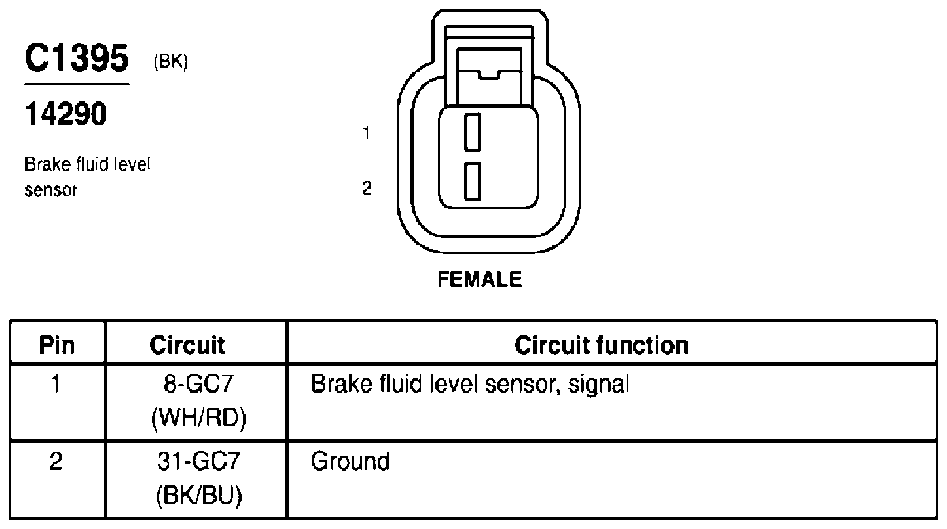

Fig 321: Brake Fluid Level Sensor Connector End View (C1395)
Courtesy of FORD MOTOR CO.

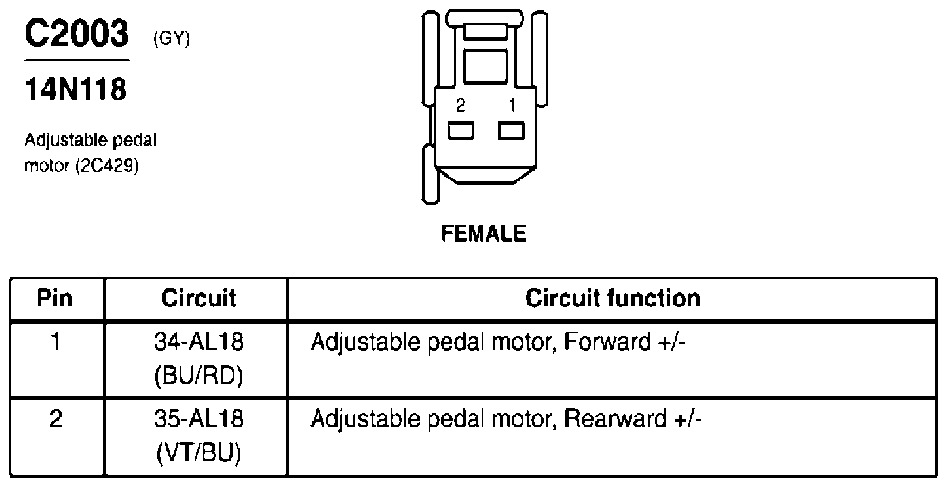

Fig 322: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

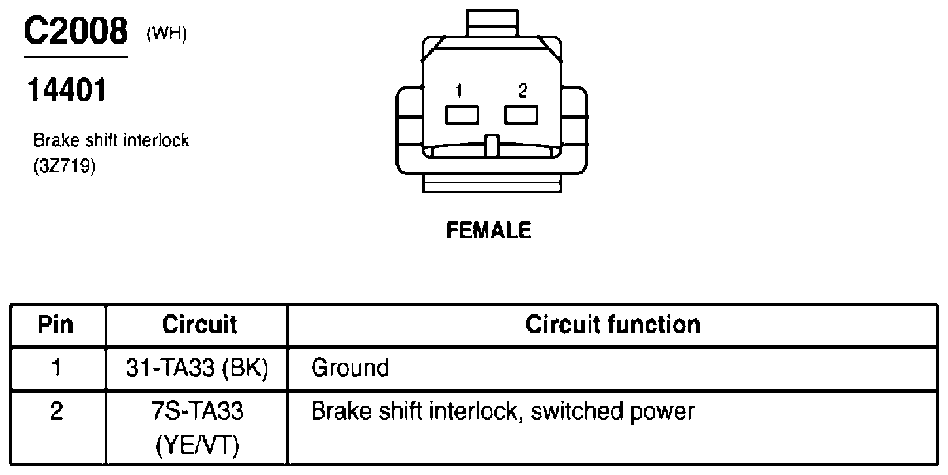

Fig 323: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

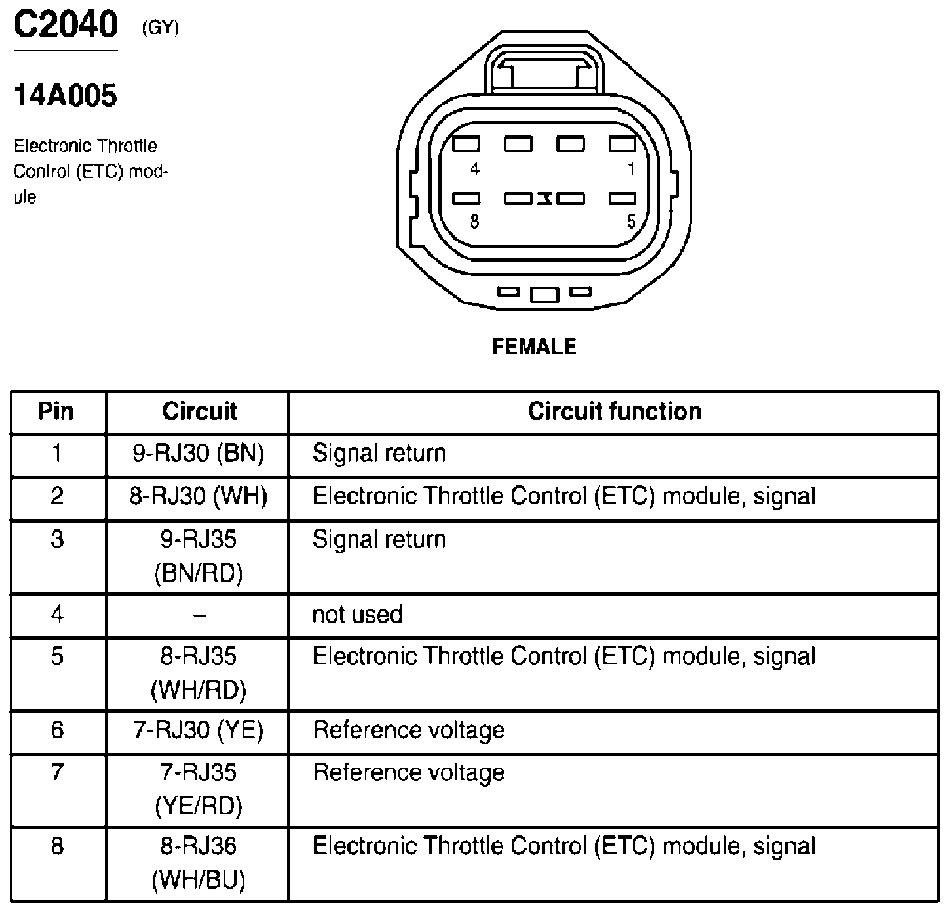

Fig 324: Electronic Throttle Control (ETC) Module Connector End View (C2040)
Courtesy of FORD MOTOR CO.

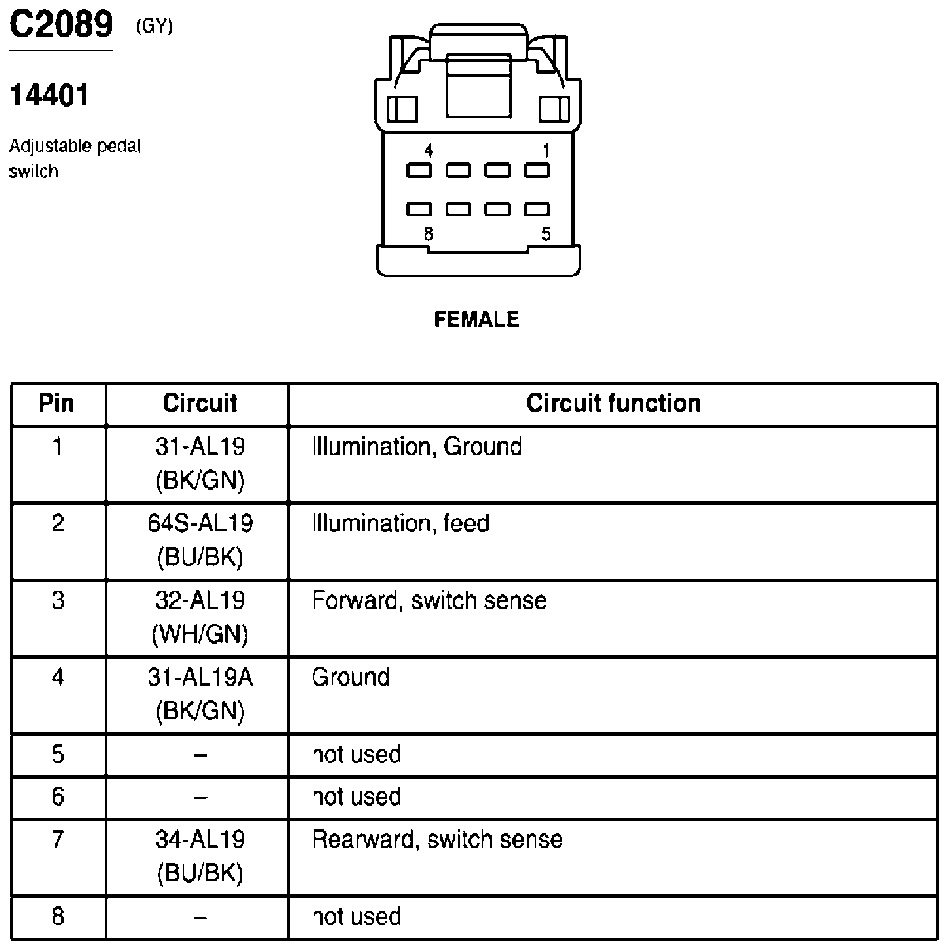

Fig 325: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

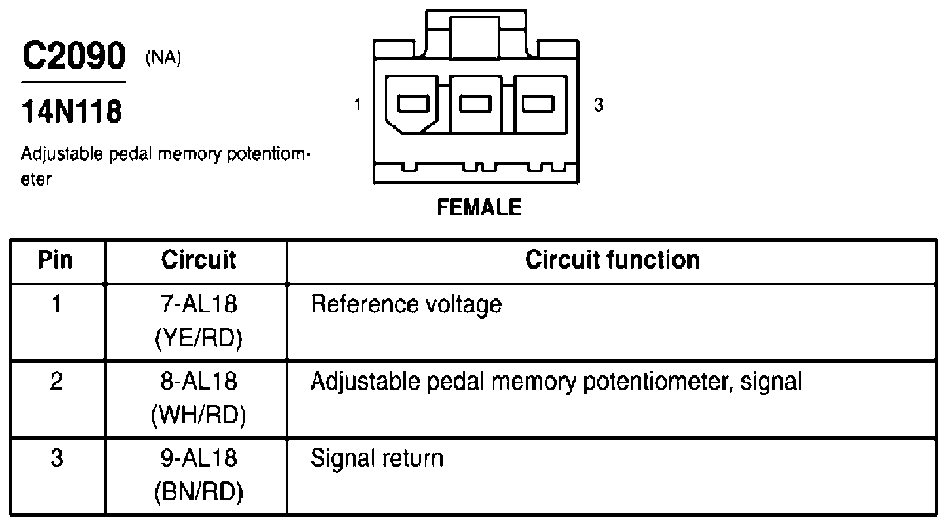

Fig 326: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.

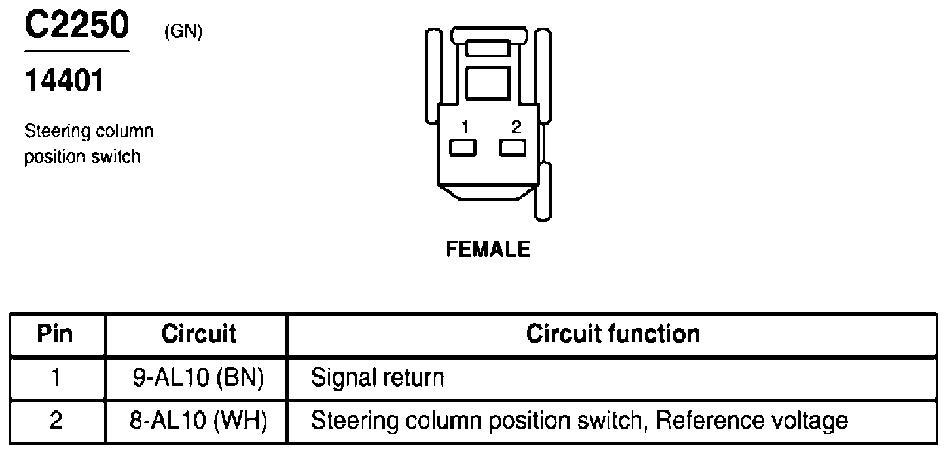

Fig 327: Steering Column Position Switch Connector End View (C2250)
Courtesy of FORD MOTOR CO.

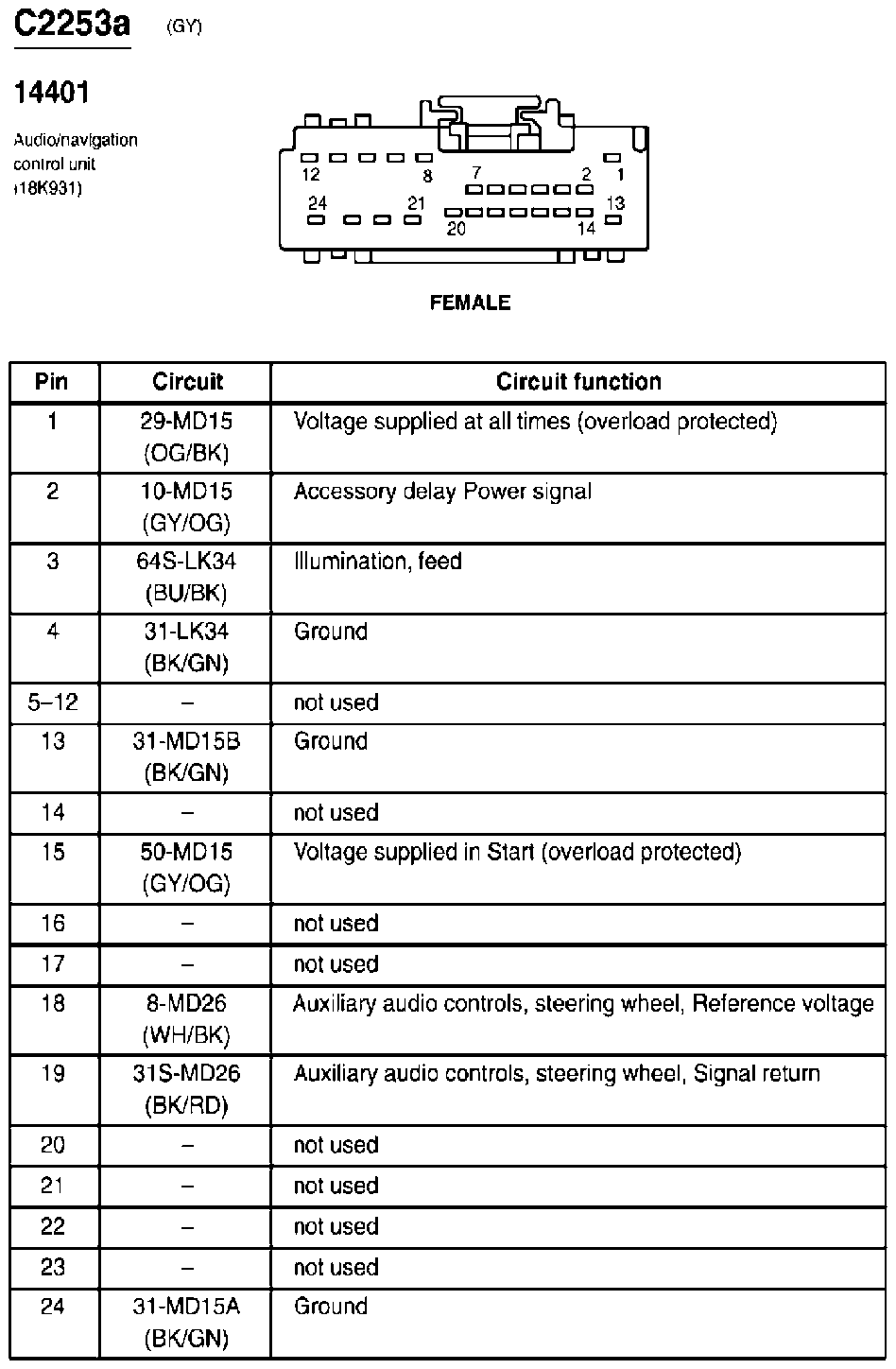

Fig 328: Audio/Navigation Control Unit Connector End View (C2253a)
Courtesy of FORD MOTOR CO.

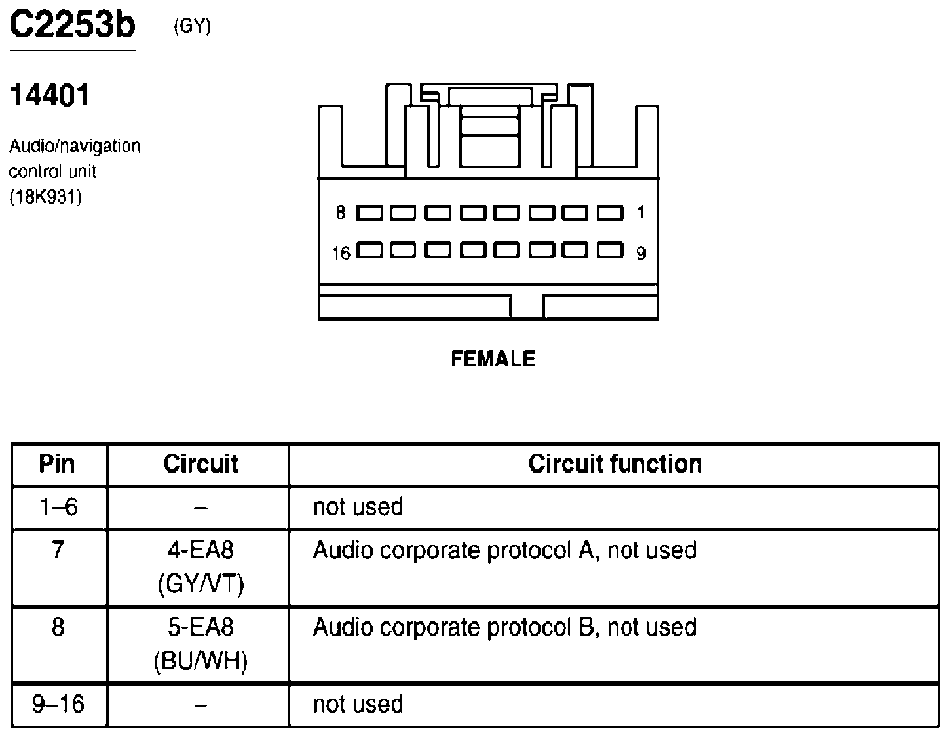

Fig 329: Audio/Navigation Control Unit Connector End View (C2253b)
Courtesy of FORD MOTOR CO.

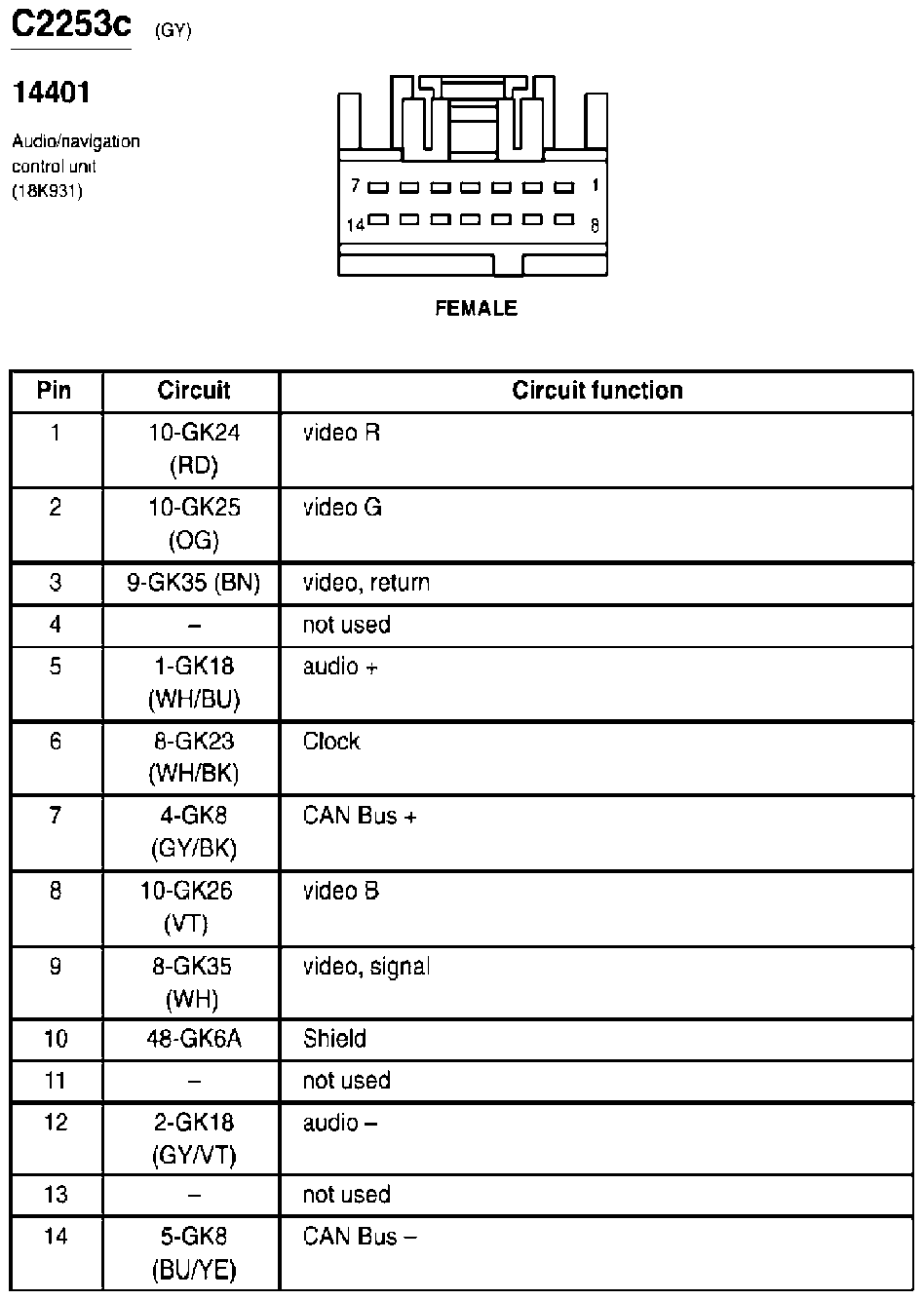

Fig 330: Audio/Navigation Control Unit Connector End View (C2253c)
Courtesy of FORD MOTOR CO.

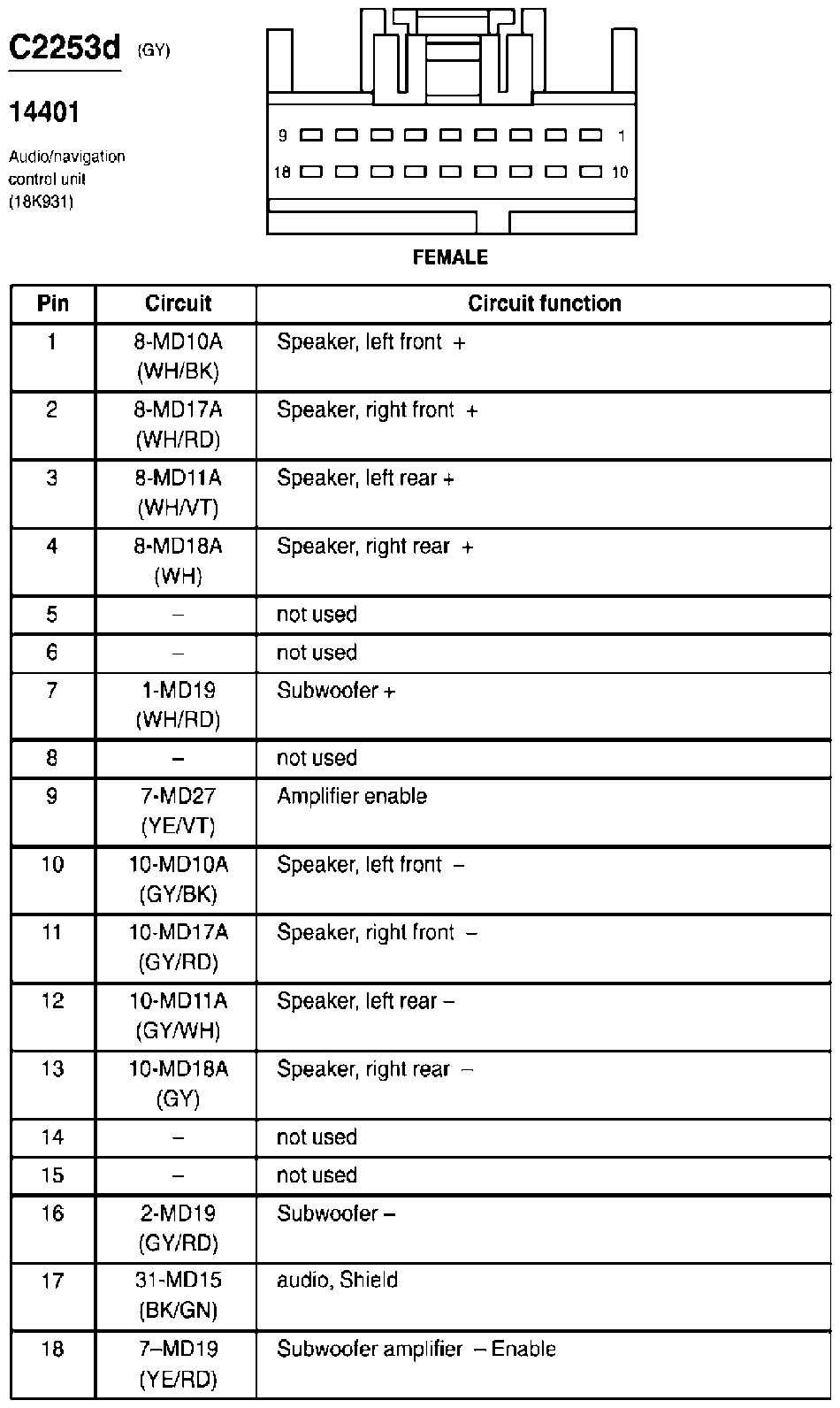

Fig 331: Audio/Navigation Control Unit Connector End View (C2253d)
Courtesy of FORD MOTOR CO.

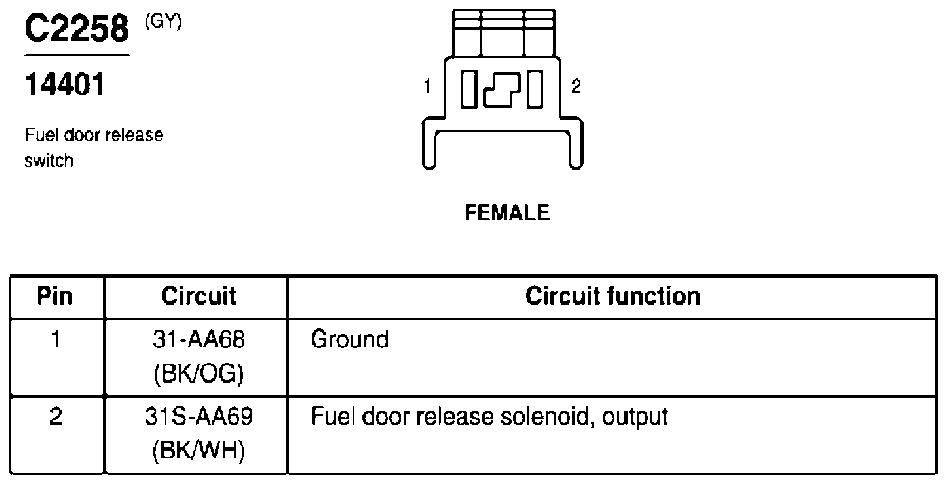

Fig 332: Fuel Door Release Switch Connector End View (C2258)
Courtesy of FORD MOTOR CO.

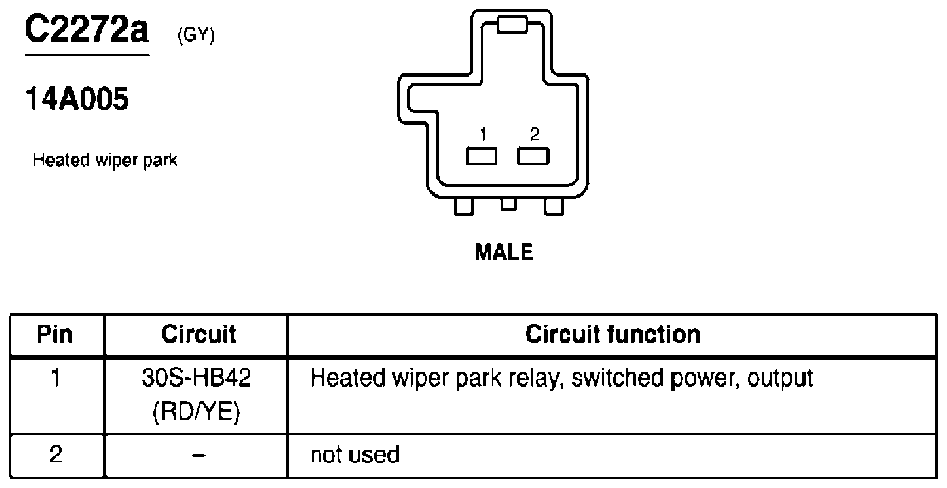

Fig 333: Heated Wiper Park Connector End View (C2272a)
Courtesy of FORD MOTOR CO.

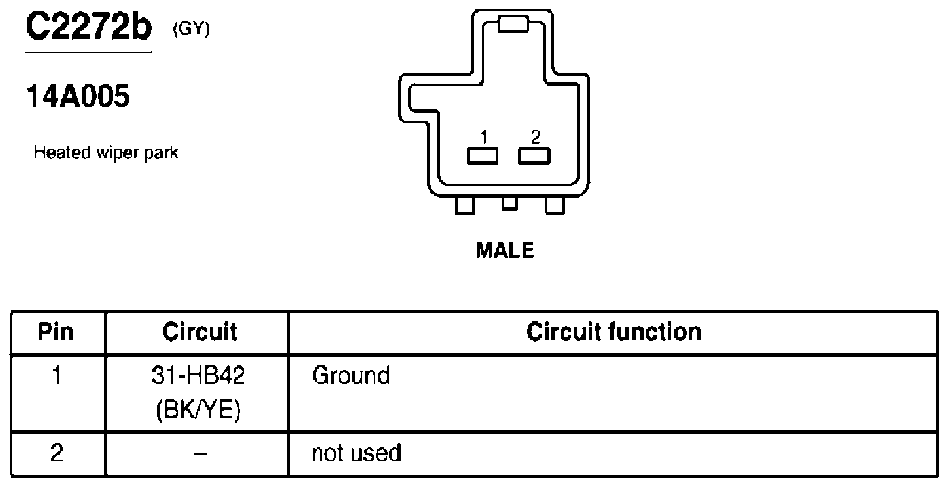

Fig 334: Heated Wiper Park Connector End View (C2272b)
Courtesy of FORD MOTOR CO.

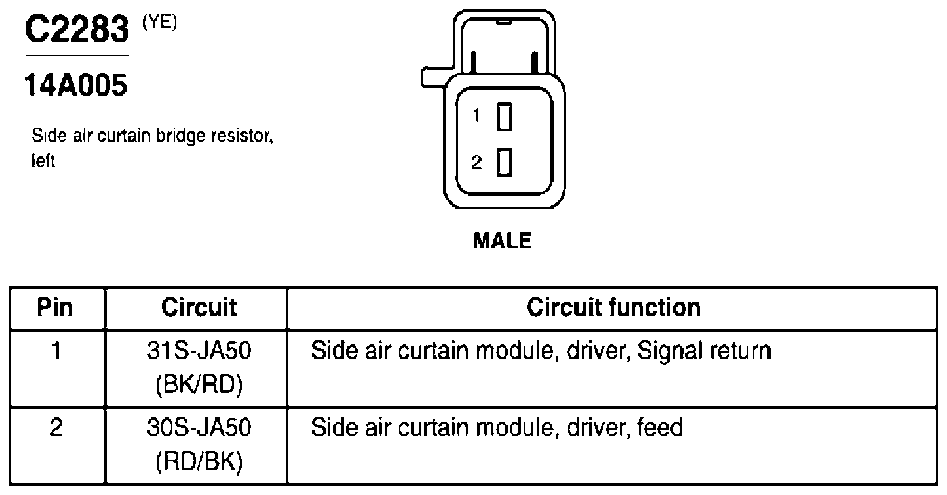

Fig 335: Side Air Curtain Bridge Resistor, Left Connector End View (C2283)
Courtesy of FORD MOTOR CO.

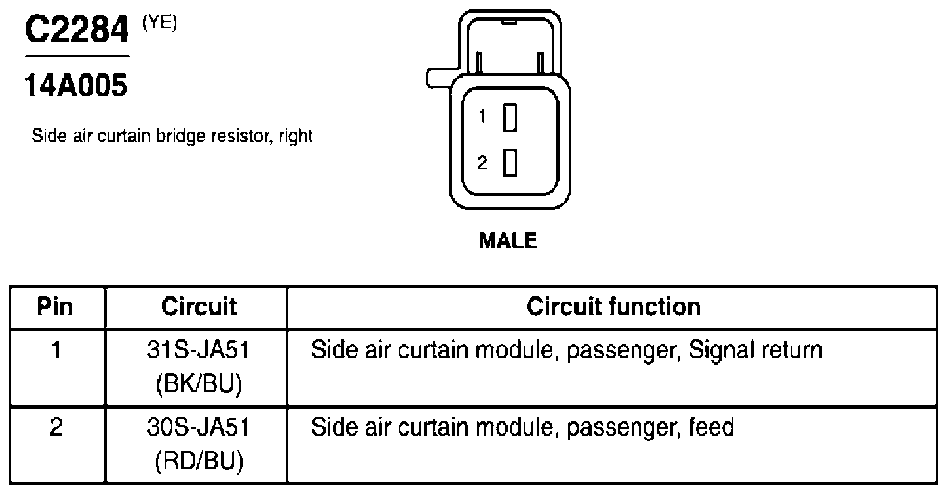

Fig 336: Side Air Curtain Bridge Resistor, Right Connector End View (C2284)
Courtesy of FORD MOTOR CO.

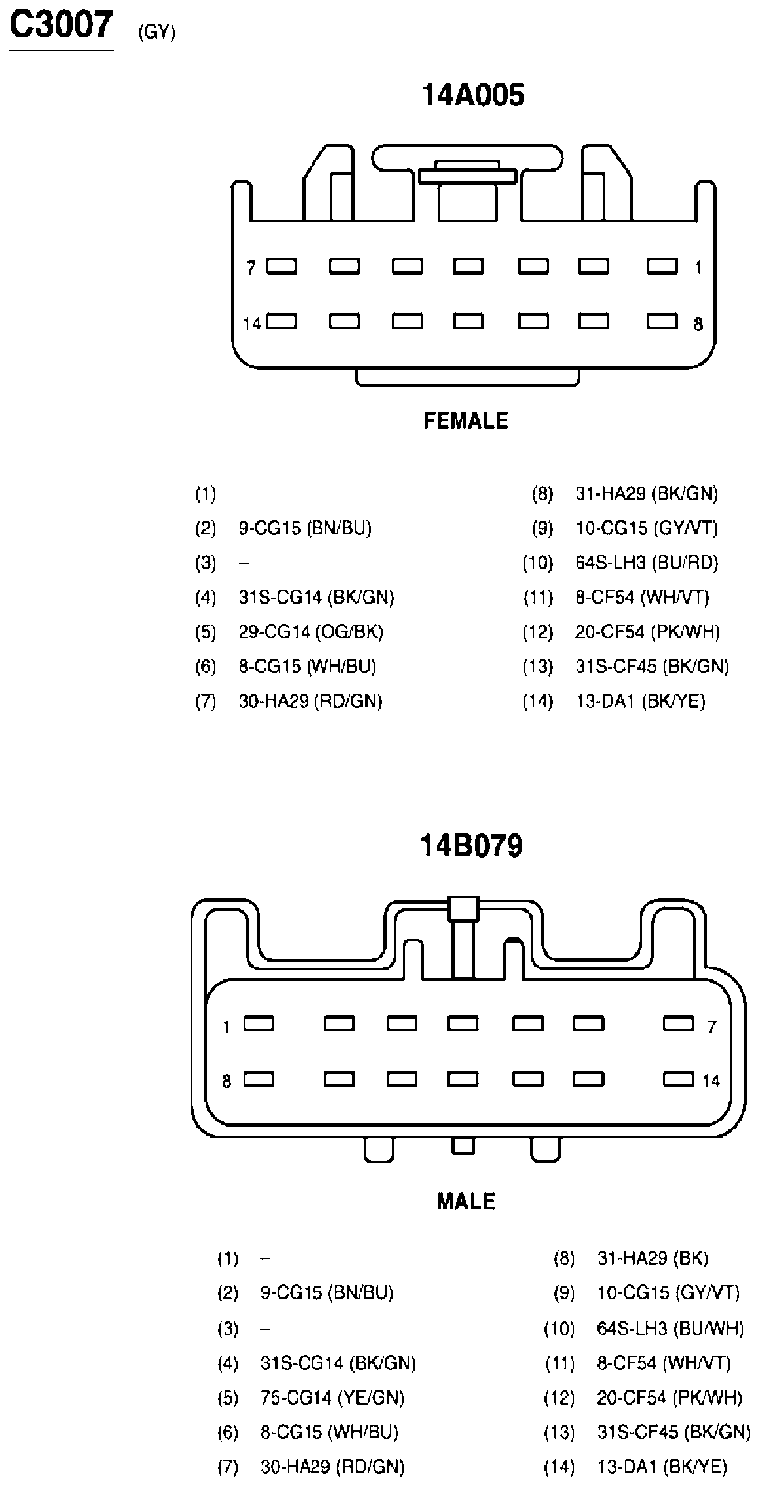

Fig 337: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.

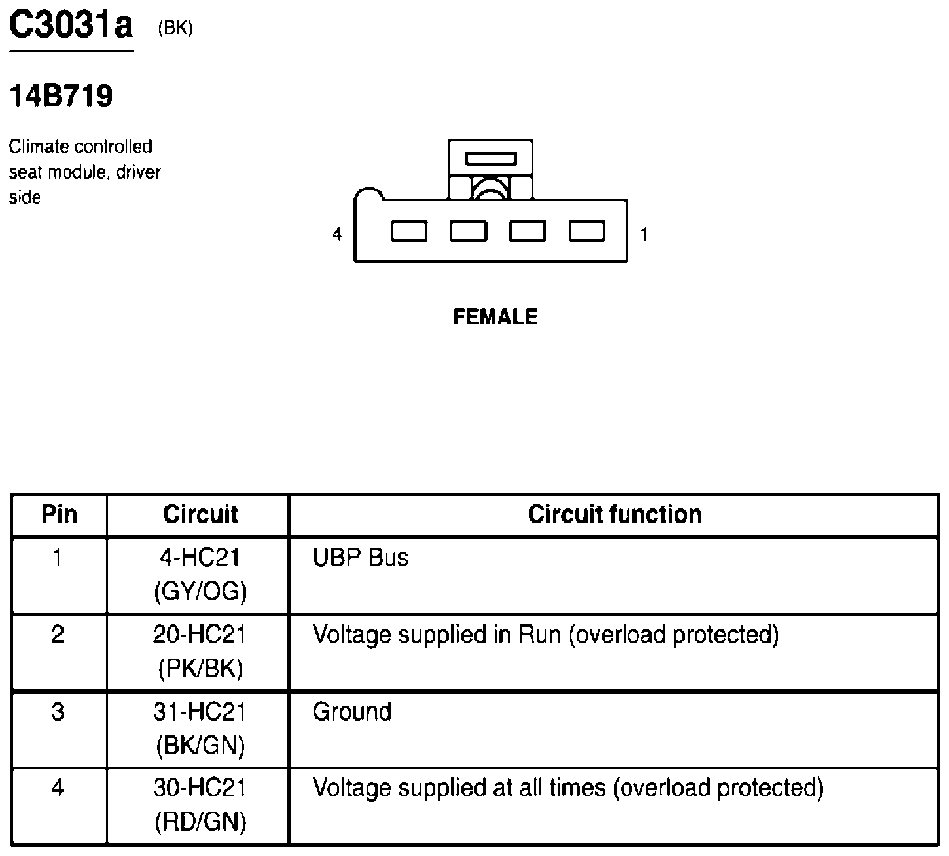

Fig 338: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.

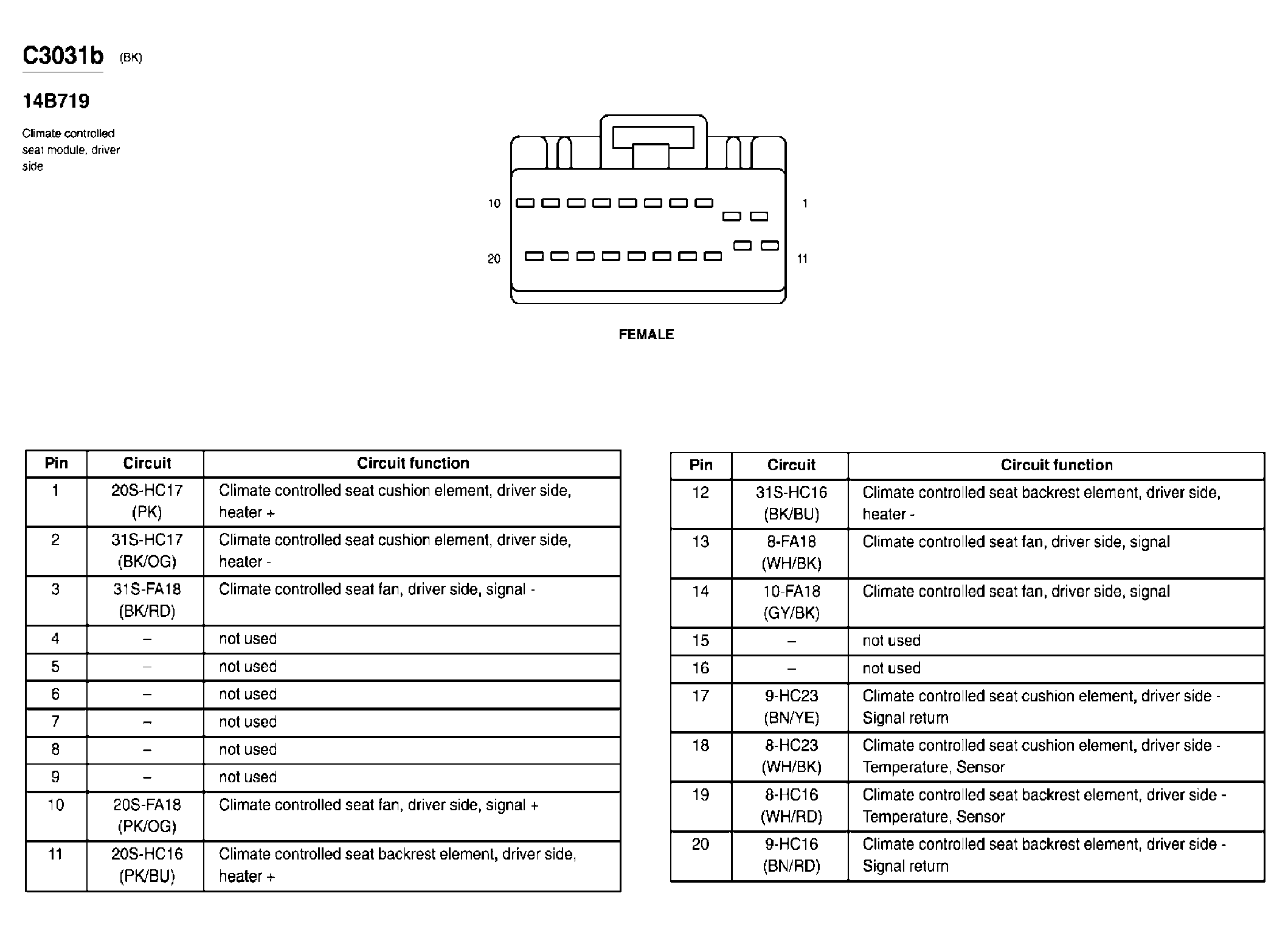

Fig 339: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
Courtesy of FORD MOTOR CO.

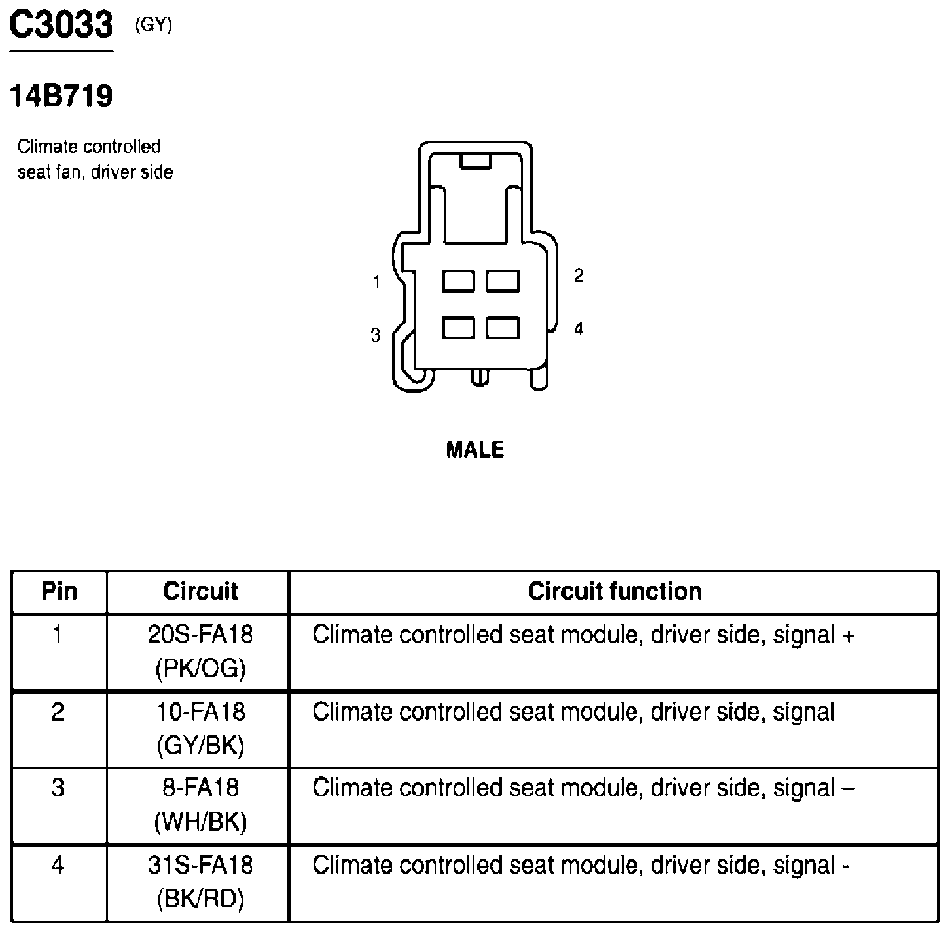

Fig 340: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.

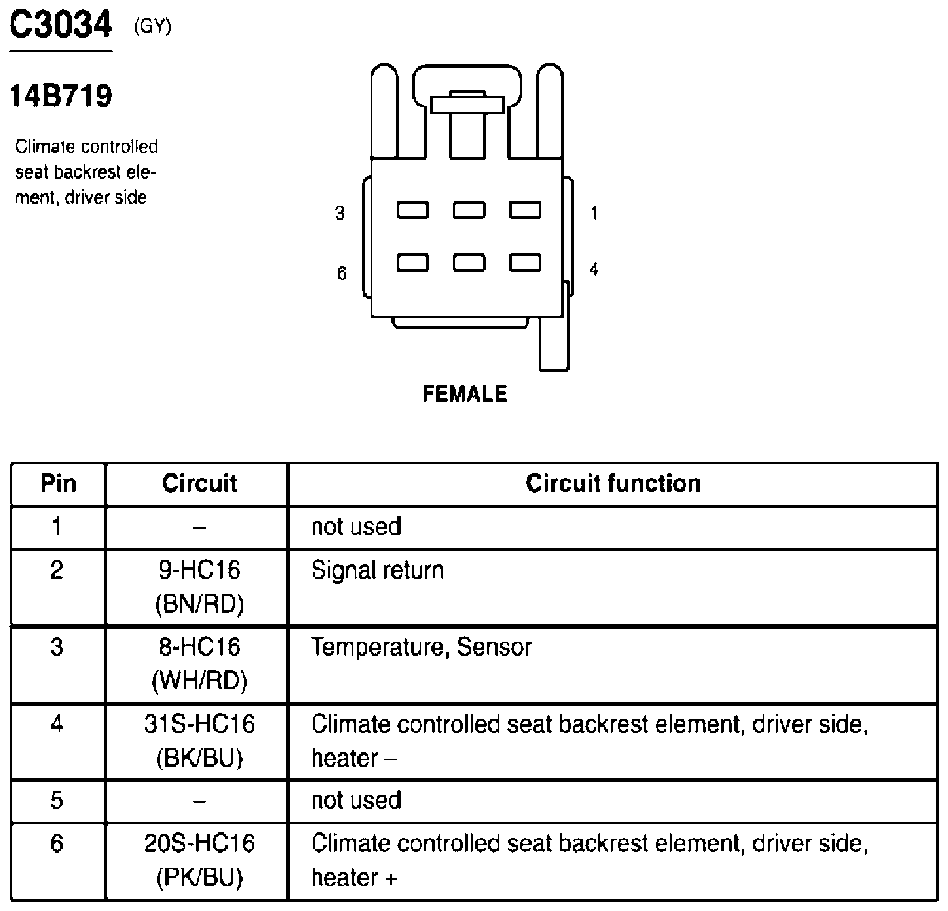

Fig 341: Climate Controlled Seat Backrest Element Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.

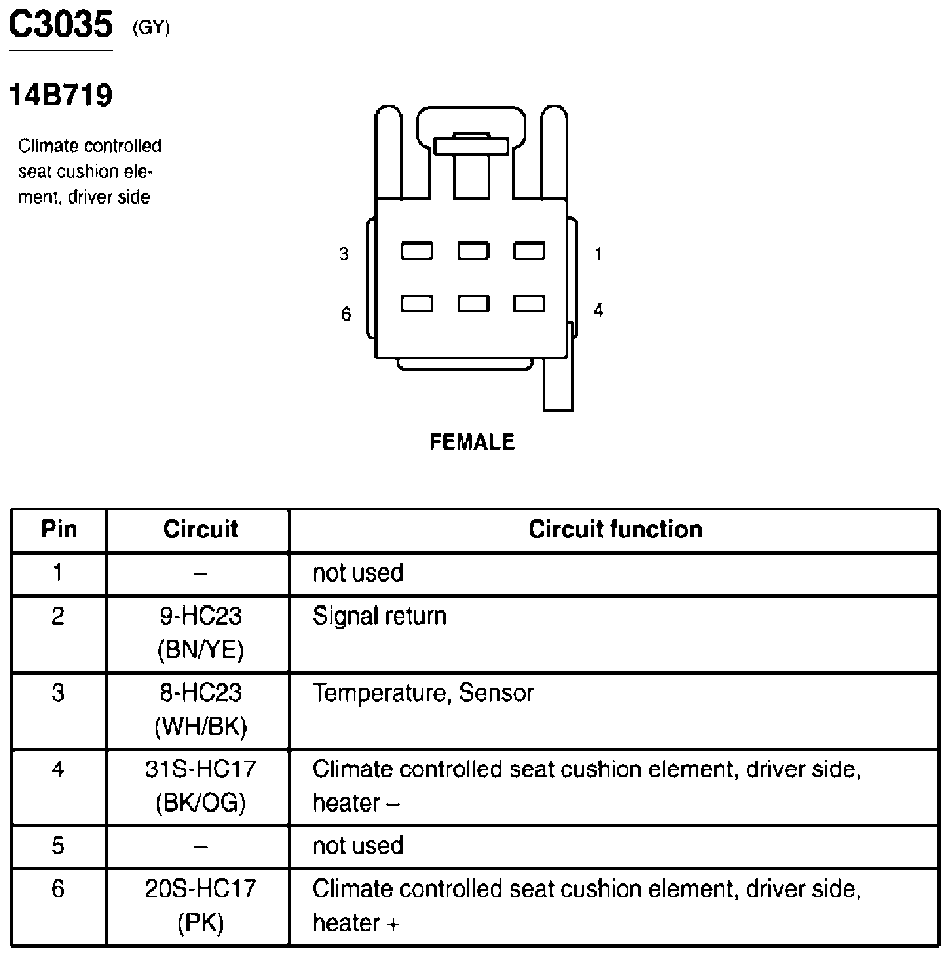

Fig 342: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.

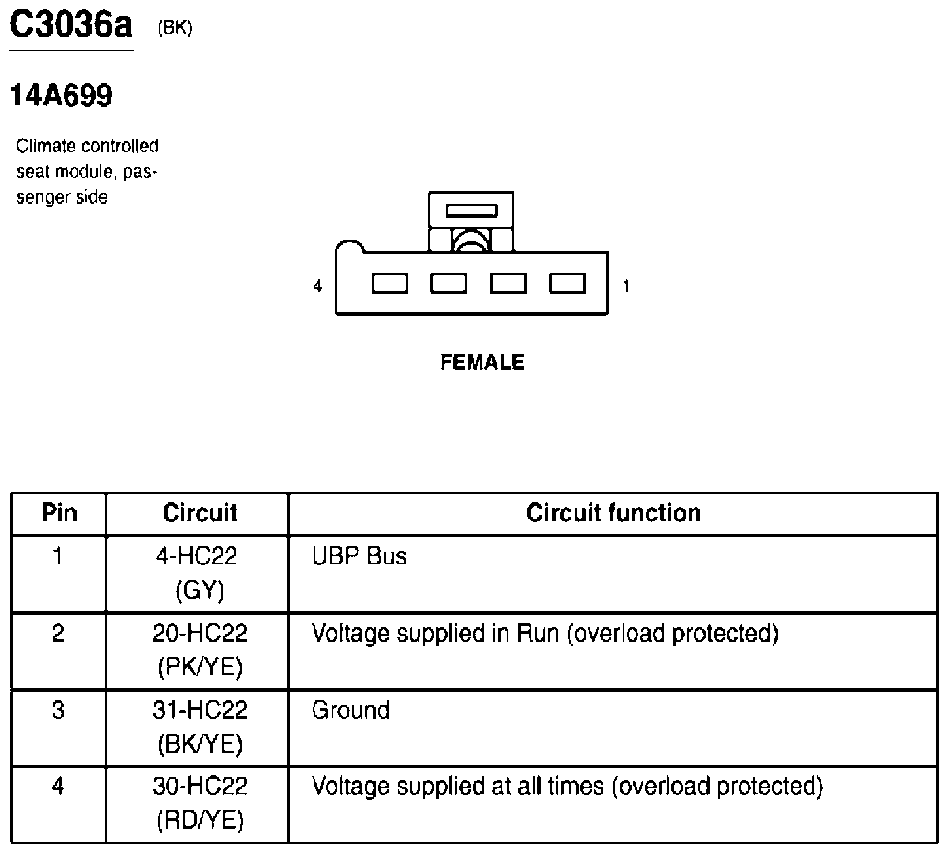

Fig 343: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
Courtesy of FORD MOTOR CO.

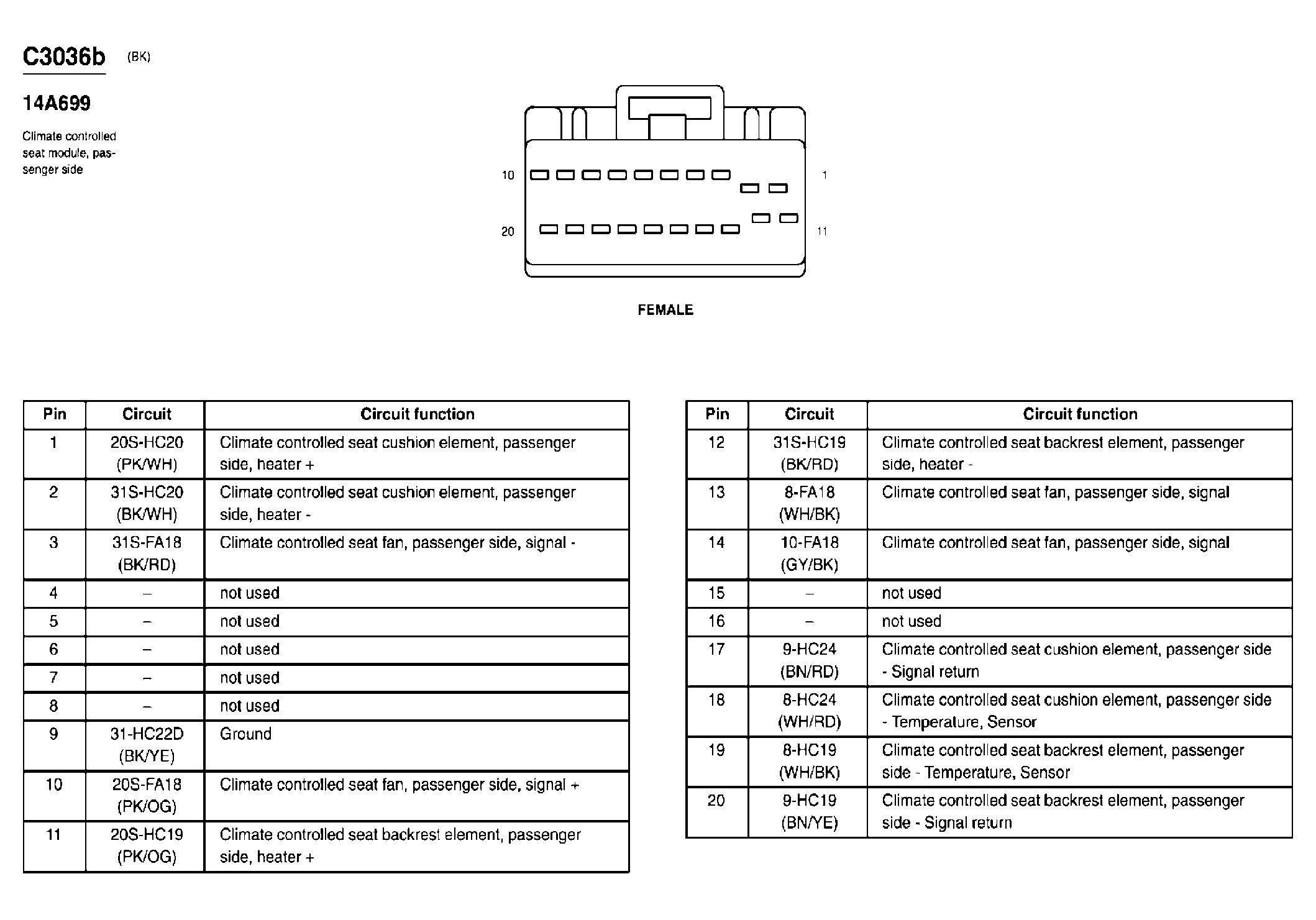

Fig 344: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
Courtesy of FORD MOTOR CO.

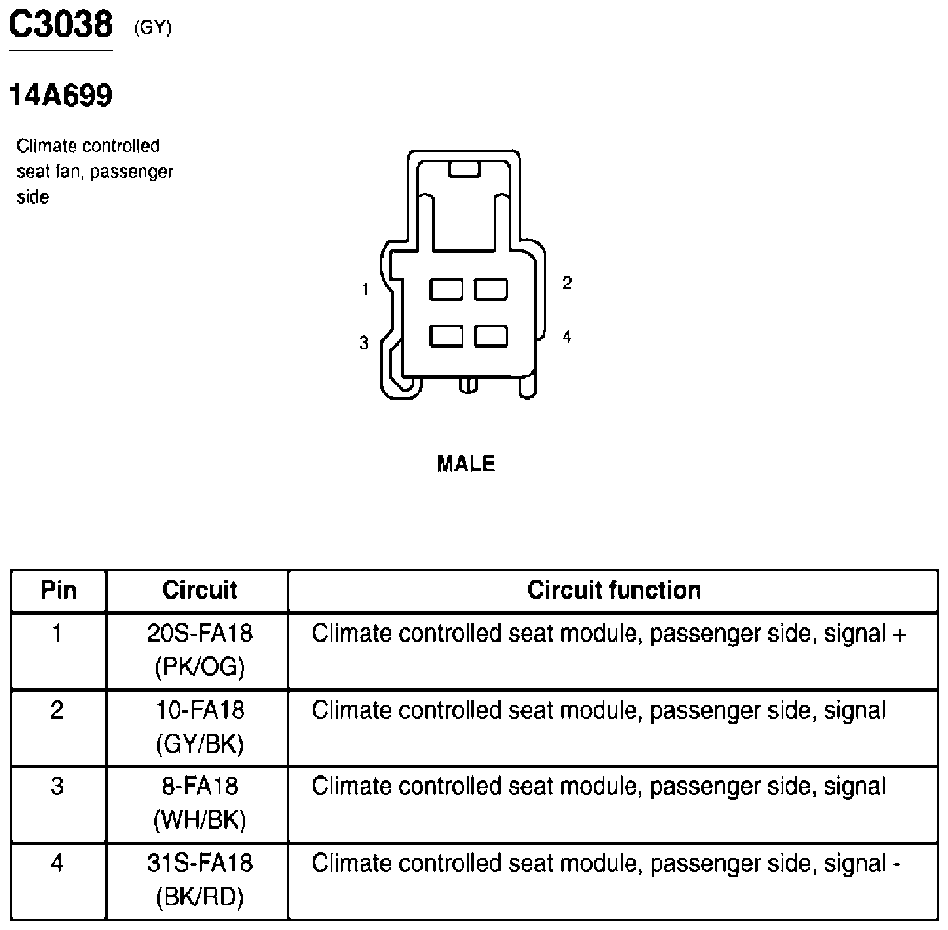

Fig 345: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.

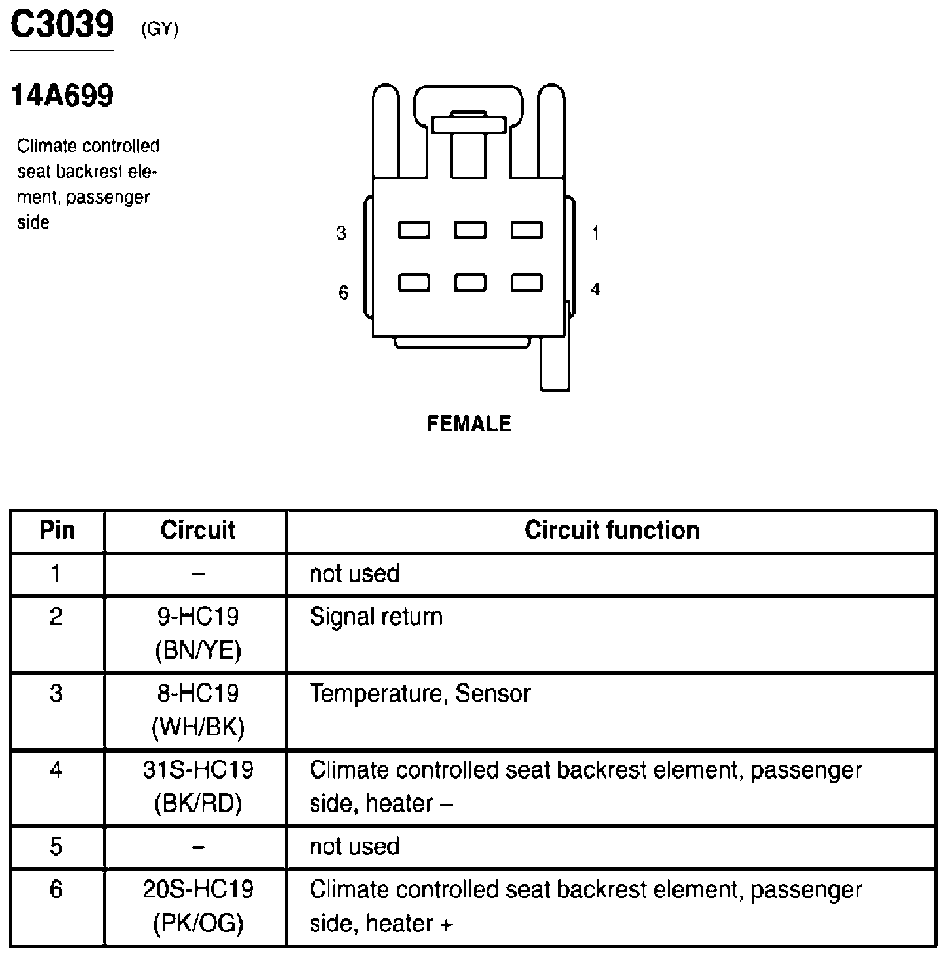

Fig 346: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.

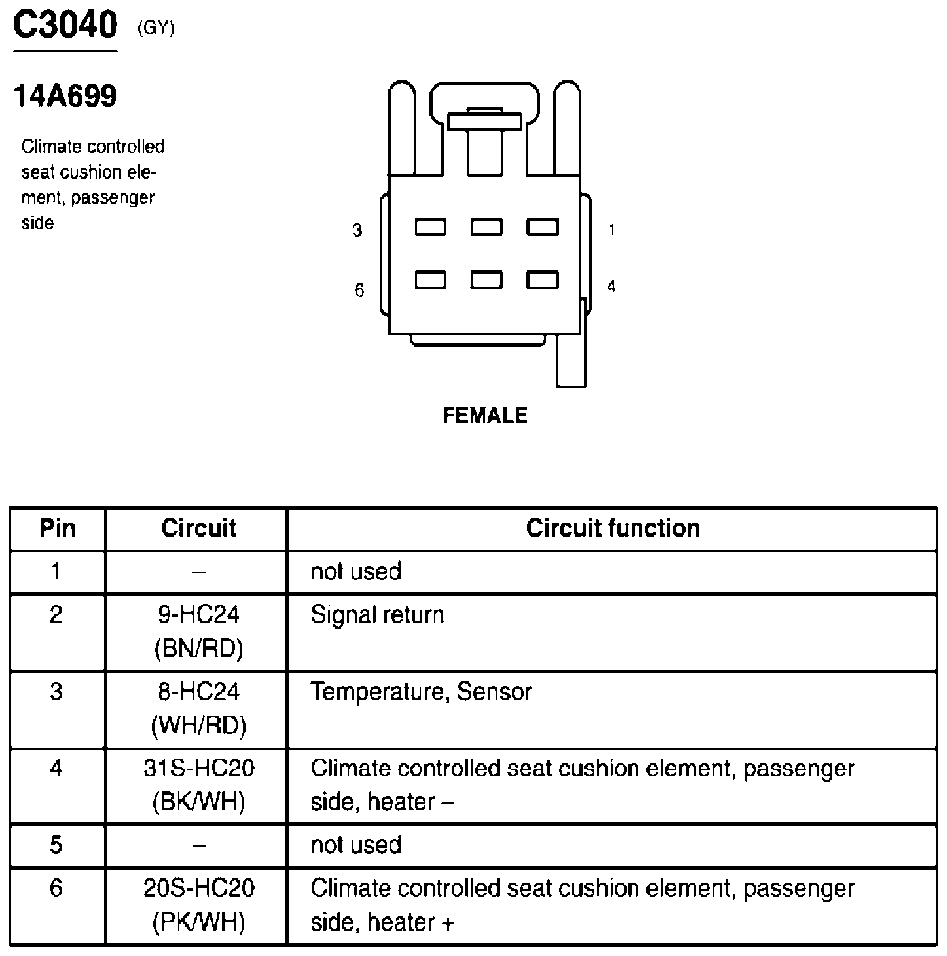

Fig 347: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.

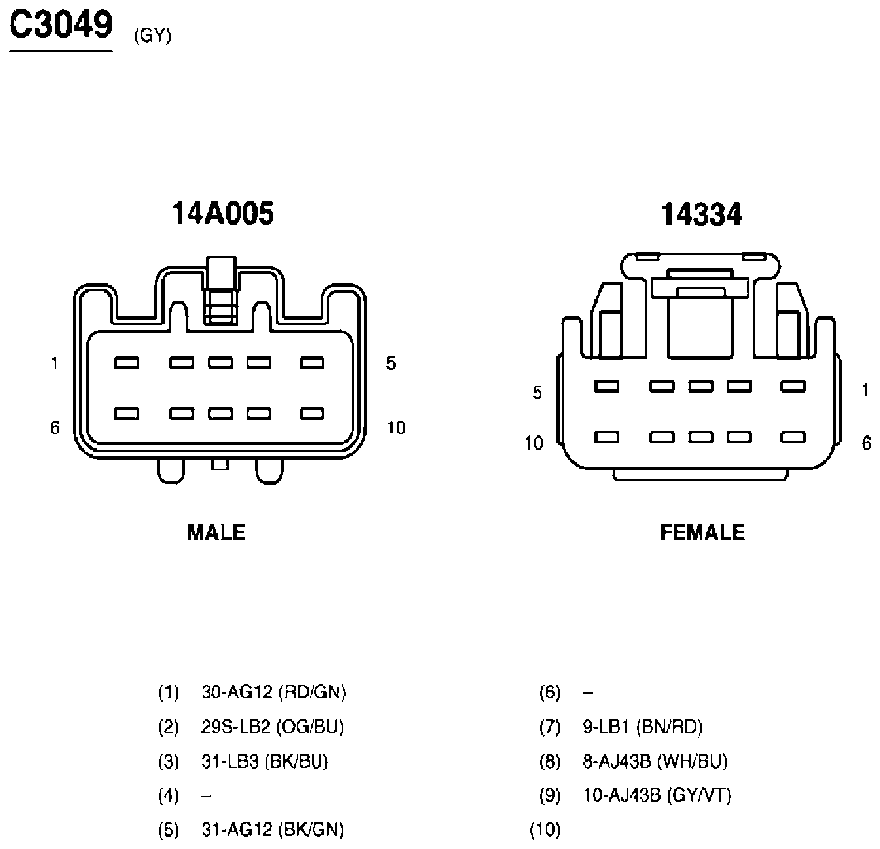

Fig 348: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.

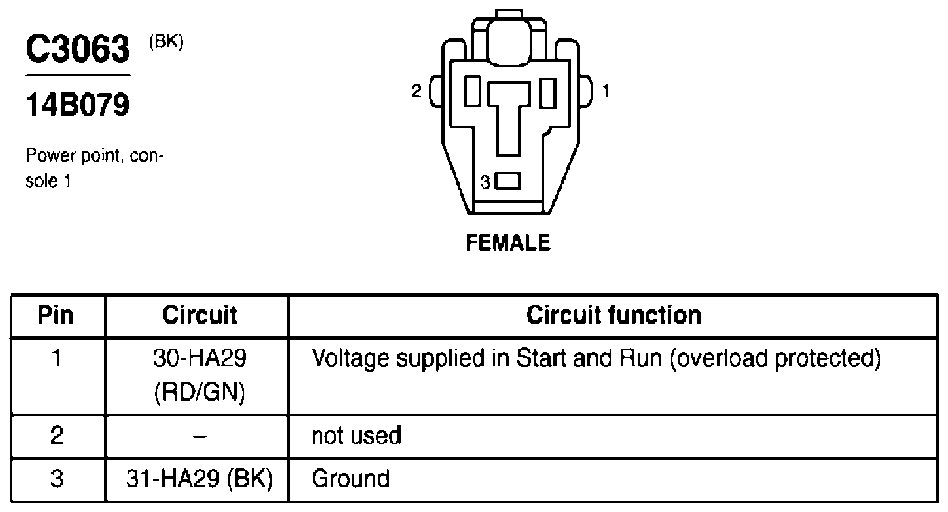

Fig 349: Power Point, Console 1 Connector End View (C3063)
Courtesy of FORD MOTOR CO.

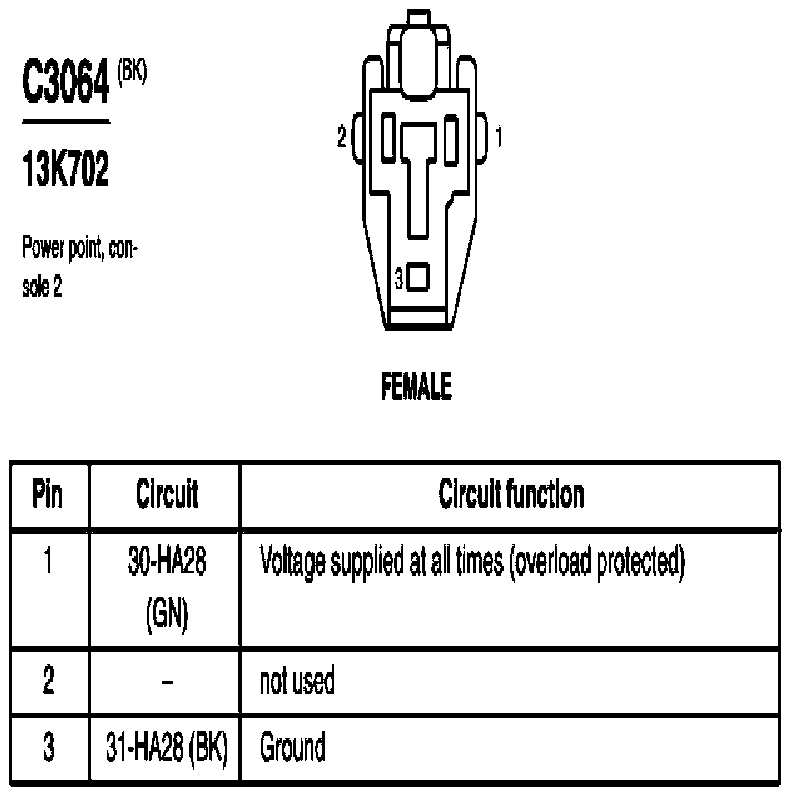

Fig 350: Power Point, Console 2 Connector End View (C3064)
Courtesy of FORD MOTOR CO.

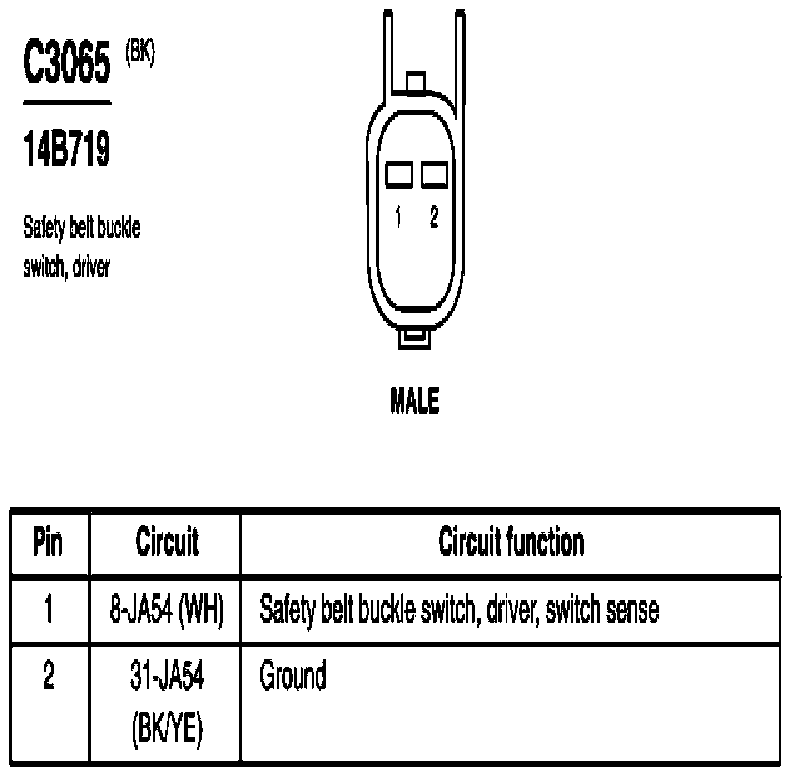

Fig 351: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.

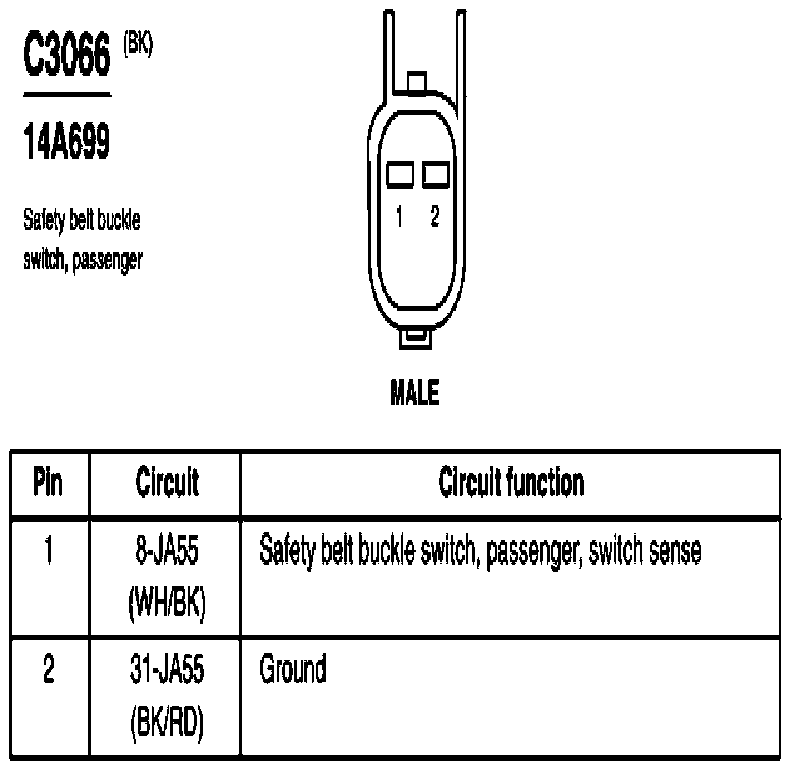

Fig 352: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

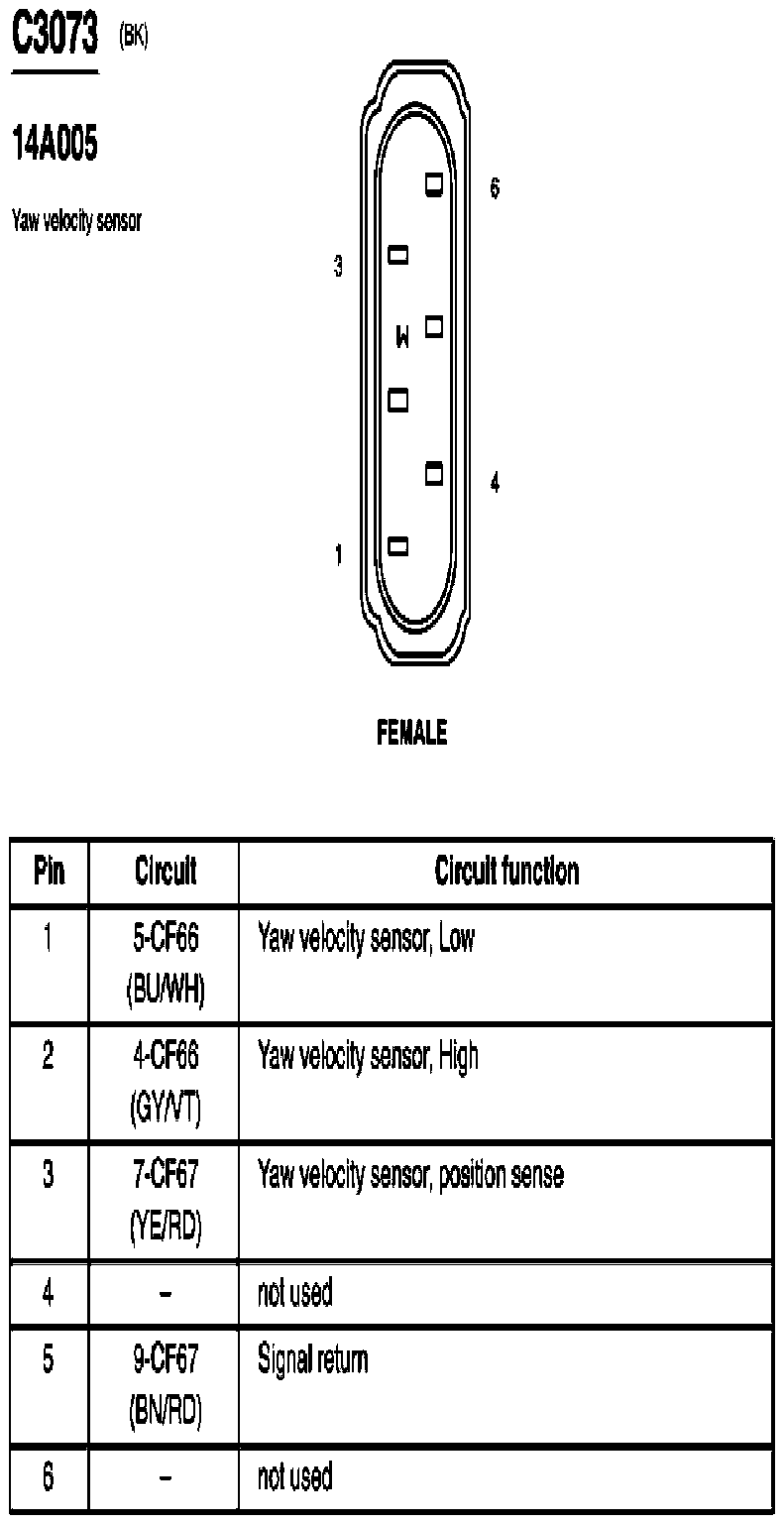

Fig 353: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.

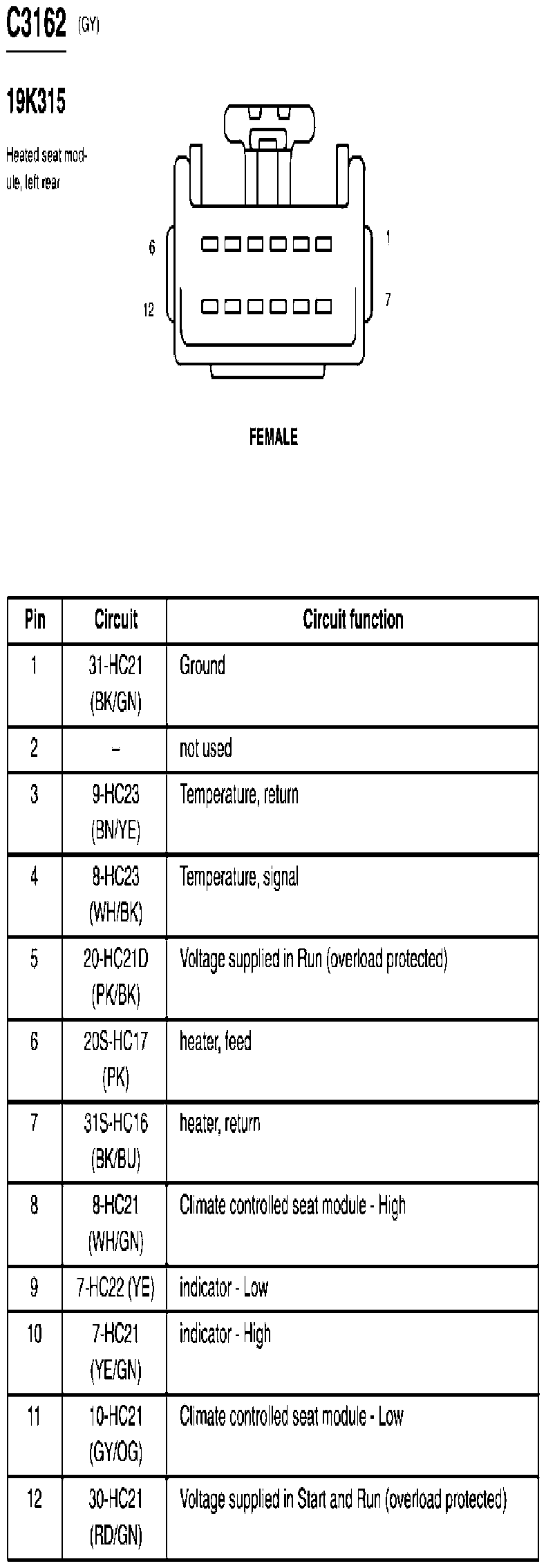

Fig 354: Heated Seat Module, Left Rear Connector End View (C3162)
Courtesy of FORD MOTOR CO.

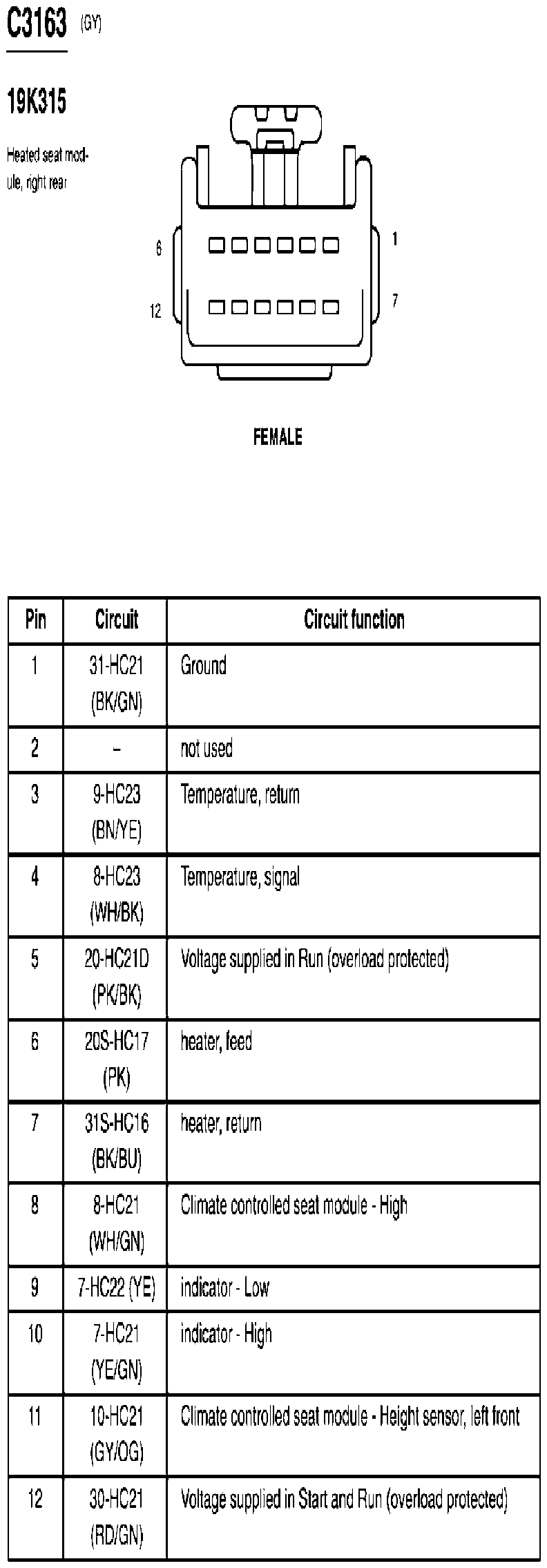

Fig 355: Heated Seat Module, Right Rear Connector End View (C3163)
Courtesy of FORD MOTOR CO.

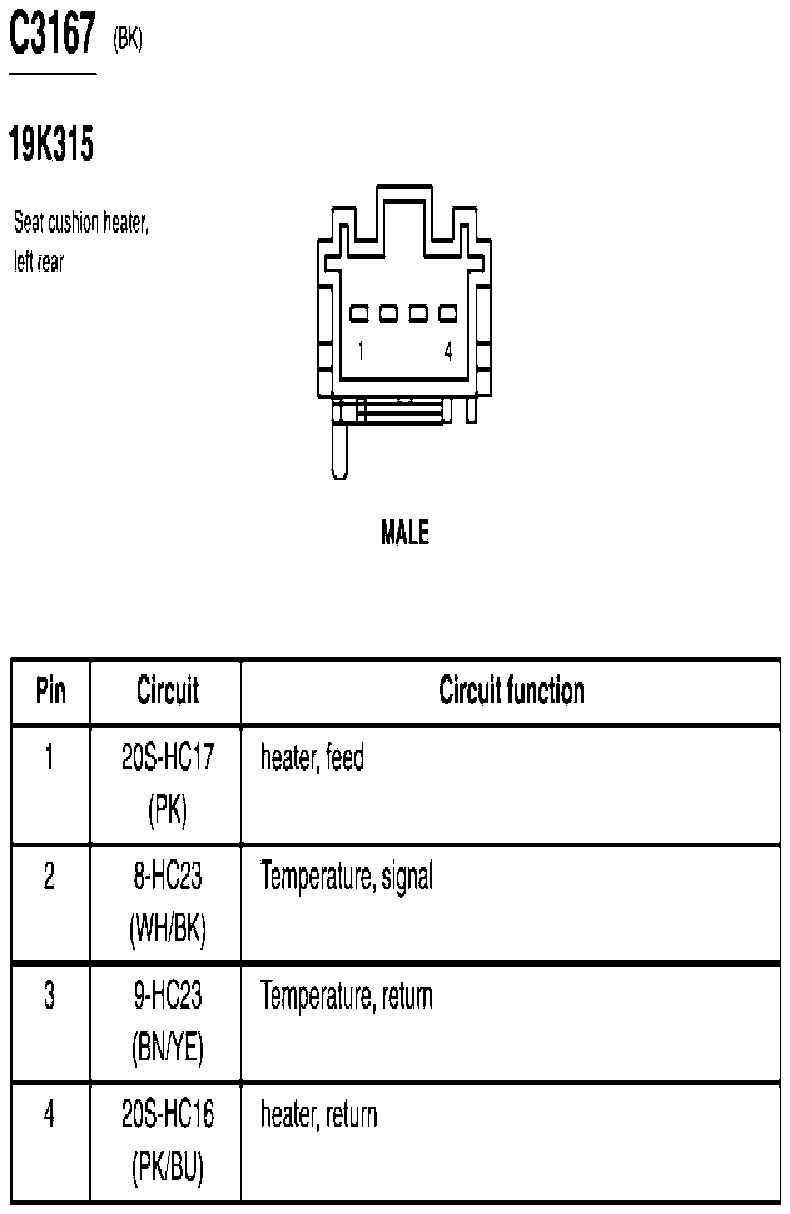

Fig 356: Seat Cushion Heater, Left Rear Connector End View (C3167)
Courtesy of FORD MOTOR CO.

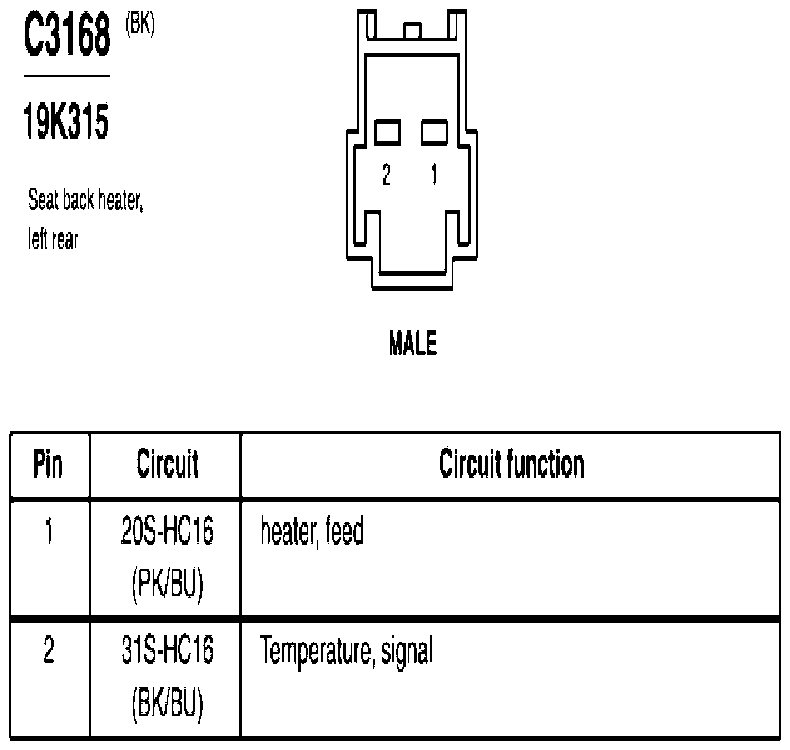

Fig 357: Seat Back Heater, Left Rear Connector End View (C3168)
Courtesy of FORD MOTOR CO.

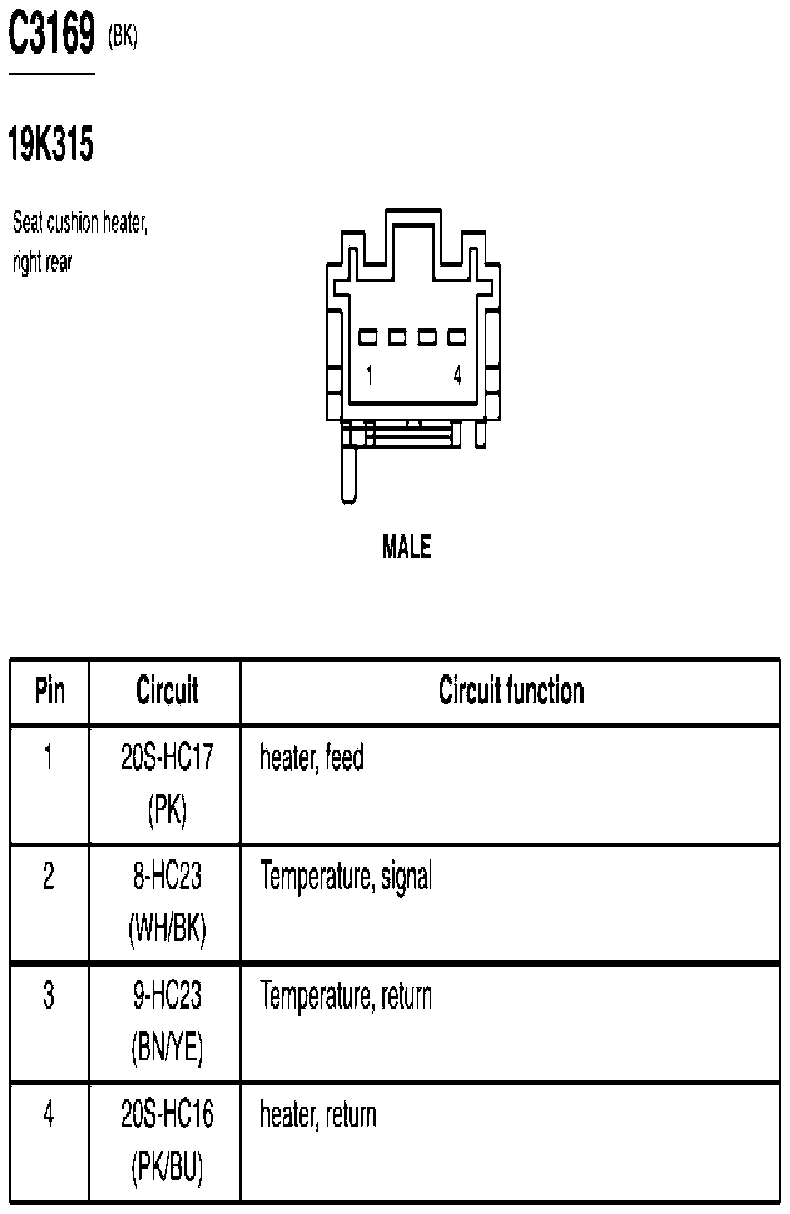

Fig 358: Seat Cushion Heater, Right Rear Connector End View (C3169)
Courtesy of FORD MOTOR CO.

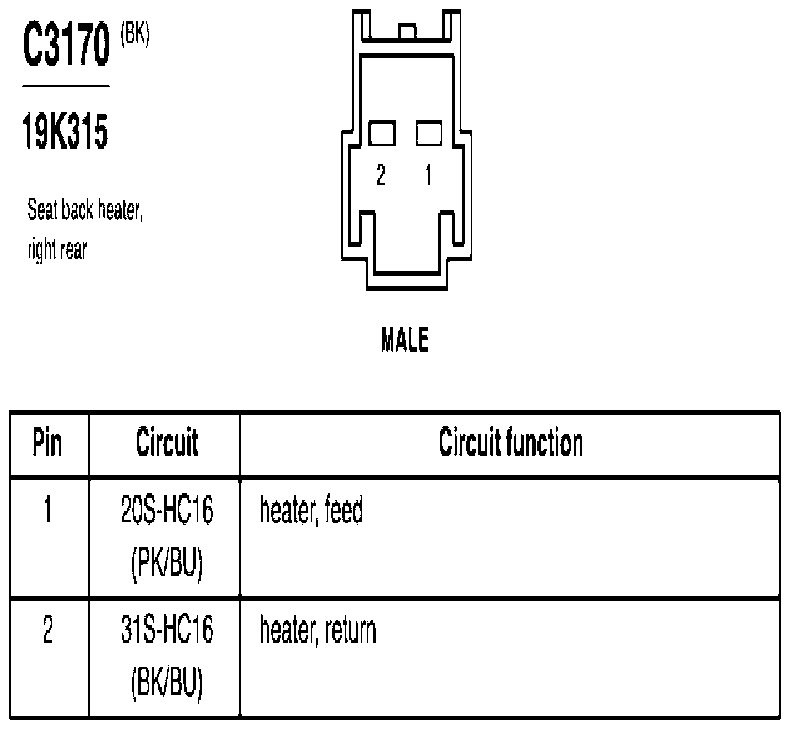

Fig 359: Seat Back Heater, Right Rear Connector End View (C3170)
Courtesy of FORD MOTOR CO.

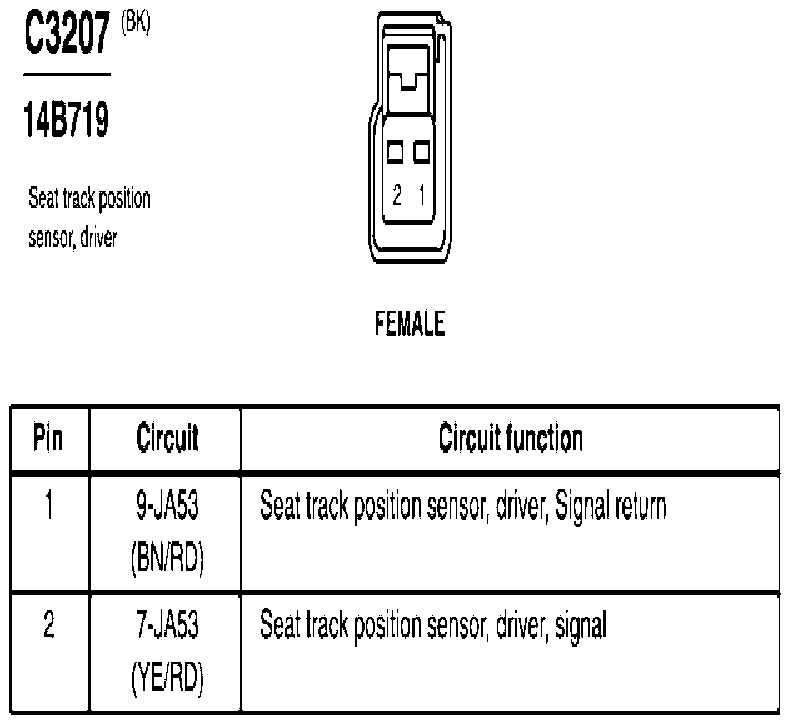

Fig 360: Seat Track Position Sensor, Driver Connector End View (C3207)
Courtesy of FORD MOTOR CO.

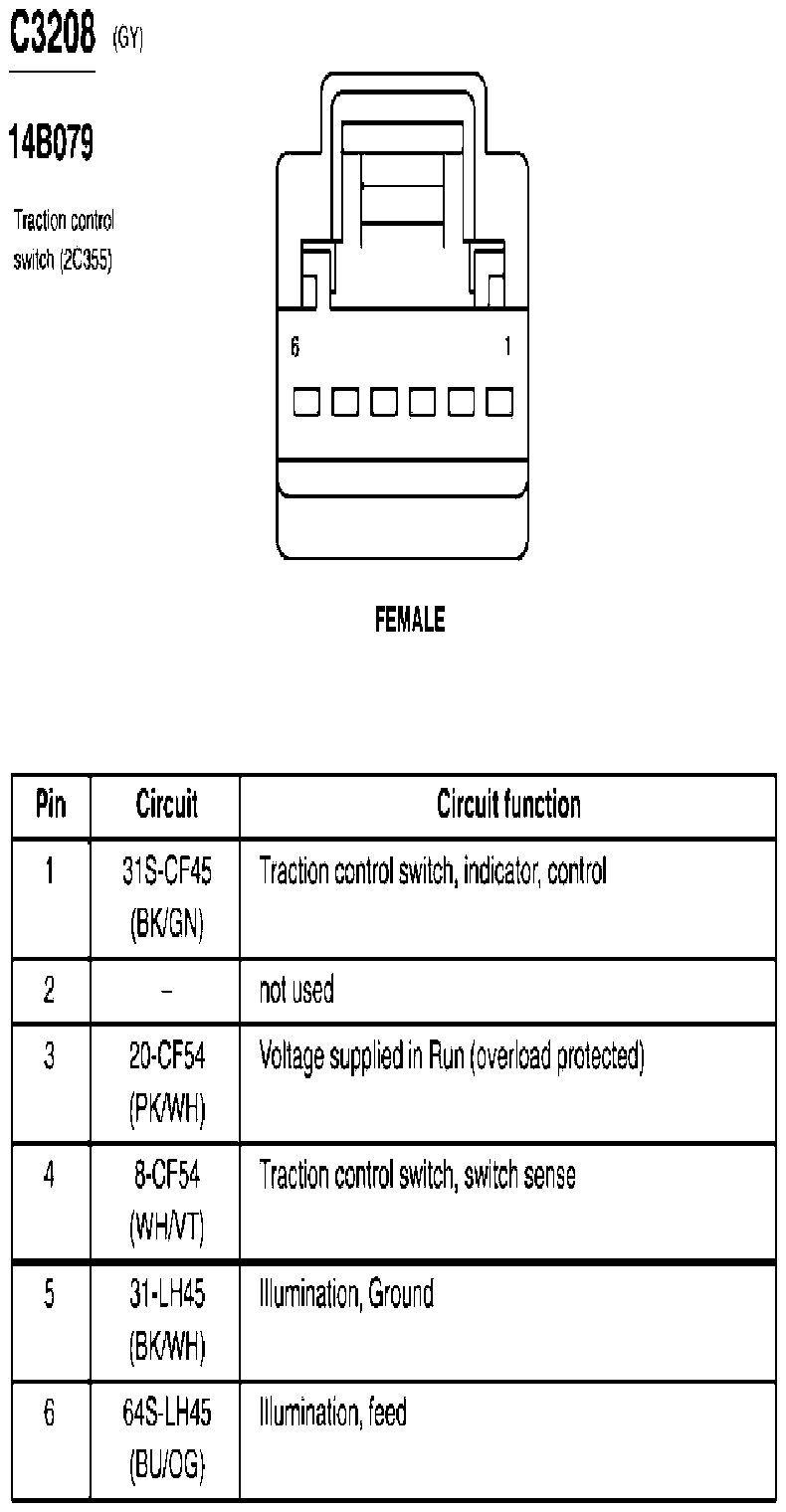

Fig 361: Traction Control Switch Connector End View (C3208)
Courtesy of FORD MOTOR CO.

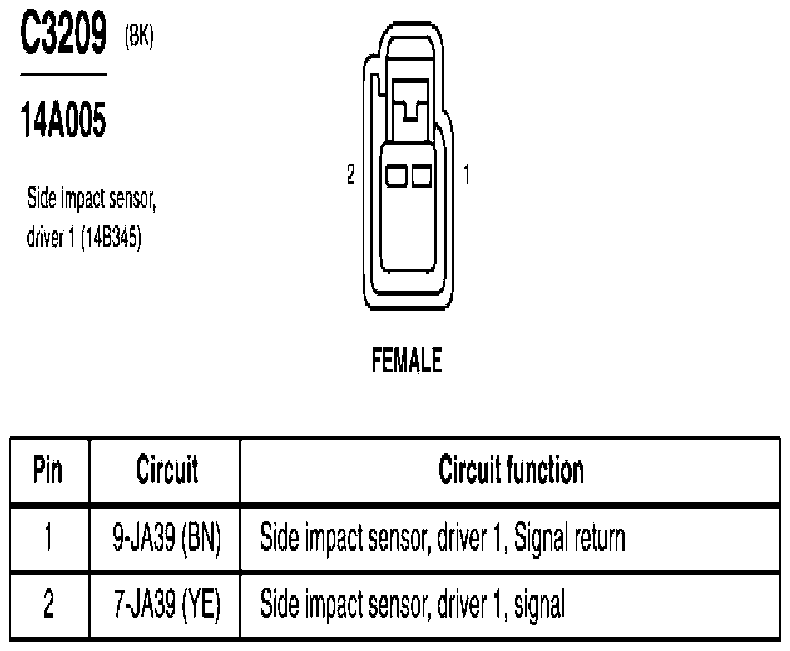

Fig 362: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.

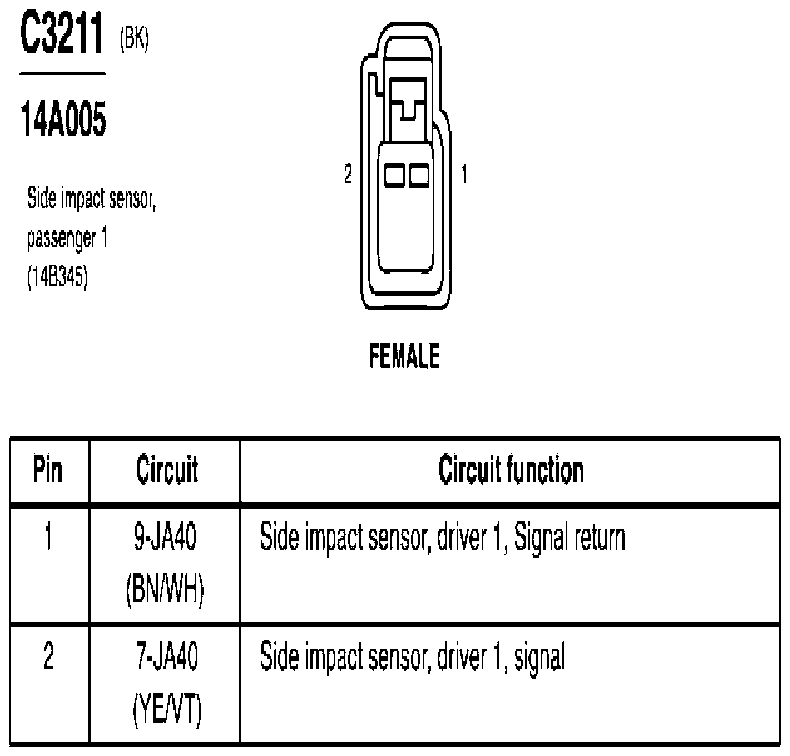

Fig 363: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.

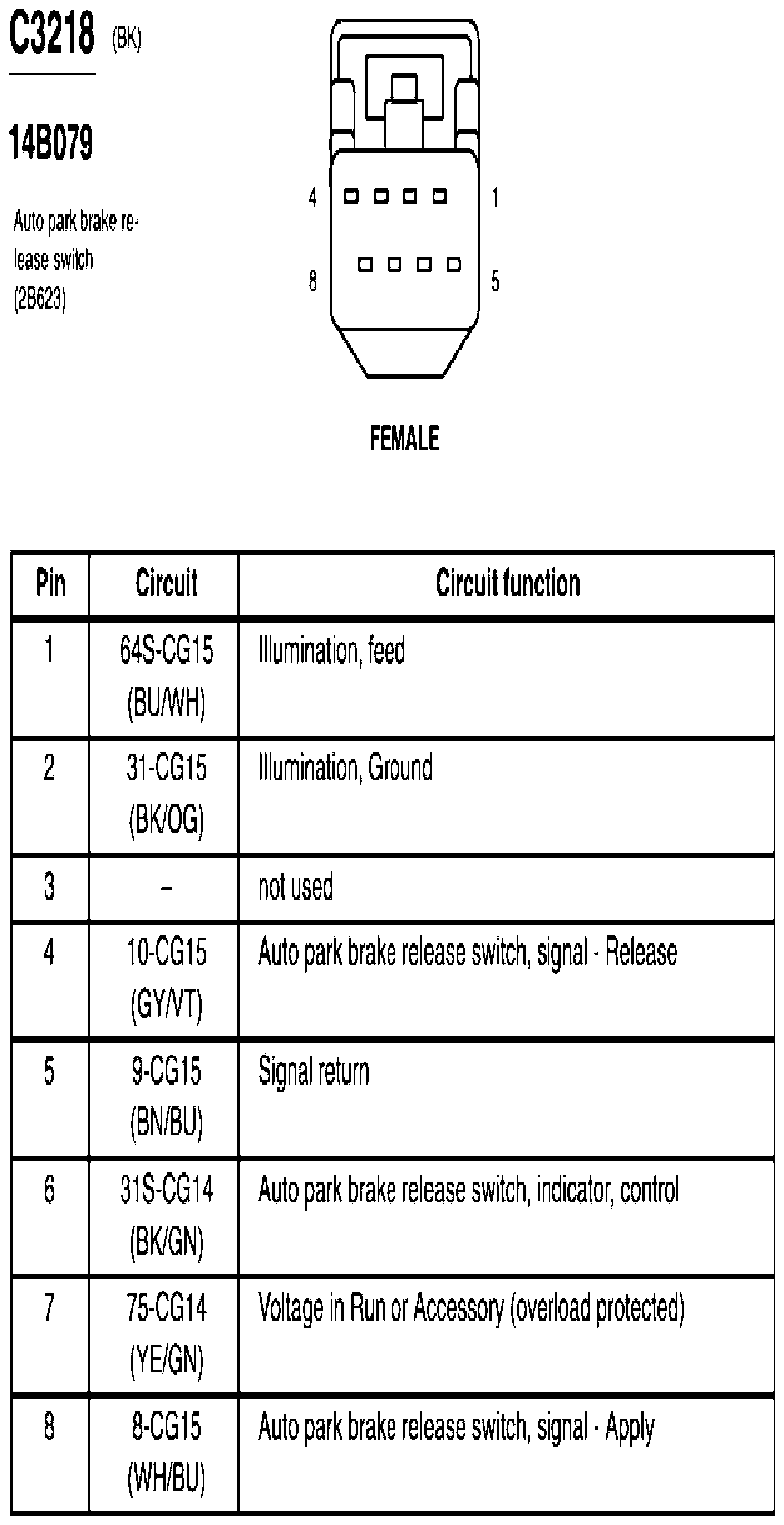

Fig 364: Auto Park Brake Release Switch Connector End View (C3218)
Courtesy of FORD MOTOR CO.

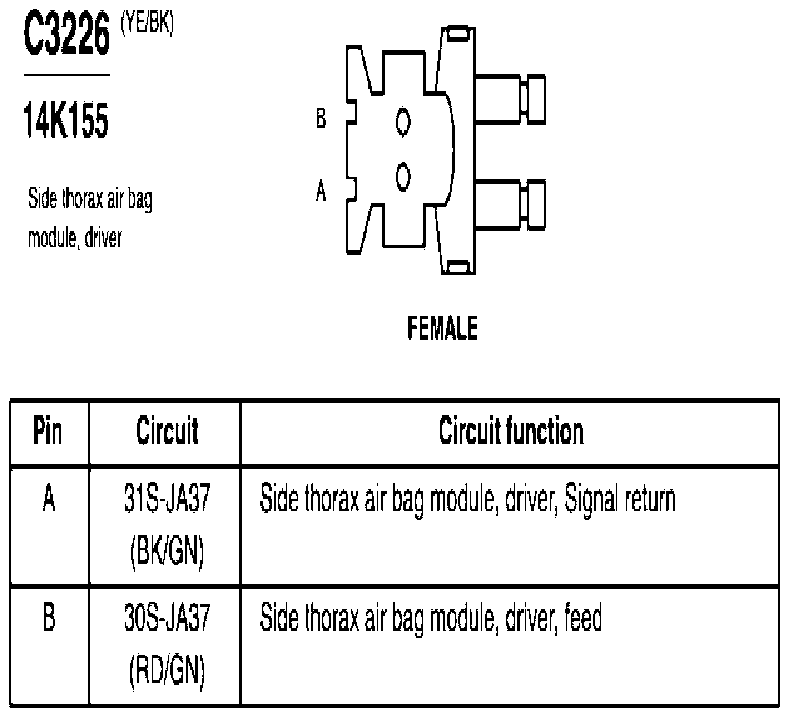

Fig 365: Side Thorax Air Bag Module Driver Connector End View (C3226)
Courtesy of FORD MOTOR CO.

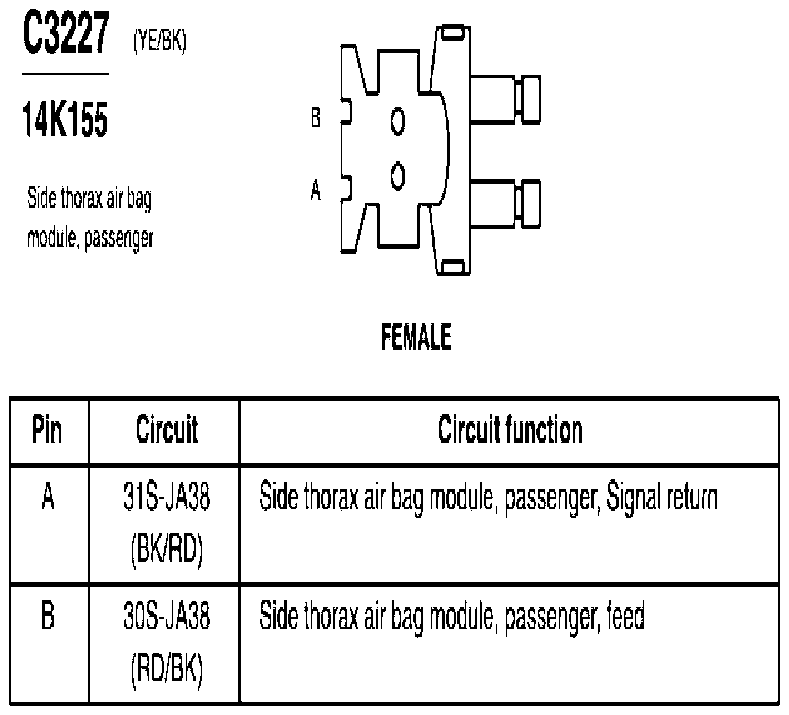

Fig 366: Side Thorax Air Bag Module, Passenger Connector End View (C3227)
Courtesy of FORD MOTOR CO.

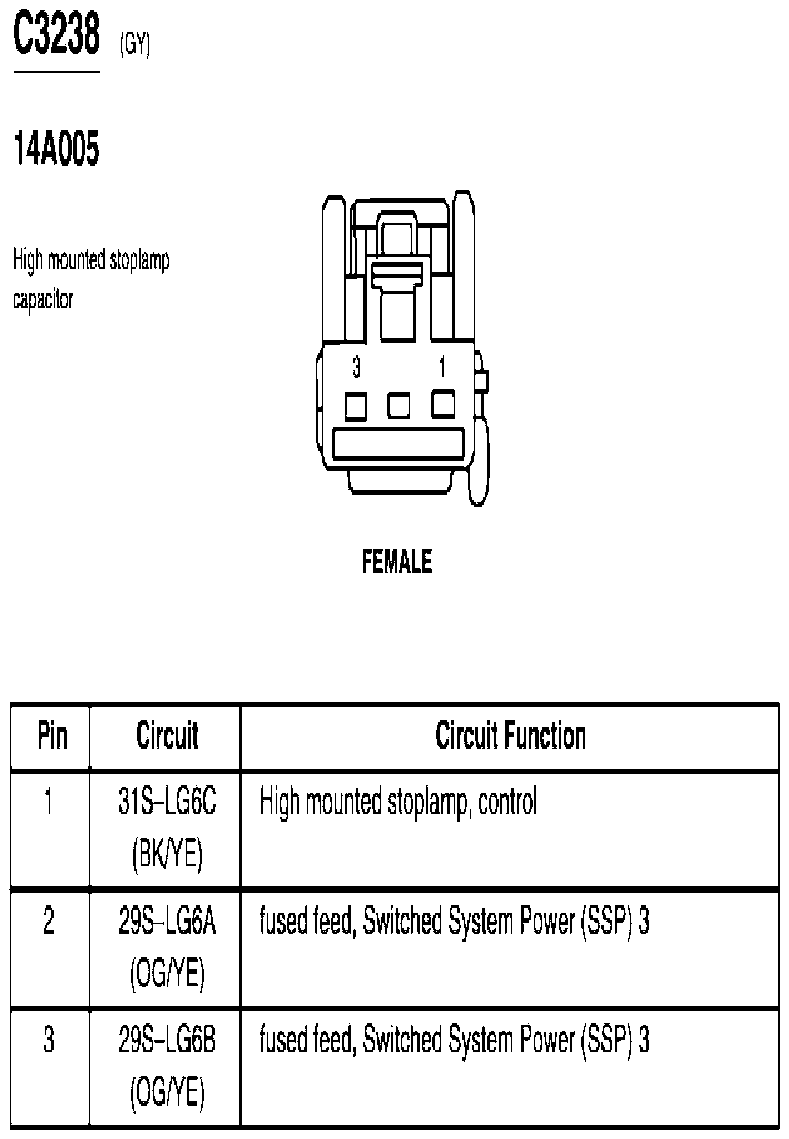

Fig 367: High Mounted Stoplamp Capacitor Connector End View (C3238)
Courtesy of FORD MOTOR CO.

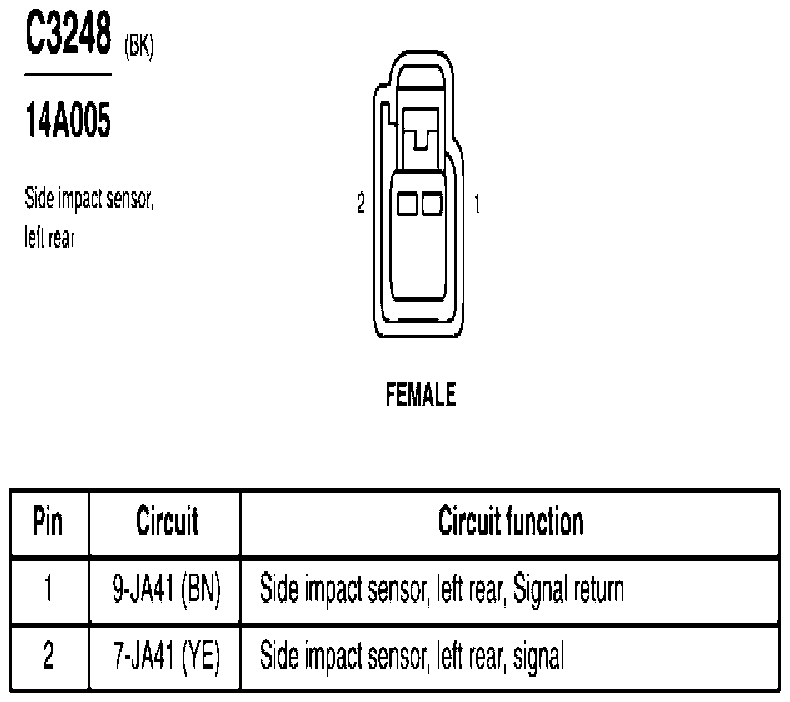

Fig 368: Side Impact Sensor, Left Rear Connector End View (C3248)
Courtesy of FORD MOTOR CO.

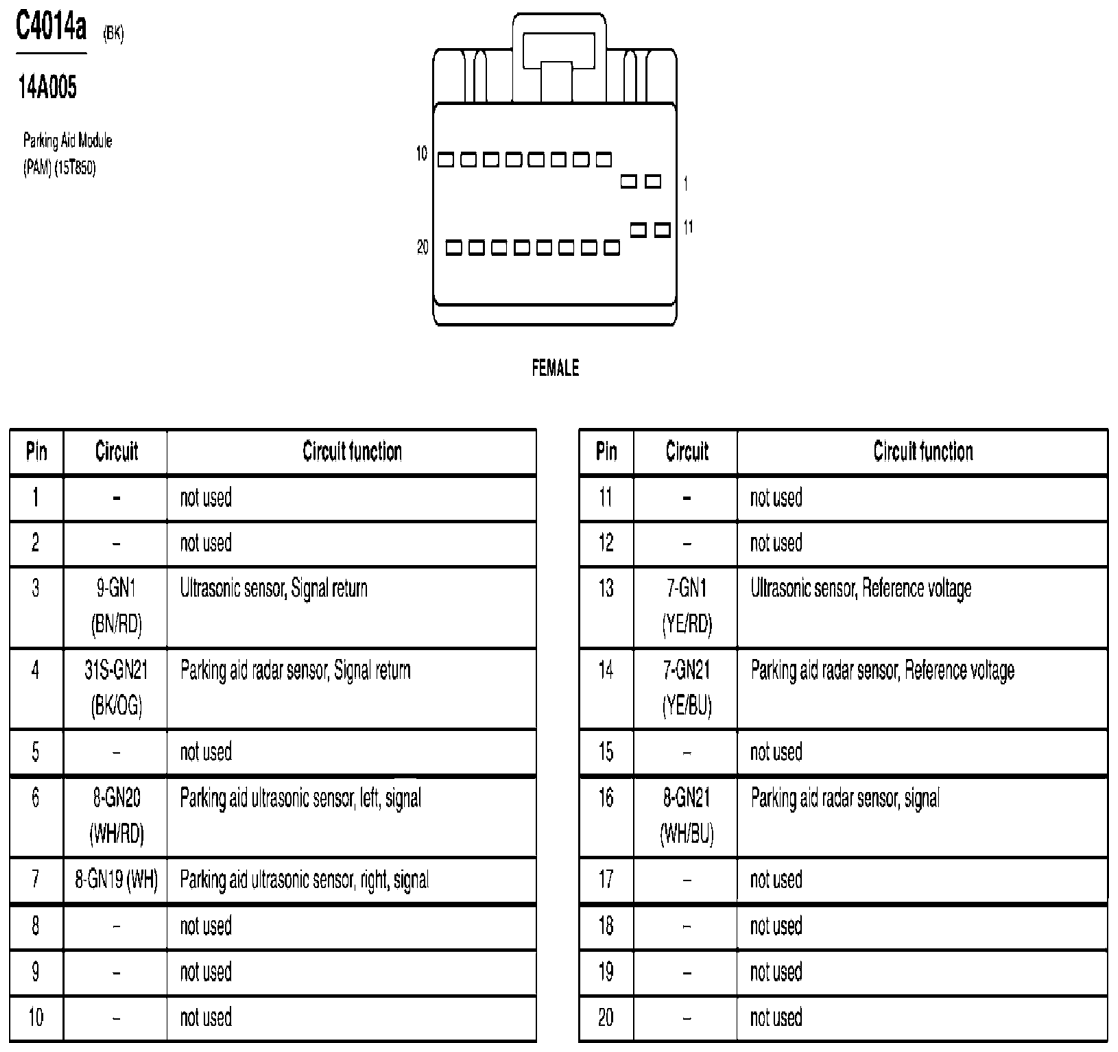

Fig 369: Parking Aid Module (PAM) Connector End View (C4014a)
Courtesy of FORD MOTOR CO.

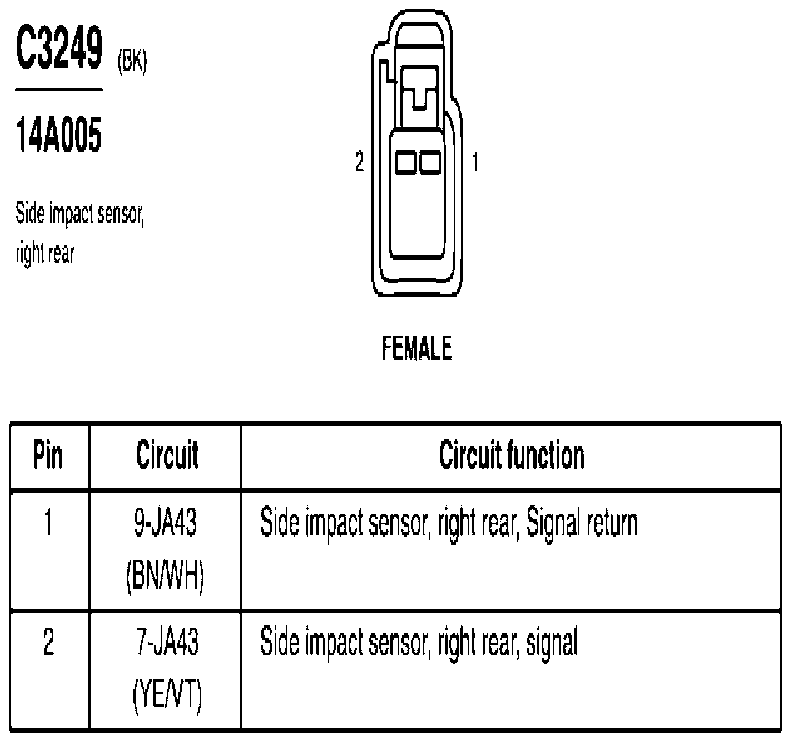

Fig 370: Side Impact Sensor, Right Rear Connector End View (C3249)
Courtesy of FORD MOTOR CO.

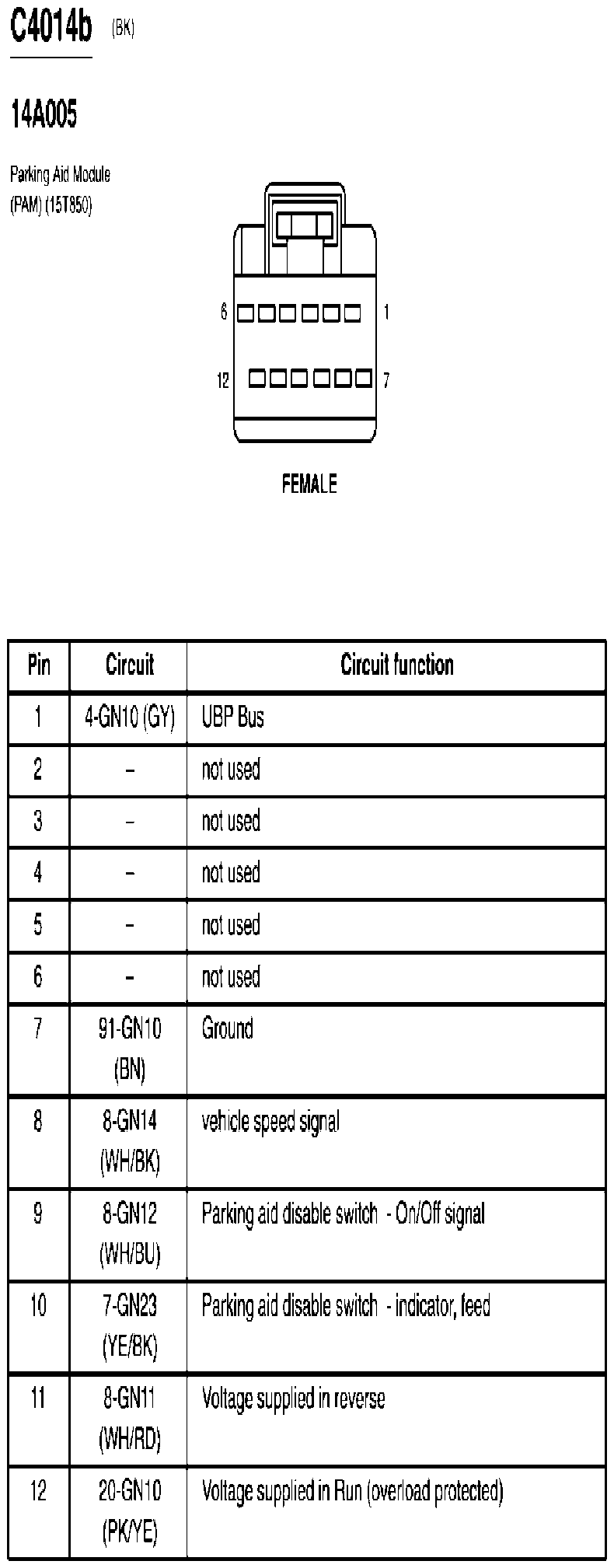

Fig 371: Parking Aid Module (PAM) Connector End View (C4014b)
Courtesy of FORD MOTOR CO.

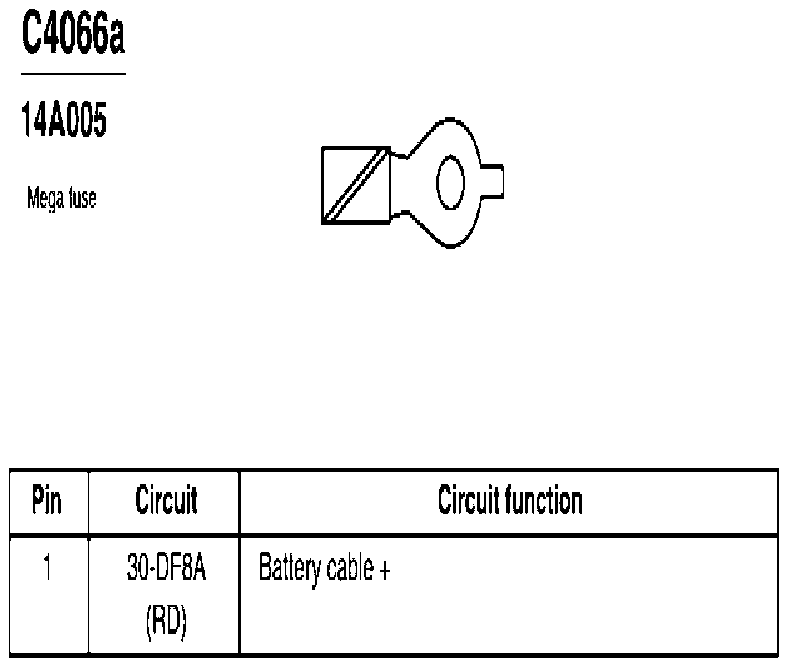

Fig 372: Mega Fuse Connector End View (C4066a)
Courtesy of FORD MOTOR CO.

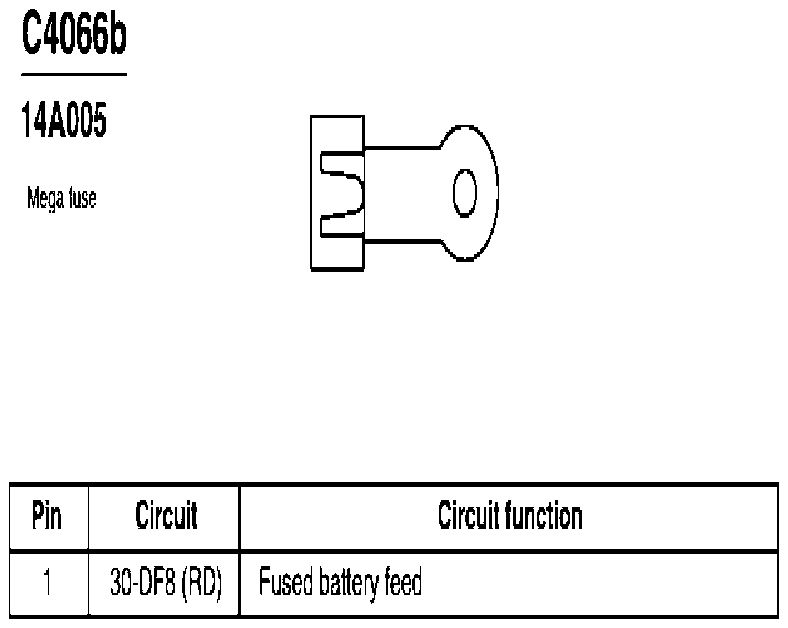

Fig 373: Mega Fuse Connector End View (C4066b)
Courtesy of FORD MOTOR CO.

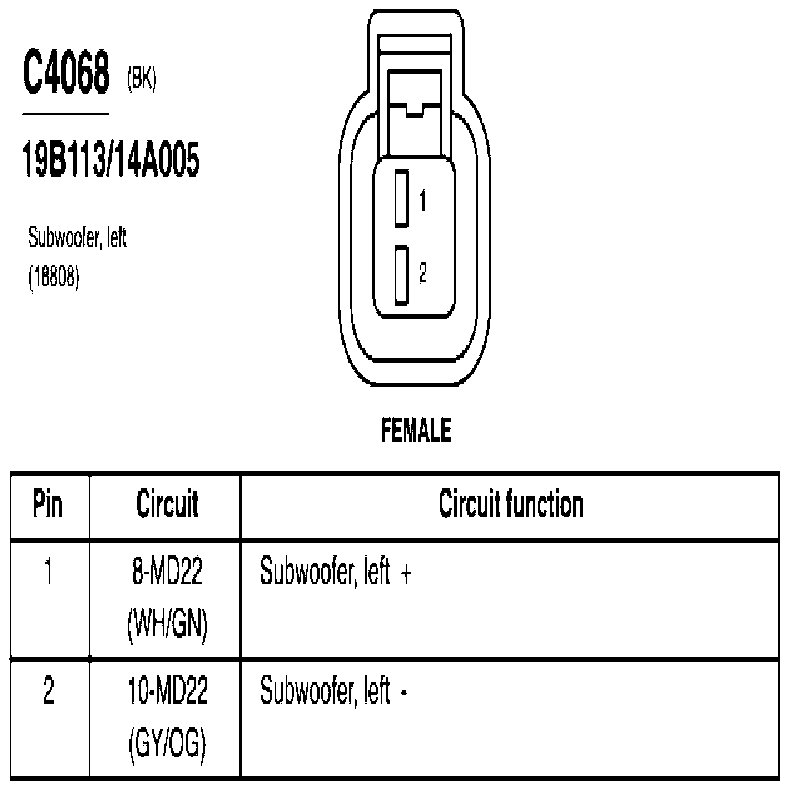

Fig 374: Subwoofer, Left Connector End View (C4068)
Courtesy of FORD MOTOR CO.

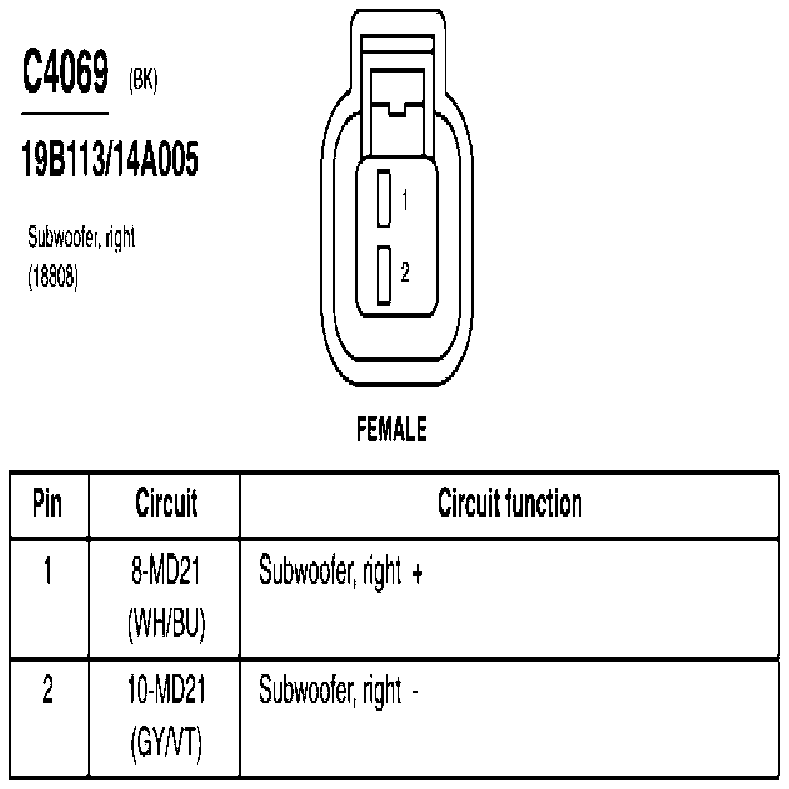

Fig 375: Subwoofer, Right Connector End View (C4069)
Courtesy of FORD MOTOR CO.

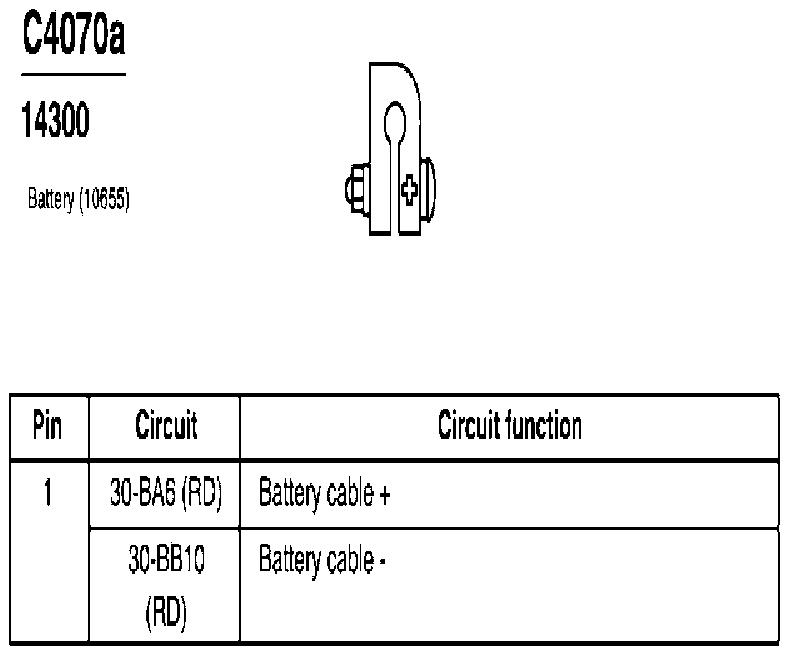

Fig 376: Battery Connector End View (C4070a)
Courtesy of FORD MOTOR CO.

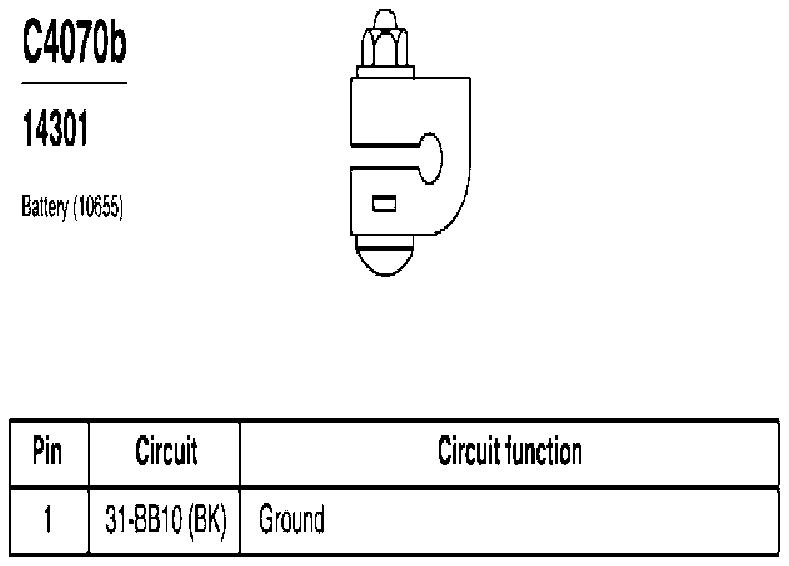

Fig 377: Battery Connector End View (C4070b)
Courtesy of FORD MOTOR CO.

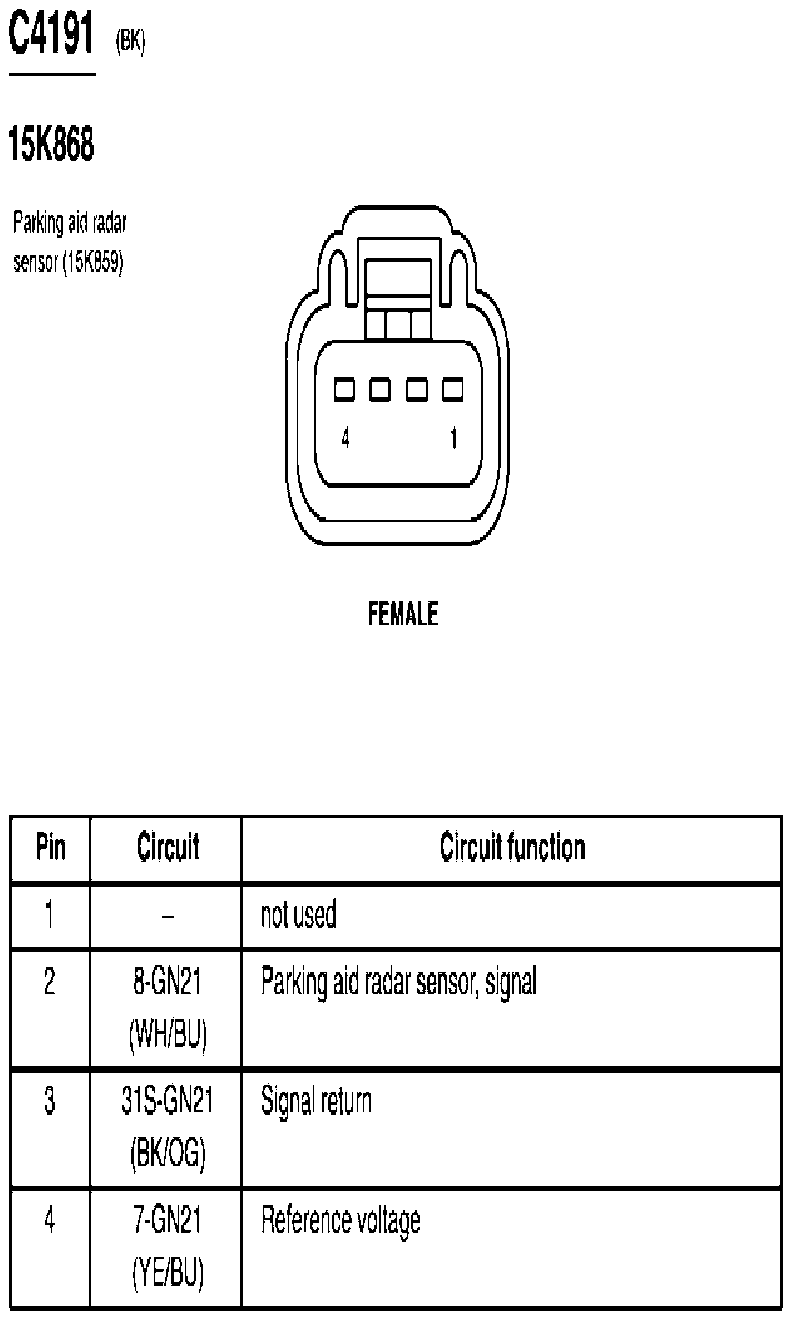

Fig 378: Parking Aid Radar Sensor Connector End View (C4191)
Courtesy of FORD MOTOR CO.

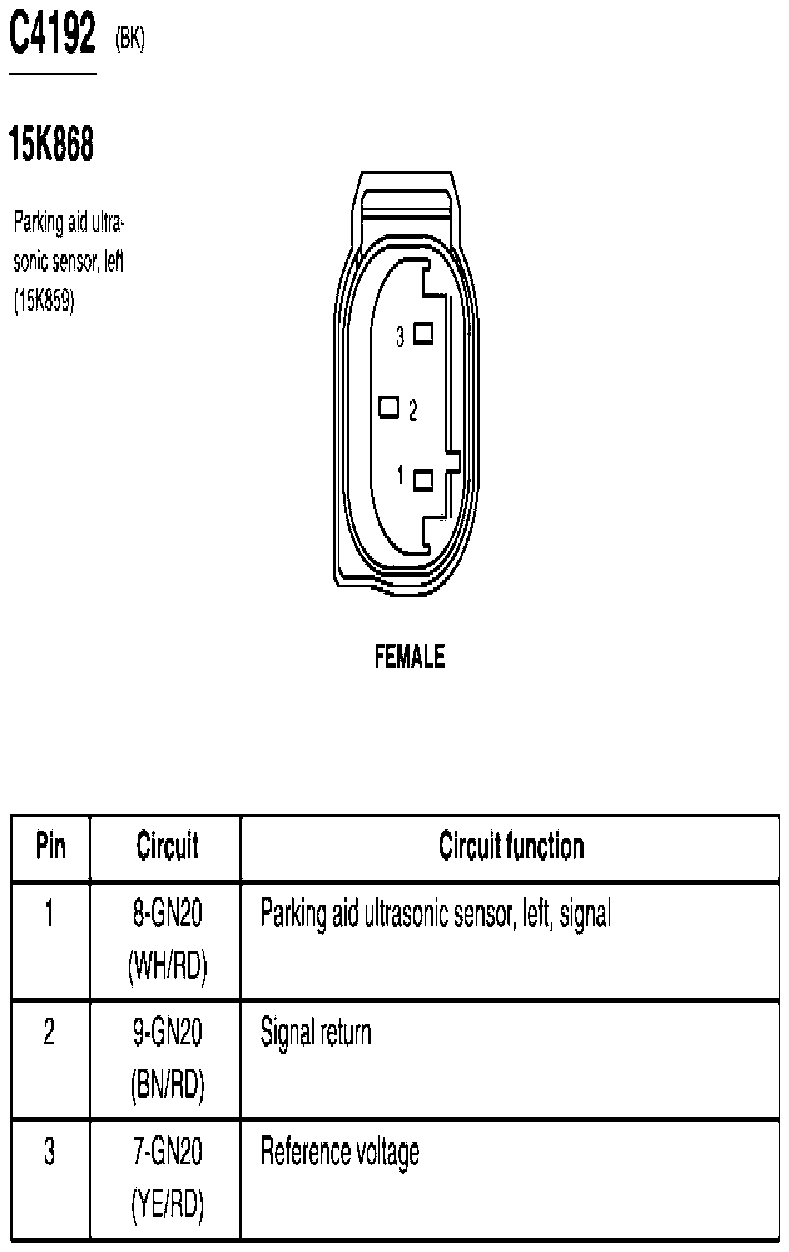

Fig 379: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)
Courtesy of FORD MOTOR CO.
Fig 380: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)
Courtesy of FORD MOTOR CO.

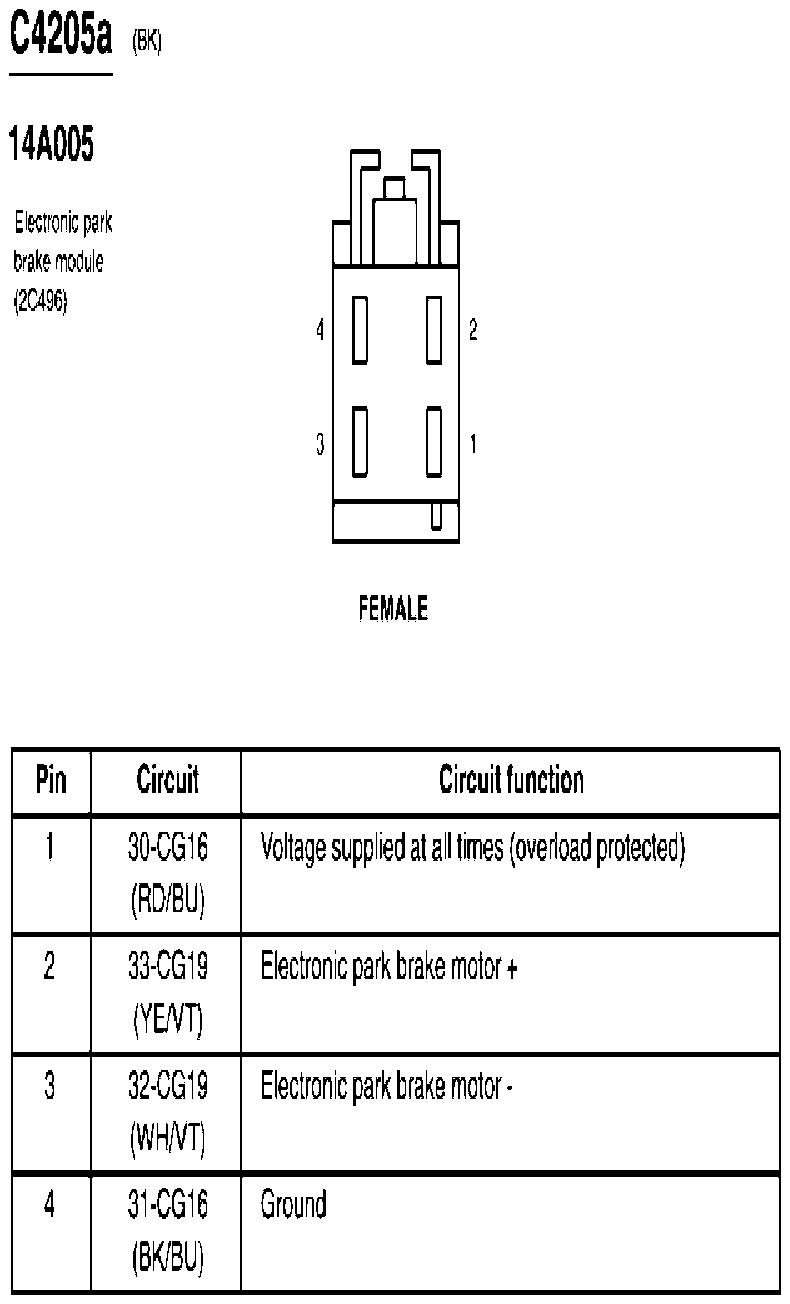

Fig 381: Electronic Park Brake Module Connector End View (C4205a)
Courtesy of FORD MOTOR CO.

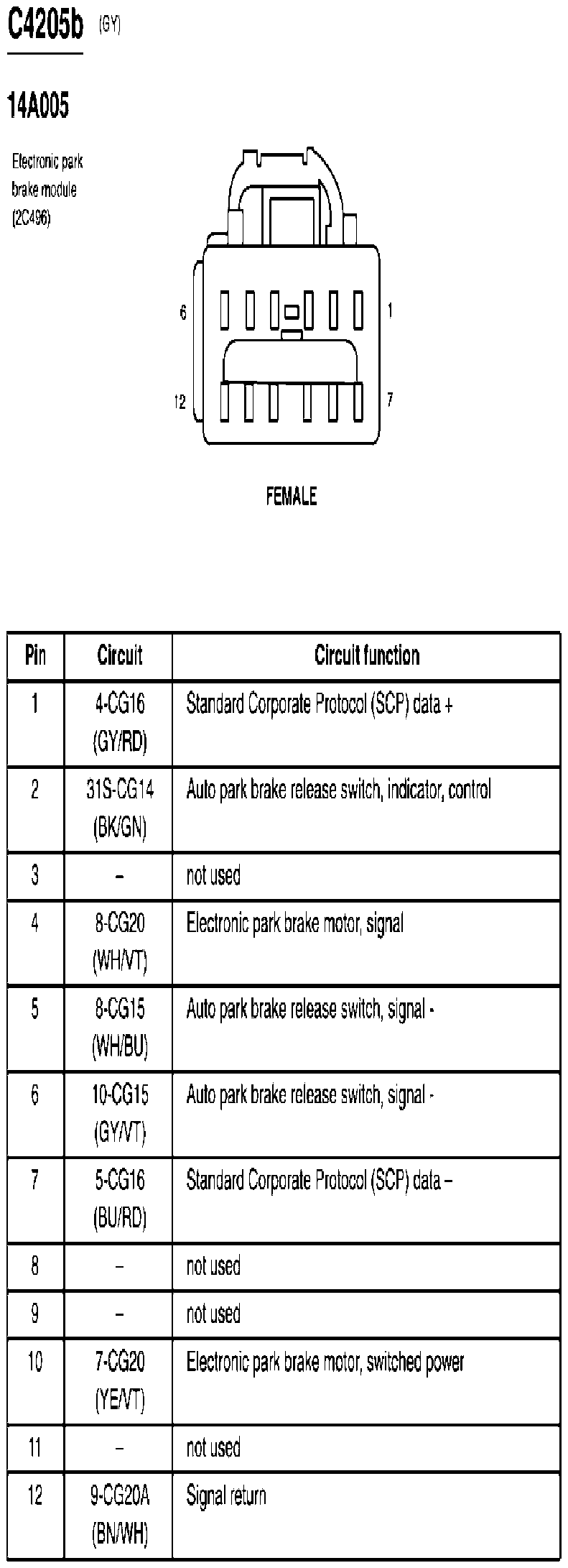

Fig 382: Electronic Park Brake Module Connector End View (C4205b)
Courtesy of FORD MOTOR CO.

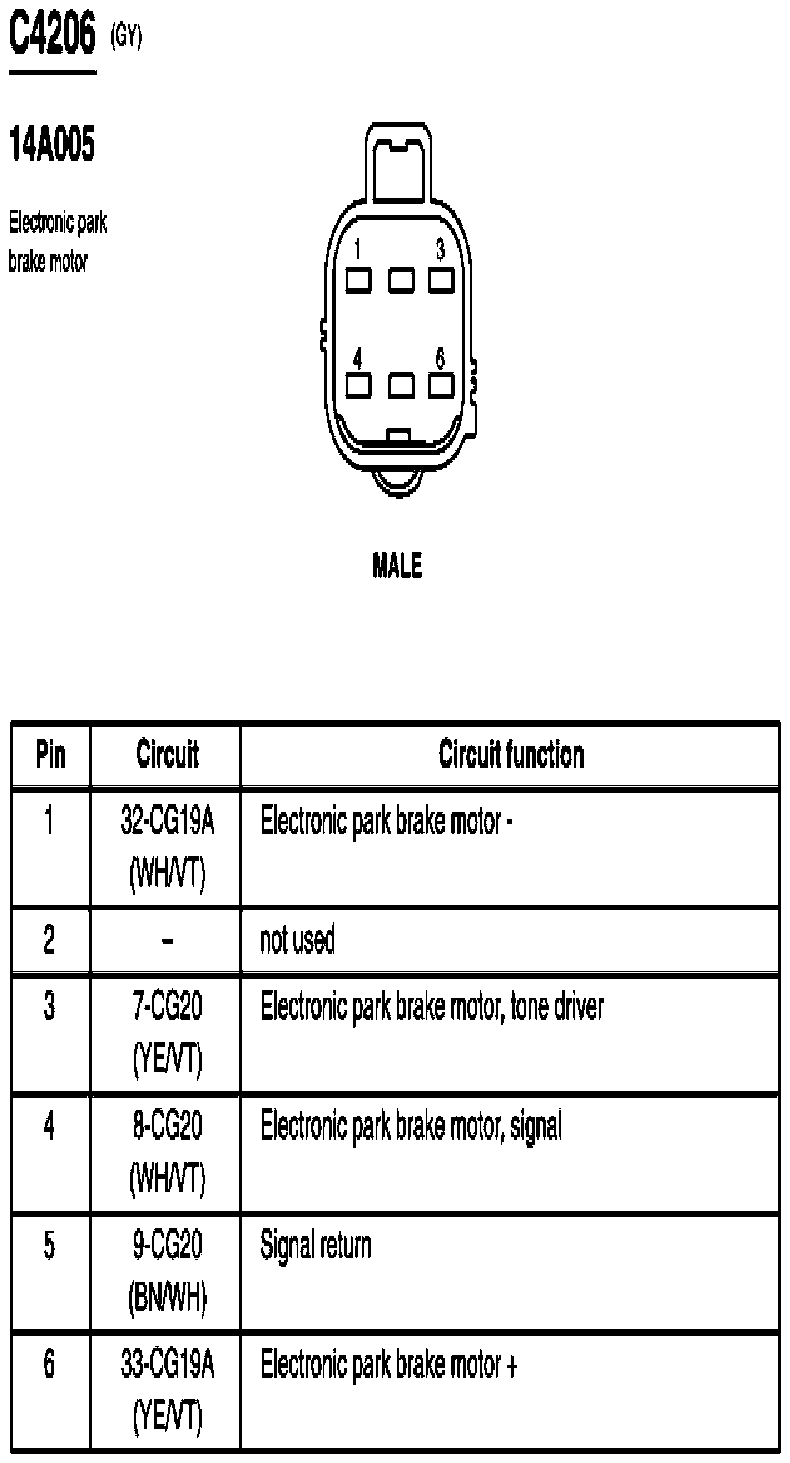

Fig 383: Electronic Park Brake Motor Connector End View (C4206)
Courtesy of FORD MOTOR CO.

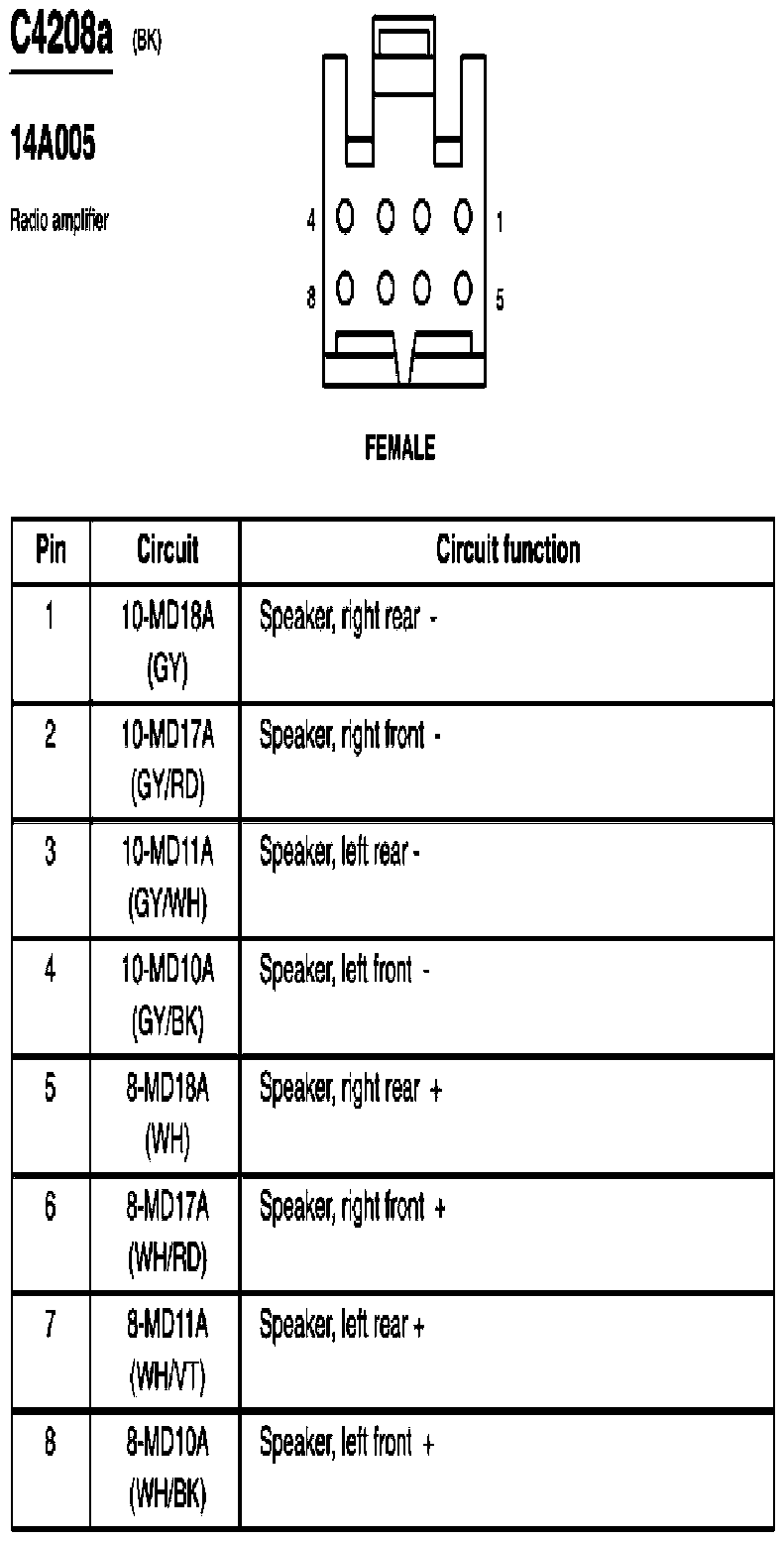

Fig 384: Radio Amplifier Connector End View (C4208a)
Courtesy of FORD MOTOR CO.

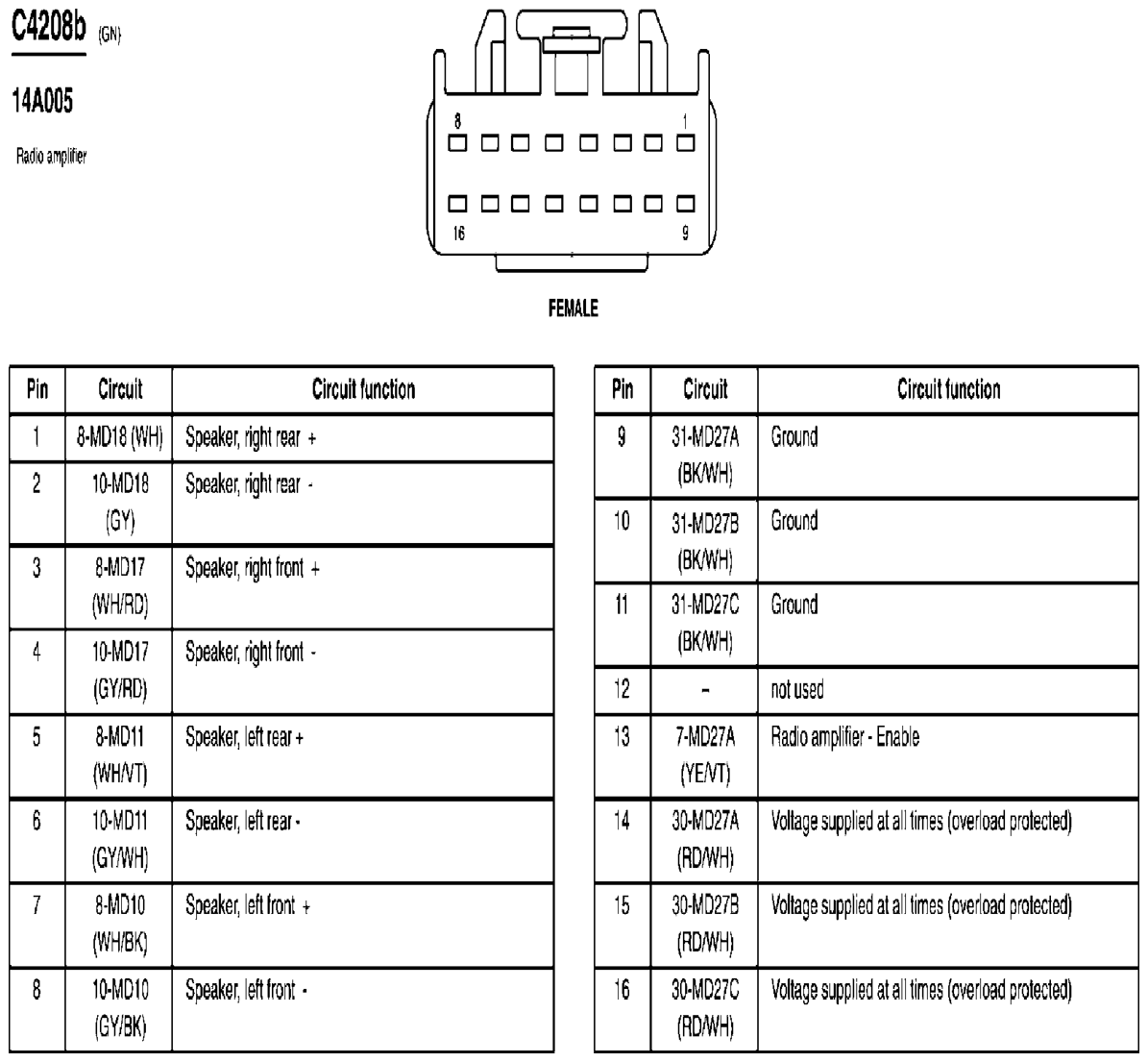

Fig 385: Radio Amplifier Connector End View (C4208b)
Courtesy of FORD MOTOR CO.

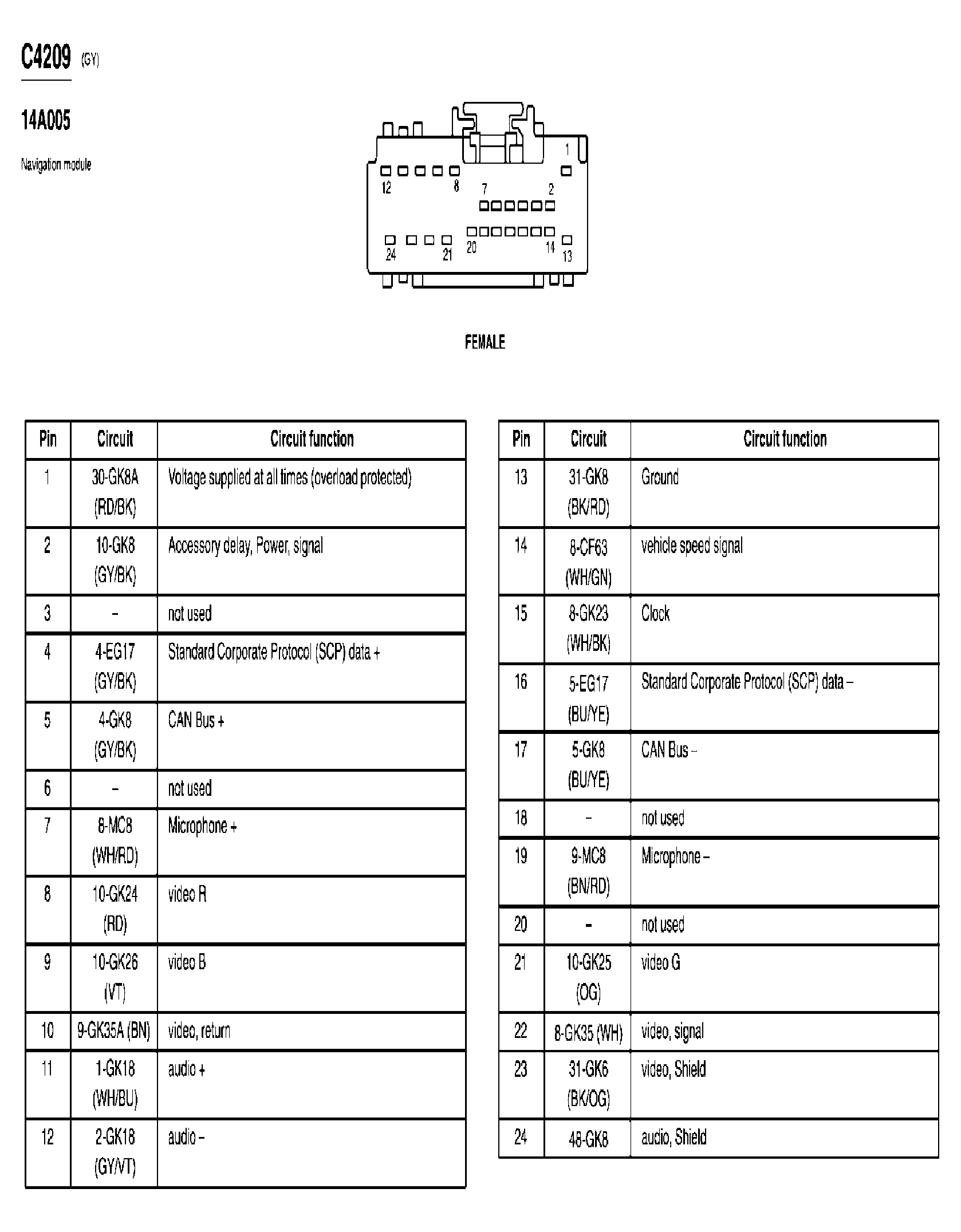

Fig 386: Navigation Module Connector End View (C4209)
Courtesy of FORD MOTOR CO.

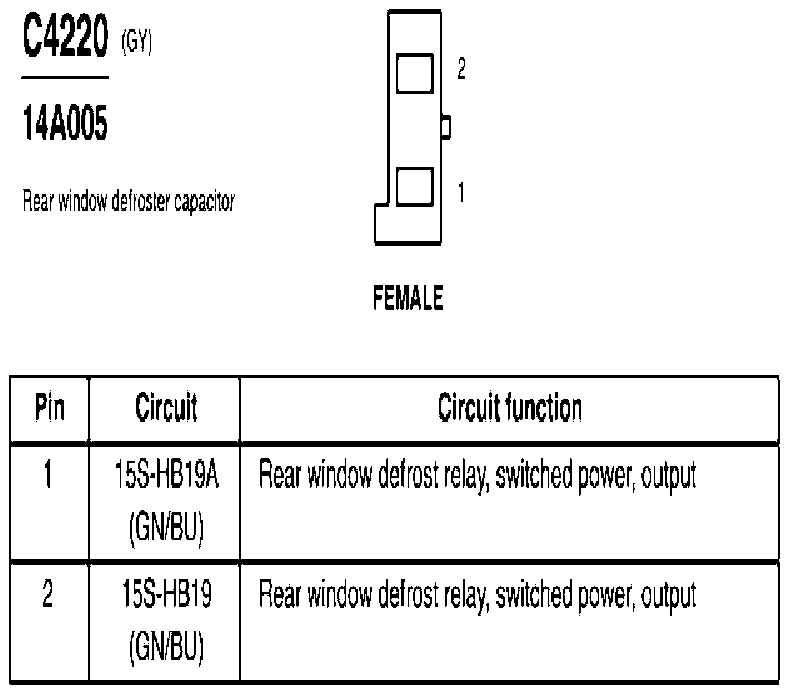

Fig 387: Rear Window Defroster Capacitor Connector End View (C4220)
Courtesy of FORD MOTOR CO.

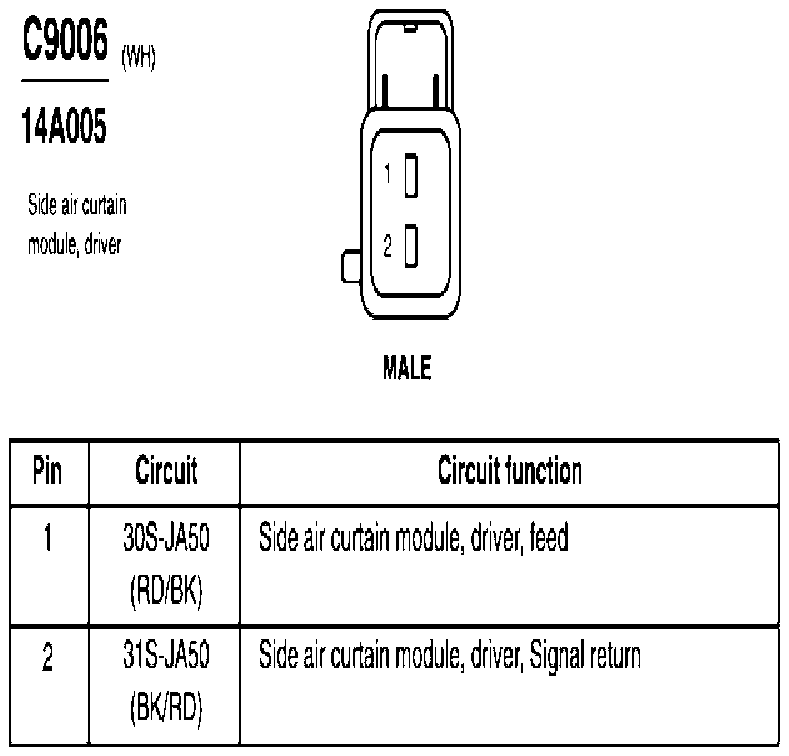

Fig 388: Side Air Curtain Module, Driver Connector End View (C9006)
Courtesy of FORD MOTOR CO.

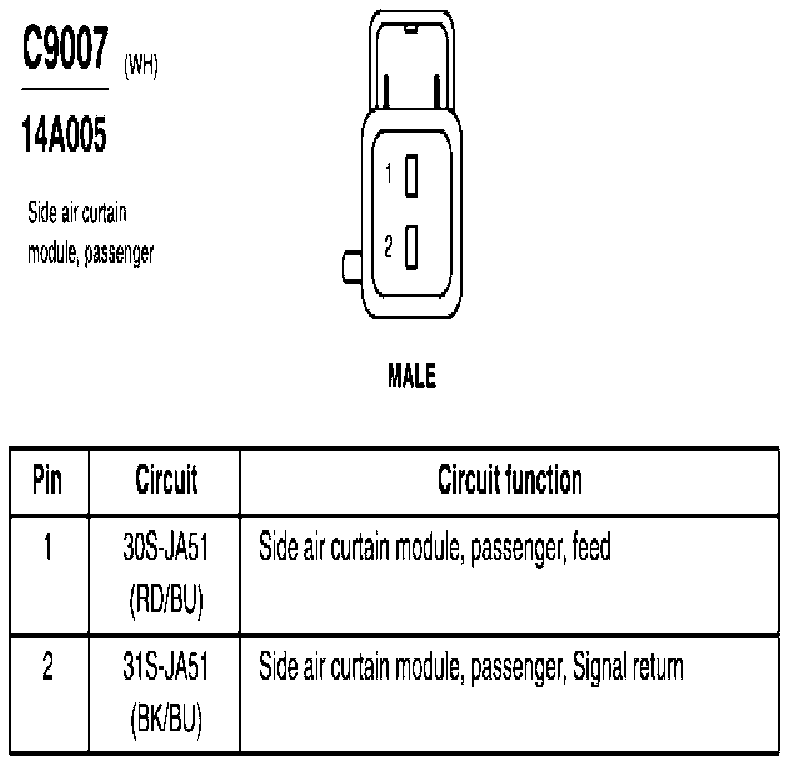

Fig 389: Side Air Curtain Module, Passenger Connector End View (C9007)
Courtesy of FORD MOTOR CO.

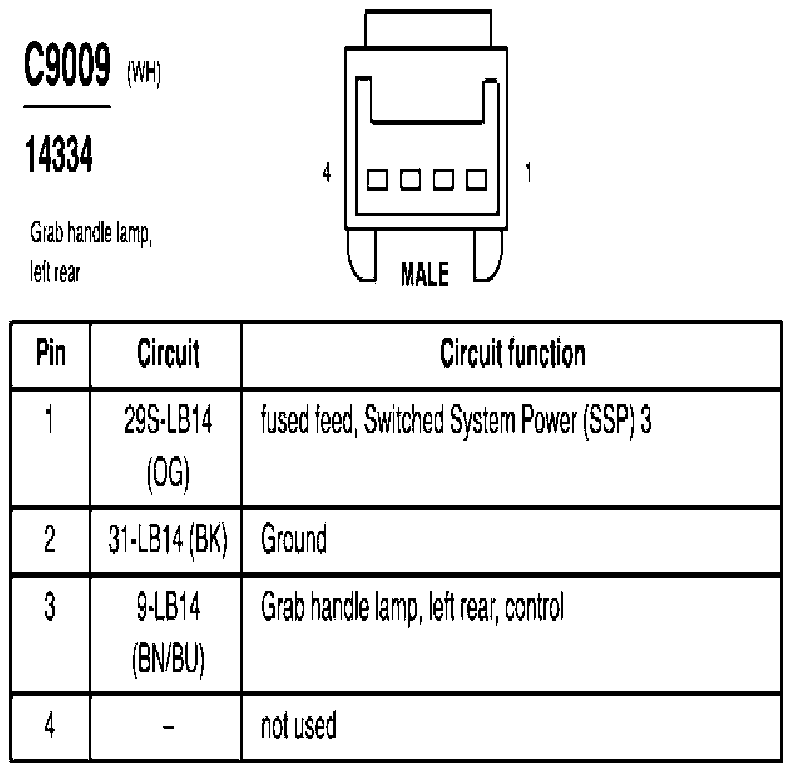

Fig 390: Grab Handle Lamp, Left Rear Connector End View (C9009)
Courtesy of FORD MOTOR CO.

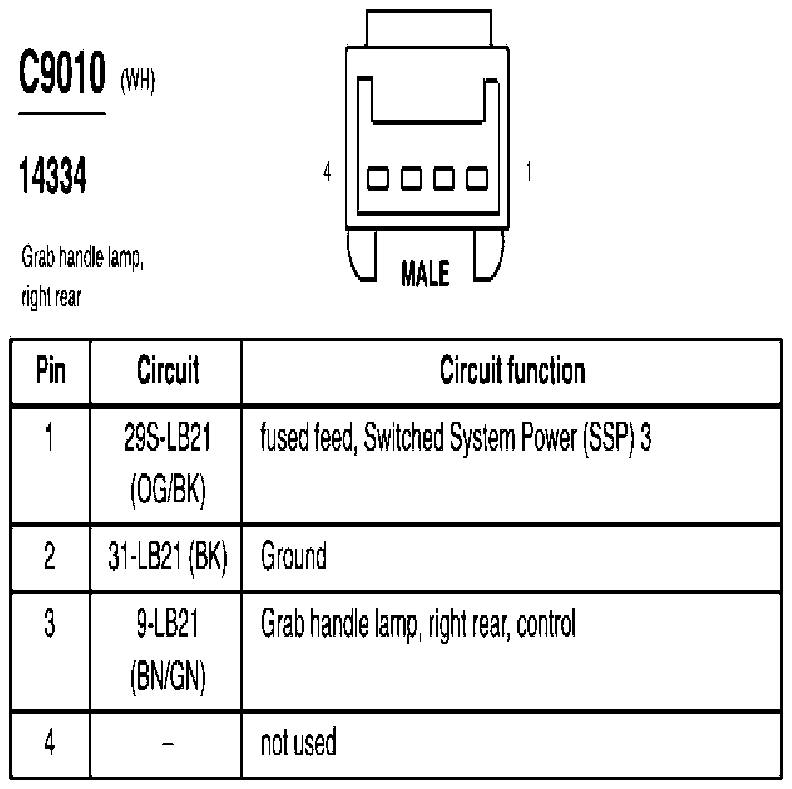

Fig 391: Grab Handle Lamp, Right Rear Connector End View (C9010)
Courtesy of FORD MOTOR CO.

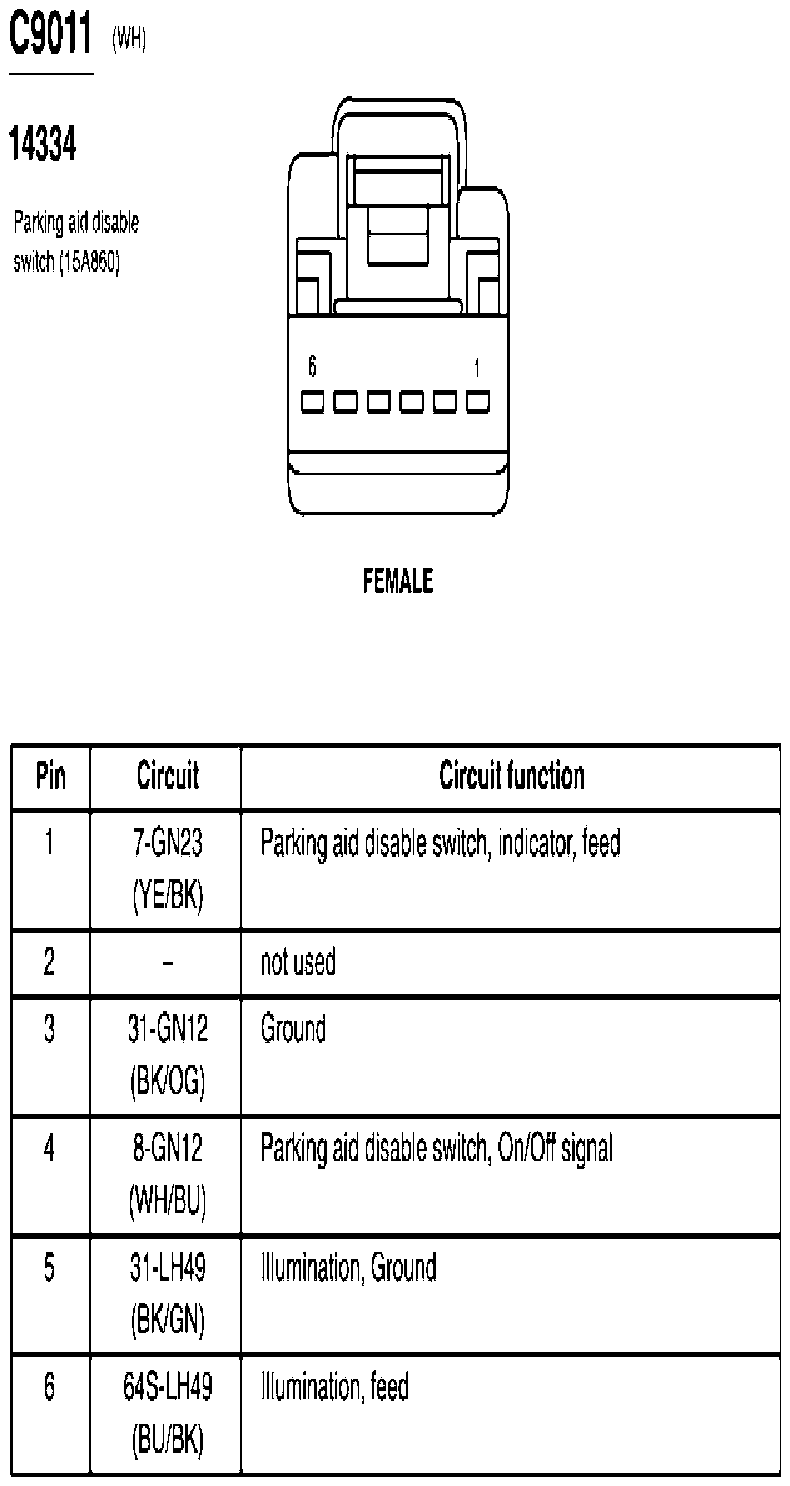

Fig 392: Parking Aid Disable Switch Connector End View (C9011)
Courtesy of FORD MOTOR CO.
Fig 393: Electrochromatic Inside Mirror Unit Connector End View (C9012)
Courtesy of FORD MOTOR CO.

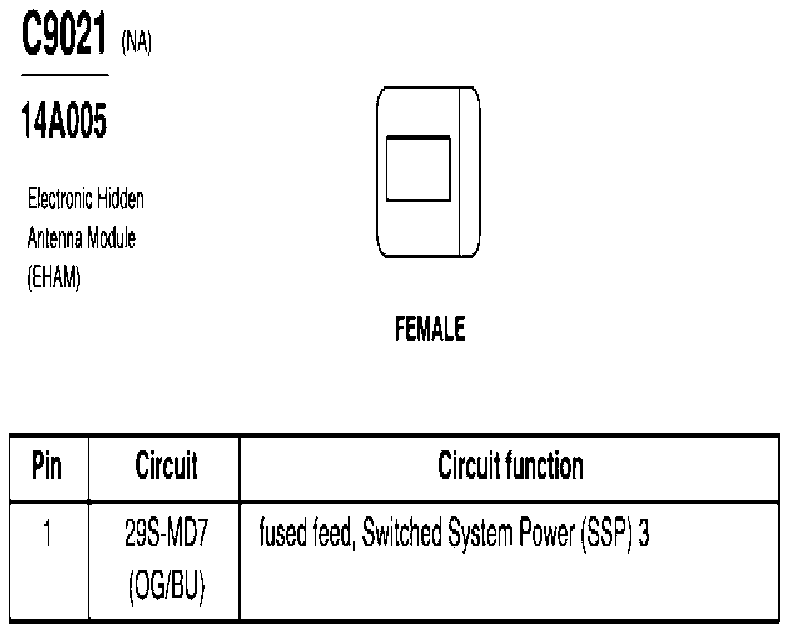

Fig 394: Electronic Hidden Antenna Module Connector End View (C9021)
Courtesy of FORD MOTOR CO.
