Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Electrical >> Gauges >> Information And Message Center >> Removal And Installation >> Message Center Switch >> Notes

Message Center Switch: Notes

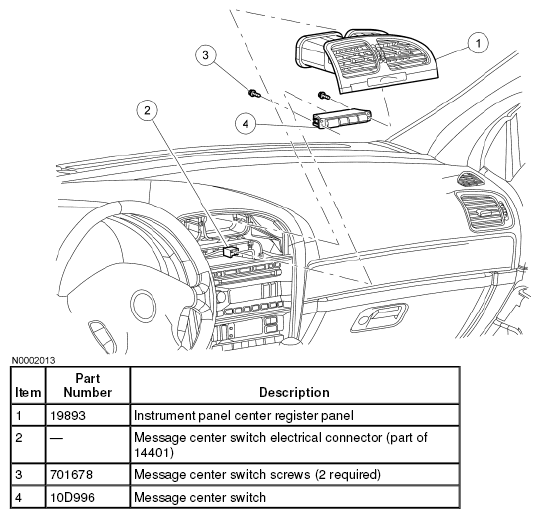

Fig 1: Identifying Message Center Switch Components
G04692284Courtesy of FORD MOTOR CO.
