Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

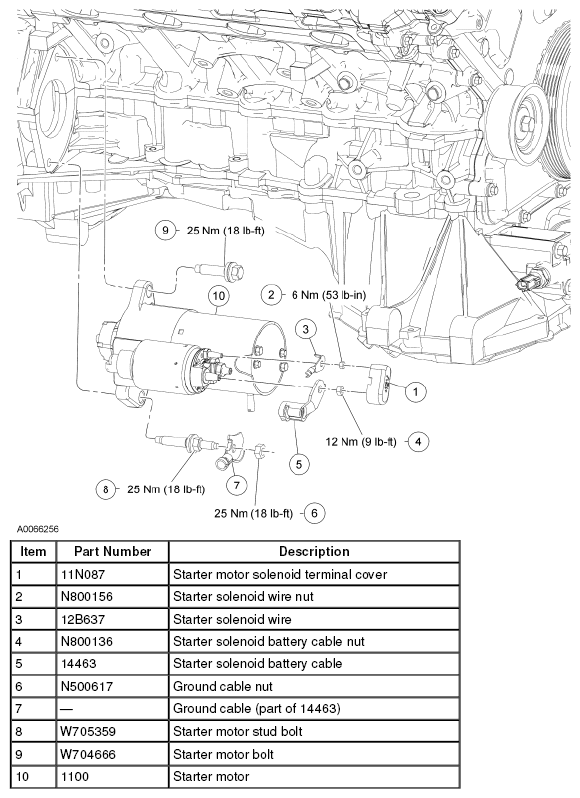

Fig 1: Starter Motor Replacement Components With Torque Specifications

G04691032

Courtesy of FORD MOTOR CO.
