Exhaust System - Exploded View
Exhaust System - Exploded View

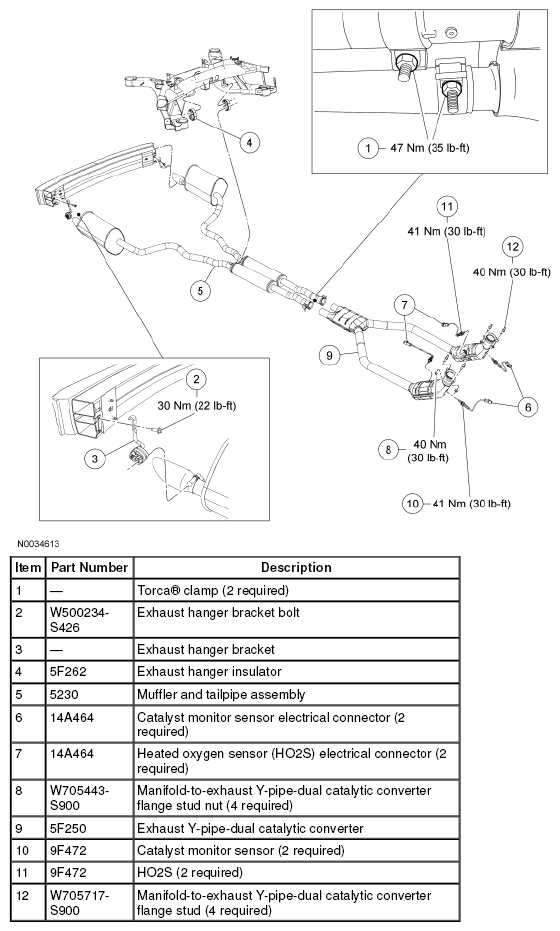

Fig 1: Exploded View Of Exhaust System With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to appropriate procedure.
Courtesy of FORD MOTOR CO.
