Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Electronic Engine Controls >> Removal And Installation >> Powertrain Control Module (PCM) >> Notes

Powertrain Control Module (PCM): Notes

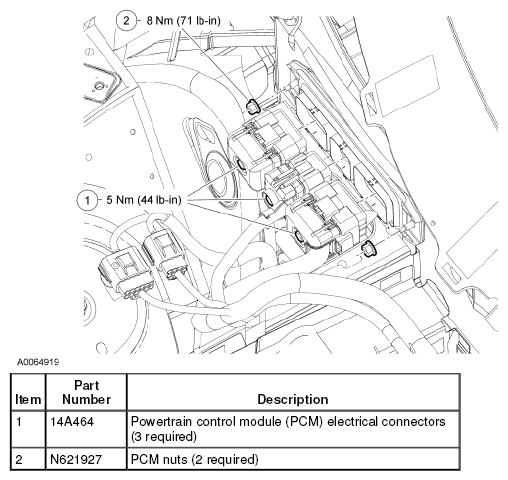

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (Items 1--2)
G04691058Courtesy of FORD MOTOR CO.

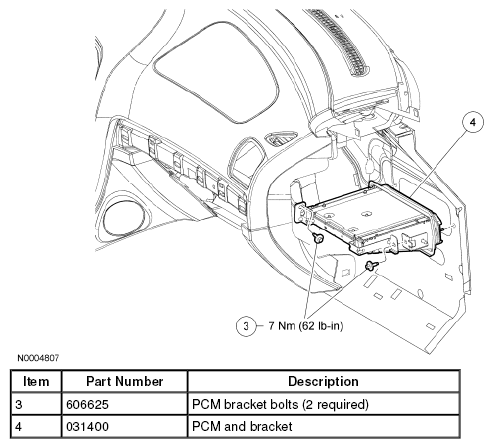

Fig 2: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (Items 3--4)
G04691059Courtesy of FORD MOTOR CO.
