Extension Housing Seal: Notes

SPECIAL TOOL CHART

G04691246Courtesy of FORD MOTOR CO.
Slide Hammer
100-001 (T50T-100-A)
G04691247Courtesy of FORD MOTOR CO.
Remover, Torque Converter Fluid Seal
307-309 (T94P-77001-BH)
G04691248Courtesy of FORD MOTOR CO.
Installer, Drive Pinion Oil Seal
205-115
G04691249Courtesy of FORD MOTOR CO.
Installer, Drive Pinion Flange
205-479
G04691250Courtesy of FORD MOTOR CO.
Installer, Output Shaft Flange
307-404
G04691251Courtesy of FORD MOTOR CO.
Remover, Output Shaft Flange
307-523

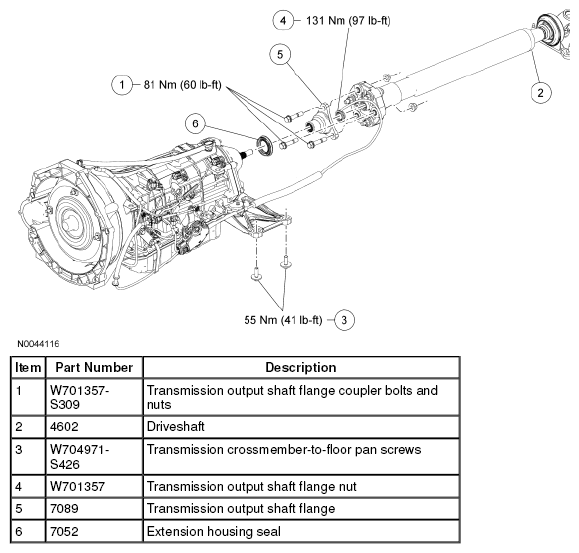

Fig 1: Extension Housing Seal And Torque Specification With Torque Specifications
G04691252Courtesy of FORD MOTOR CO.
