Direct Clutch Assembly: Notes

ITEM SPECIFICATION

Item Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP MERCON® SP

Direct Clutch Assembly (B Clutch)

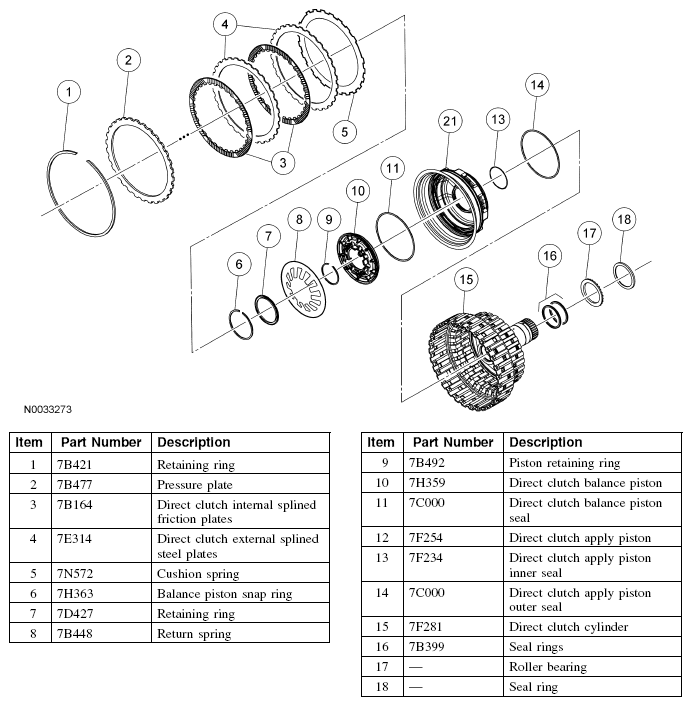

Fig 1: Identifying Direct Clutch Assembly Components (B Clutch)
G04627912Courtesy of FORD MOTOR CO.
