Intermediate Clutch Assembly: Notes

ITEM SPECIFICATION

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP	MERCON® SP

Intermediate Clutch Assembly (C Clutch)

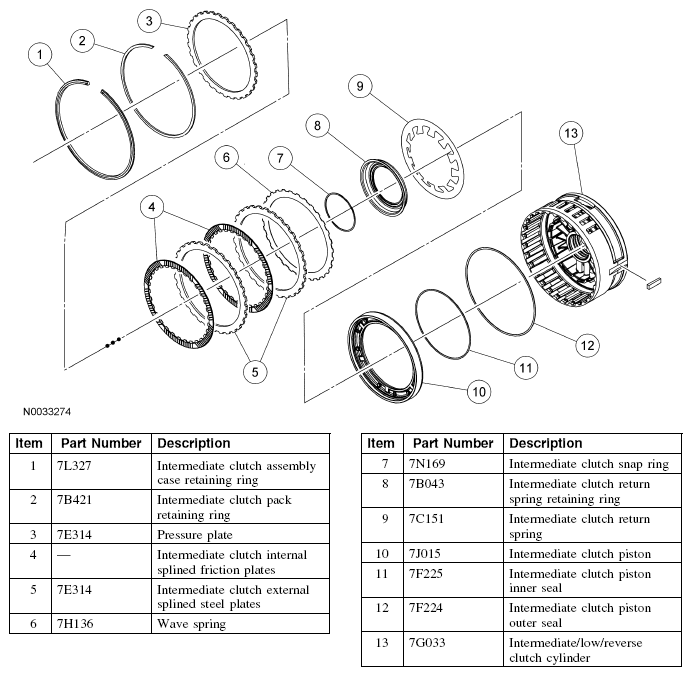

Fig 1: Identifying Clutch Assembly Components (C Clutch)

Courtesy of FORD MOTOR CO.
