Home >> Lincoln >> 2006 >> Navigator RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Forward Clutch Assembly >> Notes

Forward Clutch Assembly: Notes

ITEM SPECIFICATION

Item Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP MERCON® SP

Forward Clutch Assembly (A Clutch)

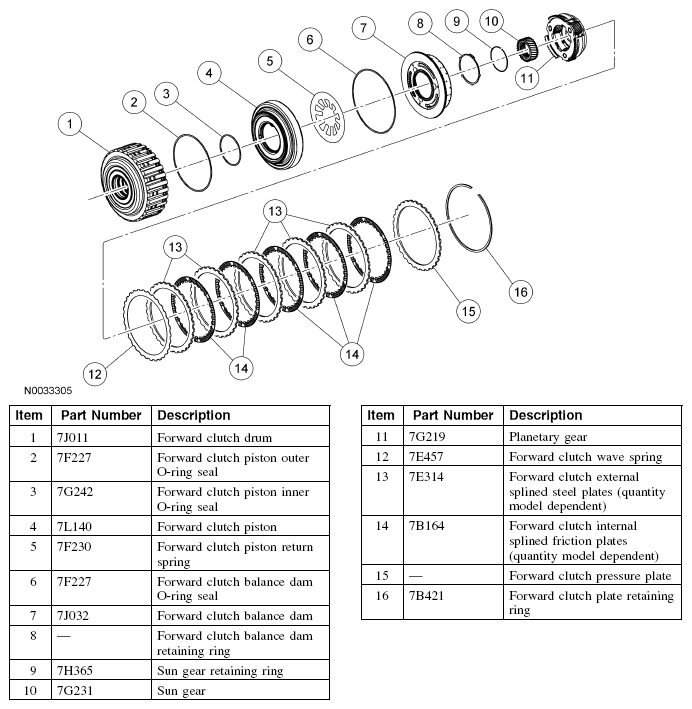

Fig 1: Identifying Forward Clutch Assembly Components (A Clutch)
G04627888Courtesy of FORD MOTOR CO.
