Engine Mount: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Oil Pan Holding Fixture	303-1295

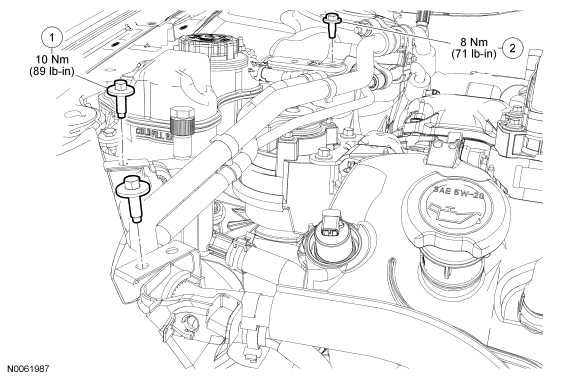

Fig 1: Exploded View Of A/C Tube Retaining Clamp Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	A/C tube retaining clamp bolt (2 required)
2	W505422	A/C tube retaining clamp bolt

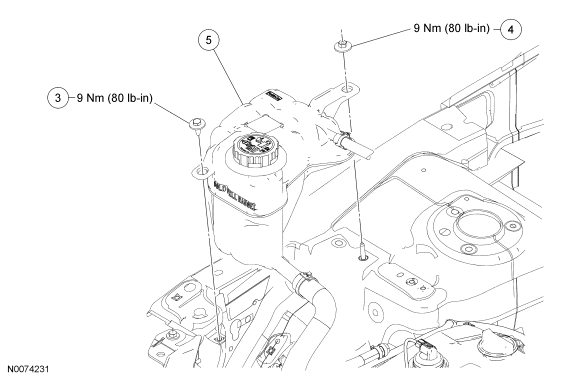

Fig 2: Exploded View Of Engine Coolant Degas Bottle, Nut & Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	W707398	Engine coolant degas bottle-to-fender bolt
4	W709603	Engine coolant degas bottle-to-fender nut
5	8A080	Engine coolant degas bottle

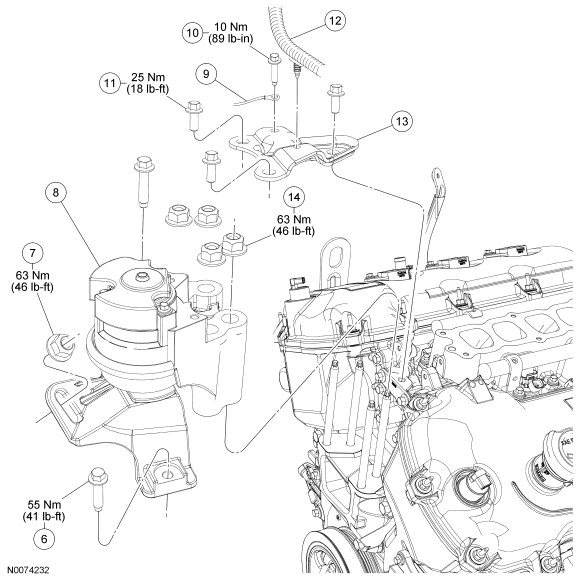

Fig 3: Exploded View Of Engine Mount Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	W500720	Engine mount-to-frame bolt (2 required)
7	W705891	Engine mount-to-frame nut
8	6F012	Engine mount
9	19A905	Ground wire
10	W705936	Ground wire bolt
11	W708764	Engine mount brace bolt (3 required)
12	3493	Power steering hose retainer
13	6K075	Engine mount brace
14	W705891	Engine mount-to-engine nut (4 required)
