Home >> Lincoln >> 2007 >> MKZ FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Servicing >> Lower Intake Manifold >> Notes

Lower Intake Manifold: Notes

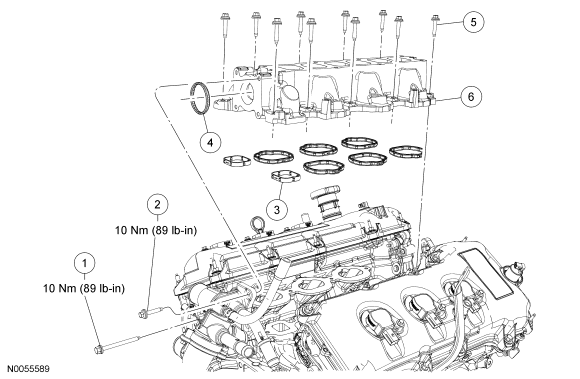

Fig 1: Exploded View Of Lower Intake Manifold With Torque Specifications
GF0029083Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708607 Thermostat housing-to-lower intake manifold bolt
2 W503279 Thermostat housing-to-lower intake manifold bolt
3 9439 Lower intake manifold gasket (8 required)
4 8A571 Thermostat housing gasket
5 W503279 Lower intake manifold bolt (10 required)
6 9K461 Lower intake manifold
