Upper Intake Manifold: Notes

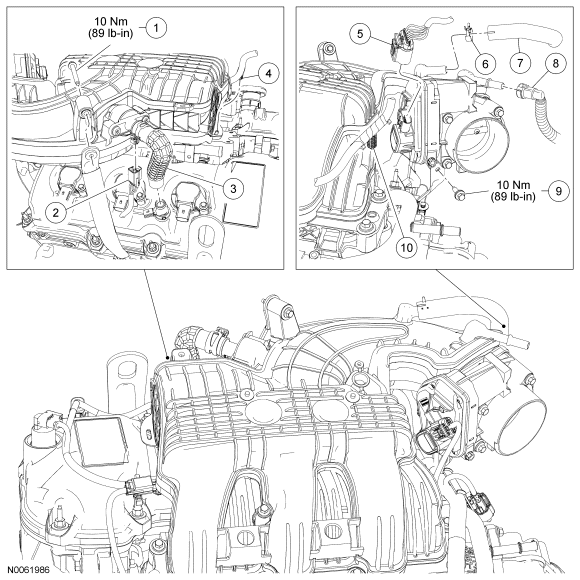

Fig 1: Exploded View Of Upper Intake Manifold With Torque Specifications (1 Of 2)

GF0029080

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503274	Upper intake manifold support bracket bolt
2	14A464	Positive crankcase ventilation (PCV) fitting electrical connector (part of 12C508)
3	6K817	PCV hose
4	13A506	Block heater wiring harness retainer (part of 6B018)
5	14A464	Throttle body electrical connector (part of 12C508)
6	CS16140	Brake booster-to-intake manifold vacuum hose clamp
7	6K817	Brake booster-to-intake manifold vacuum hose
8	9D661	Evaporative emissions (EVAP)-to-intake manifold tube
9	W503274	Upper intake manifold support bracket bolt
10	-	Engine control wiring harness retainer (part of 12C508)

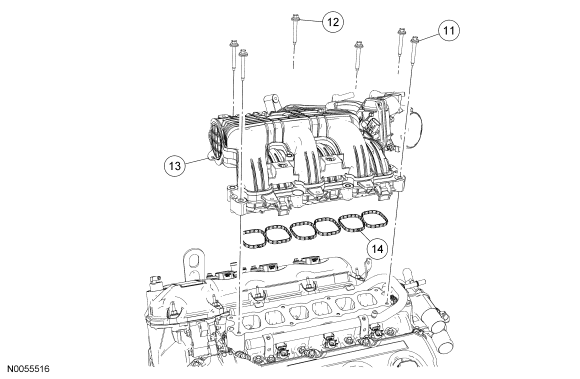

Fig 2: Exploded View Of Upper Intake Manifold (2 Of 2)

GF0029081

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	W503282	Upper intake manifold bolt (5 required)
12	W707083	Upper intake manifold bolt
13	9S455	Upper intake manifold
14	9H486	Upper intake manifold gasket (3 required)
