Accelerator Pedal and Bracket : Notes

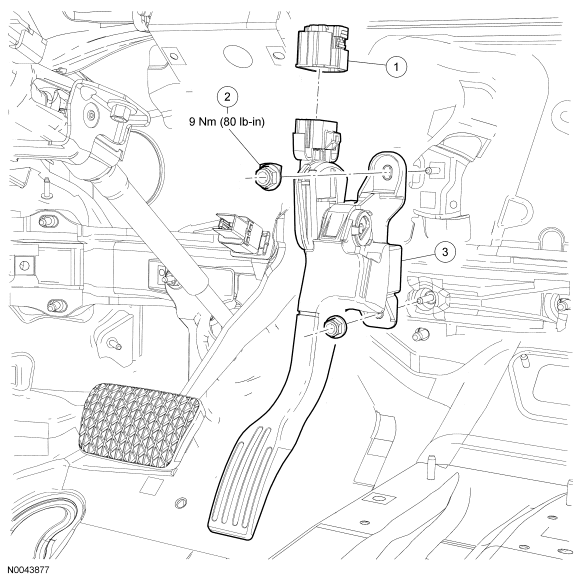

Fig 1: Exploded View Of Accelerator Pedal & Bracket With Torque Specification
GF0030198Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 W706131 Accelerator pedal bracket nut (2 required)
3 9F836 Accelerator pedal and bracket
