Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

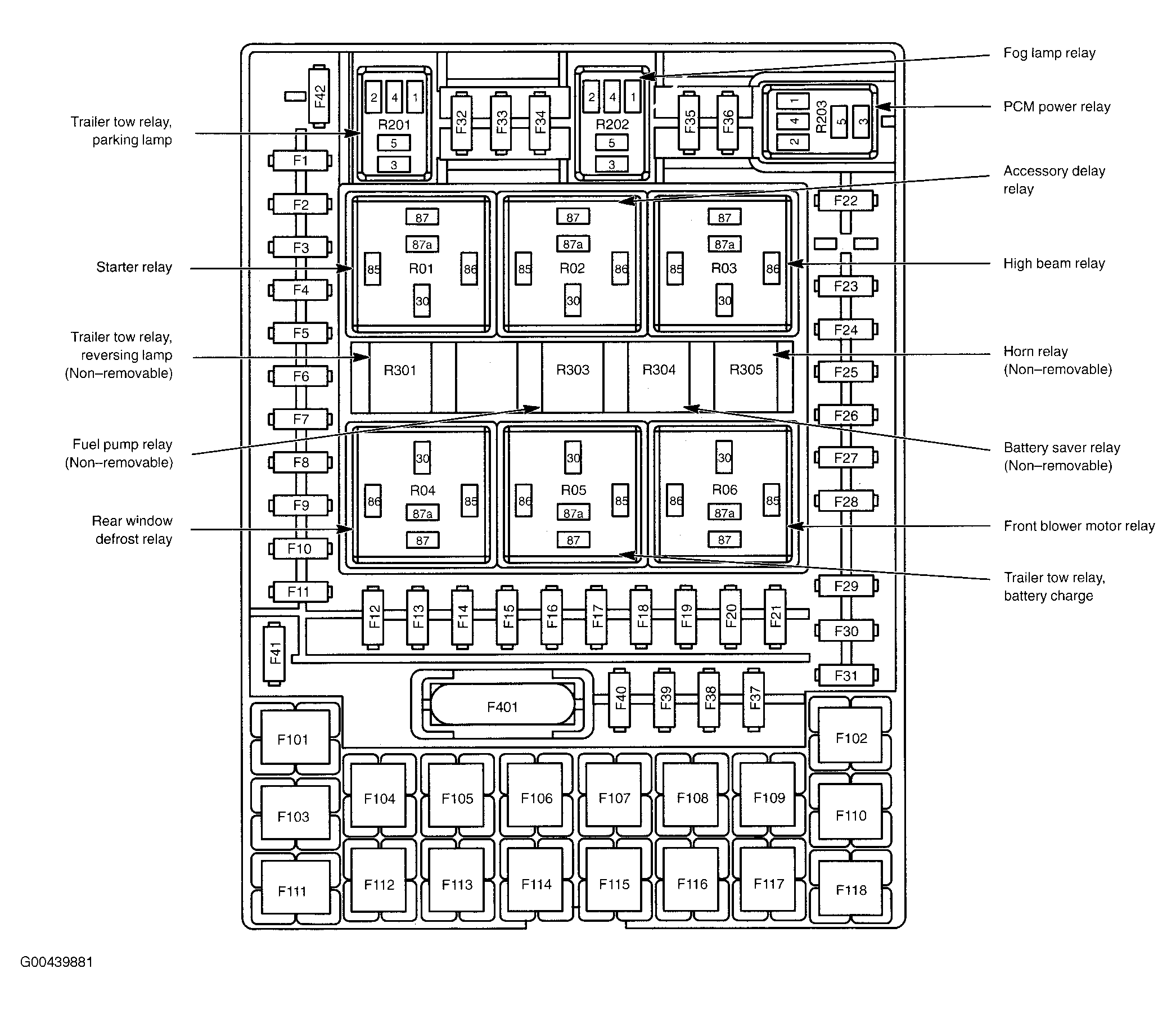

Fig 1: Central Junction Box (CJB)

G00439881

Courtesy of FORD MOTOR CO.

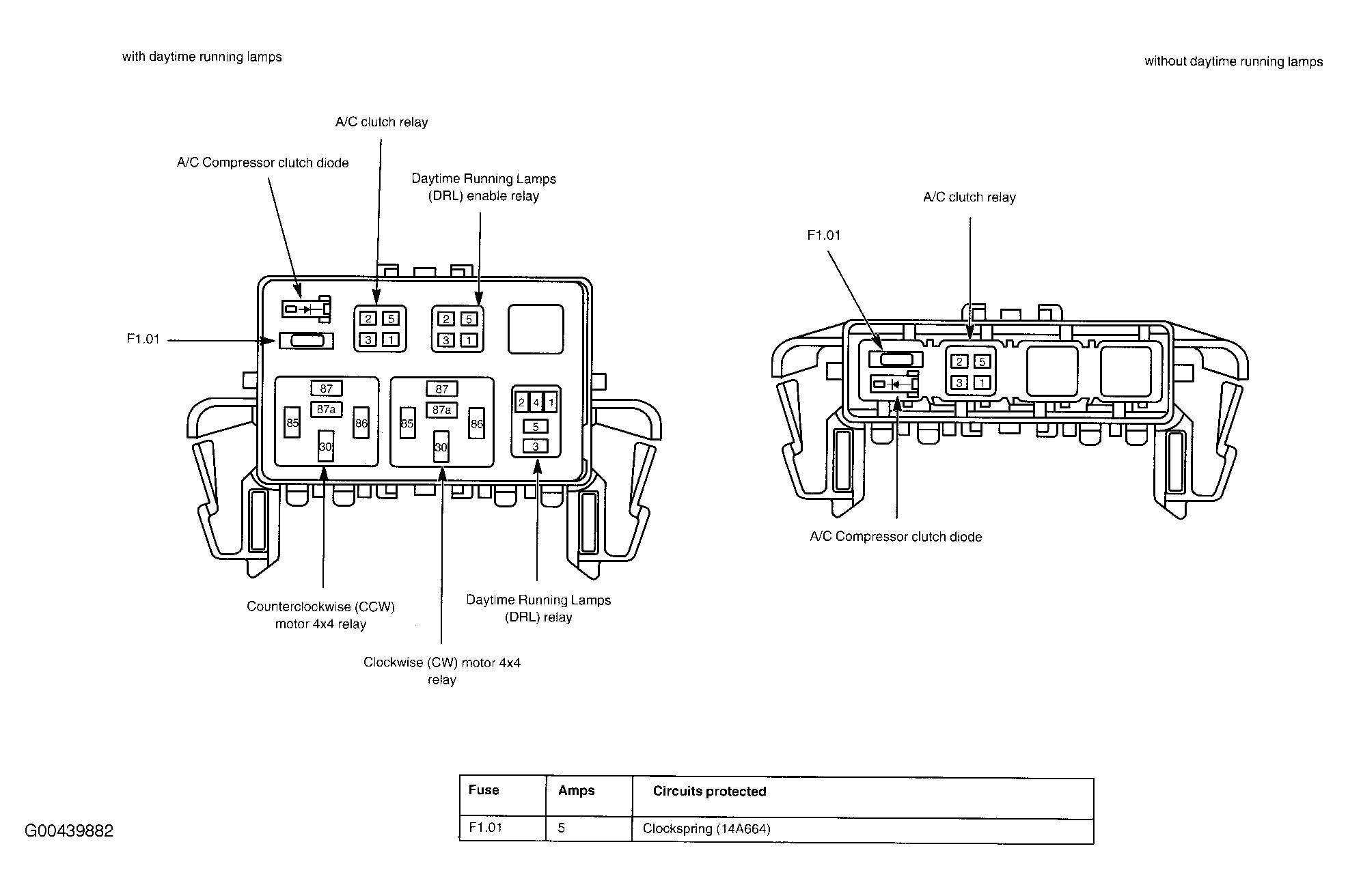

Fig 2: Auxiliary Relay Box 1

G00439882

Courtesy of FORD MOTOR CO.

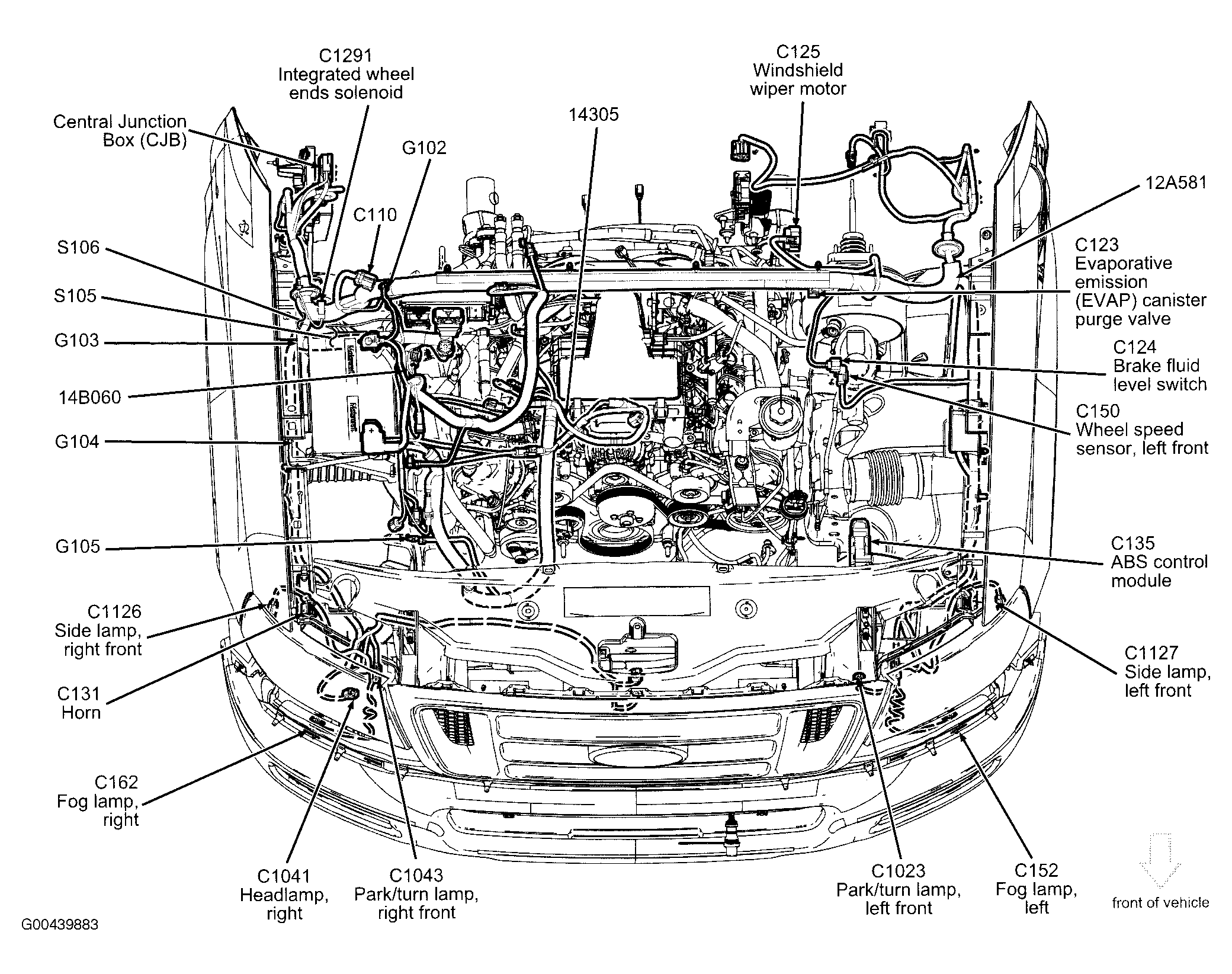

Fig 3: Engine Compartment

G00439883

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00439884

Courtesy of FORD MOTOR CO.

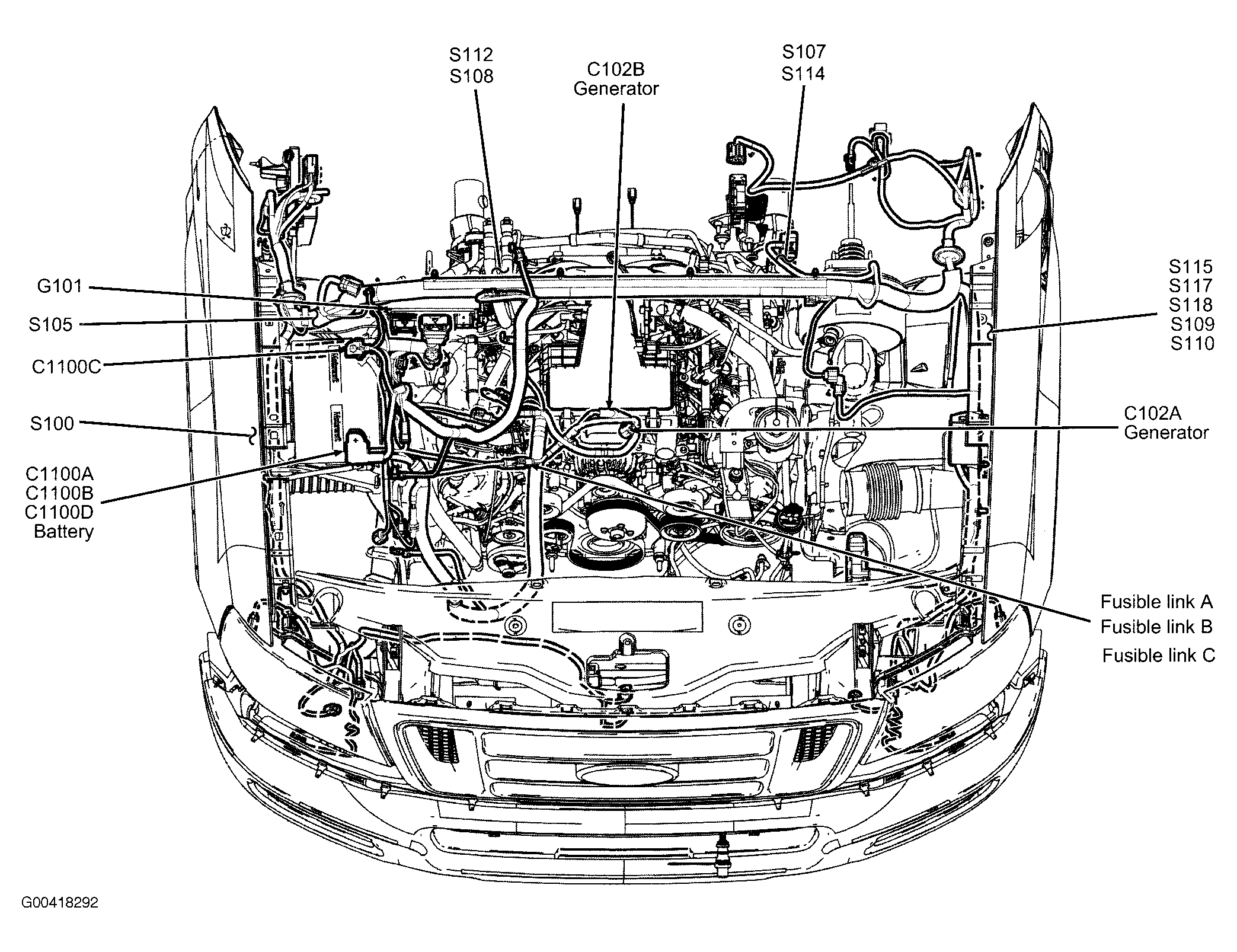

Fig 5: Engine Compartment

G00418292

Courtesy of FORD MOTOR CO.

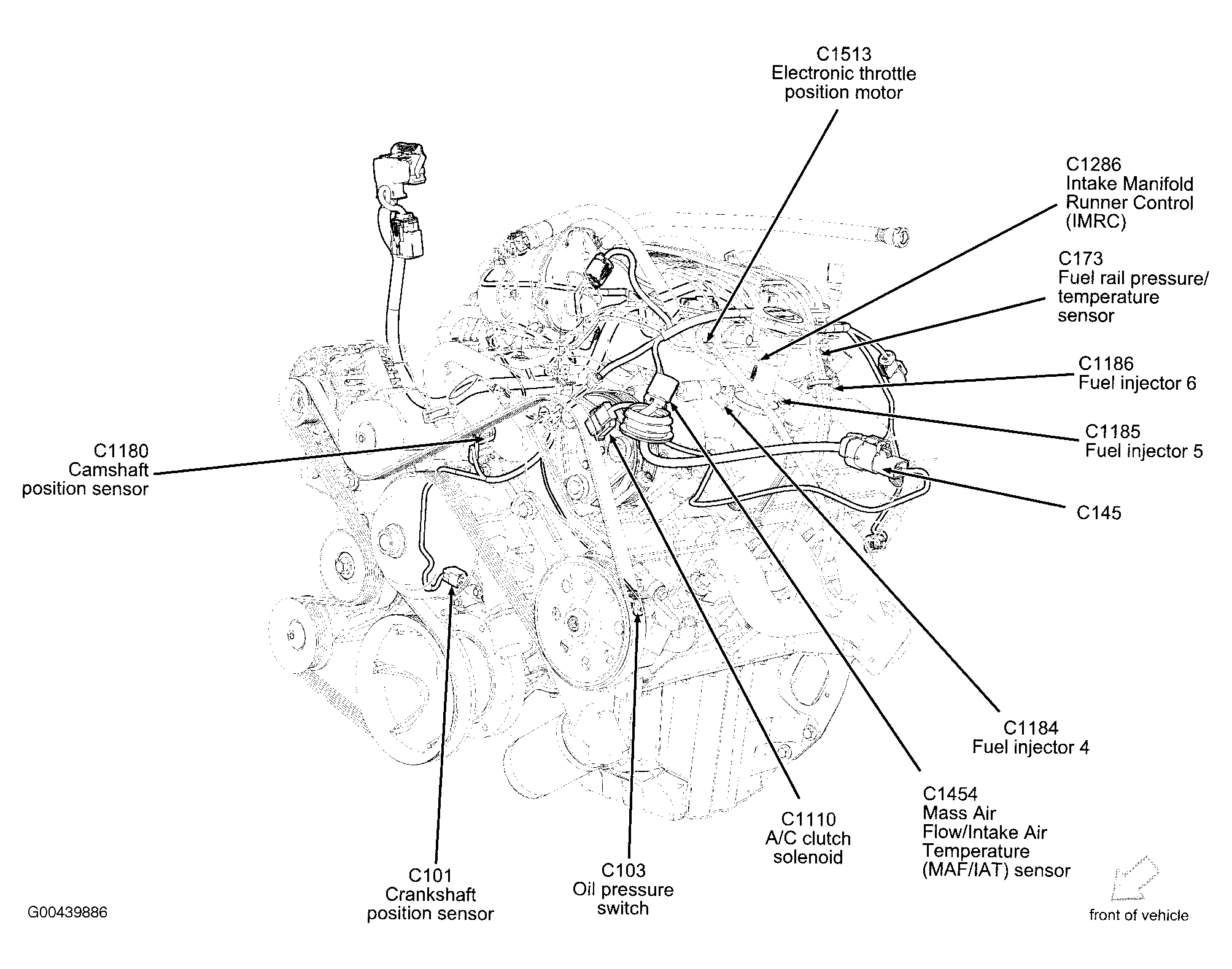

Fig 6: Front Of Engine (4.2L)

G00439886

Courtesy of FORD MOTOR CO.

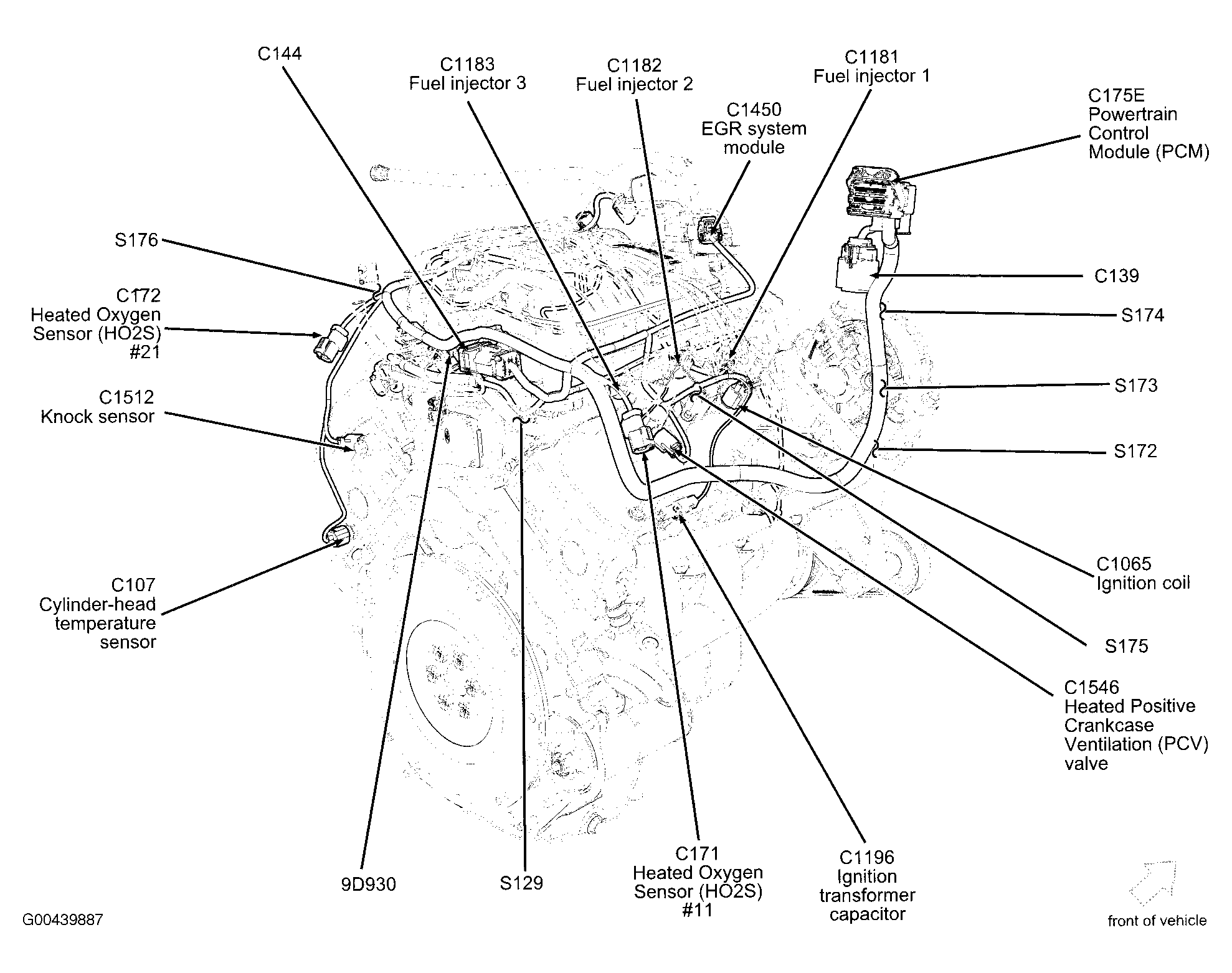

Fig 7: Rear Of Engine (4.2L)

G00439887

Courtesy of FORD MOTOR CO.

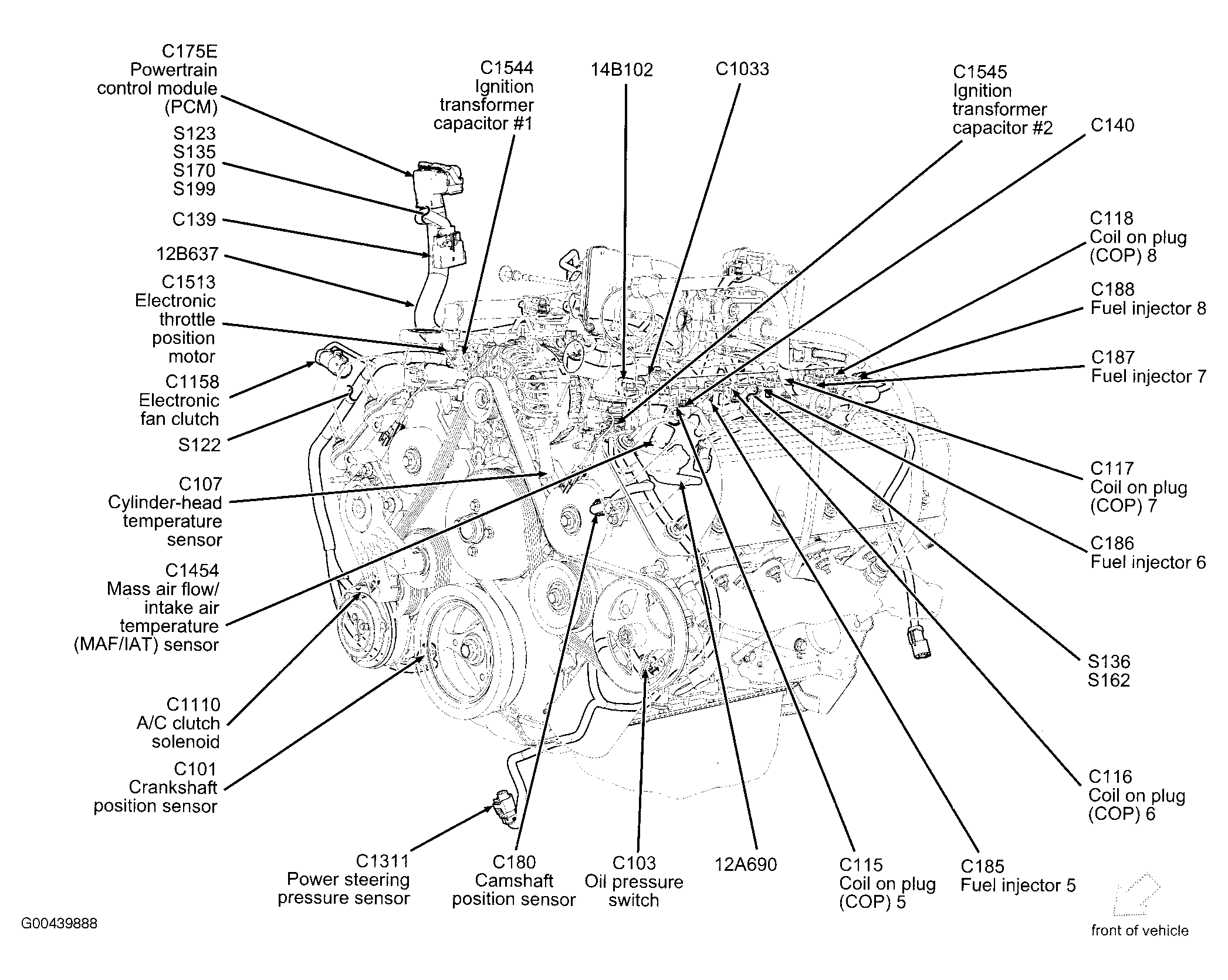

Fig 8: Front Of Engine (4.6L)

G00439888

Courtesy of FORD MOTOR CO.

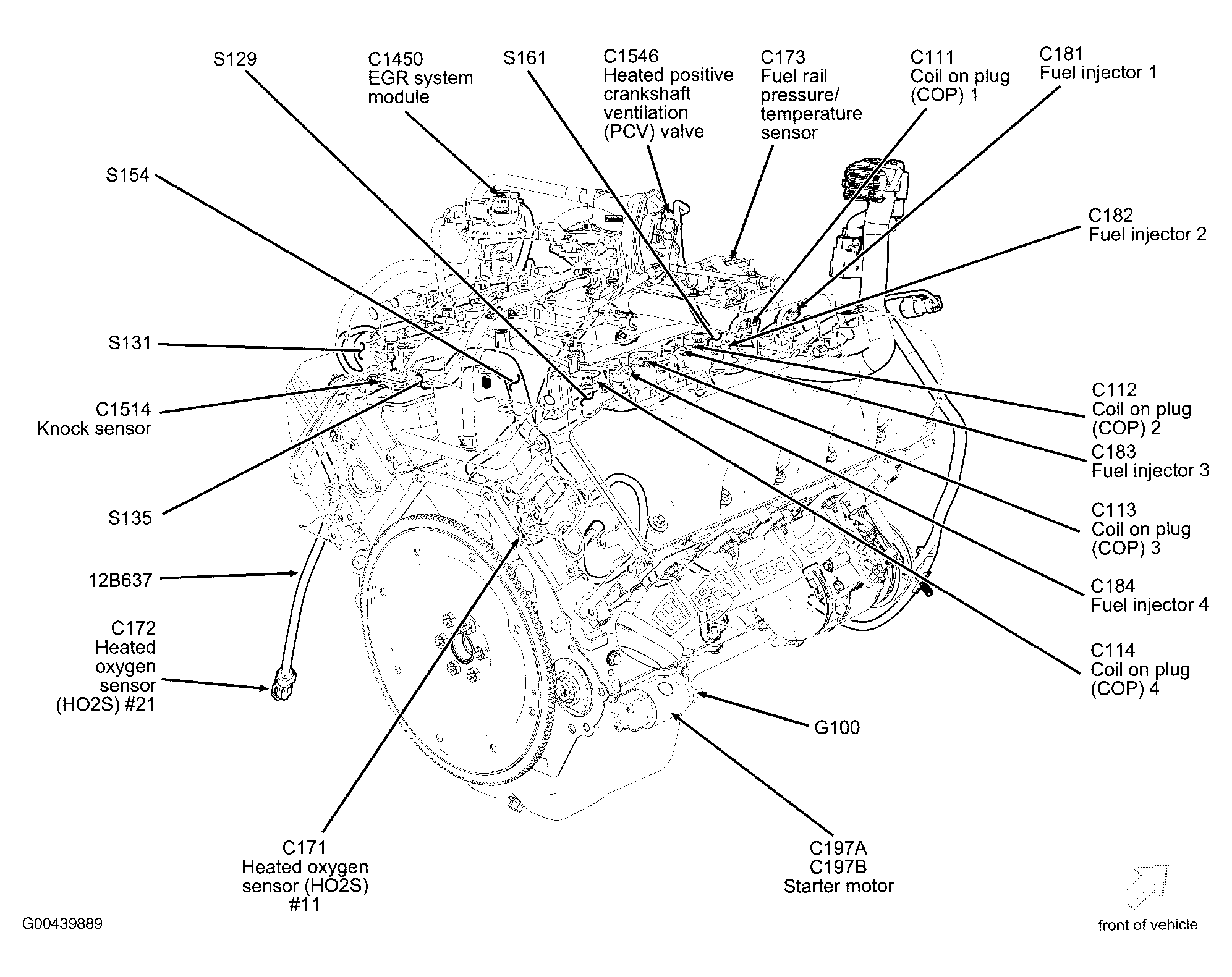

Fig 9: Rear Of Engine (4.6L)

G00439889

Courtesy of FORD MOTOR CO.

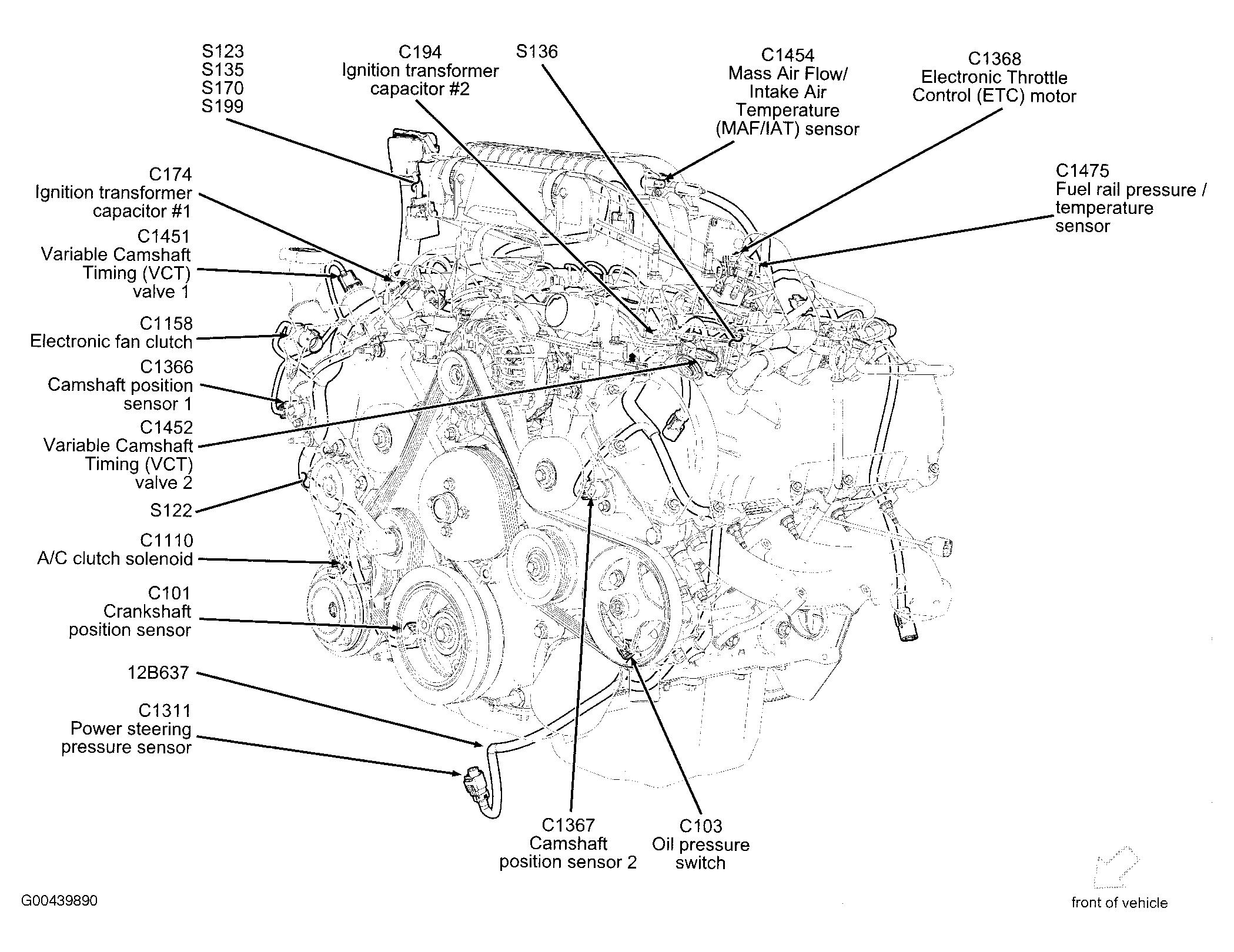

Fig 10: Front Of Engine (5.4L)

G00439890

Courtesy of FORD MOTOR CO.

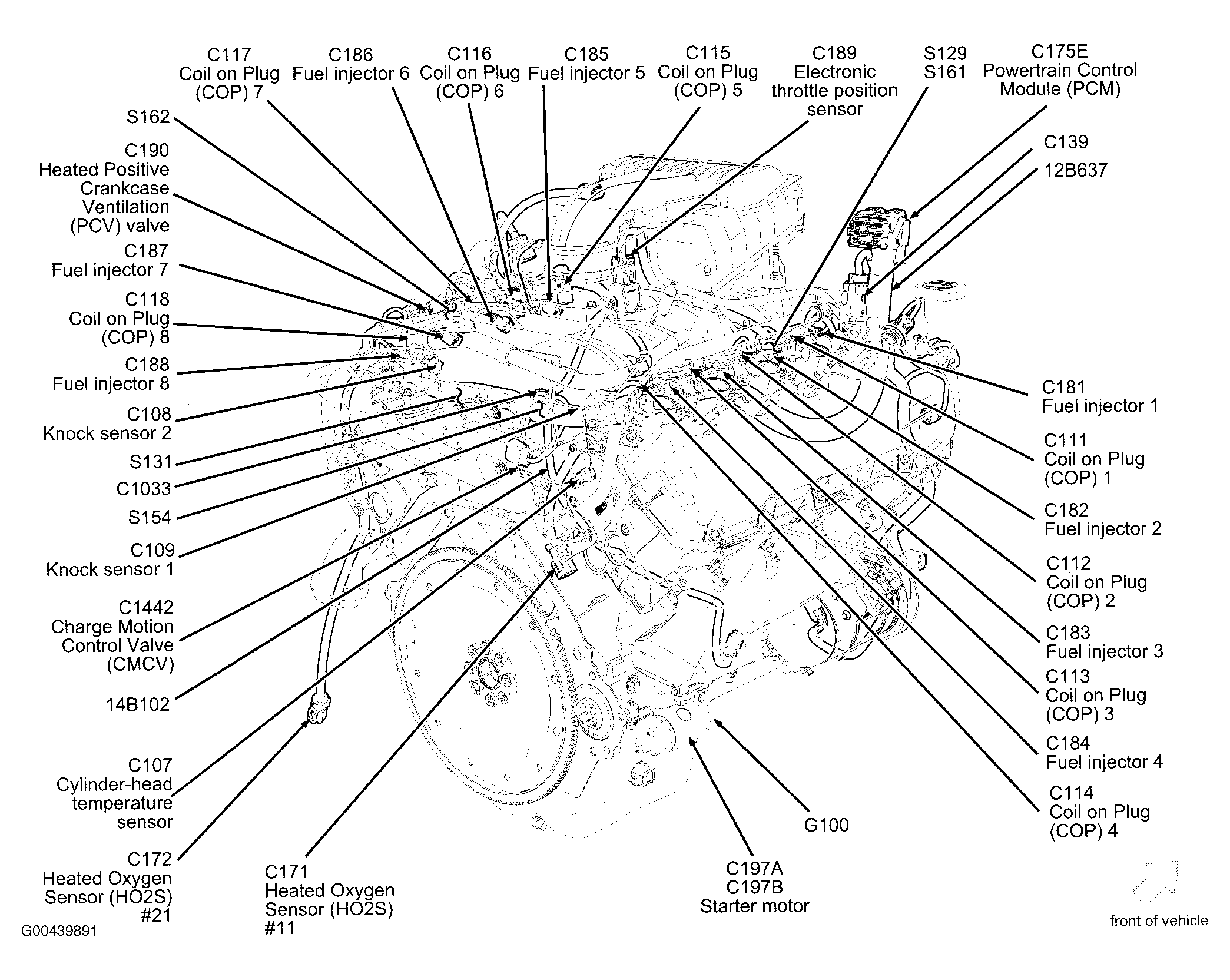

Fig 11: Rear Of Engine (5.4L)

G00439891

Courtesy of FORD MOTOR CO.

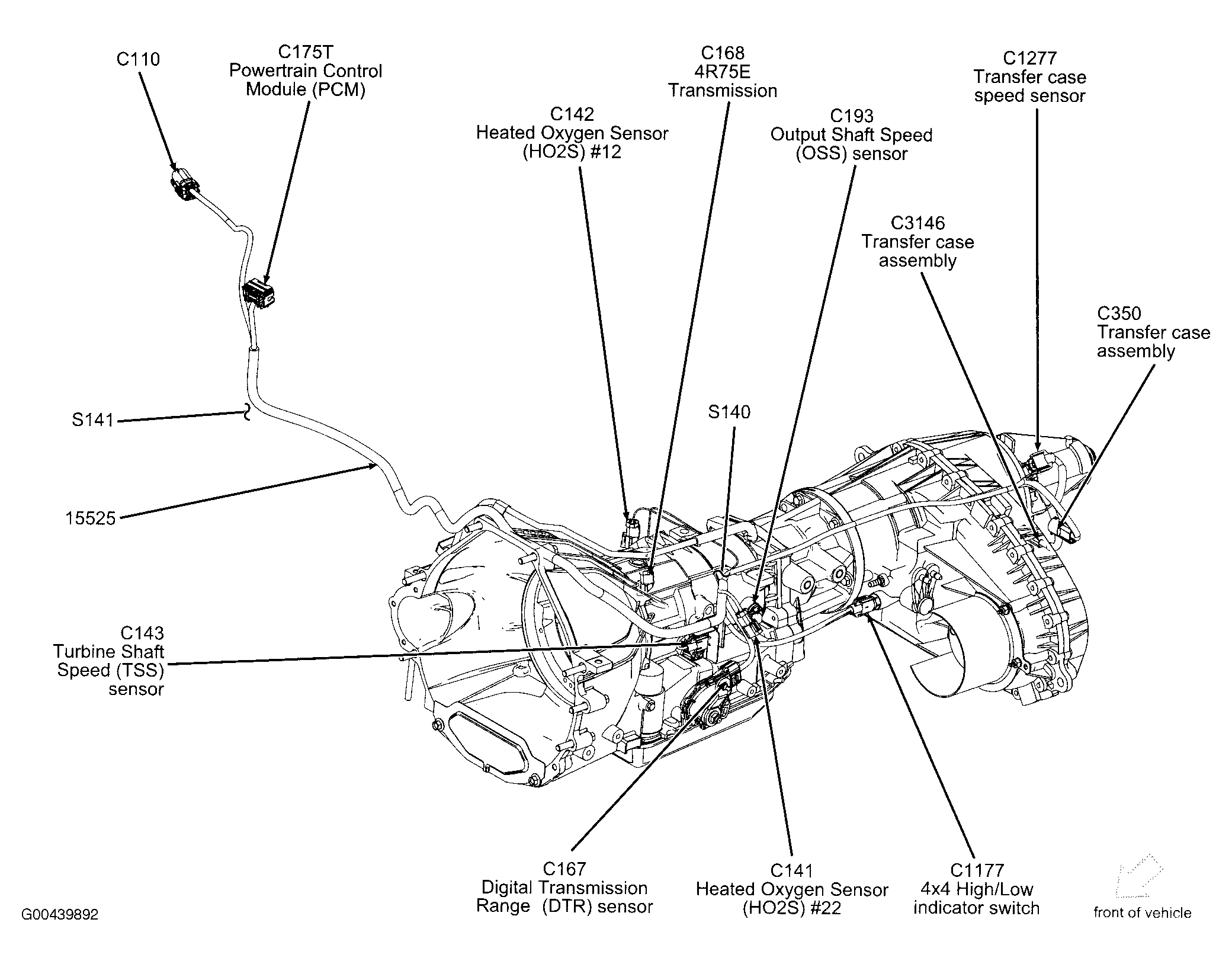

Fig 12: 4R75E Transmission

G00439892

Courtesy of FORD MOTOR CO.

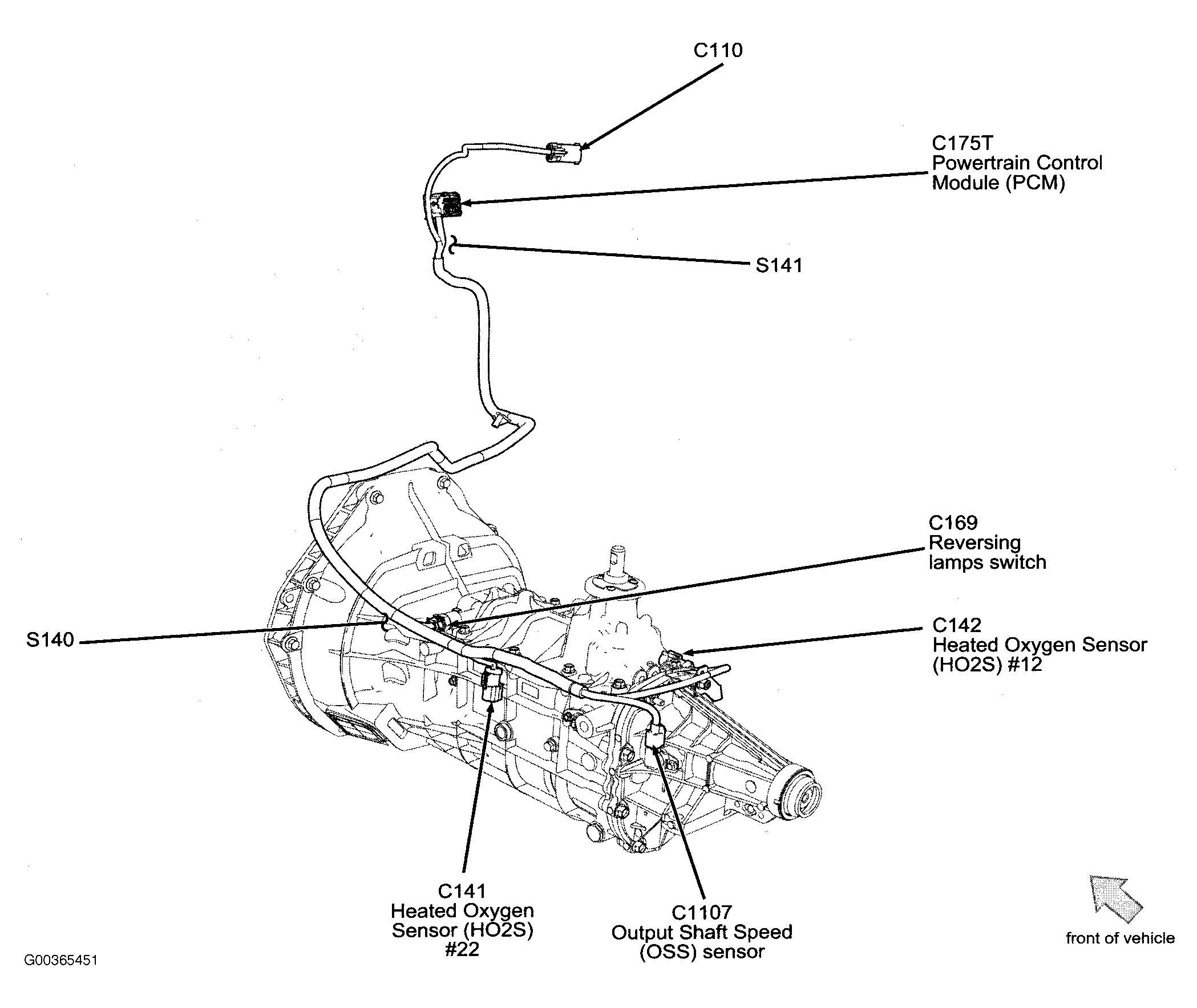

Fig 13: Manual Transmission

G00365451

Courtesy of FORD MOTOR CO.

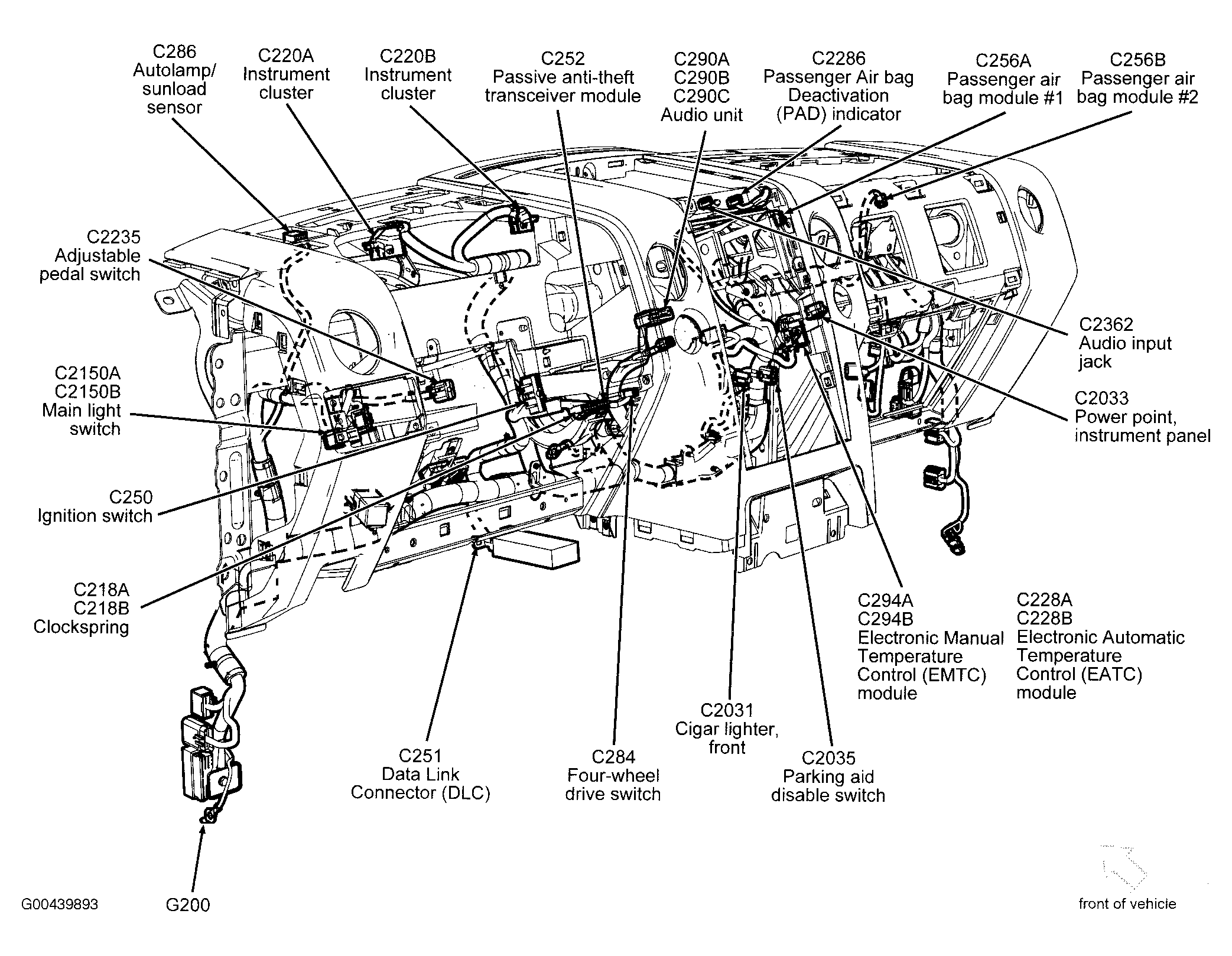

Fig 14: Front Of Dash Panel

G00439893

Courtesy of FORD MOTOR CO.

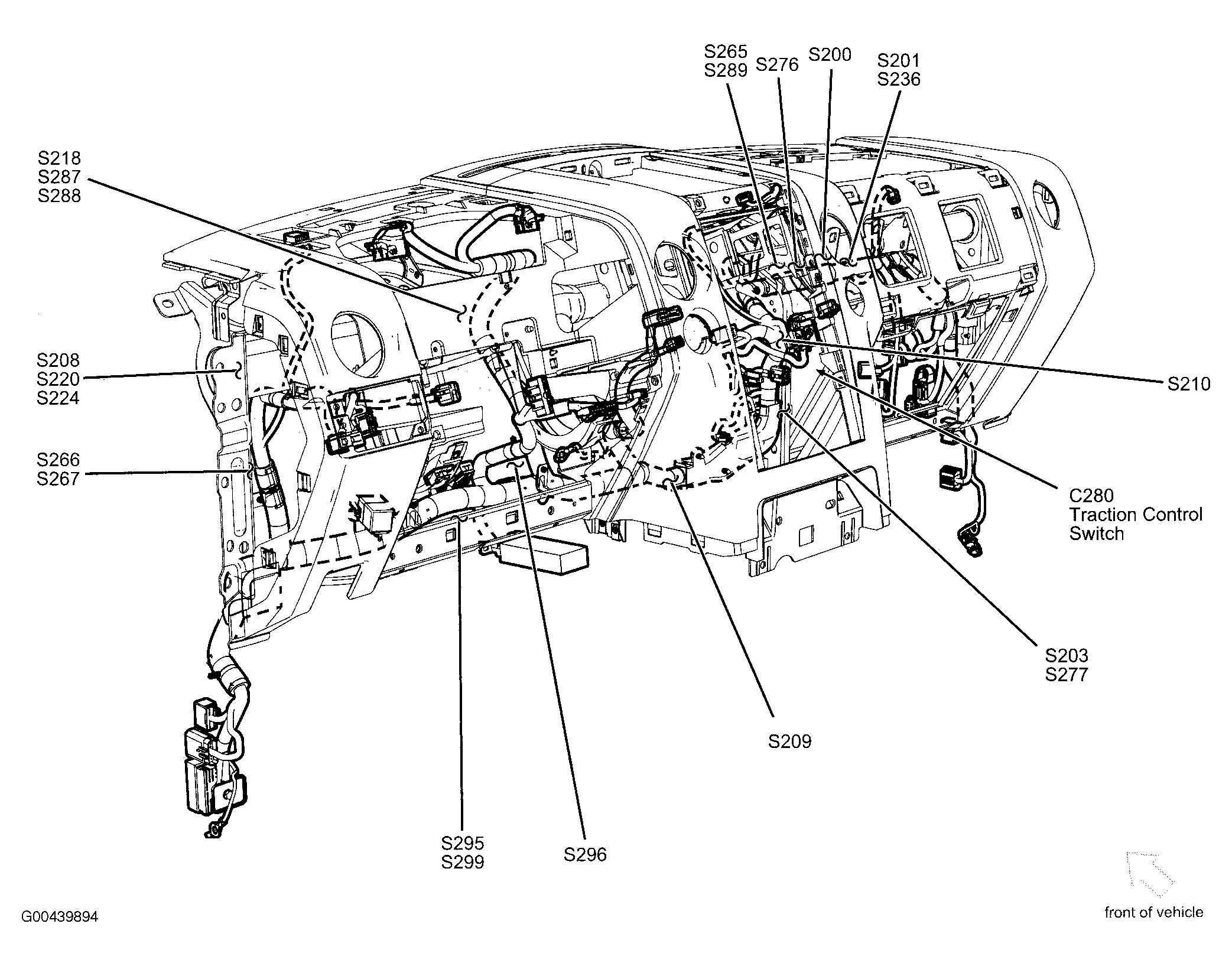

Fig 15: Front Of Dash Panel

G00439894

Courtesy of FORD MOTOR CO.

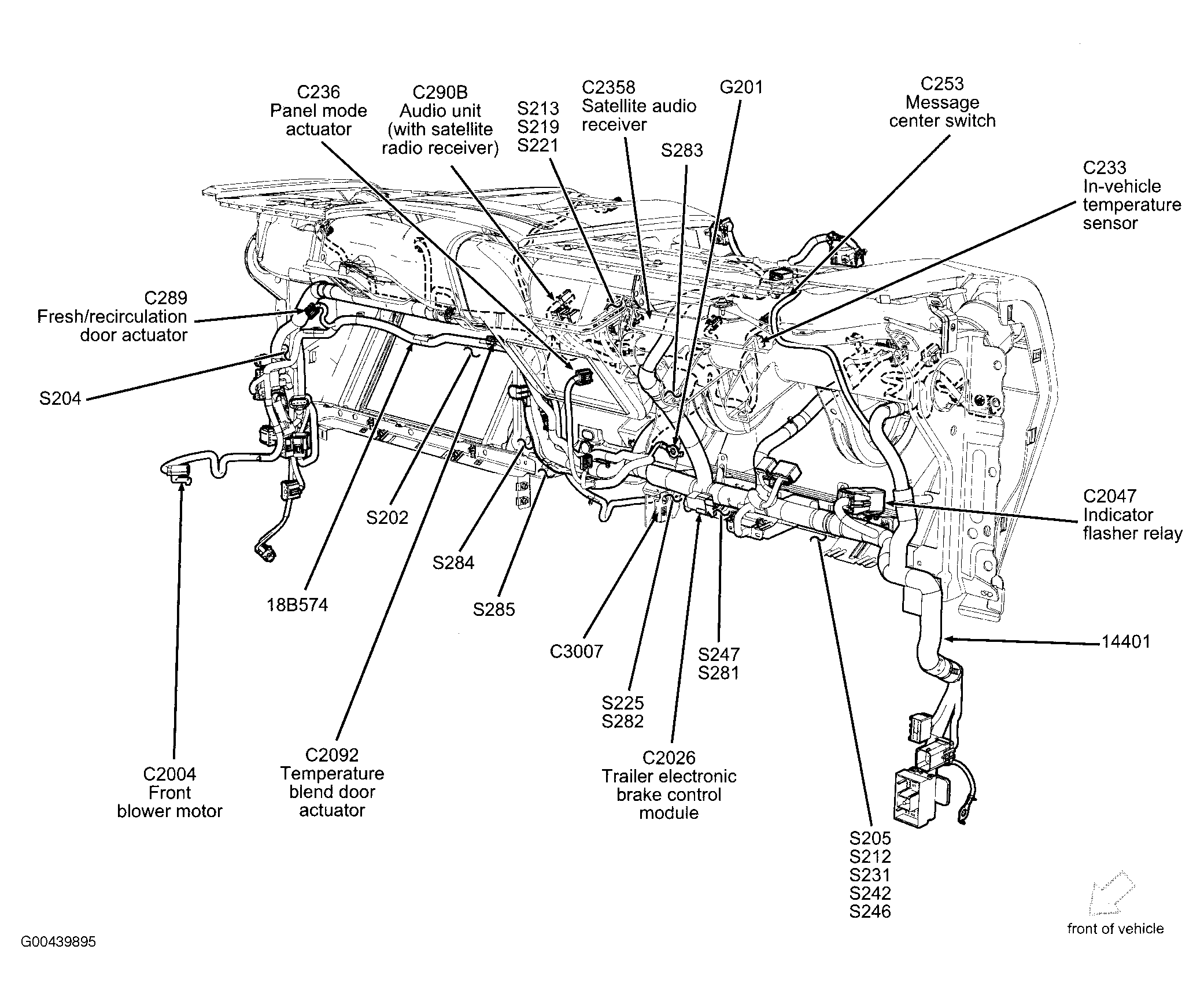

Fig 16: Rear Of Dash Panel

G00439895

Courtesy of FORD MOTOR CO.

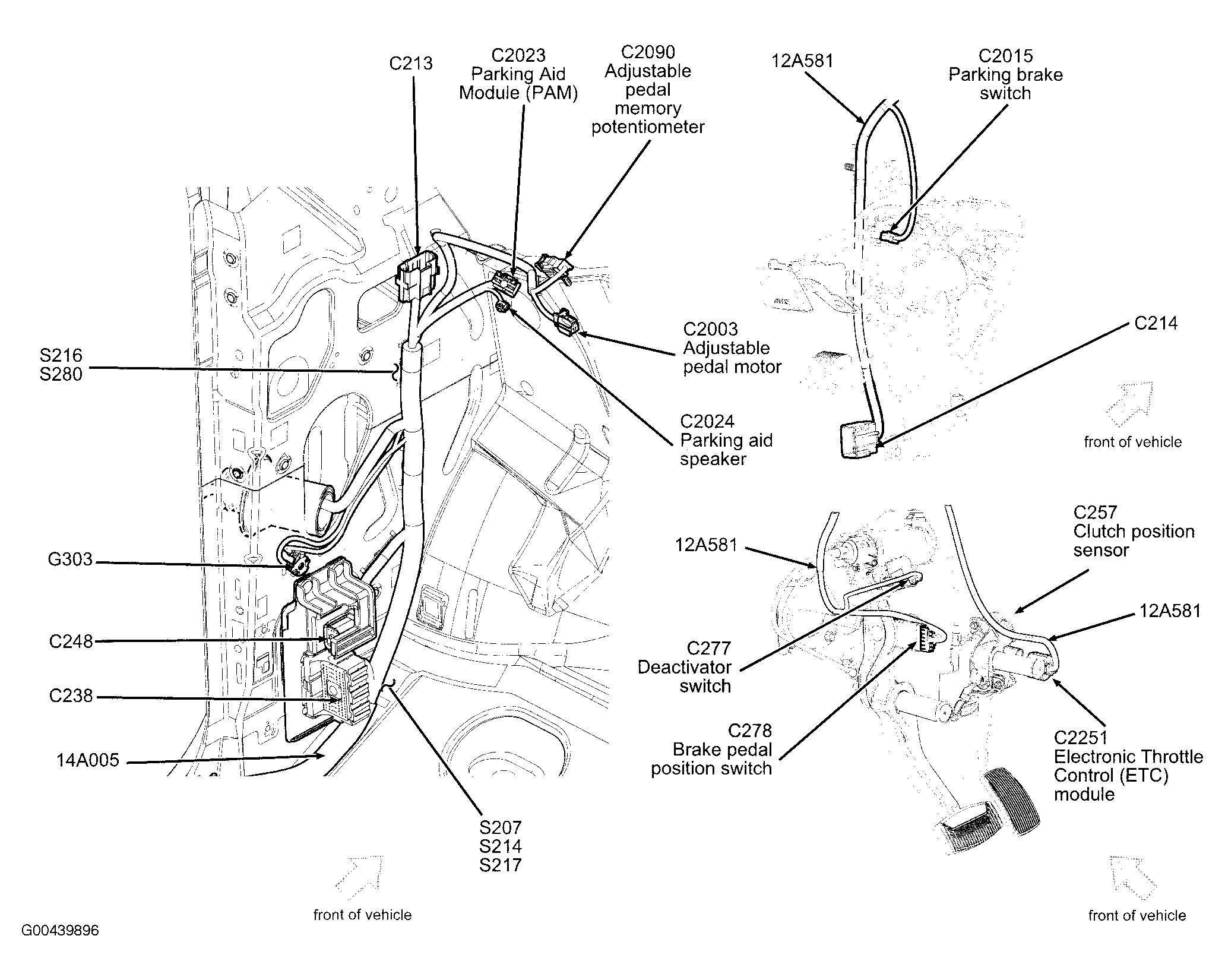

Fig 17: Under Left Side Of Dash & Left Kick Panel

G00439896

Courtesy of FORD MOTOR CO.

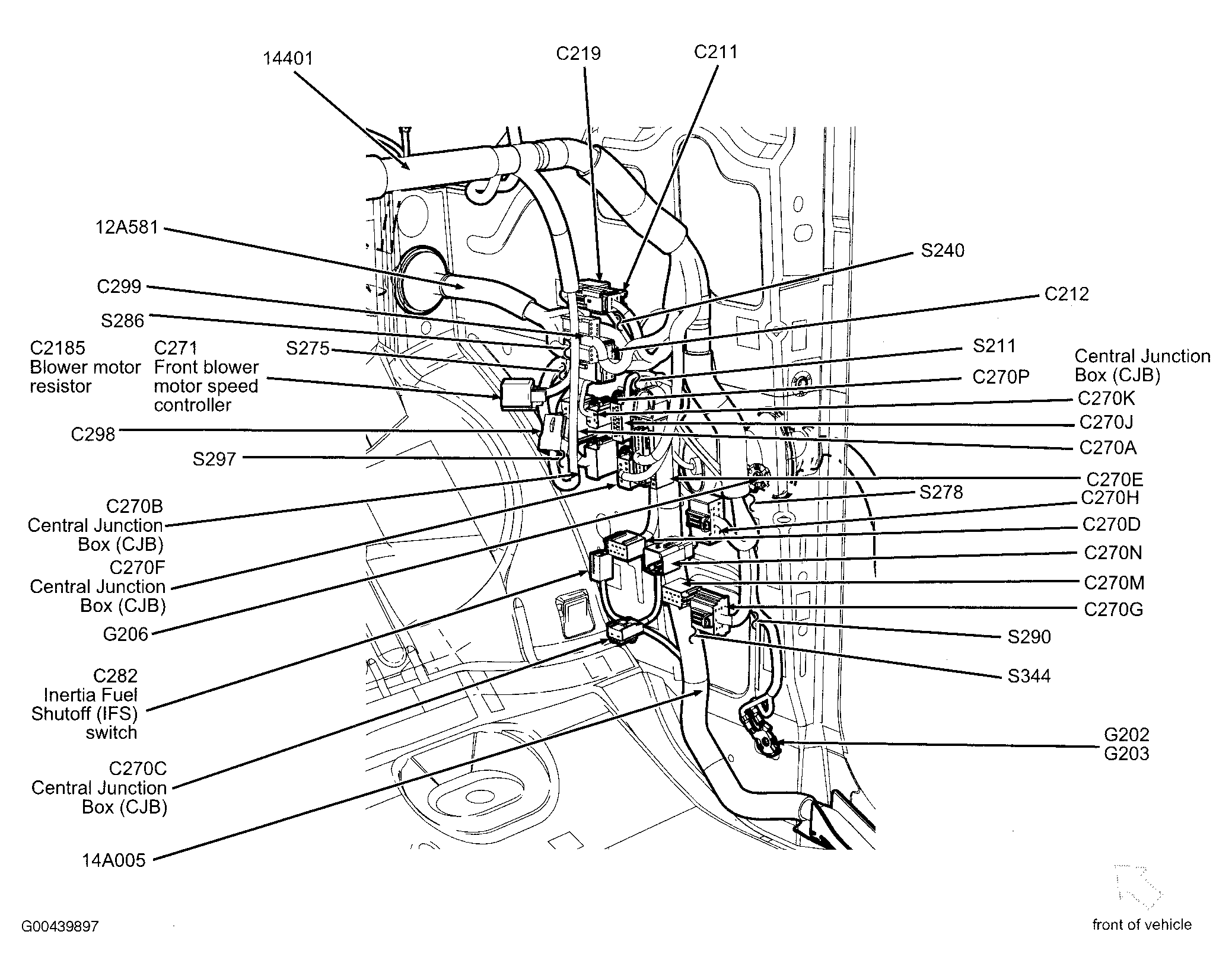

Fig 18: Right Kick Panel

G00439897

Courtesy of FORD MOTOR CO.

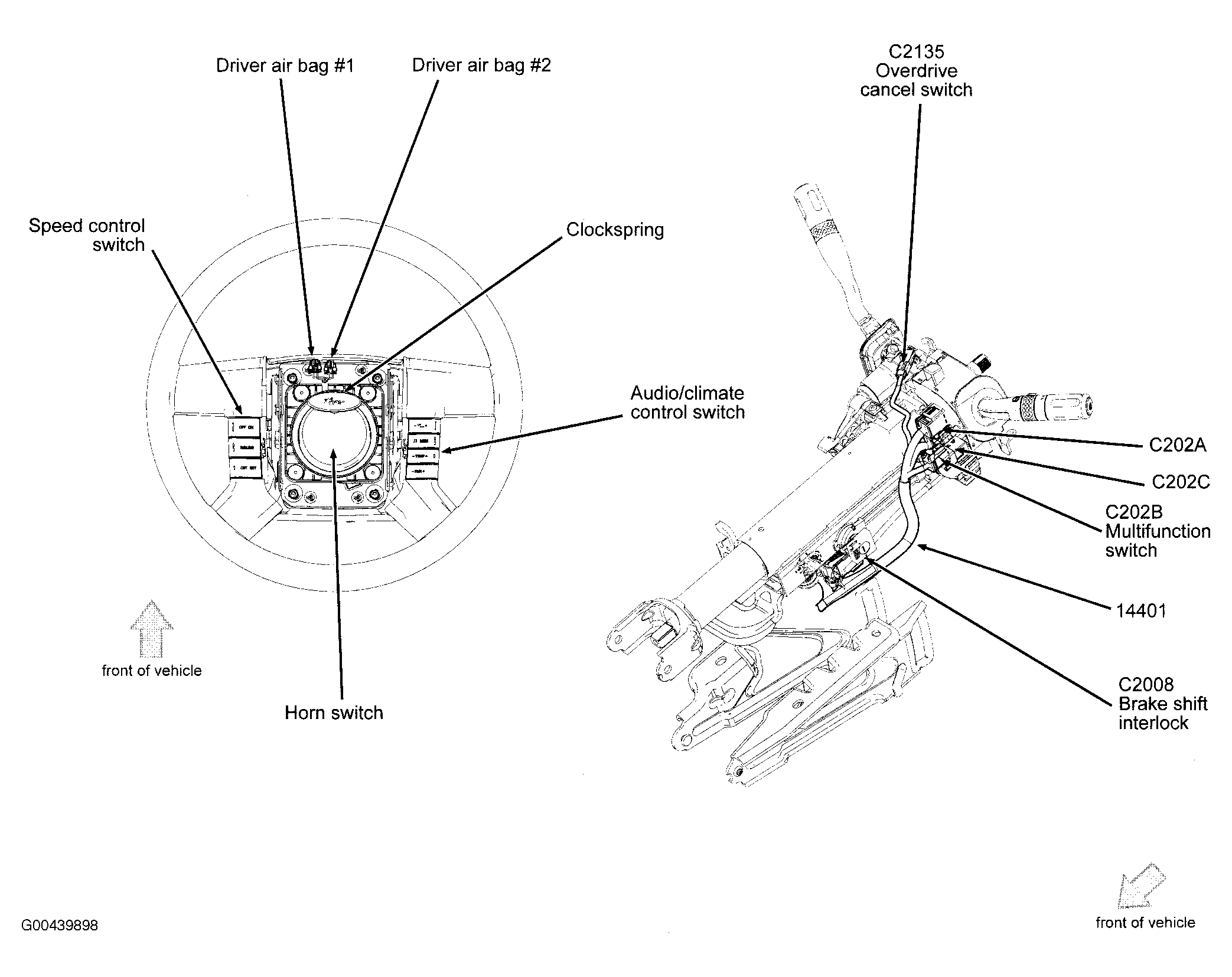

Fig 19: Steering Wheel & Column

G00439898

Courtesy of FORD MOTOR CO.

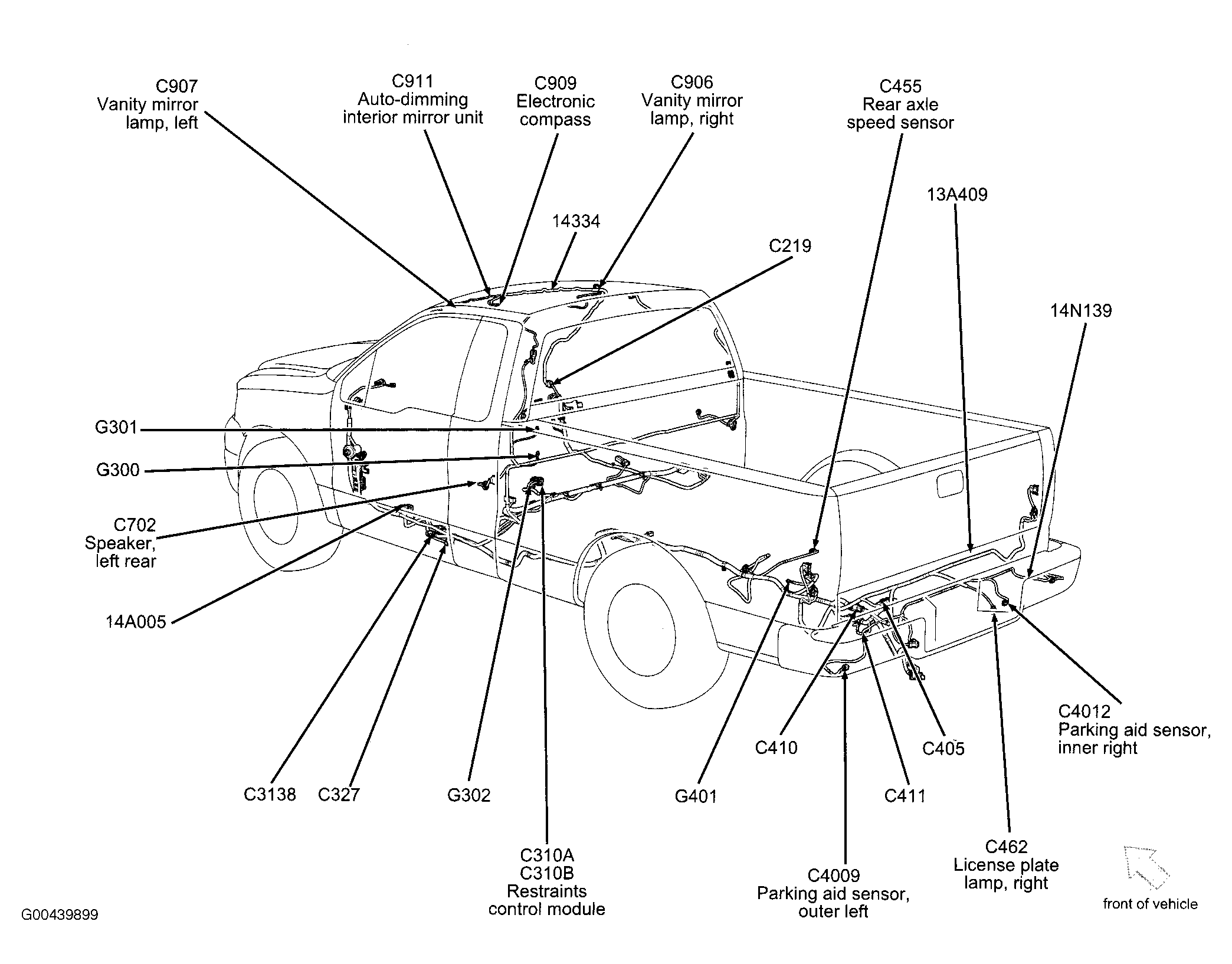

Fig 20: Left Side Of Vehicle (Regular Cab)

G00439899

Courtesy of FORD MOTOR CO.

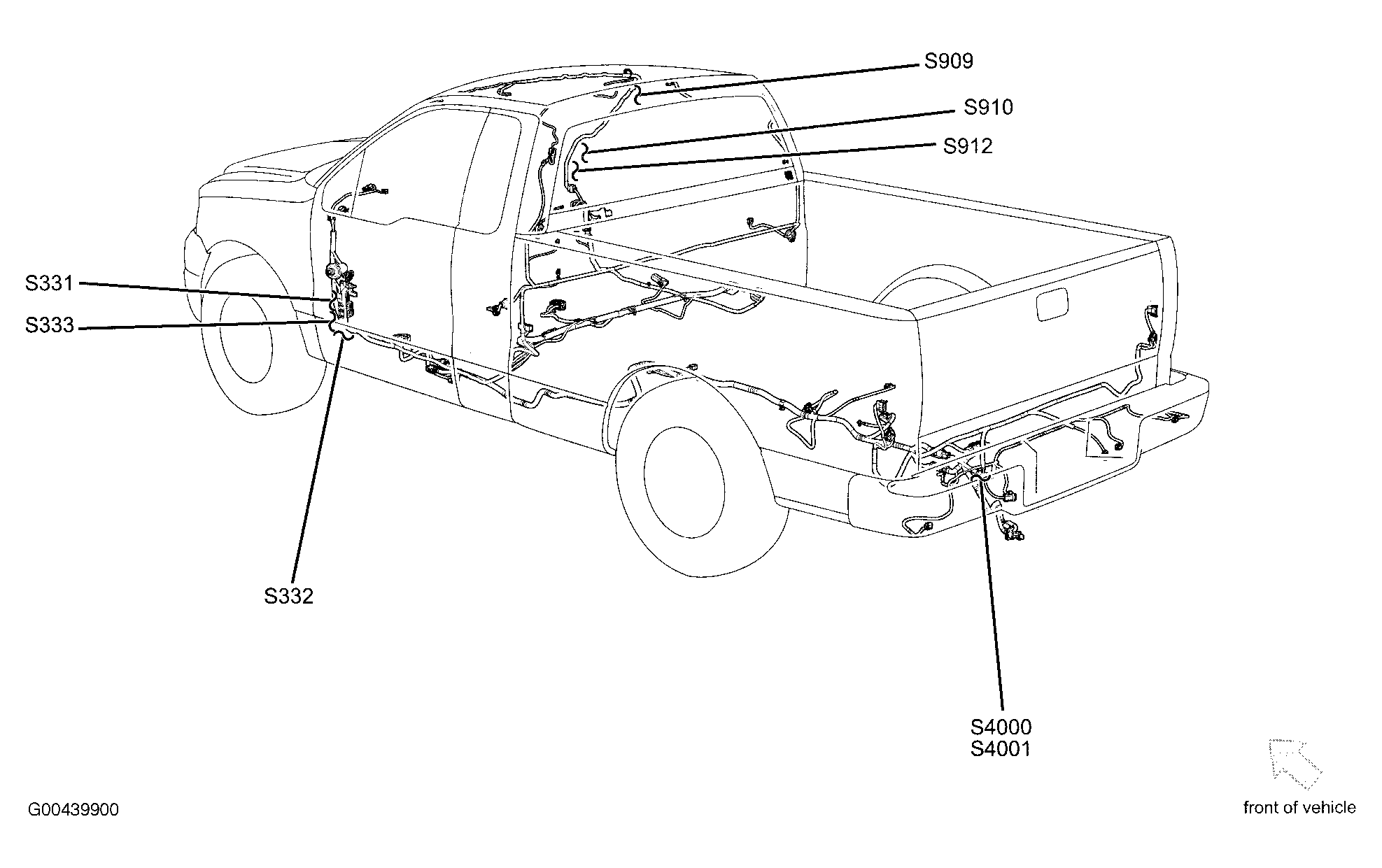

Fig 21: Left Side Of Vehicle (Regular Cab)

G00439900

Courtesy of FORD MOTOR CO.

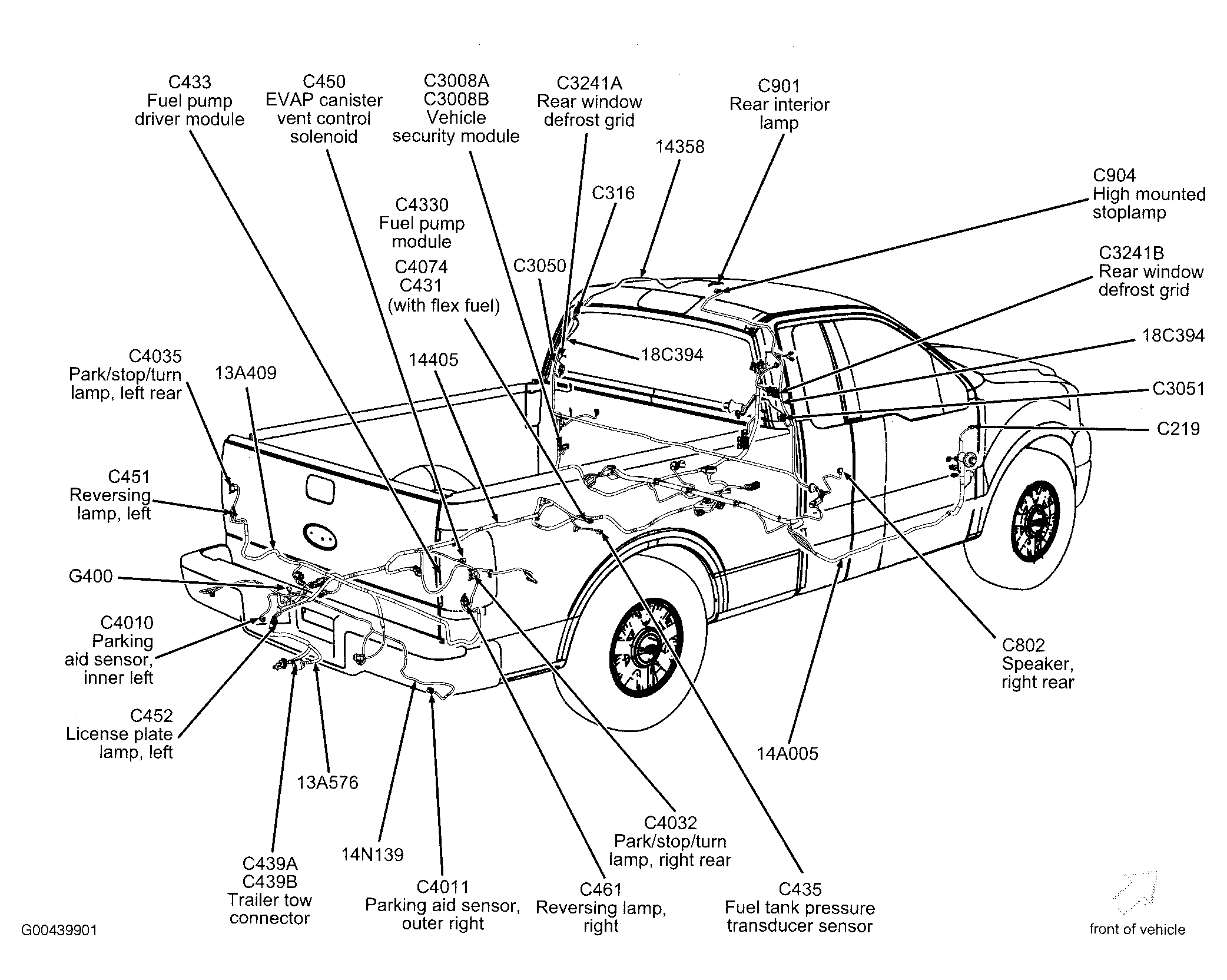

Fig 22: Right Side Of Vehicle (Regular Cab)

G00439901

Courtesy of FORD MOTOR CO.

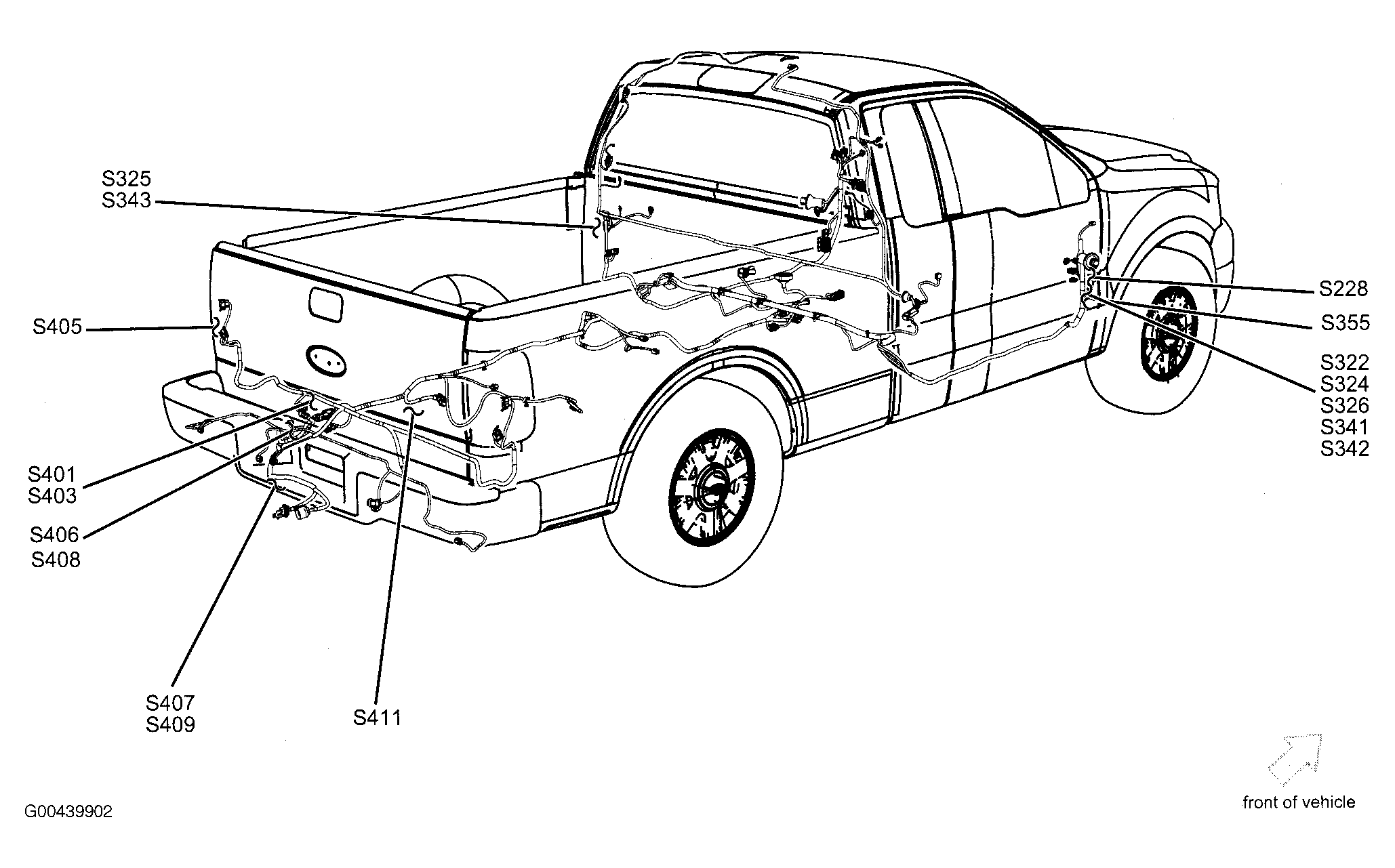

Fig 23: Right Side Of Vehicle (Regular Cab)

G00439902

Courtesy of FORD MOTOR CO.

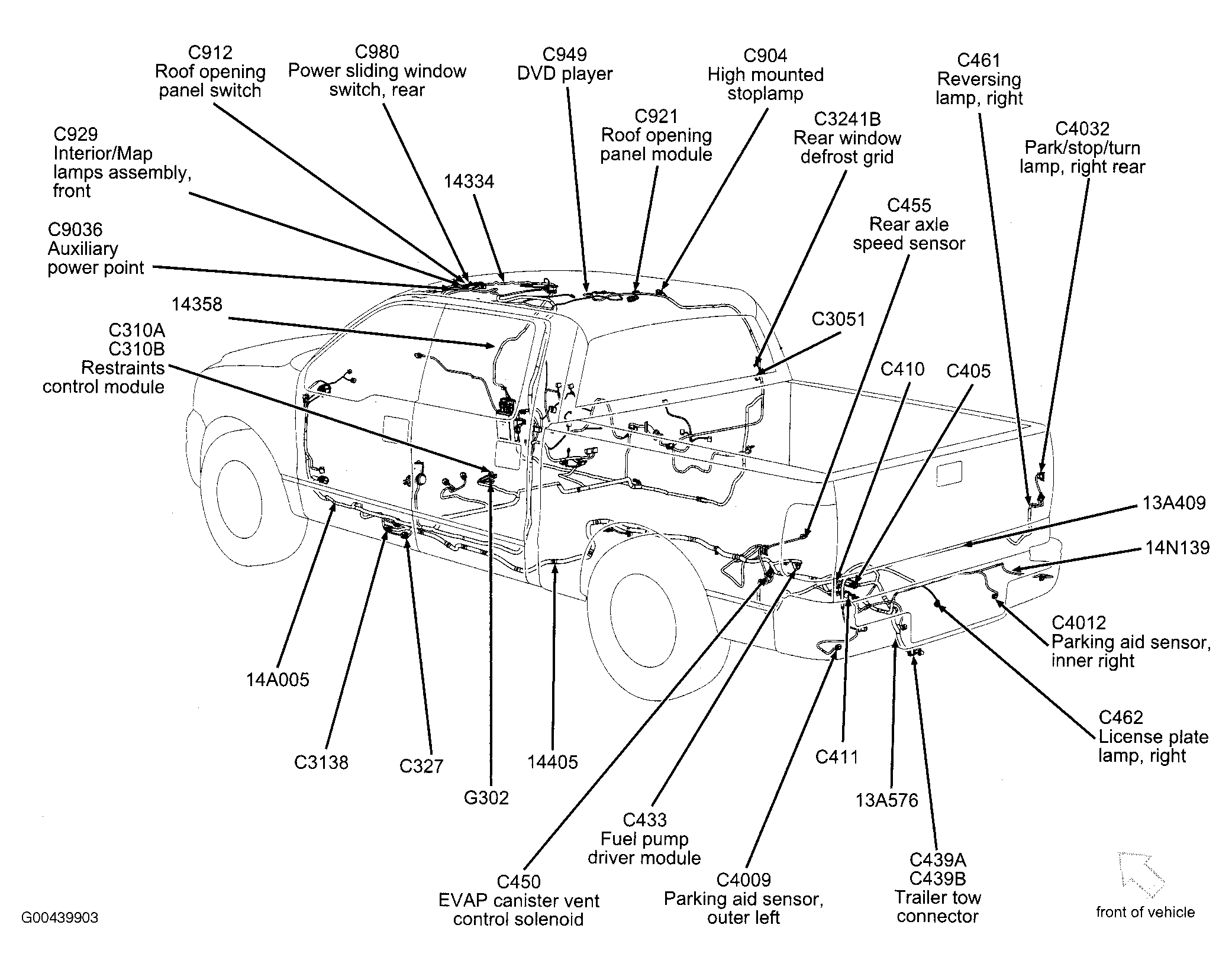

Fig 24: Left Side Of Vehicle (Super Cab/Super Crew)

G00439903

Courtesy of FORD MOTOR CO.

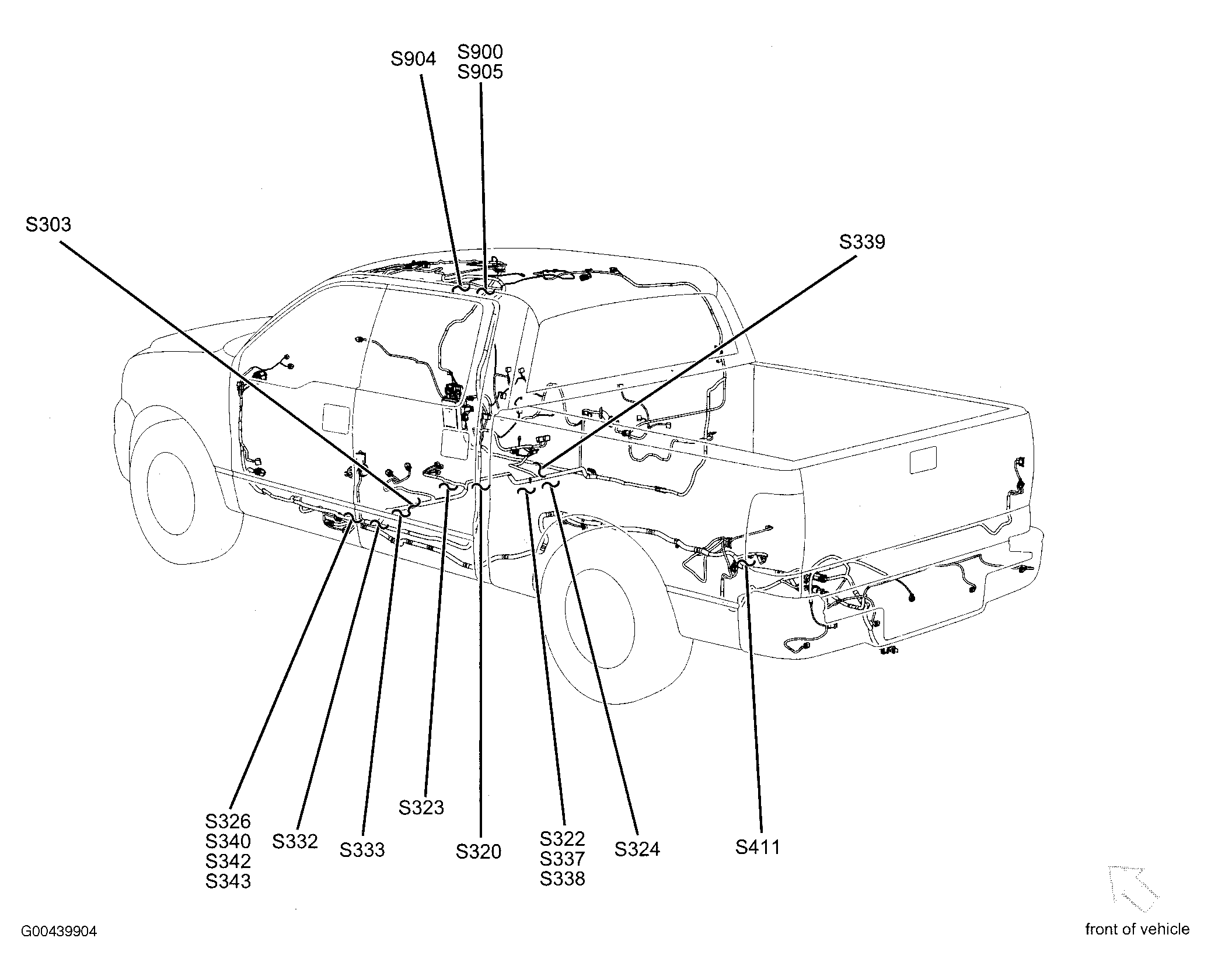

Fig 25: Left Side Of Vehicle (Super Cab/Super Crew)

G00439904

Courtesy of FORD MOTOR CO.

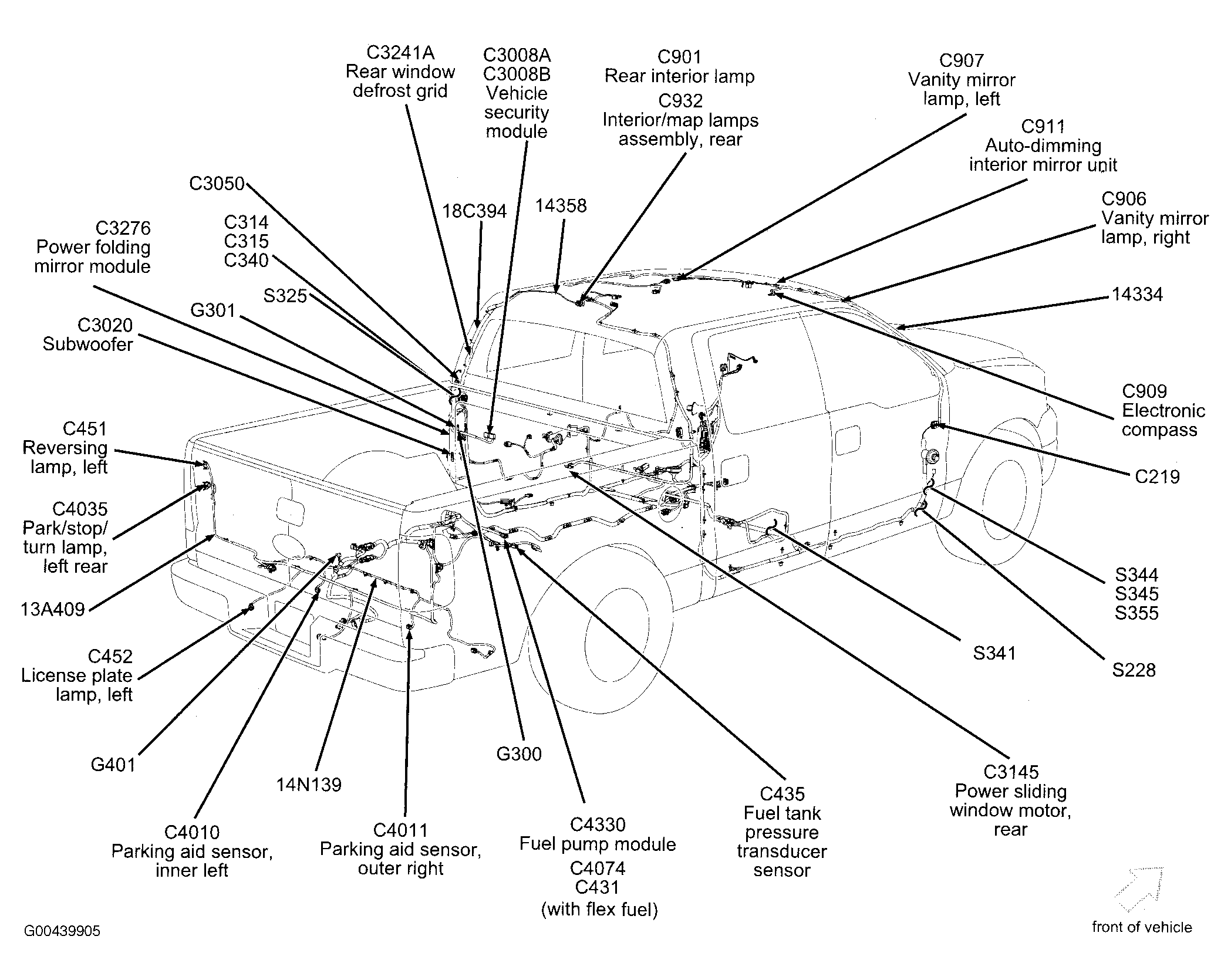

Fig 26: Right Side Of Vehicle (Super Cab/Super Crew)

G00439905

Courtesy of FORD MOTOR CO.

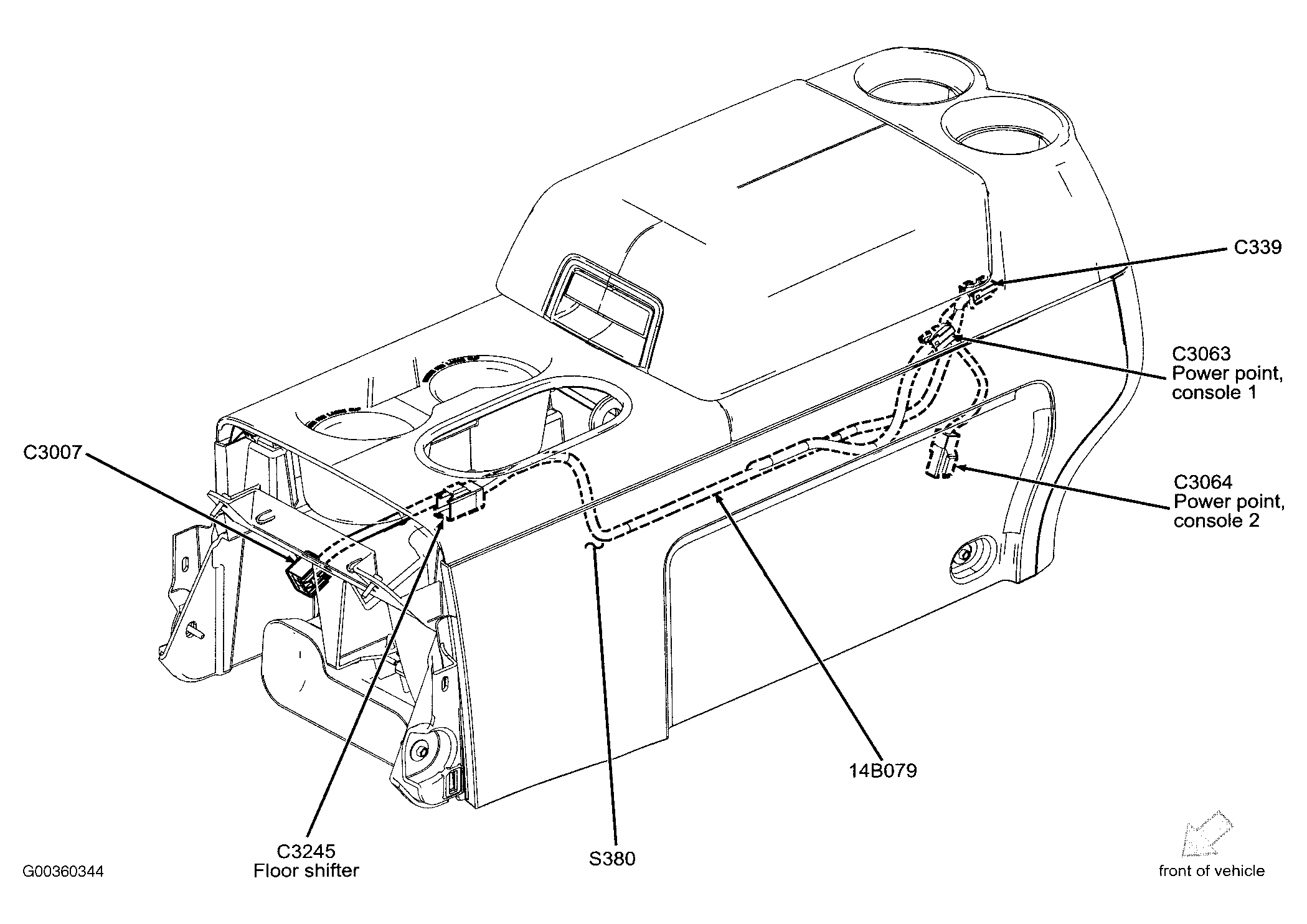

Fig 27: Center Console

G00360344

Courtesy of FORD MOTOR CO.

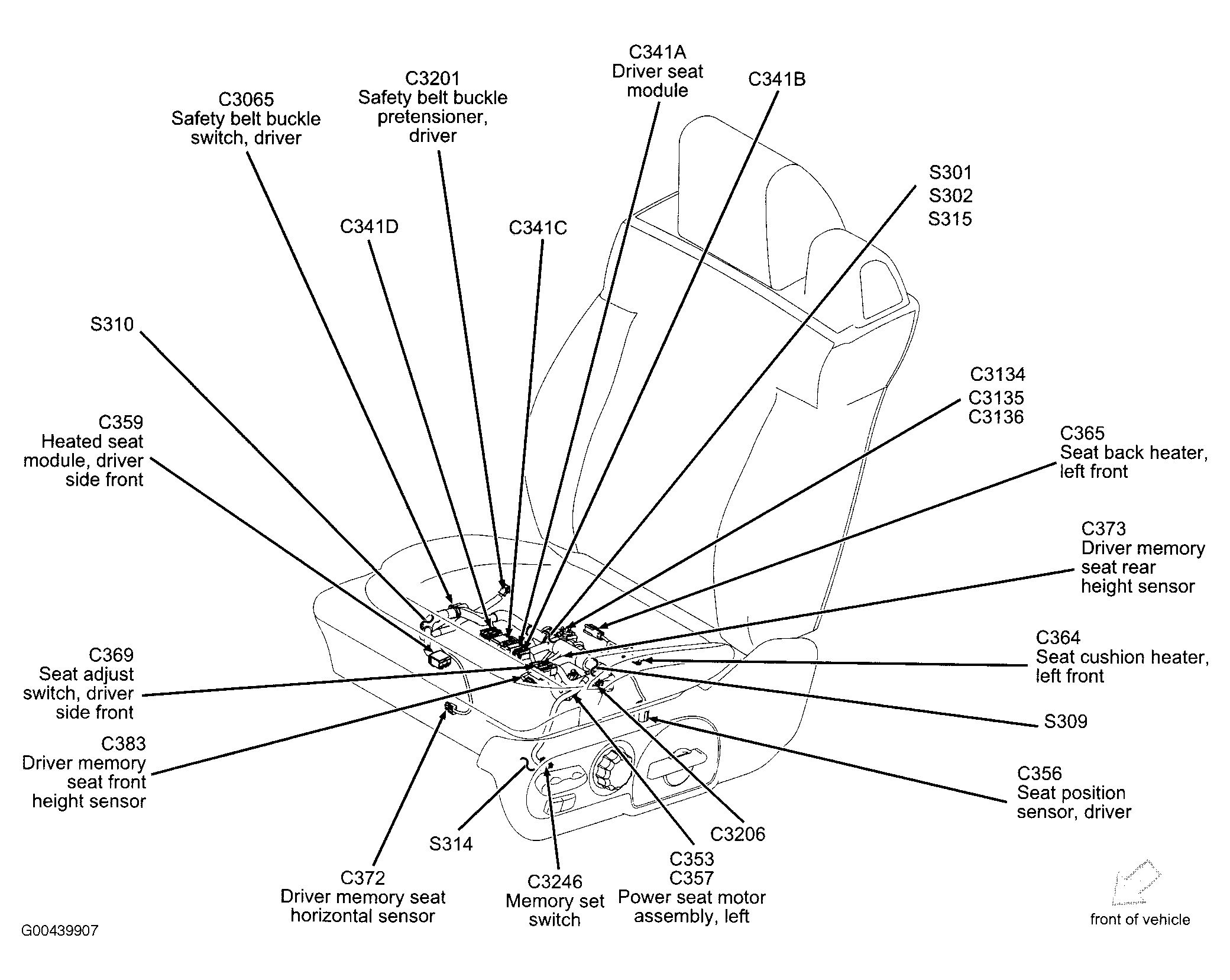

Fig 28: Driver's Seat

G00439907

Courtesy of FORD MOTOR CO.

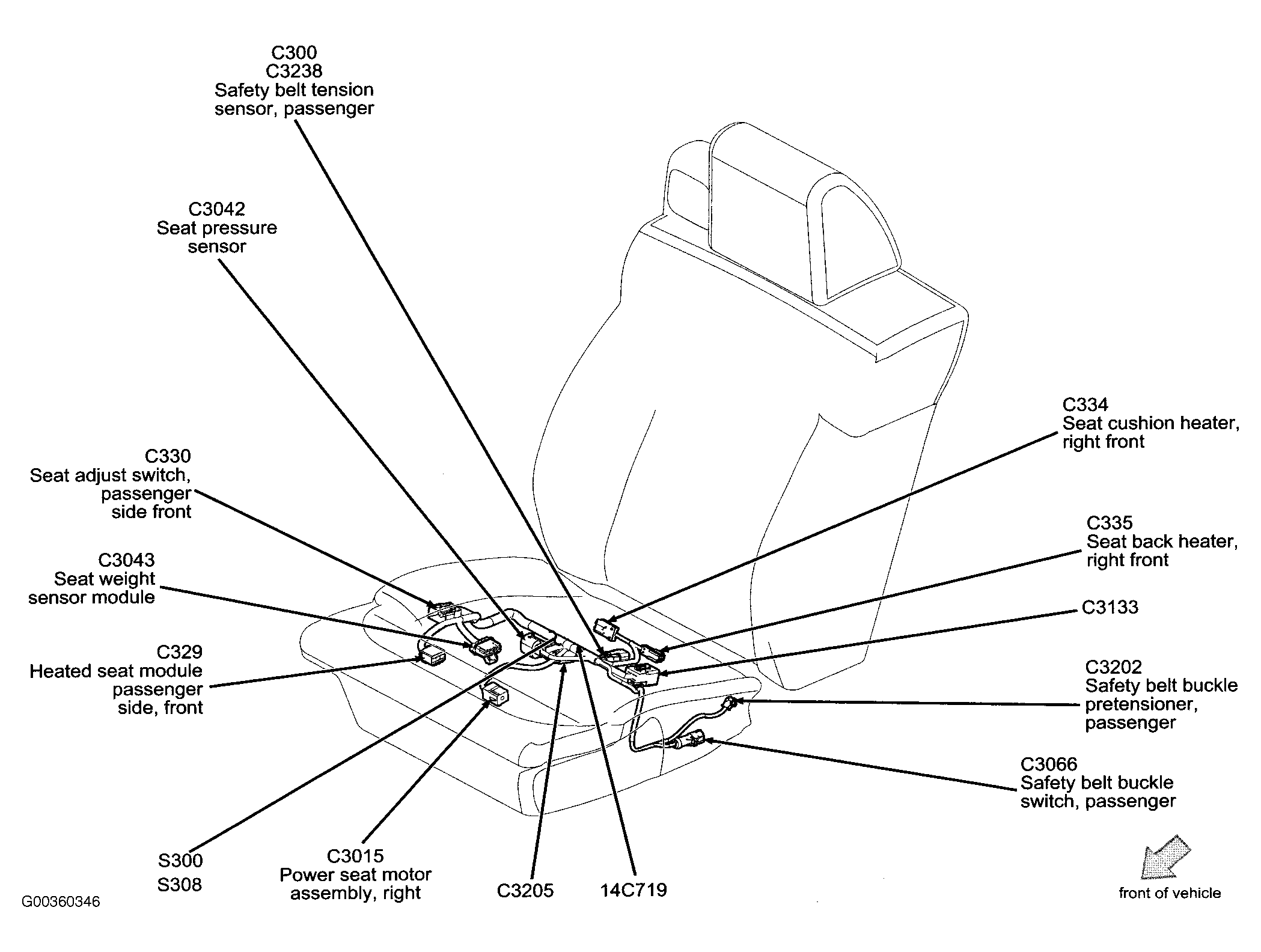

Fig 29: Passenger's Seat

G00360346

Courtesy of FORD MOTOR CO.

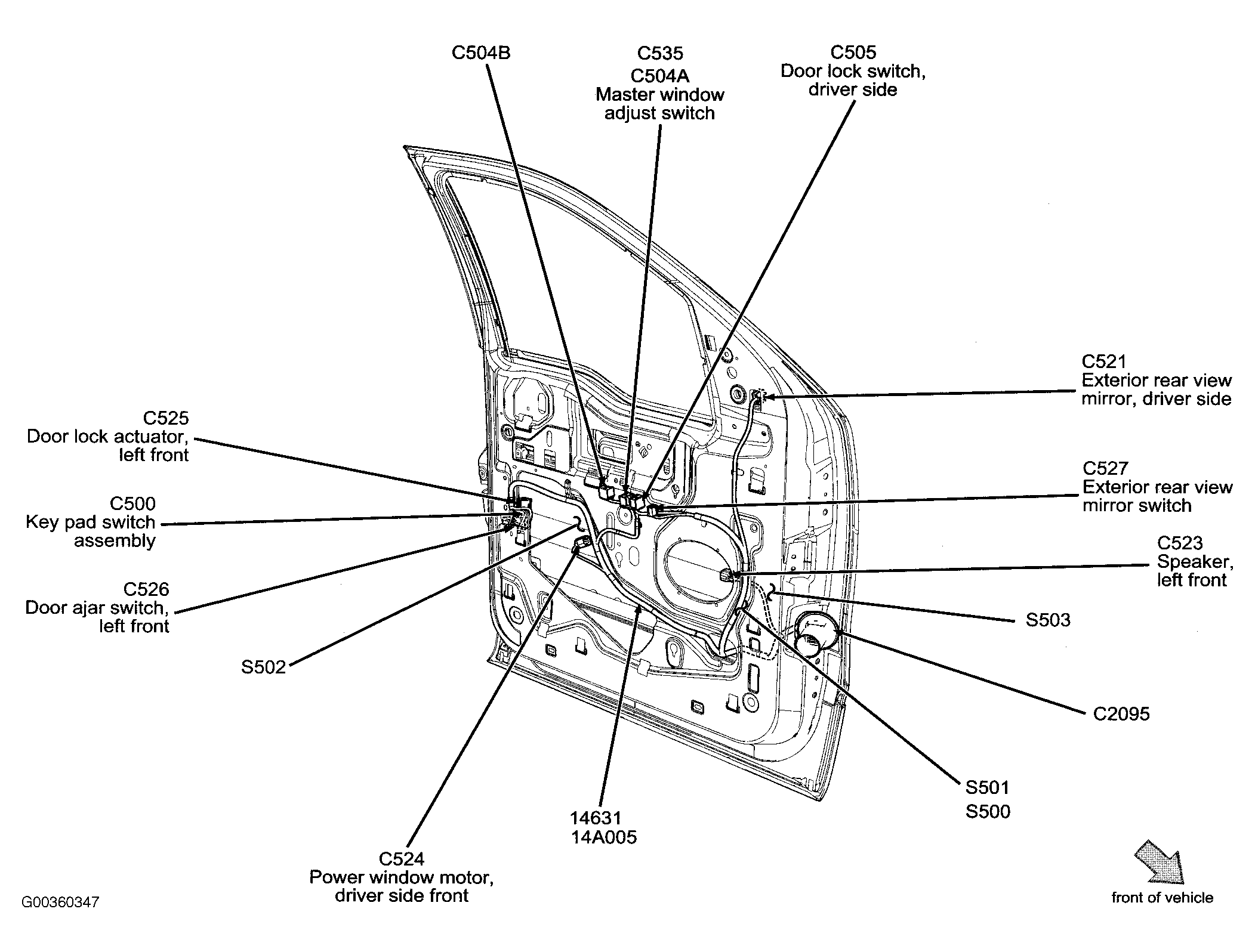

Fig 30: Left Front Door

G00360347

Courtesy of FORD MOTOR CO.

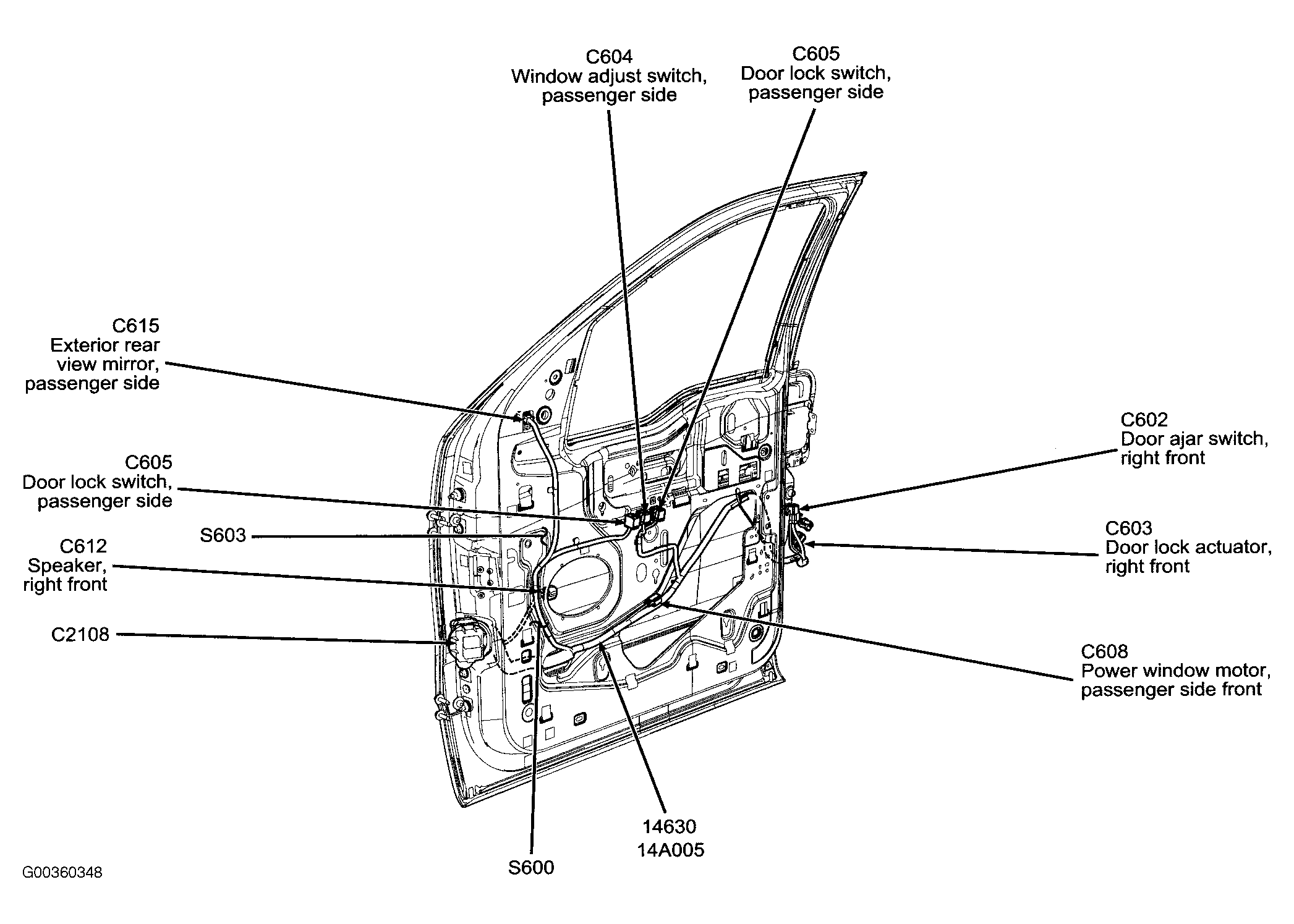

Fig 31: Right Front Door

G00360348

Courtesy of FORD MOTOR CO.

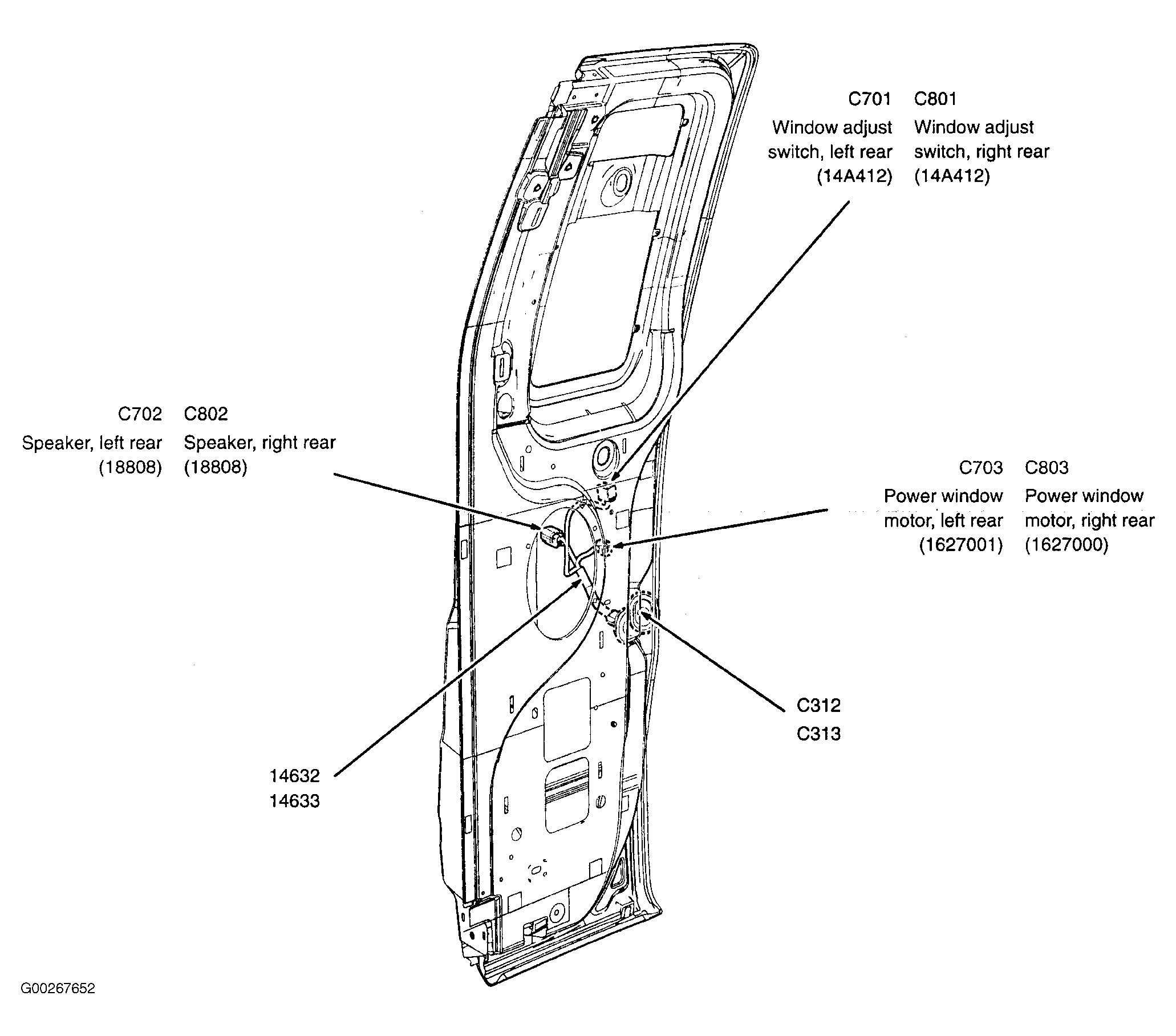

Fig 32: Right Rear Door (Super Cab, Left Side Similar)

G00267652

Courtesy of FORD MOTOR CO.

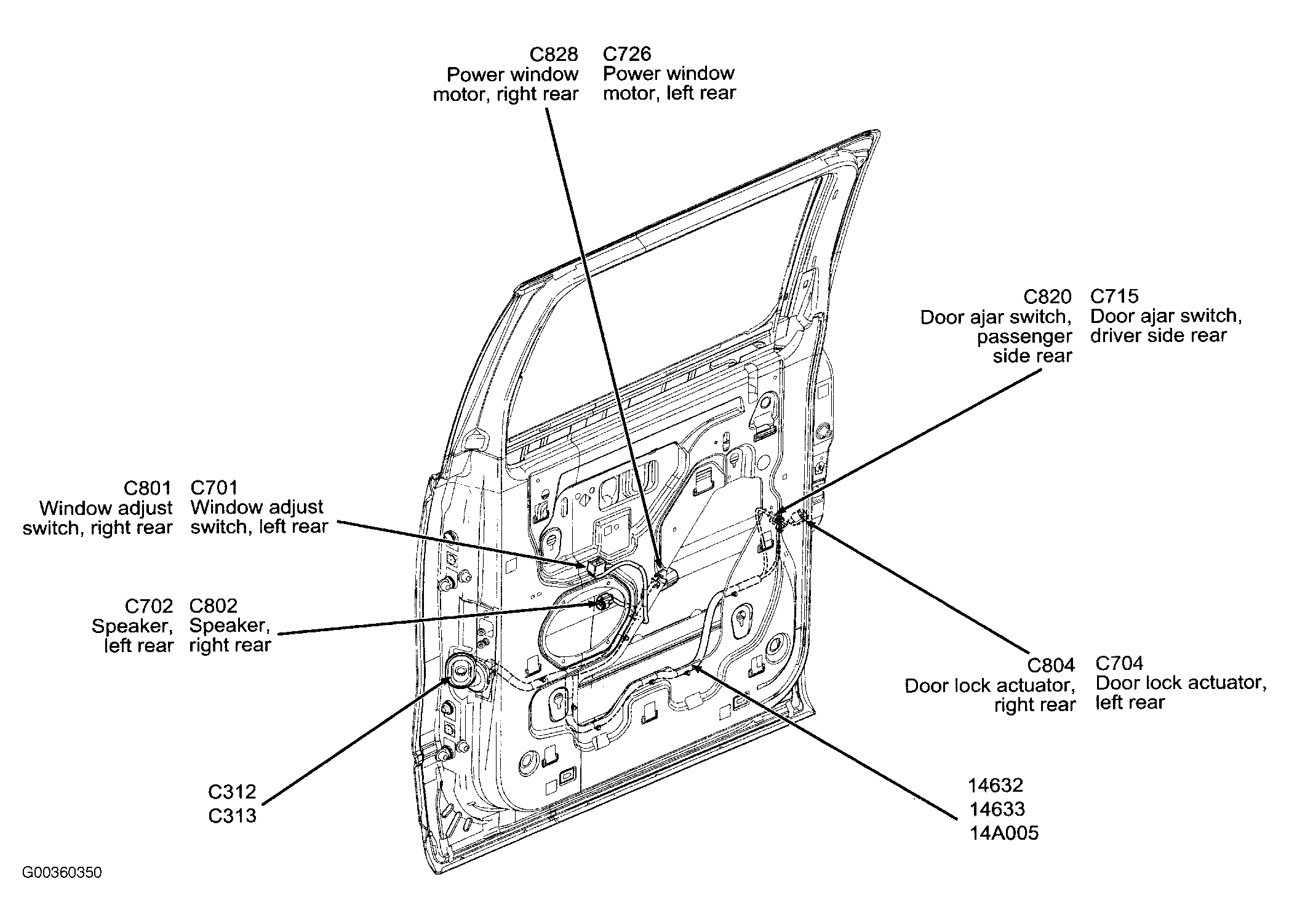

Fig 33: Right Rear Door (Super Crew, Left Side Similar)

G00360350

Courtesy of FORD MOTOR CO.
