Removal And Installation: Clock: Notes

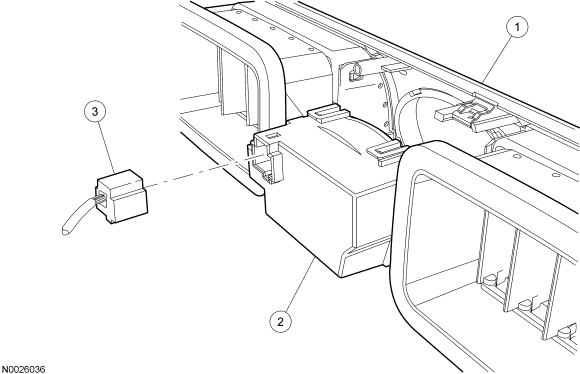

Fig 1: Exploded View Of Clock
GF0023367Courtesy of FORD MOTOR CO.
Item Part Number Description
1 04320 Instrument cluster center finish panel
2 15000 Clock
3 - Clock electrical connector (part of 14401 wiring harness)
