Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

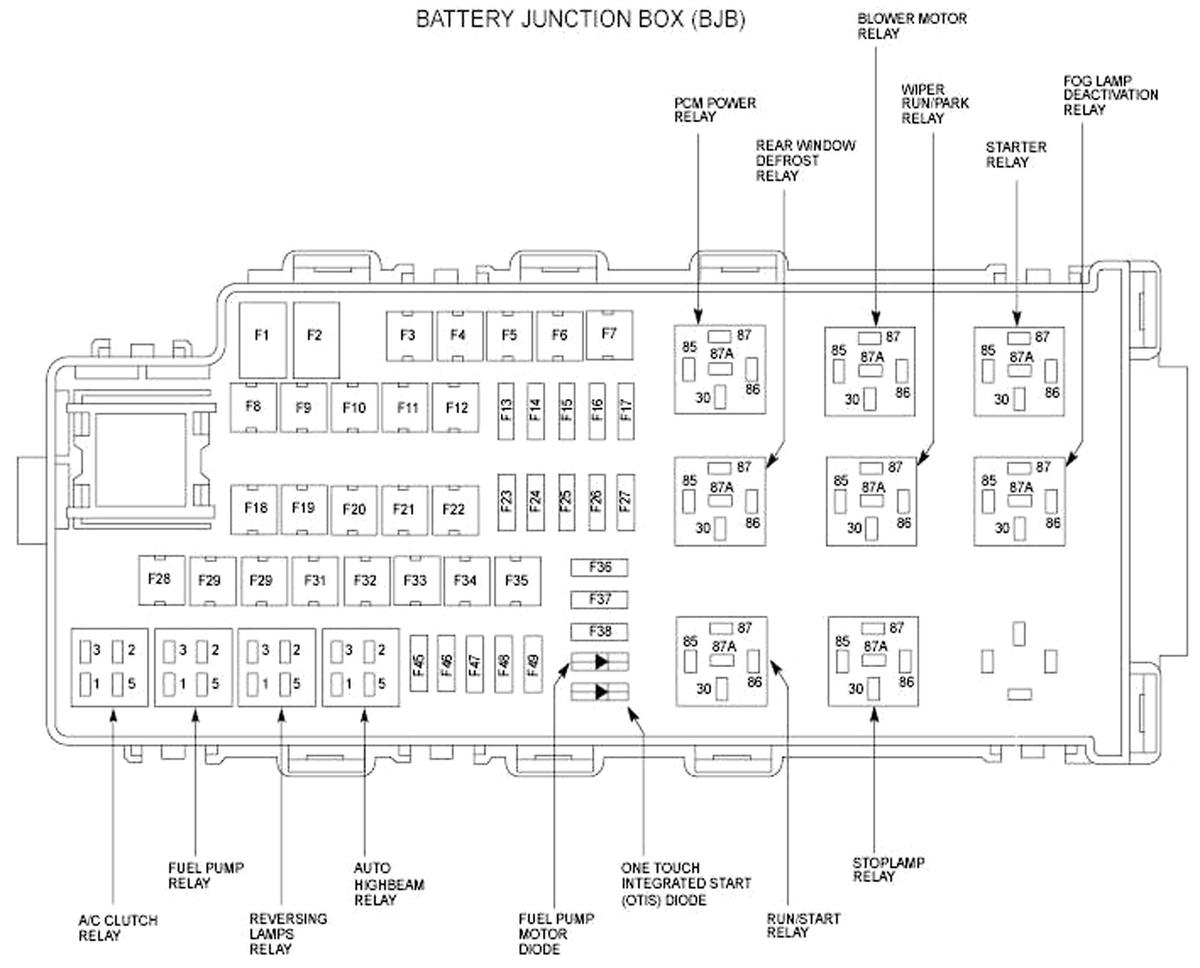

Fig 1: Battery Junction Box (BJB)

G00467092

Courtesy of FORD MOTOR CO.

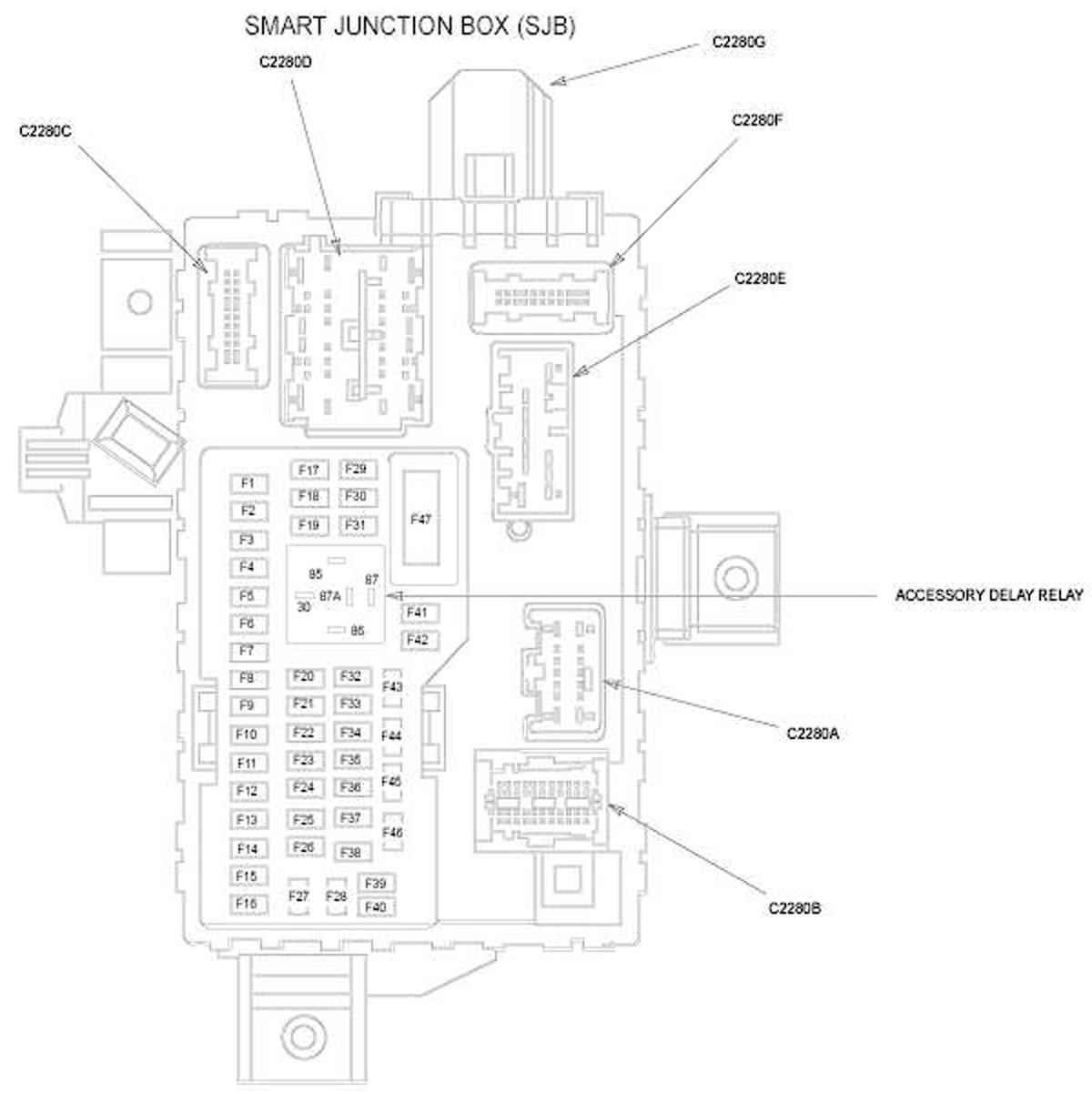

Fig 2: Smart Junction Box (SJB)

G00467093

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment

G00467094

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00467095

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00467096

Courtesy of FORD MOTOR CO.

Fig 6: Left Side Of Engine

G00467097

Courtesy of FORD MOTOR CO.

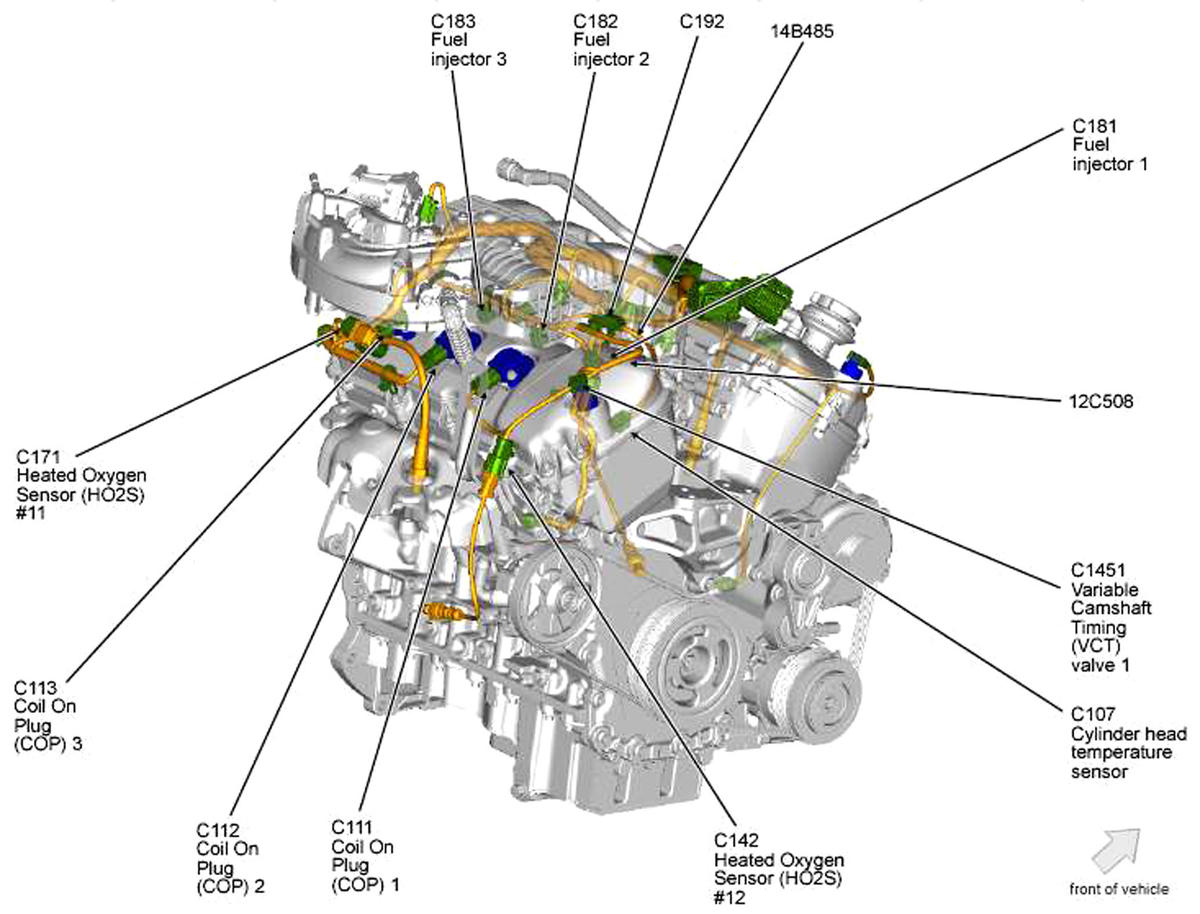

Fig 7: Right Side Of Engine

G00467098

Courtesy of FORD MOTOR CO.

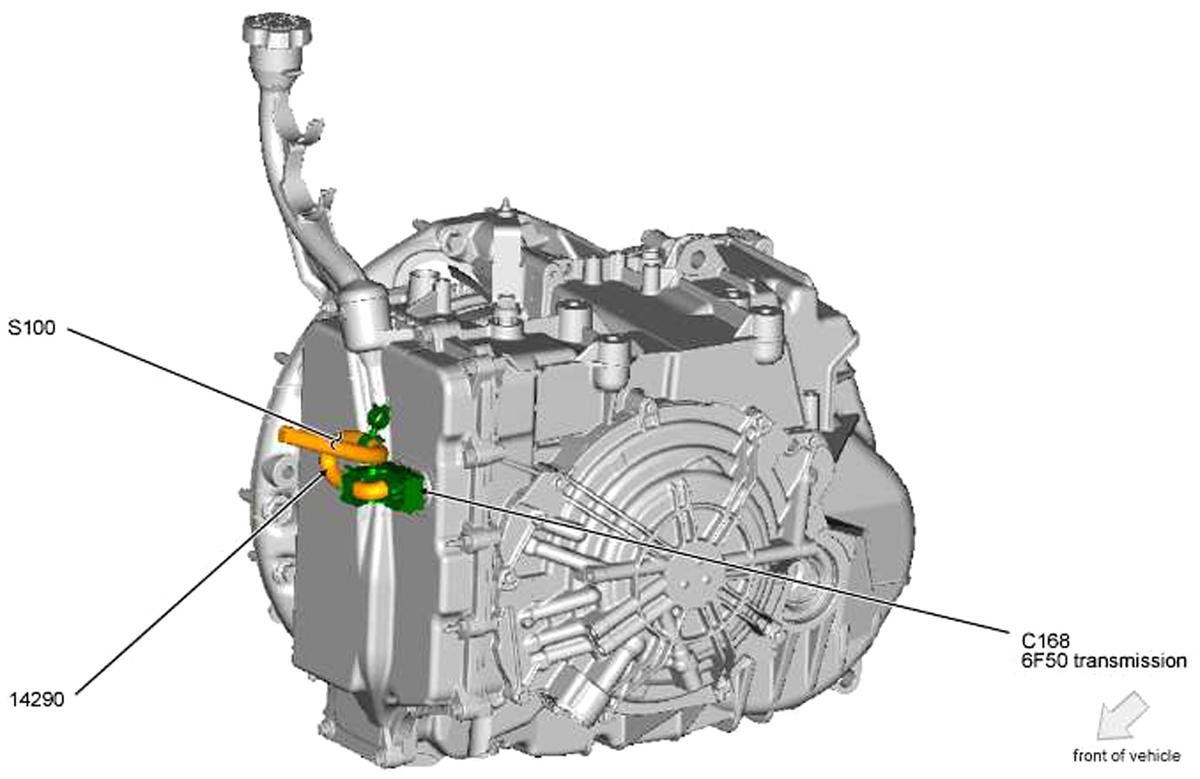

Fig 8: Transmission

G00467099

Courtesy of FORD MOTOR CO.

Fig 9: Dash

G00467100

Courtesy of FORD MOTOR CO.

Fig 10: Dash

G00467101

Courtesy of FORD MOTOR CO.

Fig 11: HVAC Unit

G00467102

Courtesy of FORD MOTOR CO.

Fig 12: Steering Column

G00467103

Courtesy of FORD MOTOR CO.

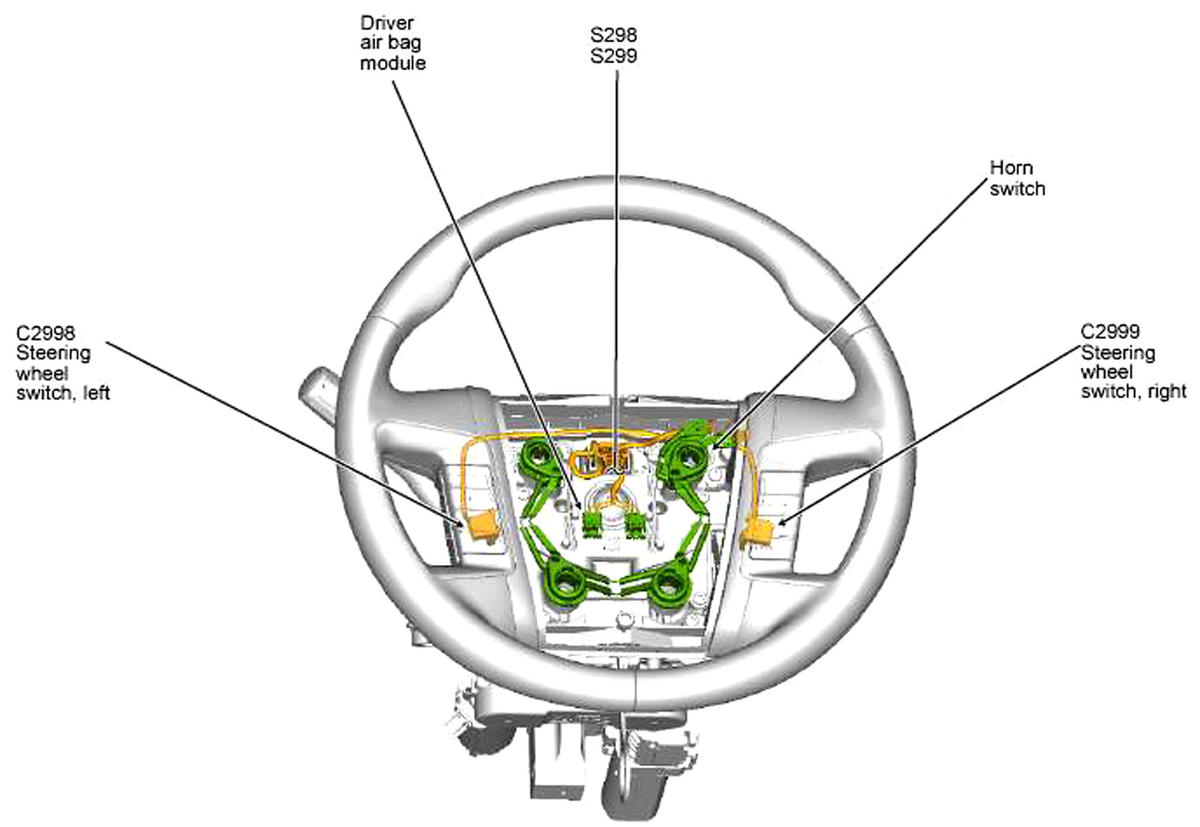

Fig 13: Steering Wheel

G00467104

Courtesy of FORD MOTOR CO.

Fig 14: Center Console

G00467105

Courtesy of FORD MOTOR CO.

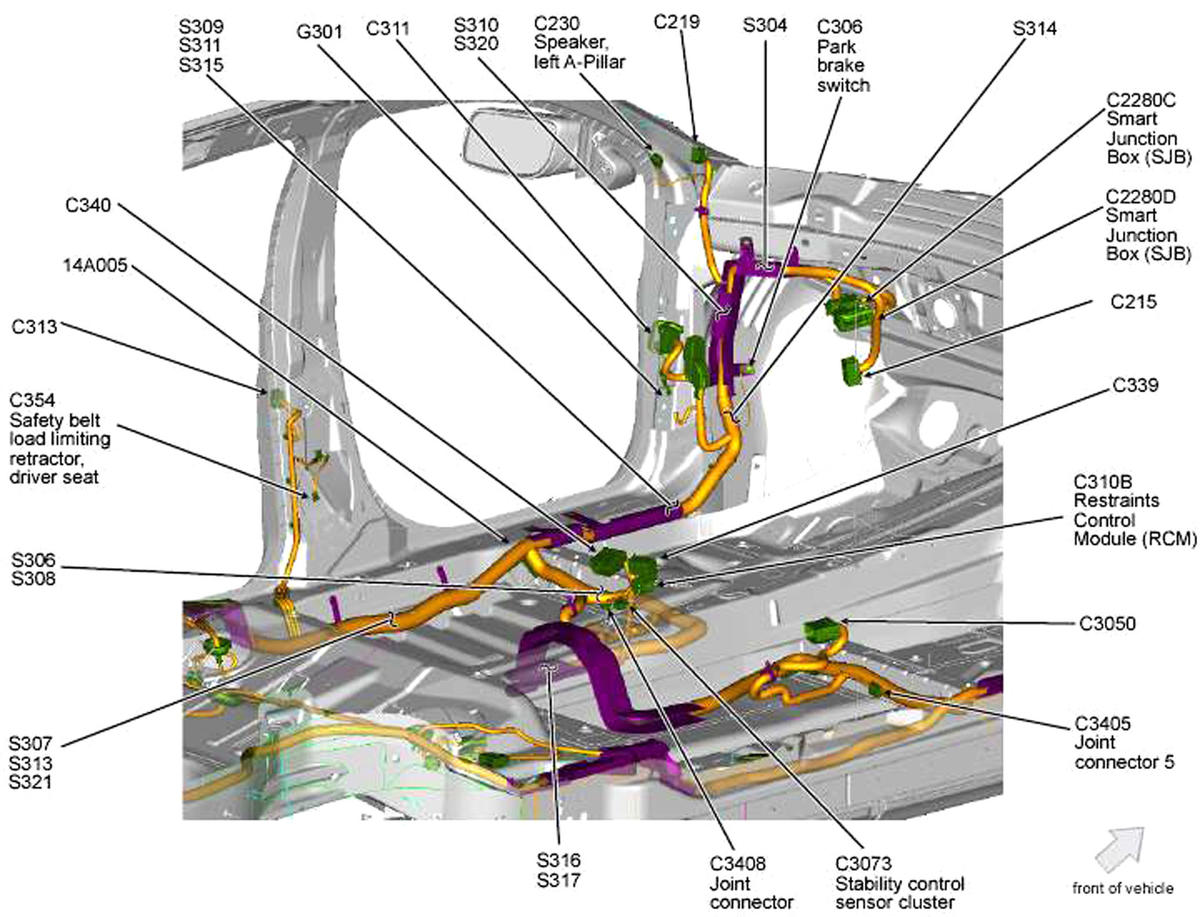

Fig 15: Left Front Of Vehicle Interior

G00467106

Courtesy of FORD MOTOR CO.

Fig 16: Right Front Of Vehicle Interior

G00467107

Courtesy of FORD MOTOR CO.

Fig 17: Left Rear Of Vehicle Interior

G00467108

Courtesy of FORD MOTOR CO.

Fig 18: Right Rear Of Vehicle Interior

G00467109

Courtesy of FORD MOTOR CO.

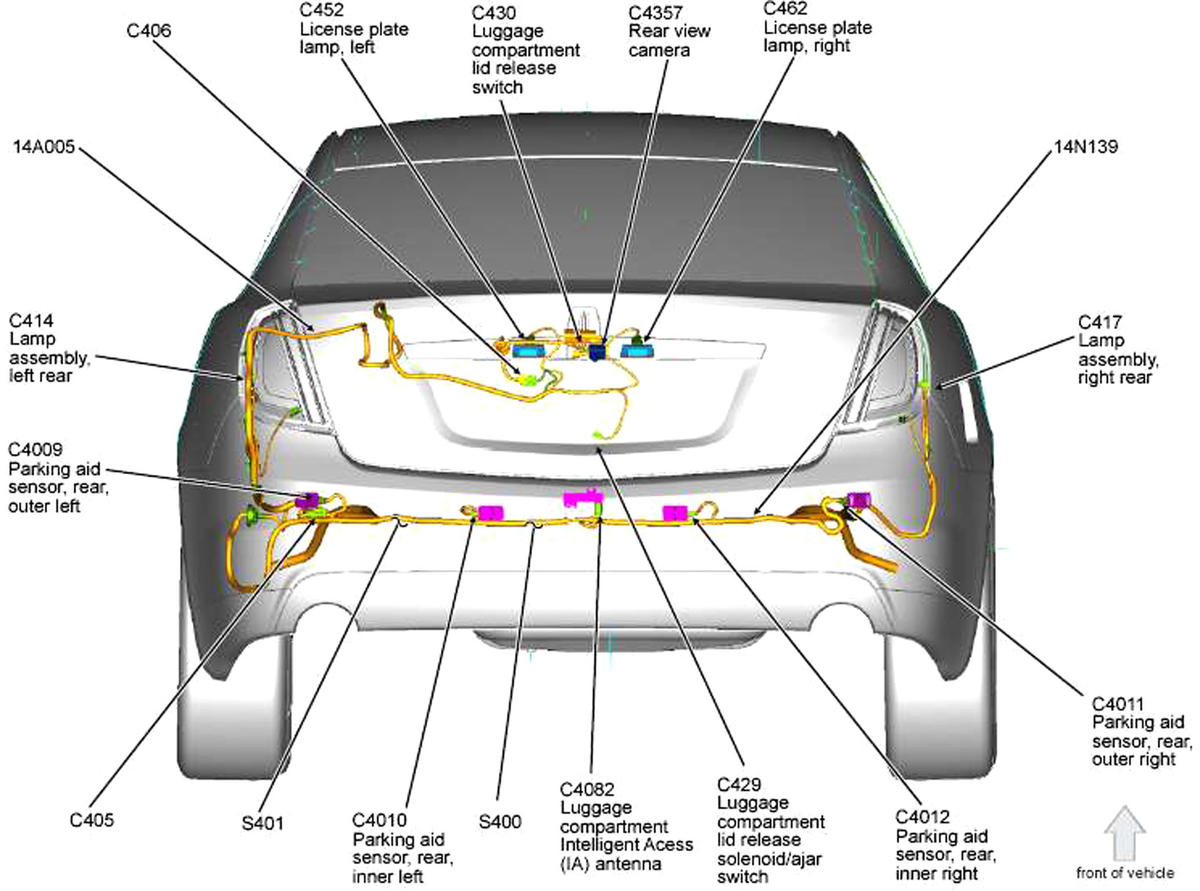

Fig 19: Rear Of Vehicle

G00467110

Courtesy of FORD MOTOR CO.

Fig 20: Driver's Seat

G00467111

Courtesy of FORD MOTOR CO.

Fig 21: Front Passenger's Seat

G00467112

Courtesy of FORD MOTOR CO.

Fig 22: Rear Seats

G00467113

Courtesy of FORD MOTOR CO.

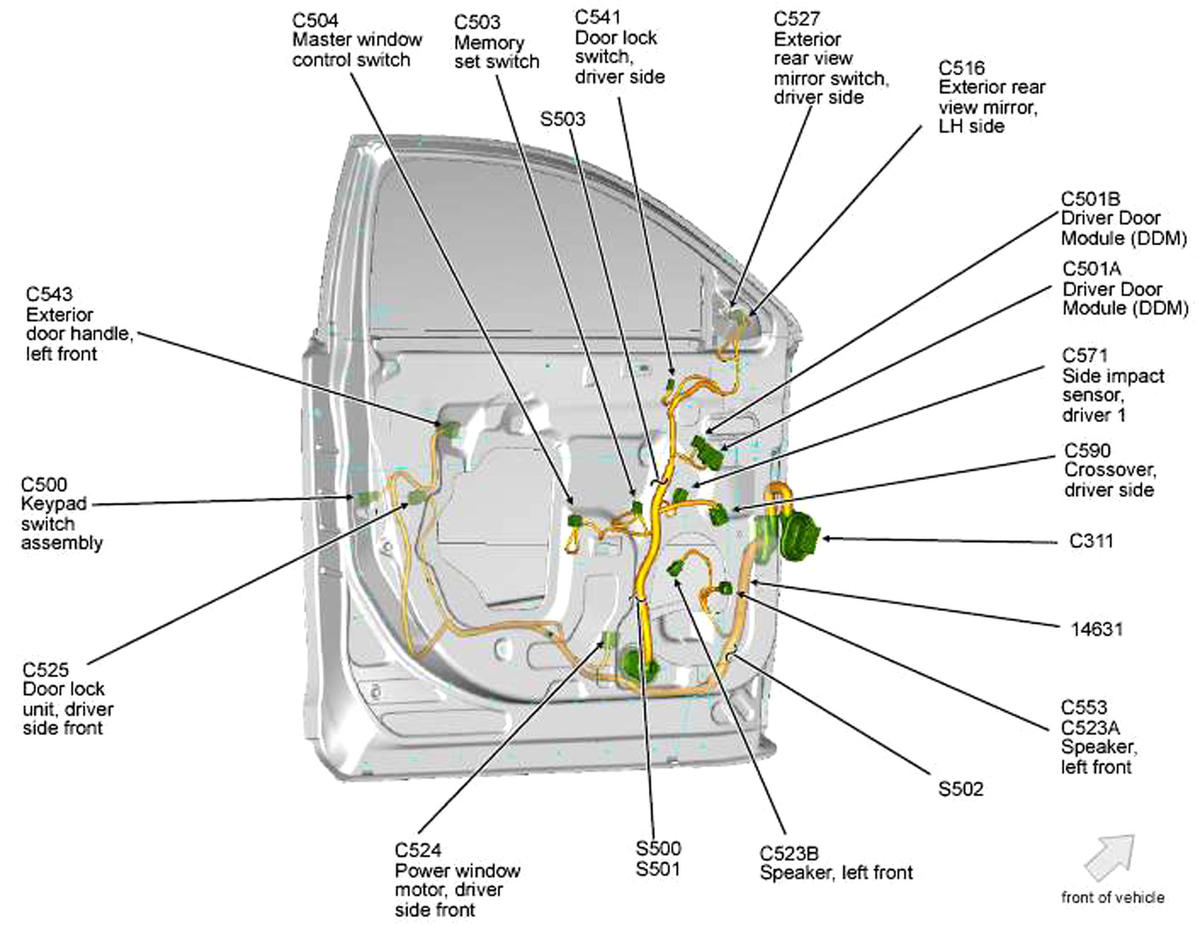

Fig 23: Driver's Door

G00467114

Courtesy of FORD MOTOR CO.

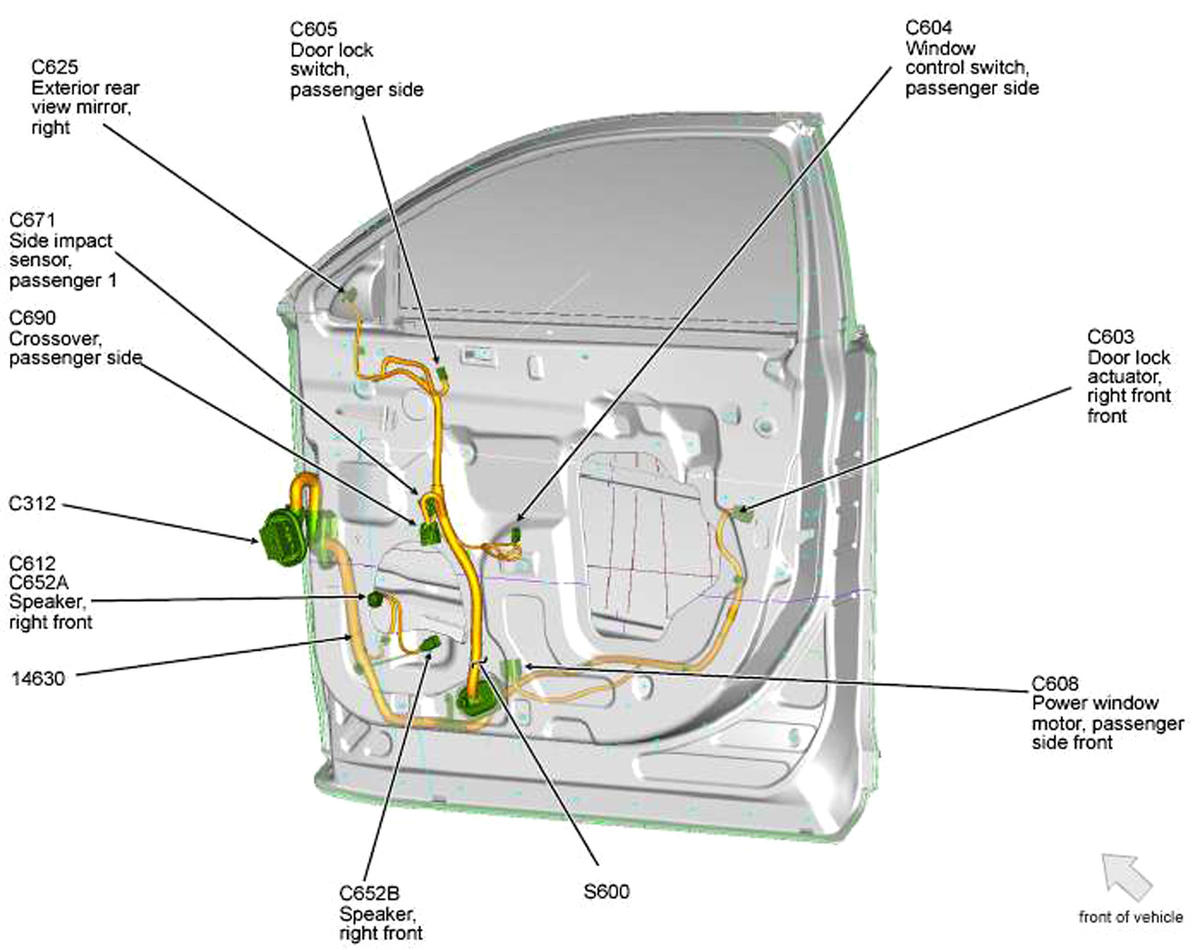

Fig 24: Front Passenger's Door

G00467115

Courtesy of FORD MOTOR CO.

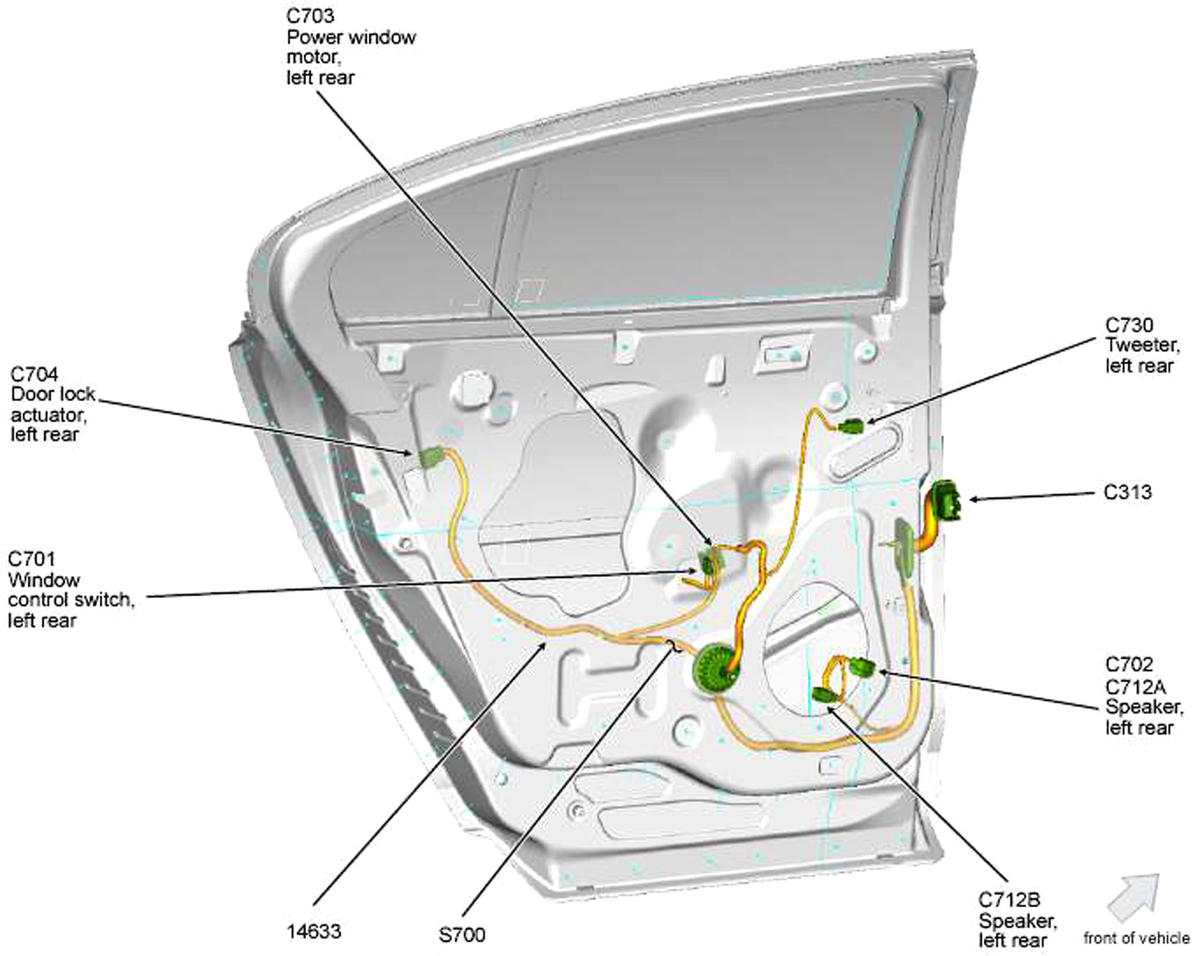

Fig 25: Left Rear Door

G00467116

Courtesy of FORD MOTOR CO.

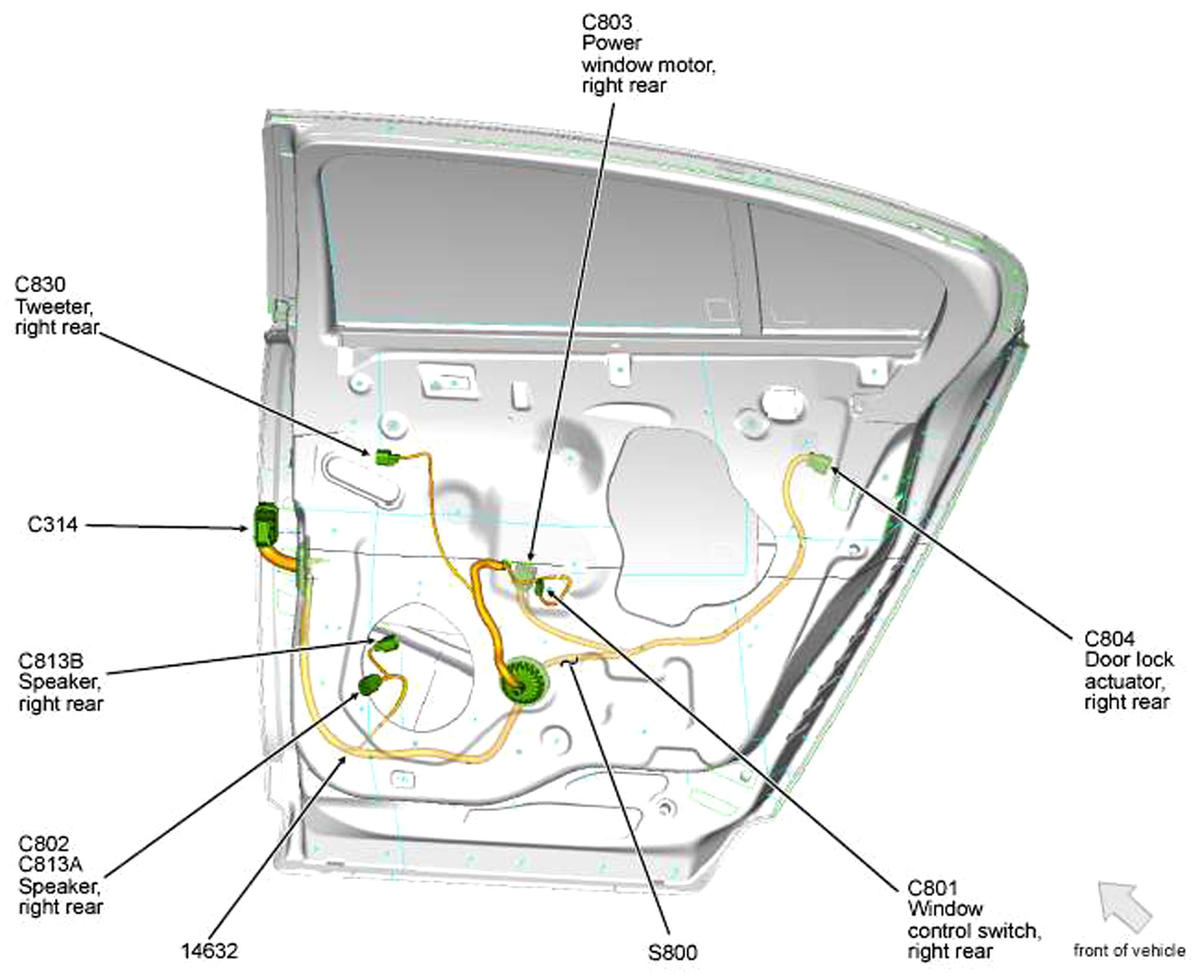

Fig 26: Right Rear Door

G00467117

Courtesy of FORD MOTOR CO.

Fig 27: Roof

G00467118

Courtesy of FORD MOTOR CO.
