Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

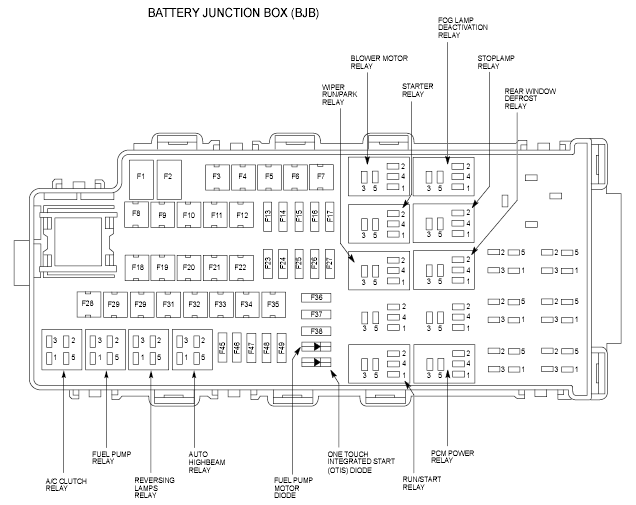

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.
Fig 2: Smart Junction Box (SJB)
Courtesy of FORD MOTOR CO.

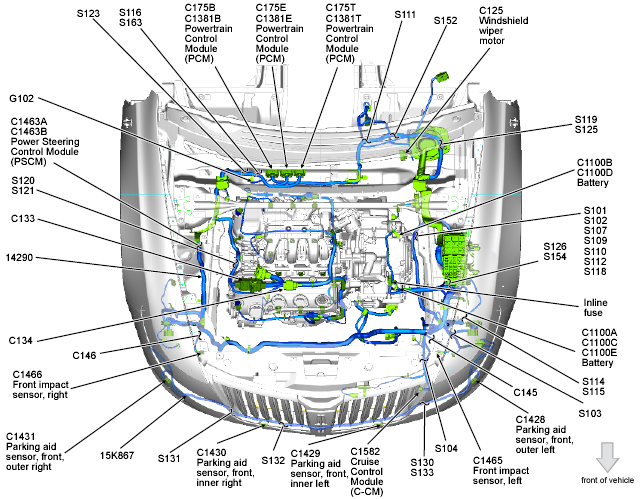

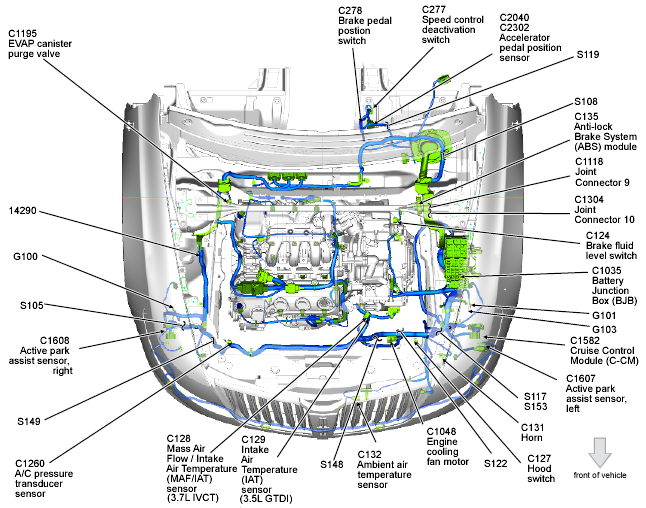

Fig 3: Engine Compartment
Courtesy of FORD MOTOR CO.

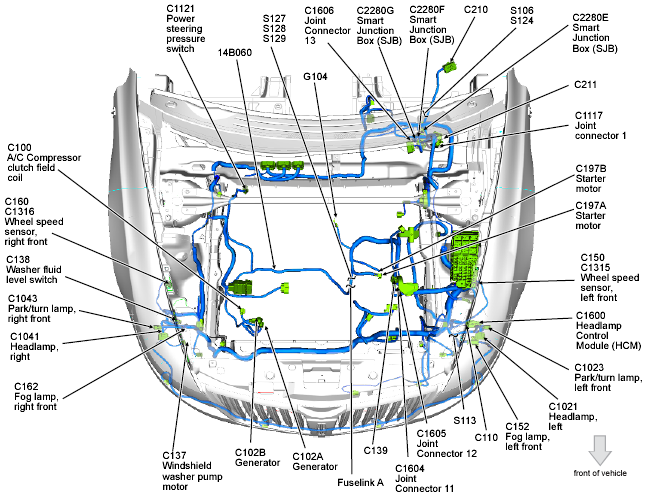

Fig 4: Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 5: Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 6: Left Side Of Engine (3.7L)
Courtesy of FORD MOTOR CO.
Fig 7: Right Side Of Engine (3.7L)
Courtesy of FORD MOTOR CO.
Fig 8: Transmission
Courtesy of FORD MOTOR CO.

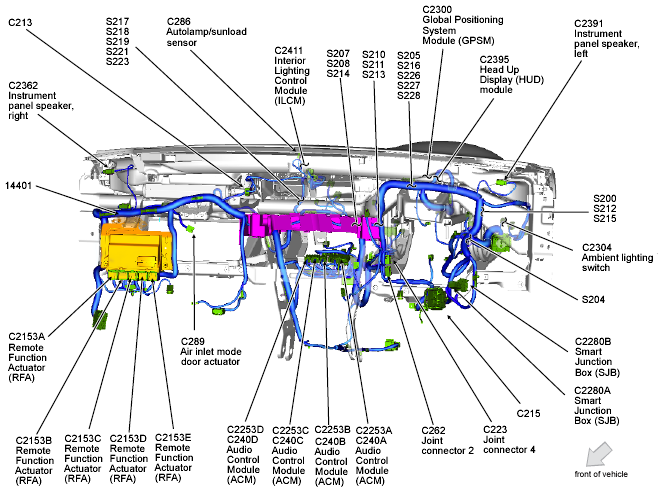

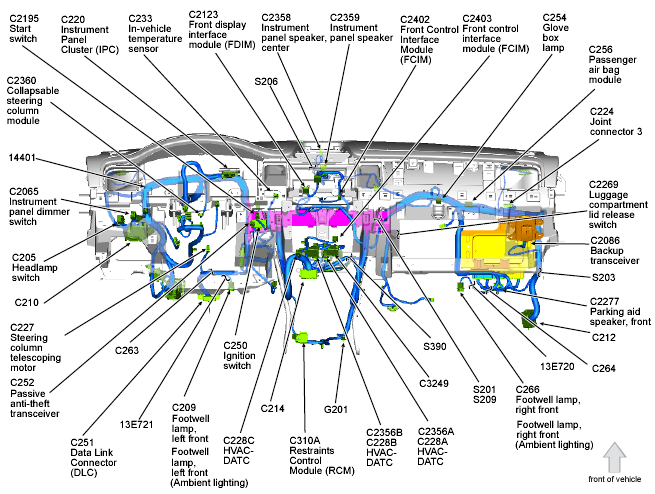

Fig 9: Dash
Courtesy of FORD MOTOR CO.
Fig 10: Dash
Courtesy of FORD MOTOR CO.

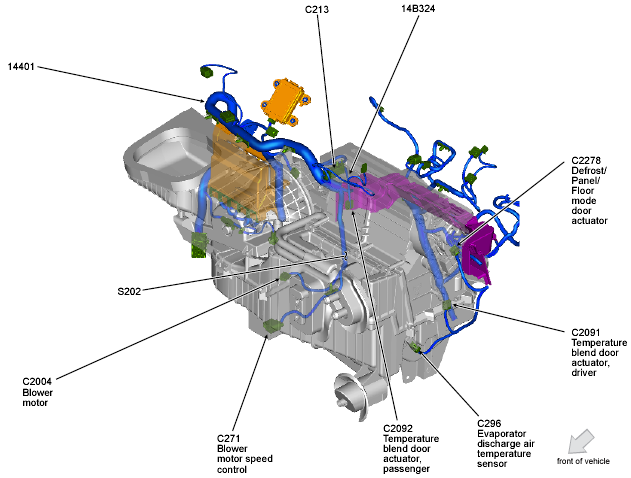

Fig 11: HVAC Unit
Courtesy of FORD MOTOR CO.

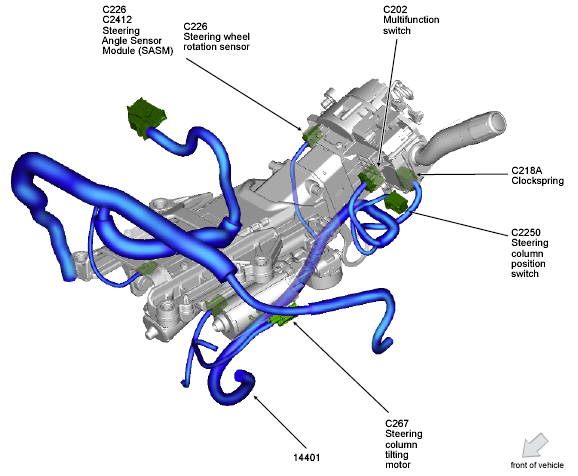

Fig 12: Steering Column
Courtesy of FORD MOTOR CO.
Fig 13: Steering Wheel
Courtesy of FORD MOTOR CO.

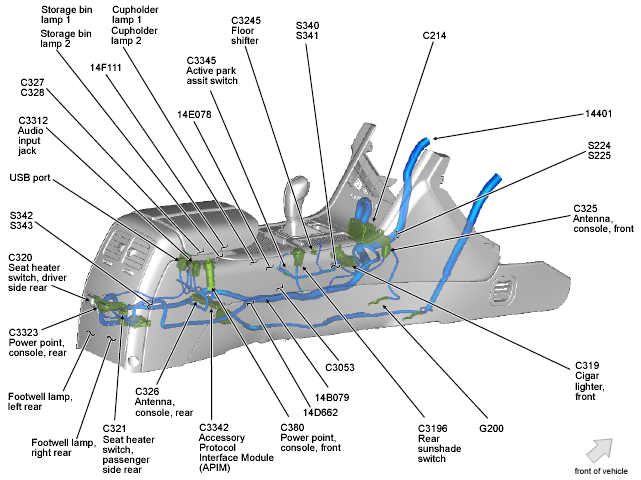

Fig 14: Center Console
Courtesy of FORD MOTOR CO.

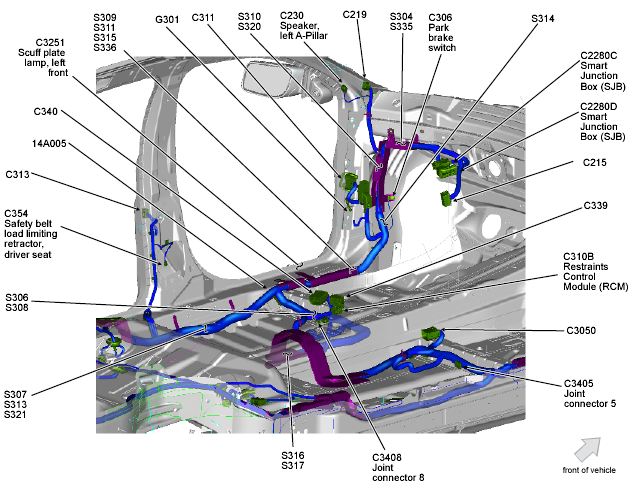

Fig 15: Left Front Of Vehicle Interior
Courtesy of FORD MOTOR CO.

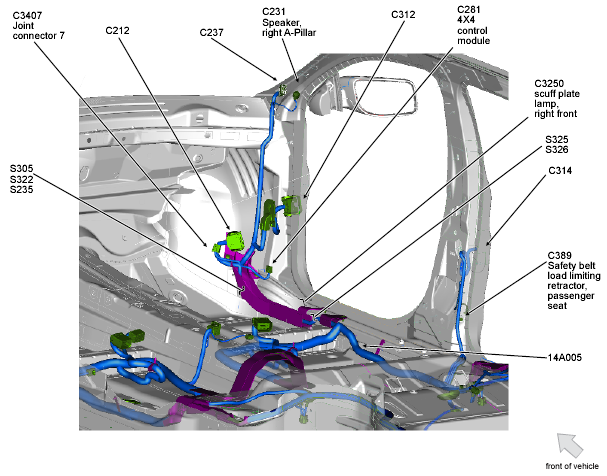

Fig 16: Right Front Of Vehicle Interior
Courtesy of FORD MOTOR CO.
Fig 17: Left Rear Of Vehicle Interior
Courtesy of FORD MOTOR CO.
Fig 18: Right Rear Of Vehicle Interior
Courtesy of FORD MOTOR CO.

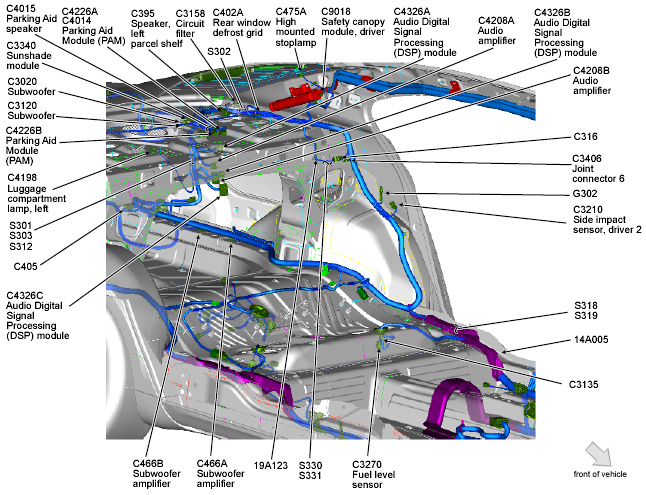

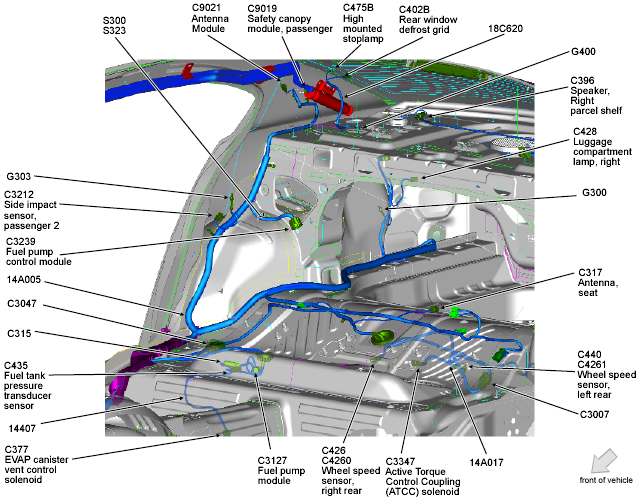

Fig 19: Rear Of Vehicle
Courtesy of FORD MOTOR CO.
Fig 20: Driver's Seat
Courtesy of FORD MOTOR CO.
Fig 21: Front Passenger's Seat
Courtesy of FORD MOTOR CO.
Fig 22: Rear Seats
Courtesy of FORD MOTOR CO.
Fig 23: Driver's Door
Courtesy of FORD MOTOR CO.
Fig 24: Front Passenger's Door
Courtesy of FORD MOTOR CO.
Fig 25: Left Rear Door
Courtesy of FORD MOTOR CO.
Fig 26: Right Rear Door
Courtesy of FORD MOTOR CO.
Fig 27: Roof
Courtesy of FORD MOTOR CO.

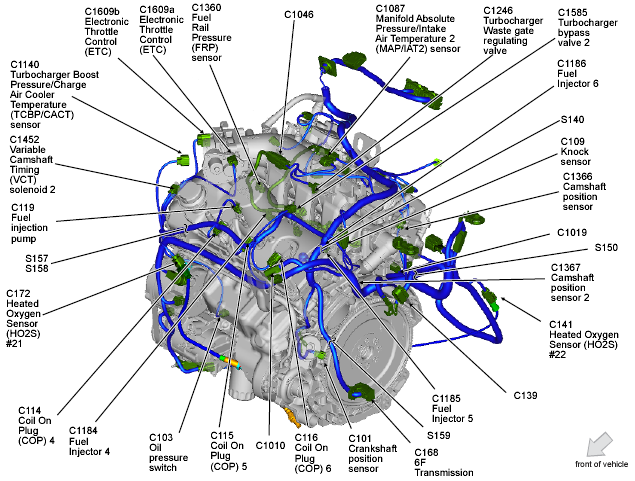

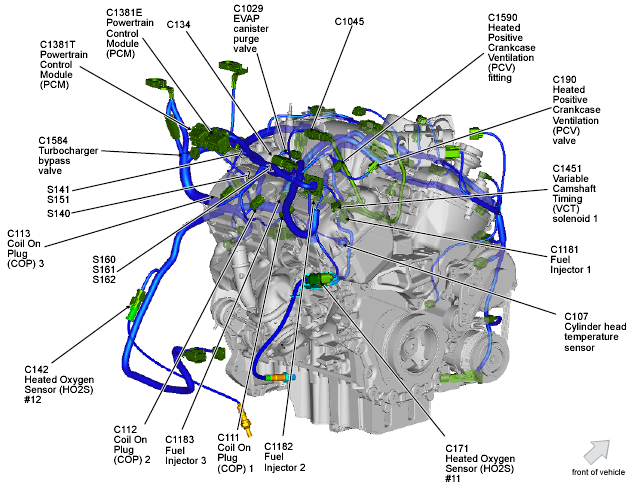

Fig 28: Left Side Of Engine (3.5L)
Courtesy of FORD MOTOR CO.
Fig 29: Right Side Of Engine (3.5L)
Courtesy of FORD MOTOR CO.
