Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Smart Junction Box (SJB)

G00466947

Courtesy of FORD MOTOR CO.

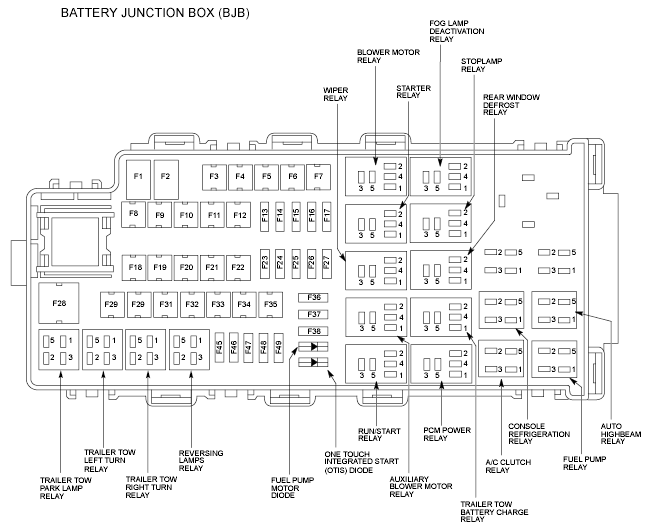

Fig 2: Battery Junction Box (BJB)

G00476521

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment

G00476522

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00476523

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00476524

Courtesy of FORD MOTOR CO.

Fig 6: Top & Left Side Of Engine (3.5L)

G00476525

Courtesy of FORD MOTOR CO.

Fig 7: Right Side Of Engine (3.5L)

G00476526

Courtesy of FORD MOTOR CO.

Fig 8: Top & Left Side Of Engine (3.7L)

G00476527

Courtesy of FORD MOTOR CO.

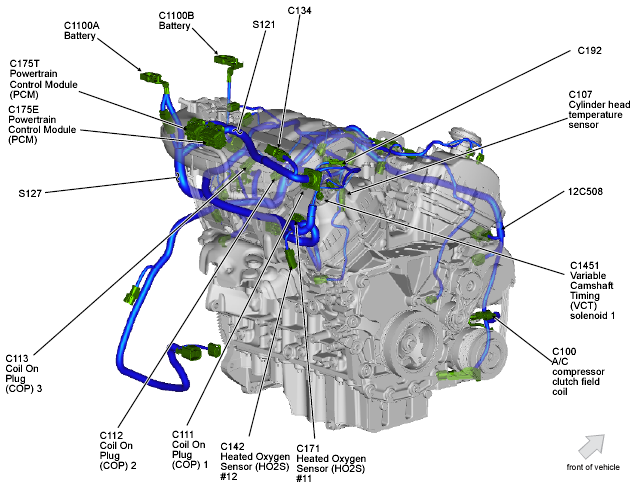

Fig 9: Right Side Of Engine (3.7L)

G00476528

Courtesy of FORD MOTOR CO.

Fig 10: Transmission

G00476529

Courtesy of FORD MOTOR CO.

Fig 11: Dash

G00476530

Courtesy of FORD MOTOR CO.

Fig 12: Rear Of Dash

G00476531

Courtesy of FORD MOTOR CO.

Fig 13: Steering Column

G00476532

Courtesy of FORD MOTOR CO.

Fig 14: Center Console

G00476533

Courtesy of FORD MOTOR CO.

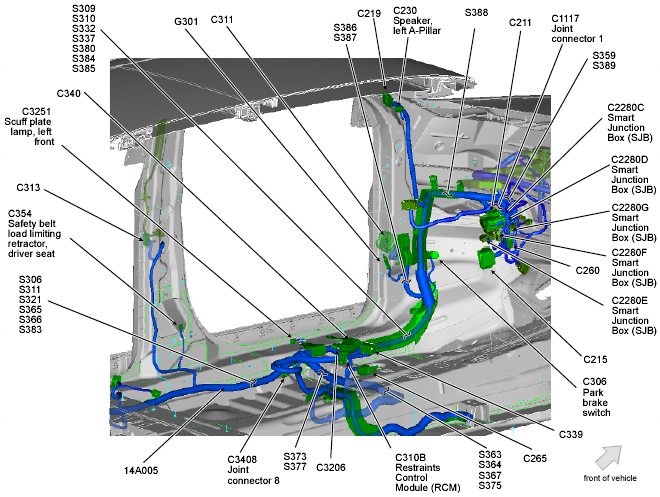

Fig 15: Left Front Of Passenger Compartment

G00476534

Courtesy of FORD MOTOR CO.

Fig 16: Right Front Of Passenger Compartment

G00476535

Courtesy of FORD MOTOR CO.

Fig 17: Left Rear Of Vehicle Interior

G00476536

Courtesy of FORD MOTOR CO.

Fig 18: Right Rear Of Vehicle Interior

G00476537

Courtesy of FORD MOTOR CO.

Fig 19: Driver's Seat

G00476538

Courtesy of FORD MOTOR CO.

Fig 20: Front Passenger's Seat

G00476539

Courtesy of FORD MOTOR CO.

Fig 21: Second Row Seats

G00476540

Courtesy of FORD MOTOR CO.

Fig 22: Third Row Seats

G00476541

Courtesy of FORD MOTOR CO.

Fig 23: Driver's Door

G00476542

Courtesy of FORD MOTOR CO.

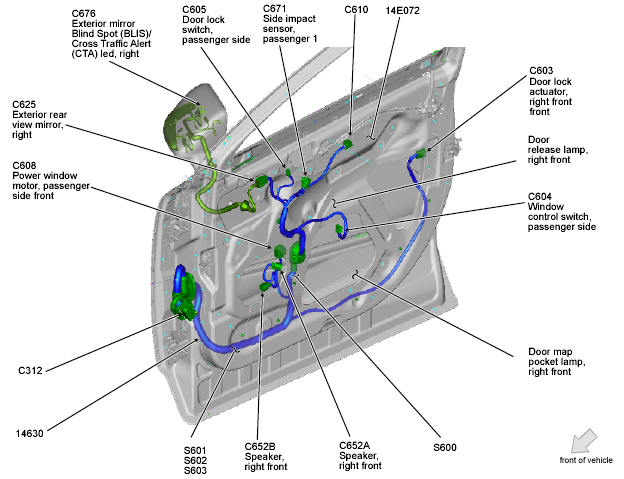

Fig 24: Front Passenger's Door

G00476543

Courtesy of FORD MOTOR CO.

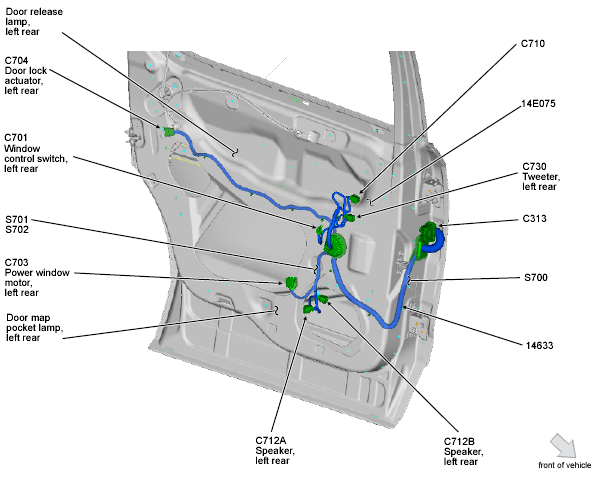

Fig 25: Left Rear Door

G00476544

Courtesy of FORD MOTOR CO.

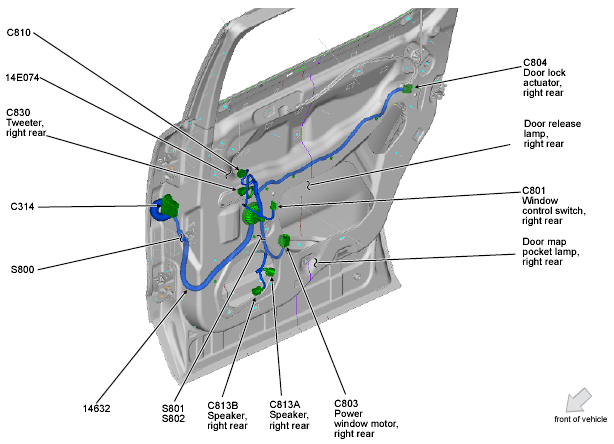

Fig 26: Right Rear Door

G00476545

Courtesy of FORD MOTOR CO.

Fig 27: Rear Of Vehicle

G00476546

Courtesy of FORD MOTOR CO.

Fig 28: Roof

G00476547

Courtesy of FORD MOTOR CO.

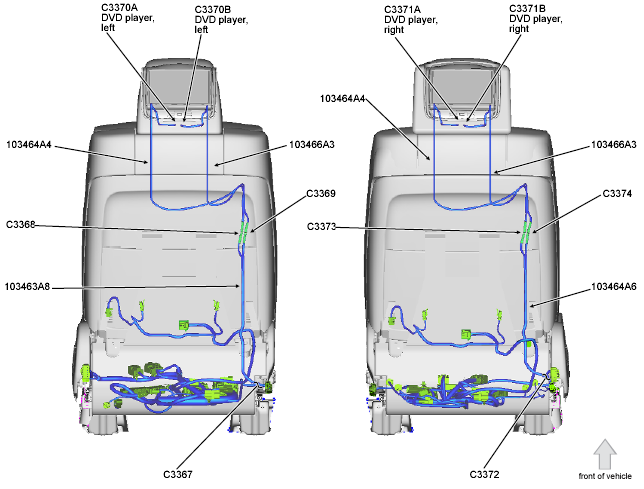

Fig 29: Rear Of Front Seats

G00476548

Courtesy of FORD MOTOR CO.
