Home >> Lincoln >> 2011 >> MKS Base, FWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Front Control Interface Module Connector >> Front Control Interface Module Connector End View - C2403

Front Control Interface Module Connector End View - C2403

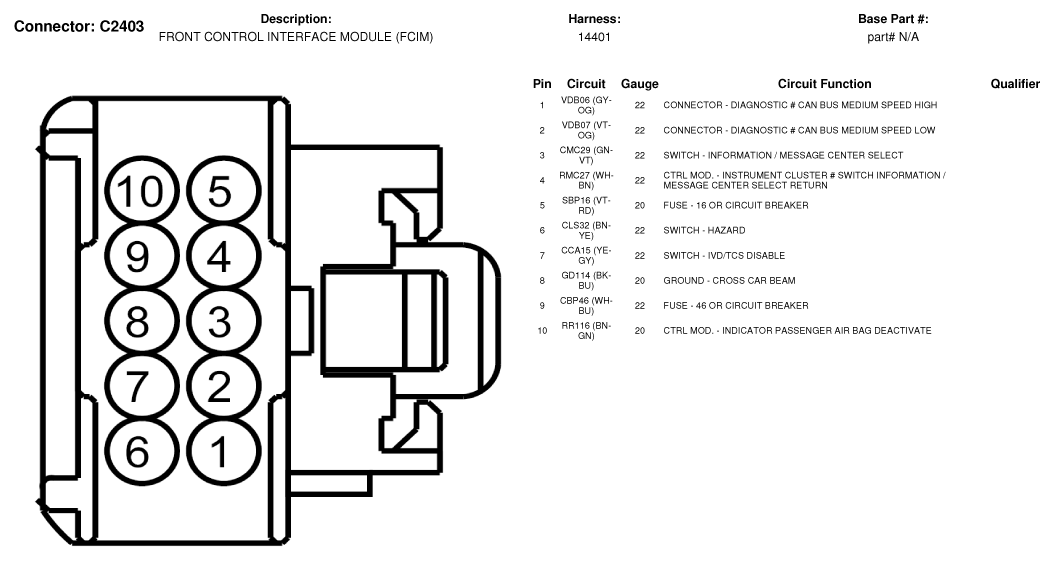

Fig 1: Front Control Interface Module Connector End View (C2403)

G07330046

Courtesy of FORD MOTOR CO.
