Intermediate Servo: Installation

Install 2 new O-rings on the new servo cover and lubricate them with clean transmission fluid.

Fig 1: Locating O-Rings On Servo Cover
Courtesy of FORD MOTOR CO.
Install a new O-ring on the servo piston and lubricate it with clean automatic transmission fluid.

Fig 2: Locating O-Ring Of Piston
Courtesy of FORD MOTOR CO.

NOTE: The piston will rest on top of the servo.

Fig 3: Locating Servo Spring And Servo Piston

Courtesy of FORD MOTOR CO.

Position the servo spring on the piston and install the servo piston in the servo cover.
Position the servo in place in the servo bore.

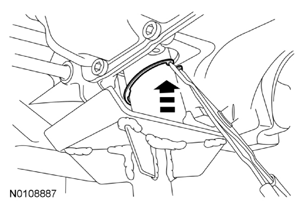

Fig 4: Positioning Servo In Servo Bore
Courtesy of FORD MOTOR CO.

NOTE: Shake the servo cover when installing the servo to help align it in the bore or damage to the O-ring can result causing a leak.

NOTE: Install the snap ring with the bevel facing down or the snap ring can come loose causing damage to the transaxle.

NOTE: Position the snap ring under the servo cover before positioning the tool used to push the servo in the transaxle case.

Fig 5: Installing Servo And Snap Ring Into Transaxle Case

Courtesy of FORD MOTOR CO.

Using a suitable tool and an adjustable jackstand, compress the servo spring. Install the servo and the snap ring into the transaxle case with the snap ring gap facing the right (engine side) of the transaxle.
Inspect the snap ring to be sure it is fully seated in the snap ring groove. Be sure that the snap ring gap is facing right.

Fig 6: Locating Snap Ring
Courtesy of FORD MOTOR CO.
Install the underbody cover and the screws.

Fig 7: Locating Underbody Cover Screws
Courtesy of FORD MOTOR CO.
Slowly fill the transaxle through the transmission fluid level indicator tube with approximately 1.9L (2 qt) of clean transmission fluid.

Fig 8: Locating Transmission Fluid Level Indicator Cap
Courtesy of FORD MOTOR CO.
With the transaxle in PARK, the vehicle on a level surface, the engine at idle (680-780 rpm) and foot pressed on the brake, move the selector lever through each gear and allow engagement of each gear. Place the selector lever back in the PARK position.
Wipe the transmission fluid level indicator with a clean cloth.

NOTE: In order to get an accurate transmission fluid level reading, the vehicle should be on a level surface. Idle the engine to reach the normal operating temperature. Using the scan tool, verify that the transaxle is at normal operating temperature 60°C-70°C (140°F-158°F), prior to adjusting the transmission fluid level.

Fig 9: Locating Transmission Fluid Level Indicator Cap

Courtesy of FORD MOTOR CO.

If transmission fluid needs to be added, add transmission fluid in 0.25L (1/2 pt) increments through the transmission fluid level indicator tube. Do not overfill the transmission fluid. Install the transmission fluid level indicator back in the transmission fluid filler tube until it is fully seated, then remove the transmission fluid level indicator. The transmission fluid level should be at the upper most mark on the transmission fluid level indicator. Only fill to the upper most mark on the transmission fluid level indicator. Do not overfill. Damage to the transaxle will occur.

NOTE: The correct transmission fluid level at normal operating temperature of 60°C-70°C (140°F-158°F) is between the top 2 marks on the transmission fluid level indicator.

Fig 10: Locating Marks On Transmission Fluid Level Indicator

Courtesy of FORD MOTOR CO.

Fill the transaxle to the correct transmission fluid level.

NOTE: The correct transmission fluid level at cool operating temperature of 15°C-25°C (59°F-77°F), is at the bottom mark on the transmission fluid level indicator.

Fig 11: Locating Mark On Transmission Fluid Level Indicator

Courtesy of FORD MOTOR CO.

If the Transmission Fluid Temperature (TFT) is low, fill the transaxle with transmission fluid to the cold range on the transmission fluid level indicator. Recheck the transmission fluid level when the transaxle has reached the normal operating temperature.
