Multifunction Switch, Wiper/Washer Portion: Schematic

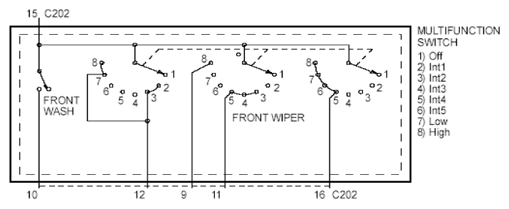

Fig 1: Multifunction Switch, Wiper/Washer Portion Schematic Diagram

G07921146

Courtesy of FORD MOTOR CO.
