Multifunction switch, Lamp portion: Schematic

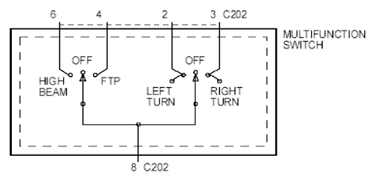

Fig 1: Multifunction Switch, Lamp Portion Schematic Diagram

G07921144

Courtesy of FORD MOTOR CO.
