Home >> Lincoln >> 2012 >> MKX FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Component Testing >> Component Testing >> Master window adjust switch - Edge >> Schematic

Master window adjust switch - Edge: Schematic

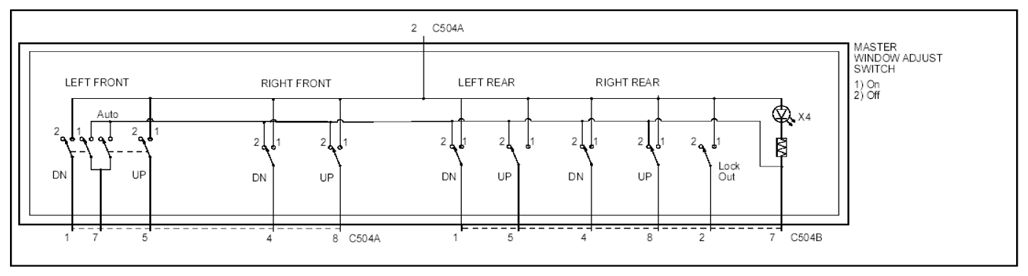

Fig 1: Master Window Adjust Switch (Edge) - Component Testing

G07898813

Courtesy of FORD MOTOR CO.
