Engine Ignition Components Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side

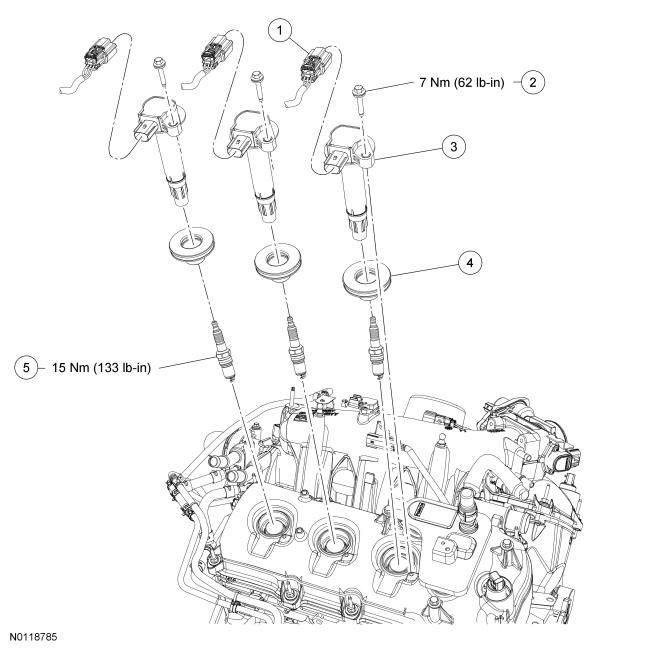

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (LH Side)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2	W701672	Ignition coil-on-plug bolt (3 required)
3	12029	Ignition coil-on-plug (3 required)
4	12025	Coil seal (3 required)
5	12405	Spark plug (3 required)
6	6N041	Fuel injection pump noise insulator shield

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side RH Side

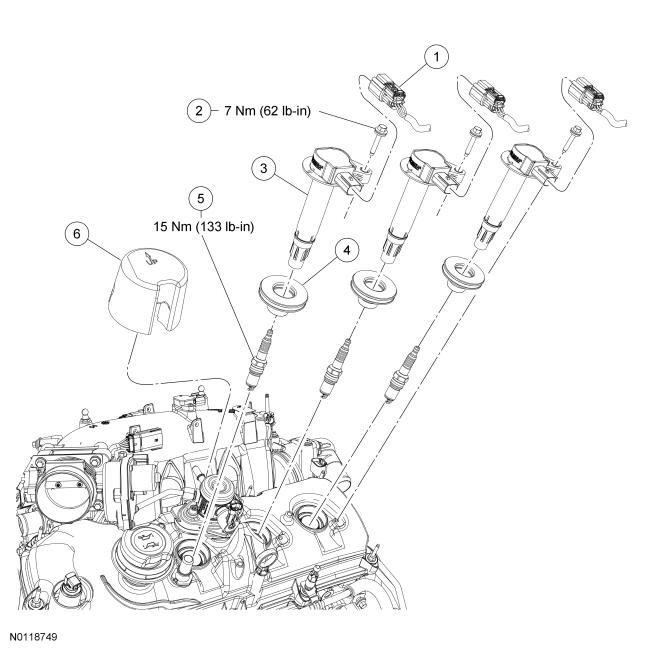

Fig 2: Exploded View Of Engine Ignition Components With Torque Specifications (RH Side)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2	W701672	Ignition coil-on-plug bolt (3 required)
3	12029	Ignition coil-on-plug (3 required)
4	12025	Coil seal (3 required)
5	12405	Spark plug (3 required)

1.

Refer to the procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
