Instrument Panel Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Expedition

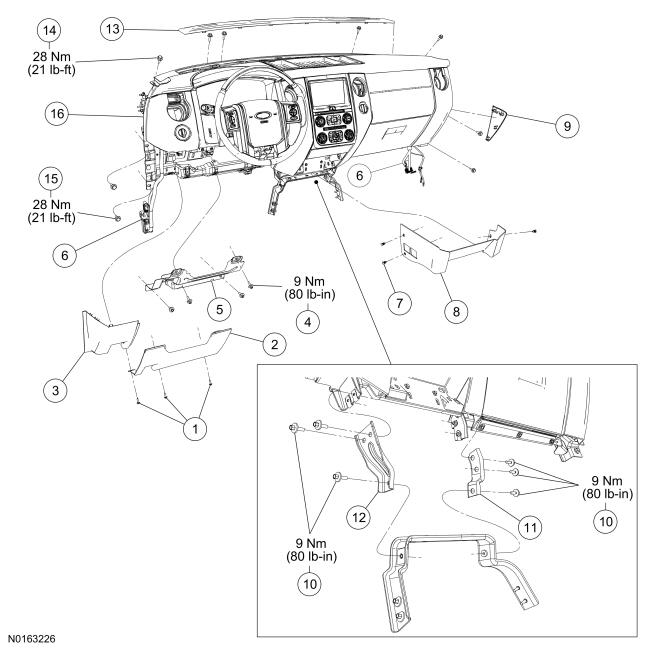

Fig 1: Exploded View Of Instrument Panel With Torque Specifications - Expedition

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W707628	Steering column opening trim panel screws (3 required)
2	04459	Steering column opening trim panel
3	-	Instrument panel lower cover
4	W716533	Steering column reinforcement panel bolt (4 required)
5	017A28	Steering column reinforcement panel
6	14401	Instrument panel electrical wiring harness connectors
7	N811040	Pin-type retainer (3 required)
8	-	Valance panel
9	04480	Instrument panel side finish panel
10	W716533	Instrument panel floor brace bolts (6 required)
11	-	Instrument panel floor brace RH
12	-	Instrument panel floor brace LH
13	044E82	Instrument panel defroster grille
14	W706246	Instrument panel cowl bolt (5 required)
15	W706246	Instrument panel bolt (4 required)
16	04320	Instrument panel

Navigator

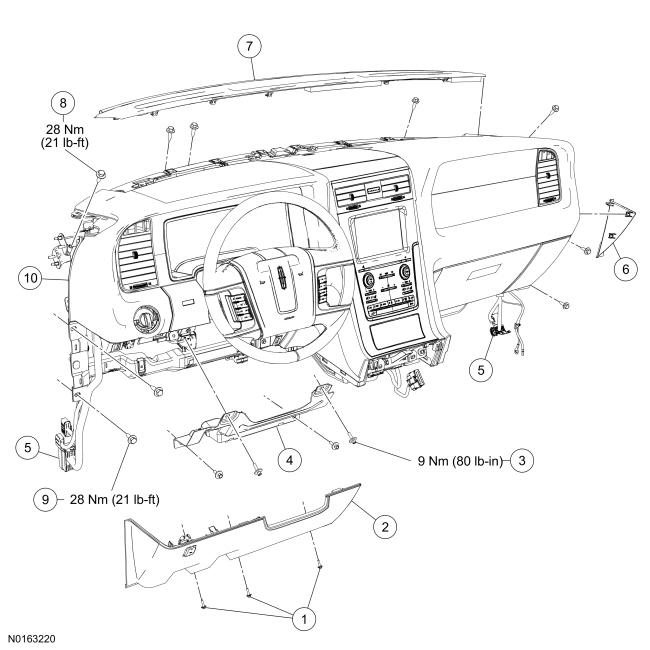

Fig 2: Exploded View Of Instrument Panel - Navigator

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W707628	Steering column opening trim panel screws (3 required)
2	04459	Steering column opening trim panel
3	W716533	Steering column reinforcement panel bolt (4 required)
4	017A28	Steering column reinforcement panel
5	14401	Instrument panel electrical wiring harness connectors
6	04480	Instrument panel side finish panel
7	044E82	Instrument panel defroster grille
8	W706246	Instrument panel cowl bolt (5 required)
9	W706246	Instrument panel bolt (4 required)
10	04320	Instrument panel

1.

For additional information, refer to the appropriate procedures in this service information.
