Exhaust System Alignment

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

• 2.

  Release the fasteners and remove the underbody splash shield.

Courtesy of FORD MOTOR COMPANY

• 3.

  Loosen all exhaust component fasteners and clamps from the turbocharger to the muffler and tailpipe.

NOTE: Make sure the exhaust isolators are not torn, damaged or binding.
• 4.
  Beginning at the front of the vehicle, align the exhaust system to establish the maximum clearance to surrounding components.

• 5.

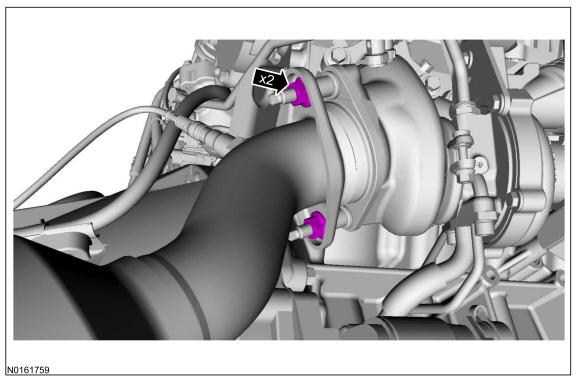

  Tighten the RH catalytic converter flange nuts in the following sequence:

  • 1.

    Partially tighten the RH lower catalytic converter flange nut.

  • 2.

    Tighten the RH upper catalytic converter flange nut.
    • Tighten to 40 Nm (30 lb-ft).

  • 3.

    Tighten the RH lower catalytic converter flange nut.
    • Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 6.

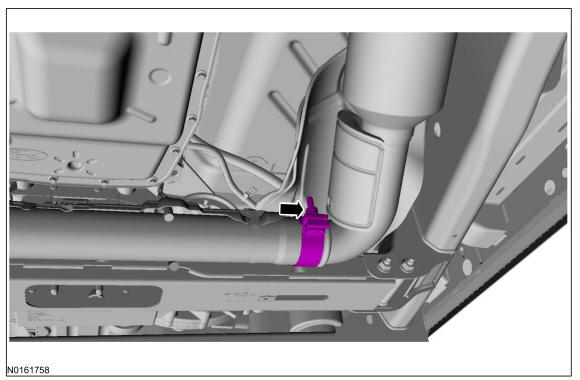

  Tighten the RH catalytic converter to LH catalytic converter clamp.
  • Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 7.

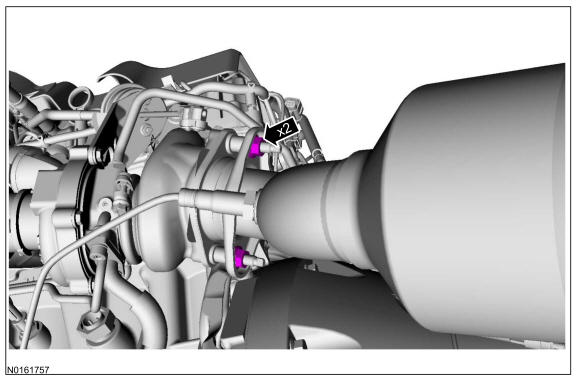

  Tighten the LH catalytic converter flange nuts in the following sequence:

  • 1.

    Partially tighten the LH lower catalytic converter flange nut.

  • 2.

    Tighten the LH upper catalytic converter flange nut.
    • Tighten to 40 Nm (30 lb-ft).

  • 3.

    Tighten the LH lower catalytic converter flange nut.
    • Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 8.

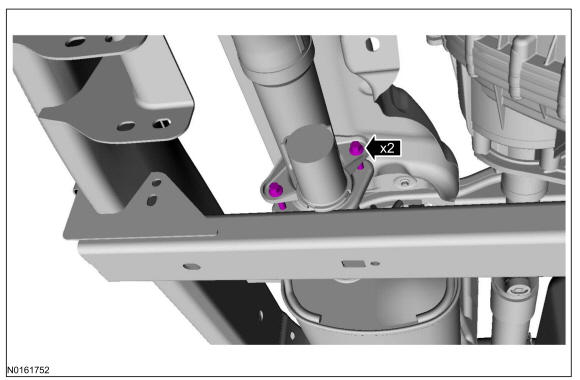

  Tighten the dual catalytic converter to muffler flange bolts and tighten in the following sequence:

  • 1.

    Snug the outer dual catalytic converter to muffler flange bolt.

  • 2.

    Tighten the inner dual catalytic converter to muffler flange bolt.
    • Tighten to 63 Nm (46 lb-ft).

  • 3.

    Tighten the outer dual catalytic converter to muffler flange bolt.
    • Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure the locator tab is in position before tightening components.

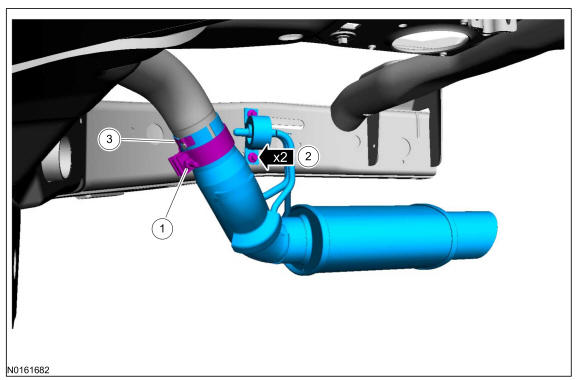

• 9.


  • 1.

    Tighten the muffler and tailpipe Torca® clamp.
    • Tighten to 48 Nm (35 lb-ft).

  • 2.

    Tighten the bolts to the isolator bracket to frame.
    • Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 10.

  Start the engine and check the exhaust system for leaks.

• 11.

  Install the fasteners and the underbody splash shield.

Courtesy of FORD MOTOR COMPANY
