Engine Ignition Components Exploded View

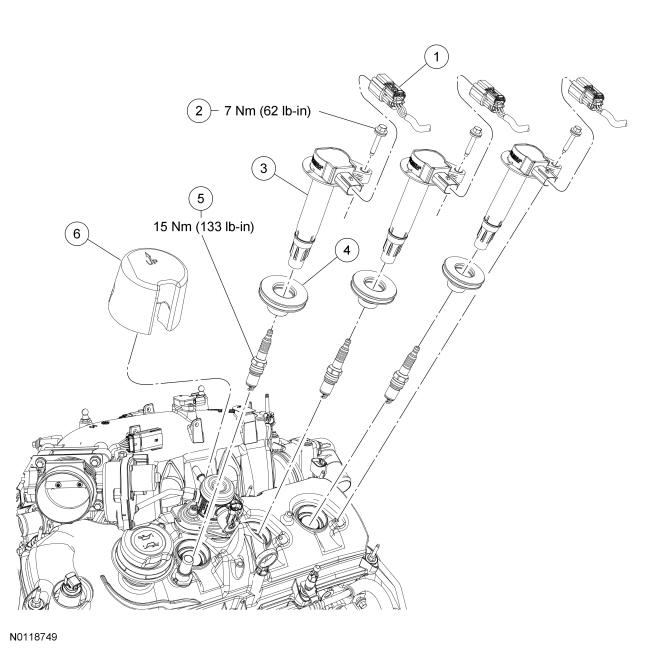

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 2 | W701672 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12029 | Ignition coil-on-plug (3 required) |
| 4 | 12025 | Coil seal (3 required) |
| 5 | 12405 | Spark plug (3 required) |
| 6 | 6N041 | Fuel injection pump noise insulator shield |

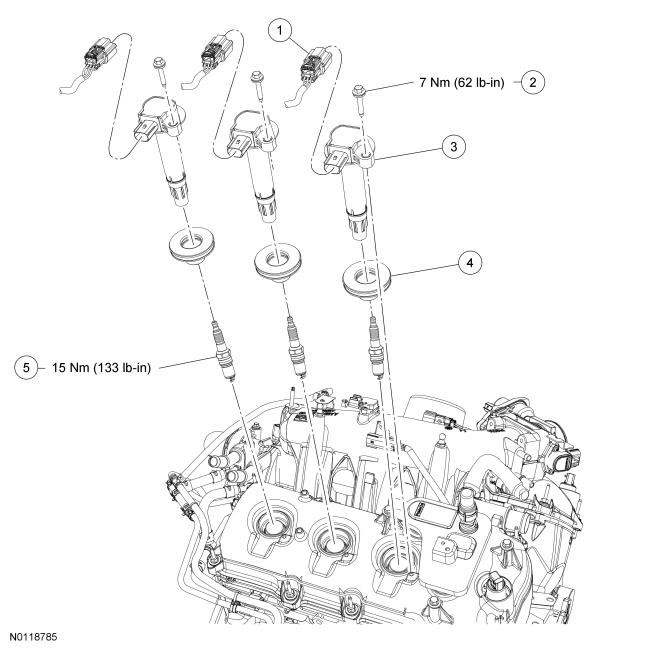

3.5L GTDI RH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 2 | W701672 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12029 | Ignition coil-on-plug (3 required) |
| 4 | 12025 | Coil seal (3 required) |
| 5 | 12405 | Spark plug (3 required) |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
