Transaxle Case: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Bearing Cup Installer 307-576
Courtesy of FORD MOTOR COMPANY	Bearing Cup Installer 307-689
Courtesy of FORD MOTOR COMPANY	Differential Bearing Cup Remover 307-586
Courtesy of FORD MOTOR COMPANY	Drawbar (Heavy Duty Threaded) 204-029 (T77F-1176)
Courtesy of FORD MOTOR COMPANY	Handle 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR COMPANY	Installer, Transfer Gear Bearing 307-541
Courtesy of FORD MOTOR COMPANY	Oil Dam Seal Installer 307-583
Courtesy of FORD MOTOR COMPANY	Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C)
Courtesy of FORD MOTOR COMPANY	Transfer Gear Bearing Race Remover 307-577

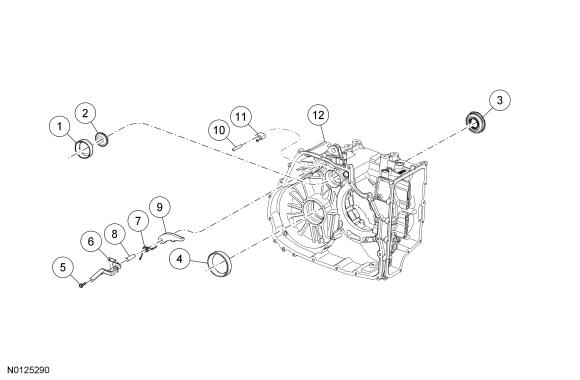

Exploded View

GFD93473

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	7H344	Transfer shaft roller bearing cup
2	7L276	Transfer shaft tube fluid dam
3	1177	Halfshaft seal
4	4222	Differential bearing cup
5	7J283	Park rod guide plate bolts (2 required)
6	7D419	Park rod guide plate
7	7D070	Park pawl return spring
8	7D071	Park pawl shaft
9	7A441	Park pawl
10	7D412	Parking pawl abutment pin (2 required)
11	7G101	Parking pawl abutment
12	7005	Transmission case
