Timing Chain Replacement: Installation

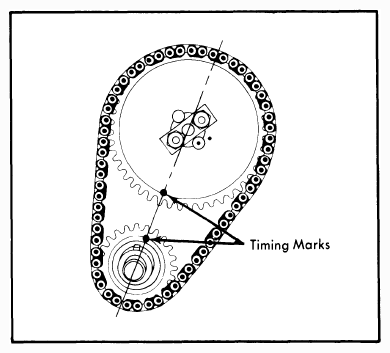

To install, reverse removal procedure and note the following: Align timing marks and correct any misalignment of timing chain by fitting selective shims behind crankshaft sprocket.
CAMSHAFT
| Engine | Journal Diam. in. (mm) | Clearance in. (mm) | Lobe Lift in. (mm) | |
|---|---|---|---|---|
| 1493 cc | ||||
| No. 1 | 1.9659-1.9664 (49.93-49.95) | .0016-.0036 (.04-.09) | ..... | |
| No. 2 | 1.9649-1.9654 (49.90-49.92) | .0026-.0046 (.07-.12) | ..... | |
| No. 3 | 1.9659-1.9664 (49.93-49.95) | .0016-.0036 (.04-.09) | ..... | |
