Hold-On Winding

Connect ohmmeter between small unmarked terminal of solenoid and a good ground on solenoid body. If resistance is not within specifications, hold-on (shunt) windings are bad, replace solenoid.

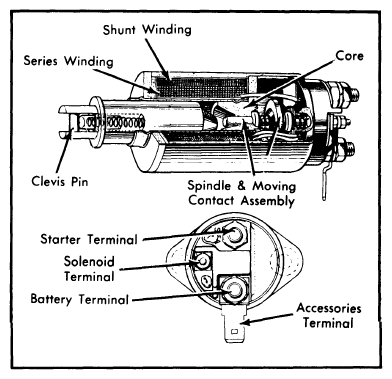

Fig 1: Lucas Starter Solenoid
