Combination Switch

Pull off light switch knob. Remove column cover attaching screws and separate cover. Remove stop ring, cancelling cam, and spring. Disconnect wiring couplers for switch assembly. Remove switch-to-jacket securing screw and detach switch assembly from column.

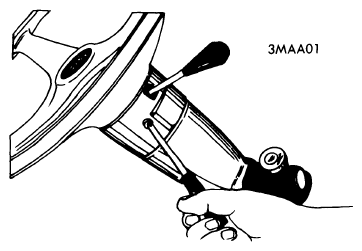

Fig 1: Removing Column Cover
G09345805Courtesy of MAZDA MOTORS CORP.
