Wheel Alignment (Inspection): MAZDA: Adjustment: Camber: Pickup

To adjust, change shims between upper arm shaft and support bracket until specifications for camber are within limits.

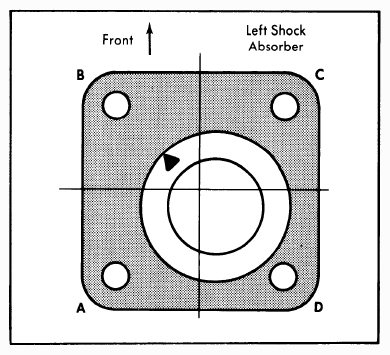

Fig 1: RX4 Caster & Camber Adjusting Pad (Position "B" Shown)

Courtesy of MAZDA MOTORS CORP.
