Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is a dry, single disc, diaphragm spring type. Clutch system is hydraulic using a firewall mounted master cylinder and a slave cylinder attached to clutch housing. Release bearing is pre-lubricated and sealed.

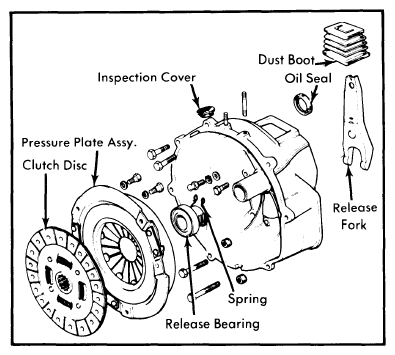

Fig 1: Exploded View of Mazda Clutch Assembly (Cosmo and RX4 Shown)

Courtesy of MAZDA MOTORS CORP.
