Servo Diaphragm

Mechanically linked to throttle plate, servo diaphragm is positioned in response to vacuum signal through 3-way solenoid. See Figure. In turn, diaphragm positions throttle plate.

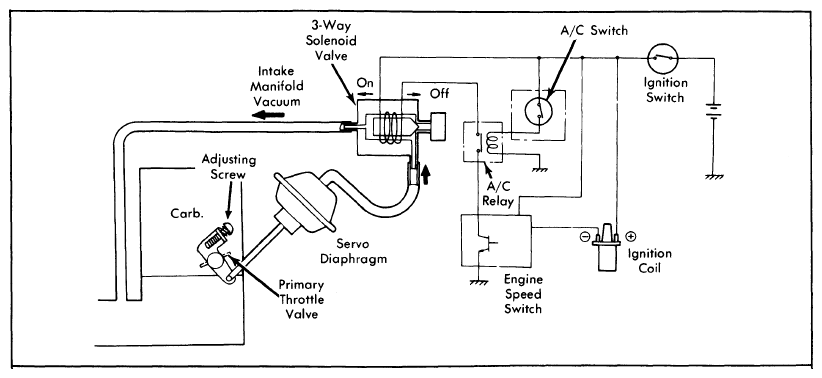

Fig 1: 1974 Throttle Opener System
G09310001Courtesy of MAZDA MOTORS CORP.
