Auto. Trans. & Calif. Man. Trans. Equipped Models

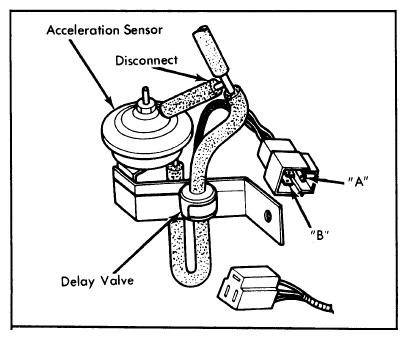

Disconnect vacuum switch and connect an ohmmeter to terminals "A" and "B". See Figure. Start and run engine at idle. No continuity should exist between terminals. Disconnect vacuum sensing tube from vacuum switch. Continuity exists between both terminals.
