Ignition Timing

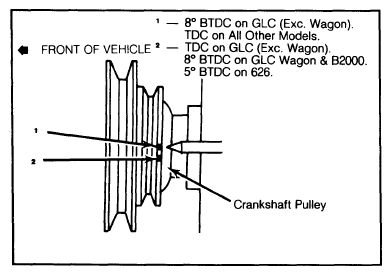

Timing is checked with engine at normal operating temperature, idle speed set to specification and Man. Trans. in neutral or Auto. Trans. in "D". Connect a timing light and tachometer to engine. Start engine and rotate distributor until specified mark on crankshaft pulley aligns with indicator pin.
IGNITION TIMING (Degrees BTDC@RPM)
| Application | Man. Trans. | (1) Auto Trans. | ||
|---|---|---|---|---|
| GLC | 8@850 | 8@750 | ||
| GLC Wagon | 8@800 | 8@750 | ||
| 626 | 5@650 | 5@650 | ||
| B2000 | 8@650 | ... | ||
|
||||
