Tune-Up - Rotary: Distributor

All models are equipped with Mitsubishi electronic ignition with 2 pick-up coils. Air gap is non-adjustable.

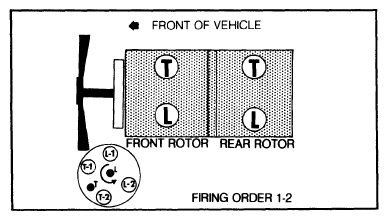

Fig 1: Firing Order and Distributor Rotation

Courtesy of MAZDA MOTORS CORP.
