Coasting Richer System

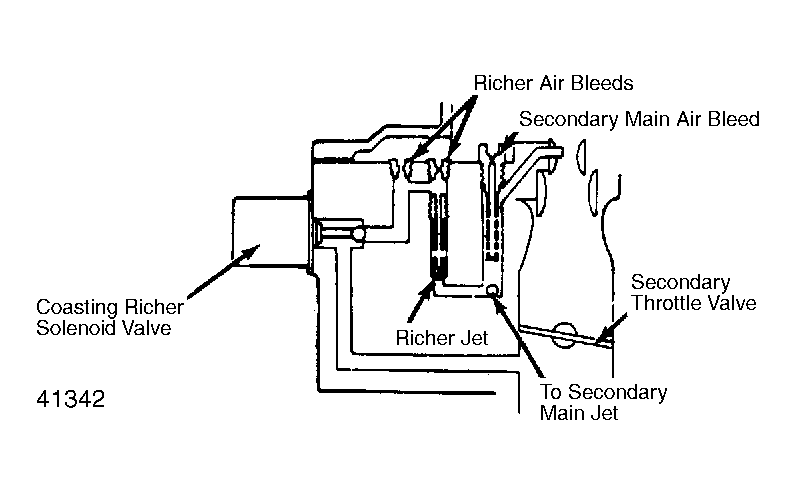

The coasting richer solenoid valve in the carburetor opens the secondary fuel passage. Solenoid operation is governed by the Control Unit. The Control Unit uses data from the ignition coil, neutral and clutch switches and idle switch to control the solenoid valve. See Fig 1 .
