Altitude COMPENSATOR

At altitudes of 3609 ft. (1100 m) or above, the altitude compensator passages should be blocked. Air passages should be open at lower elevations.

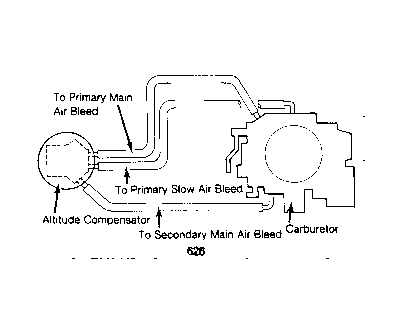

Fig 1: Altitude Compensator Systems Illustration applies to Federal vehicles only.
