Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Fuse Block | Below left side of dash. |
| Fusible Links | On left inner fender panel (right side radiator support RWD). |
| Heater Blower Motor Resistor | Below right side of dash. |
| Lights & Ignition Key Chime | Below left side of dash. |

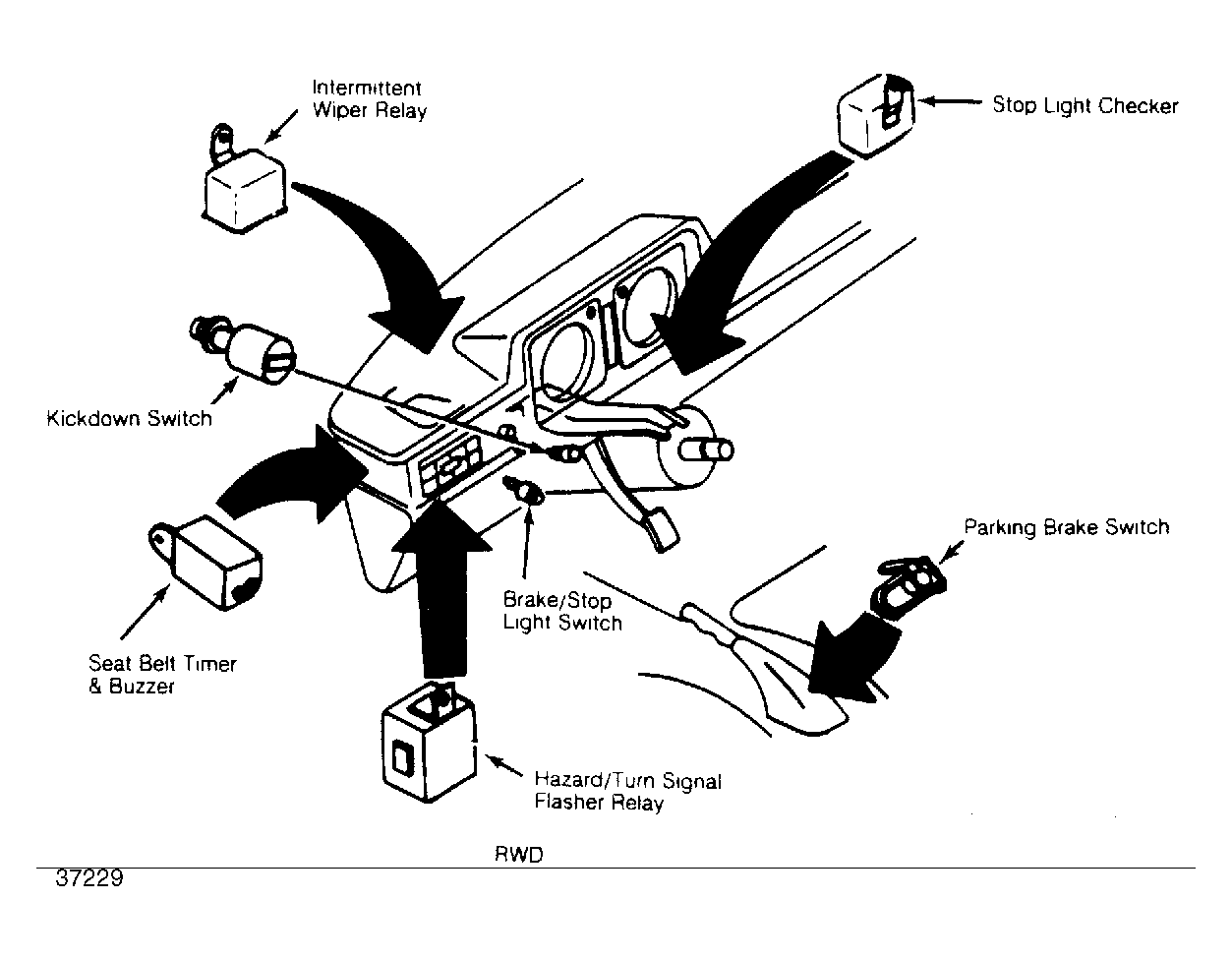

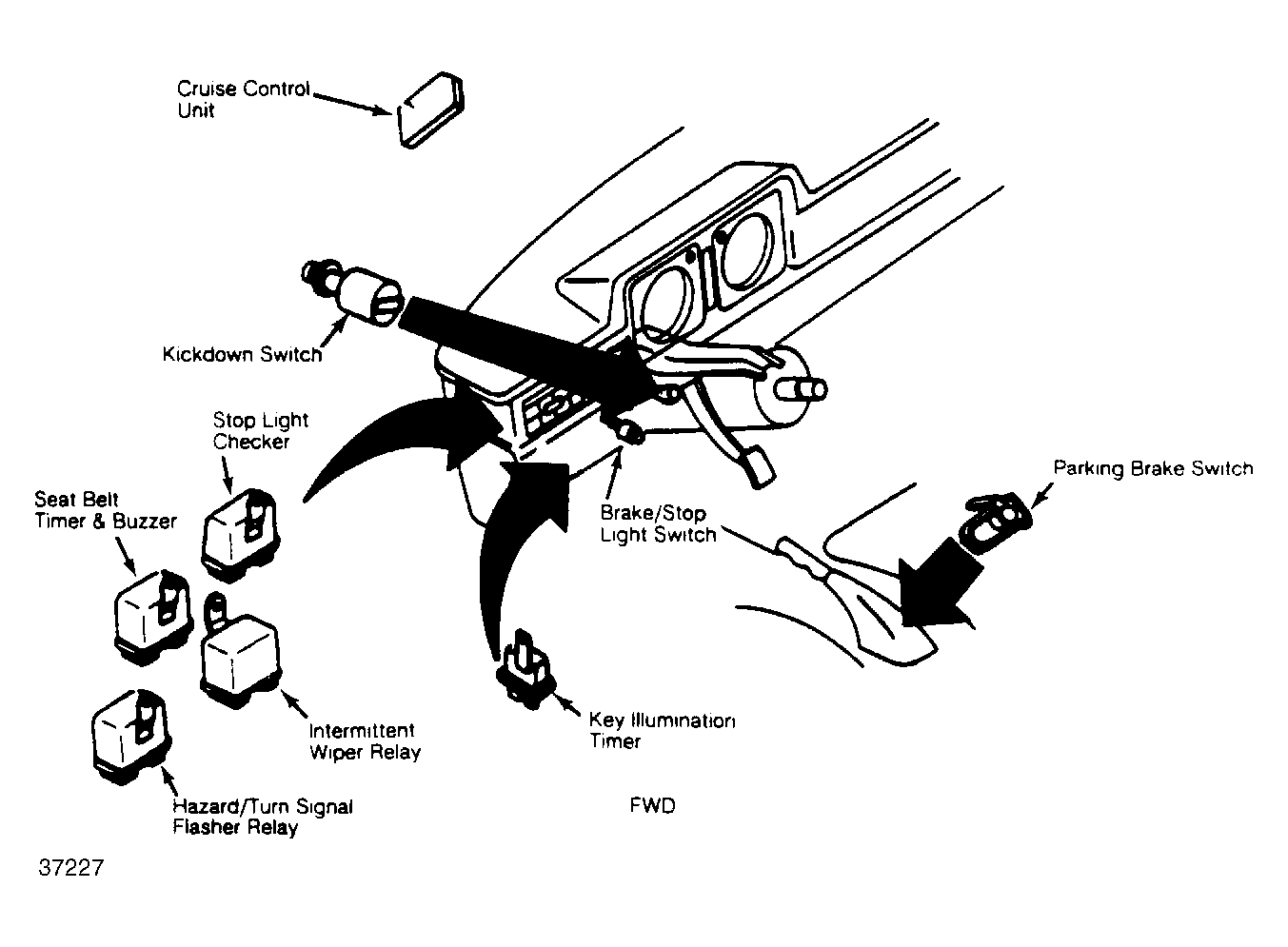

| Stop Light Checker | Below left kick panel. See Figure & Figure . |
