Choke Switch
- Unplug connector from choke switch. Check continuity between numbered terminals in connector using an ohmmeter.

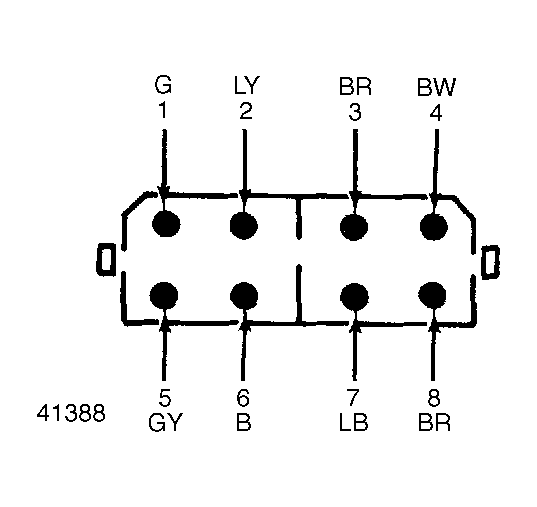

- Continuity should exist between terminals No. 3 and No. 7 when choke knob is pulled to about 0.4" (10 mm.). Continuity should exist between terminals No. 6 and No. 8 when choke knob is at any position. See Fig 1 for terminal locations.
