Altitude COMPENSATOR

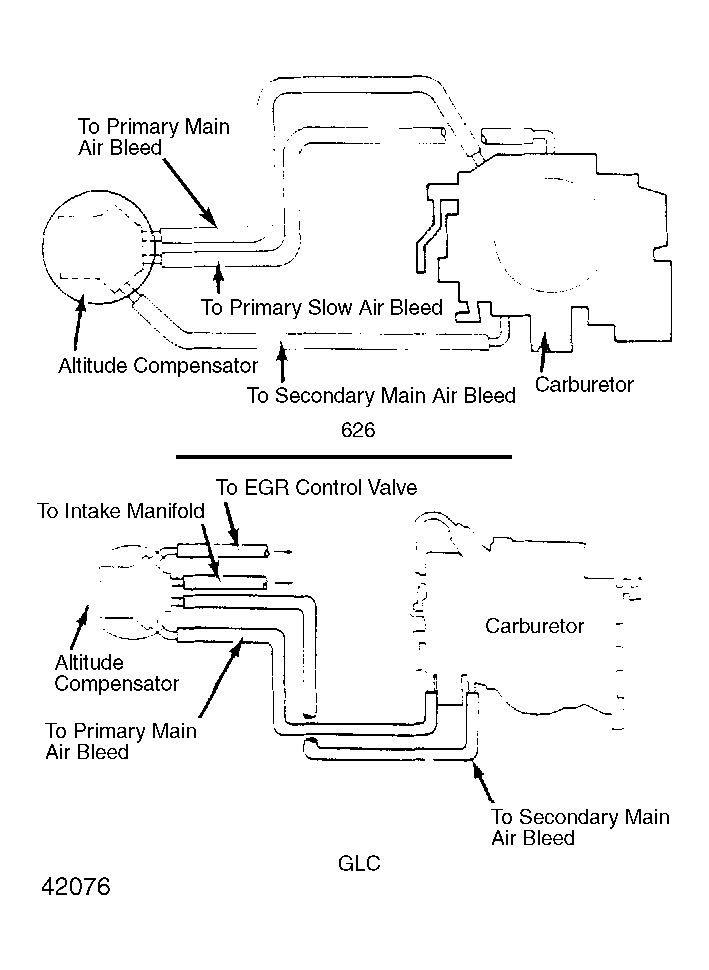

At altitudes of 3609 ft. (1100 m) or above, the altitude compensator passages should be blocked. The air passages should be open at lower elevations. See Fig 1.
At altitudes of 3609 ft. (1100 m) or above, the altitude compensator passages should be blocked. The air passages should be open at lower elevations. See Fig 1.
