Altitude COMPENSATOR

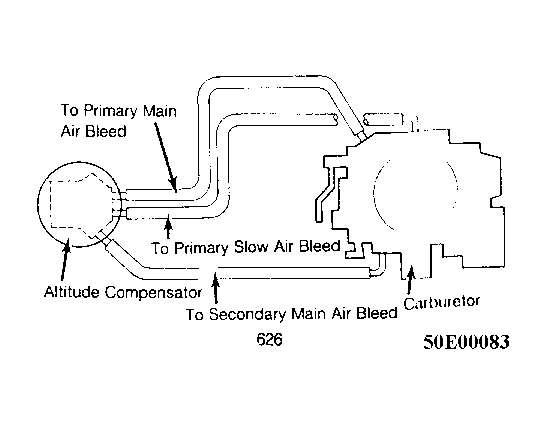

Above altitudes of about 3600 ft., altitude compensator passages should be blocked. The air passages should be open at elevations below 3600 ft. See Figure .
