Float Level
NOTE:
If fuel is not within mark on float chamber sight glass, with engine idling, remove air horn and adjust using following procedures.

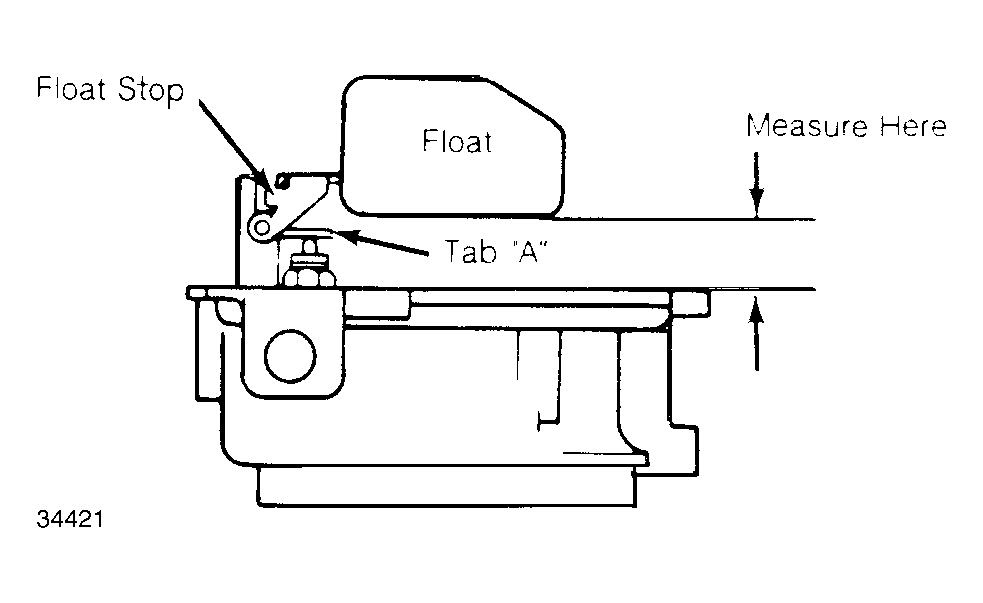

Invert air horn, let float hang by its own weight and measure distance between float and air horn gasket surface (gasket removed). If necessary, bend tab "A" to adjust. See Fig 1 .
