Electronic Control Unit (Ecu)

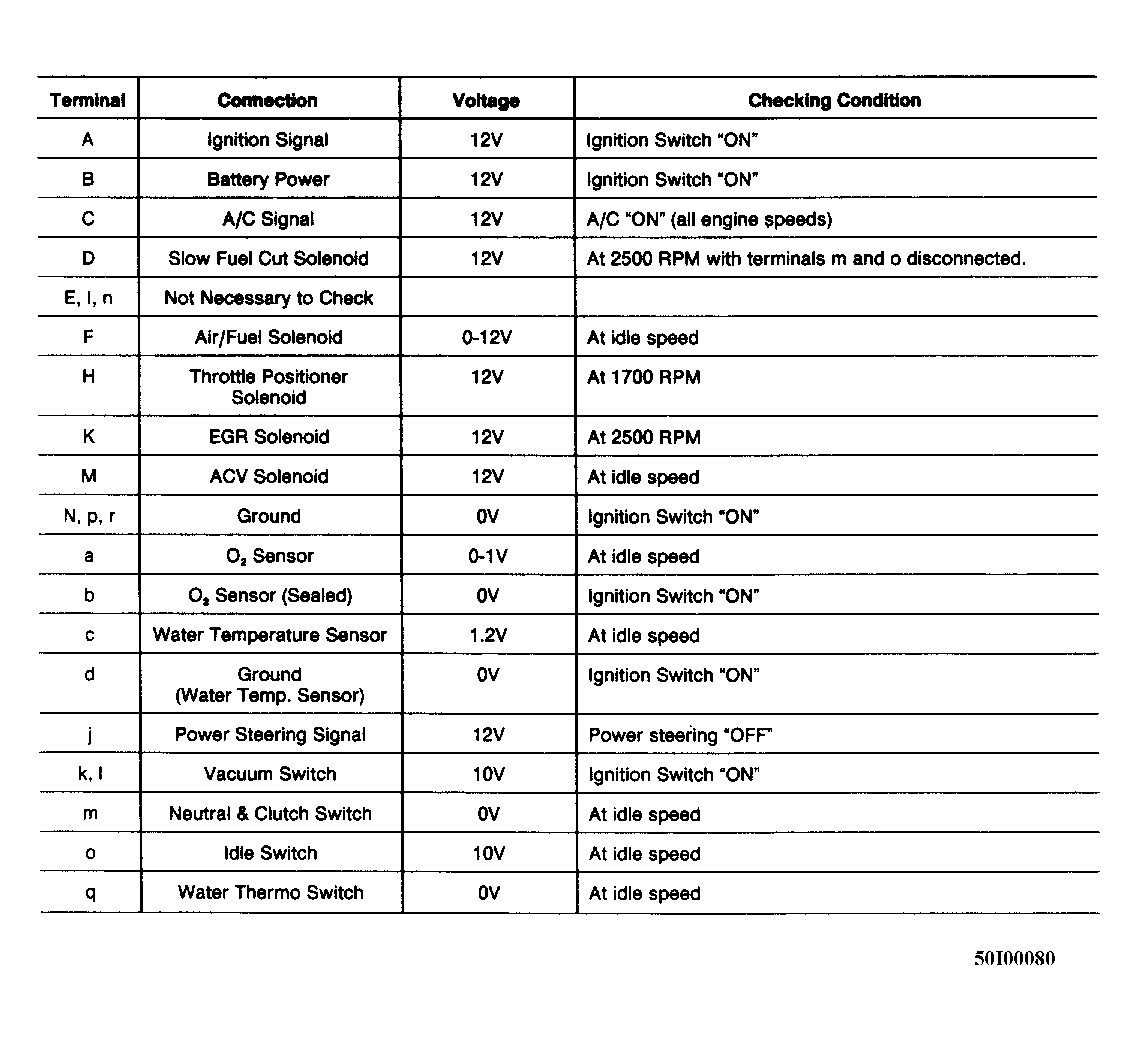

- The ECU may be tested using a voltmeter. Engine must be at operating temperature. For testing, ignition switch must be in "ON" position and engine not running. Measure voltage at each terminal and compare values to ELECTRONIC CONTROL UNIT TESTING chart. See Fig 1 .
