Service Indicator & Warning Lights: Notes

NOTE: All warning lights will come on with the ignition. Any warning light which does not come with the ignition must be checked and repaired.

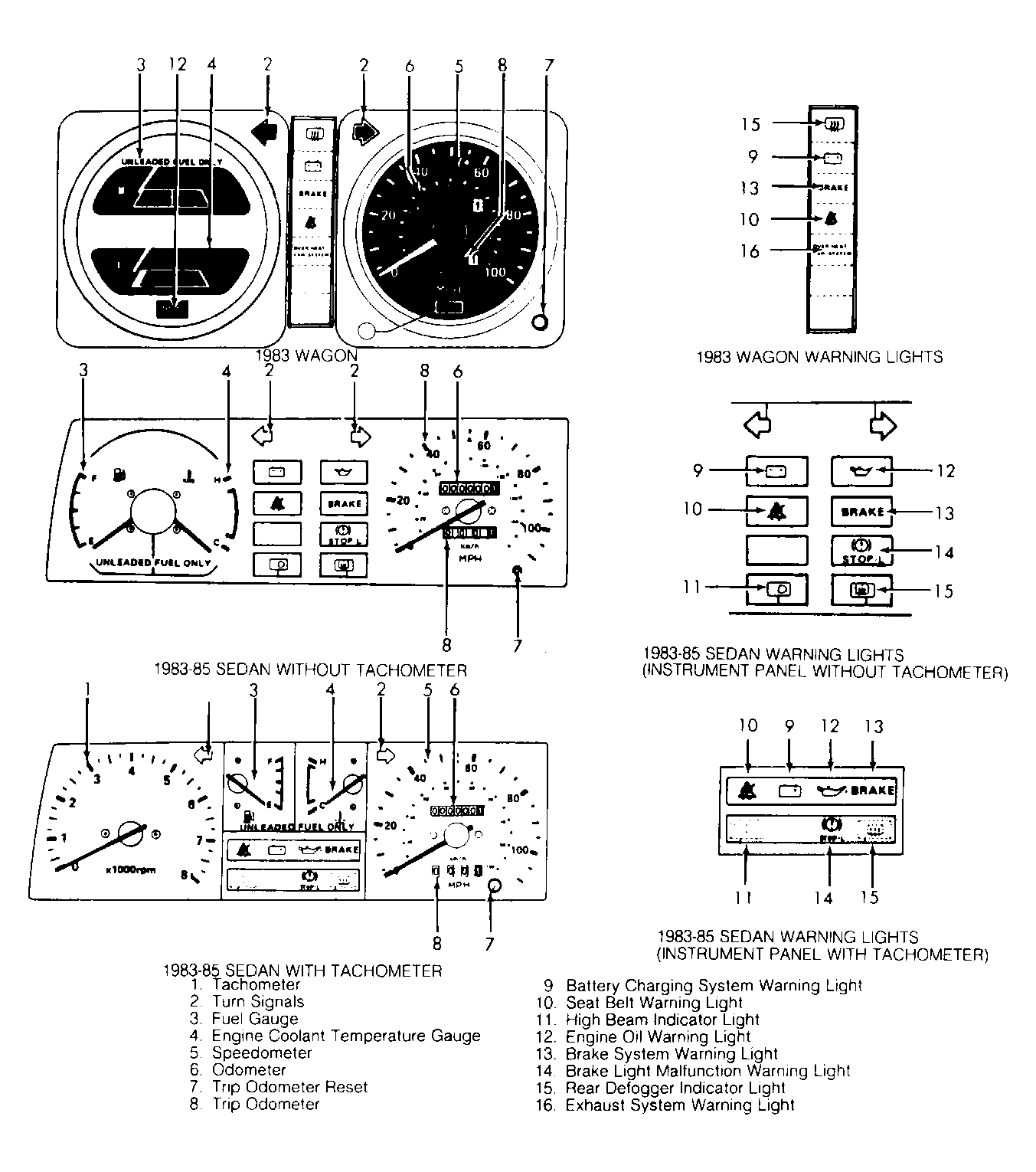

Fig 1: Dash Gauges & Warning Lights

Courtesy of MAZDA MOTOR OF AMERICA, INC.
