Information Label Locations

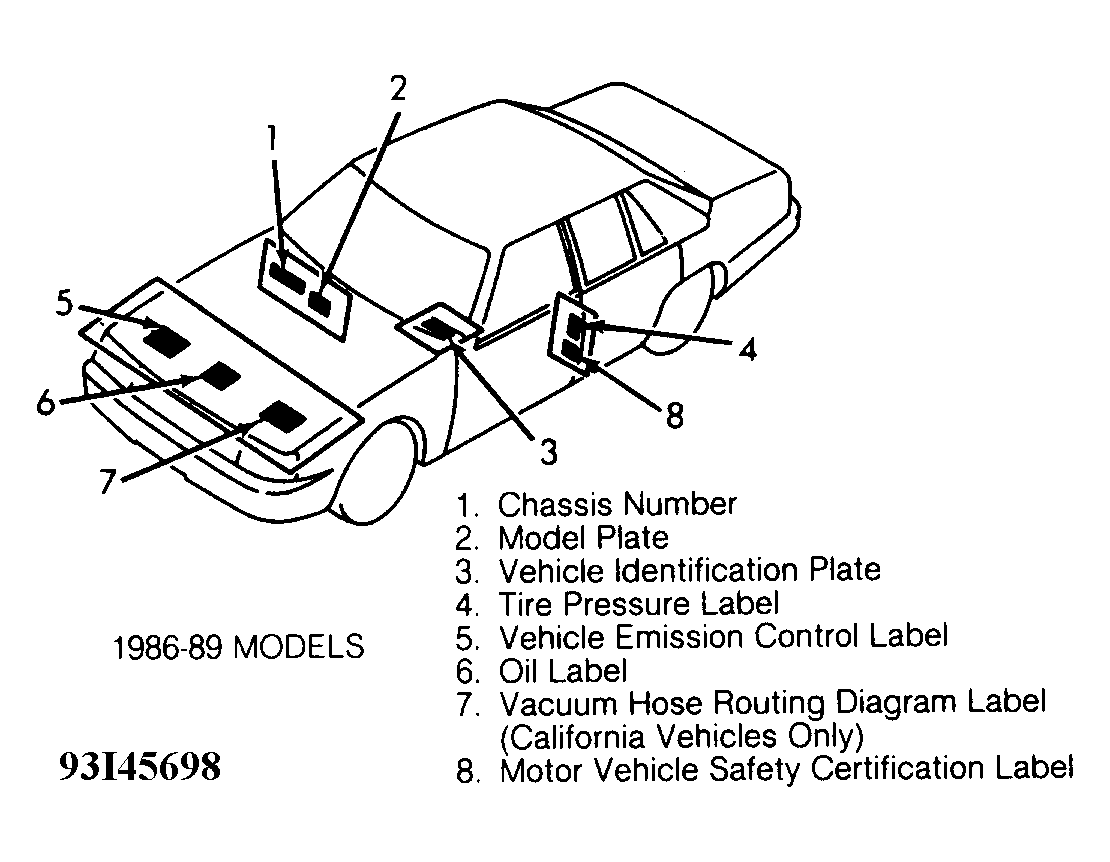

Fig 1: Information Label Locations (1986-89 Models)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

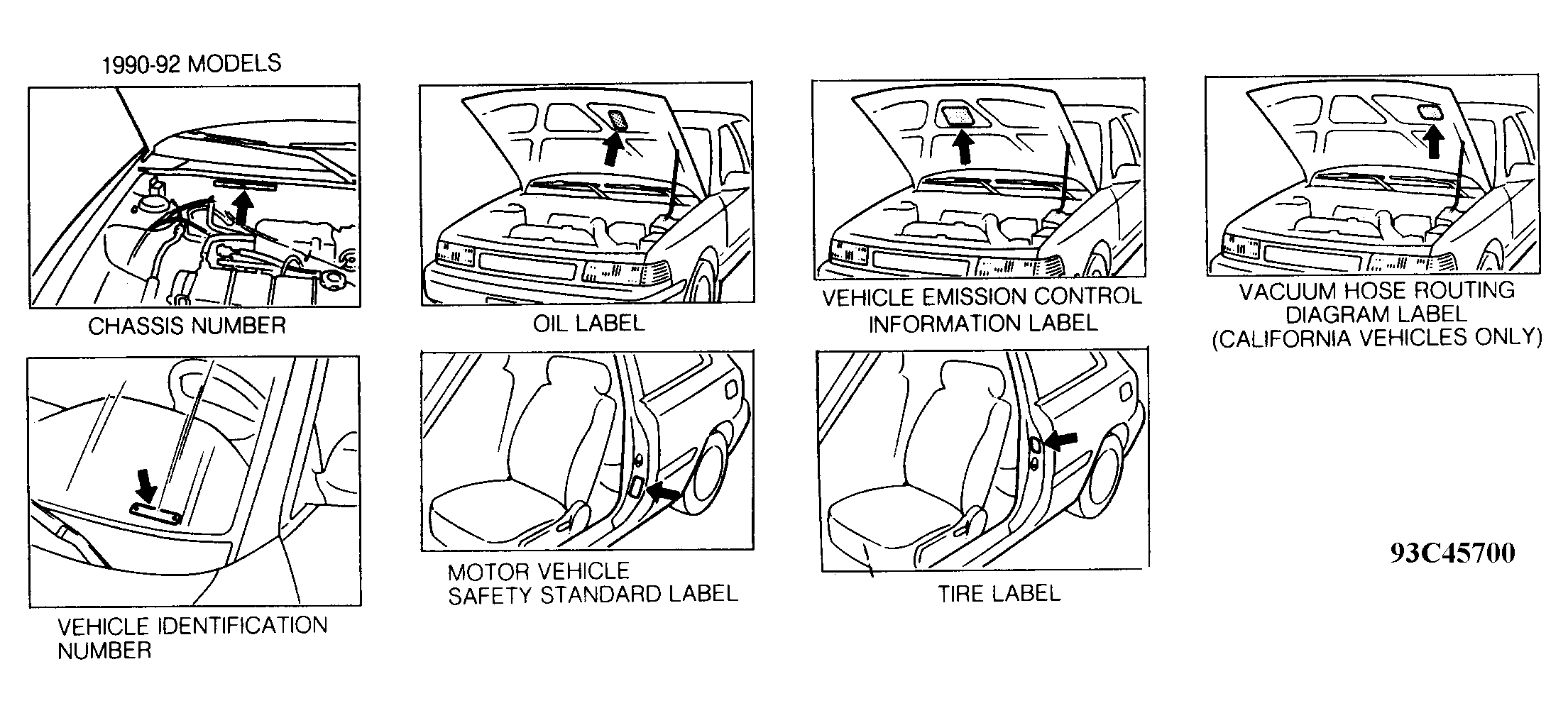

Fig 2: Information Label Locations (1990-94 Models)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

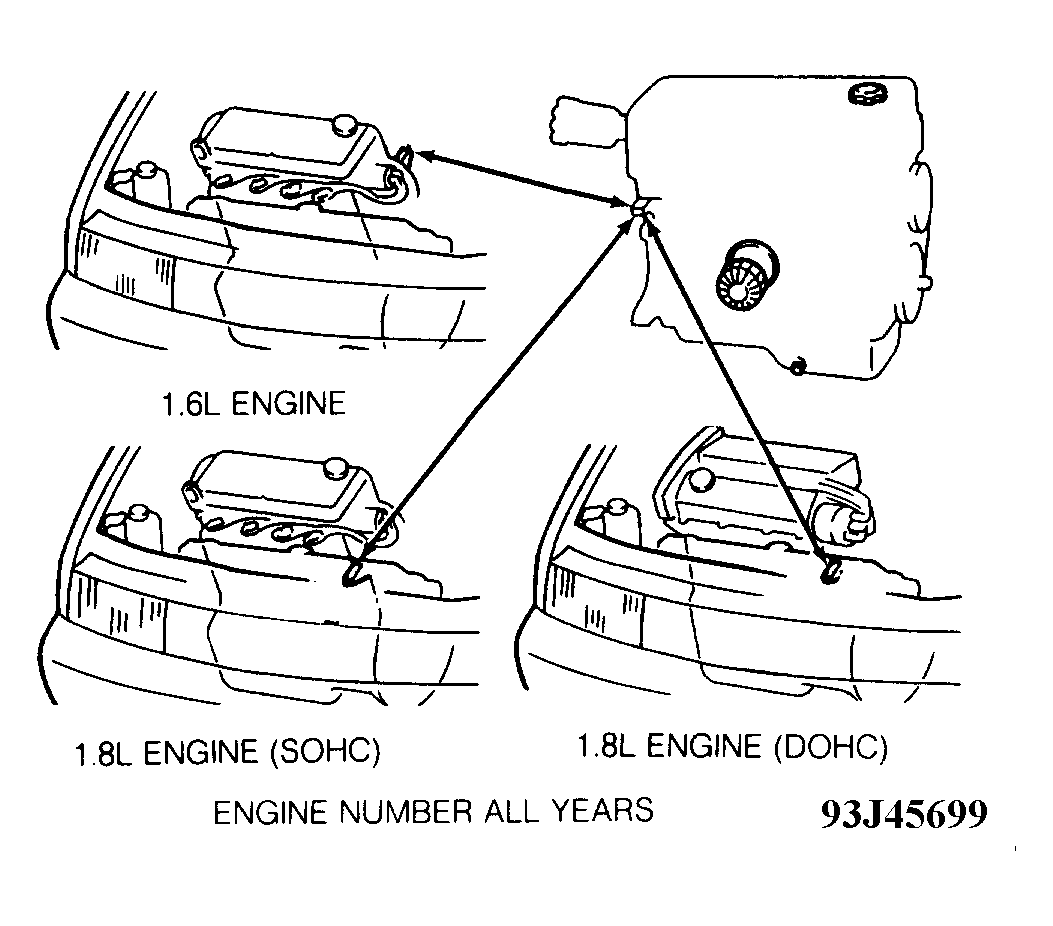

Fig 3: Engine Number Locations (All Years)

Courtesy of MAZDA MOTOR OF AMERICA, INC.
