Control Units

CONTROL UNITS LOCATION

Component Location

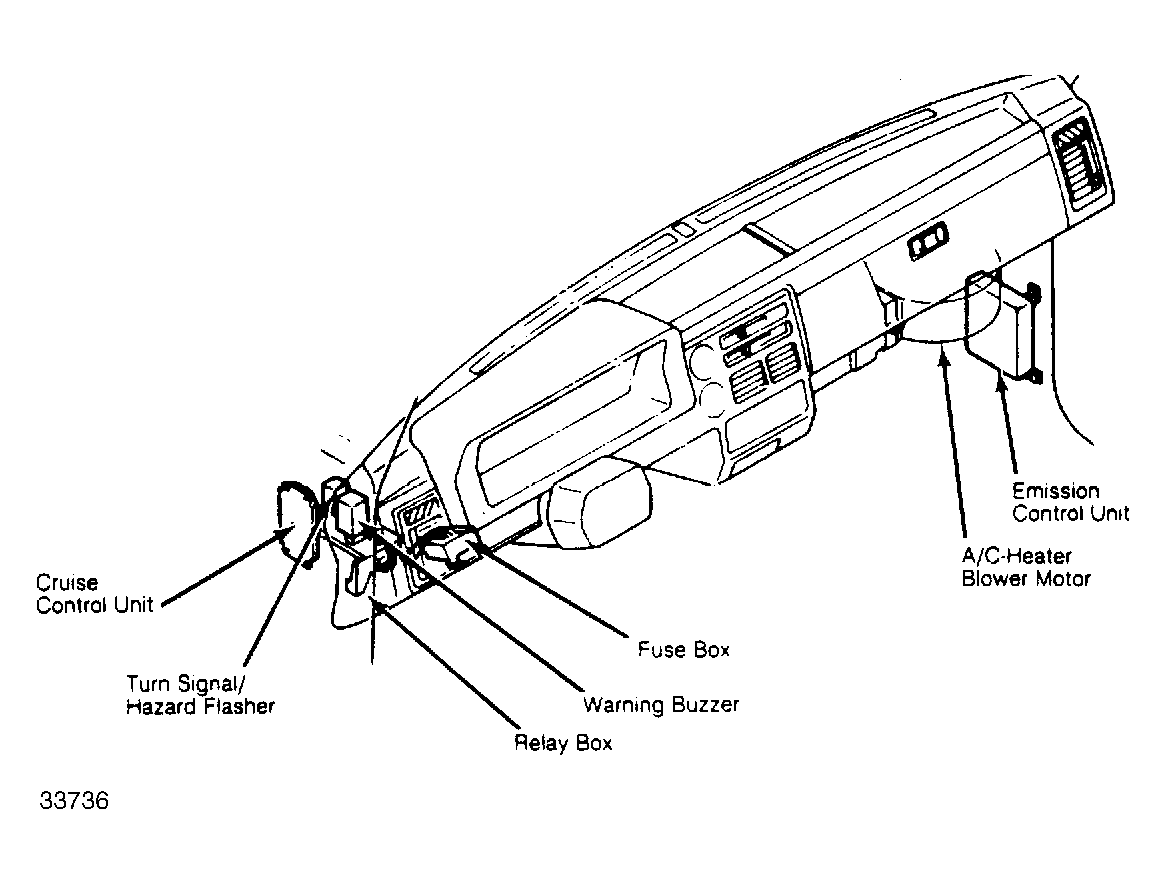

Cruise Control Unit Behind left side of dash, near relay box. See Figure .
Emission Control Unit Behind right kick panel. See Figure .
Turn Signal/Hazard Flasher Under left side of dash, on relay box. See Figure .
