Coasting Richer Solenoid Valve: B2200

Bring engine to normal operating temperature and run at idle. Using a jumper wire, ground the Brown/Black wire terminal of the carburetor connector. See Fig 1 . If working properly, the engine speed should increase. Replace valve if defective.

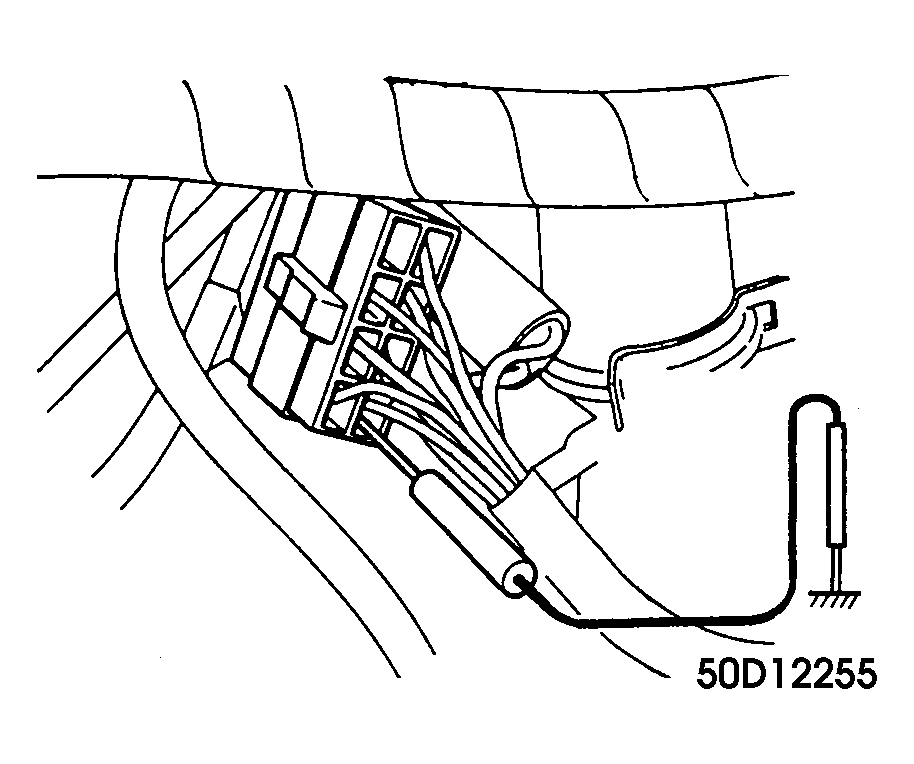

Fig 1: Coasting Richer Solenoid Valve
G50D12255Courtesy of MAZDA MOTORS CORP.
