Home >> Mazda >> 1987 >> B2200 Base, 2D Pickup >> Repair and Diagnosis >> Engine Performance >> System >> 2.2L Feedback Carburetor System >> Testing Trouble Codes >> Code 14 - Atmospheric Pressure Sensor

Code 14 - Atmospheric Pressure Sensor

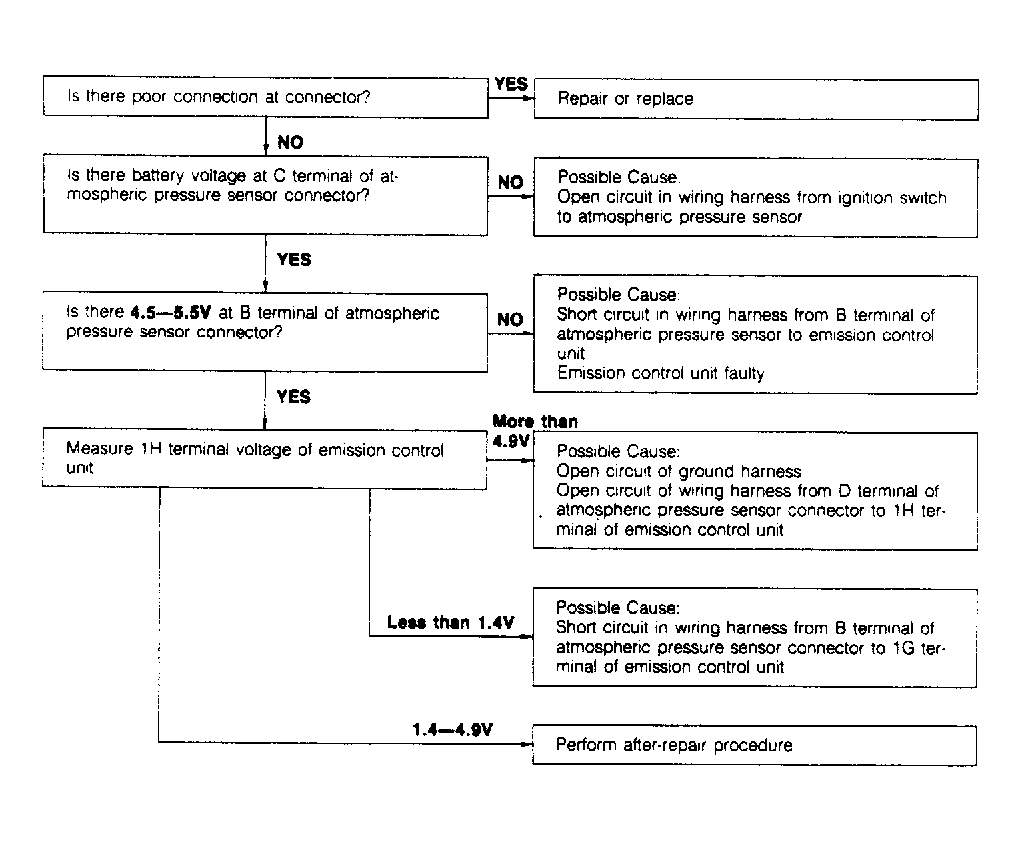

Fig 1: Code 14, Atmospheric Pressure Sensor

G94882

Courtesy of MAZDA MOTORS CORP.
